EcoStar Roof Tiles
Description

Viking EcoStar Roofing Tiles emulate the look and durability of natural slate at half the weight. The tiles are composed of 80% recycled polymers and are installed over a plywood or Viking SuperStrand sarking substrate.

The unique formulation of EcoStar tiles renders several advantages over slate roofing whilst still offering natural slate's timeless look and longevity.

Key Features
  • Composed of 80% post-industrial recycled rubber and plastics from the likes of old car bumpers; door mouldings; radiator hoses; and off-cuts from the manufacture of disposable diapers;
  • Tiles are flexible and won't crack and have high impact resistance;
  • Over 45 colour and profile combinations;
  • Assessed by the independent Underwriters Laboratory (U.L.), assessing their collective resistance to: wind uplift; UV; and impact (holds the highest impact rating a construction product can);
  • Formulated to resist extreme temperature variations;
  • 175kmph wind rating (officially classified as 'Very High');
  • The structural integrity of the EcoStar system is enhanced through the installation of a timber sarking substrate onto which it is securely fastened. The roof system (including substrate) is approximately half the weight of a natural slate roof and yet its durable and light-weight substrate braces the entire building; negating the need for extra structural requirements for heavy weight roofing materials.
NZ-Owned Business
NZ-Owned Business
Recycled Content (Pre-Consumer)
Pre-Consumer Recycled Content
Scope of Use

Viking EcoStar Roofing Tiles are suitable for use as a roof cladding for buildings within the following scope:

  • the scope limitations of NZBC Acceptable Solution E2/AS1, Paragraph 1.1, with regard to floor plan area and building height; and,
  • constructed with timber roof framing and sheathing complying with the NZBC; and,
  • where the roof slope is 15 degrees or greater; and,
  • situated in NZS 3604 Wind Zones up to and including 'Very High'.
Limitations on Use

The system must be installed in accordance with the Technical Literature by a Viking Roofspec Trained and Approved installer.

NZS 3604 Earthquake Zone Very High suitable
Very High Earthquake Zone
Statement of Building Code Compliance
  • Clause B1 STRUCTURE: Performance B1.3.1, B1.3.2 and B1.3.4
  • Clause B2 DURABILITY: Performance B2.3.1(a)
  • Clause E2 EXTERNAL MOISTURE: Performance E2.3.1 and E2.3.2
  • Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1
Other Performance Attributes
  • Backed by a 50-year product warranty and project dependant, may be eligible for a Viking Full System Warranty, covering both the product and installation in one document;
  • 100% recyclable at the end of their usable life;
  • Suitable for household water collection when a domestic water treatment system is installed;
  • Being half the weight of natural slate, less structural timber is required to brace and support the roof.
B1 Structure compliant
Structure
B2 Durability compliant
Durability
E2 External Moisture compliant
External Moisture
F2 Hazardous Building Materials compliant
Hazardous Building Materials
Literature
Product Assurance
Full Product Information
Masterspec
Substrate Checklist - Plywood
Uplift Resistance Report
Warranty
Other Literature
Brochure
Case Study - Character Home Keeps Good Looks
Case Study - Half the Weight of Slate

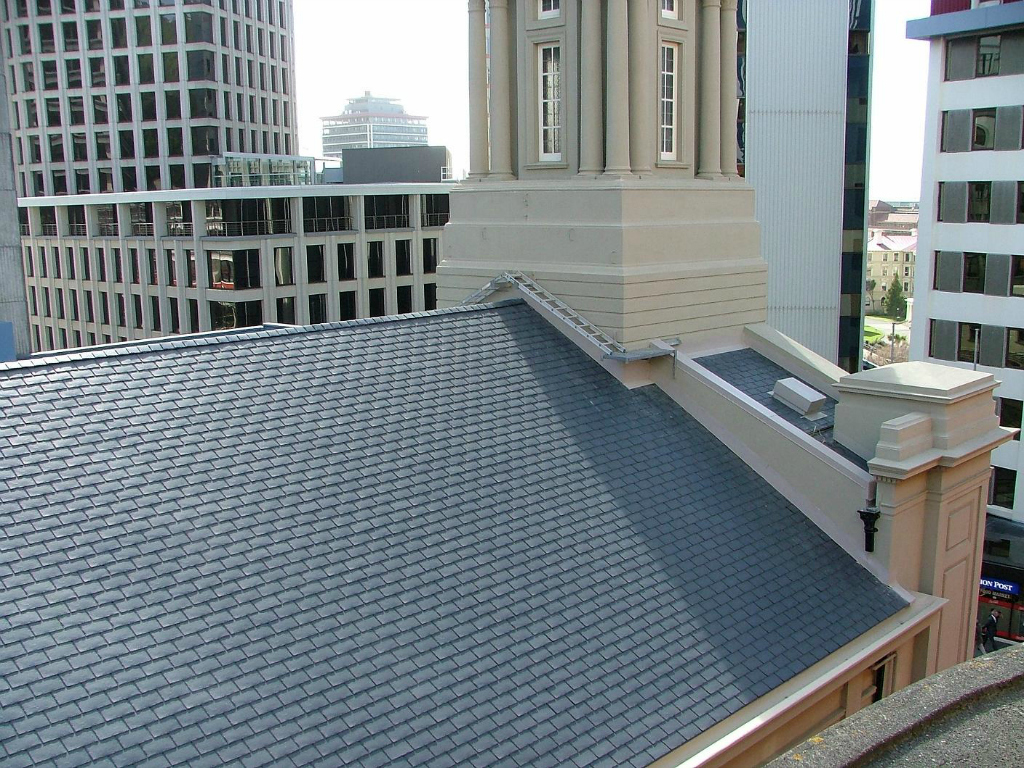

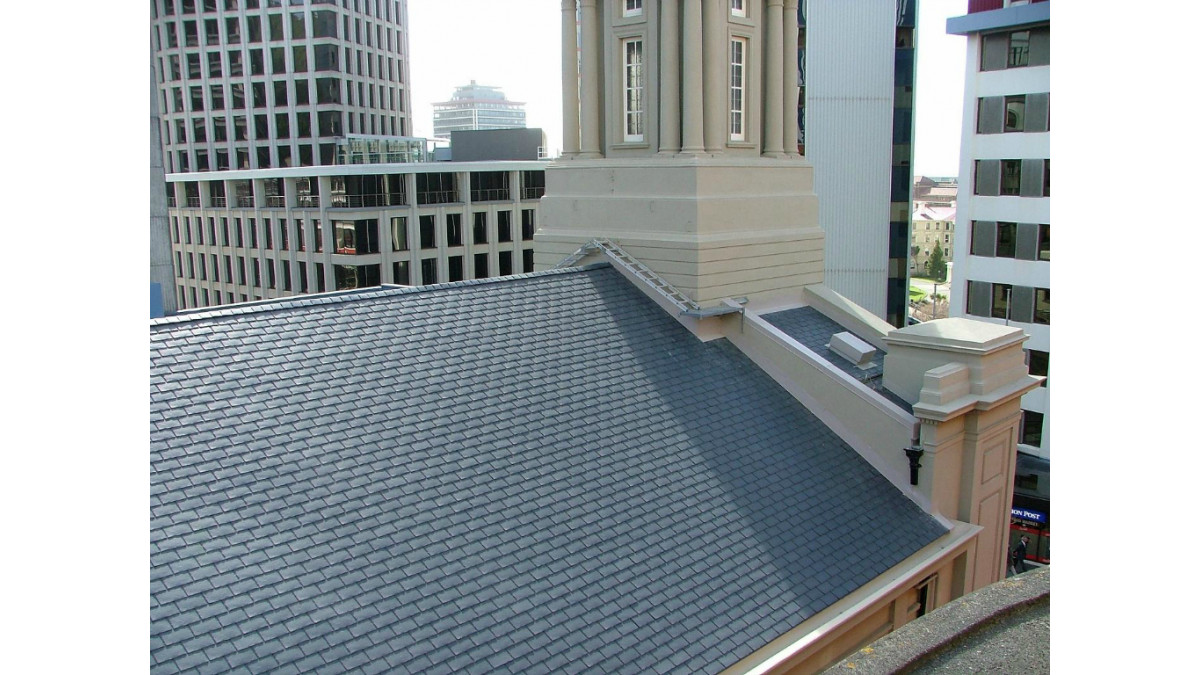

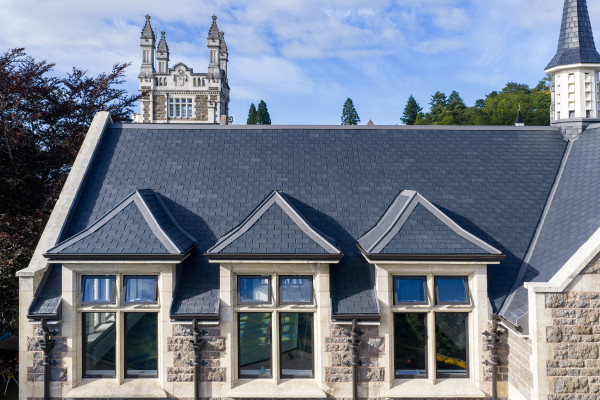

Case Study - Reroofing an Historic Building
