Higher-density housing asks architects to deliver comfortable, durable homes on tighter floor plates. If much of that performance responsibility sits behind the cladding with the weather resistive barrier (WRB), the insulation, and the air and vapour control strategy, then it makes sense to spend time getting these elements right because on an apartment building, these layers repeat across thousands of square metres and hundreds of window, floor and penetration junctions. A weak detail gets multiplied, but so does a good one.
A WRB system, not just a membrane
A successful apartment façade is not simply a collection of individual materials. Its performance depends on how all the layers work together and how consistently they can be detailed across the building. Get this right and it may allow for more aesthetic and less functional (weathertightness) perfection of external visual layer.

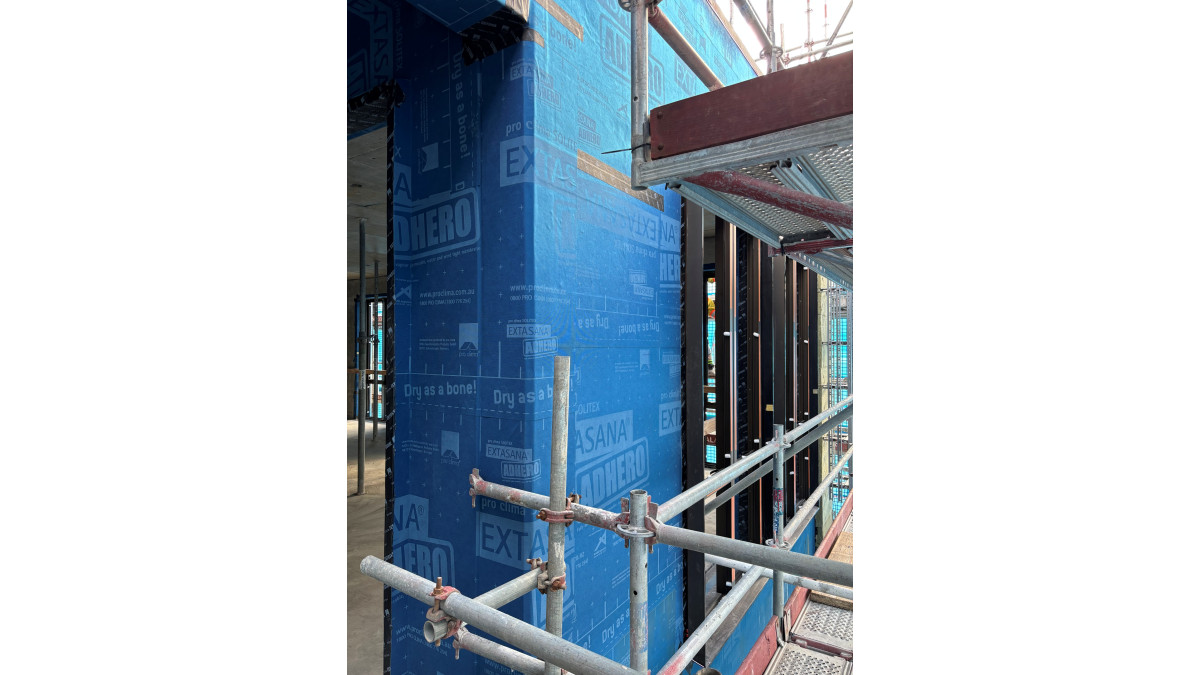

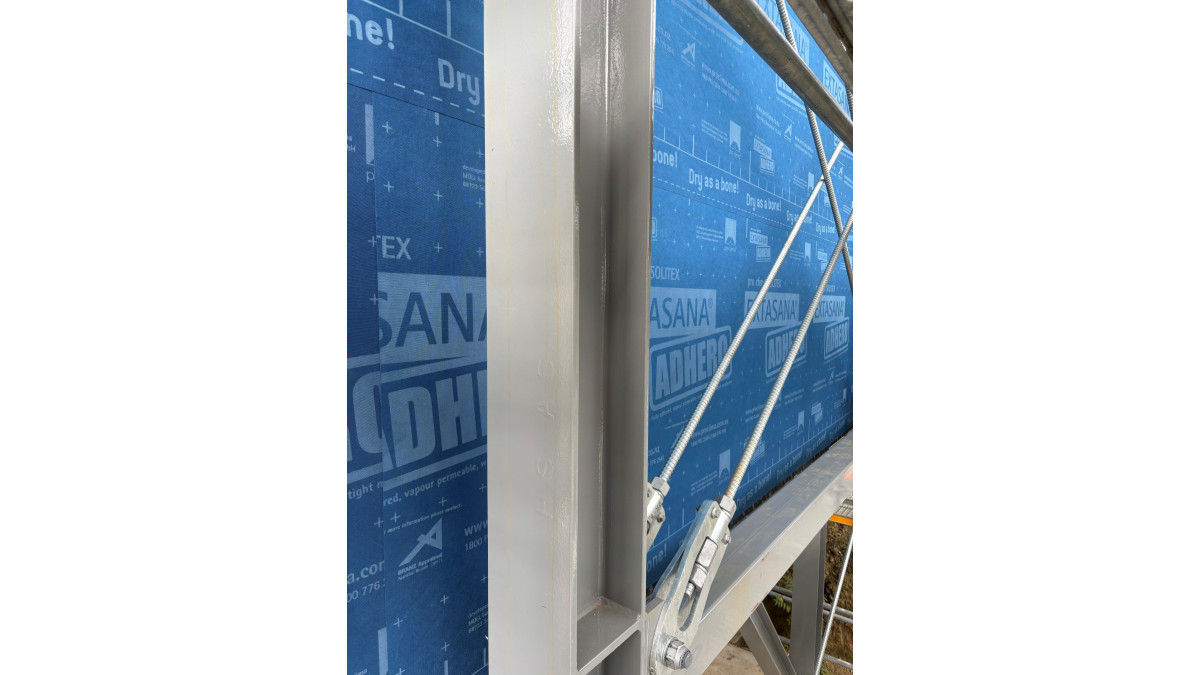

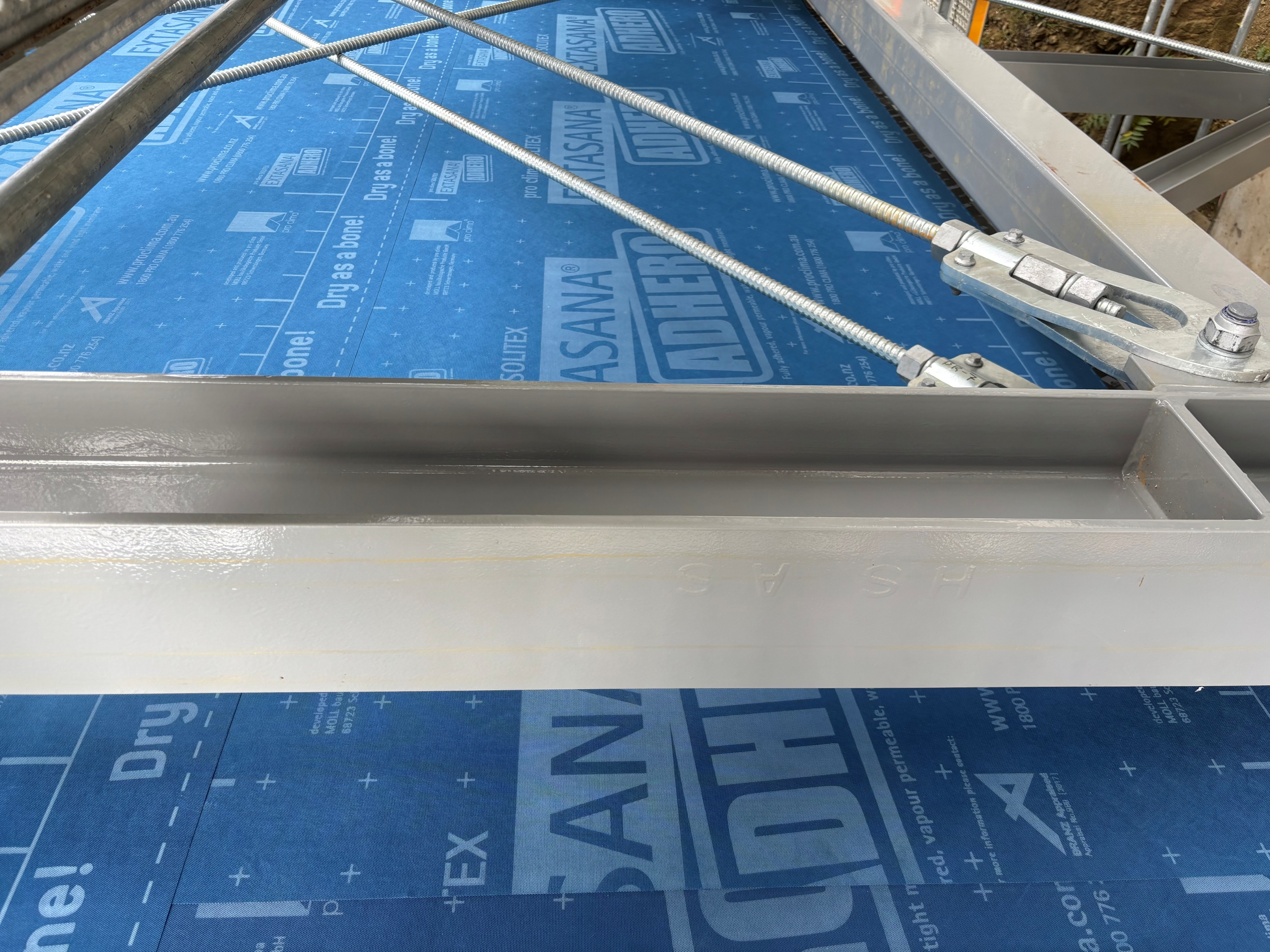

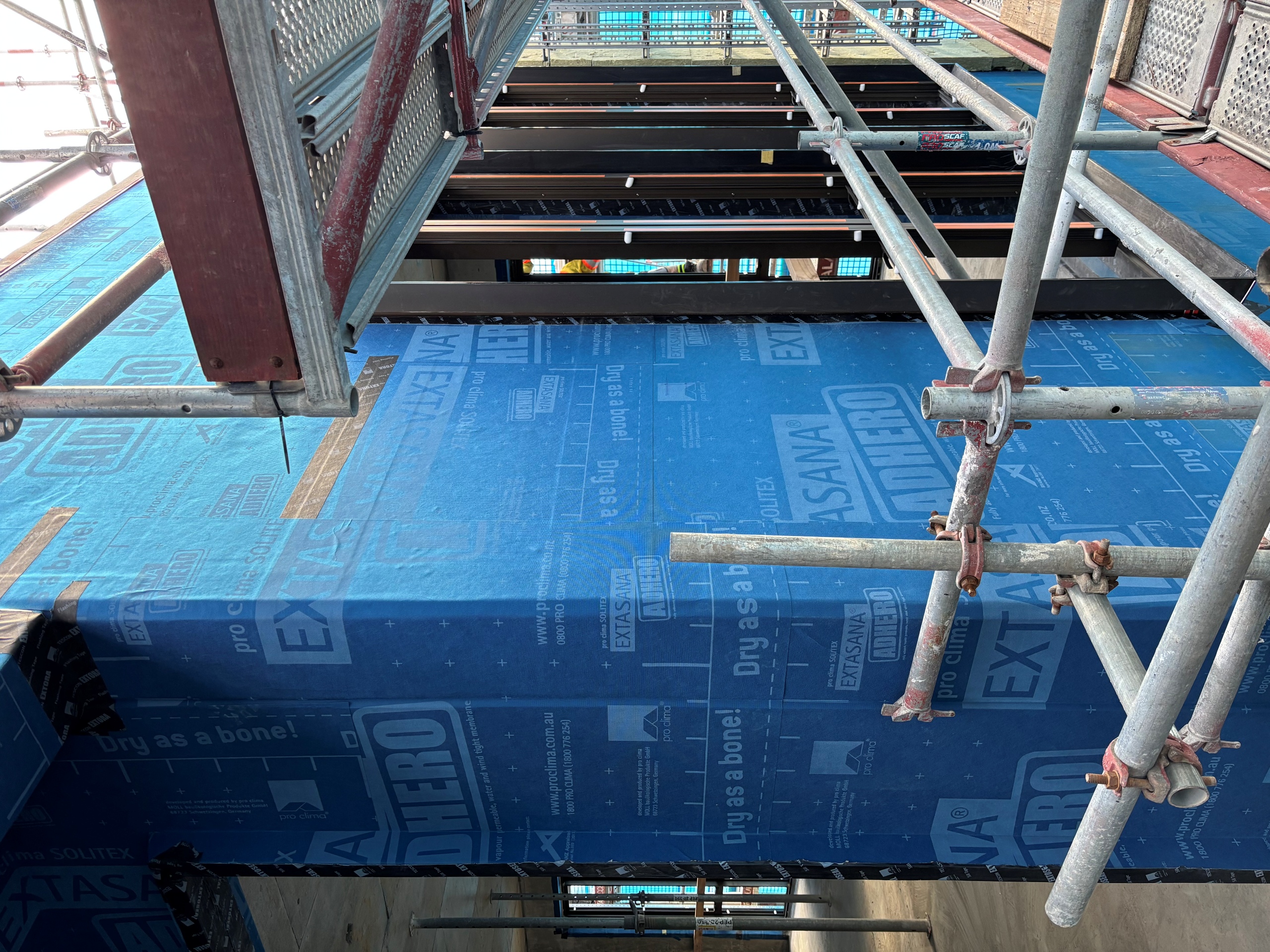

FORTX from Pro Clima is a fully adhered WRB system for use behind any cladding or rainscreen. It is a tested E2 Alternative Solution in its own right, independent of the cladding. The system combines SOLITEX EXTASANA ADHERO or SOLITEX ADHERO FC membranes with TFLEX control-joint material and coordinated details for openings, junctions and penetrations.
Again, in this system, because weathertightness doesn't depend on a specific cladding, the cladding can be chosen for appearance, durability and cost. For high-density projects, where different façade materials or expressions may be used across elevations, this can help avoid having to reinvent the weathertightness strategy for every cladding type. Fibre cement, metal, masonry, stone and composite panels can all be options while maintaining a consistent approach to the underlying weather protection layer.
Thermal performance and floor area

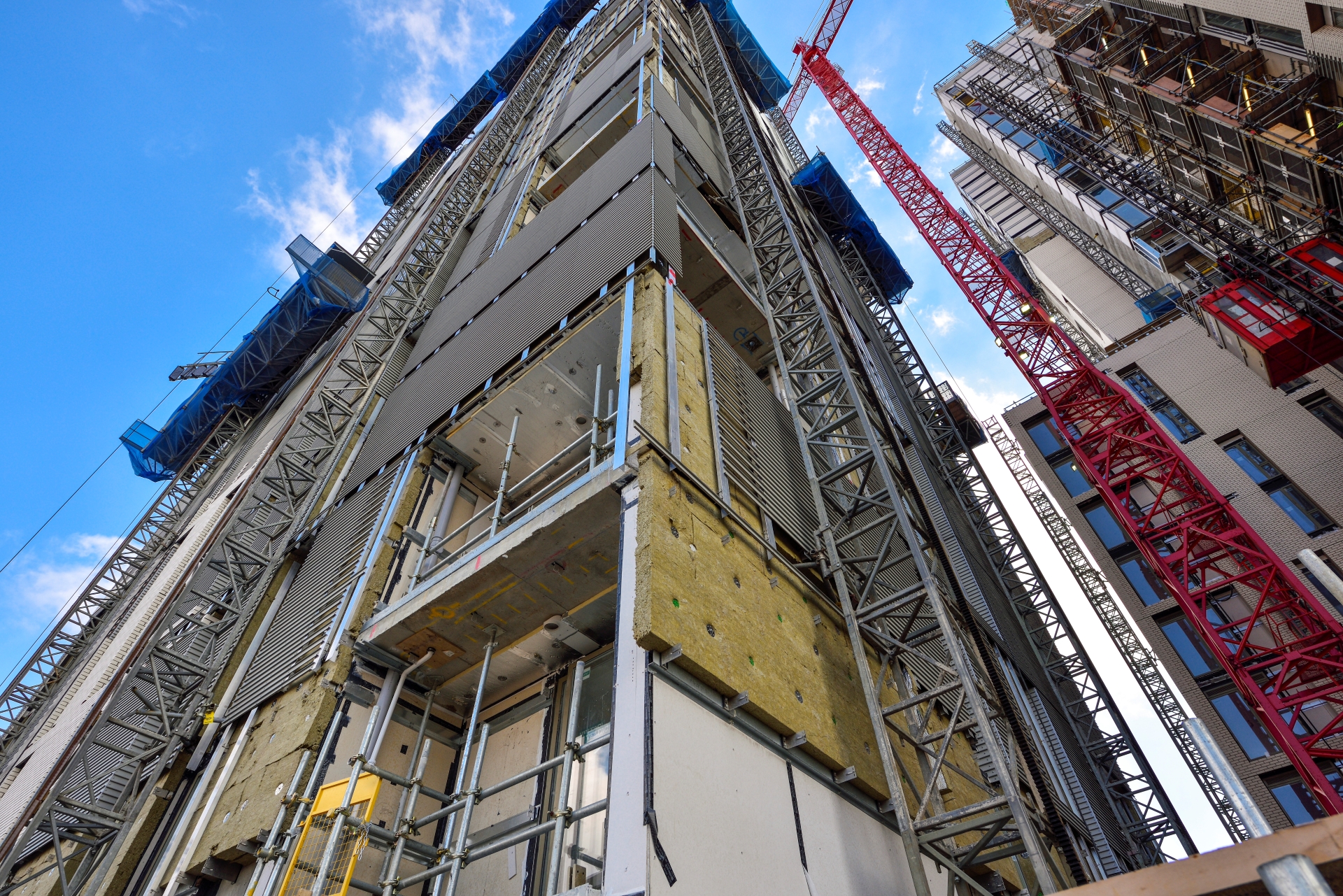

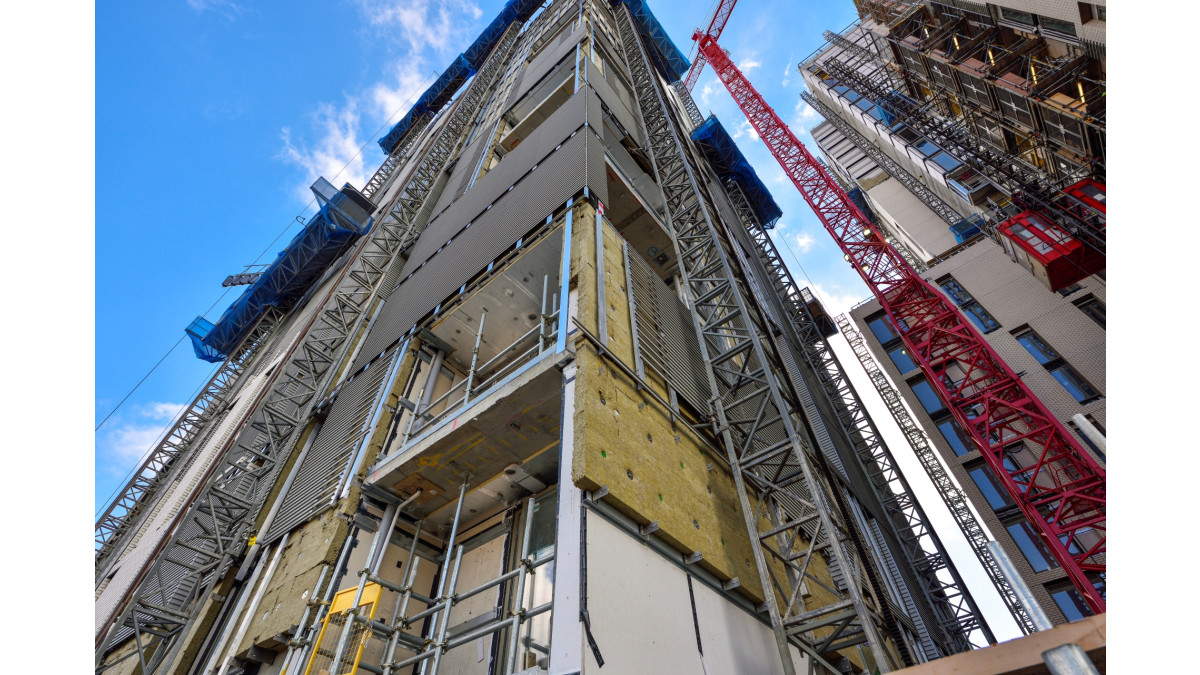

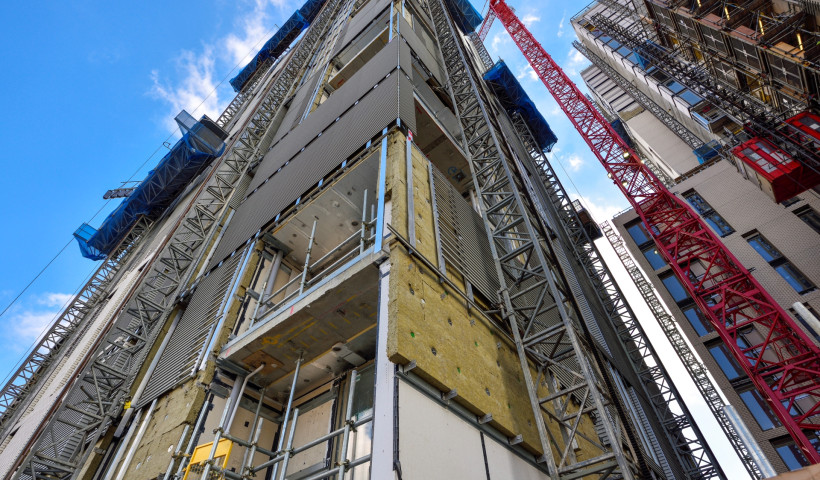

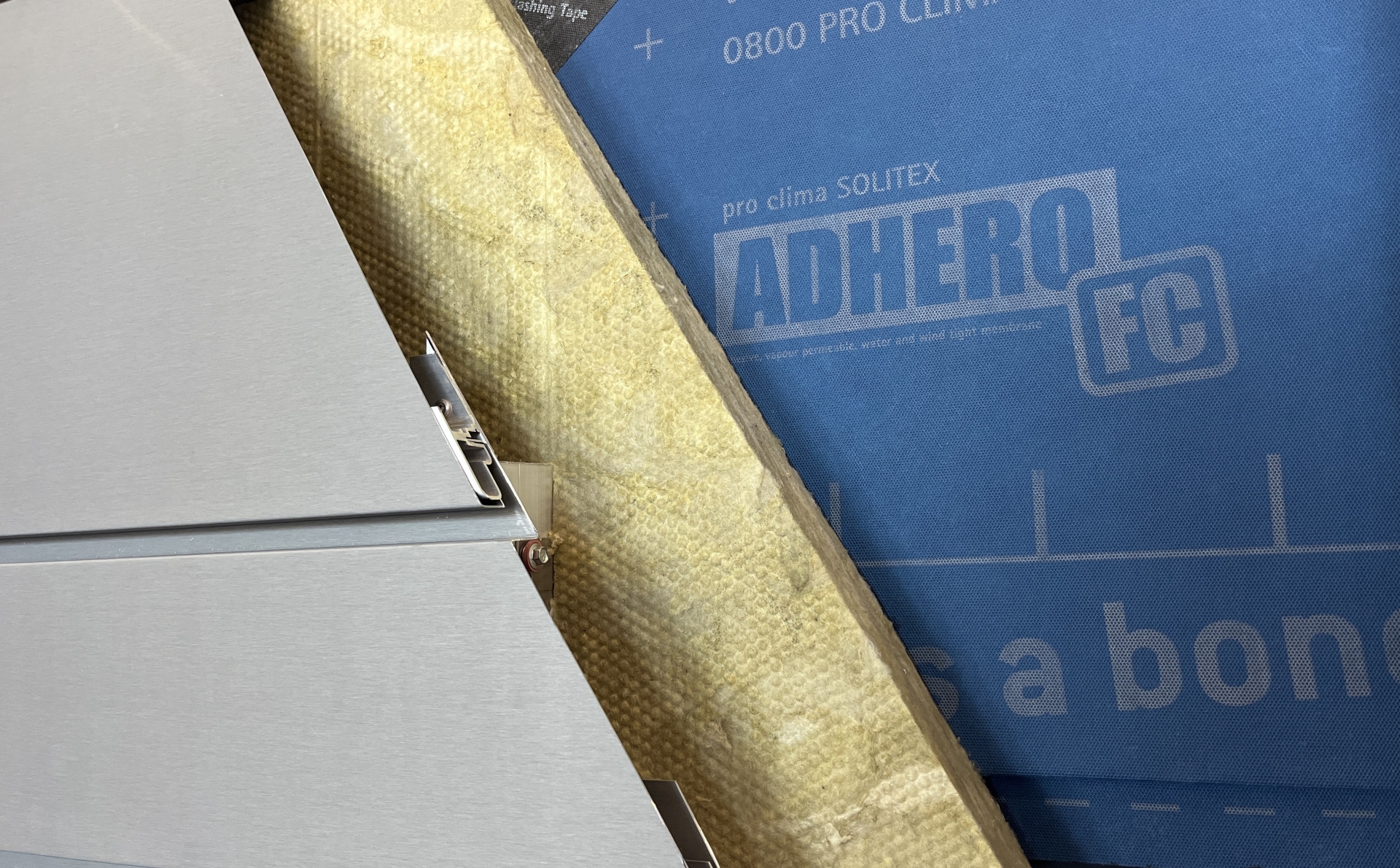

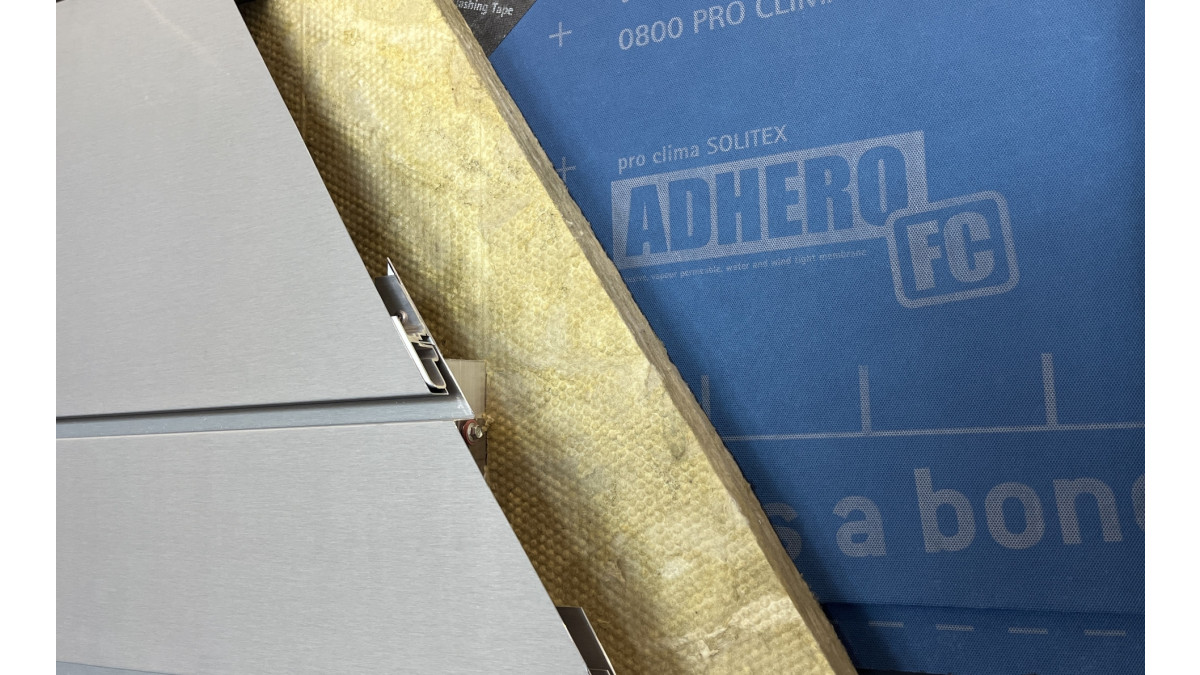

FORTX MELIOR adds continuous external ROCKWOOL Rainscreen insulation over the self-adhesive WRB. Insulation outside the frame isn't interrupted by studs, plates and floor edges, so a given thickness delivers a higher effective R-value than the same insulation between framing.
On apartment floor plates, wall thickness is floor area. Every 10mm of wall on a 100m perimeter costs about 1m² per floor, or 10m² over ten storeys. Brackets and rails that pass through the insulation are still thermal bridges and need to be included in R-value calculations.
Warmer interior surfaces and fewer air leaks also mean fewer cold spots, draughts and condensation risks, which is what occupants actually notice. Continuous external insulation can help reduce thermal bridging and create more consistent internal surface temperatures.
For high-density housing, where multiple apartments share the same external envelope, getting these thermal fundamentals right can contribute to more consistent performance across the building.
Keeping water out and letting walls dry
Well-insulated walls temporarily improve thermal performance but without protection can be less forgiving of moisture than skinnier ‘poor performing’ walls. Moisture can still get in through air leakage, construction moisture or vapour diffusion, and the assembly needs to ensure drying capacity is maintained. ADHERO membranes are vapour permeable, so drying potential can be assessed for the whole wall in its specific climate.
For more demanding build-ups (high R-values, low-permeability linings, exposed sites), hygrothermal modelling with tools such as WUFI shows moisture and temperature behaviour over time and identifies risks before construction.
Designing for movement
Taller buildings bring wind load, seismic drift, thermal expansion and differential movement between materials. These stresses concentrate at inter-storey control joints, structural junctions and changes in substrate, which is where WRB continuity most often fails.
TFLEX flexible control joint keeps the FORTX WRB continuous across these joints. The system has been tested to AS/NZS 4284, including 20mm SLS and 75mm ULS seismic deflection, with water and air testing before and after. Designing the joint positions at concept stage allows coordination with cladding layout, and even interior finish design elements.
Test once, build hundreds of times
Apartment buildings have one characteristic that can be both a challenge and an advantage: repetition.
A typical apartment window detail may be built hundreds of times. FORTX gives architects, façade engineers, cladding suppliers and installers one set of details for the recurring interfaces: openings, floor junctions, penetrations and control joints. Tested performance is then reproduced on site instead of being reworked at every junction.
For high-density construction, where efficiency and consistency are critical, this repeatability can be as important as the performance of the individual materials.
Considering the façade as a complete system
The performance of an apartment façade is ultimately determined by more than any individual membrane, insulation product or cladding material. The layers need to work together, and the interfaces between them need to be considered from the early stages of design.
By considering the façade as a coordinated system from the outset, designers can address weather protection, moisture management, thermal performance and movement while also considering the practical realities of apartment construction: valuable floor area, repeated details, multiple interfaces and the need for architectural flexibility.
Specifying FORTX
FORTX and FORTX MELIOR technical documents and details are available on EBOSS and FORTX systems page. For project-specific advice, including WUFI modelling, contact Pro Clima's technical team.
