The pro clima airtightness system prevents uncontrolled air infiltration or leakage through the building envelope, and assists the drying capacity of the building through its unique moisture control properties.

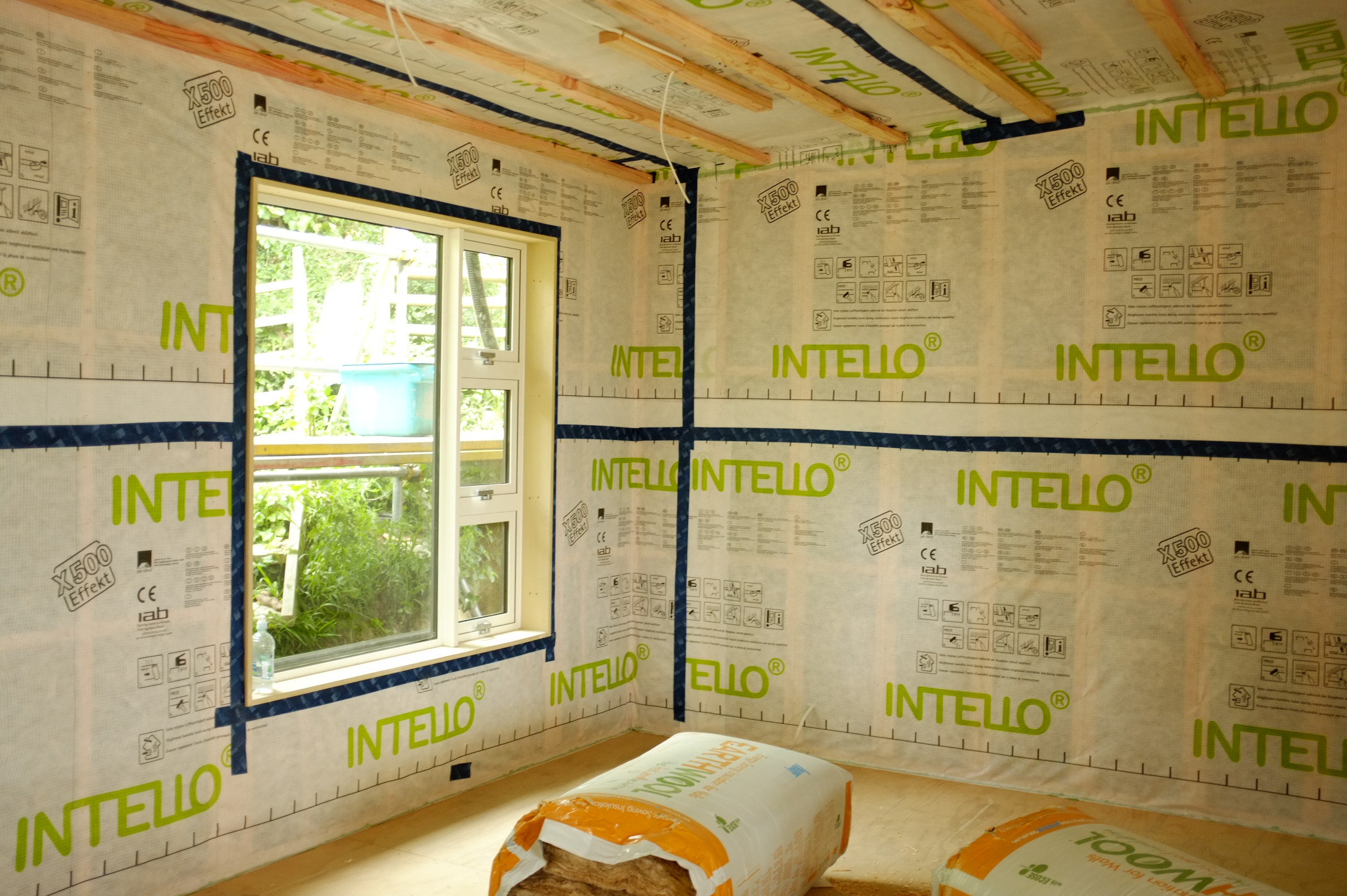

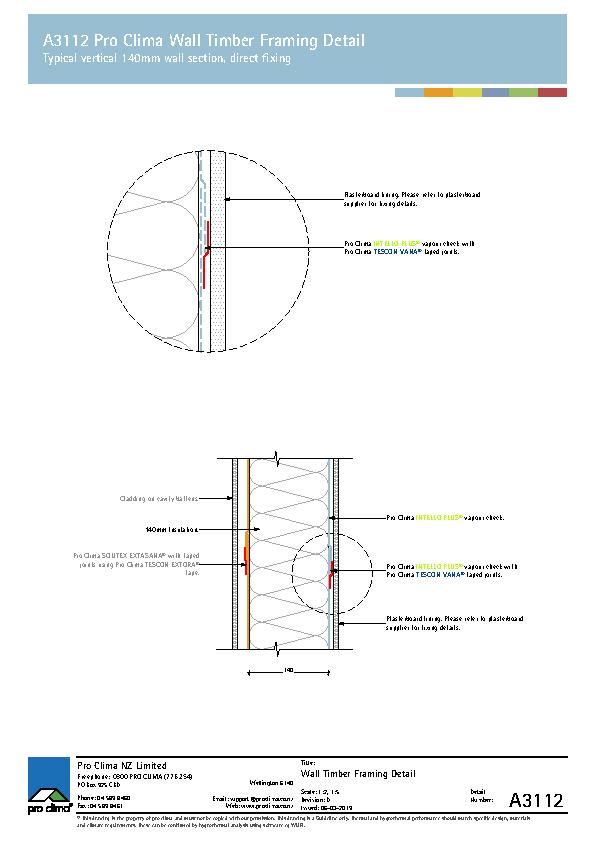

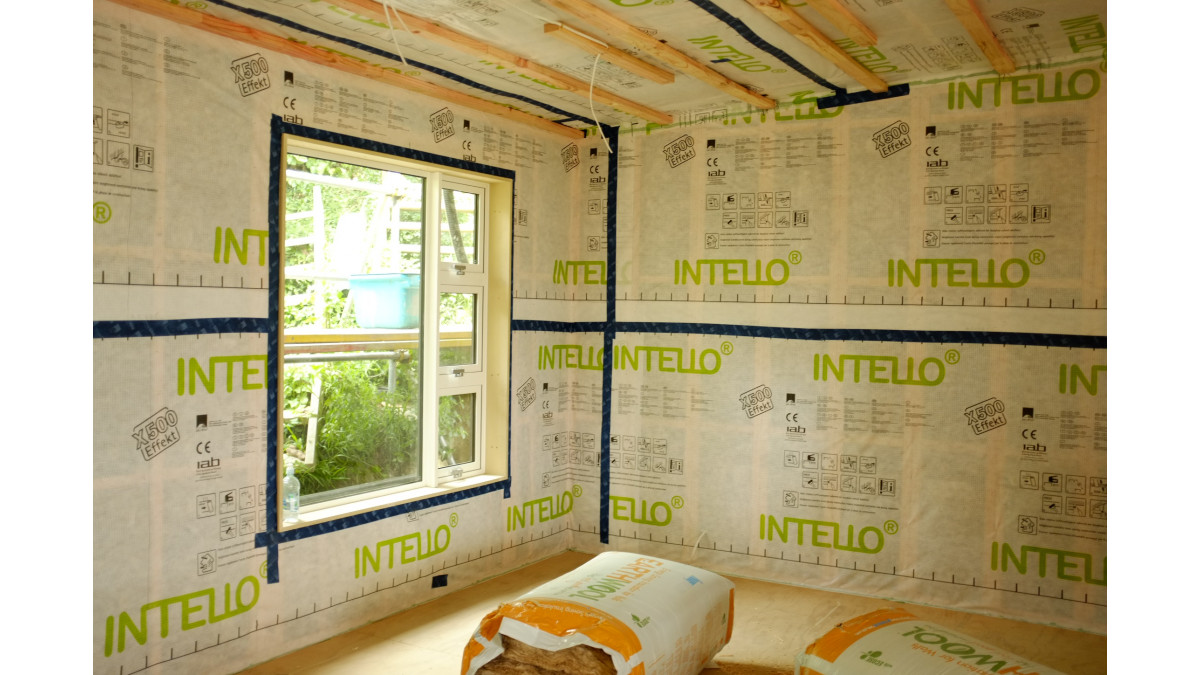

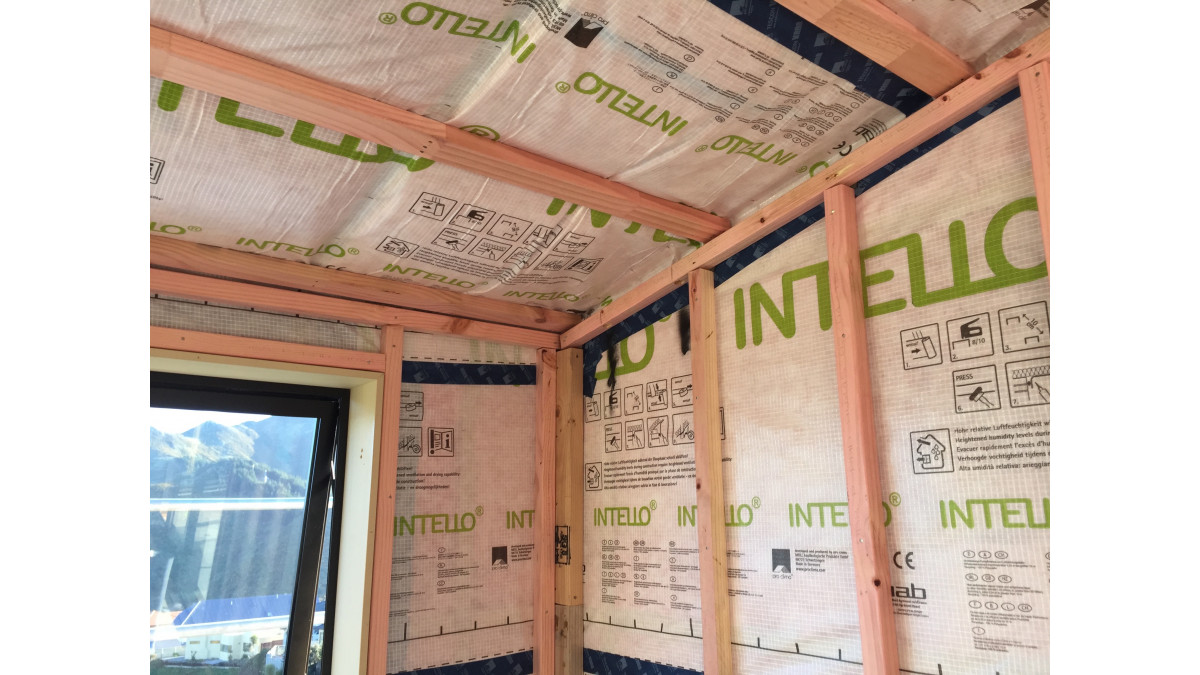

INTELLO PLUS is a high performance vapour check and airtightness membrane that provides optimum protection for all thermal insulation in roofs, walls and floors as well as protecting the internal structure of the building from moisture intrusion.

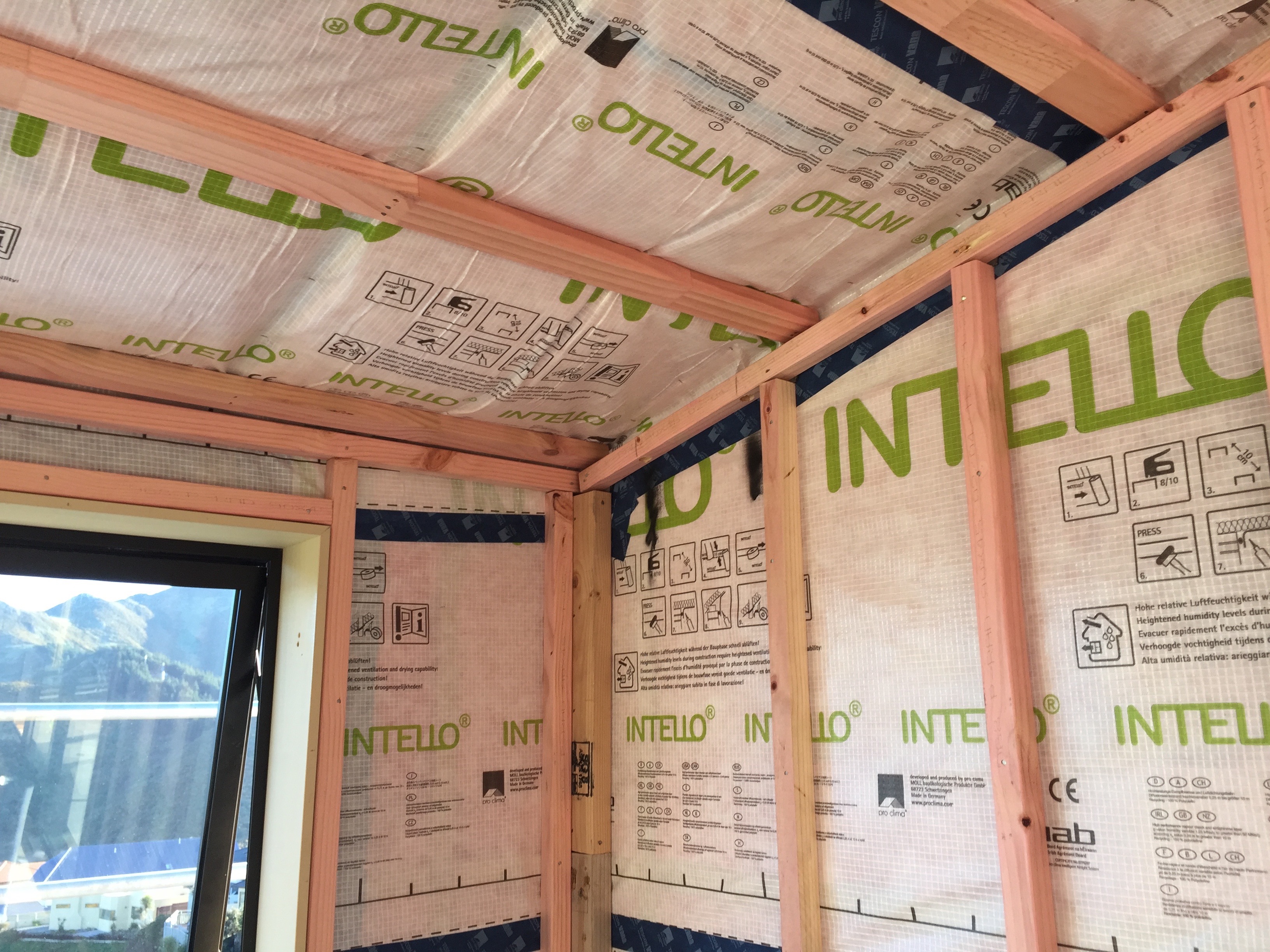

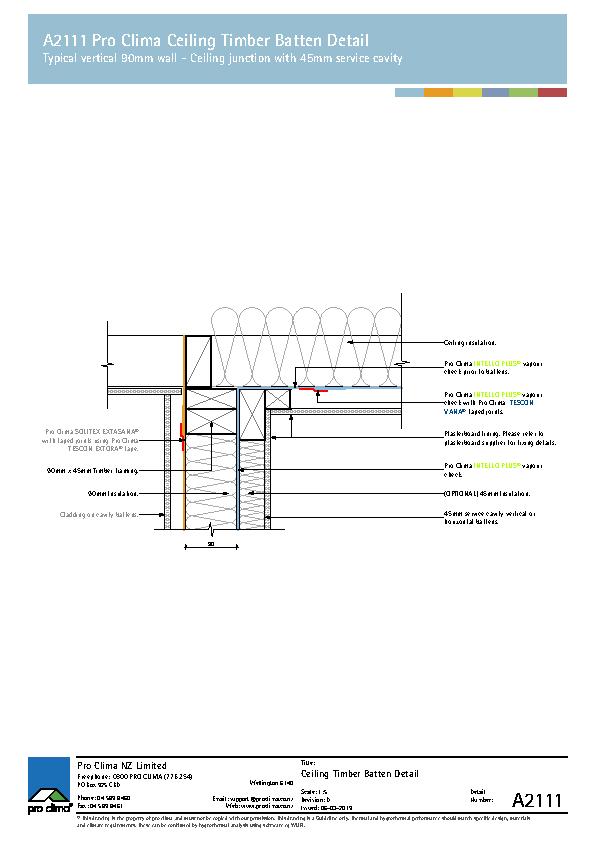

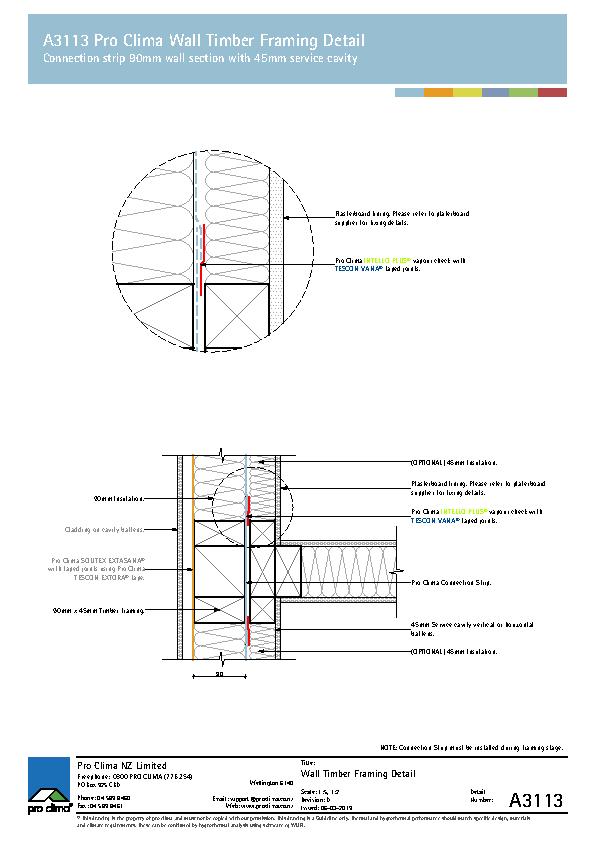

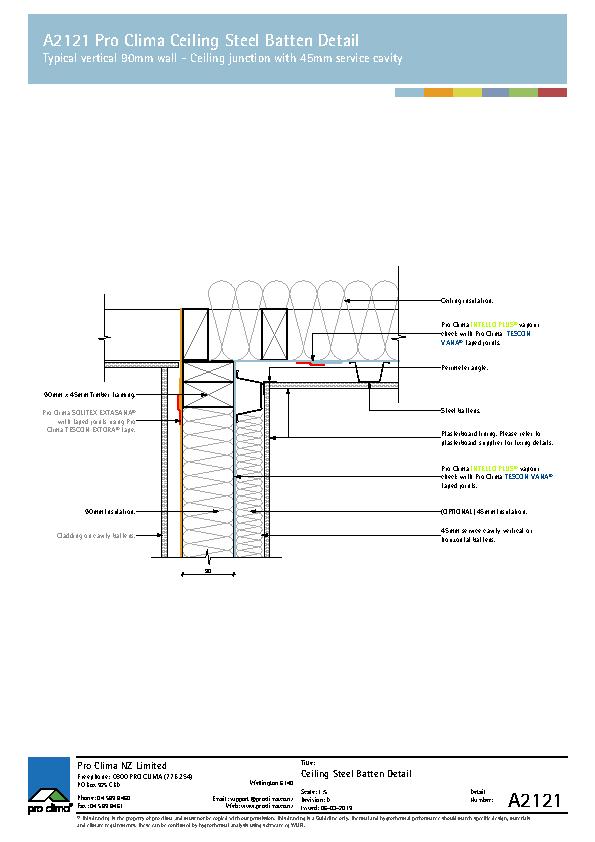

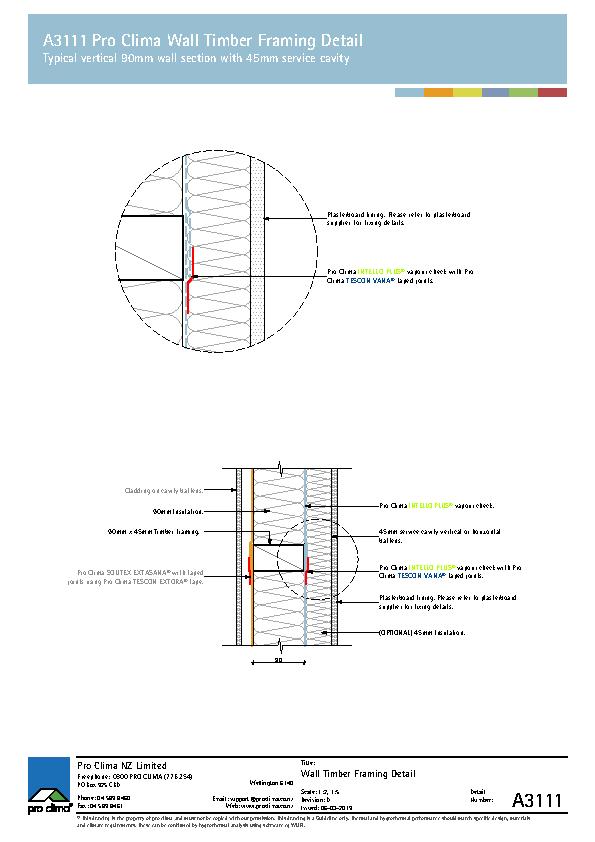

An optional continuous cavity for electrical and plumbing services can be created on the inside face of the external wall by fixing battens horizontally over the INTELLO membrane before installing wall lining. The main advantage of a service cavity is to shift the plumbing and wiring out of the insulation layer. It also reduces the penetrations through the airtightness membrane allowing easy and fast installation of services. A service cavity also eliminates pressure points on inner lining (eg. plasterboard) from insulation expansion.
The INTELLO system includes the following components:

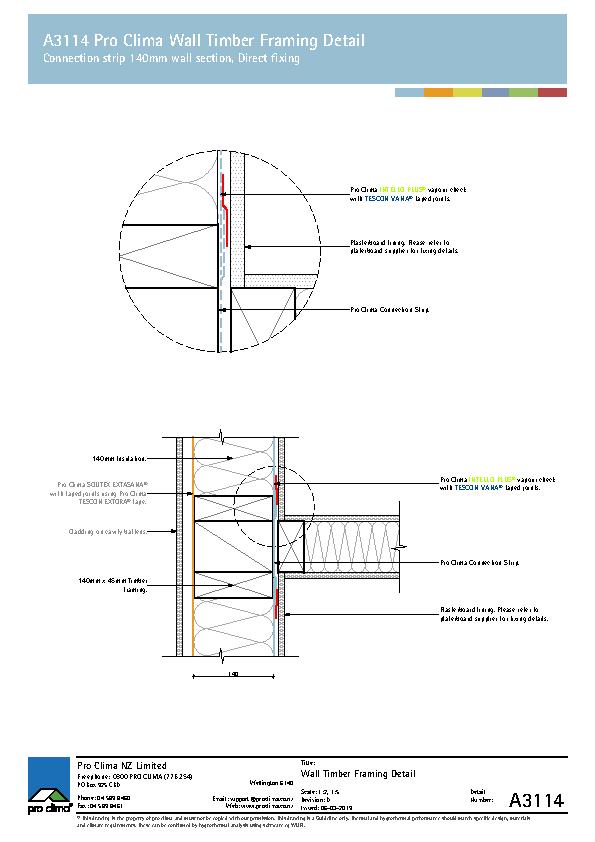

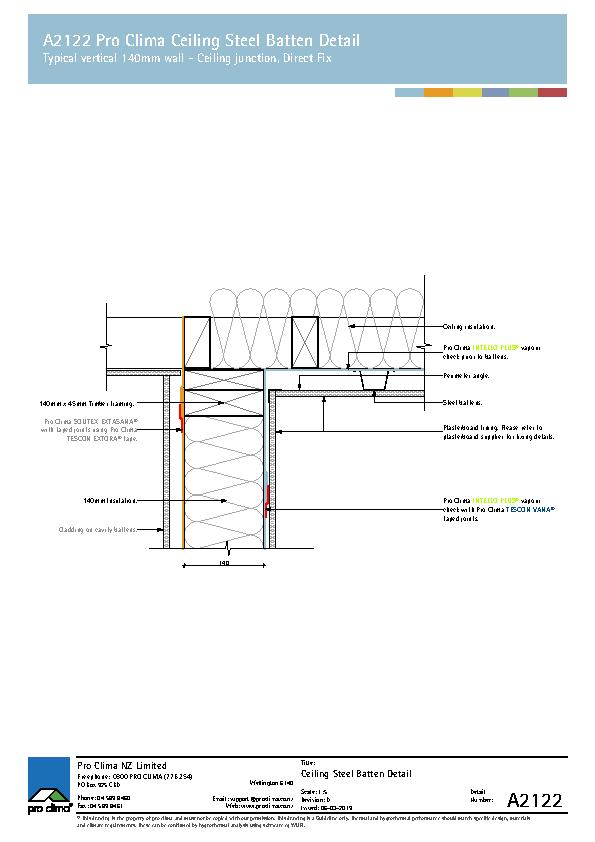

The INTELLO conneX is designed to connect the internal airtightness membranes at the junctions between internal and external walls and ceilings.
ORCON Liquid Adhesive is a durable airtight sealing glue suitable for bonding all pro clima products to any building material (smooth or rough, masonry or timber).
ROFLEX sealing grommets are made of strong and flexible EPDM for rapid and permanent airtight sealing of cable and pipe penetrations through the airtightness layer.
TESCON VANA provides a secure and permanent airtight seal of overlaps between INTELLO membranes, joints between membranes and smooth, non-mineral surfaces. It is also suitable for sealing joints between wood-based panels.
Use TESCON PROFIL for junctions between windows or doors. Also for junctions between roof underlays, wall and roof membranes and smooth, non-mineral surfaces.
INTELLO PLUS rolls sizes: 1.5m wide and 20m (30m²) or 50m (75m²) long, and 3.0m wide and 50m long (150m²).
Intelligent — an internal airtightness membrane that offers high diffusion tightness in winter and openness in summer, protecting the construction in all climate conditions
Suitable for all construction and where there is risk of interstitial condensation
The protection of insulation from air movement
Preventing uncontrollable air flow though the building envelope

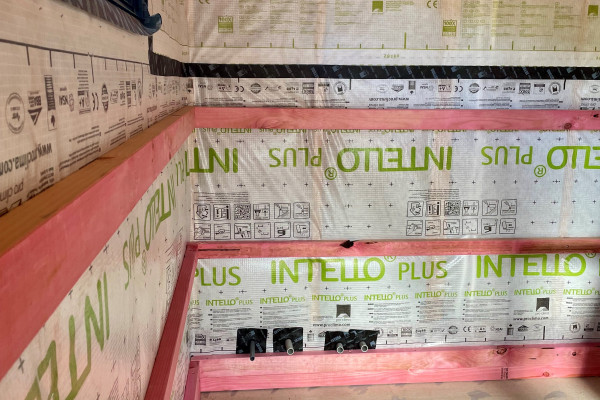

An optional continuous cavity for electrical and plumbing services can be created on the inside face of the external wall by fixing battens horizontally over the INTELLO membrane before installing the wall lining
The main advantage of a service cavity is to shift the plumbing and wiring out of the insulation layer
A service cavity also reduces the penetrations through the airtightness membrane allowing easy and fast installation of services
This also eliminates pressure points on inner lining (eg. plasterboard) from insulation expansion
Limitations on Use
Designed for use with fibrous insulation products such as fibre glass, polyester, wool, timber fibre, etc
Not to be used with vapour tight insulation products such as polystyrene, PIR, EPs, etc
Statement of Building Code Compliance
The NZBC requires only that airtightness be considered, not measured. INTELLO directly assists with meeting the following requirements:
Clause E3.1 INTERNAL MOISTURE: Buildings must safeguard people against illness, injury, or loss of amenity that could result from the accumulation of internal moisture
Clause E3.2 INTERNAL MOISTURE: Buildings must avoid the likelihood of fungal growth or the accumulation of contaminants on linings and other building elements
Clause E2 EXTERNAL MOISTURE: Concealed spaces and cavities in buildings must be constructed in a way that prevents external moisture being accumulated or transferred and causing condensation, fungal growth, or degradation of building elements
Clause E2 EXTERNAL MOISTURE: Building elements must make due allowance for the following: (a) the consequences of failure, (c) variation in the properties of materials and in the characteristics of the site
Clause E2 EXTERNAL MOISTURE: Interior linings with all joints stopped require barriers to airflow
Clause H1 : ENERGY EFFICIENCY: The building must be constructed to limit uncontrollable airflow
Clause H1 : ENERGY EFFICIENCY: Account must be taken of physical conditions likely to affect energy performance of buildings; (c) Airtightness of the building envelope.
Clause B2 : DURABILITY: Performance B2.3.1(a), not less than 50 years, B2.3.1(b), 15 years and B2.3.2
In production in its current form since 1994
More than 1 million square metres installed world wide
First installed in New Zealand in 2008
Commonly used in Ministry of Education projects and residential housing
In every current Passive House designed in New Zealand
For winter building site conditions, an appropriate hydrosafe value is important. The hydrosafe value specifies how well sealed a humidity-variable vapour control layer still is at an average humidity of 70%. Average humidity of 70% will be present if there is 90% indoor air humidity and 50% humidity in the space between the rafters/studs. For example, these values could be present while walls are being plastered or screed is being installed.
