Description

Hebel PowerFloor panel system is a high-performance lightweight AAC flooring system.

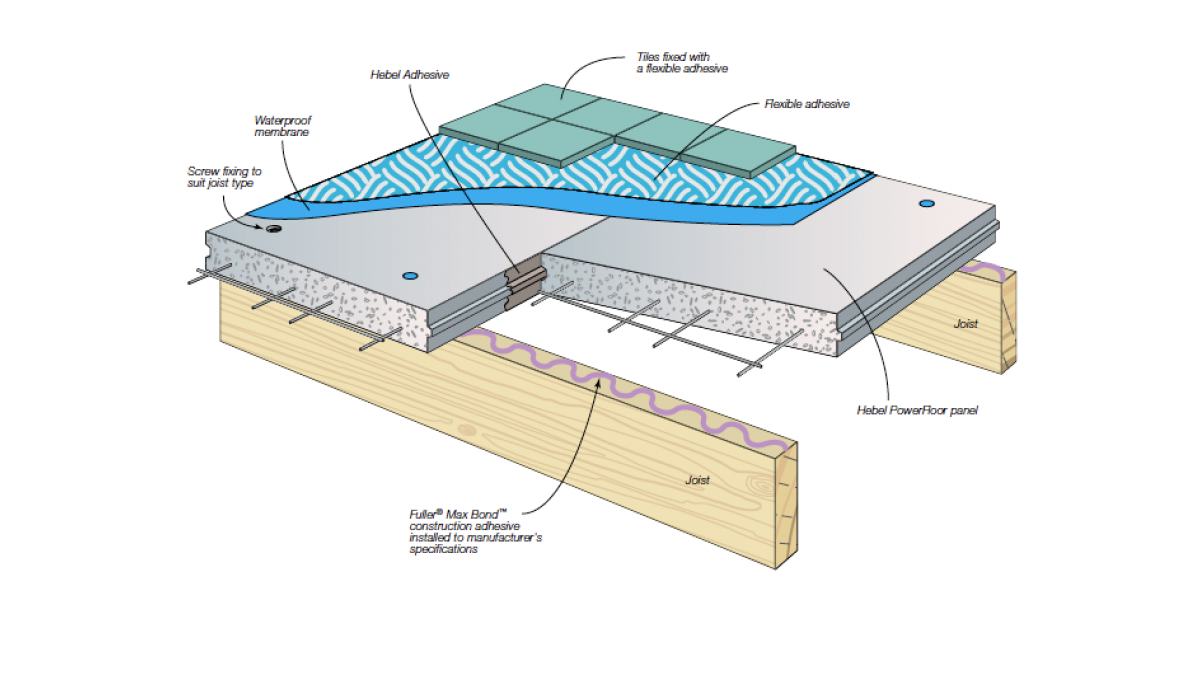

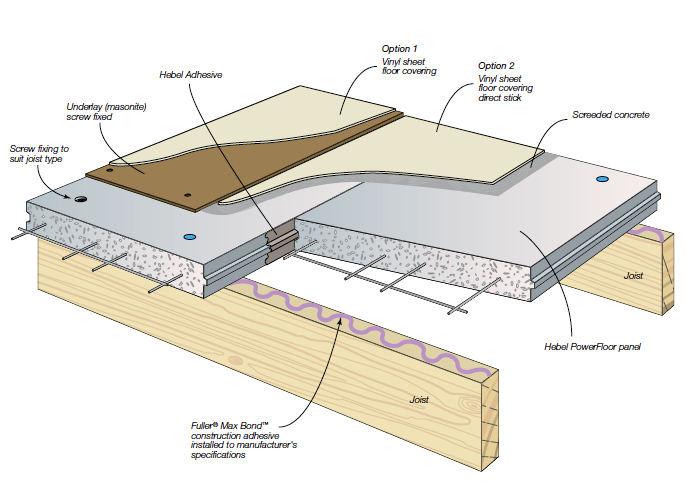

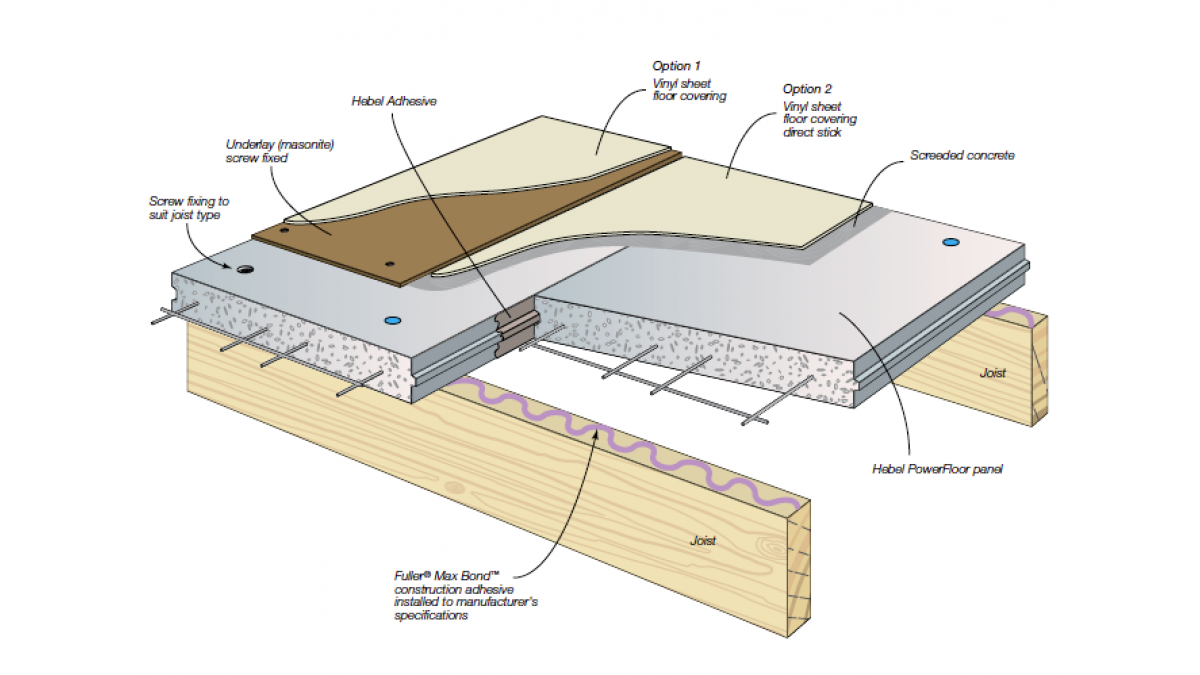

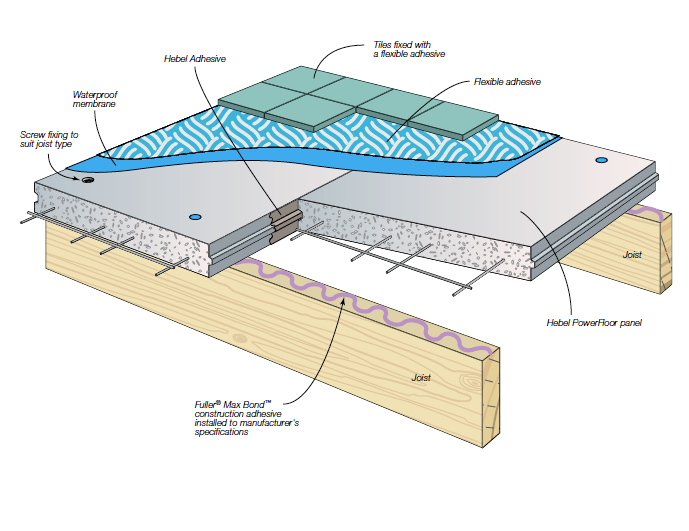

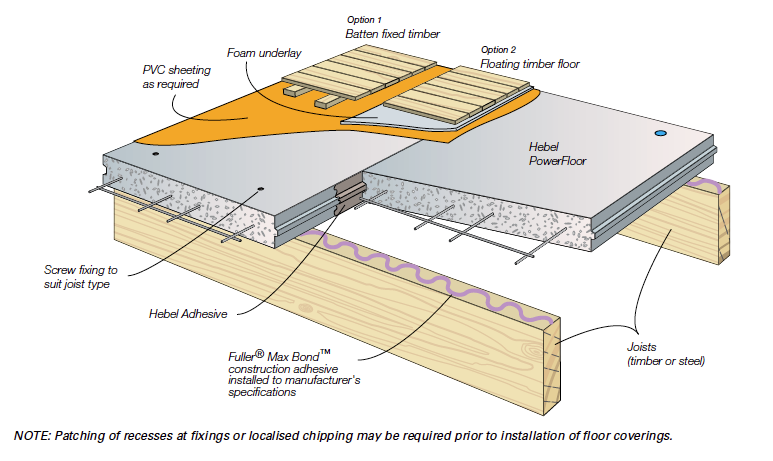

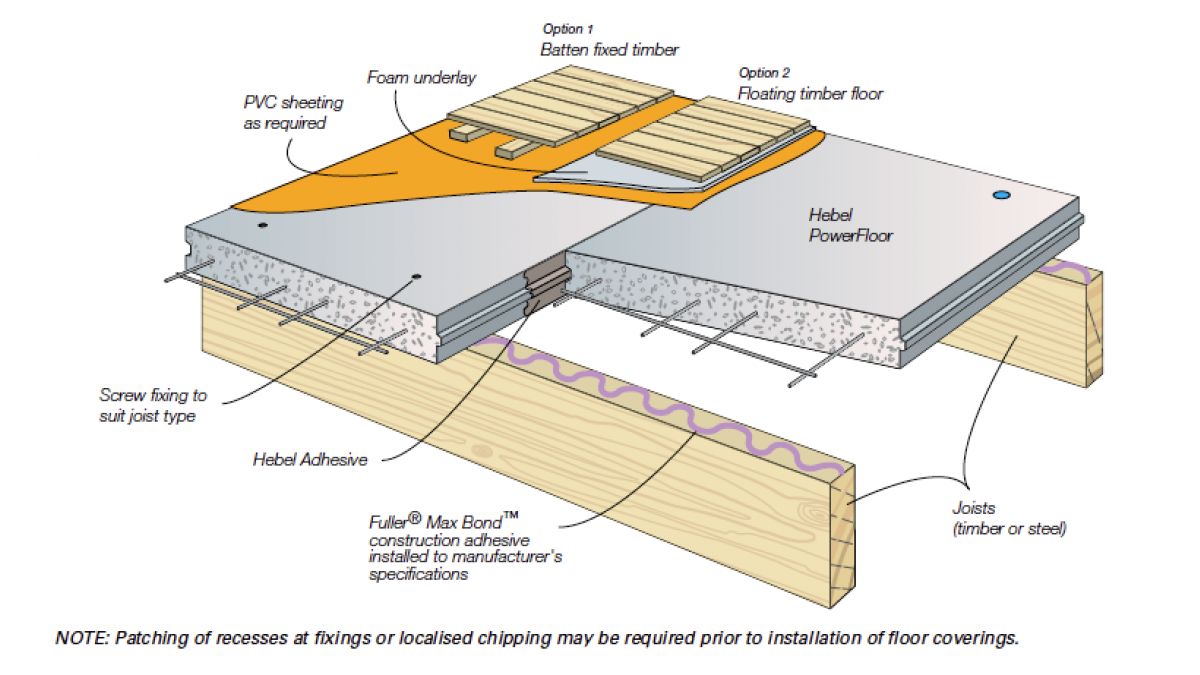

Hebel PowerFloor panels are 75mm steel-reinforced solid floor panels installed over steel or timber joists to give an excellent solid base for just about any floor covering including floor tiles, floating timber floors and carpet.

This provides a superior floor solution with acoustic and thermal insulation benefits and provides the feel of a solid concrete floor at a significantly lower cost.

CSR Hebel PowerFloor System comprises:

  • lightweight steel reinforced autoclaved aerated concrete (AAC) panel installed over steel or timber floor joist system forming a platform floor, and
  • Winstone Wallboards GIB® and
  • 90mm ceiling batts with thermal resistance R1.8.

CSR Hebel PowerFloor panels are 75mm thick reinforced with corrosion-protected steel mesh and have tongue and groove edges.

Key Features
  • Solid feel eliminating the bounce and flex of timber sheet or board flooring.
  • Superior thermal performance – particularly for suspended floors on sloping sites.
  • Extremely strong, each panel is reinforced with corrosion-protected steel mesh. The panels fit snugly together to form a strong and smooth floor.
  • Not affected by weather during installation.
  • Hebel PowerFloor can be easily installed by normal on-site tradesmen such as carpenters.
  • Reduced foot-fall noise between floors and elimination of squeaking associated with particle board floors.
Scope of Use

Hebel PowerFloor systems are joist floor solutions for residential, low rise multi-residential, commercial and industrial construction.

The floor applications consist of a Hebel PowerFloor panel connected to a steel or timber joist system forming a platform floor.

Limitations on Use
  • The product is to be designed and installed only in accordance Hebel® PowerFloor Low Rise Residential & Commercial Floor System Design and Installation Guide New Zealand (HELIT014 – SEP21)
  • The product is certified for use only in low rise residential and commercial applications where no access to floors is required for the purpose of conducting firefighting and rescue operations.
  • The product is not certified for external use in balconies and the design and weathertightness considerations are outside the scope of this certification.
  • The design and installation of timber and/or steel structural floor joists or supporting framing are not covered by this certification and must comply with the relevant design standards.
  • The Fire Resistance Rating (FRR) of Hebel® PowerFloor system for fire exposure from the underside assessed with various Winstone Wallboards ceiling lining must be as detailed for each system in Hebel® PowerFloor Low Rise Residential & Commercial Floor System Design and Installation Guide New Zealand (HELIT014– SEP21). Refer to the system index below in item 10 "SUPPORTING INFORMATION ABOUT INTENDED USE".
  • The product is not certified for use in Firecells where the requirements of clauses C3.8 of the building code applies.
  • Where the building is within exposure zone D and microclimates as defined in NZS 3604:2011, compliance with B2 Durability is subject to the exposed surface being protected by a suitable acrylic coating.
  • Energy Efficiency and Sound Insulation performance is dependent on the appurtenant ceiling system, floor covering type, and the use of 90mm ceiling batts with thermal resistance R1.8. Refer to the Hebel® PowerFloor Low Rise Residential & Commercial Floor System Design and Installation Guide New Zealand (HELIT014– SEP21) for exact values for each ceiling system.
  • The floor lining must be tested and assessed separately to comply with C3.4(b) of the building code.
  • The product is for use in Earthquake Zone up to and including seismic zone 3 as defined in NZS 3604:2011.
  • Other components as part of the system not manufactured by Hebel must also be installed in accordance with the manufacturers standard and specifications.
Statement of Building Code Compliance

CSR Hebel PowerFloor, if designed, used, installed & maintained in accordance with the scope of the CodeMark Certificate, will meet the following provisions of the NZBC:

  • Clause B1 Structure — B1.3.1; B1.3.2; B1.3.3(a, b, f, i, j, m); and B1.3.4.
  • Clause B2 Durability — B2.3.1(a); and B2.3.2.
  • Clause C3 Fire affecting areas beyond the fire source — C3.4(a); C3.6.
  • Clause C4 Movement to place of safety — C4.3 (contributes to).
  • Clause C6 Structural Stability – C6.2 (contributes to).
  • Clause F2 Hazardous building materials — F2.3.1.
  • Clause G6 Airborne and impact sound — G6.3.1; and G6.3.2.
  • H1 Energy efficiency – H1.3.1(a) (contributes to); and H1.3.2E (contributes to).
In-Service History

Hebel is part of CSR Building Products NZ that has operated in New Zealand for more than 40 years.

Hebel has supplied Hebel AAC (Autoclaved Aerated Concrete) products for walls and floors into the NZ market for more than 20 years.

CodeMark
CodeMark
Documents
Hebel General Technical Manuals
MSDS: PowerFloor
CodeMark Certificate: Powerfloor

CM20245: 2021

CAD Files: PowerFloor
Design and Installation Guide: PowerFloor

0921

Brochures: PowerFloor
Hebel Site: PowerFloor

Hebel Autoclaved Aerated Concrete (AAC) is an innovative building material used for walls, façades and floors.
