Kingspan Insulated Panels: The Popular Choice for Commercial Multi-Level Construction Projects

A popular choice for construction projects in New Zealand, Kingspan’s PIR-cored insulated panels are suitable for a wide variety of building façades and provide a high performance building envelope that meets the multitude of performance requirements that are required on modern buildings.

Insulation

With the recent H1 insulation requirement changes, insulated panels fixed to a structural frame provide an easy solution to provide a thermal envelope with minimal thermal bridges whilst providing a modern aesthetic. For example, a 100mm KS1000 Architectural Wall Panel (AWP) provides an installed R-value of 4.94. Click here to find a Kingspan panel solution for each Climate Zone.

Environmental

With growing interest and awareness of the environmental footprint of buildings, Kingspan has invested in both ecospecifier global greentag certificates (GreenRate Level A) and also EPDs (Environmental Product Declarations) for many of its products, providing independent certification of Kingspan’s insulated panels for use in Green Star and other rating schemes.

Compliance

For peace of mind for designers and consenting authorities, a number of Kingspan products are CodeMark certified by SAI Global, the highest level of product certification available in New Zealand. The products certified are: KS1000RW Trapezoidal Roof and Wall Panels, KS1000 Architectural Wall Panels and KS1000 Evolution Panelised Façade. The CodeMark certification (demonstrating compliance to the New Zealand Building Code, equivalent to an Acceptable Solution) along with an extensive range of details/options to choose from, makes design and compliance easy for designers.

Fire

Kingspan has subjected its panels to numerous fire test regimes for both local regulatory purposes and the insurance industry. The insurance industry fire tests are large scale tests performed by Factory Mutual (FM) Global and require annual audits and ongoing monitoring. A number of Kingspan insulated wall panels have achieved FM Global, Class 1 without height restriction, the highest possible rating achievable in the FM Global 4880 test, making them ‘insurer approved’ panels.

Kingspan panels have been operating in New Zealand since 2006 and have an experienced nationwide team that provide technical service and support to designers on a daily basis.

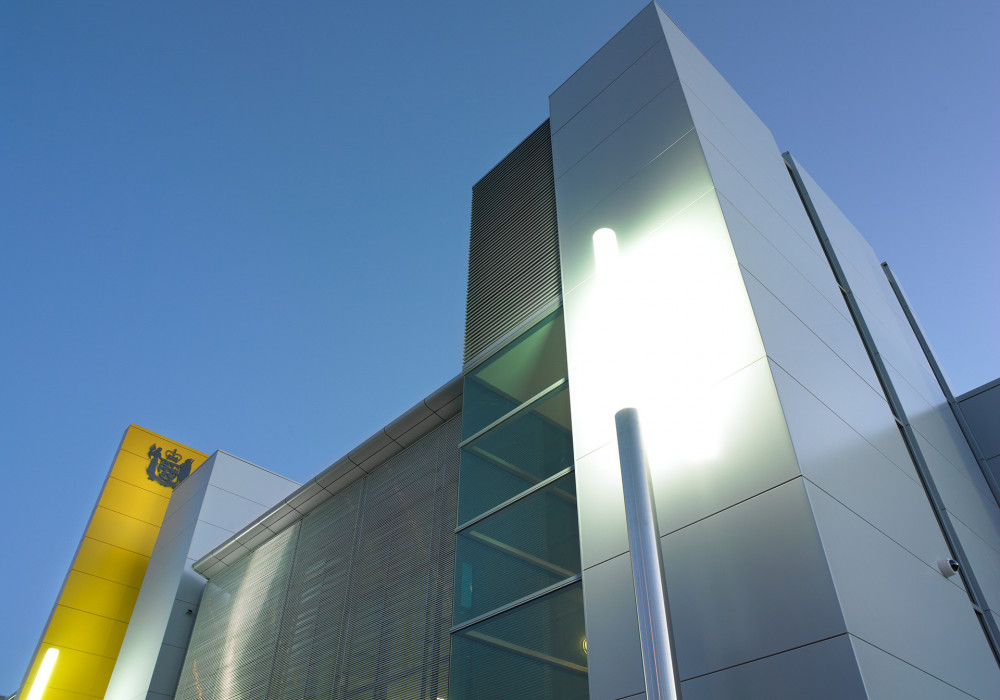

Kingspan Architectural Wall Panel System

Kingspan Insulated Panels

View Product

This secret-fix wall panel system offers unprecedented freedom of design and performance.

An insulated wall panel system for use on residential, communal residential, communal non-residential, commercial, industrial buildings and outbuildings

All Kingspan panels, including Architectural Wall Panels, are typically tested up to 3.6kPa for normal conditions (ULS) and up to 15kPa for cyclonic conditions (ULS). These limits easily exceed the requirements of NZS3604, including Extra High wind zones.

Corrosion Exposure Zone B

Corrosion Exposure Zone C

Corrosion Exposure Zone D

High Earthquake Zone

Low Earthquake Zone

Medium Earthquake Zone

Very High Earthquake Zone

Extra High Wind Zone

High Wind Zone

Low Wind Zone

Medium Wind Zone

Specific Design Wind Zone

Very High WInd Zone

Architectural Wall Panels hold a CodeMark Certificate of Conformity stating the provisions of the Building Regulations 2008 (New Zealand) the product conforms to.

CodeMark Certificate of Conformity is certified under the name Kingspan Insulated Panels Architectural Wall Panels (AWP) and Evolution (EVO). Certificate number: CM20114 Rev V2.

For further details please contact the Kingspan Technical Service Department or alternatively refer to the MBiE — Product Certificate Register and search for 'Kingspan KS1000AWP'.

When designed, used, installed and maintained in accordance with Kingspan standard details, the Architectural Wall Panel is compliant with the following clauses on the NZBC:

B1 Structure — B1.3.1; B1.3.2; B1.3.3(a, f, g, h, j); B1.3.4
B2 Durability — B2.3.1(b)
C3 Fire Affecting Areas Beyond the Fire Source — C3.4(a); C3.5; C3.7
E2 External Moisture — (contributes to) E2.3.2; E2.3.7
E3 Internal Moisture — E3.3.5
F2 Hazardous Building Materials — F2.3.1
H1 Energy Efficiency — (contributes to) H1.3.1

Codemark Certification demonstrates compliance to the NZBC equivalent of an Acceptable Solution. Some specialist buildings may fall partially or wholly outside of the scope of the Codemark Certificate, should this occur then please contact Kingspan Technical for assistance in demonstrating NZBC compliance via an Alternative Solution.

Structure

Durability

Protection from Fire

External Moisture

Internal Moisture

Energy Efficiency

CodeMark

Independent Assessment

Test Results

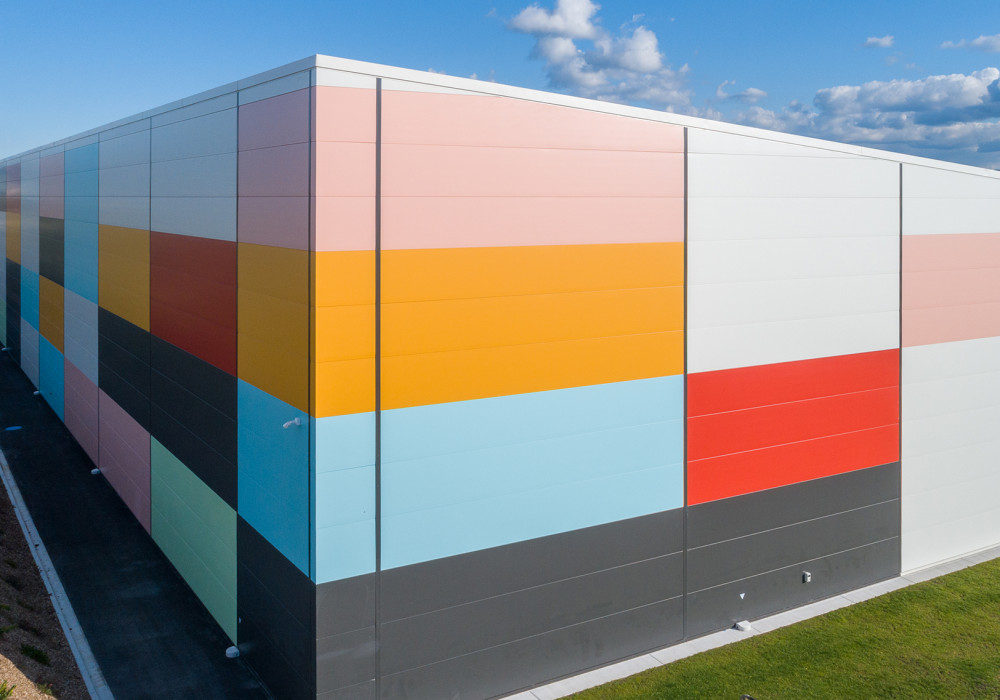

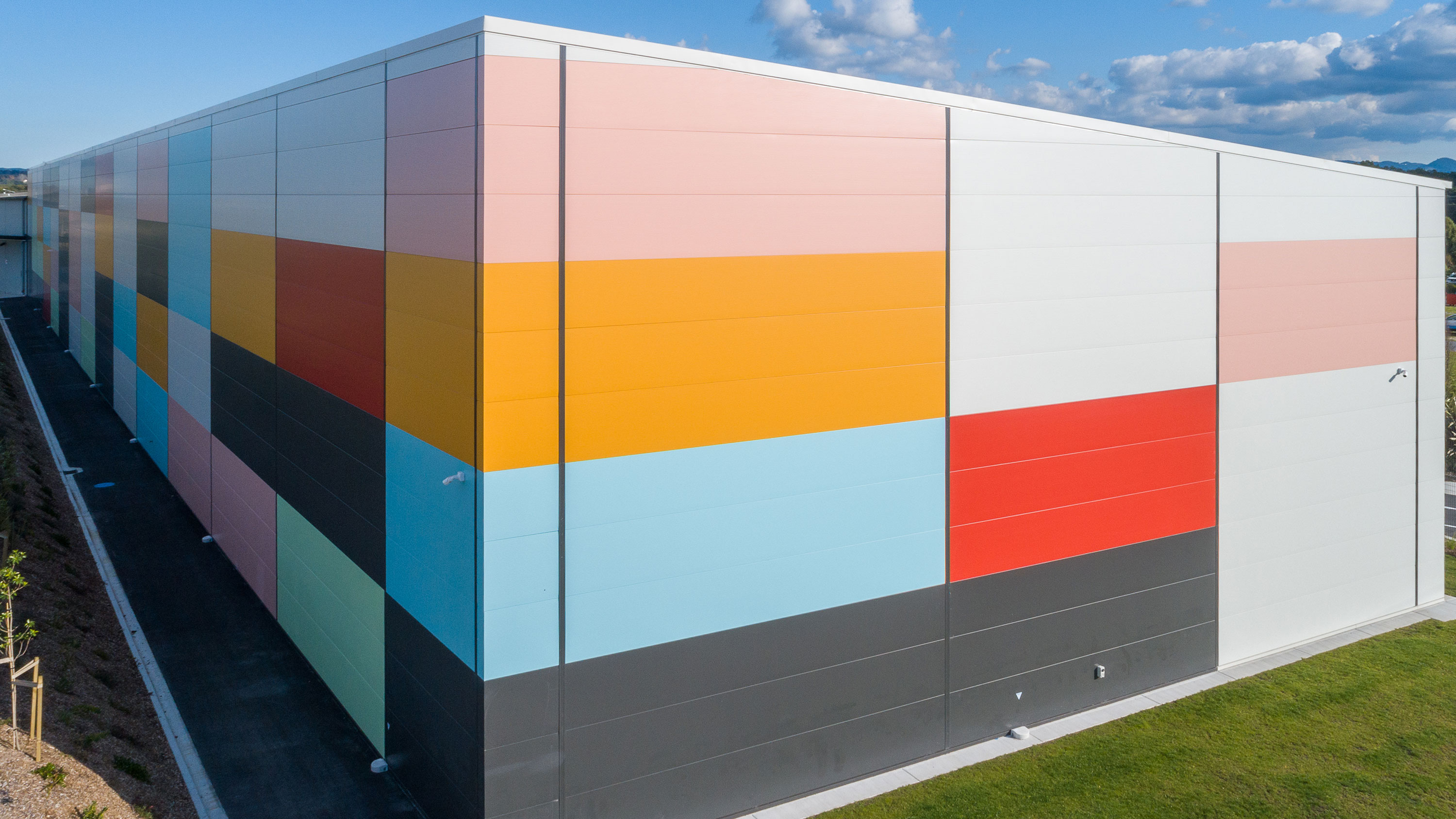

Kingspan Evolution Panelised Façade

Kingspan Insulated Panels

View Product

Evolution: a simple and effective single-component solution, perfect for a minimalist façade.

A panelised façade system for use on residential, communal residential, communal non-residential, commercial, industrial buildings and outbuildings
All Kingspan panels, including Evolution Panelised Façades, are typically tested up to 3.6kPa for normal conditions (ULS) and up to 15kPa for cyclonic conditions (ULS). These limits easily exceed the requirements of NZS3604, including Extra High wind zones
Horizontal or vertical installation
Wide selection of pre-formed corners are available; no need for bulky flashings
Finishes suitable for standard and high humidity environments
All Kingspan panels, including the Trapezoidal roof and wall panels, are typically tested up to 3.6kPa for normal conditions (ULS) and up to 15kPa for cyclonic conditions (ULS). These limits easily exceed the requirements of NZS3604, up to and beyond the Extra High wind zones

Corrosion Exposure Zone B

Corrosion Exposure Zone C

Corrosion Exposure Zone D

High Earthquake Zone

Low Earthquake Zone

Medium Earthquake Zone

Very High Earthquake Zone

Extra High Wind Zone

High Wind Zone

Low Wind Zone

Medium Wind Zone

Specific Design Wind Zone

Very High WInd Zone

Kingspan panels have been used around New Zealand, on many building types for in excess of 15 years.

The Evolution Panelised Façade holds a CodeMark Certificate of Conformity stating the provisions of the Building Regulations 2008 (New Zealand) the product conforms to.

CodeMark Certificate of Conformity is certified under the name Kingspan Insulated Panels Architectural Wall Panels (AWP) and Evolution (EVO). Certificate number: CM20114 Rev V2.

For further details please contact the Kingspan Technical Service Department or alternatively refer to the MBiE - Product Certificate Register and search for 'Kingspan KS1000AWP'.

When designed, used, installed and maintained in accordance with Kingspan standard details, the Evolution Panelised Façade is compliant with the following clauses on the NZBC:

B1 Structure — B1.3.1; B1.3.2; B1.3.3(a, f, g, h, j); B1.3.4
B2 Durability — B2.3.1(b)
C3 Fire Affecting Areas Beyond the Fire Source — C3.4(a); C3.5; C3.7
E2 External Moisture — (contributes to) E2.3.2; E2.3.7
E3 Internal Moisture — E3.3.5
F2 Hazardous Building Materials — F2.3.1
H1 Energy Efficiency — (contributes to) H1.3.1

Structure

Durability

Protection from Fire

External Moisture

Internal Moisture

Energy Efficiency

CodeMark

Independent Assessment

Test Results

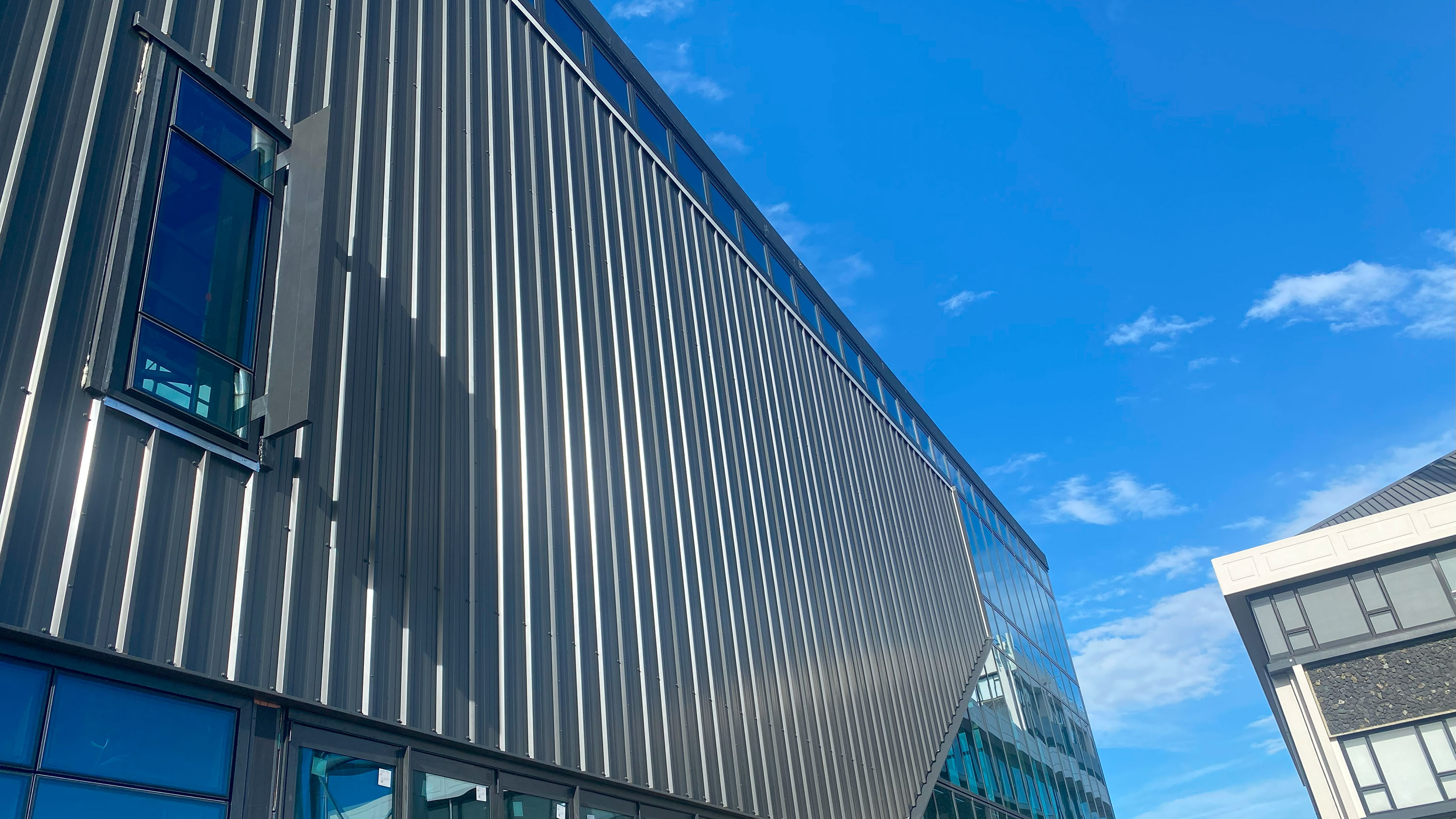

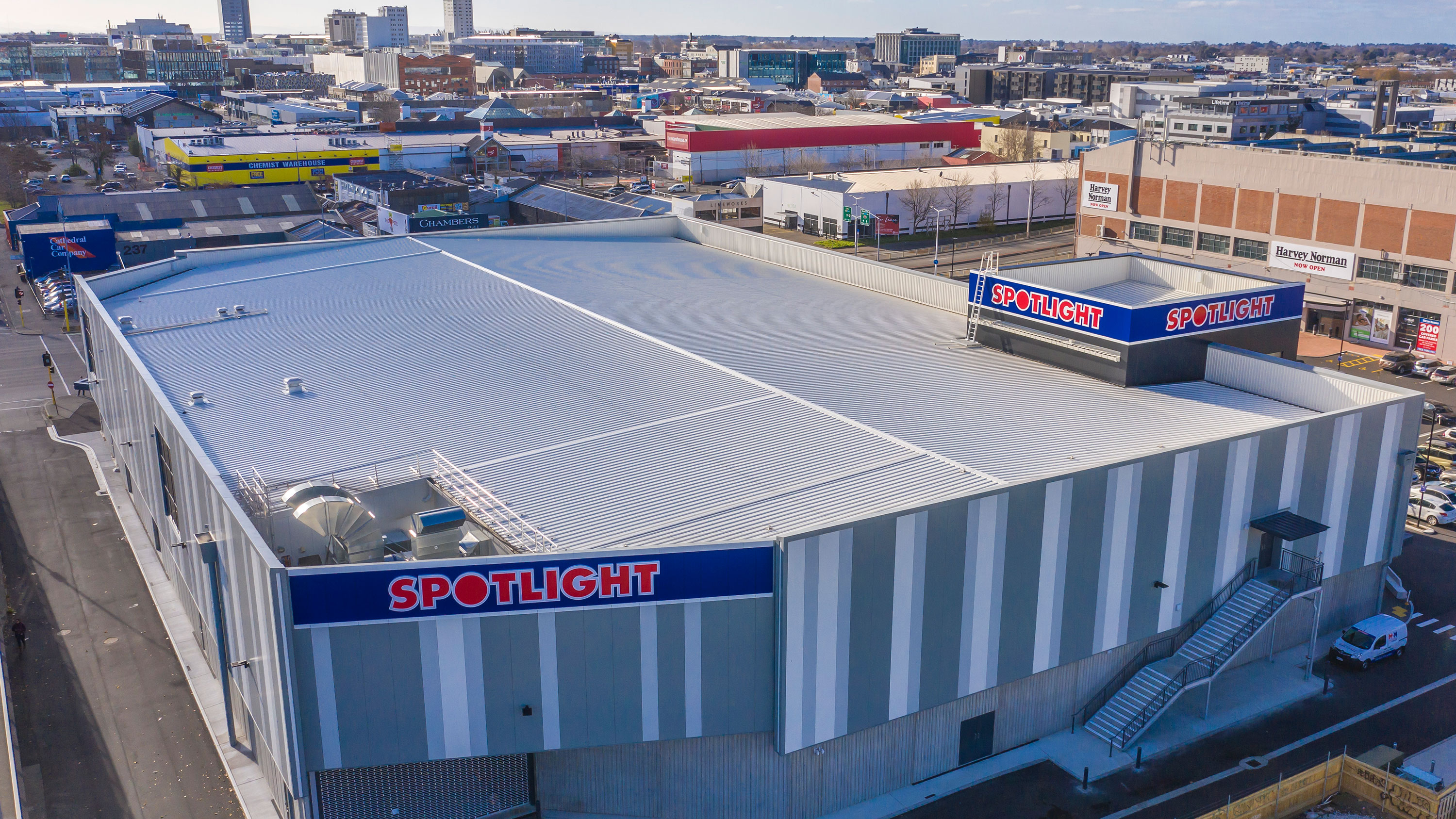

KS1000RW Trapezoidal Roof and Wall Panel

Kingspan Insulated Panels

View Product

The Kingspan KS1000RW Trapezoidal Roof and Wall Panel system products consist of Zincalume sheets that contain a PIR core.

The KS1000RW Trapezoidal Roof Panel is a through-fixed, trapezoidal profiled roof system which can be used for building applications with roof pitches of 4° or more after deflection. For lower pitches, please contact Kingspan.

The standard specification for KS1000RW Trapezoidal Wall Panels is suitable for both vertical or horizontal walls — alternative specification available including high humidity and low temp.

All Kingspan panels, including the KS1000RW Trapezoidal Roof and Wall Panels, are typically tested up to 3.6kPa for normal conditions (ULS) and up to 15kPa for cyclonic conditions (ULS). These limits easily exceed the requirements of NZS3604, up to and beyond the Extra High wind zones.

Corrosion Exposure Zone D

Very High Earthquake Zone

Extra High Wind Zone

Specific Design Wind Zone

When designed, used, installed and maintained in accordance with Kingspan standard details, the KS1000RW Trapezoidal Roof & Wall Panel is compliant with the following clauses on the NZBC:

B1 Structure — B1.3.1; B1.3.2; B1.3.3(a, f, g, h, j); B1.3.4

B2 Durability — B2.3.1(b)

C3 Fire Affecting Areas Beyond the Fire Source — C3.4(a); C3.5; C3.7

E2 External Moisture — E2.3.1 (roof only); E2.3.2; E2.3.7

E3 Internal Moisture — E3.3.5

F2 Hazardous Building Materials — F2.3.1

H1 Energy Efficiency — H1.3.1

CodeMark

Independent Assessment

Test Results

Surface Water

External Moisture

Internal Moisture

Energy Efficiency
