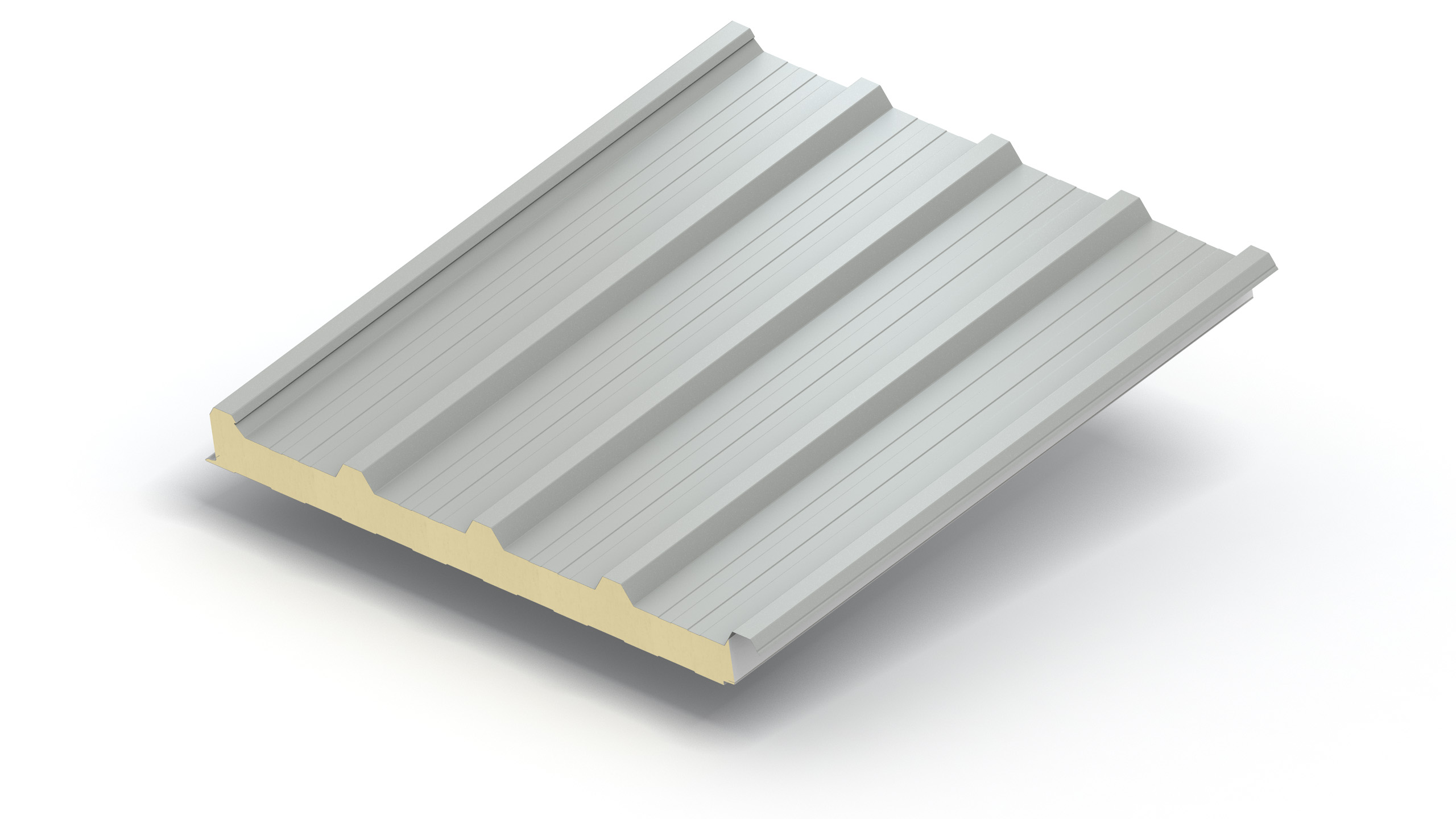

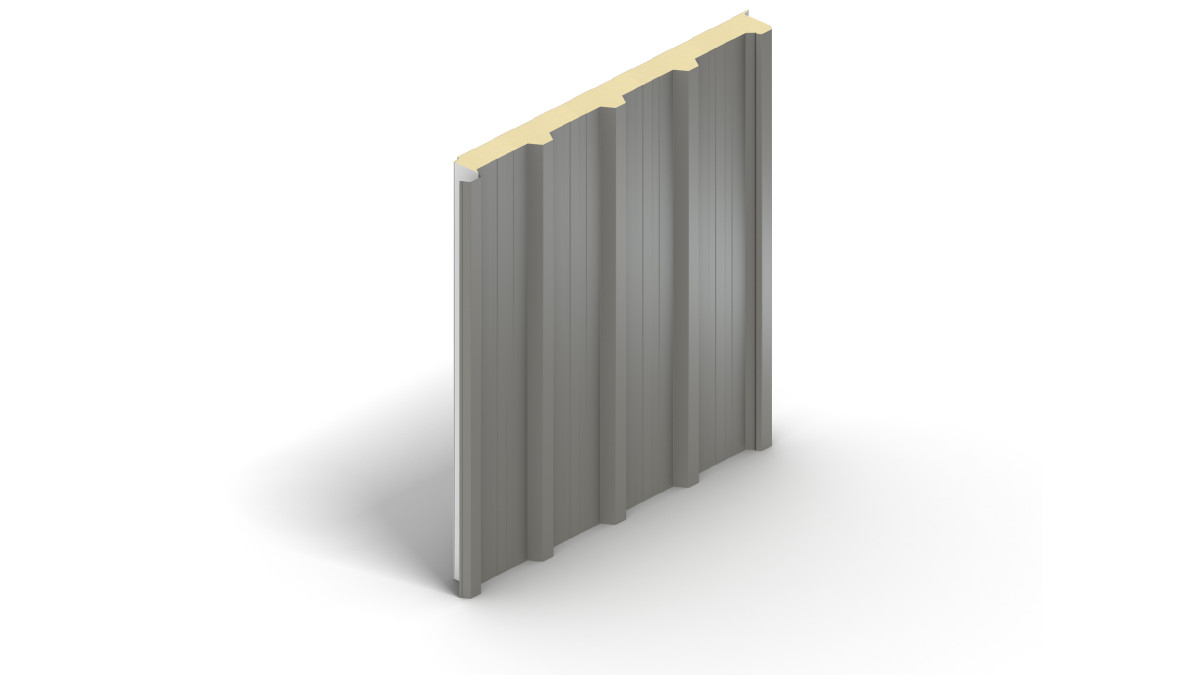

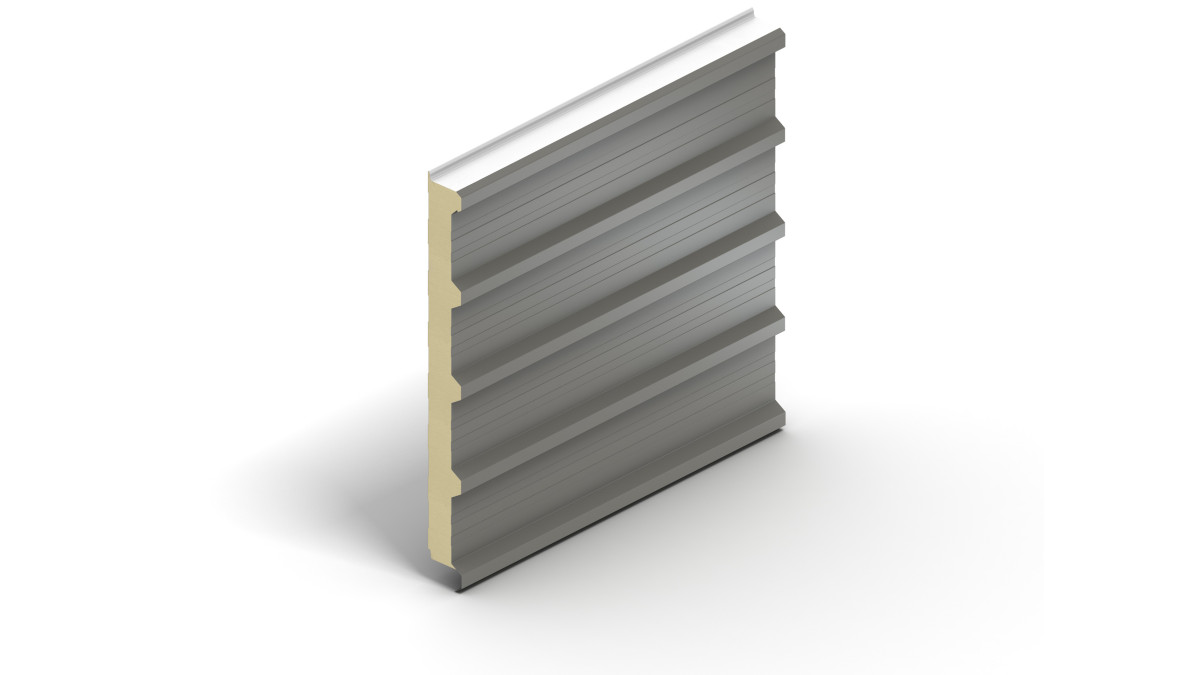

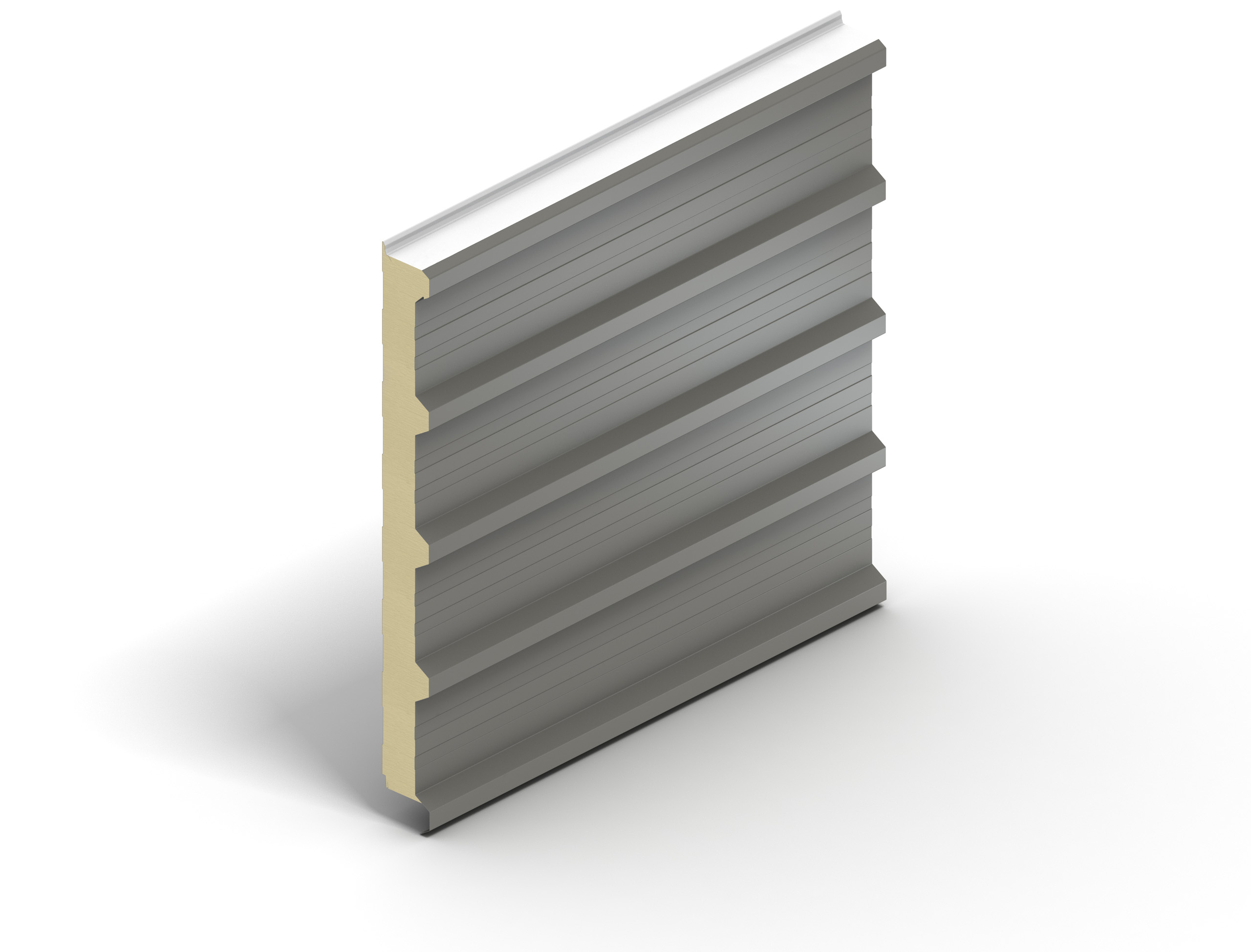

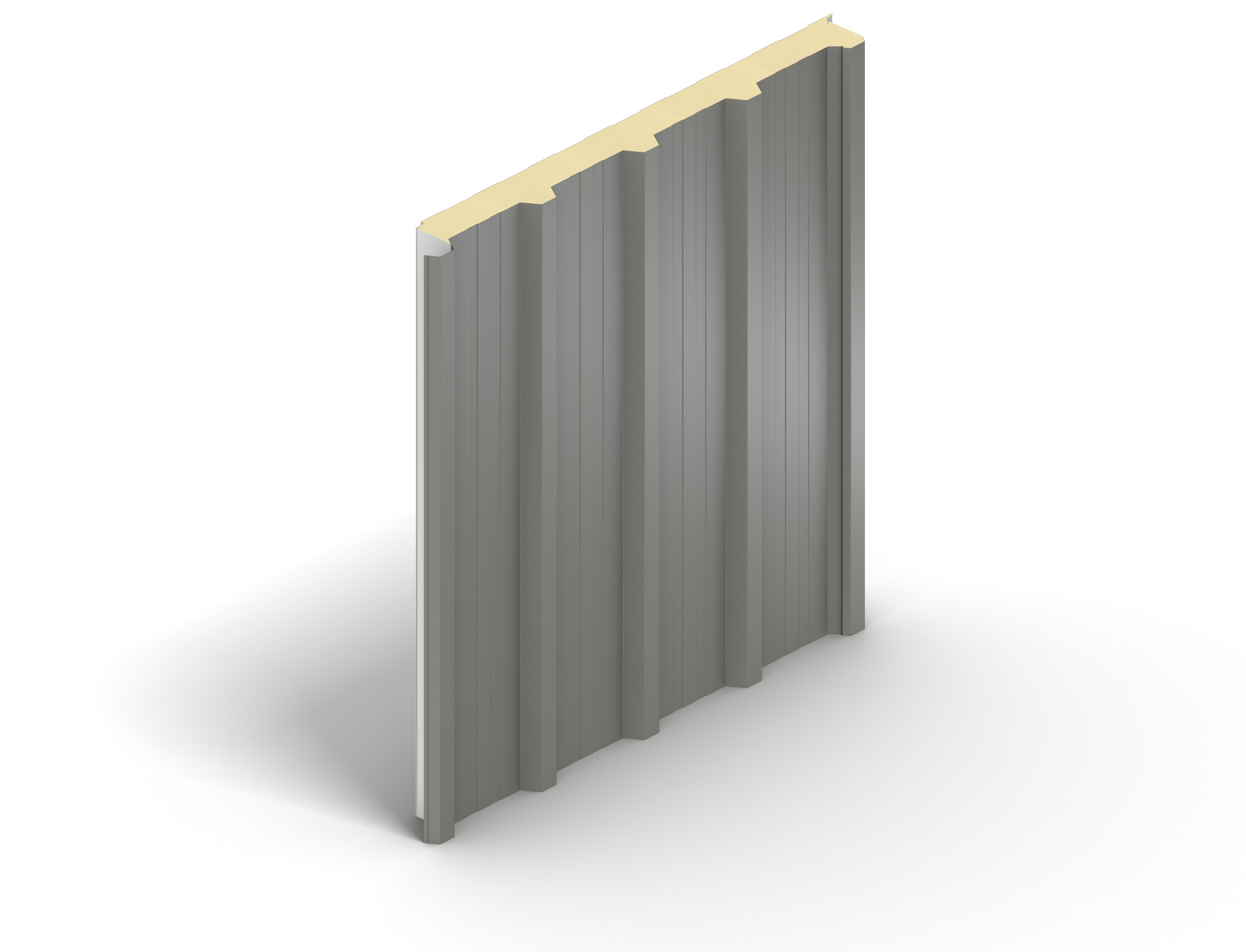

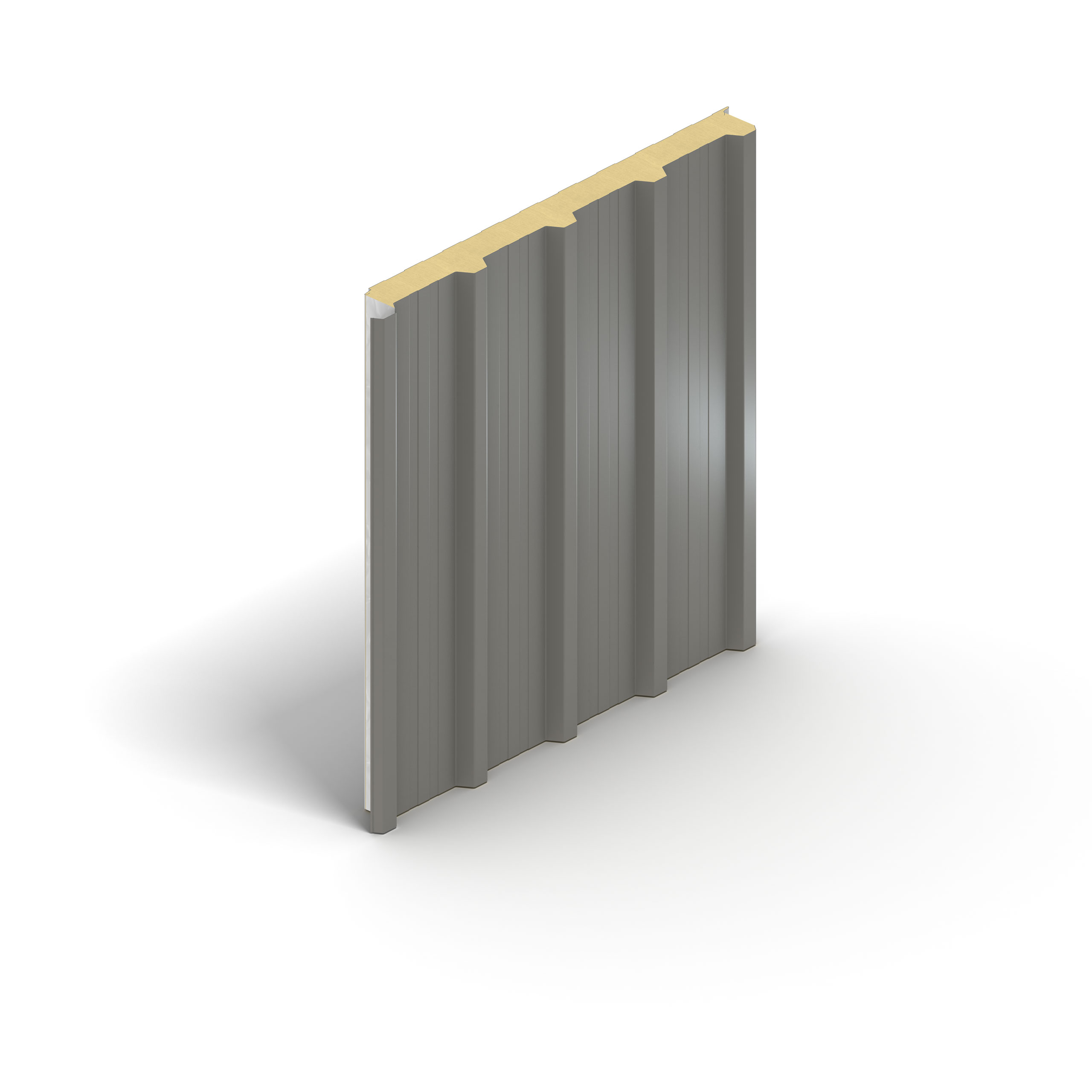

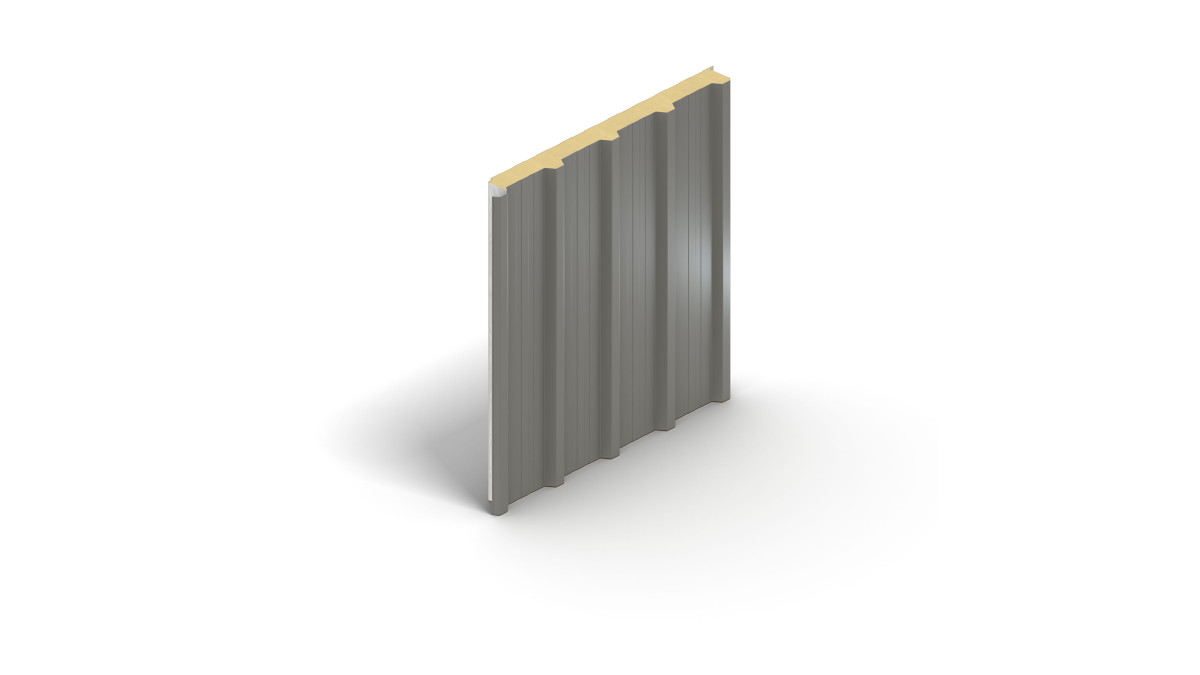

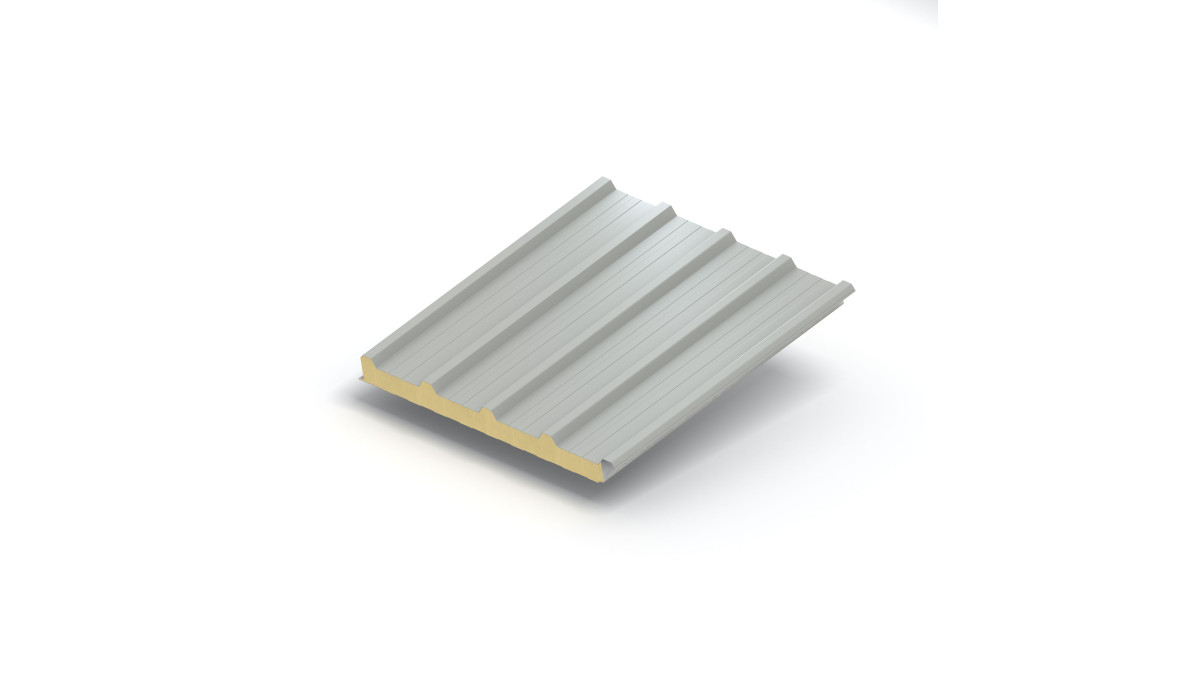

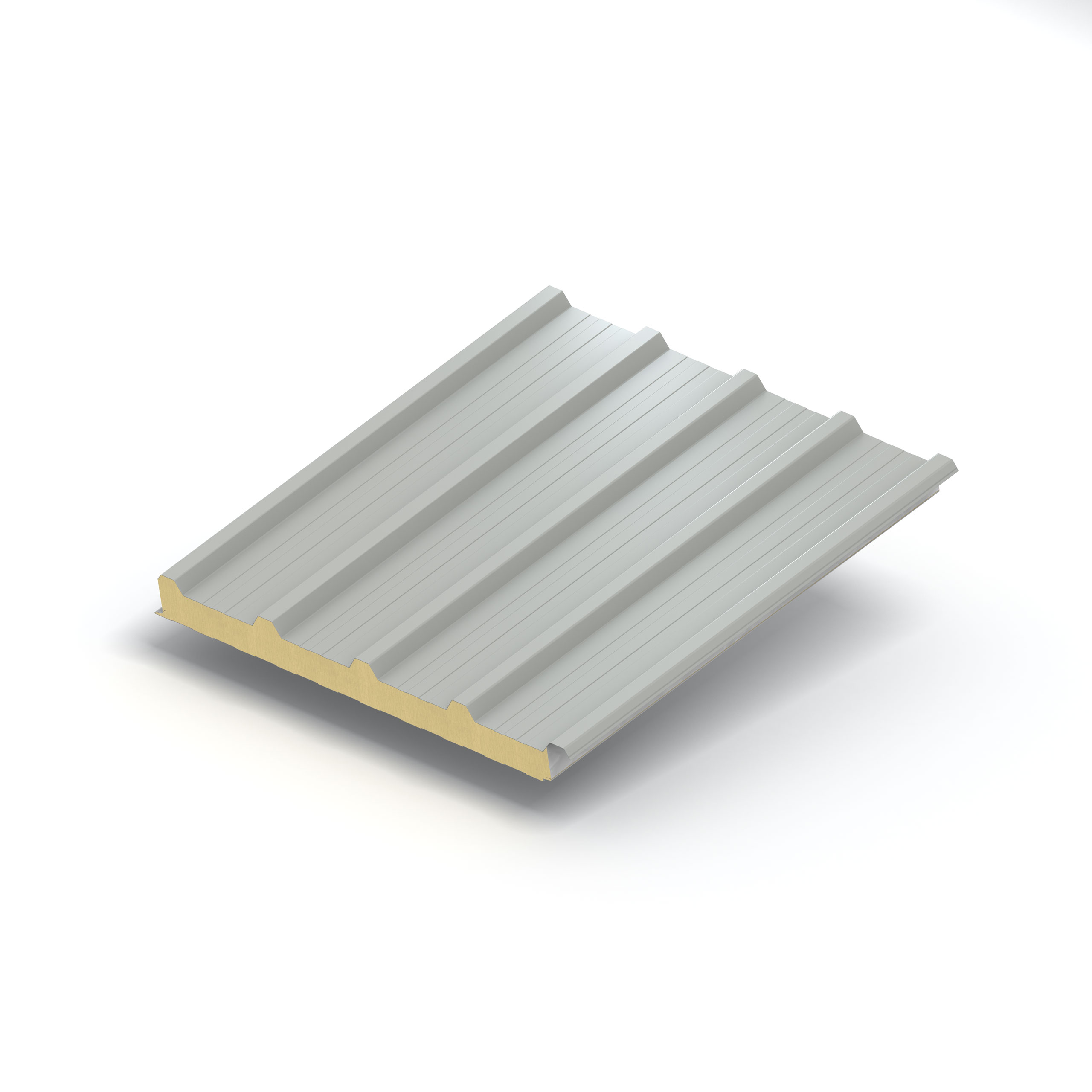

The KSN1000FC Five Crown Roof & Wall Panel is a through fixed system which can be used for building applications with roof slopes of 3º (after deflection) and above and can be used in wall (vertical or horizontal) applications.

It is suitable for most new build and refurbishment building applications as a roof and wall element. The steel exterior and interior lining is available in a range of coatings and colours for standard, coastal and high humidity environments.

Kingspan’s Roof & Wall Panels have been used around New Zealand, on many building types for in excess of 15 years.

When designed, used, installed and maintained in accordance with Kingspan standard details, the KSN1000FC Five Crown Roof & Wall Panel is compliant with the following clauses on the NZBC:

• B1 Structure — B1.3.1; B1.3.2; B1.3.3(a, f, g, h, j); B1.3.4
• B2 Durability — B2.3.1(b)
• C3 Fire Affecting Areas Beyond the Fire Source — C3.4(a); C3.5; C3.7
• E2 External Moisture — E2.3.1 (roof only); E2.3.2; E2.3.7
• E3 Internal Moisture — E3.3.5
• F2 Hazardous Building Materials — F2.3.1
• H1 Energy Efficiency — H1.3.1

Insulated panels have been used in New Zealand for over 40 years.

Kingspan’s insulated panels have been in use globally for over 50 years and Kingspan has supplied panels for use in NZ for over 20 years.

All Kingspan products and systems are backed by extensive testing and guarantees and supported by five decades of experience.

Kingspan KSN1000FC Five Crown Roof & Wall Panels are approved by FM to the following Approval Standards:

• FM4880 — Internal wall and ceiling panels without height restriction
• FM4471 — Roof panel systems (certified name: KSN1000FC)
