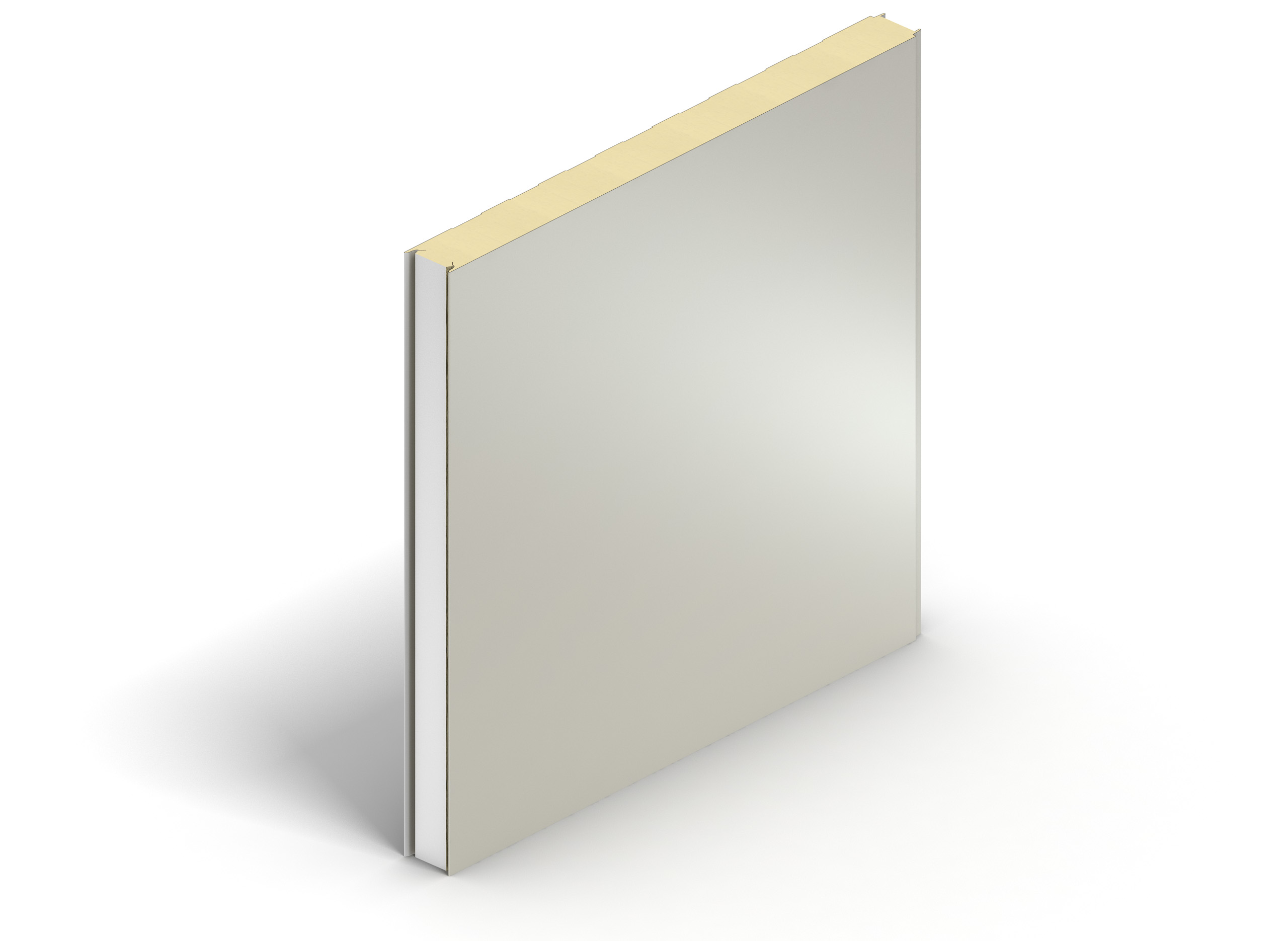

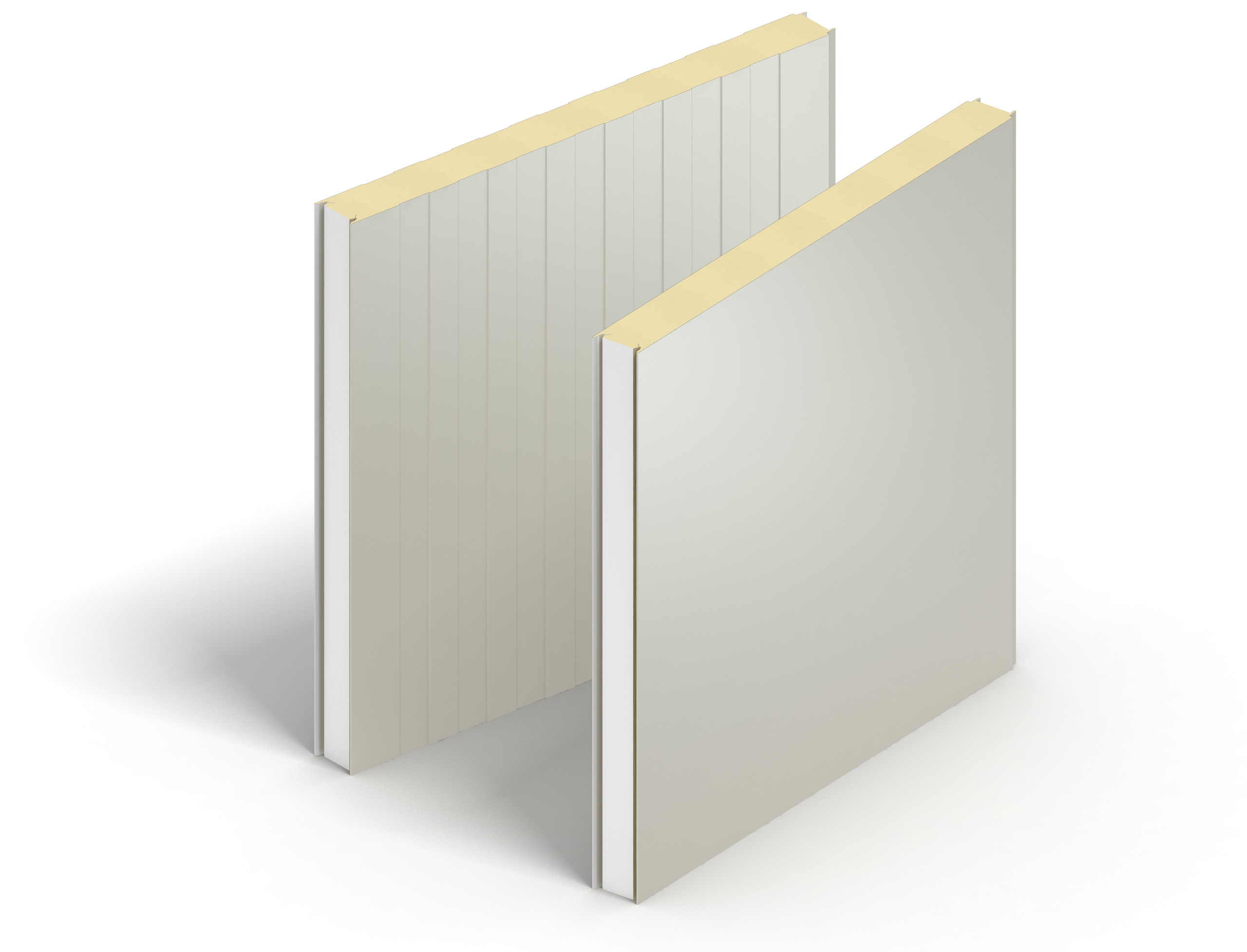

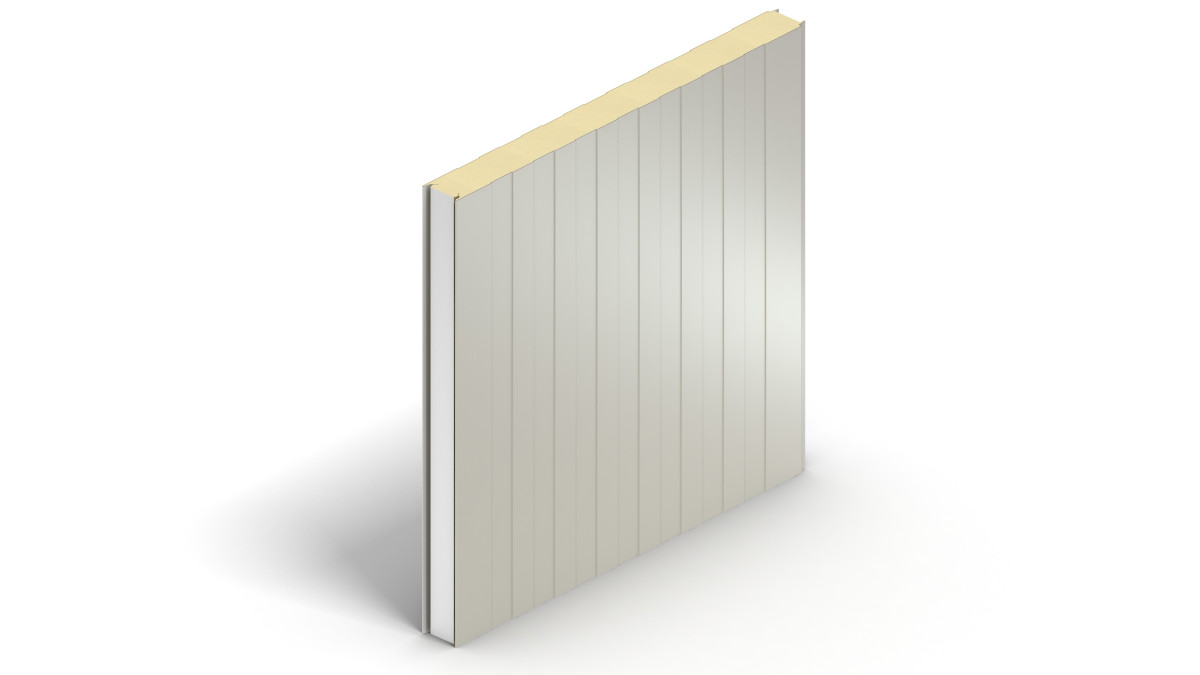

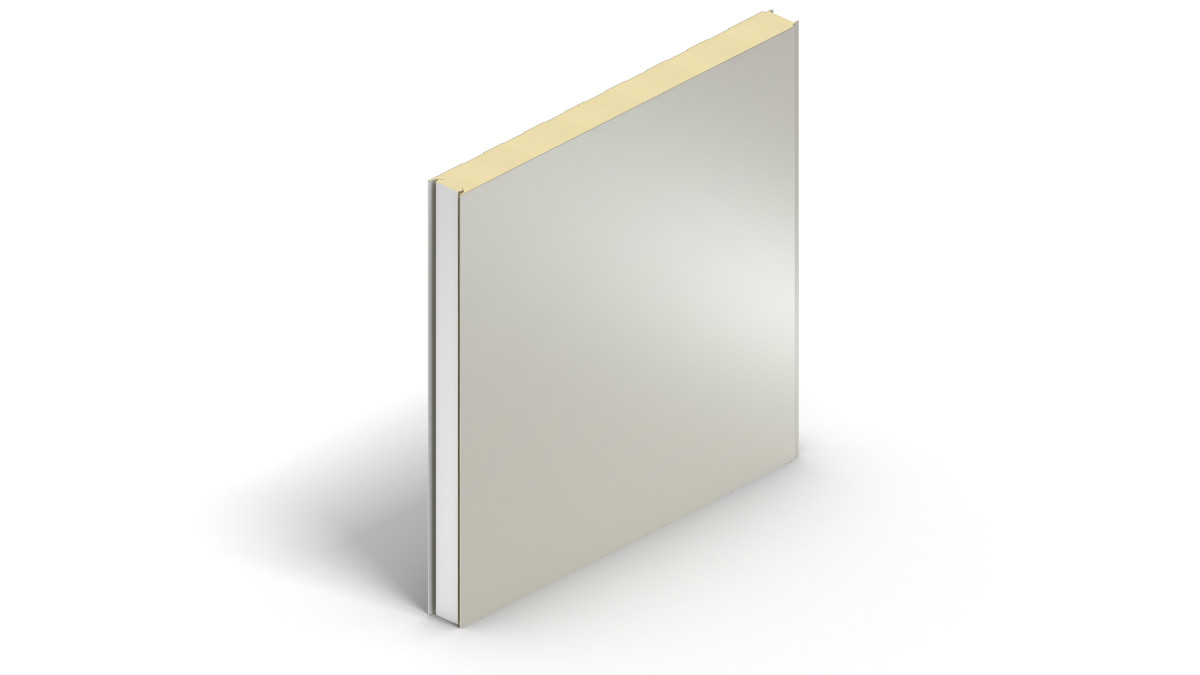

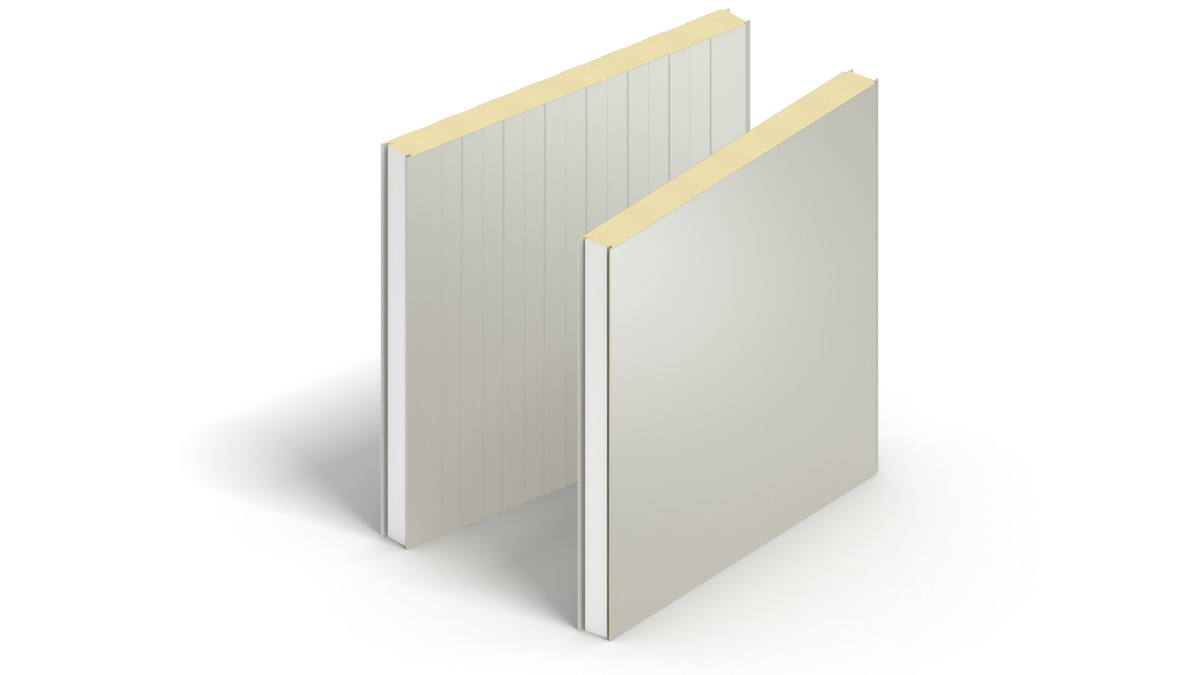

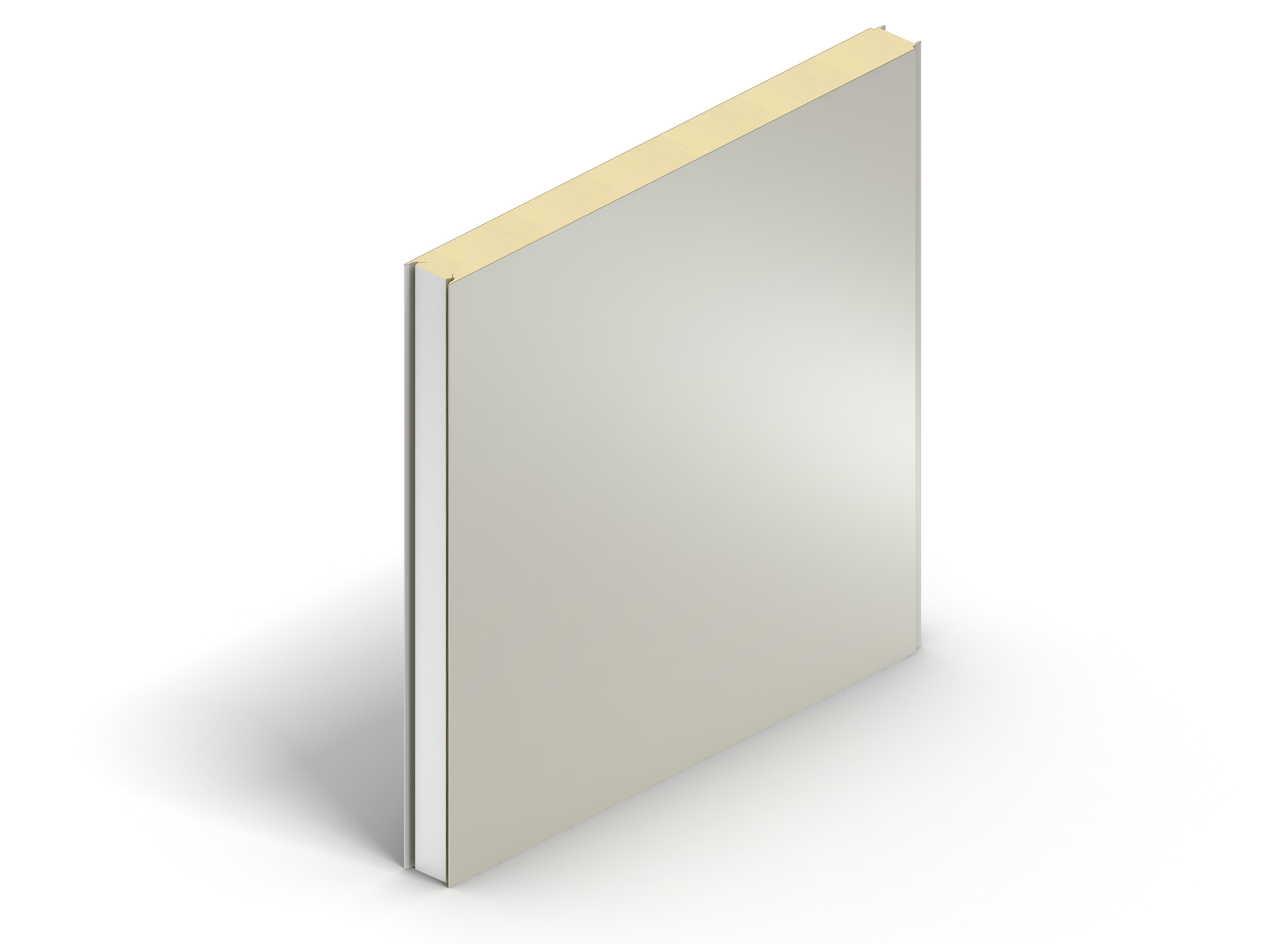

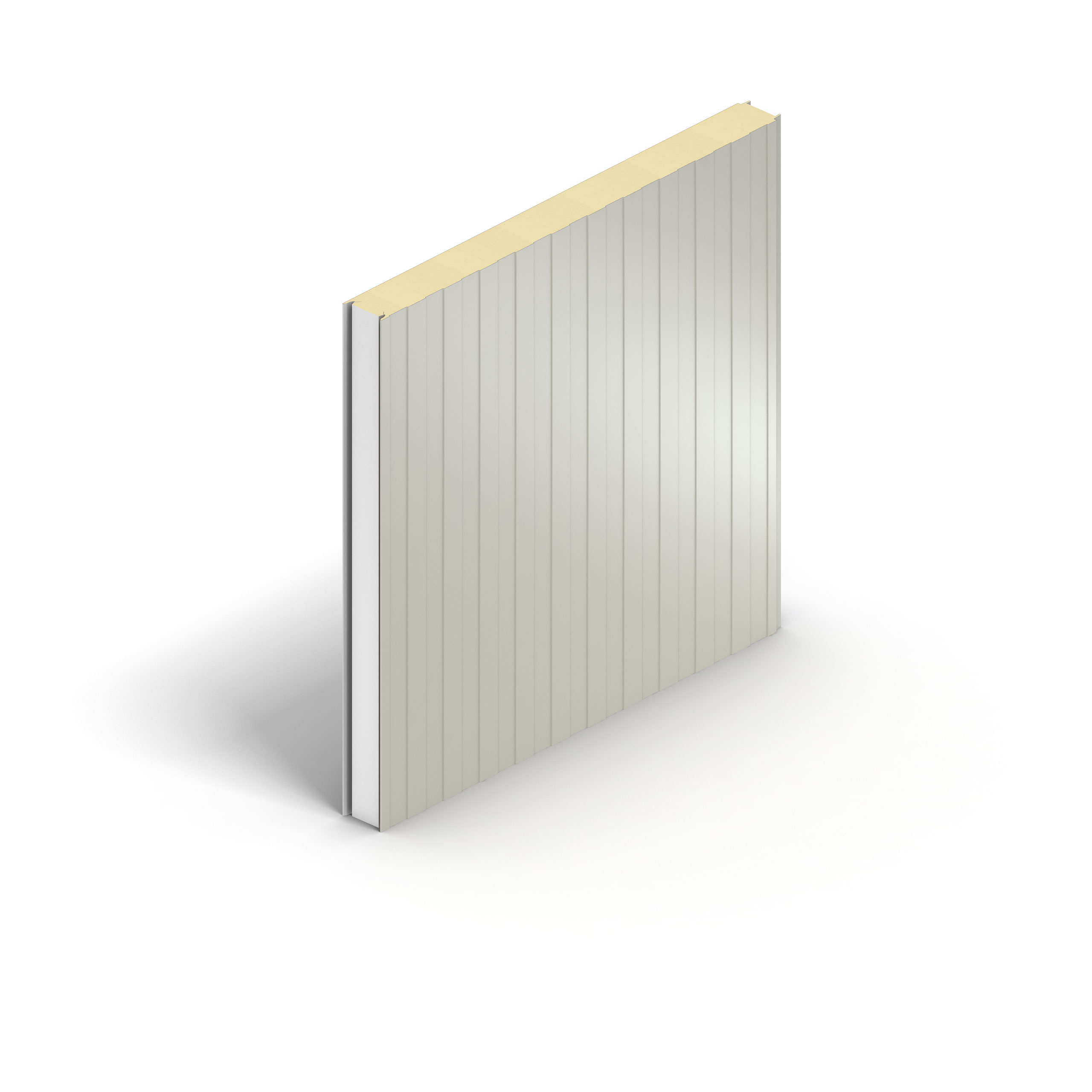

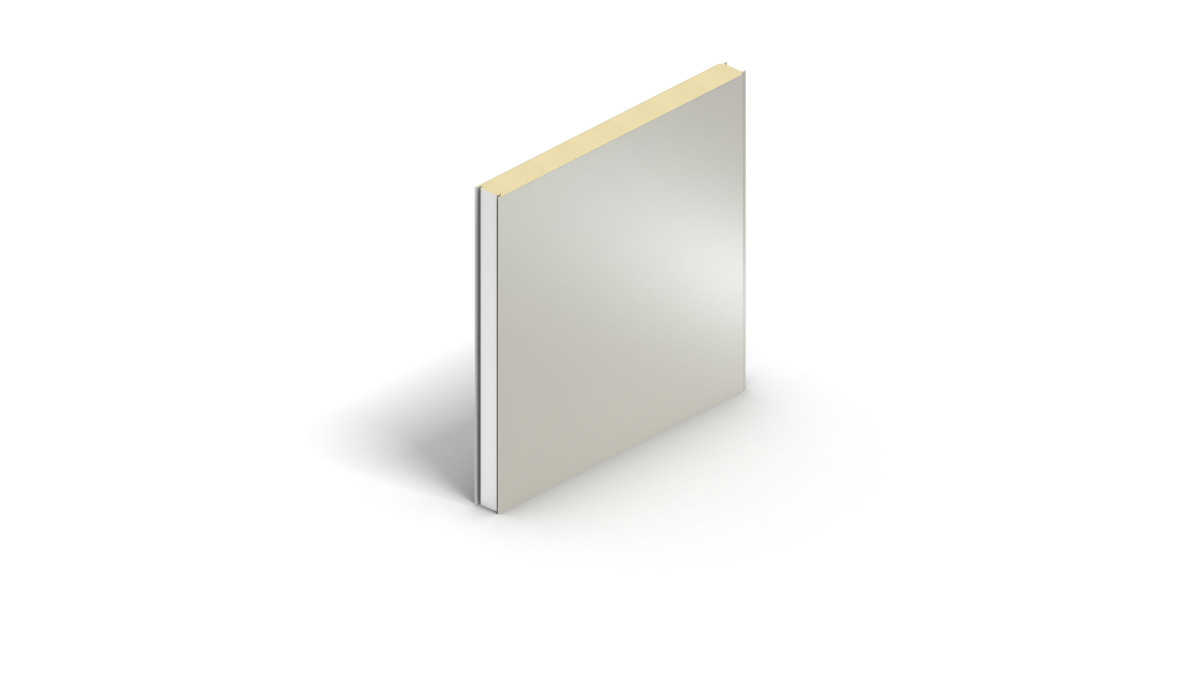

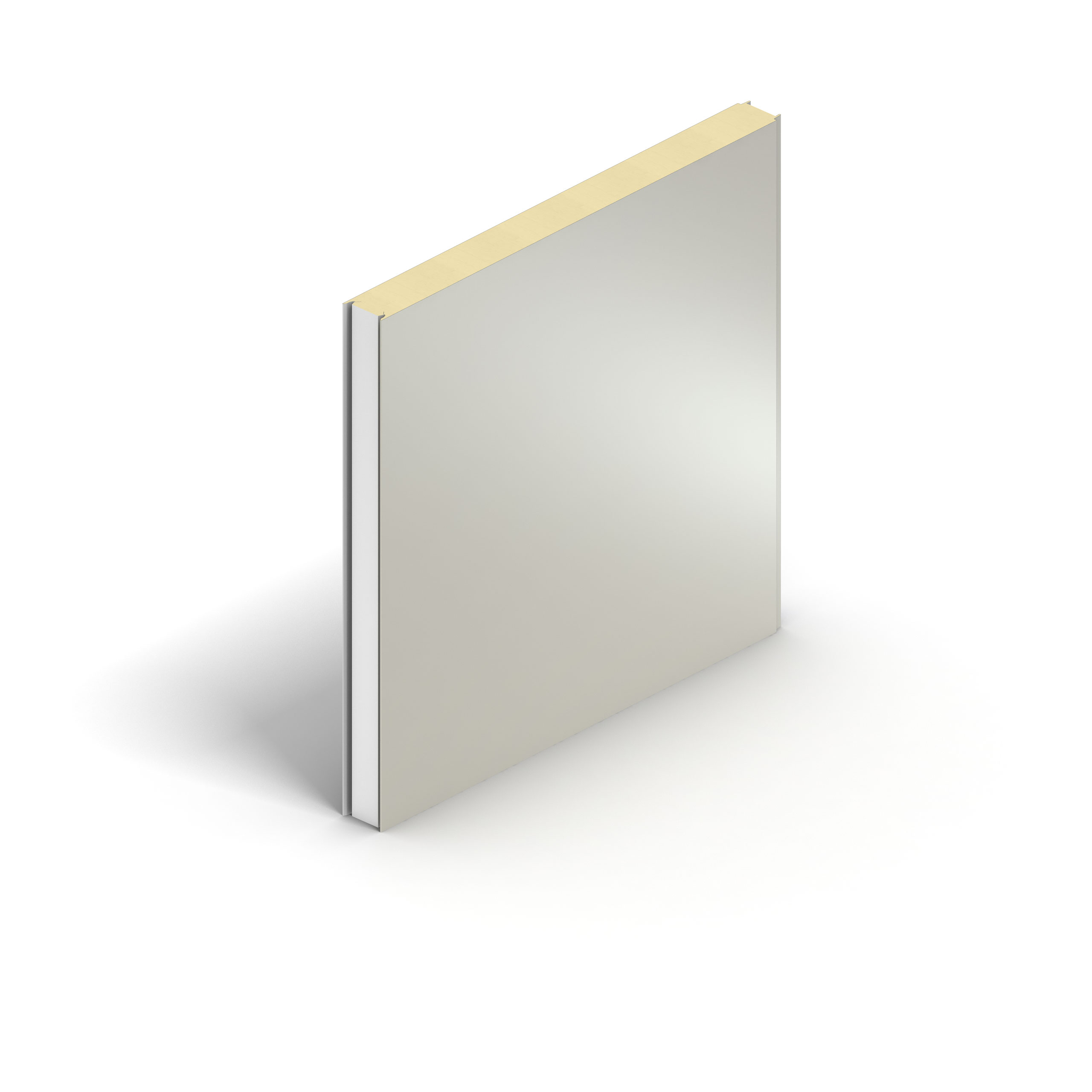

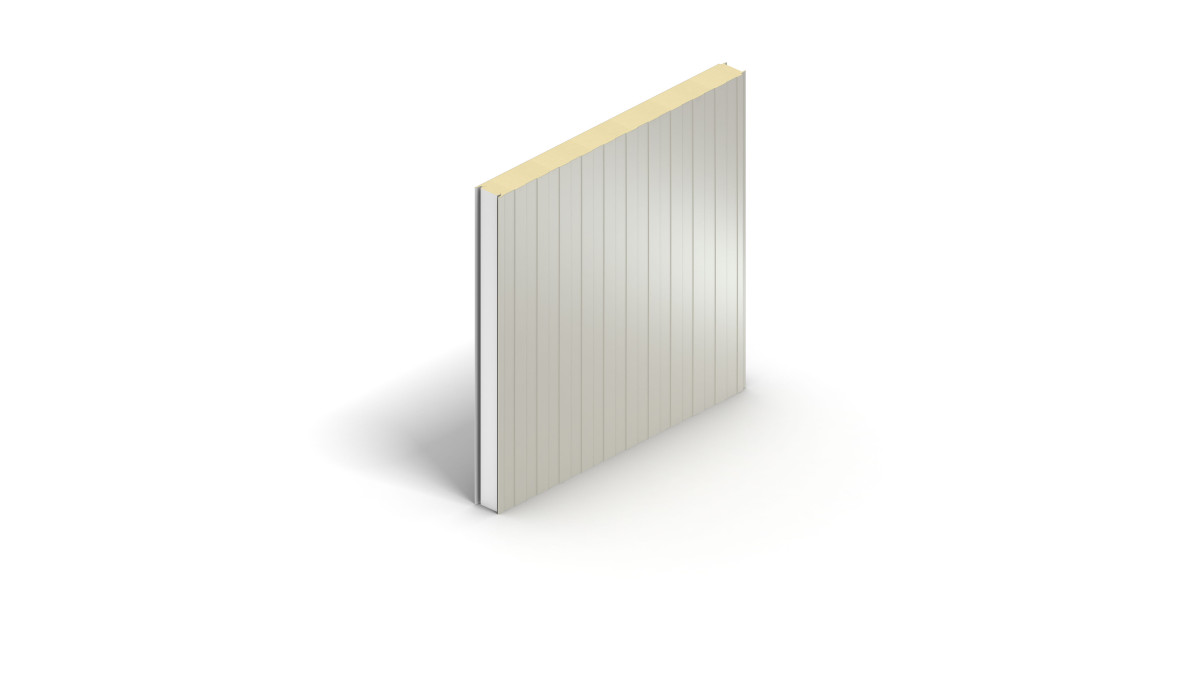

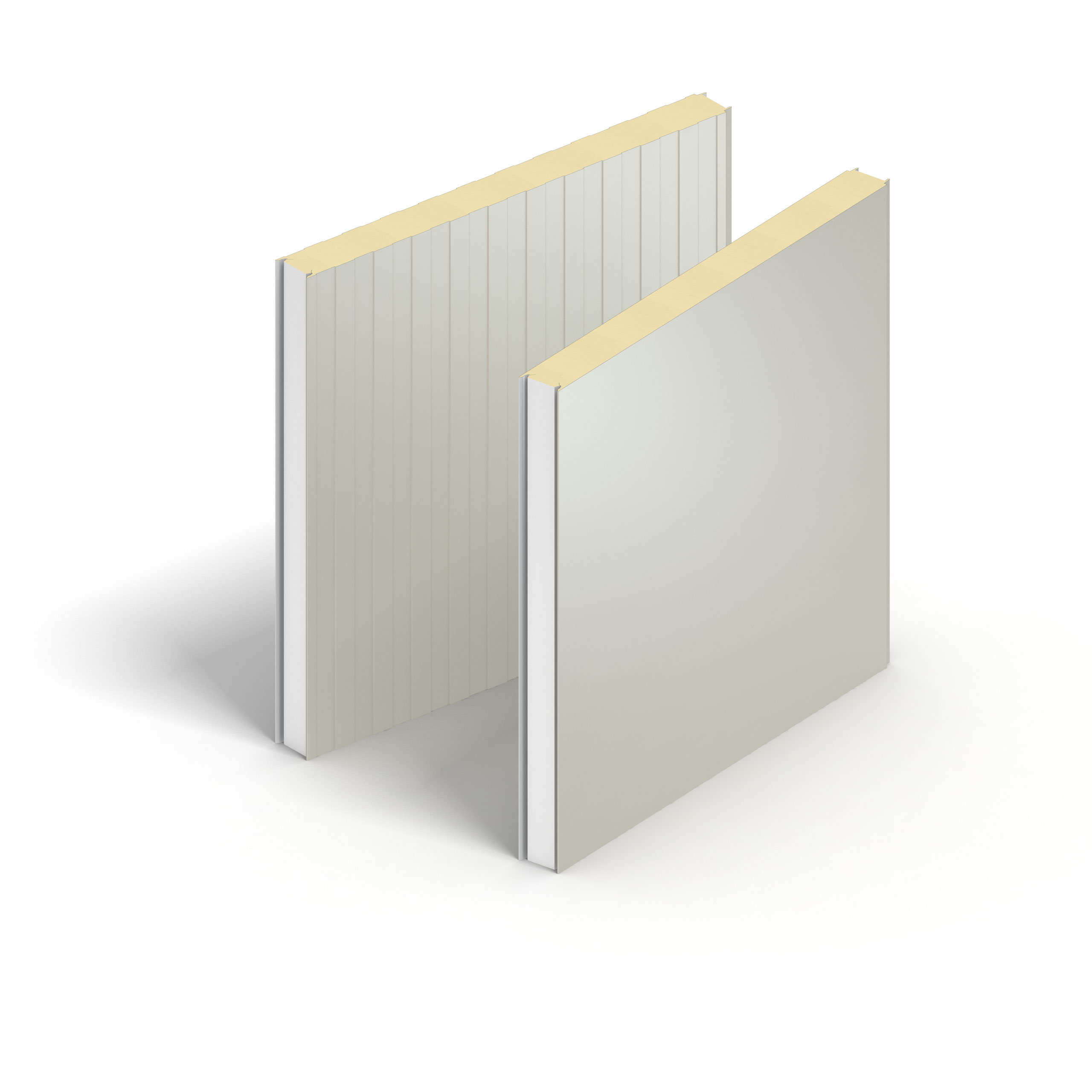

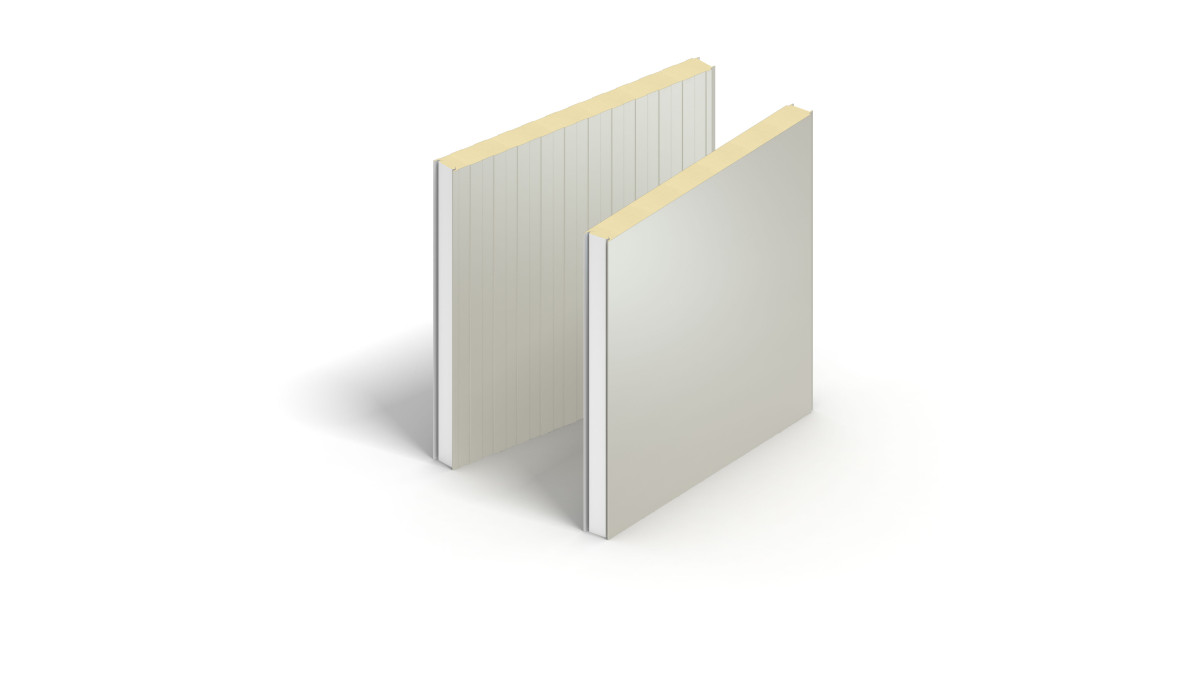

These high-performance, hygienic and fibre-free insulated panel systems are suitable for internal and external walls and ceilings, including internal 'box within a box' applications.

Panels can be laid vertically or horizontally.

Coldstore panels have been used around New Zealand, on many building types for in excess of 15 years.

When designed, used, installed and maintained in accordance with Kingspan standard details, the KSN1100CS Coldstore Panel is compliant with the applicable sections of the NZBC:

• B1Structure — B1.3.1; B1.3.2; B1.3.3(a, c, f, g, h, j); B1.3.4
• B2 Durability — B2.3.1(b)
• C3 Fire Affecting Areas Beyond the Fire Source — C3.4(a); C3.5; C3.7
• E2 External Moisture —  E2.3.2; E2.3.7
• E3 Internal Moisture — E3.3.5
• F2 Hazardous Building Materials — F2.3.1
• H1 Energy Efficiency — H1.3.1

Insulated panels have been used in New Zealand for over 40 years.

Kingspan’s insulated panels have been in use globally for over 50 years and Kingspan has supplied panels for use in NZ for over 20 years.

All Kingspan products and systems are backed by extensive testing and guarantees and supported by five decades of experience.

Kingspan KSN1100CS Coldstore Panels are approved by FM to the following Approval Standards:

• FM4880 — Internal wall and ceiling panels without height restriction (All thicknesses: 50, 75, 100, 125, and 150 mm) (certified names: KSN1100 CS, KSN1000 CS)
