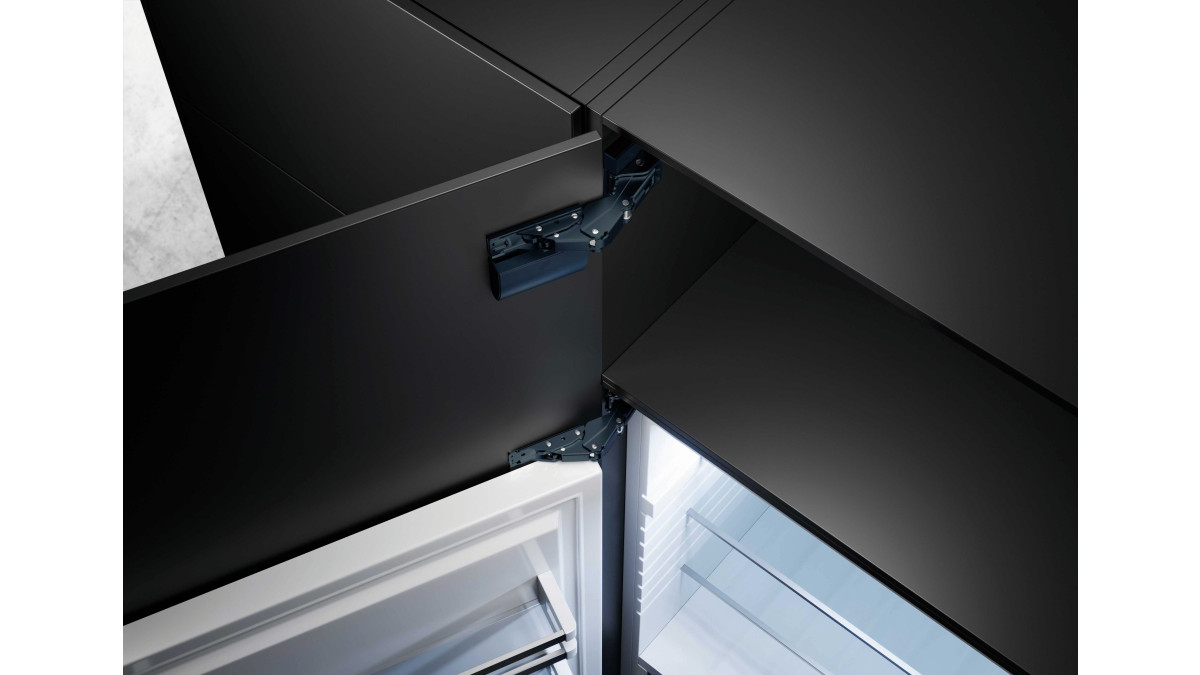

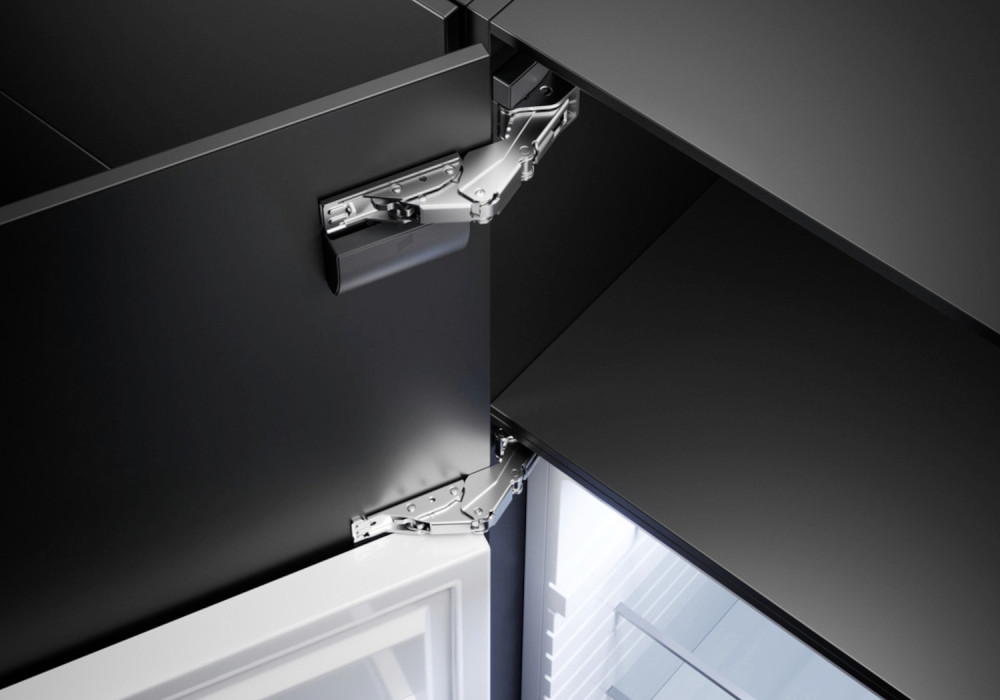

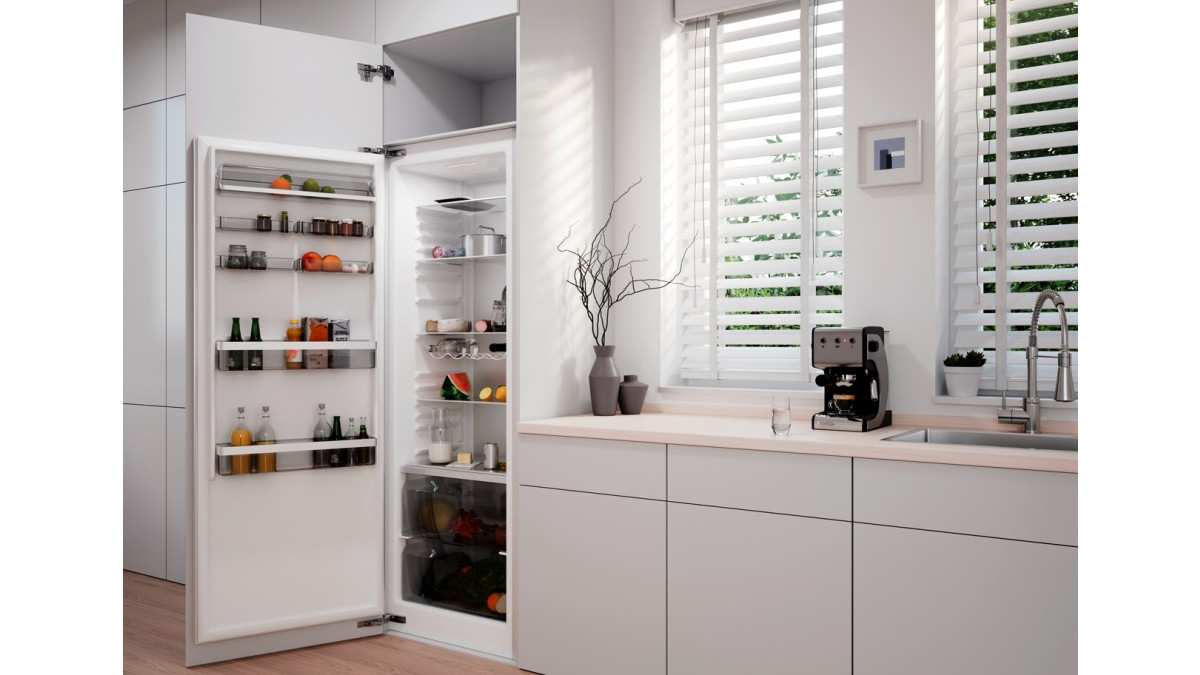

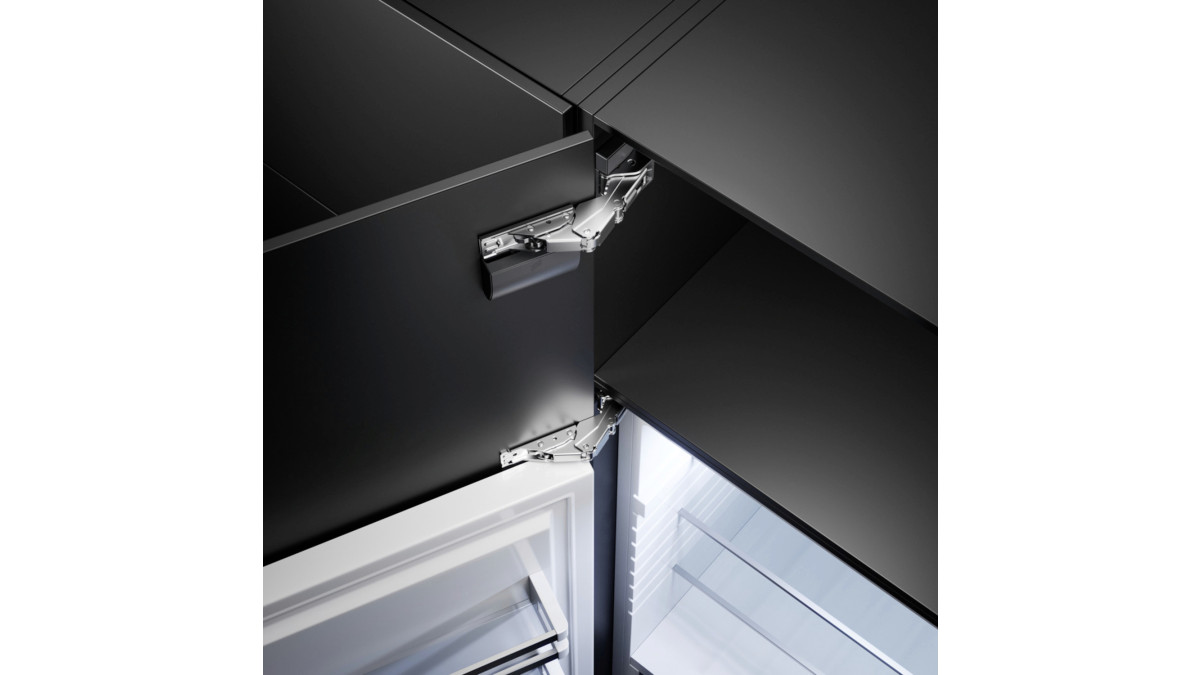

The wider and taller the cabinet doors, the heavier they get. This calls for exceptional load bearing capacity. With the Evisys guiding hinge, Hettich provides a unique fitting solution for installing extra tall cabinet doors in front of built in refrigerators with fixed door connection.

The innovative Evisys guiding hinge features all of Hettich's expertise for the benefit of users: combined with Hettich fixed door hinges, it's now possible to install doors weighing up to 80kg — a whopping 10kg more than before. Evisys takes care of the additional load. Positioned in the top cabinet door section, Evisys ensures the necessary opening and closing stability and keeps reveals precisely aligned at all times for doors in widths up to 750mm. The galvanised steel fitting can be used on the left and right of the door. The system is suitable for cabinet bodies with 16, 18 or 19mm side panels.

Evisys is available with integrated Silent System. The integrated Silent System cleverly upgrades convenience even further: because the refrigerator door too benefits from the Evisys damping effect, now closing more gently and quietly. An excellent performer, the Evisys guiding hinge now ensures that kitchen design can, quite literally, "rise to a new level".
