Easys for Refrigerators
Description

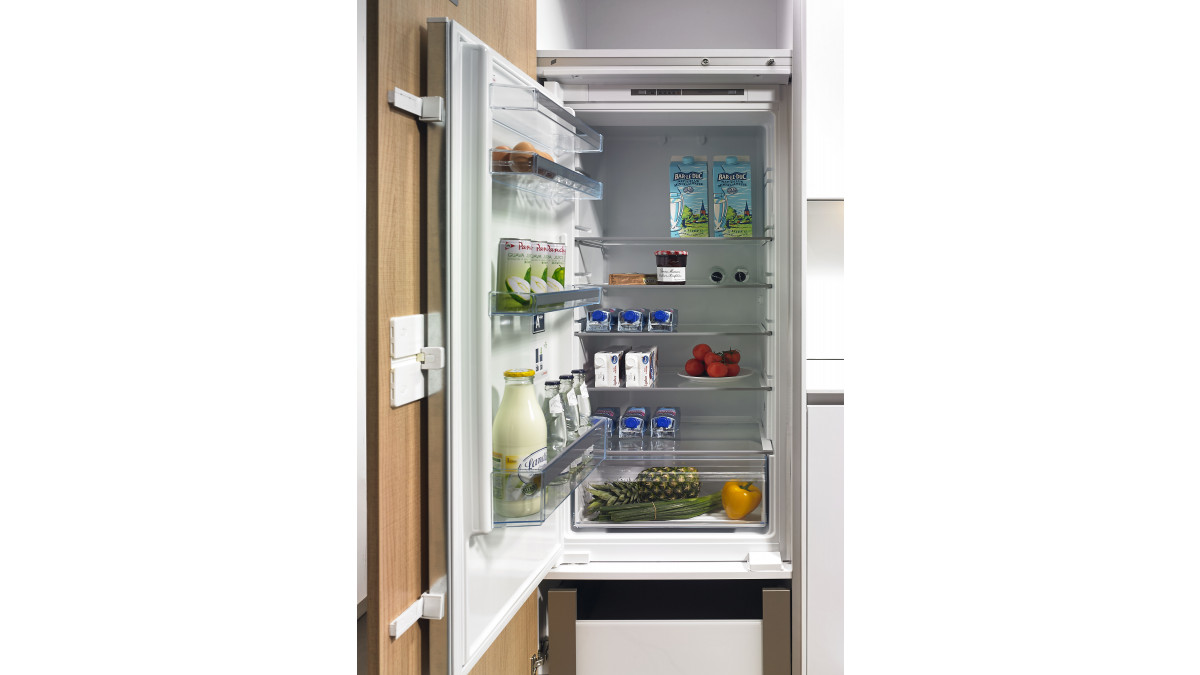

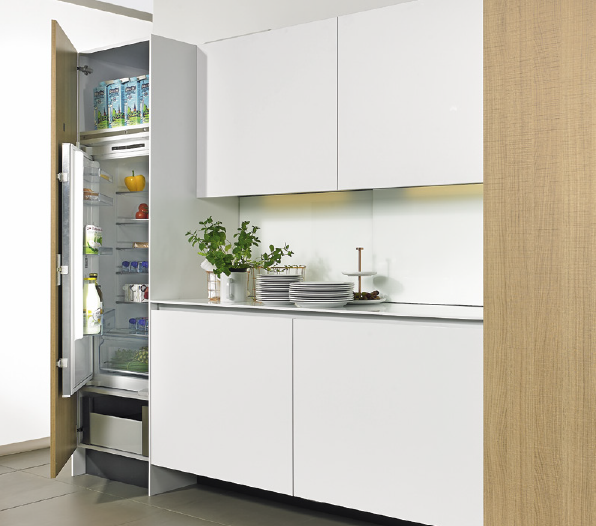

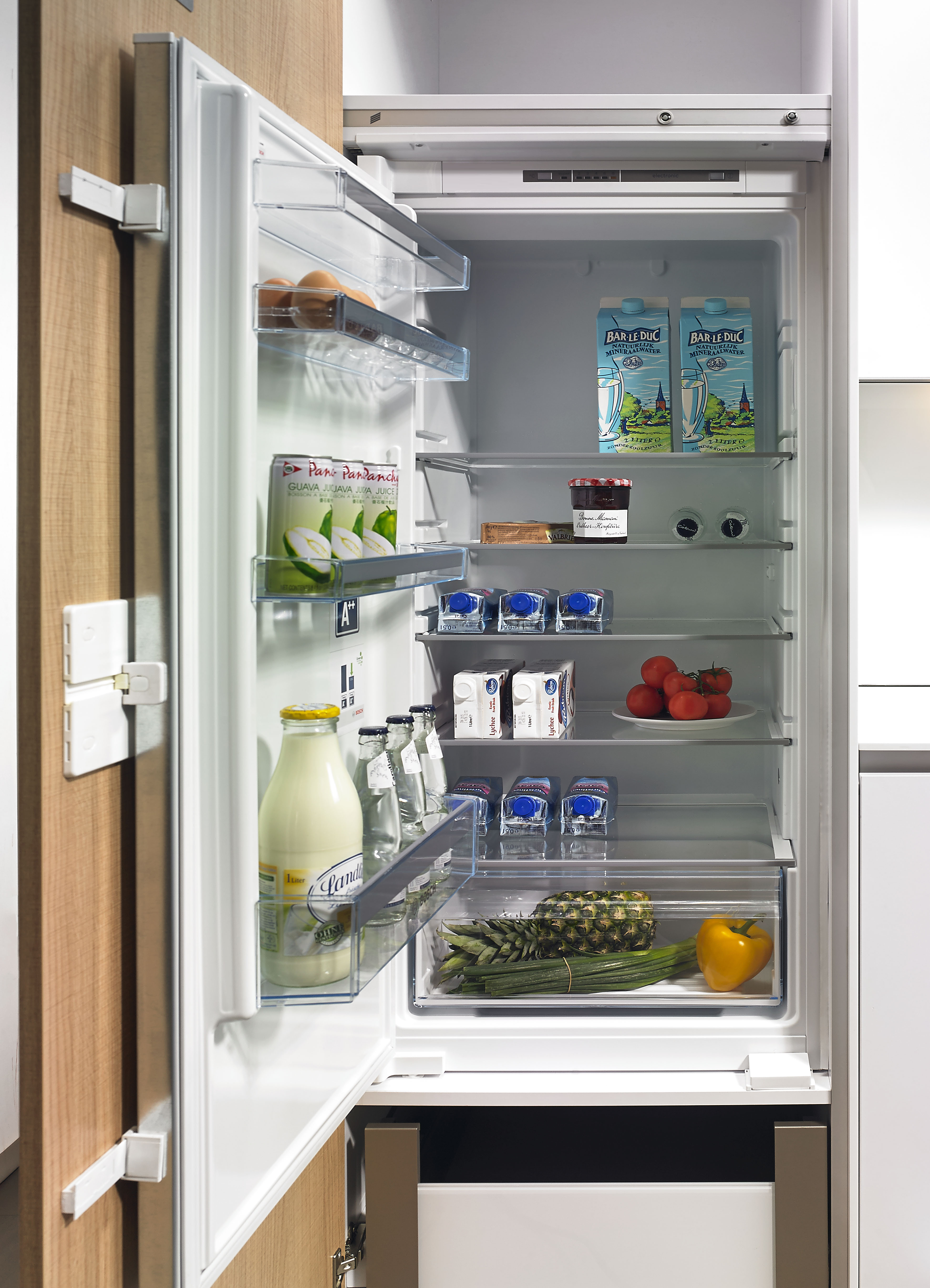

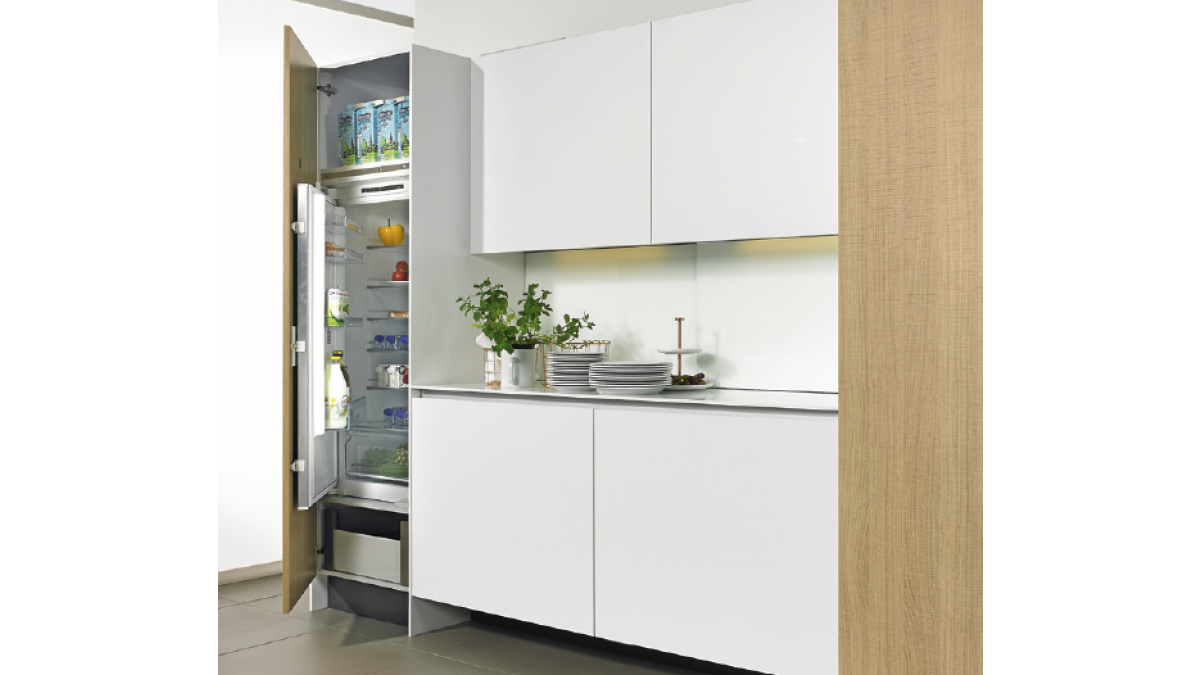

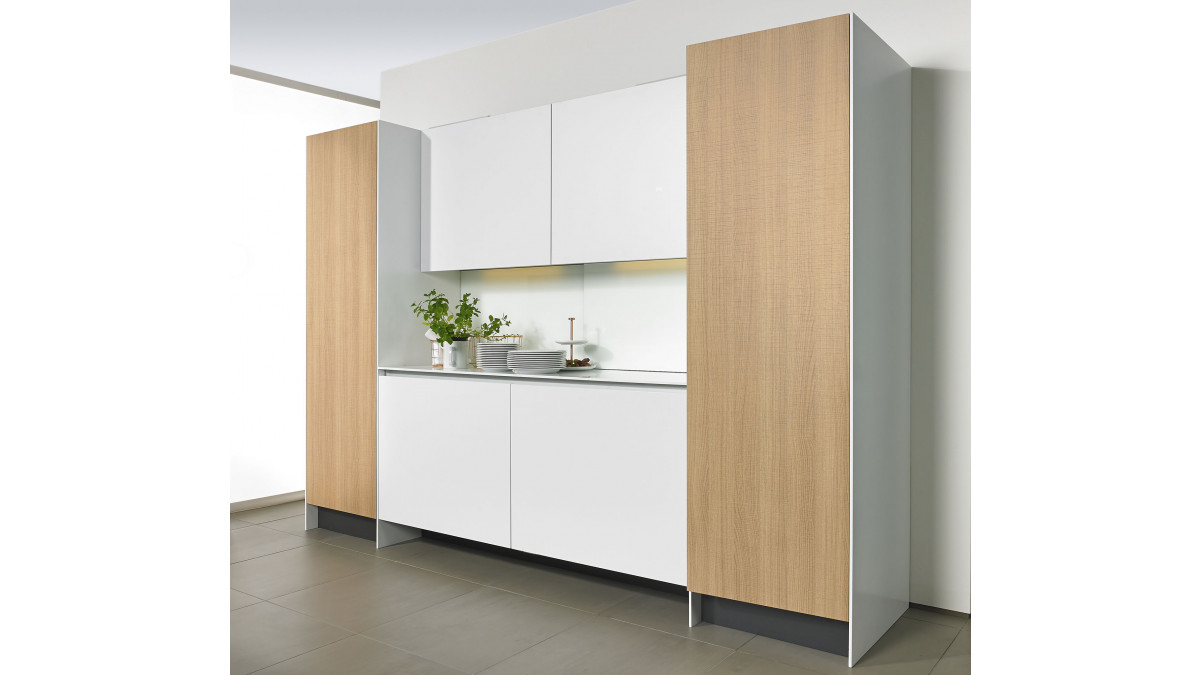

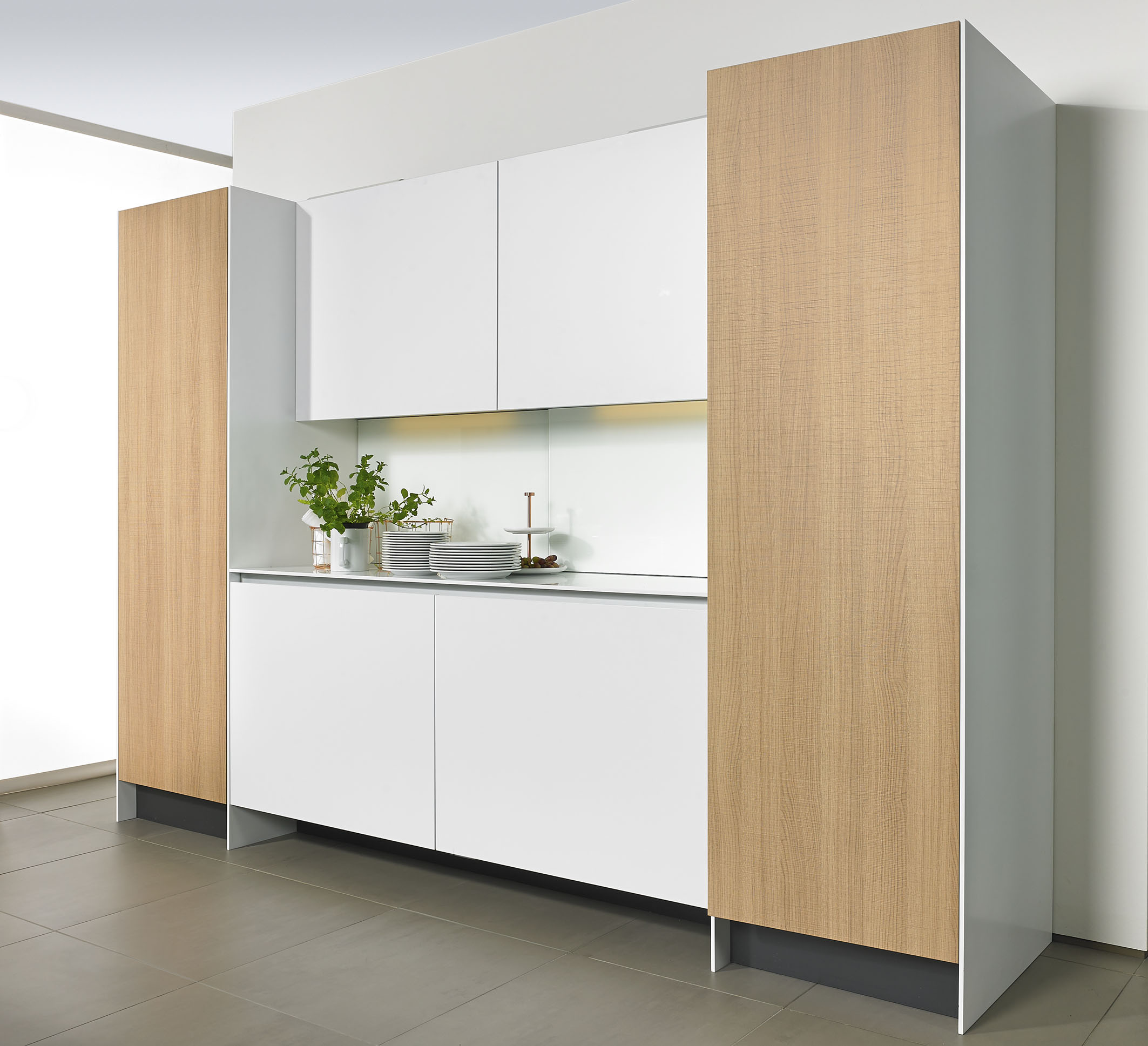

Easys for Refrigerators is Hettich's electromechanical opening solution for built-in refrigerators and freezers.  It neatly incorporates refrigerators into handleless kitchen design, has user friendly intelligent function and has a slim-line profile of only 22mm high.

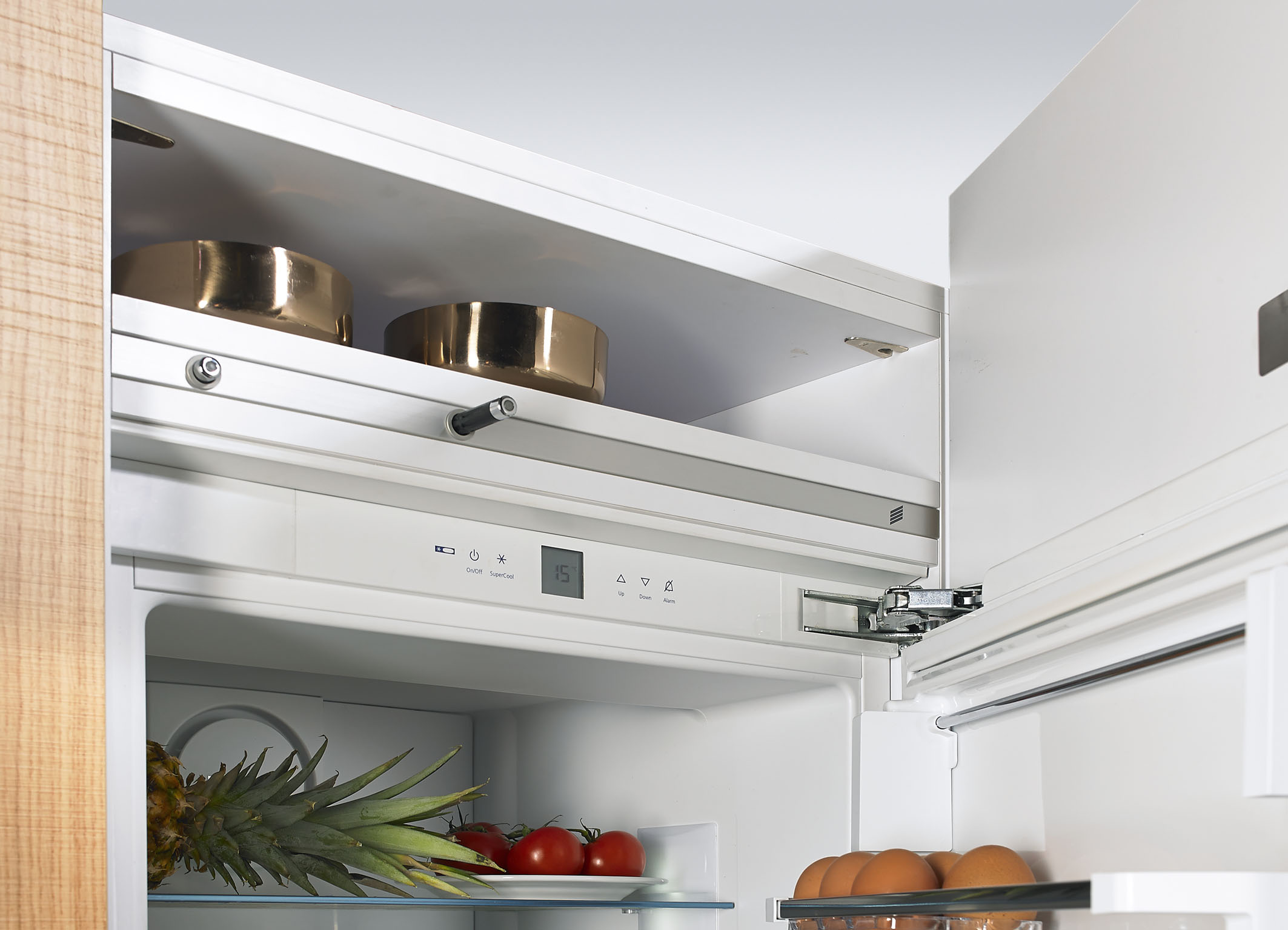

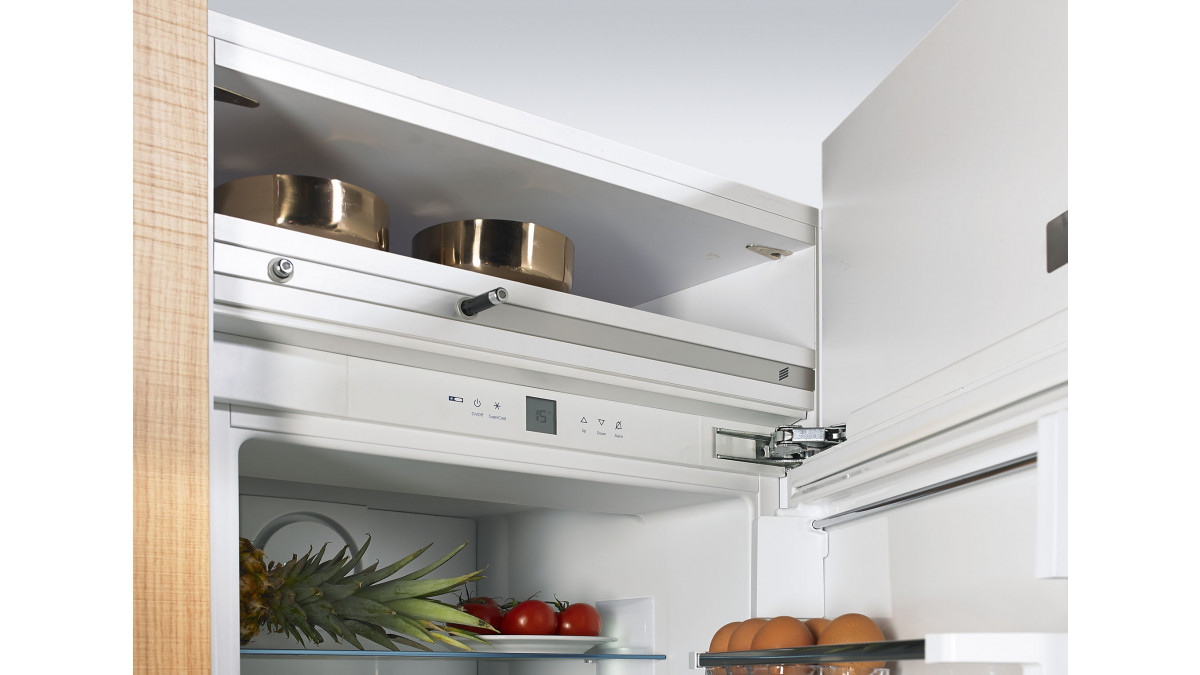

The electromechanical opening assistance Easys is so powerful that it easily overcomes the holding force of a refrigerator's magnetic stay closed function. As a result, the fridge door and carcase door unit is reliably opened in response to a gentle push.

Refrigerators fitted with Easys only open when they are really supposed to and can be closed by hand in the usual way.  The perfected control system reliably prevents any unintentional opening. This means there is no need for any power assisted closure which is good news for fingers.

Key Features
  • Installation height of only 22mm with designer profile for ultimate space saving

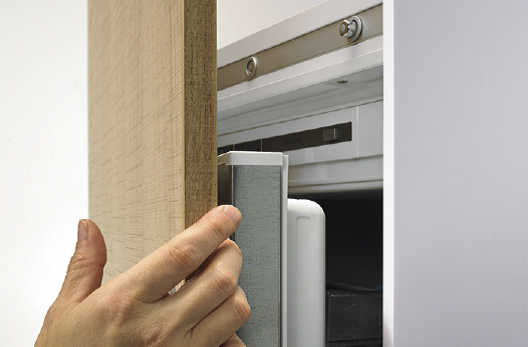

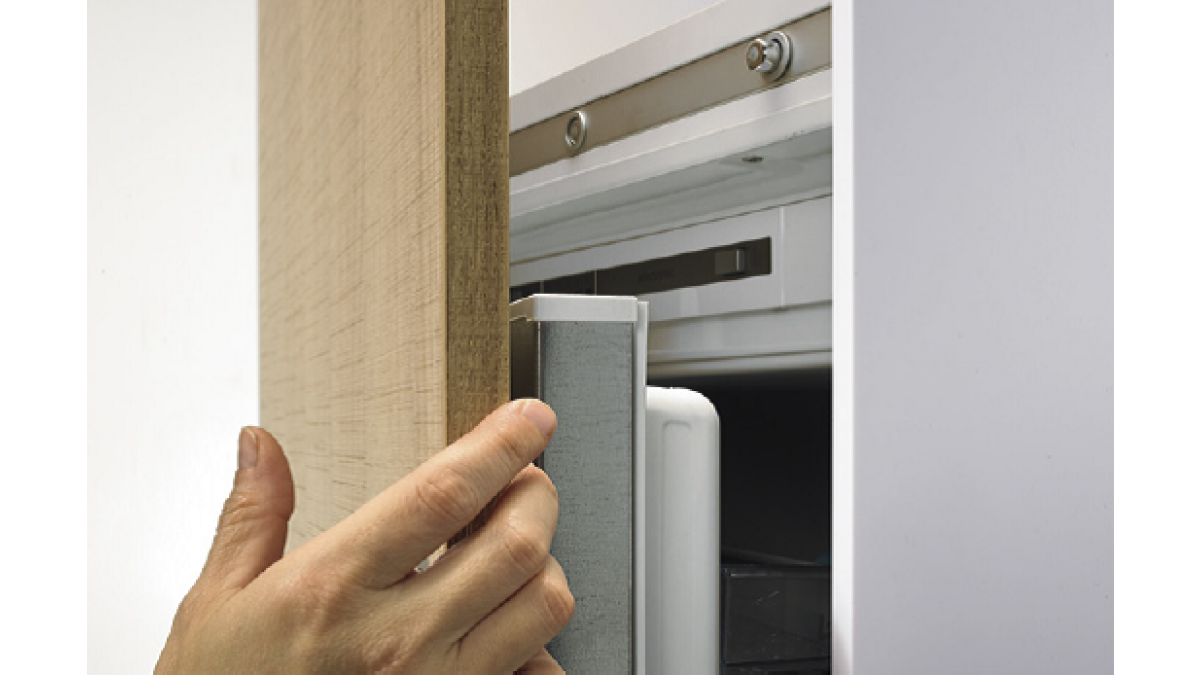

  • Power assisted opening with a light press to the front panel
  • Door opens to be pulled open by hand and closes automatically with adjustable timer
  • Intelligent control system prevents the door opening unintentionally
  • Soft closing door without magnets keeps fingers safe from trapping
  • Door height can extend beyond fridge to incorporate storage above







Scope of Use
  • For use in kitchens and all interiors where cabinetry requires push to open functionality and handleless design
  • Suitable for appliances with door on door slider, as well as for doors fixed in place to the unit front on left and right opening
  • The slim-line design allows retrofitting into existing cabinets and can be trimmed from 600mm down to 462mm
  • Suitable for installing in a refrigerator surround (500 - 600mm wide) with chipboard screws and comes as a kit including function unit, spacers, screws and drilling templates
Limitations on Use
  • Dry, indoor use only
  • Not suitable for operation in the open or in places where exposure to water or heavy soiling is to be expected
  • Temperature range of between 5°C and 40°C
  • Requires standard household power
Other Performance Attributes
  • iF Design Award 2017 for user friendly functions and slim profile of 22mm
  • Quality grades in line with EN 15570, Level 3



Documents
Installation Details (link to page on supplier website)
Supplier Declaration of Conformity
Brochure
Additional Information

Hettich manufactures and sells German joinery hardware, including hinges, drawer systems, drawer runners and sliding and folding door systems.
