WingLine L
Description

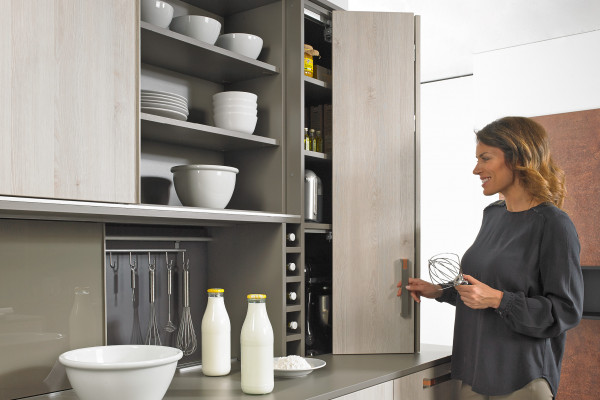

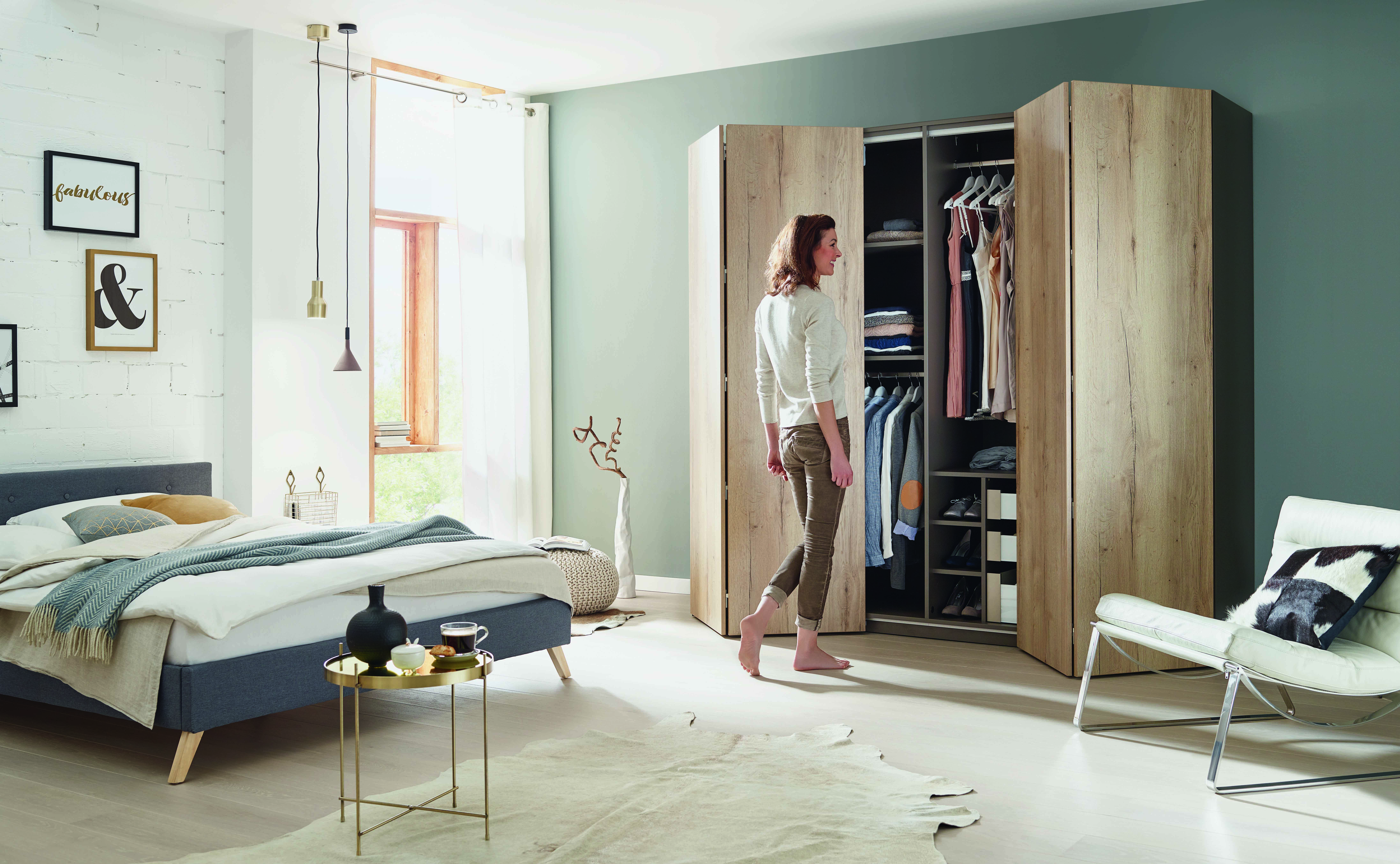

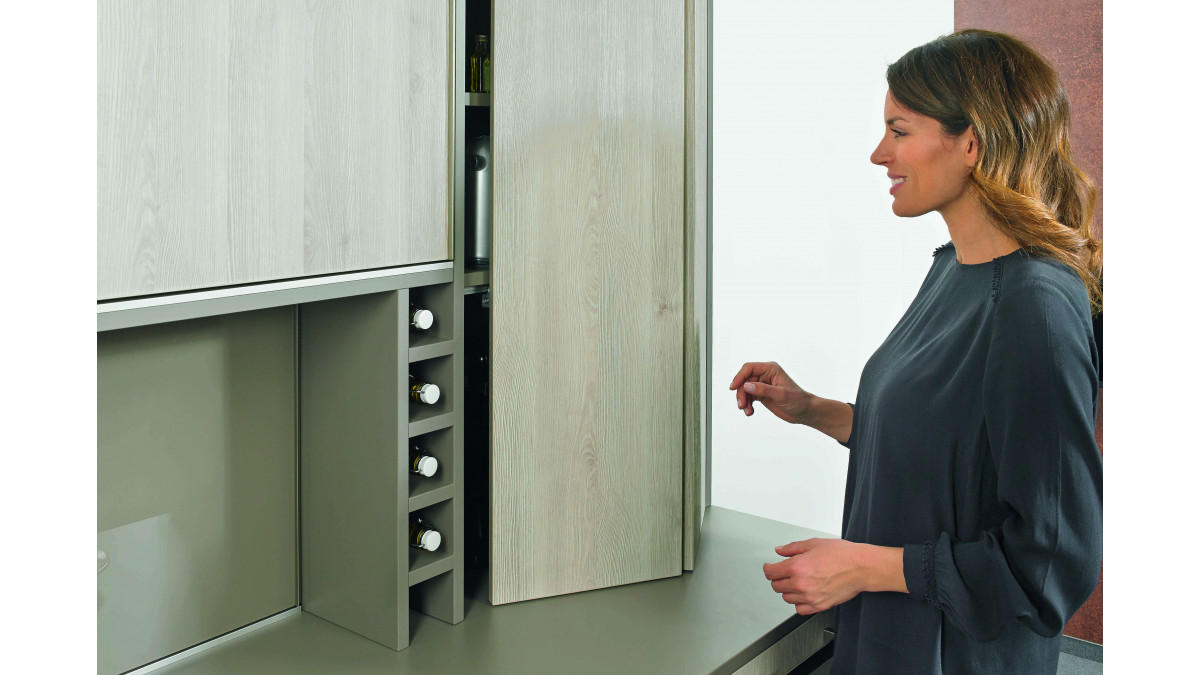

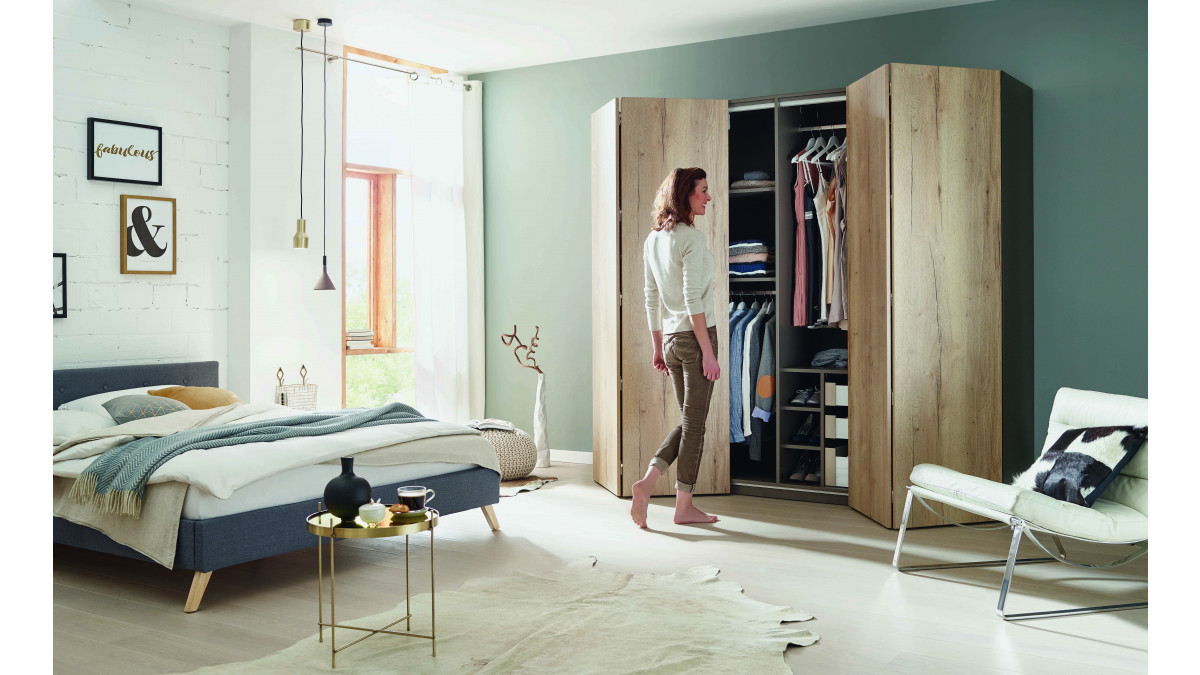

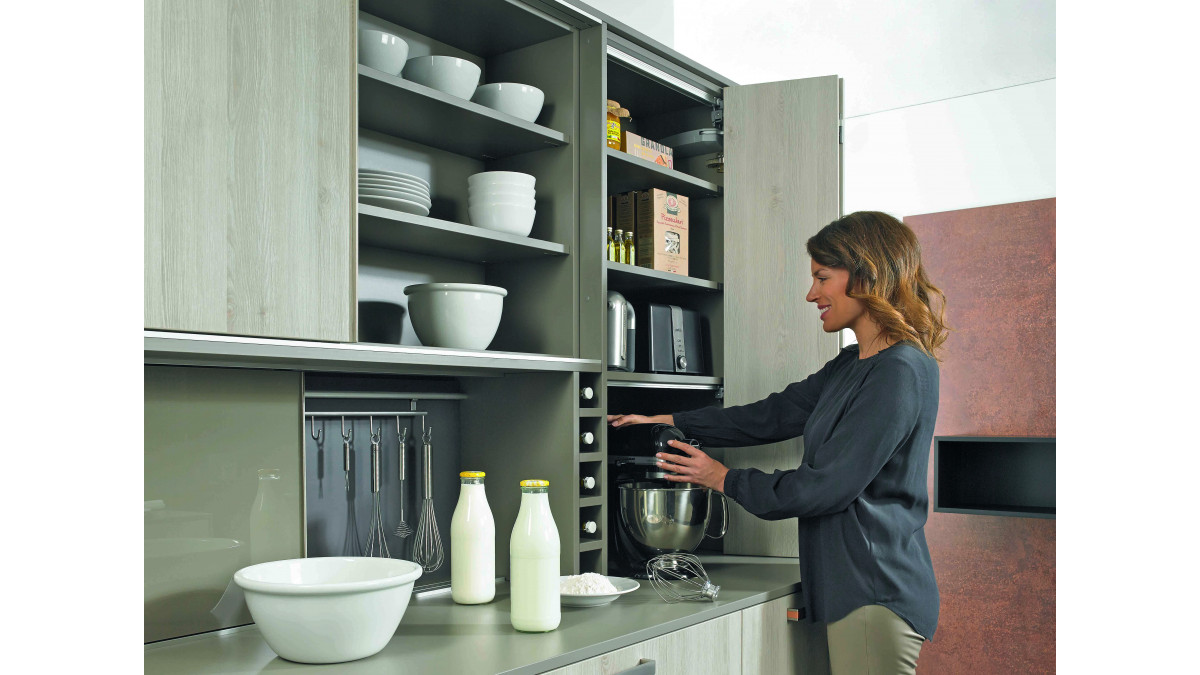

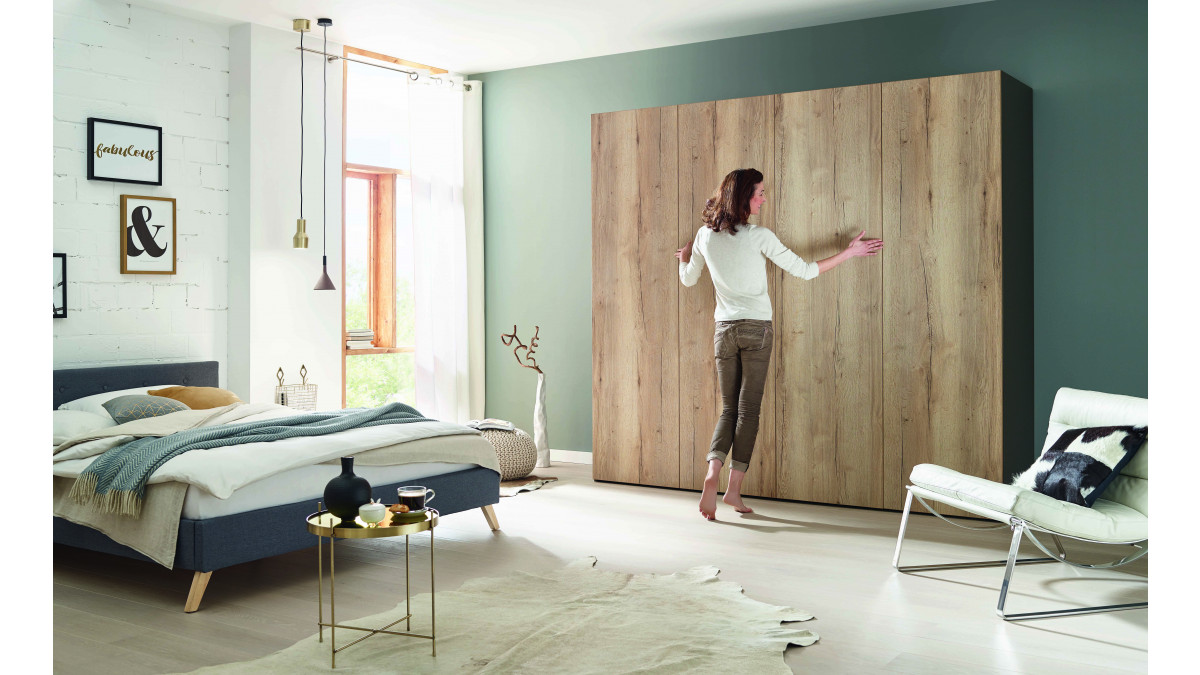

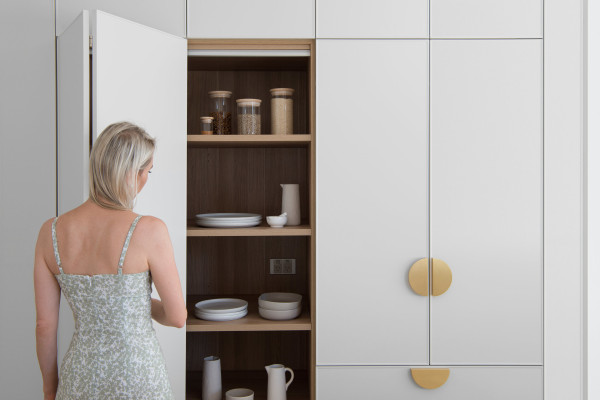

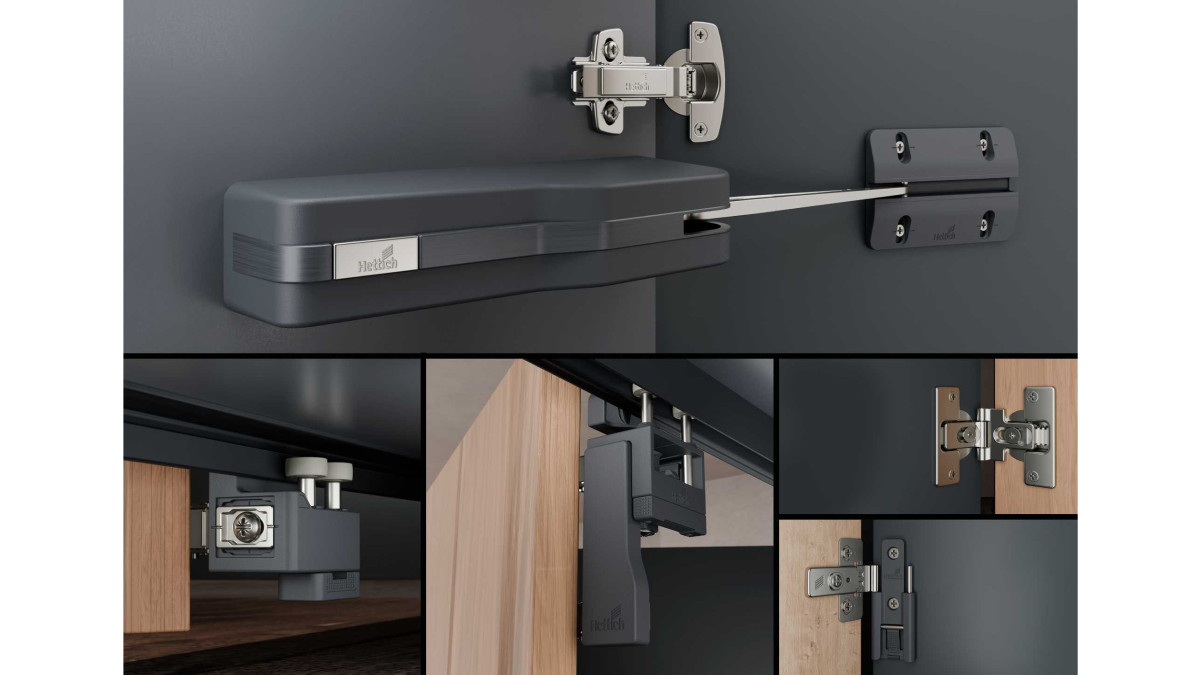

The WingLine L with its Push / Pull to move opening mechanism provides access to the entire storage cabinet with one light hand movement.

With soft opening and closing, and minimal door protrusion for efficiently organising the space inside.

WingLine L competently and securely moves door wings weighing up to 25 kg and measuring up to 2,400 mm in height, all with tool-less installation.

Key Features

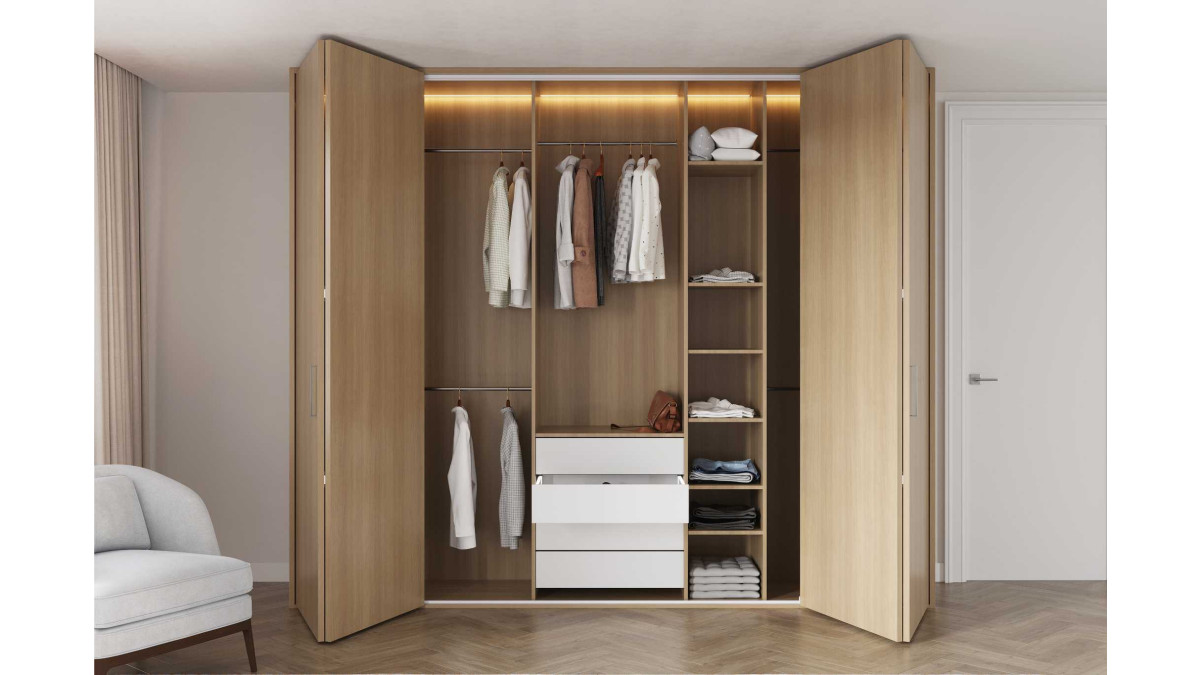

  • For one folding door with 2 wings
  • Overlay door position
  • For wooden doors

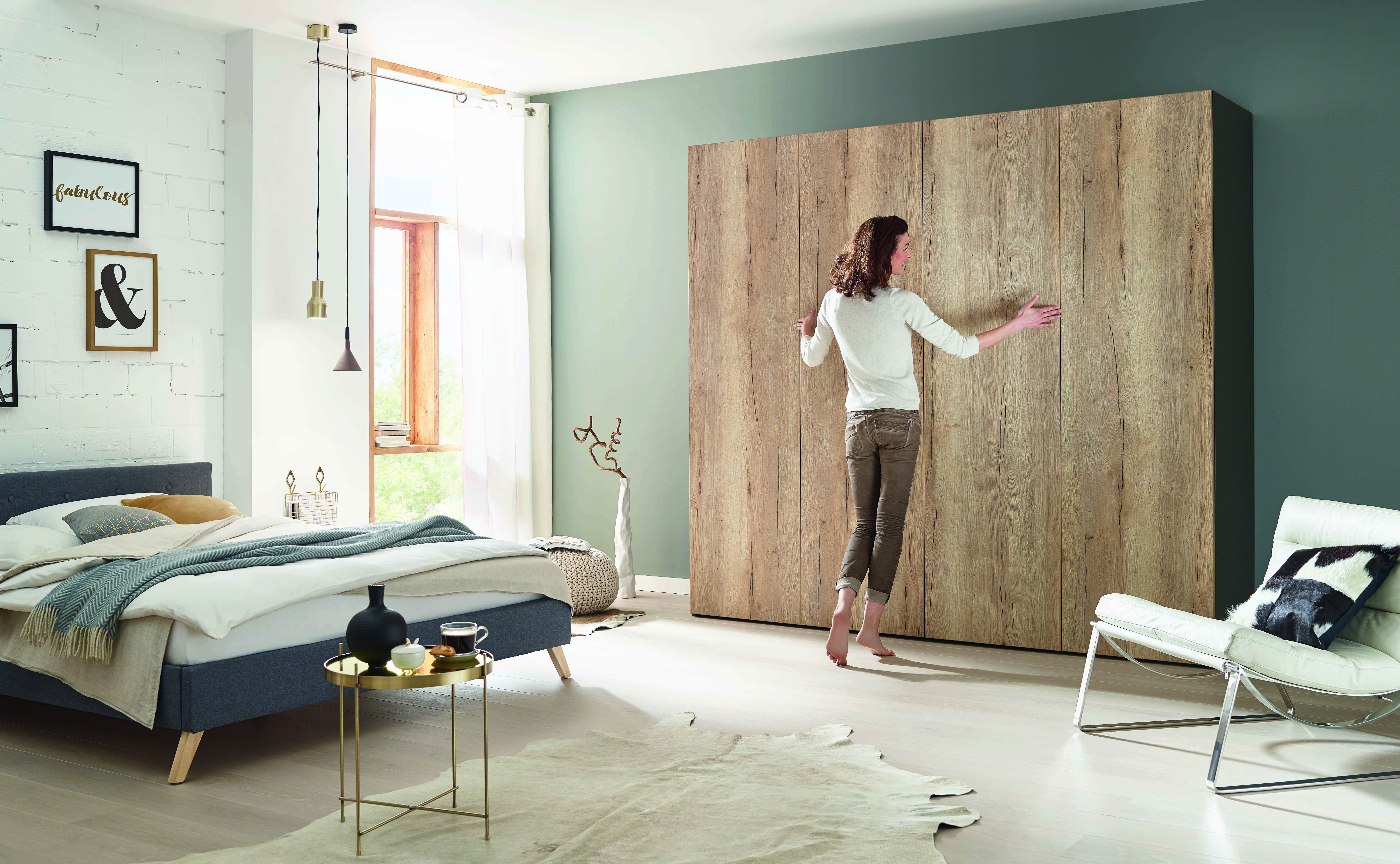

  • Push / Pull to move
  • Suitable for use with Sensys hinge with Silent System
  • Door wing weight up to 25 kg
  • Door height up to 2400 mm
  • Door wing width up to 600 mm
  • Tested with 40000 cycles
Scope of Use

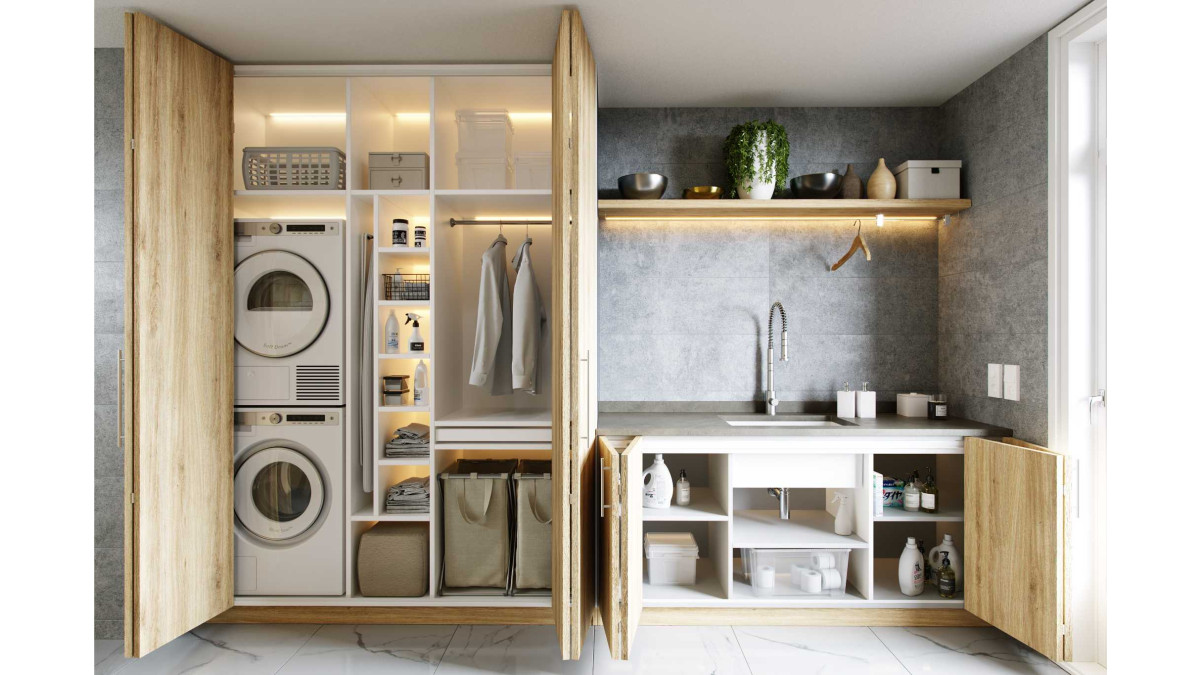

  • Suitable for any interiors for the kitchen, bedroom, laundry and office space
  • For wooden doors



Limitations on Use
  • Compatible with Sensys hinges with Silent System
  • Compatible with WingLine 770/780 systems
Other Performance Attributes
  • Tested to 40,000 cycles
Test Results
Test Results
Documents
Installation - Pull to Move
Installation - Pull to Move Silent
Installation - Push to Move
Installation Videos
Mounting Instructions - Up to 12kg
Mounting Instructions - Up to 25kg
Brochure
