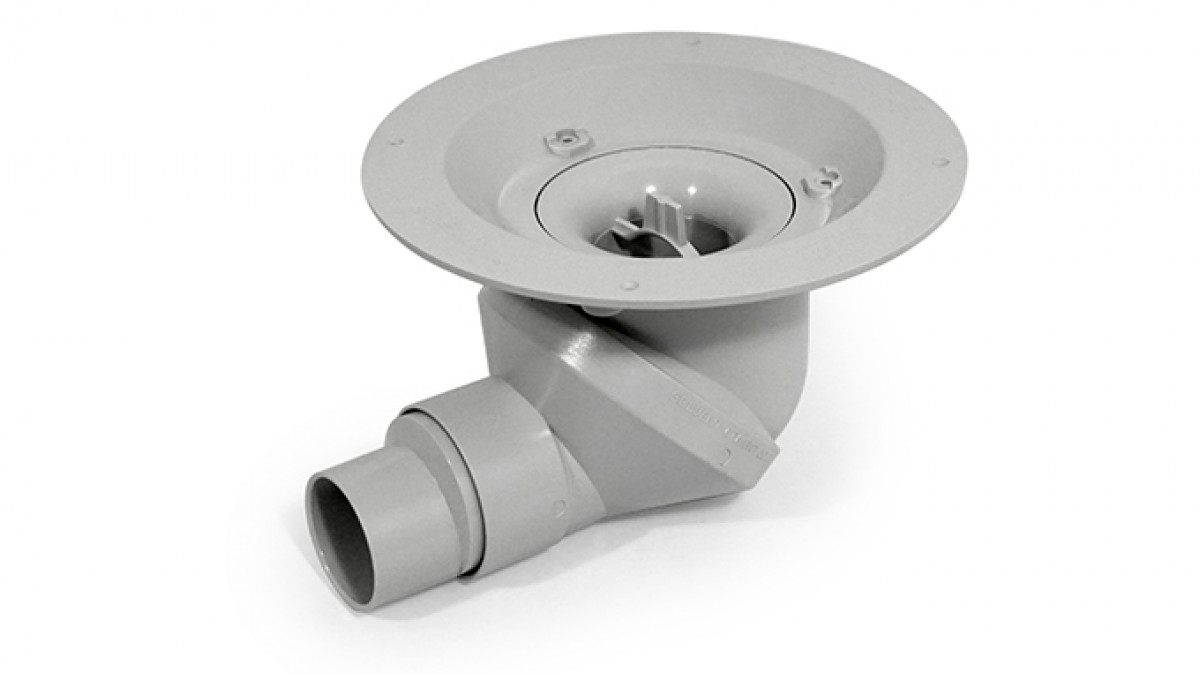

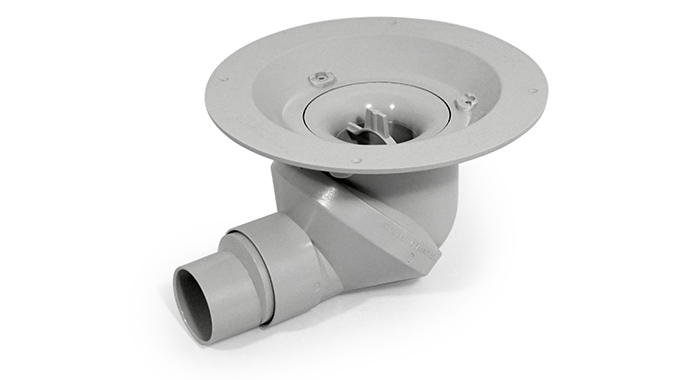

Revolver Kit

A fully revolving outlet with grates to suit vinyl and tile applications. Installs in squat cavity spaces. Easy to install — simply solvent cement outlet to the desired angle.

Key Features
  • Integrated puddle flange
  • Squat 130mm install depth
  • Grates to suit vinyl and tile applications
  • Easy install

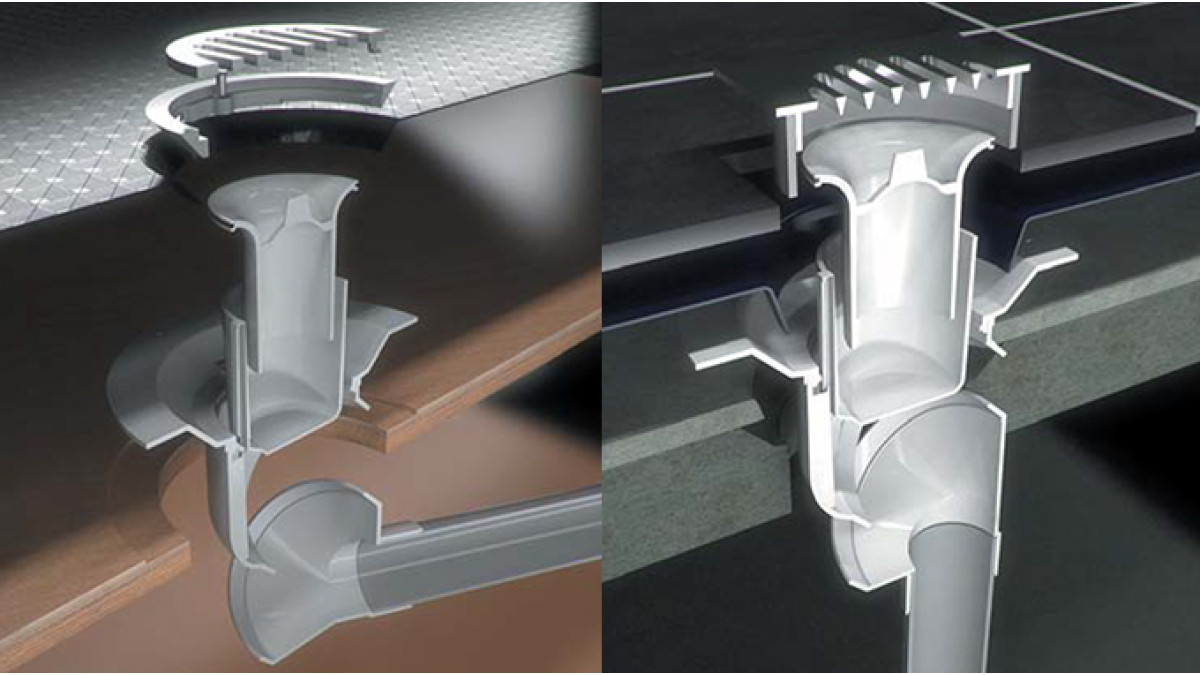

Vinyl Features

  • Base features vinyl clamp ring
  • Vinyl clamped using 3 x stainless steel screws
  • Chrome on brass clamp ring/grate finishes flush with flooring
  • Cam lock grate for easy access to waste without disturbing the vinyl

Tile Features

  • Base features 3 locating lugs for grate
  • Locating lugs allow subtile moisture to escape through waste
  • Flange area provides an excellent bonding surface for waterproofing membranes
  • 10 quality grate options with easy cut height adjustable spigots
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Scope of Use
  • For use in residential vinyl or tile showers
  • Compatible with a wide range of Allproof grates
In-Service History
  • Used country wide in residential vinyl showers
E3 Internal Moisture compliant
Internal Moisture
G13 Foul Water compliant
Foul Water
Masterspec Specification
Product Warranty


Additional Information
Additional Information

A New Zealand owned company specialising in the manufacture of plumbing and drainage products and systems.
