Cyclone Waste Kit

The Allproof Cyclone Waste Kit provides everything needed for a leak proof shower all in one box.

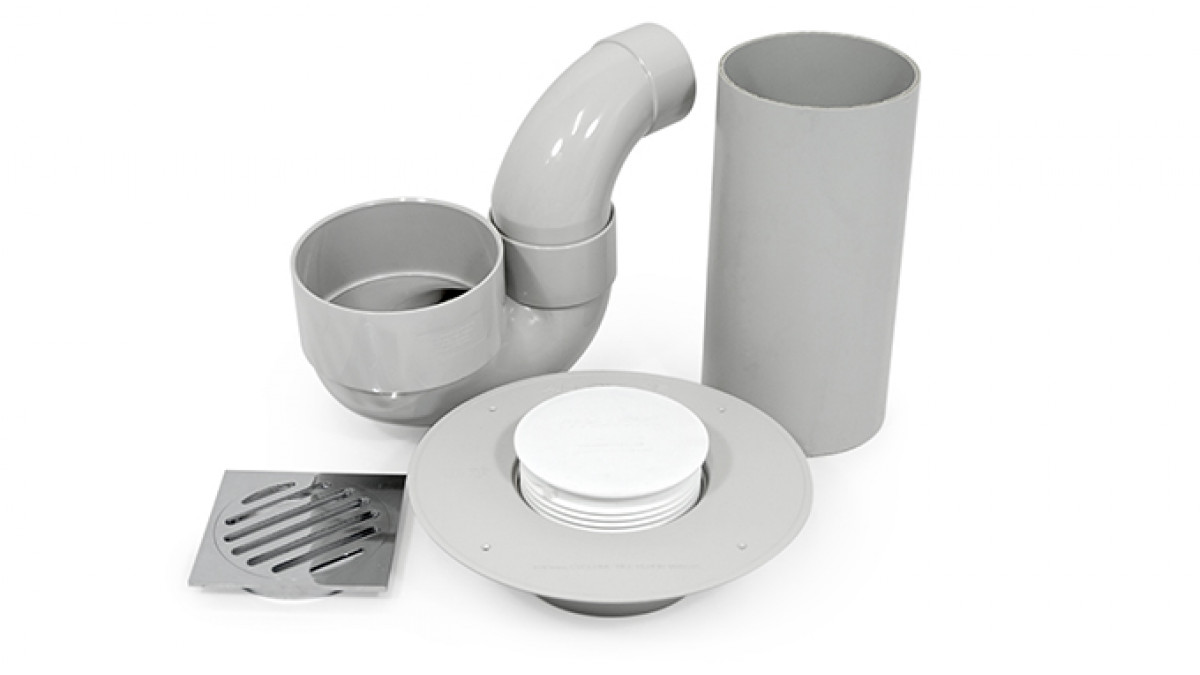

Each kit contains all the products need to plumb in a new shower:

  • Chosen tile grate selection - select from the various options
  • Cyclone leak control flange - adhere sub-tile membrane to allow leaks or moisture to drain away
  • Riser - length of PVC pipe cut to suit the depth you require
  • Gully Trap - provides high flow rate
  • Standard kits come with 50mm outlet floor waste gully, 65mm outlet floor waste gully also available
  • Height adjustable threaded spigot
  • No step down on flange
  • Construction cap supplied
  • Subtile drainage path through flange
  • Textured finish on flange for adhesion of water-proofing membrane
Key Features

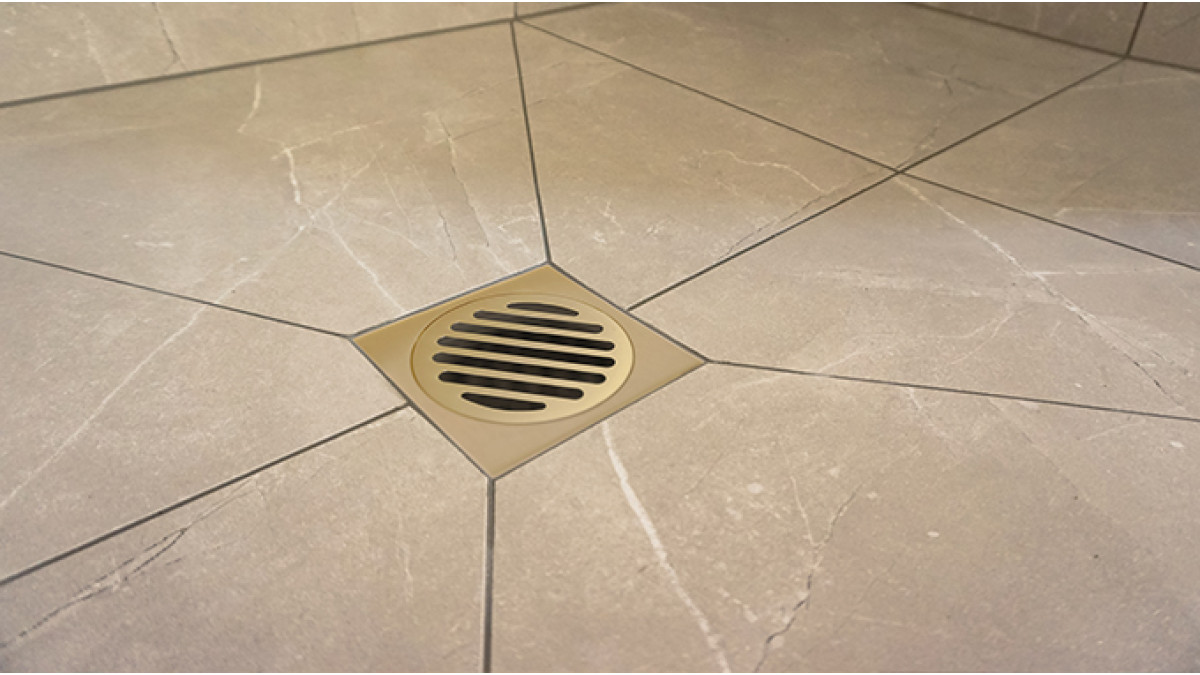

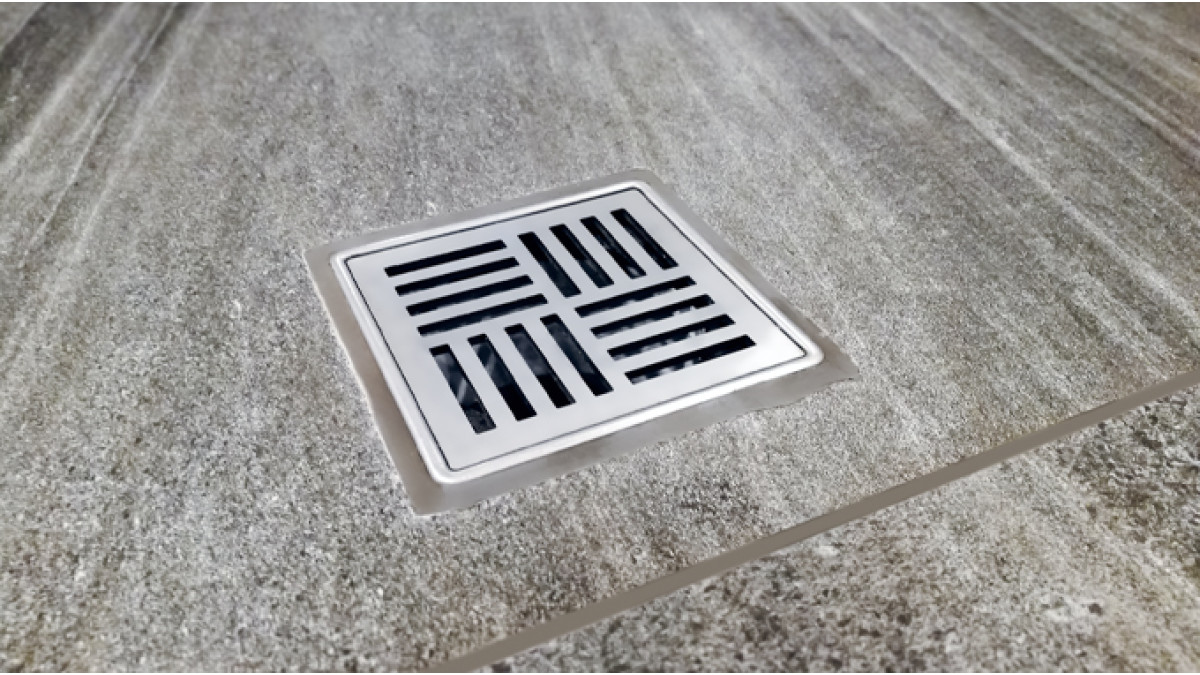

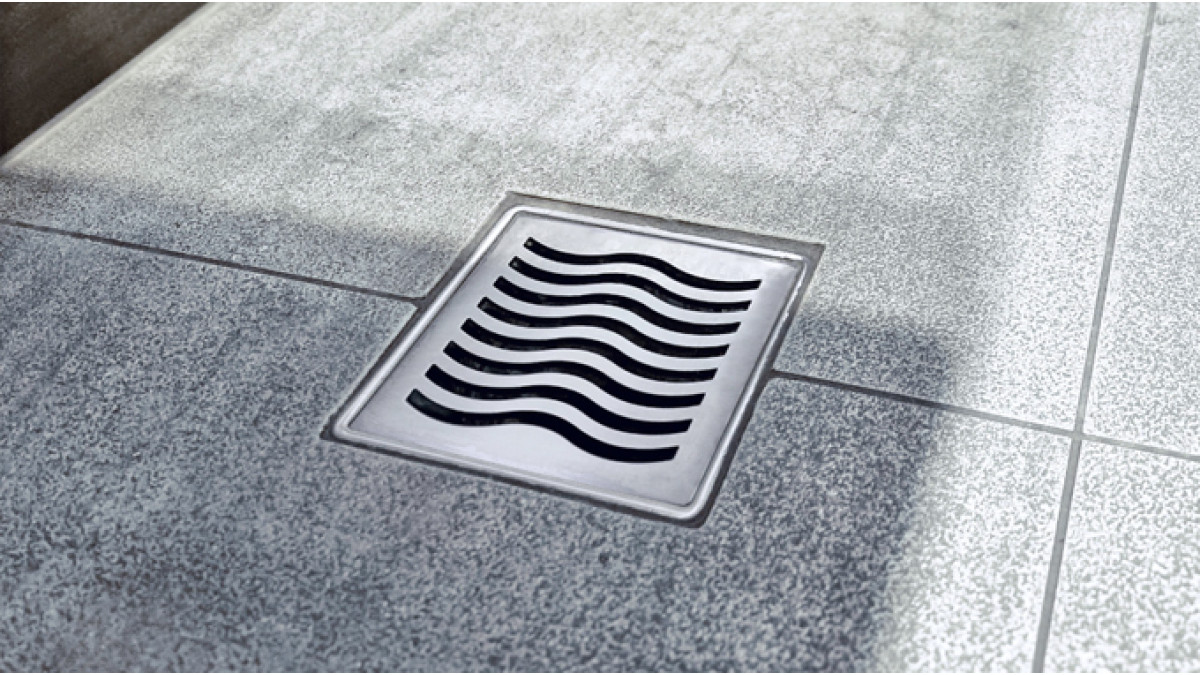

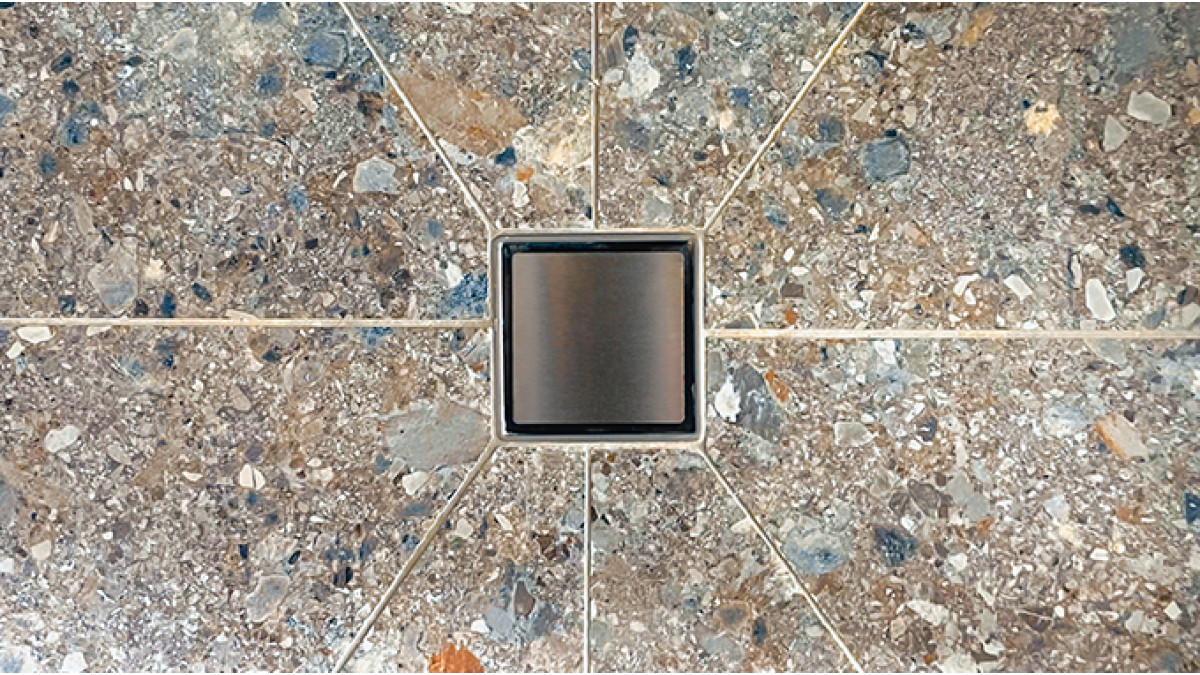

  • Variety of grates and designs available
  • Grates available powdercoated or in a variety of metal finishes
  • Flange comes in 50mm, 65mm and 100mm options
  • 50mm or 65mm gully outlet
  • Easy install
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Scope of Use
  • For use in commercial and residential tiled showers
  • Compatible with a wide range of Allproof grates
Limitations on Use
  • Suitable only as a tiled floor waste solution


In-Service History

Used country wide in both commericial and residential tiled showers

E3 Internal Moisture compliant
Internal Moisture
G13 Foul Water compliant
Foul Water
