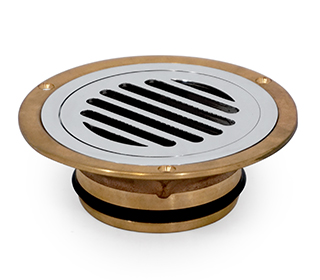

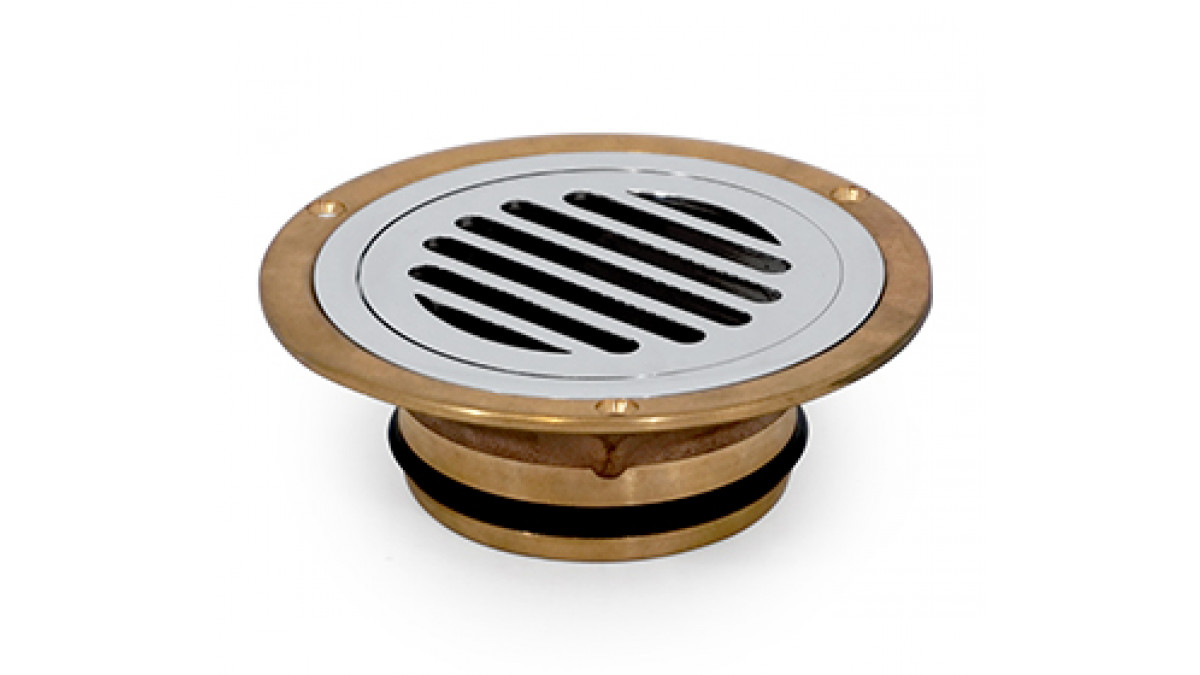

Cast Bronze Vinyl Flange
Description

A vinyl floor waste solution in high quality cast bronze for durability and longevity. Easy to install, the base flange fits inside 50, 80 and 100mm pipe riser.

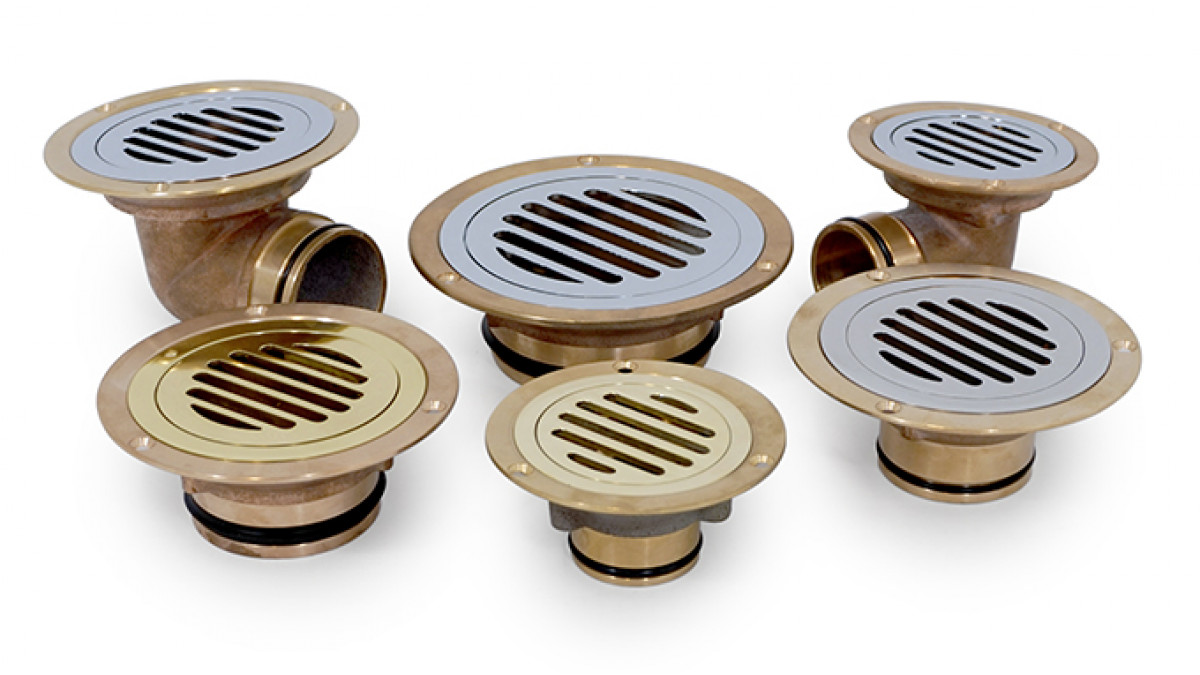

Available in a variety of grate designs and finishes. Standard finish options of chrome on brass, polished stainless steel, linished nickle bronze, or white plastic. Security screw, hinged, domed and clean out are options available.

Key Features
  • Variety of metal finishes, grates and designs available
  • Flange comes in 50mm, 65mm, 80mm and 100mm options
  • 50mm, 80mm or 100 pipe riser
  • Independent flow rate tested by BRANZ
  • Vinyl/waterproofing membrane clamped using 3x Stainless screws and clamp ring
  • Cam-lock grate for easy waste access without disturbing vinyl/membrane
  • Clamp ring/grate feature flush finish with flooring
NZ-Owned Business
NZ-Owned Business
Scope of Use
  • For use in residential vinyl showers
  • Compatible with a wide range of Allproof grates
  • Flange comes in 50mm, 65mm, 80mm and 100mm options
  • 50mm, 80mm or 100 pipe riser
Limitations on Use
  • Suitable only as a vinyl floor waste solution
In-Service History
  • Used country wide in residential vinyl showers
BRANZ Appraised
BRANZ Appraised
CodeMark
CodeMark
Independent Assessment
Independent Assessment
E3 Internal Moisture compliant
Internal Moisture
G13 Foul Water compliant
Foul Water
Documents
CAD/PDF Link
Warranty

0919v2

Specification Clause (Masterspec)
Additional Information

A New Zealand owned company specialising in the manufacture of plumbing and drainage products and systems.
