Truly Supporting Architects with Technical Specialists; Not Sales People

Architects and designers have understandably become more risk averse and yet, the pace at which business is being done is increasing; which isn’t always helpful in this regard.

Experience tells us that the level of support that architects and designers would expect from reasonable product suppliers to minimise risk while saving time, comes in the form of:

Quality materials installed as ‘systems’ which will stand the test of time in NZ’s harsh climate
Typical design details in appropriate formats; the details of which are practical and compliant
Supporting documentation that demonstrates compliance such appraisals, certifications and engineering reports
Professional markup advice of details prior to consented plans
Masterspec Work Section Support requests

…and general service including sampling; and responsiveness to enquiry which almost goes without saying.

Architects also prefer to deal with technical specialists; not sales people.

But architects often require a higher level of technical support. Many projects have performance requirements that fall outside of the building code’s ‘acceptable solution’ parameters. For example, for refurbishment and retrofit projects, if a warm roof is being installed onto an existing building with a cold roof (ie: glass wool in the ceiling cavity), it is vital that a dew point calculation is done for this new assembly, seeing as insulation positioned above and below the substrate can mess with a dew point’s position. So, for peace of mind, Viking Roofspec organises dew point modelling reports to demonstrate where the dew point would be located for that specific scenario. With this information, adjustments can be made to the warm roof insulation thickness if necessary, before proceeding in order to ensure that the dew point will remain outside of the building.

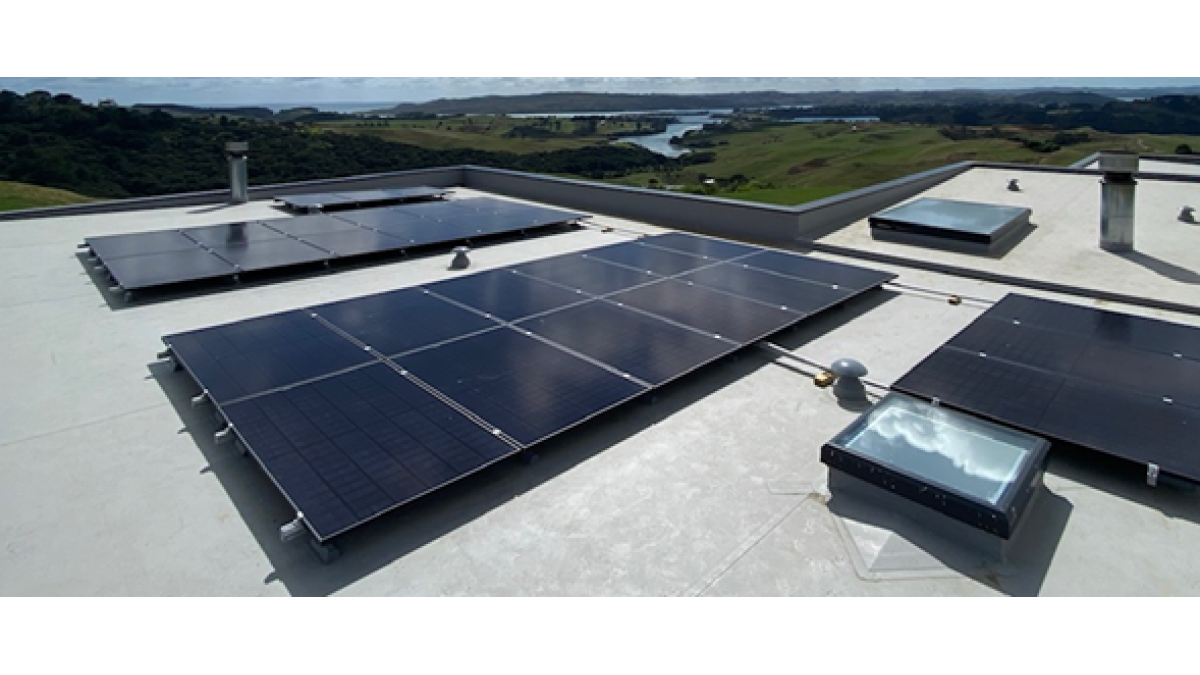

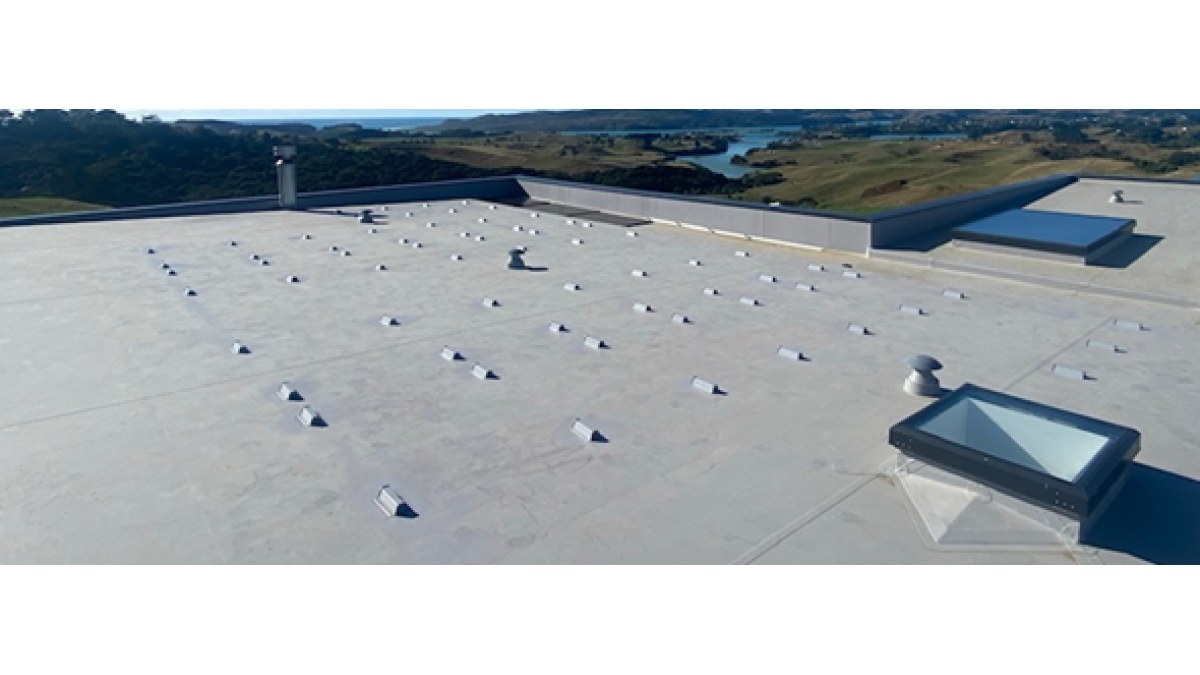

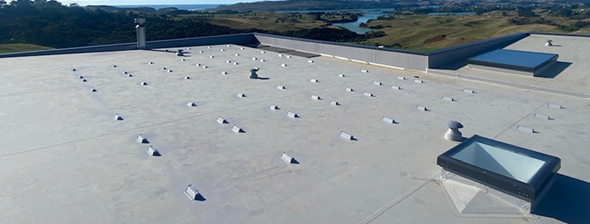

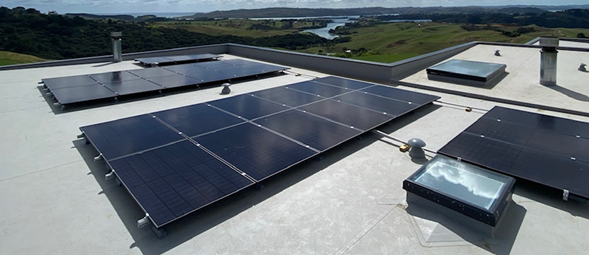

Viking have also found themselves working with architects designing buildings to be located in elevated positions in remote locations where wind gusts can exceed the ‘extra high wind zone’ classification (198km/hour). Viking has commissioned engineers such as BRANZ and Holmes Solutions to test and then report on the wind uplift resistance of their various roof assembly types to provide peace of mind. This information has become more sought after as the climate has become increasingly volatile. This also includes the mounting of solar panels and plant on a membrane roof. A recent project in a semi-remote, windy location specified the use of Viking's TPO-weldable ‘EJOT’ bars for mounting solar panels onto the Enviroclad TPO membrane roof without penetrating the membrane. Viking provided some calculations for all stakeholders; recommending the frequency and length of weldable bars used, to ensure the solar panels remained secure on the roof.

Viking has also invested significant resource in the development of their details over the years including Revit Details and RFA files for BIM Modelling of components for our Enviroclad TPO; Torch-on and Warm Roof systems, allowing architects to successfully incorporate their materials in their BIM designs.

For more information on the products and services Viking Roofspec provides, visit their recently updated website on: www.vikingroofspec.co.nz

Viking WarmSpan Tray System

Viking Roofspec

View Product

Viking WarmSpan is a warm roof that includes a proprietary steel tray substrate, supplied by Viking, to make up a complete roof system.

The Viking WarmSpan System has been appraised for use as an insulating roof on buildings within the following scope:

the scope limitations of NZBC Acceptable Solution E2/AS1, Paragraph 1.1 with regards to building height and maximum floor plan areas; and,
on limited access flat roofs with steel structural decks subject to specific structural design; and,
with roofs constructed to drain water to gutters and drainage outlets complying with the NZBC; and,
with roofs constructed to suitable falls (refer paragraph 15.3 and 15.4 of the Viking Warm Roof BRANZ Appraisal); and,
with no integral roof gardens; and,
situated in NZS 3604 Building Wind Zones, up to, and including Extra High.

The Viking WarmSpan System has also been appraised for durability and thermal performance as an insulated roofing system on buildings that are the subject of specific design with no building height restriction. Building designers are responsible for the building design and for the incorporation of the Viking WarmSpan System into their design in accordance with the declared properties and instructions of Viking Roofspec.

Clause B1 STRUCTURE: Performance B1.3.1. The Viking WarmSpan System meets this requirement.
Clause B2 DURABILITY: Performance B2.3.1 (b), 15 years. The Viking WarmSpan System meets this requirement. See paragraph 10.1 of the Viking Warm Roof BRANZ Appraisal.
Clause E2 EXTERNAL MOISTURE: Performance E2.3.1 and E2.3.2. The Viking WarmSpan System meets these requirements. See paragraphs 15.1 - 15.9 of the Viking Warm Roof BRANZ Appraisal.
Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. The Viking WarmSpan System meets this requirement and will not present a health hazard to people.
Clause H1 ENERGY EFFICIENCY: Performance H1.3.1 (a). The Viking WarmSpan System will contribute to meeting this requirement. See paragraph 14.1 of the Viking Warm Roof BRANZ Appraisal.
Clause C/VM2 FIRE PERFORMANCE (of wall and ceiling linings) - ISO9705, Group 1S = highest possible rating.

Structure

Durability

Protection from Fire

External Moisture

Hazardous Building Materials

Energy Efficiency

BRANZ Appraised

Enviroclad (TPO) Waterproofing Membrane

Viking Roofspec

View Product

Viking Enviroclad offers absolute watertight integrity for low-slope roofs.

NZ-Owned Business

Viking Enviroclad Roofing and Deck Membrane System has been assessed as a roof and deck waterproofing membrane on buildings within the following scope:

the scope limitations of NZS 3604:2011 and NZBC Acceptable Solution E2/AS1, paragraph 1.1; or,
the scope limitations of NZBC Acceptable Solution E2/AS1, paragraph 1.1 with regards to building height and floor plan area when subject to specific structural design; and,
situated in NZS 3604:2011 Wind Zones, up to, and including Extra High; and,
with substrates of plywood or suspended concrete slab

Viking Enviroclad Roofing and Deck Membrane System has also been assessed for use as a roof and deck waterproofing membrane on specifically designed or existing buildings within the following scope:

subject to specific structural and weathertightness design situated in wind pressures up to a maximum design differential ultimate limit state (ULS) of 2.7 kPa; and,
with substrates of plywood or suspended concrete slab
with the weathertightness design of junctions for each specific structure being the responsibility of the building designer

Clause B1 STRUCTURE: Performance B1.3.1, B1.3.2 and B1.3.4 (b) (c) (d) (e) for the relevant physical conditions of B1.3.3 (a), (c), (e), (h), (m) and (p) Viking Enviroclad Roofing and Deck Membrane System meets this requirement.
Clause B2 DURABILITY: Performance B2.3.1 (b) and B2.3.2 (a), 15 years. Viking Enviroclad Roofing and Deck Membrane System meets this requirement.
Clause E2 EXTERNAL MOISTURE: Performance E2.3.1, E2.3.2 and E2.3.7 (b) and (c). Viking Enviroclad Roofing and Deck Membrane System meets these requirements.
Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. Viking Enviroclad Roofing and Deck Membrane System meets this requirement and will not present a health hazard to people.

Structure

Durability

External Moisture

Hazardous Building Materials

BRANZ Appraised

CodeMark

Viking WarmRoof System

Viking Roofspec

View Product

The most commonly accepted definition of a warm roof (for low slope roofs) is 'a roof where the insulation is installed on top of the roof structure' i.e.

NZ-Owned Business

The Viking WarmRoof System has been appraised for use as an insulating roof on buildings within the following scope:

the scope limitations of NZBC Acceptable Solution E2/AS1, paragraph 1.1 with regards to building height and maximum floor plan areas; and,
on limited access flat roofs with concrete, plywood or steel structural decks subject to specific structural design; and,
with roofs constructed to drain water to gutters and drainage outlets complying with the NZBC; and,
with roofs constructed to suitable falls (refer paragraph 15.3 and 15.4 of the Viking Warm Roof BRANZ Appraisal); and,
with no integral roof gardens; and,
situated in NZS 3604 Building Wind Zones, up to, and including Extra High

The Viking WarmRoof System has also been appraised for durability and thermal performance as an insulated roofing systemon buildings that are the subject of specific design with no building height restriction. Building designers are responsible for the building design and for the incorporation of the Viking WarmRoof System into their design in accordance with the declared properties and instructions of Viking Roofspec.

Clause B1 STRUCTURE: Performance B1.3.1. The Viking WarmRoof System meets this requirement.
Clause B2 DURABILITY: Performance B2.3.1 (b), 15 years. The Viking WarmRoof System meets this requirement. See paragraph 10.1 of the Viking WarmRoof BRANZ Appraisal.
Clause E2 EXTERNAL MOISTURE: Performance E2.3.1 and E2.3.2. The Viking WarmRoof System meets these requirements. See paragraphs 15.1 — 15.9 of the Viking Warm Roof BRANZ Appraisal.
Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. The Viking WarmRoof System meets this requirement and will not present a health hazard to people.
Clause H1 ENERGY EFFICIENCY: Performance H1.3.1 (a). The Viking WarmRoof System will contribute to meeting this requirement. See paragraph 14.1 of the Viking WarmRoof BRANZ Appraisal.
Clause C/VM2 FIRE PERFORMANCE (of wall and ceiling linings) — ISO9705, Group 1S = highest possible rating.

Structure

Durability

Protection from Fire

External Moisture

Hazardous Building Materials

Energy Efficiency

BRANZ Appraised
