APL Architectural Series Sliding Doors
ALTHERM Window Systems
All products
New APL 2019 Specifier Guide now available Order now
Alth Archi Series Slid Dr

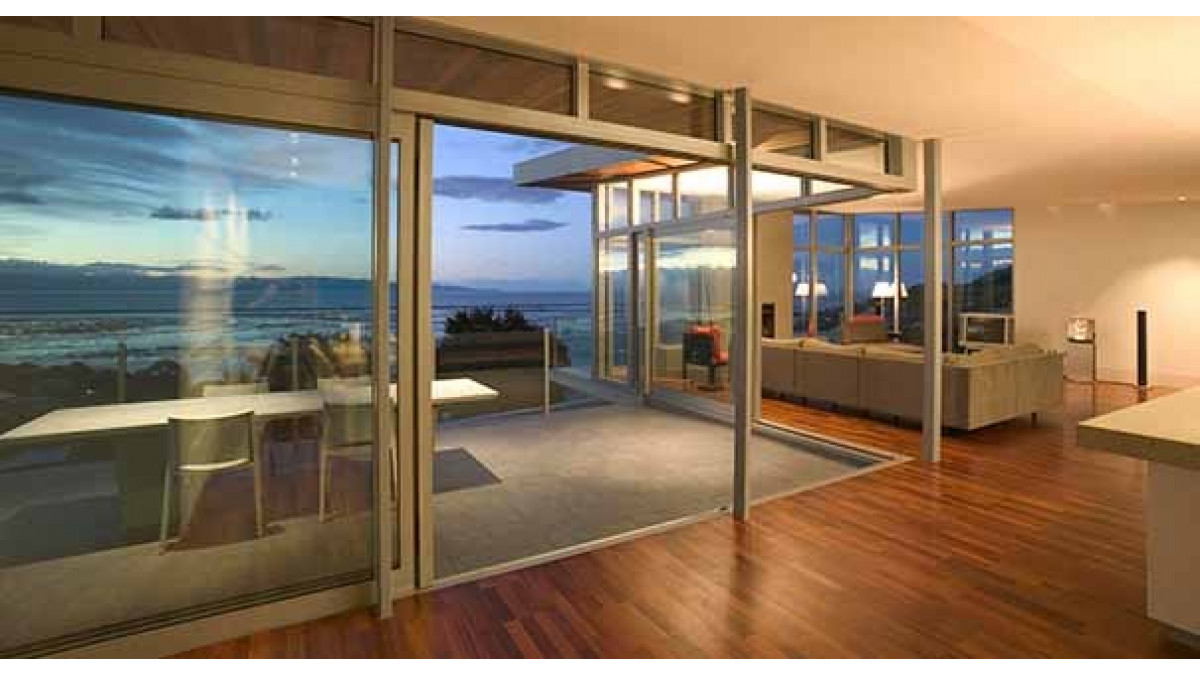

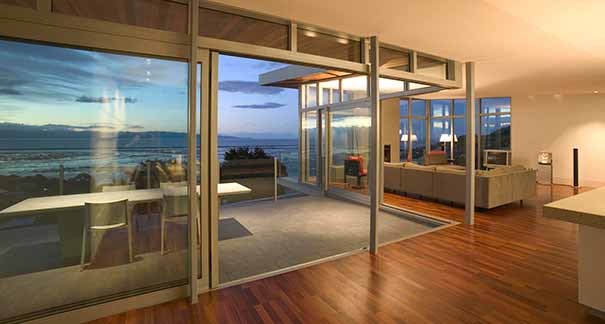

Stacking sliders meeting at a corner

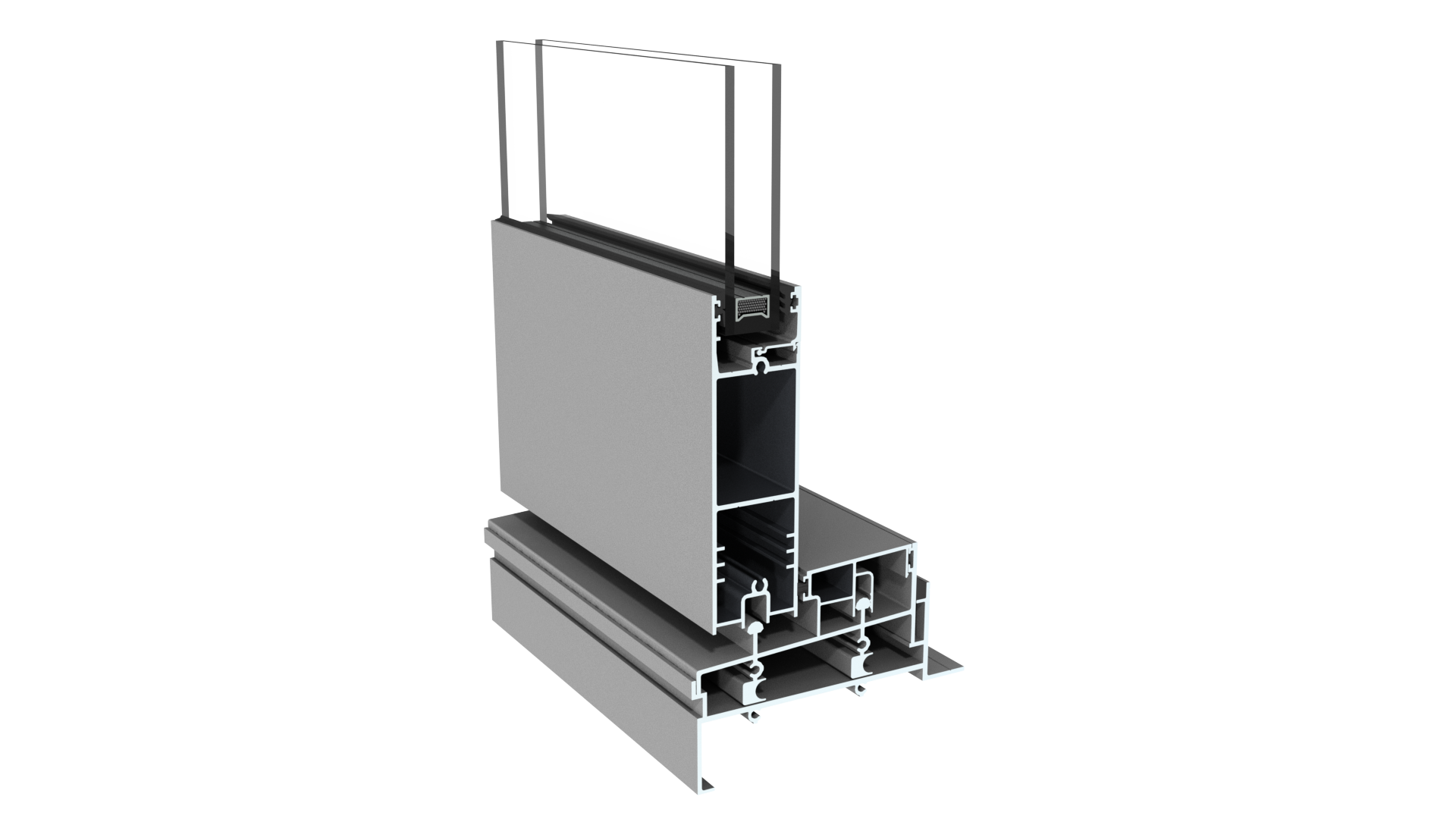

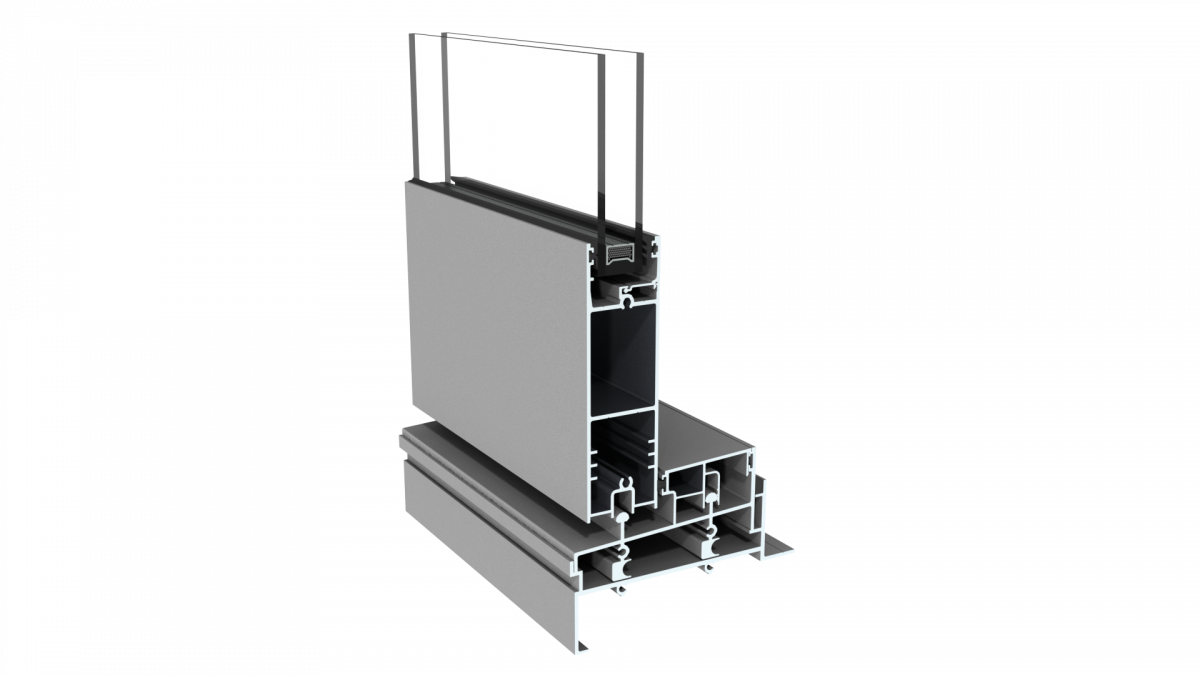

188 Arch SD Sill + Panel

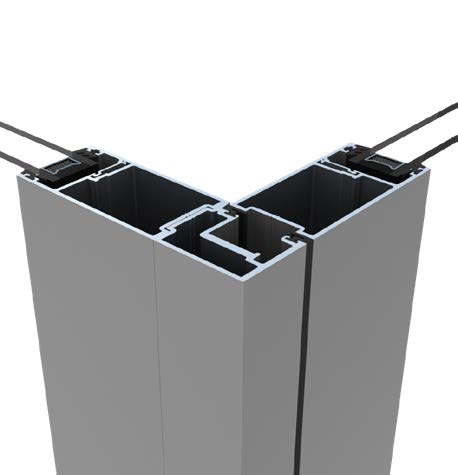

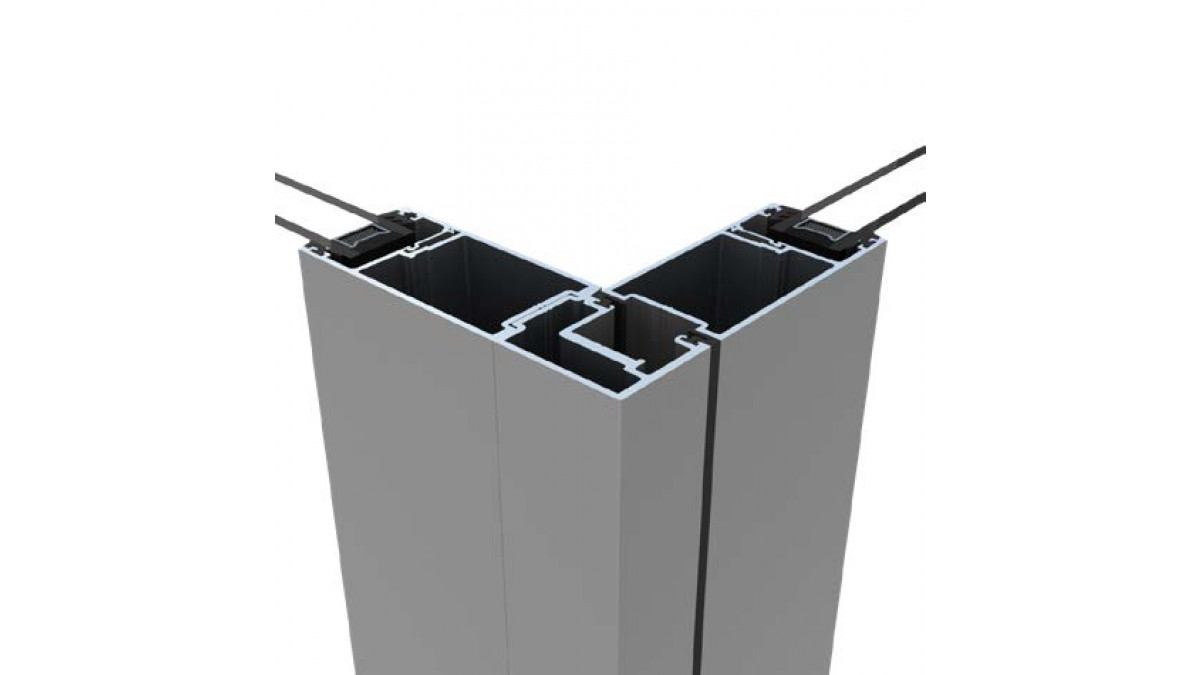

90 corner meeting stiles
90° corner meeting stiles

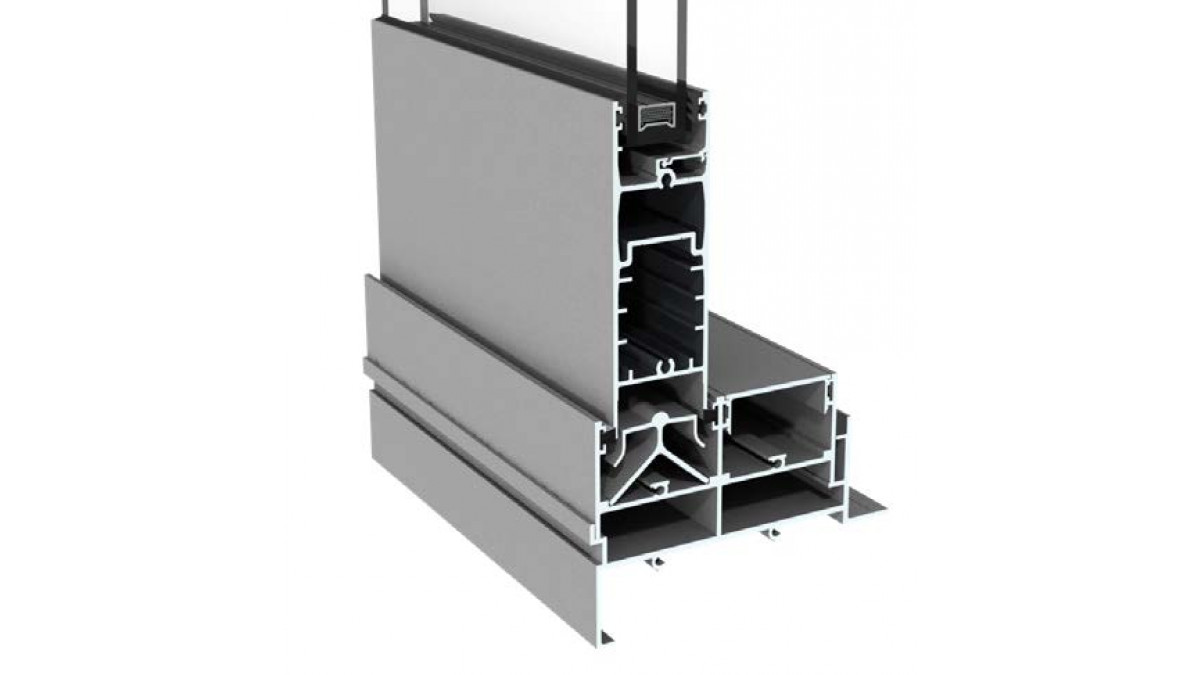

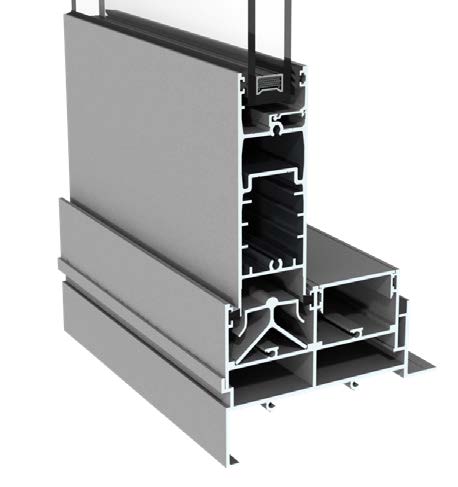

Flush sill option single slider
Flush sill option – single slider

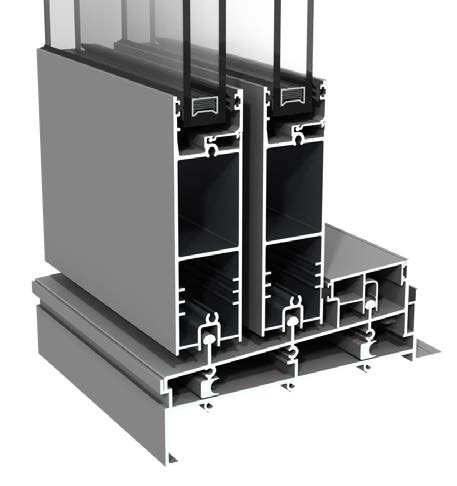

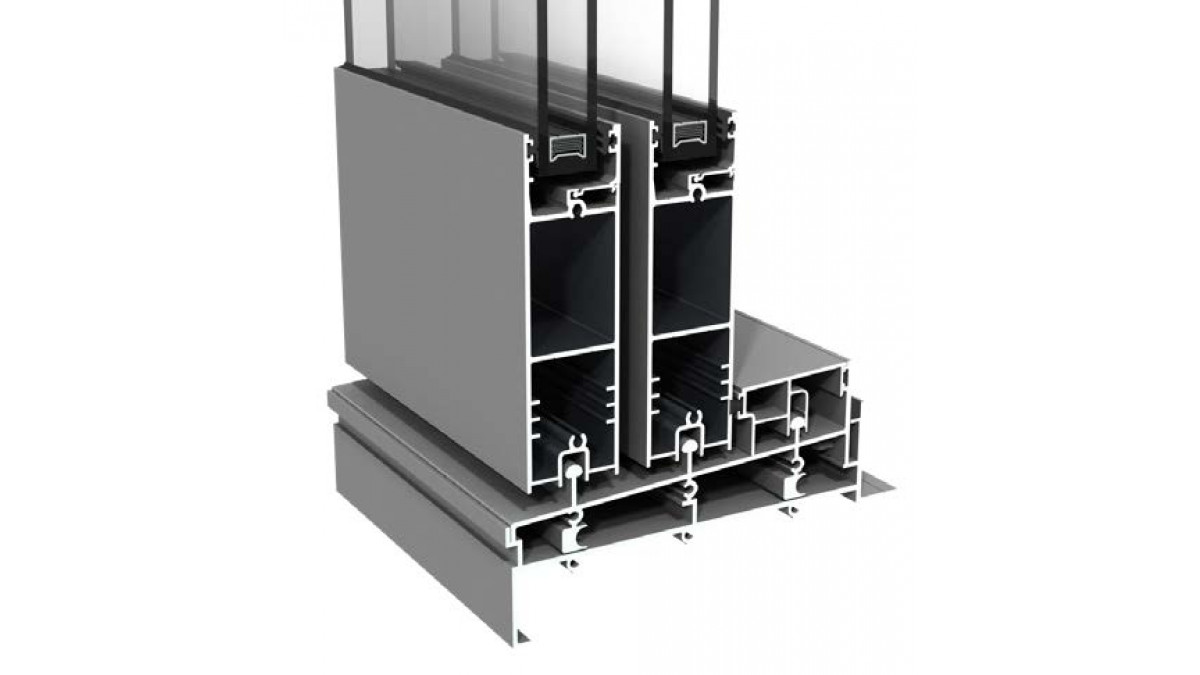

Multi slider sill
Multi slider sill

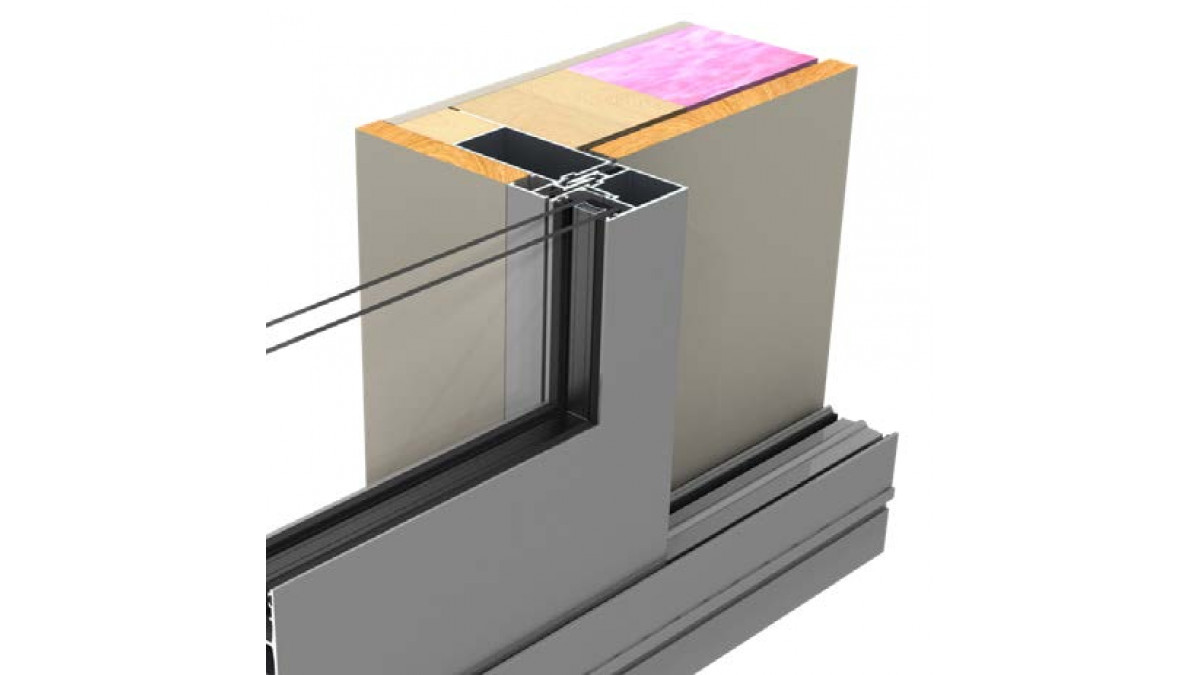

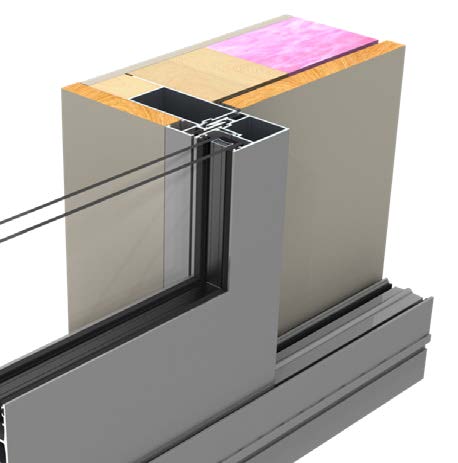

Overwall slider single track
Overwall slider – single track
Description

Sliding doors slide on an outside track and can meet at 90° corners without the need for a corner post. For most configurations a fixed side panel is required. However, a bypass slider option is available where two or three panels move.

The sliding door system has also been designed for convenient use as a cavity slider or for sliding back over a wall.

Key Features
  • Recommended maximum 2700mm high doors in Extra High wind zones
  • A high-performance series of windows and doors ideal for architecturally designed houses and apartments
  • Designed for suitability for Extra High wind zones and Specific Design applications
  • The sill frame has both sloped and flush track options
  • Interlocker stiles and mullions are flush in the closed position
  • A bypass slider is available where two or three panels can be moved independently without a fixed panel
  • Corner sliders (90°) are available with no corner post (exterior and interior corners)
  • Three sliders can stack over a fixed panel
  • Over-wall and cavity sliding options are available
Categories / Ranges
Sliding Doors Altherm APL Architectural Series
Scope of Use
  • Suitable for most residential environments in larger sizes
  • Designed for suitability for Extra High wind zones and Specific Design applications
  • Need to be used in defined maximum sizes according to the wind exposure
  • Narrow stiles and large glass expanses maximise views in the closed position
Limitations on Use
  • For enhanced flush indoor-outdoor levels consider recessing the sill into the floor pad to minimise or eliminate upstand
  • Recommended maximum 2700mm high doors in Extra High wind zones
Statement of Building Code Compliance
  • Designed, tested and manufactured to meet NZS 4211: Performance of Windows, and NZS 4233:  Glazing in Buildings, Parts 1-4
  • Designed and tested to conform to NZ Building Code, including Clause E2
In-Service History
  • Launched in 2004
  • Design upgrades regularly released
  • Widely used by homeowners, builders and specifiers
Other Performance Attributes
  • Window and door warranty provided under normal conditions of use against failure of materials and workmanship for a period of five years
  • Surface finish is covered by a separate performance warranty dependent on the actual finish selected
  • A hardware/componentry warranty is offered against defects in manufacturing, functionality and surface finish for a period of five years, provided care and maintenance guidelines have been followed
  • Case Studies
  • News
Documents
Data Sheet
pdf
Span Tables
pdf
Altherm Care & Maintenance Brochure

2017

pdf
Producer Statement / Warranty

2017

pdf
Full Specification
docx
Specification Clause
docx
Specifier Guide
pdf
WGANZ Guide to E2/AS1
pdf
APL and Sustainability

2019

pdf
Manufacturer Contact List
URL
CAD/PDF Details
View full
Full Set of Drawings
pdf
AASD02

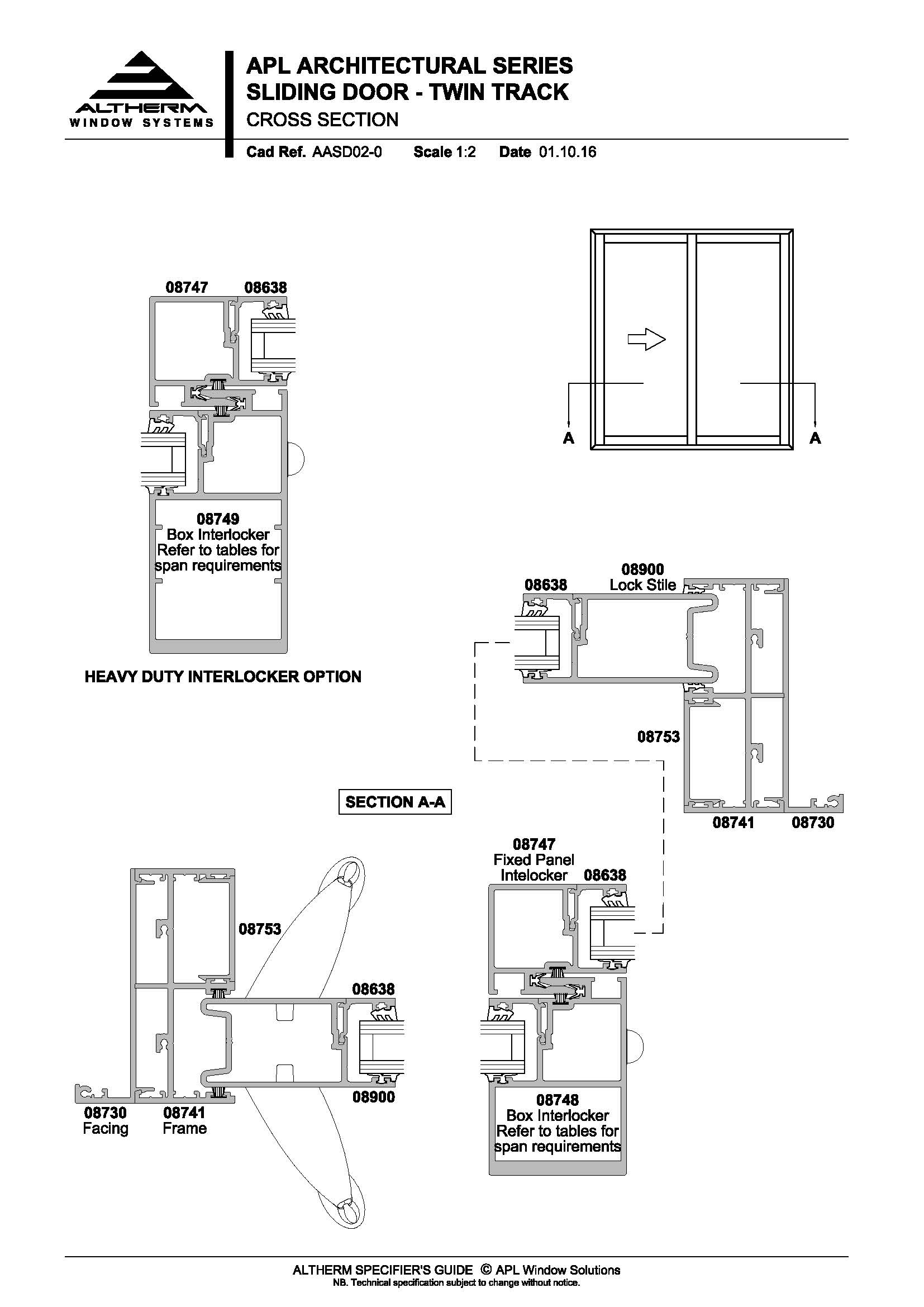

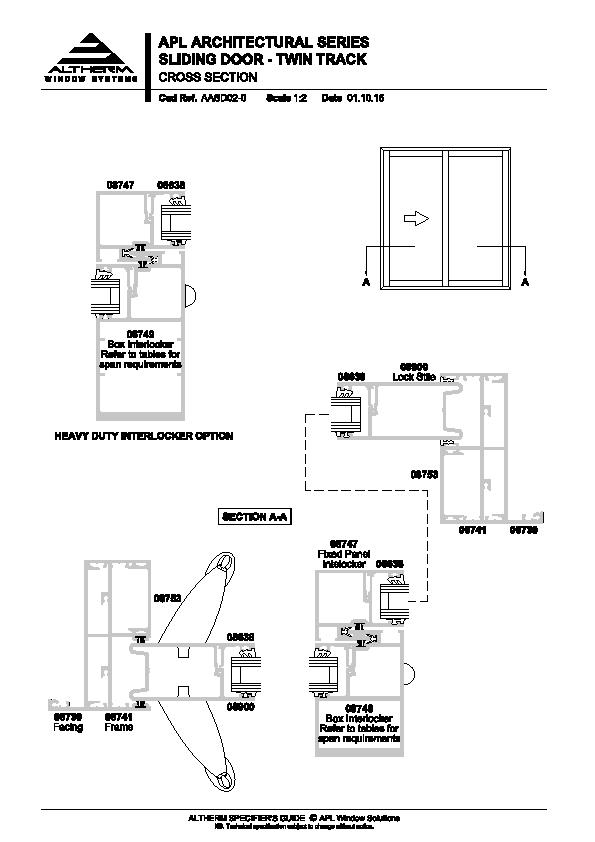

Altherm APL Architectural Series Sliding Door - Twin Track

AASD02-0

dwf
dwg
dxf
pdf

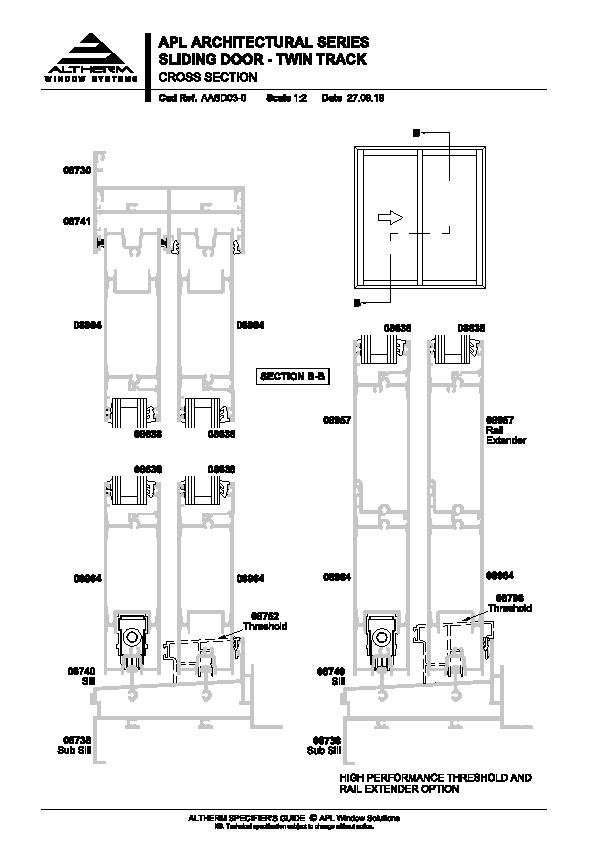

Altherm APL Architectural Series Sliding Door - Twin Track

AASD03-0

dwf
dwg
dxf
pdf
AASD04

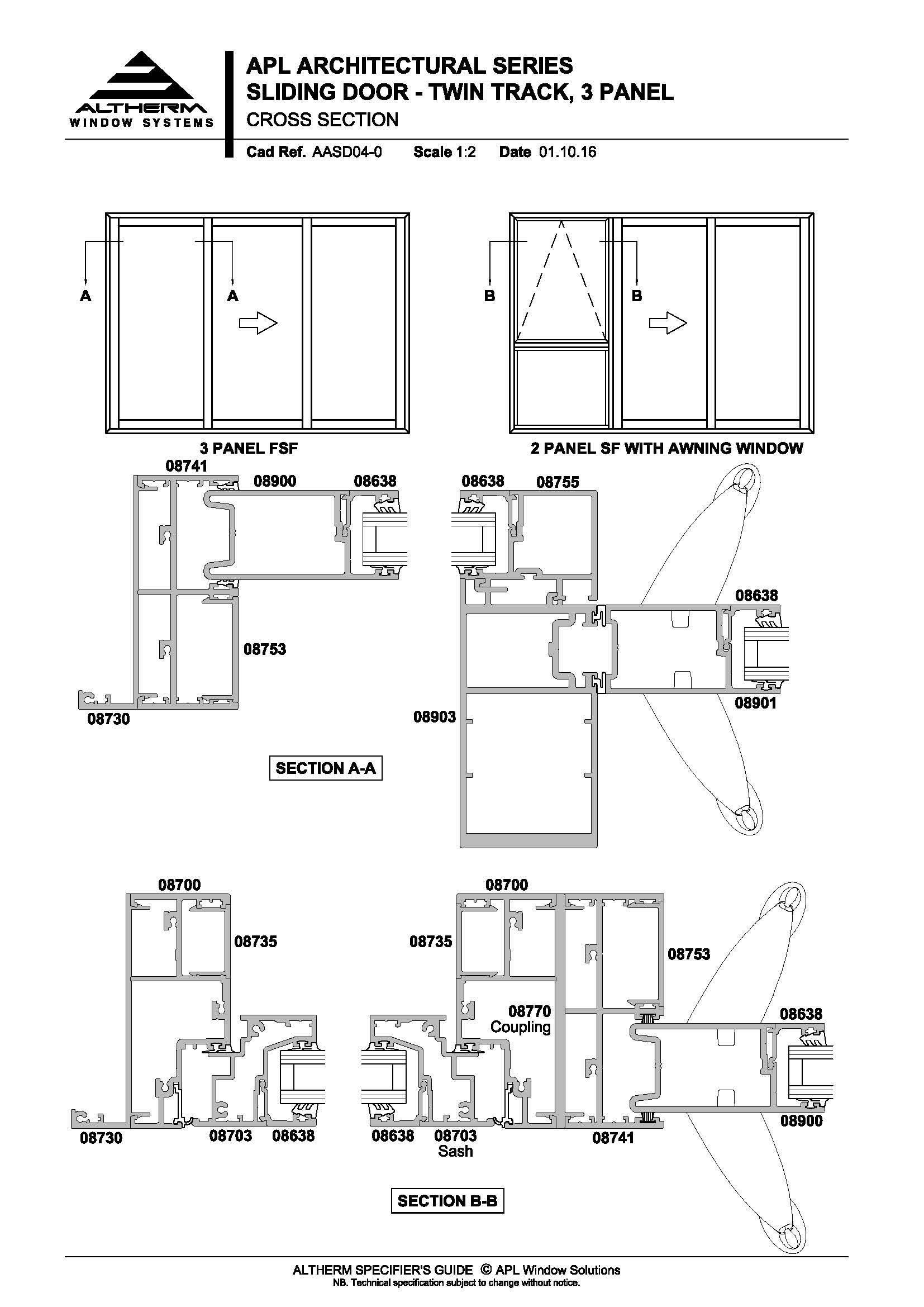

Altherm APL Architectural Series Sliding Door - Twin Track 3 Panel

AASD04-0

dwf
dwg
dxf
pdf

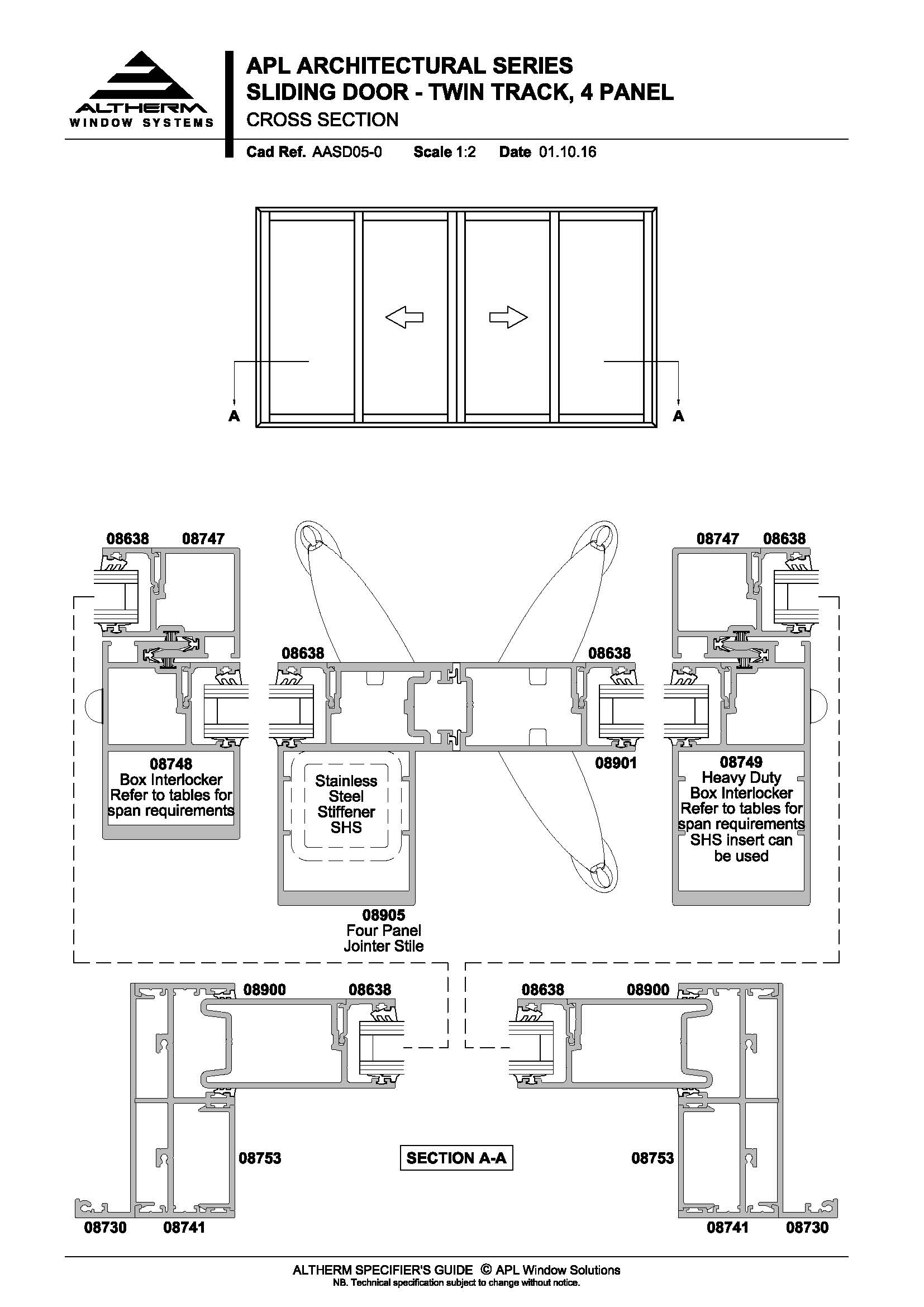

AASD05
Altherm APL Architectural Series Sliding Door - Twin Track 4 Panel

AASD05-0

dwf
dwg
dxf
pdf

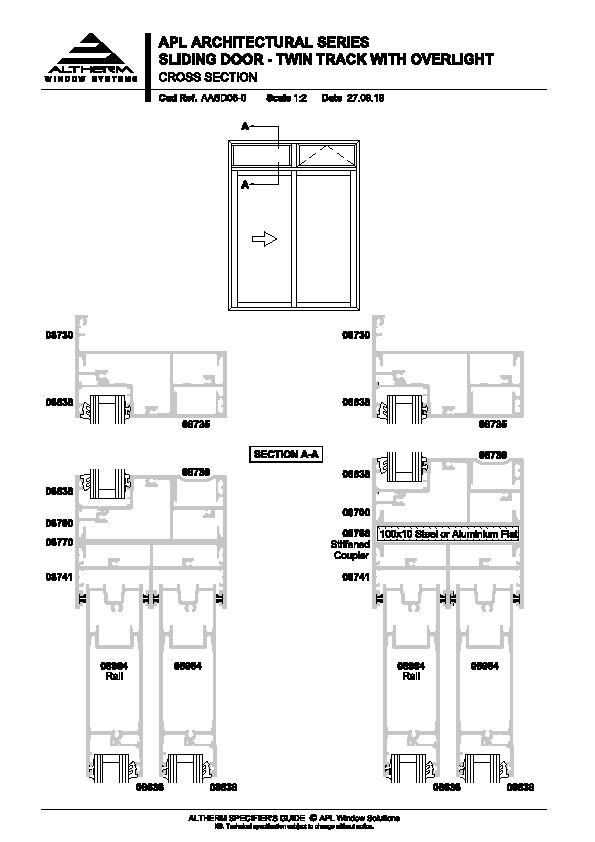

Altherm APL Architectural Series Sliding Door - Twin Track with Overlight

AASD06-0

dwf
dwg
dxf
pdf
AASD07

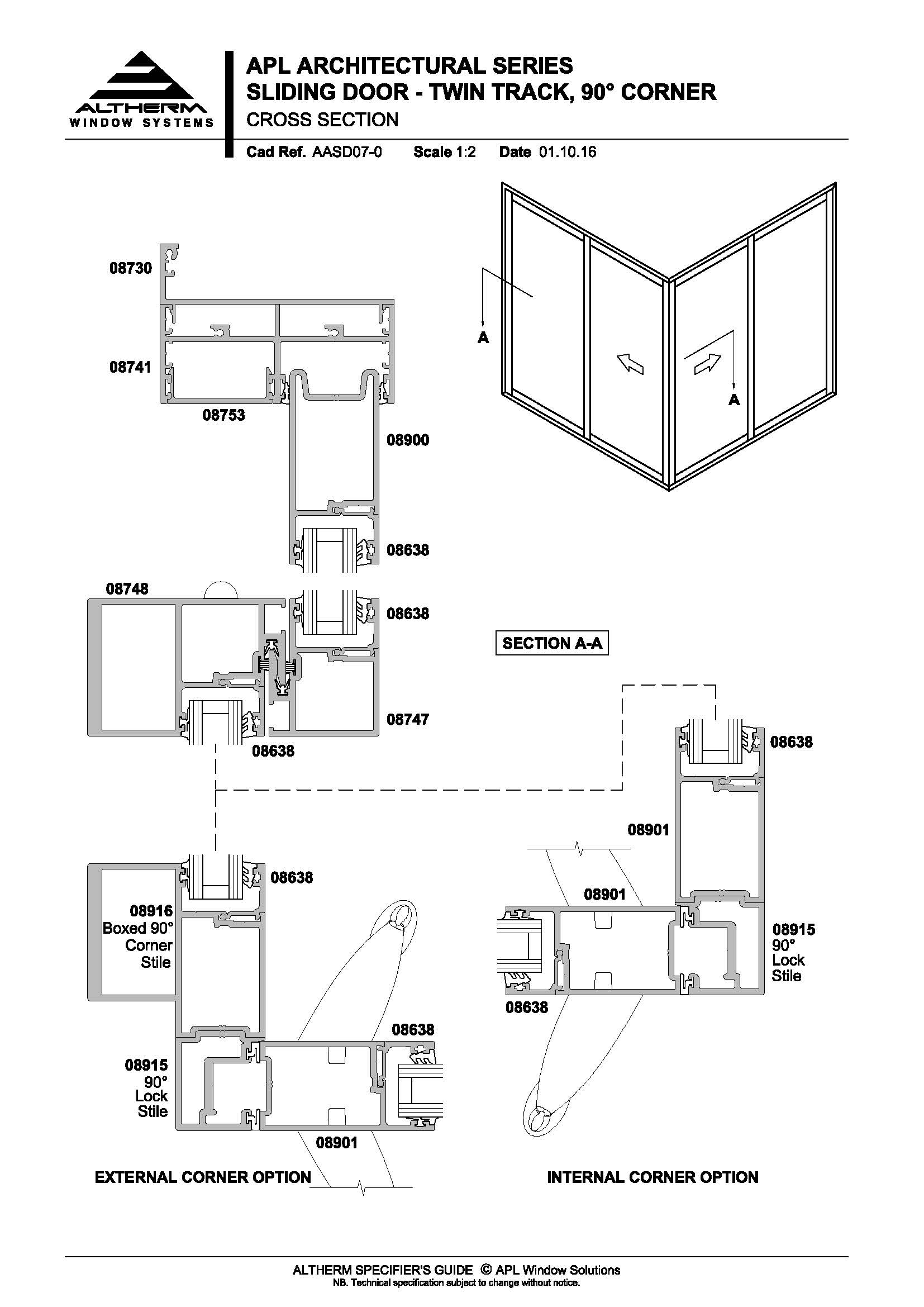

Altherm APL Architectural Series Sliding Door - Twin Track, 90° Corner

AASD07-0

dwf
dwg
dxf
pdf
AASD08

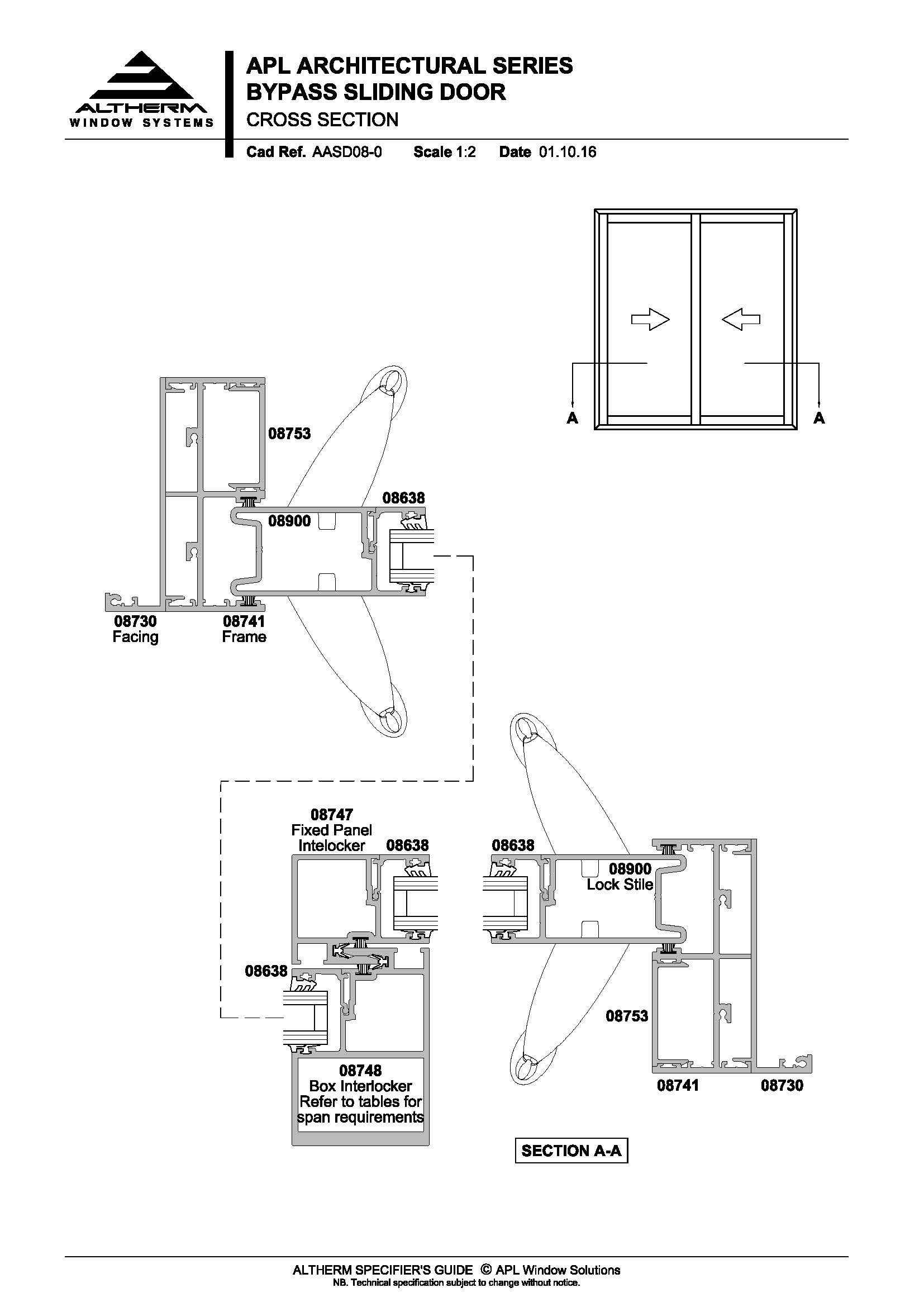

Altherm APL Architectural Series Bypass Sliding Door

AASD08-0

dwf
dwg
dxf
pdf

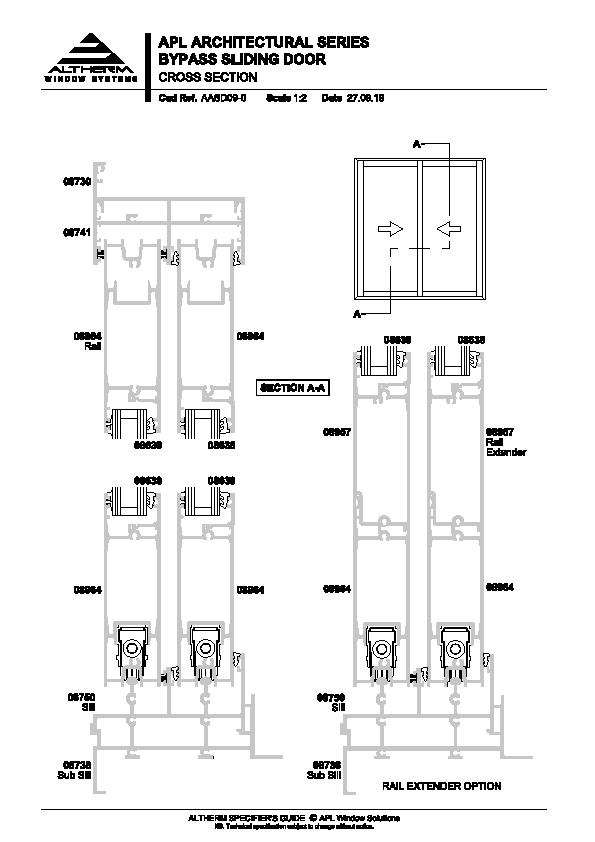

Altherm APL Architectural Series Bypass Sliding Door

AASD09-0

dwf
dwg
dxf
pdf

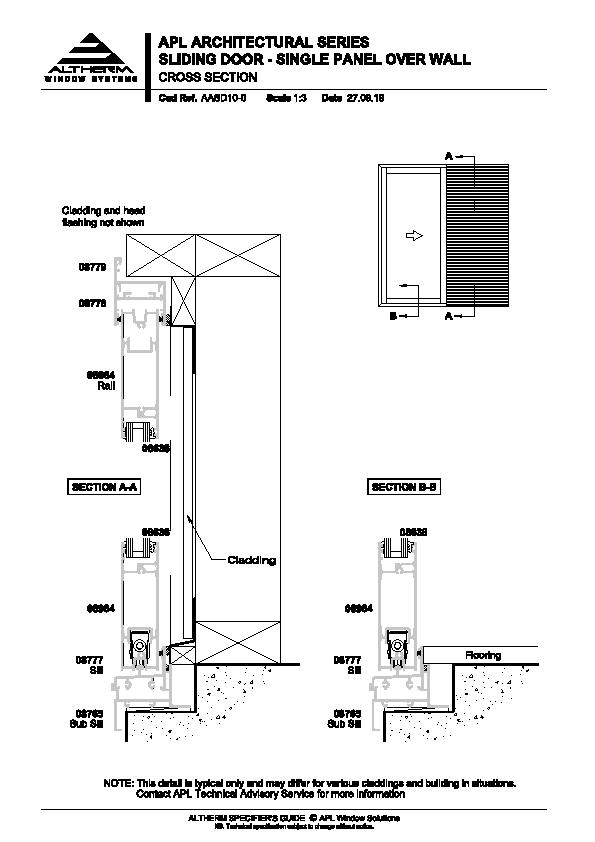

Altherm APL Architectural Series Sliding Door - Single Panel Over Wall

AASD10-0

dwf
dwg
dxf
pdf
AASD11

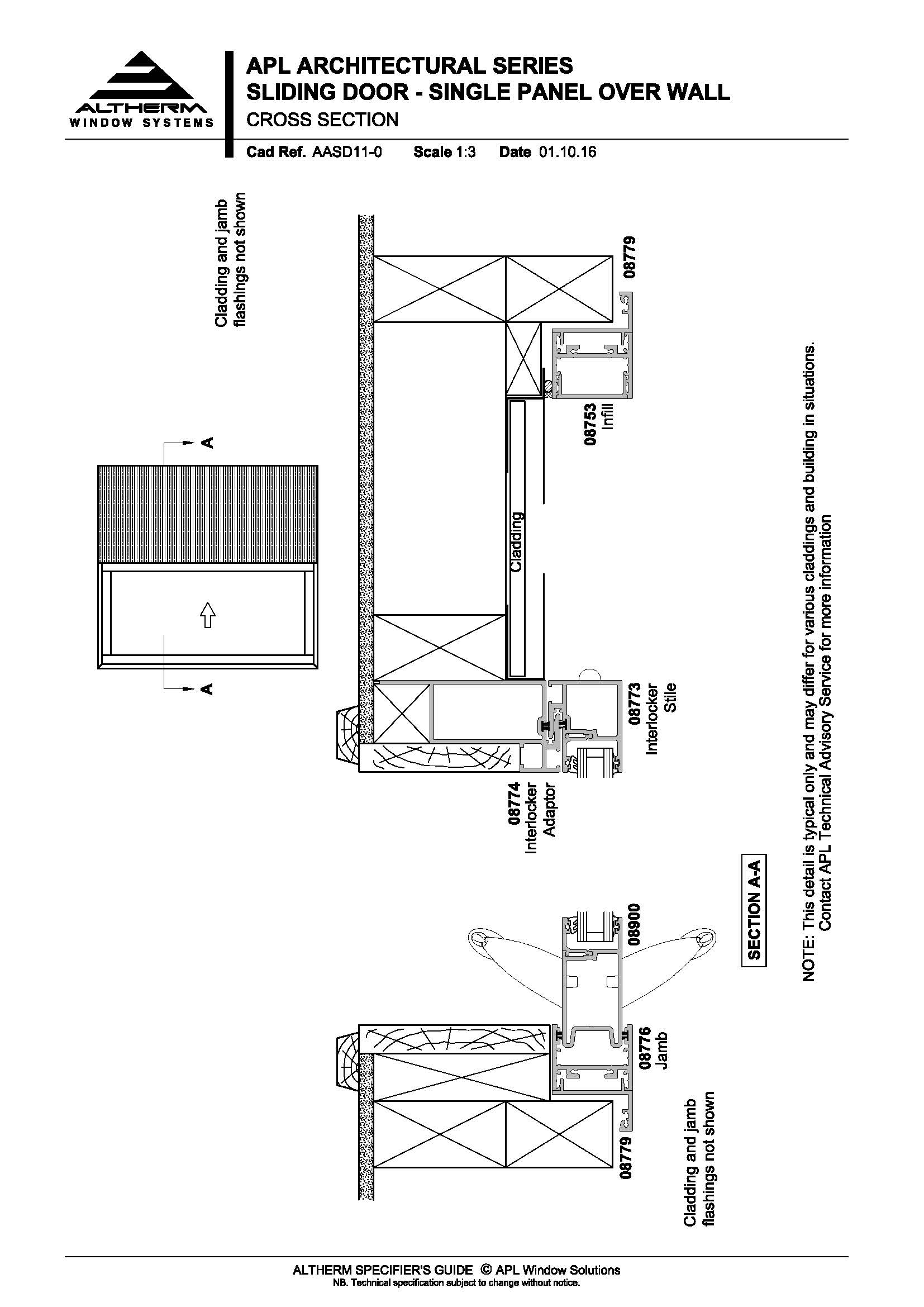

Altherm APL Architectural Series Sliding Door - Single Panel Over Wall

AASD11-0

dwf
dwg
dxf
pdf

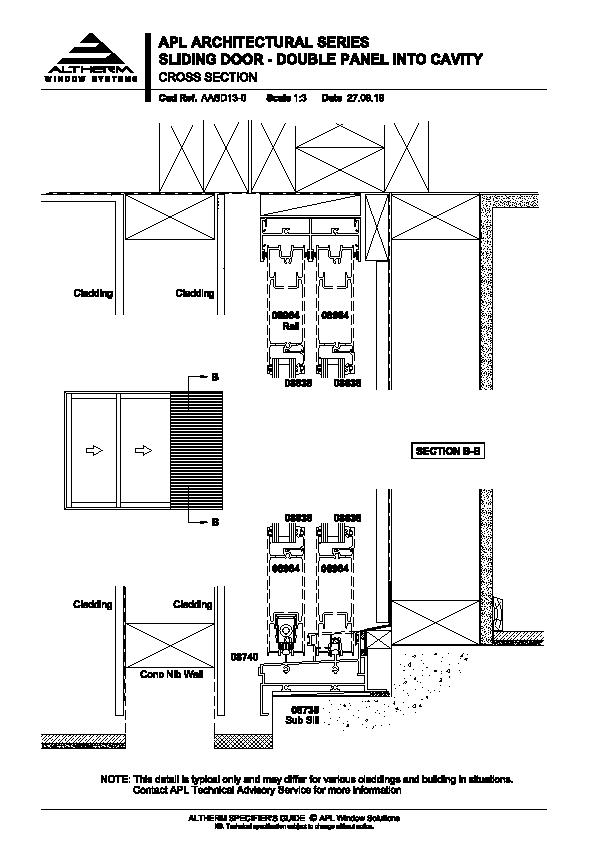

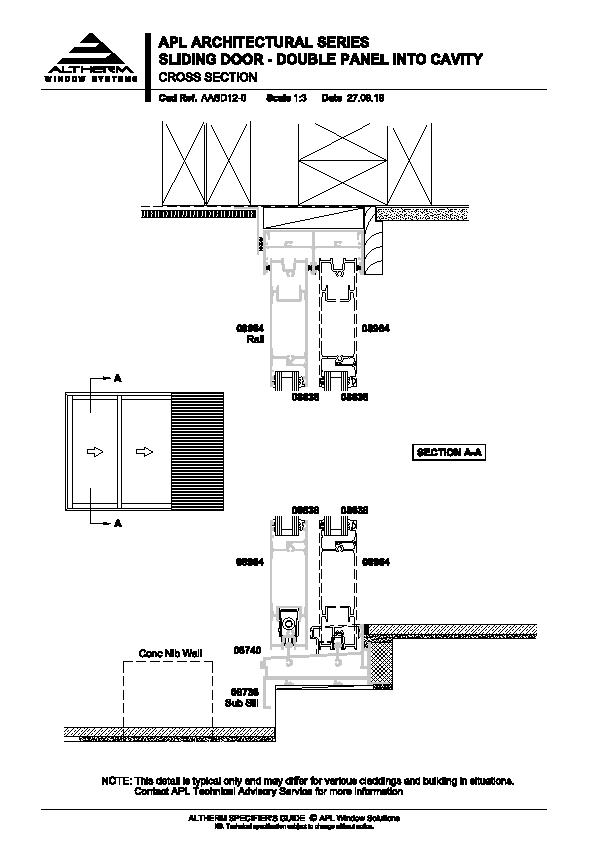

Altherm APL Architectural Series Sliding Door - Double Panel into Cavity

AASD12-0

dwf
dwg
dxf
pdf
Altherm APL Architectural Series Sliding Door - Double Panel into Cavity

AASD13-0

dwf
dwg
dxf
pdf

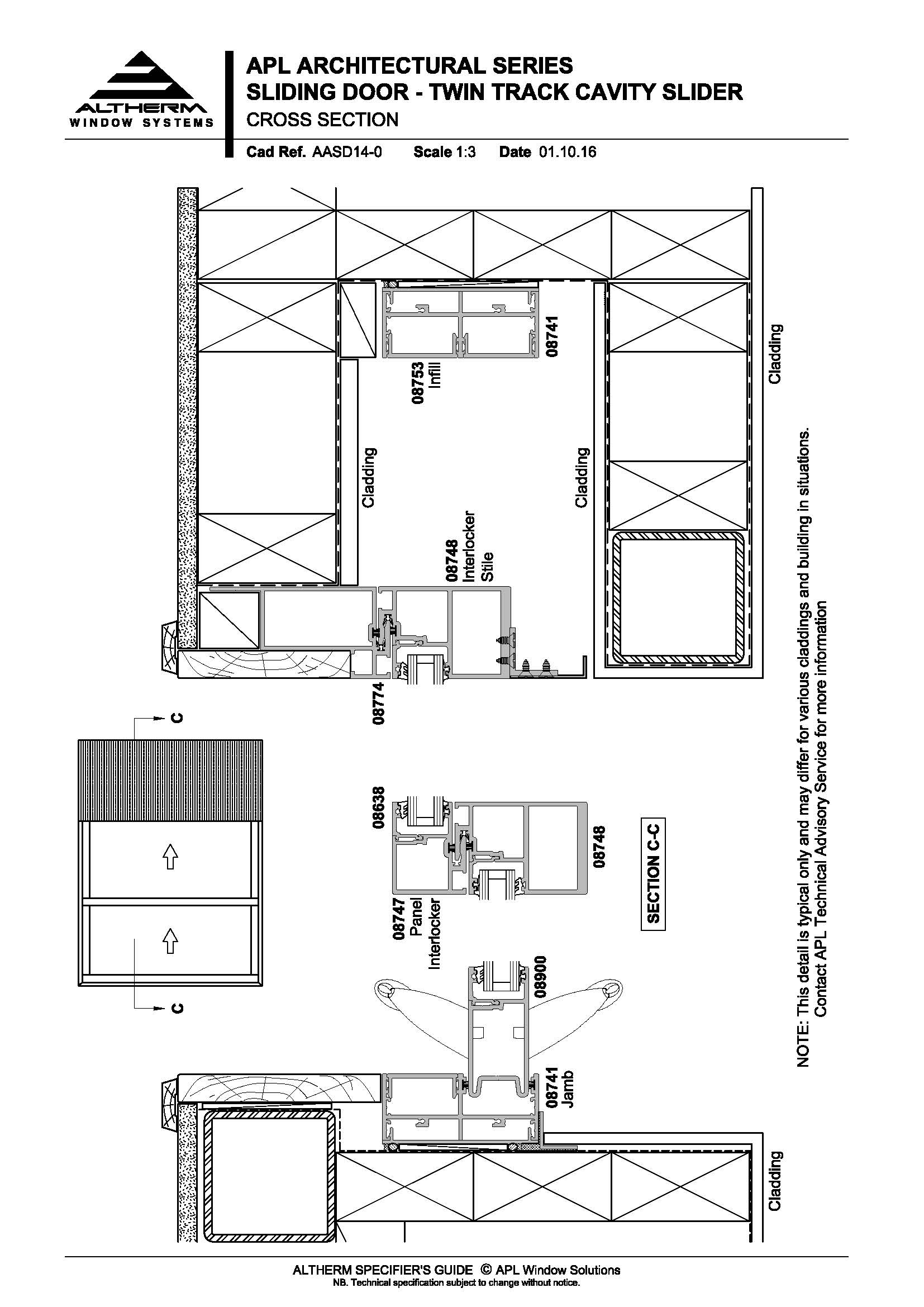

AASD14
Altherm APL Architectural Series Sliding Door - Twin Track Cavity Slider

AASD14-0

dwf
dwg
dxf
pdf
AASD16

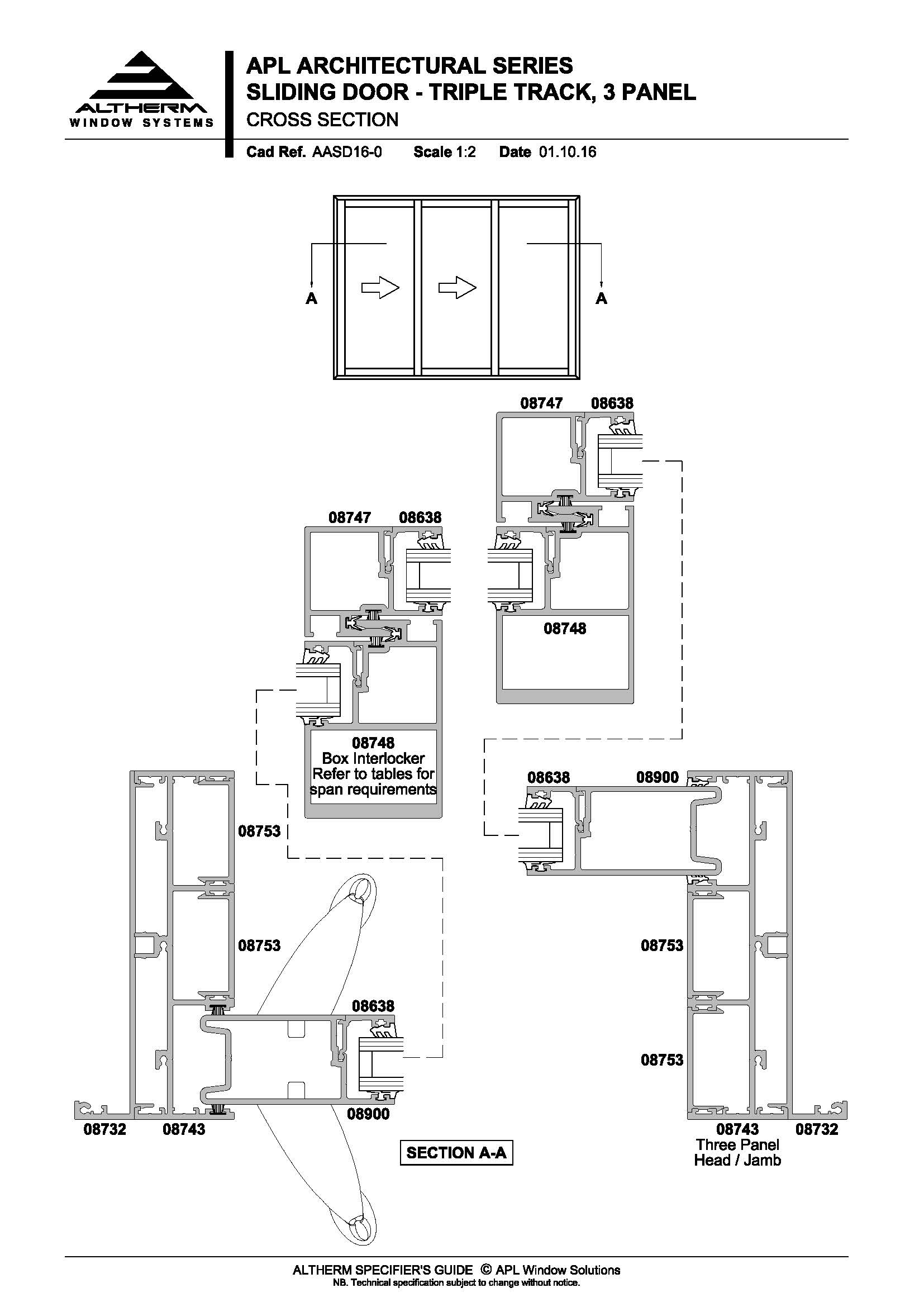

Altherm APL Architectural Series Sliding Door - Triple Track 3 Panel

AASD16-0

dwf
dwg
dxf
pdf
AASD17

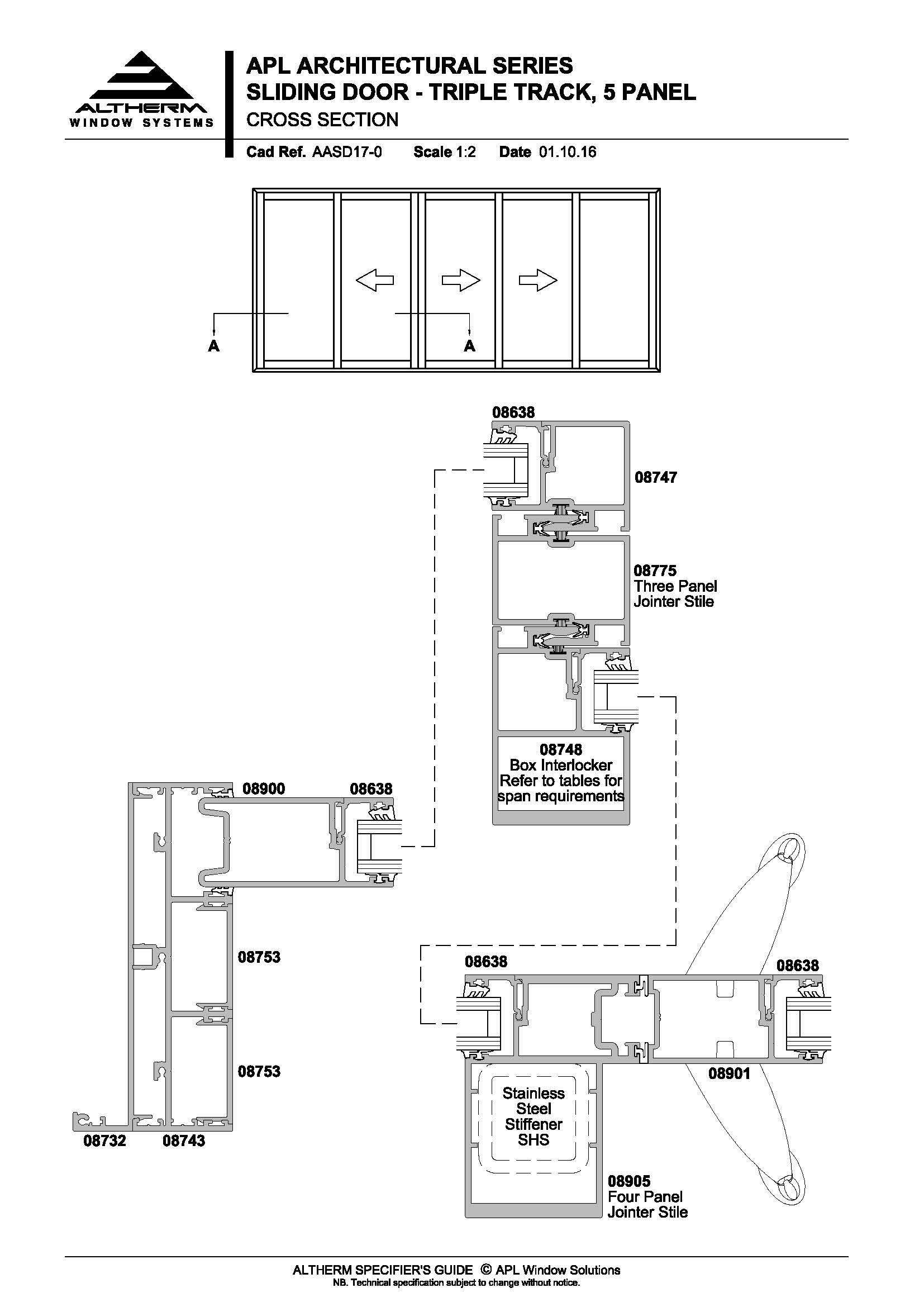

Altherm APL Architectural Series Sliding Door - Triple Track 5 Panel

AASD17-0

dwf
dwg
dxf
pdf
AASD18

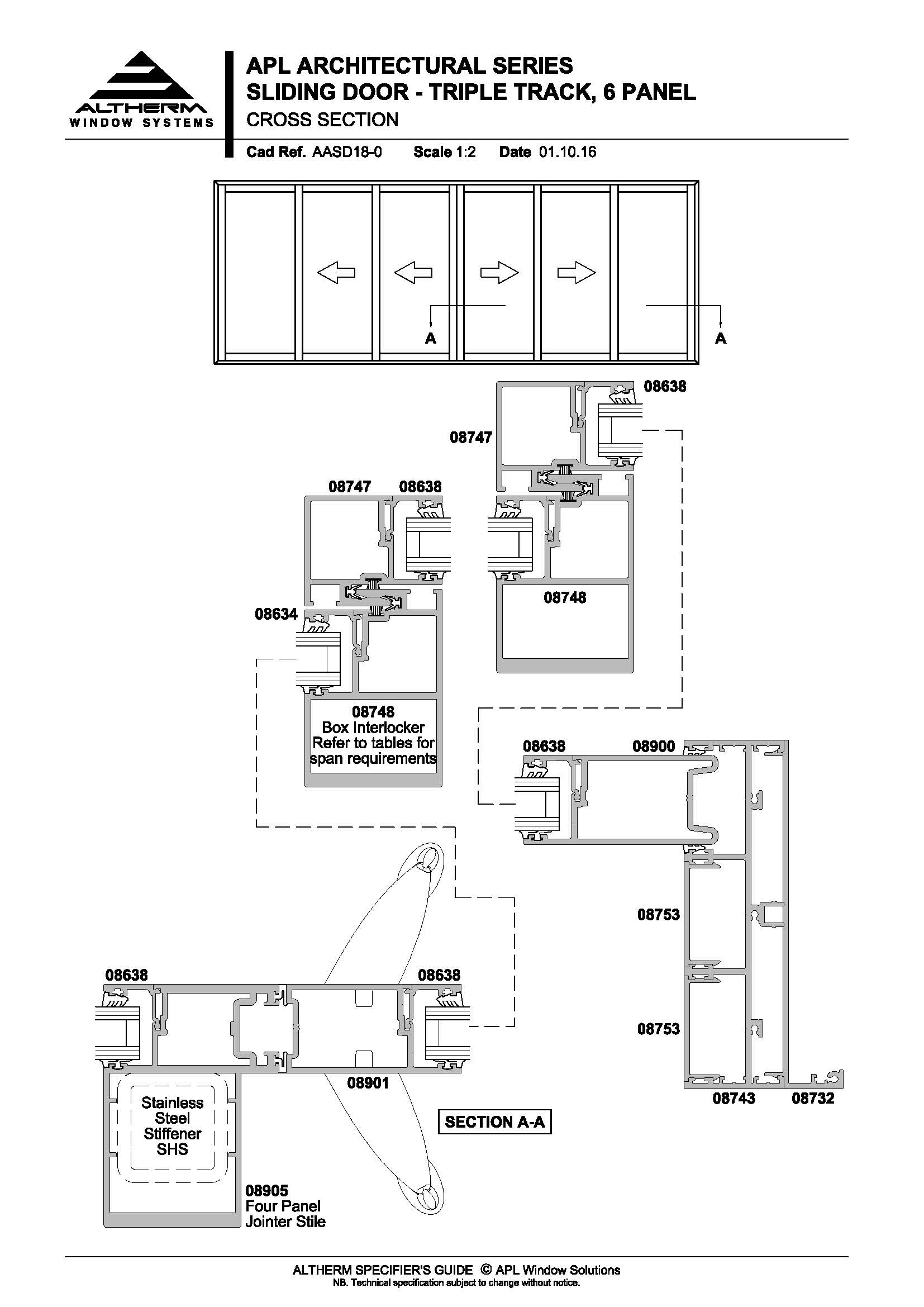

Altherm APL Architectural Series Sliding Door - Triple Track 6 Panel

AASD18-0

dwf
dwg
dxf
pdf

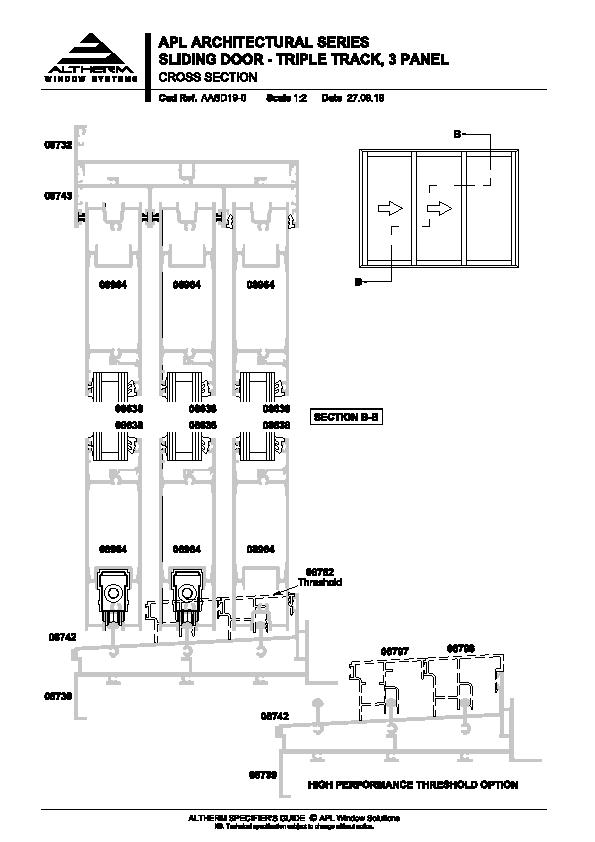

Altherm APL Architectural Series Sliding Door - Triple Track 3 Panel

AASD19-0

dwf
dwg
dxf
pdf

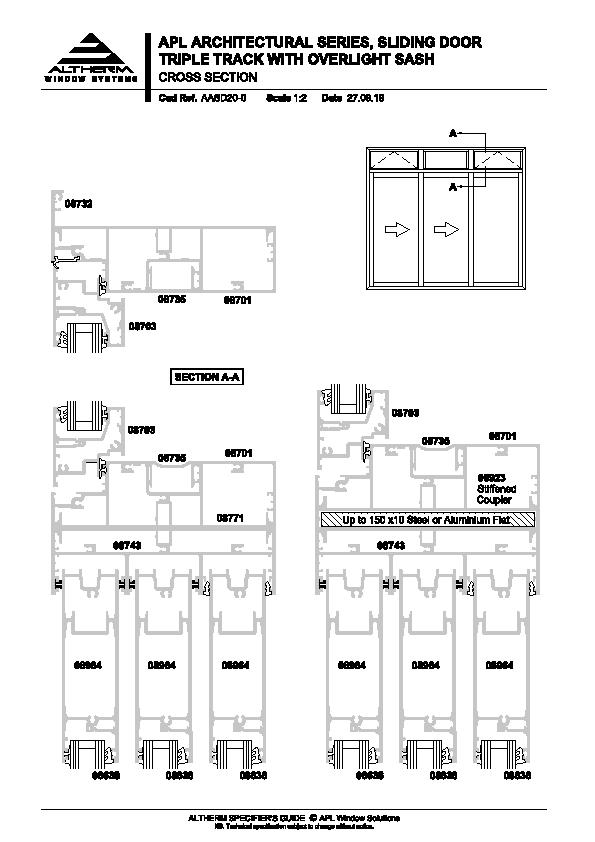

Altherm APL Architectural Series Sliding Door Triple Track with Overlight Sash

AASD20-0

dwf
dwg
dxf
pdf
AASD21

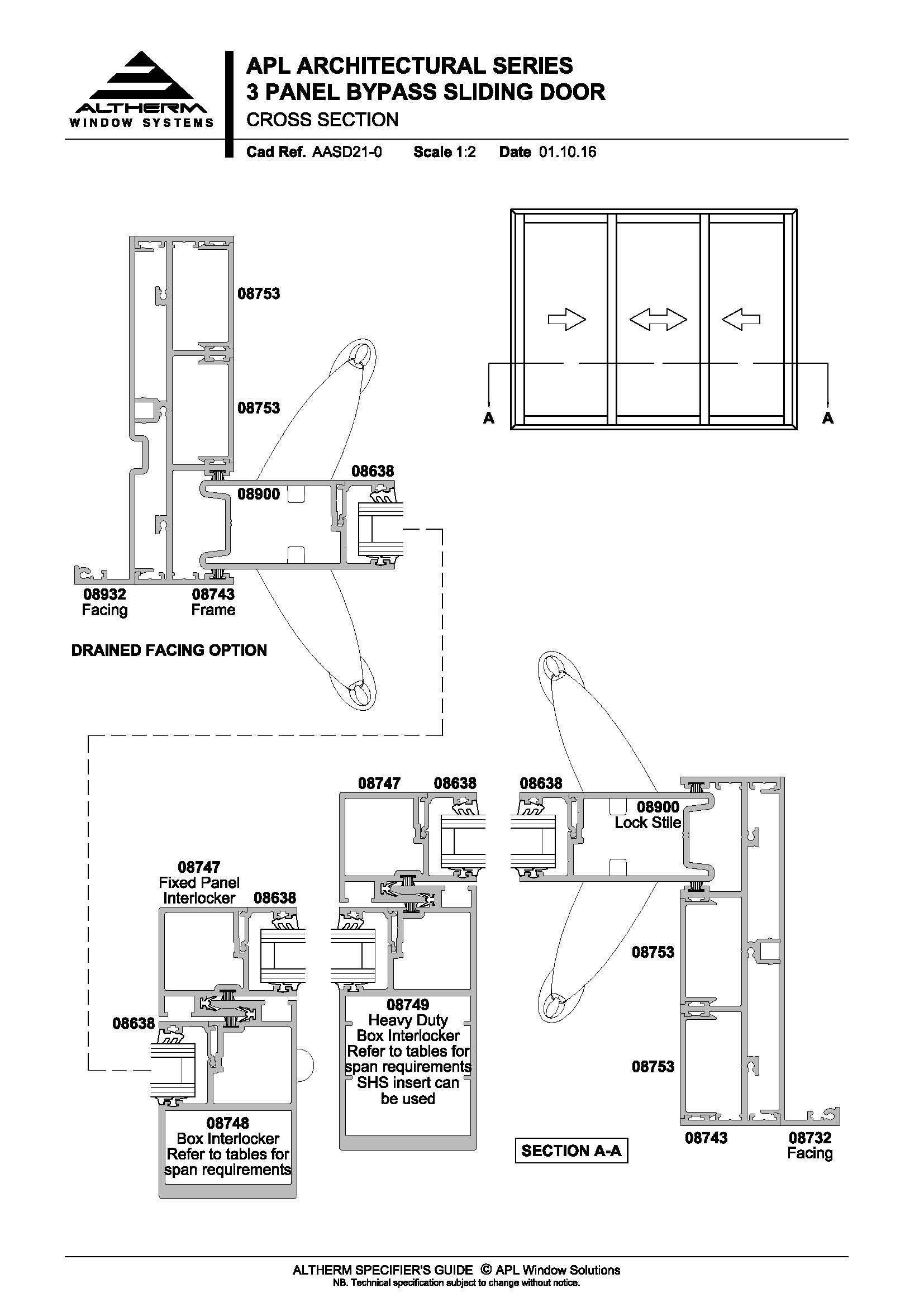

Altherm APL Architectural Series 3 Panel Bypass Sliding Door

AASD21-0

dwf
dwg
dxf
pdf

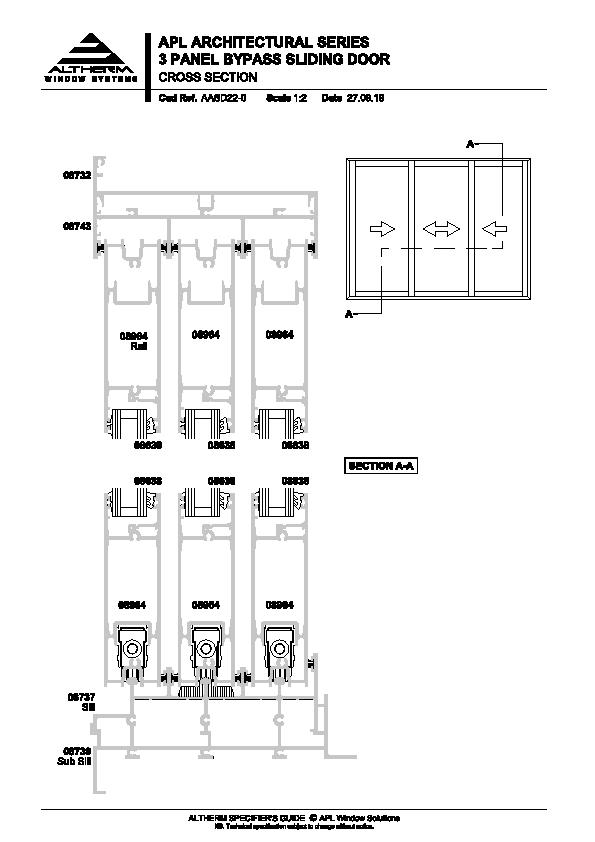

Altherm APL Architectural Series 3 Panel Bypass Sliding Door

AASD22-0

dwf
dwg
dxf
pdf

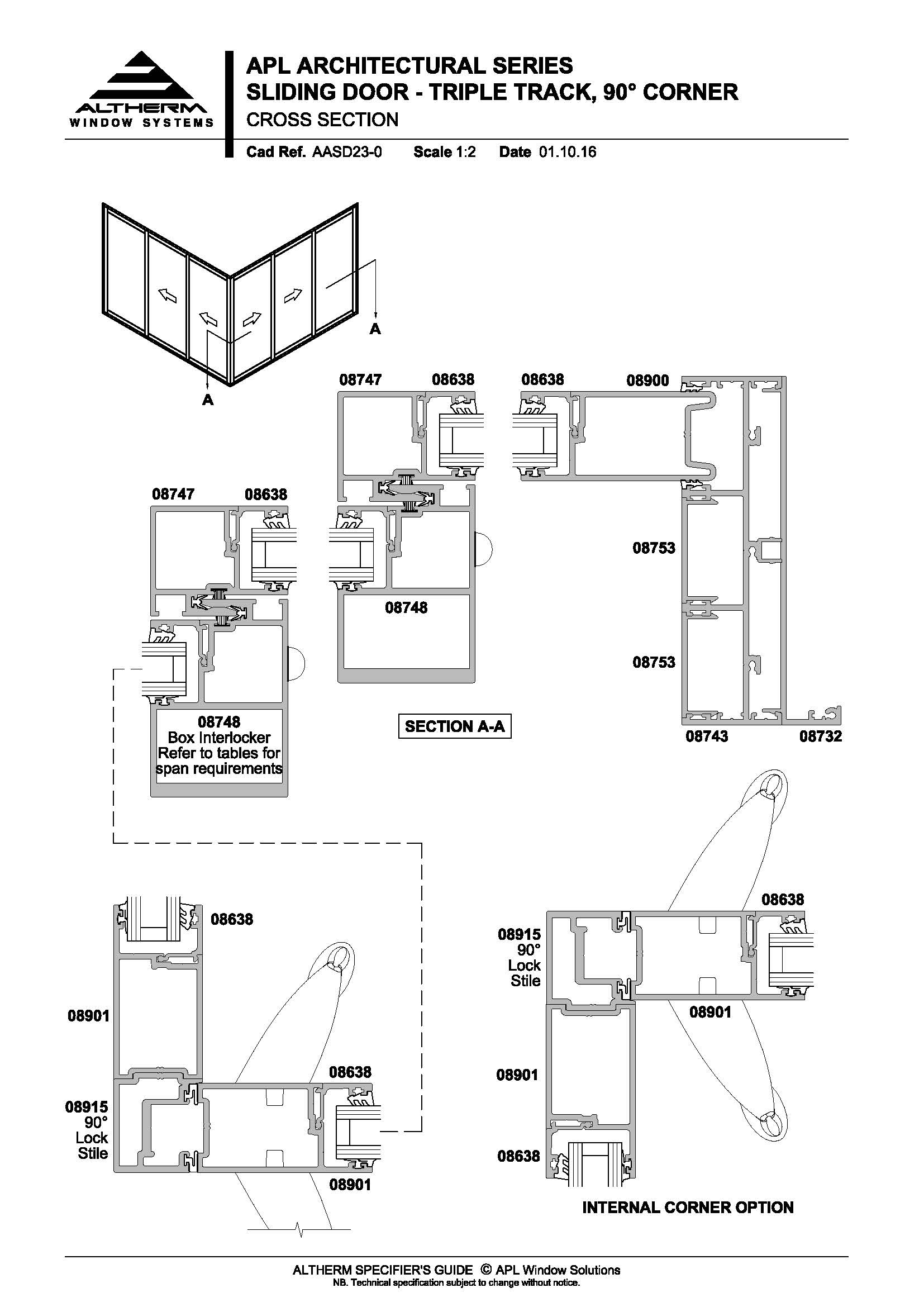

AASD23
Altherm APL Architectural Series Sliding Door - Triple Track 90º Corner

AASD23-0

dwf
dwg
dxf
pdf
AASD25

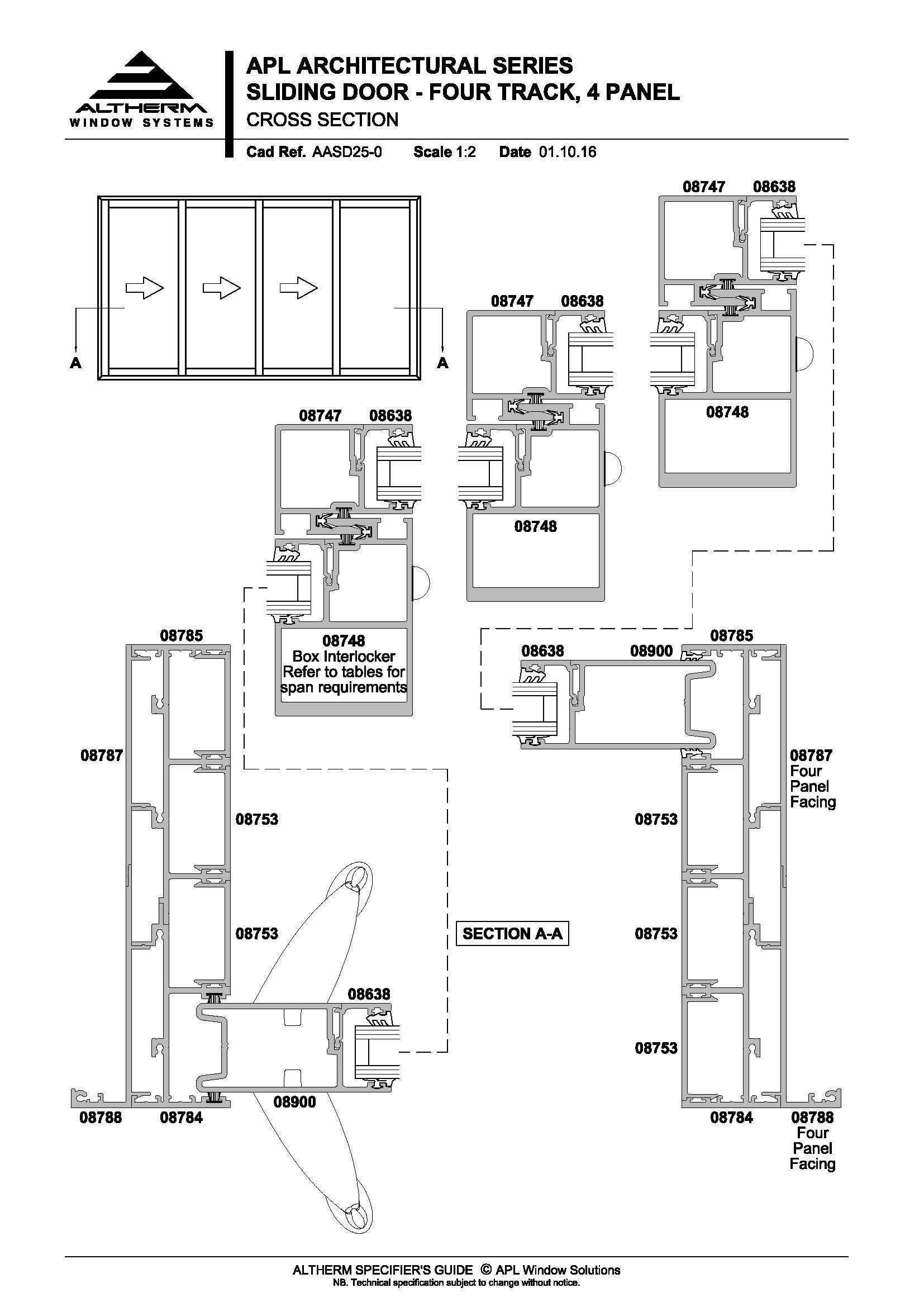

Altherm APL Architectural Series Sliding Door - Four Track 4 Panel

AASD25-0

dwf
dwg
dxf
pdf
AASD26

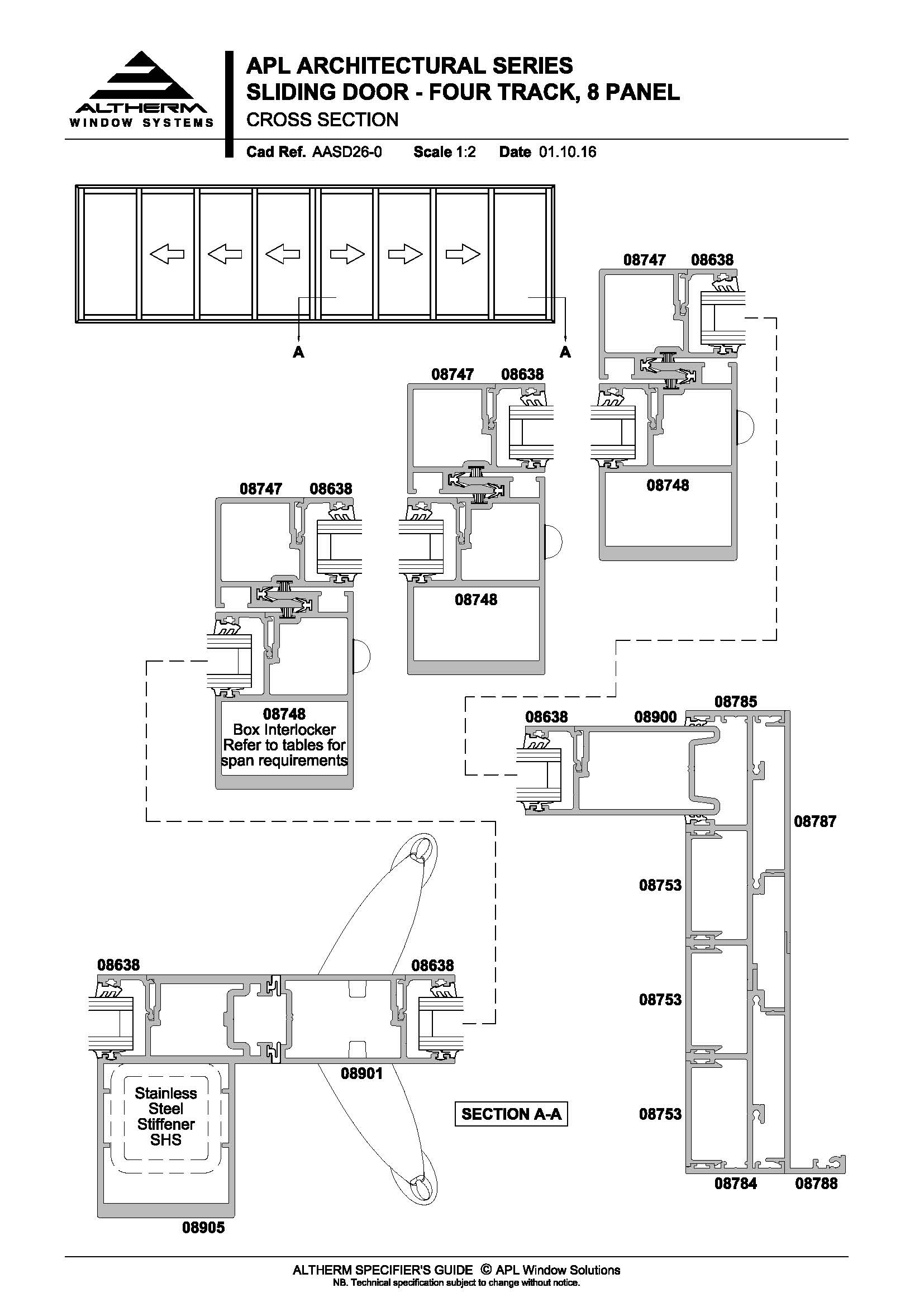

Altherm APL Architectural Series Sliding Door - Four Track 8 Panel

AASD26-0

dwf
dwg
dxf
pdf

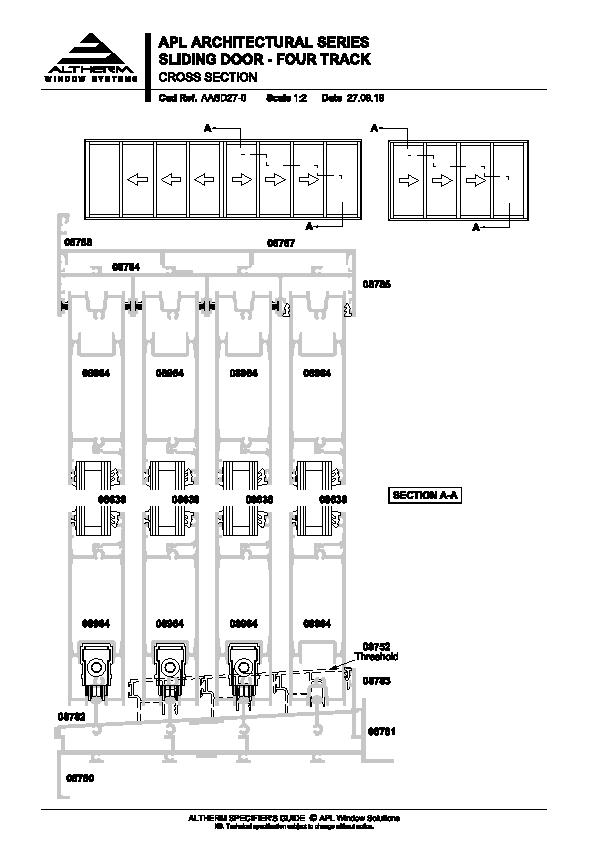

Altherm APL Architectural Series Sliding Door - Four Track

AASD27-0

dwf
dwg
dxf
pdf
AASD28

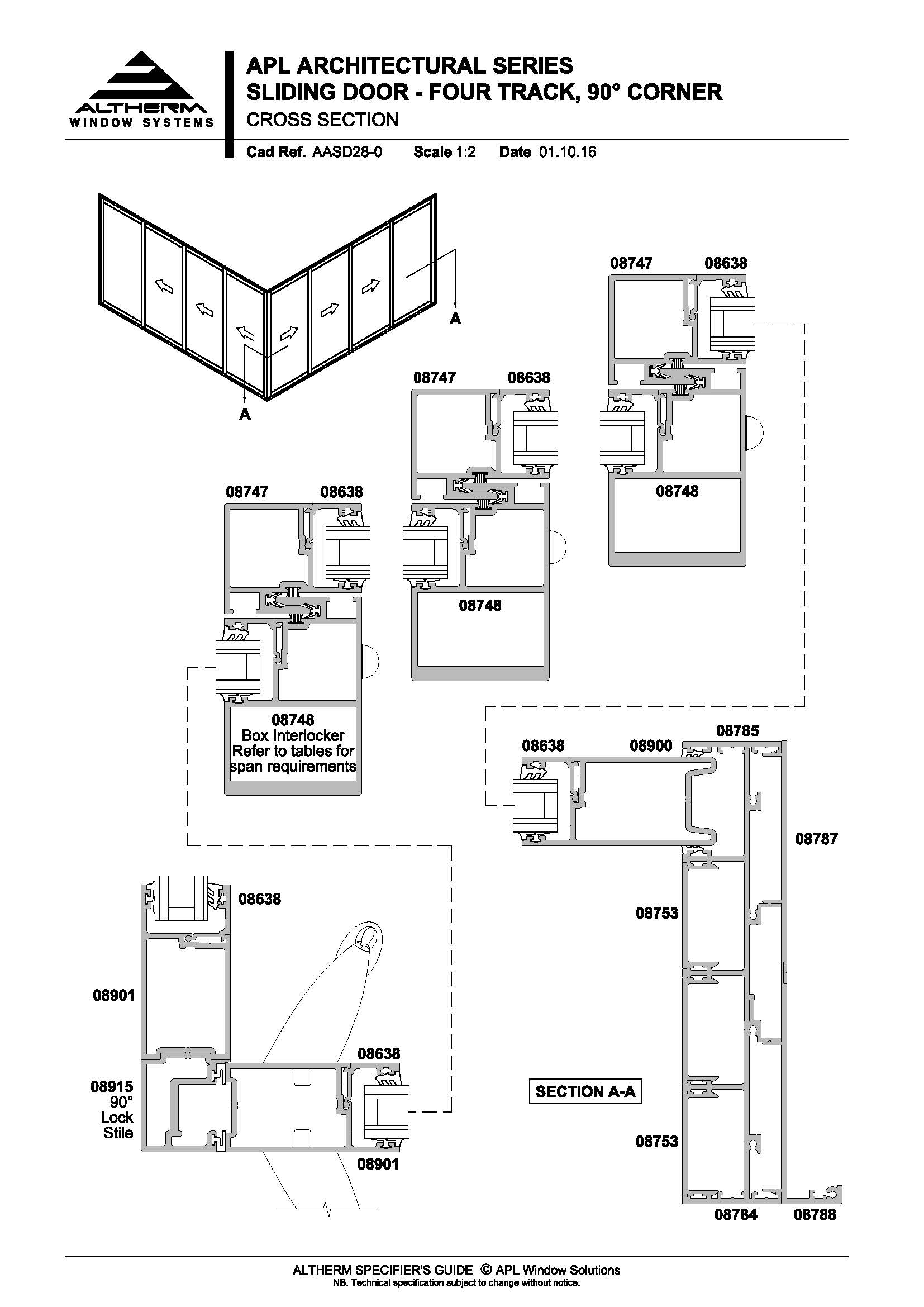

Altherm APL Architectural Series Sliding Door - Four Track 90º Corner

AASD28-0

dwf
dwg
dxf
pdf
AASD29

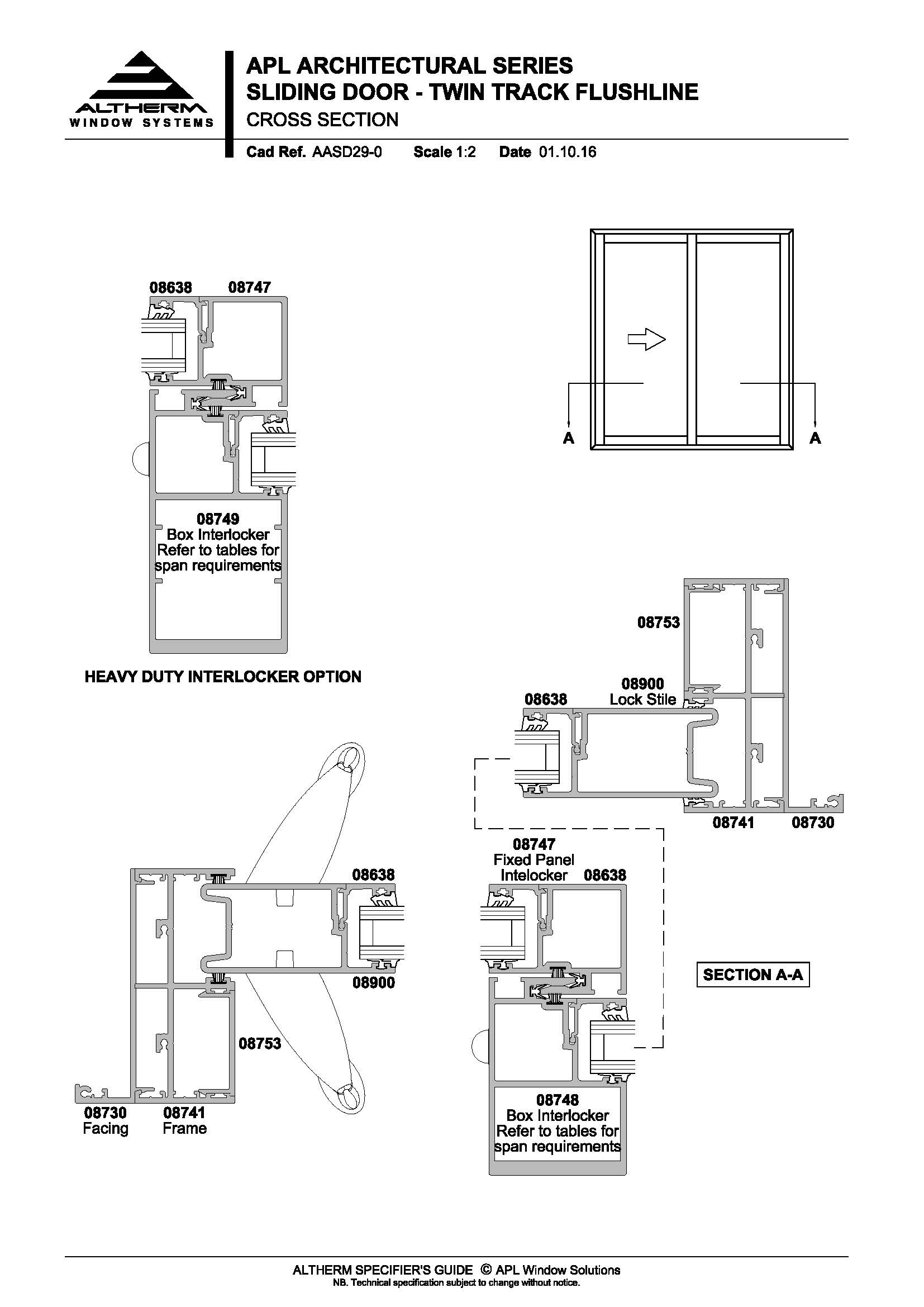

Altherm APL Architectural Series Sliding Door - Twin Track Flushline

AASD29-0

dwf
dwg
dxf
pdf

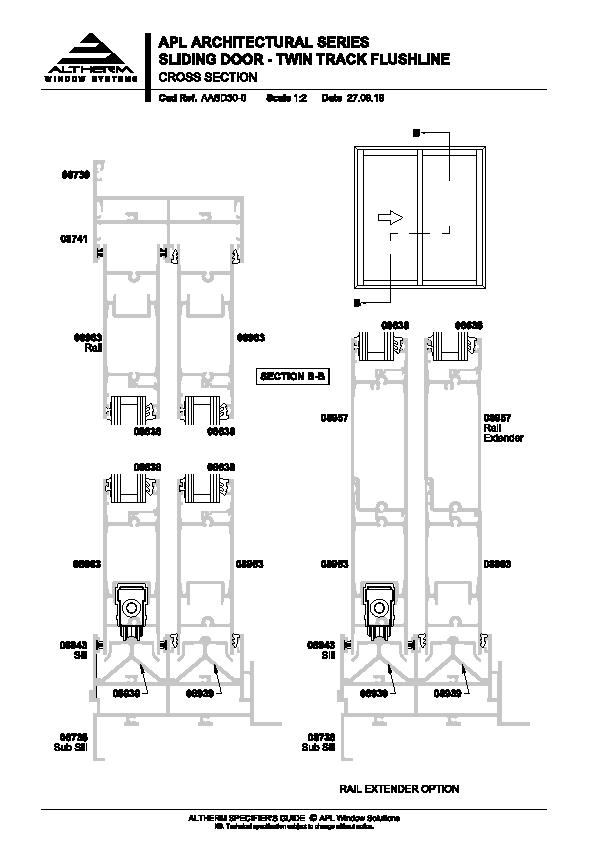

Altherm APL Architectural Series Sliding Door - Twin Track Flushline

AASD30-0

dwf
dwg
dxf
pdf

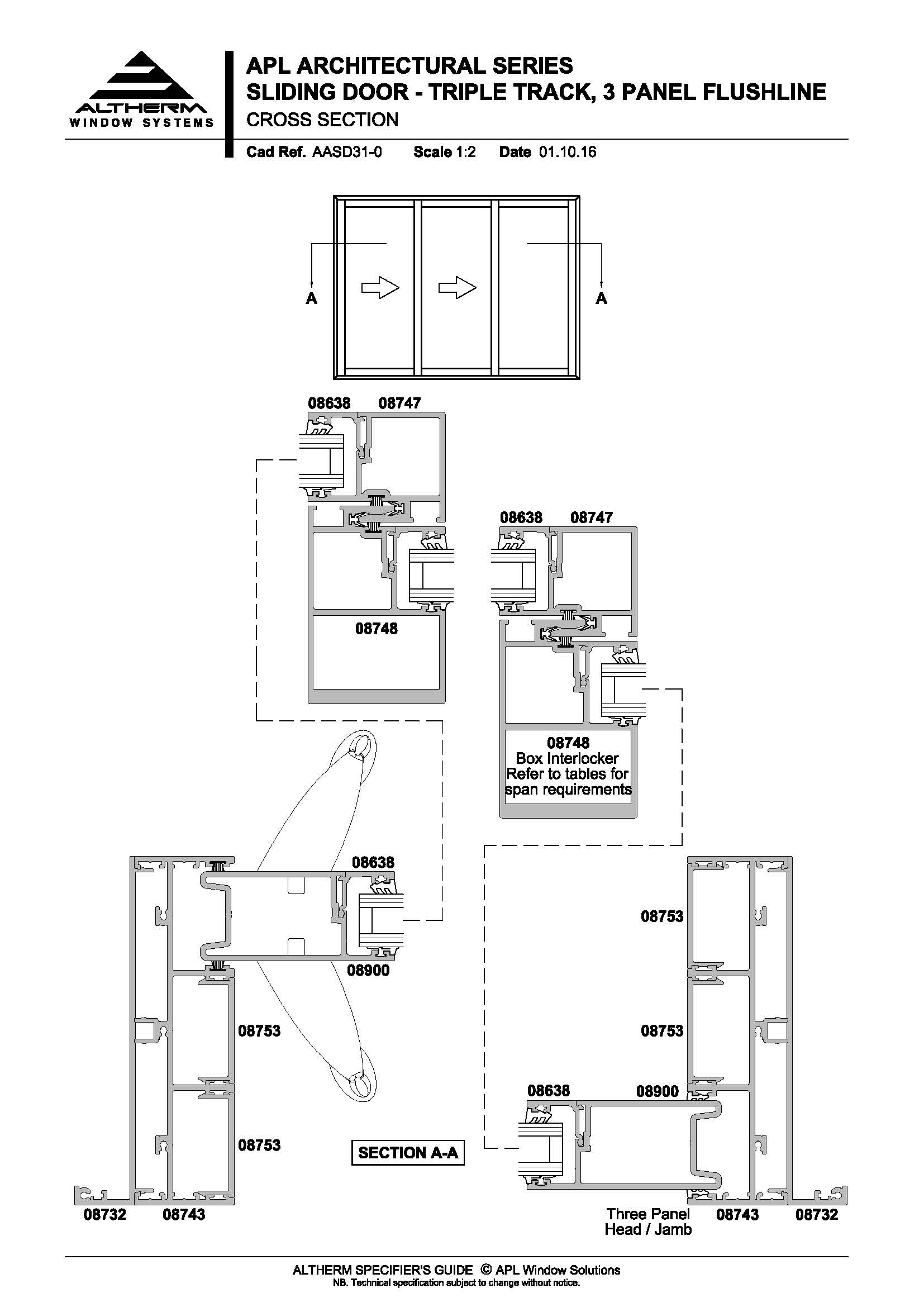

AASD31
Altherm APL Architectural Series Sliding Door - Triple Track 3 Panel Flushline

AASD31-0

dwf
dwg
dxf
pdf

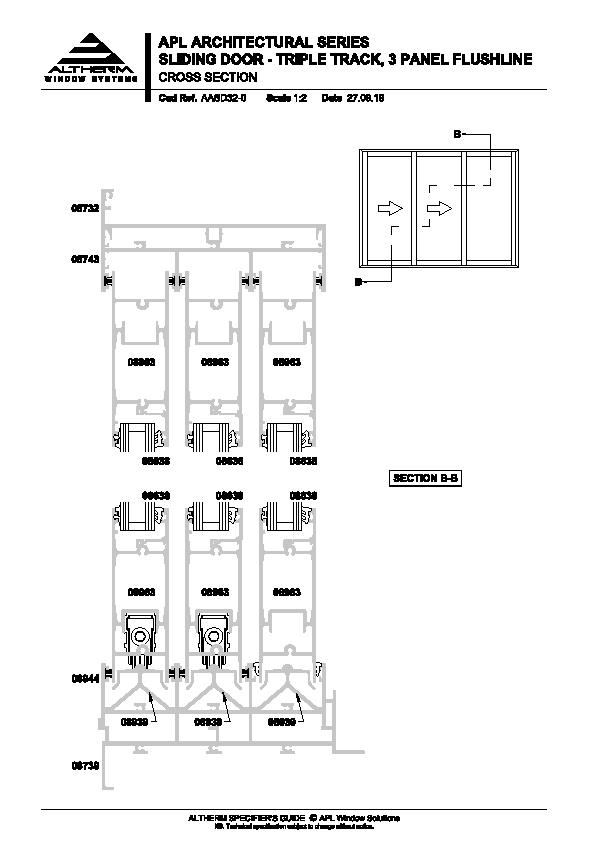

Altherm APL Architectural Series Sliding Door - Triple Track 3 Panel Flushline

AASD32-0

dwf
dwg
dxf
pdf
AASD33

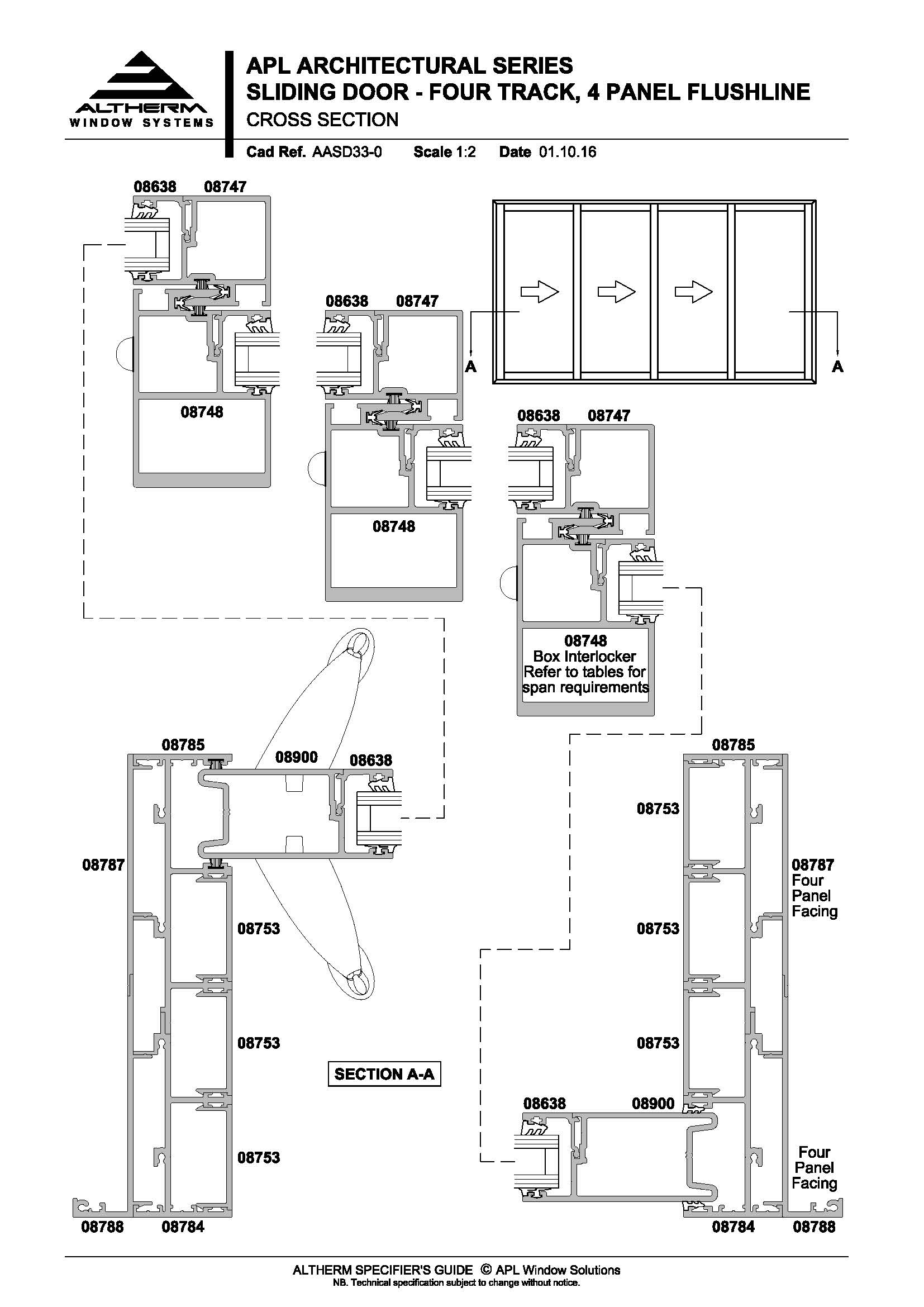

Altherm APL Architectural Series Sliding Door - Four Track, 4 Panel Flushline

AASD33-0

dwf
dwg
dxf
pdf

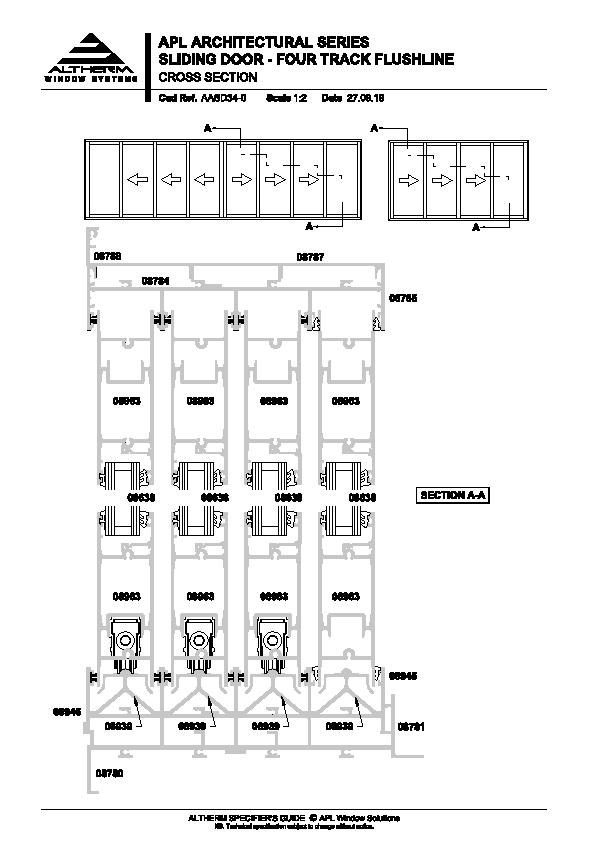

Altherm APL Architectural Series Sliding Door - Four Track Flushline

AASD34-0

dwf
dwg
dxf
pdf
Installation Details
View full
Altherm APL Architectural Series Sliding Door Two Track on Board & Batten

ASS2BB

dwg
pdf
Altherm APL Architectural Series Sliding Door Two Track on Brick Veneer

ASS2BV

dwg
pdf
Altherm APL Architectural Series Sliding Door Two Track on Bevelback Weatherboard

ASS2BW

dwg
pdf
Altherm APL Architectural Series Sliding Door Two Track on Flat Sheet

ASS2FS

dwg
pdf
Altherm APL Architectural Series Sliding Door Two Track on No Cladding

ASS2NC

dwg
pdf
Altherm APL Architectural Series Sliding Door Two Track on Profile Metal

ASS2PM

dwg
pdf
Altherm APL Architectural Series Sliding Door Two Track on Rusticated Weatherboard

ASS2RW

dwg
pdf
Altherm APL Architectural Series Sliding Door Two Track on Stucco

ASS2ST

dwg
pdf
Altherm APL Architectural Series Sliding Door Three Track on Board & Batten

ASS3BB

dwg
pdf
Altherm APL Architectural Series Sliding Door Three Track on Brick Veneer

ASS3BV

dwg
pdf
Altherm APL Architectural Series Sliding Door Three Track on Bevelback Weatherboard

ASS3BW

dwg
pdf
Altherm APL Architectural Series Sliding Door Three Track on Flat Sheet

ASS3FS

dwg
pdf
Altherm APL Architectural Series Sliding Door Three Track on No Cladding

ASS3NC

dwg
pdf
Altherm APL Architectural Series Sliding Door Three Track on Profile Metal

ASS3PM

dwg
pdf
Altherm APL Architectural Series Sliding Door Three Track on Rusticated Weatherboard

ASS3RW

dwg
pdf
Altherm APL Architectural Series Sliding Door Three Track on Stucco

ASS3ST

dwg
pdf
Altherm APL Architectural Series Sliding Door Four Track on Board & Batten

ASS4BB

dwg
pdf
Altherm APL Architectural Series Sliding Door Four Track on Brick Veneer

ASS4BV

dwg
pdf
Altherm APL Architectural Series Sliding Door Four Track on Bevelback Weatherboard

ASS4BW

dwg
pdf
Altherm APL Architectural Series Sliding Door Four Track on Flat Sheet

ASS4FS

dwg
pdf
Altherm APL Architectural Series Sliding Door Four Track on No Cladding

ASS4NC

dwg
pdf
Altherm APL Architectural Series Sliding Door Four Track on Profile Metal

ASS4PM

dwg
pdf
Altherm APL Architectural Series Sliding Door Four Track on Rusticated Weatherboard

ASS4RW

dwg
pdf
Altherm APL Architectural Series Sliding Door Four Track on Stucco

ASS4ST

dwg
pdf
BIM
View full

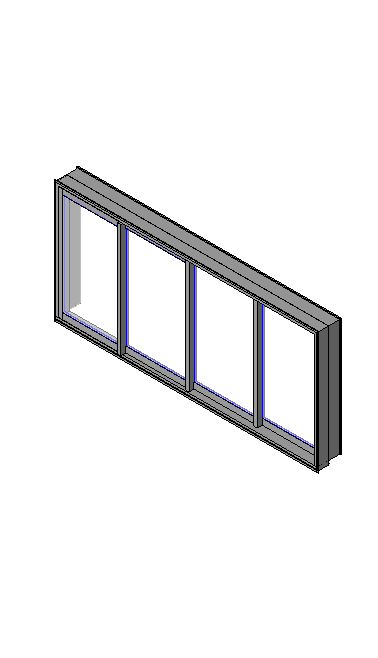

4track bypass flush
Altherm APL Architectural Series Sliding Door Four Track Bypass Flushline
rfa
rfa
rfa
Two Panel
Altherm APL Architectural Series Sliding Door FS
rfa
rfa
rfa

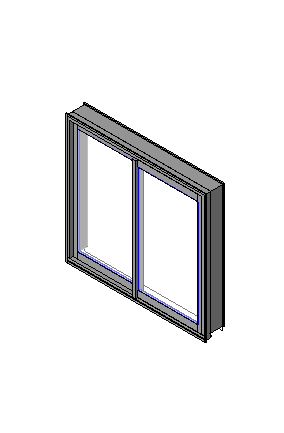

2panel bypass flushline
Altherm APL Architectural Series Sliding Door FS Bypass Flushline
rfa
rfa
rfa

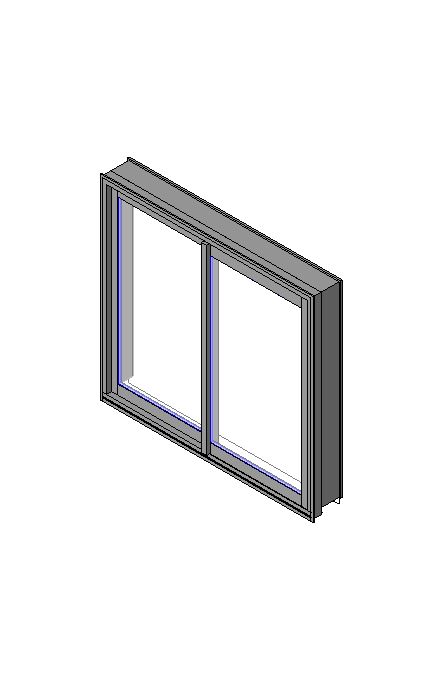

2 panel flushline
Altherm APL Architectural Series Sliding Door FS Twin Track Flushline
rfa
rfa
rfa

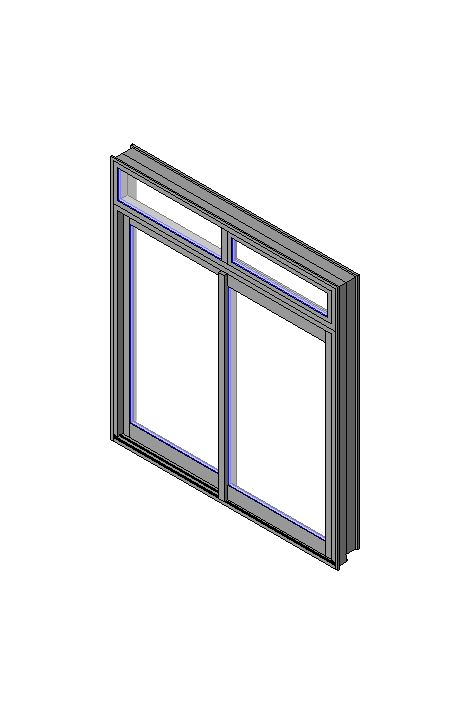

2 panel with overlight
Altherm APL Architectural Series Sliding Door FS with Overlight
rfa
rfa
rfa

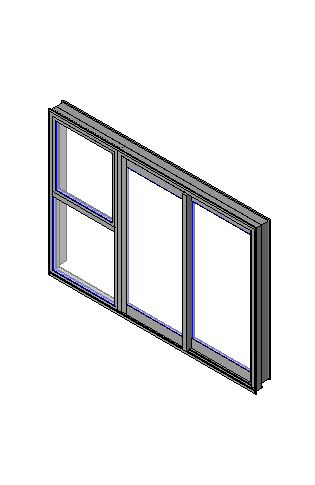

Two Panel with sidelight
Altherm APL Architectural Series Sliding Door FS with Sidelight
rfa
rfa
rfa

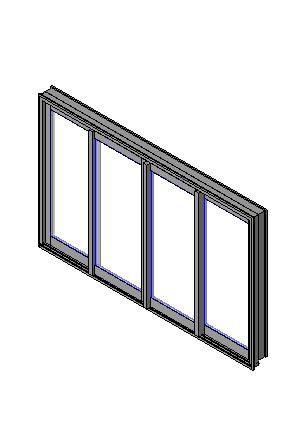

Four Panel
Altherm APL Architectural Series Sliding Door FSSF
rfa
rfa

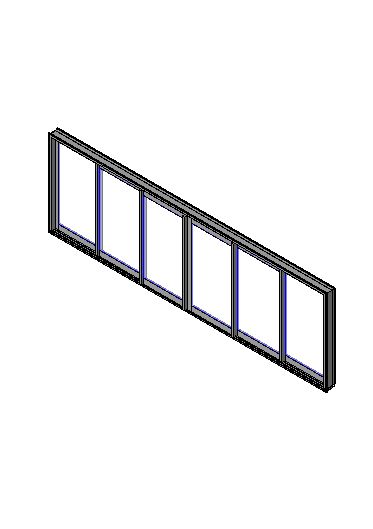

Six Panel
Altherm APL Architectural Series Sliding Door FSSSSF
rfa
rfa

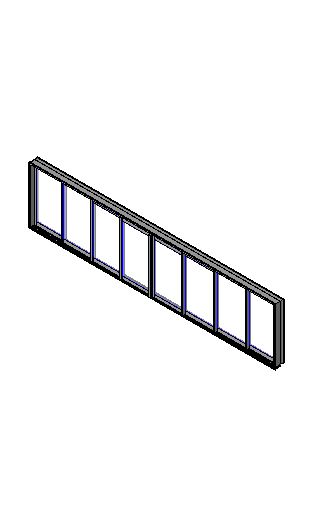

8 panel
Altherm APL Architectural Series Sliding Door FSSSSSSF
rfa
rfa

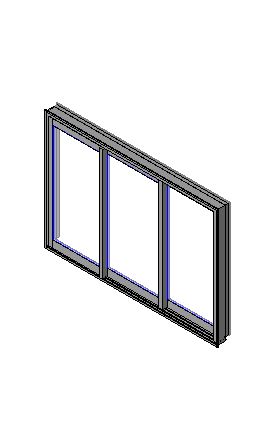

Three Panel
Altherm APL Architectural Series Sliding Door SSF
rfa
rfa
rfa

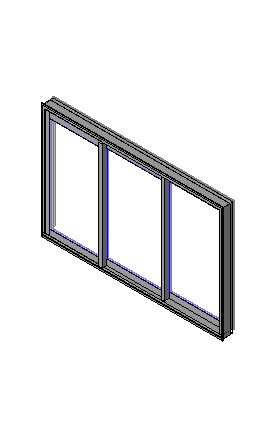

3 panel flushline
Altherm APL Architectural Series Sliding Door SSF Triple Track Flushline
rfa
rfa
rfa

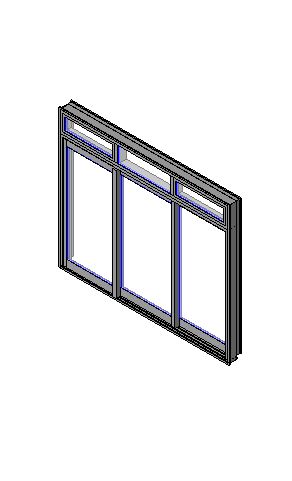

Three Panel with Overlight
Altherm APL Architectural Series Sliding Door SSF with Overlight
rfa
rfa
rfa

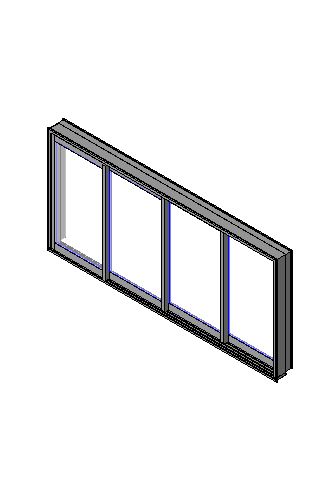

Four Panel
Altherm APL Architectural Series Sliding Door SSSF
rfa
rfa
rfa

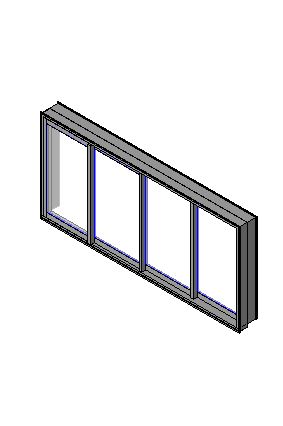

4 panel flushline
Altherm APL Architectural Series Sliding Door SSSF Four Track Flushline
rfa
rfa
rfa

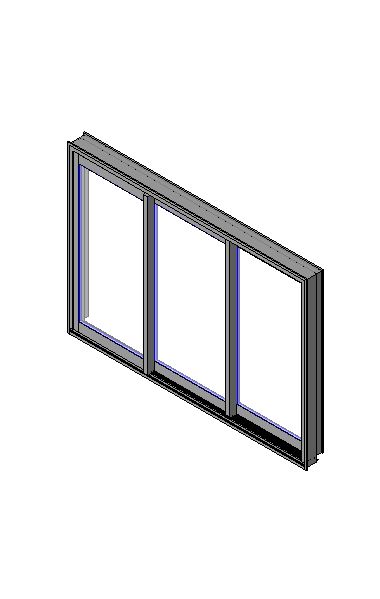

3 panel bypass
Altherm APL Architectural Series Sliding Door Three Track Bypass
rfa
rfa
rfa

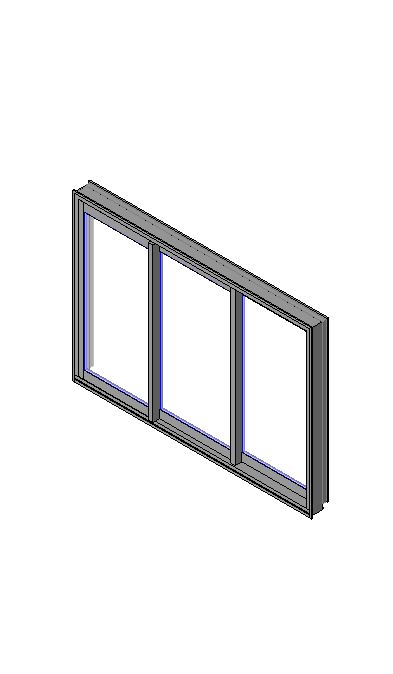

3track bypass flush
Altherm APL Architectural Series Sliding Door Three Track Bypass Flushline
rfa
rfa
rfa

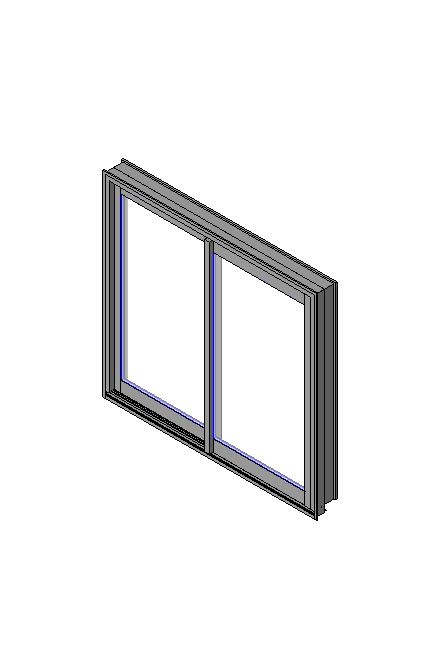

2 panel bypass
Altherm APL Architectural Series Sliding Door Twin Track Bypass
rfa
rfa
rfa

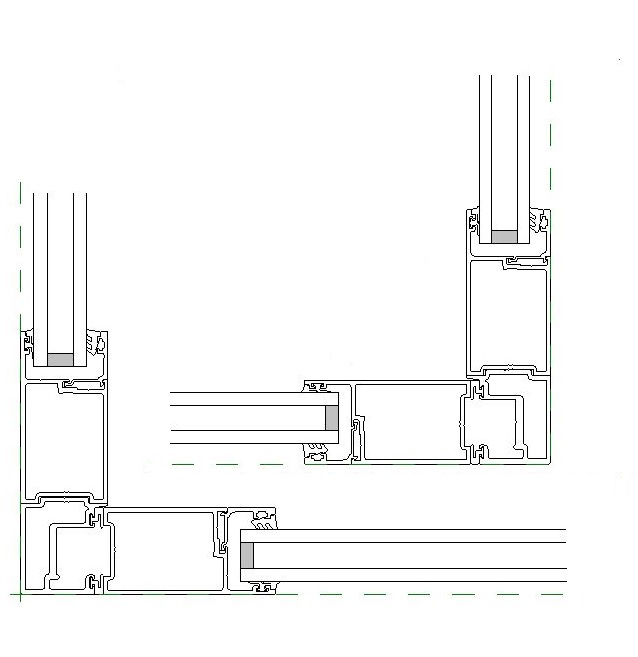

ext int
Altherm APL Architectural Series Sliding Door, Corner Lock Stile options
rfa
rfa

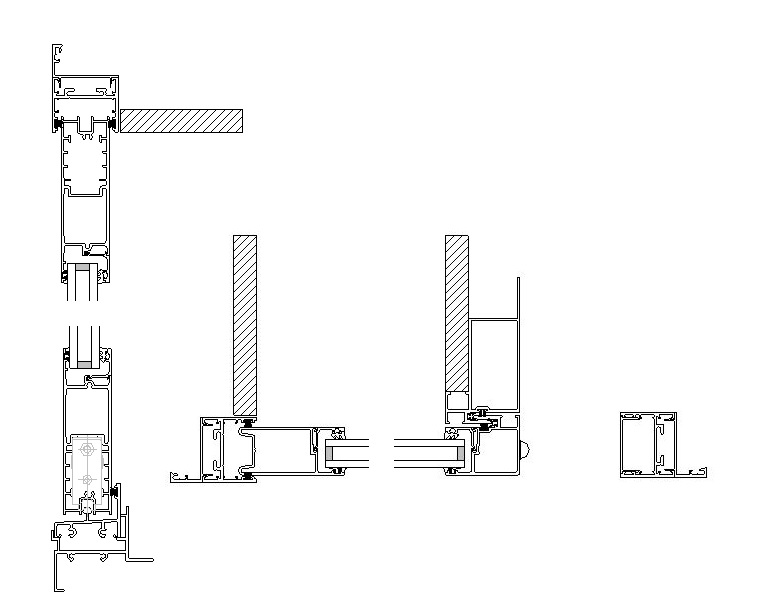

vert horiz
Altherm APL Architectural Series, Single Panel Over Wall
rfa
rfa

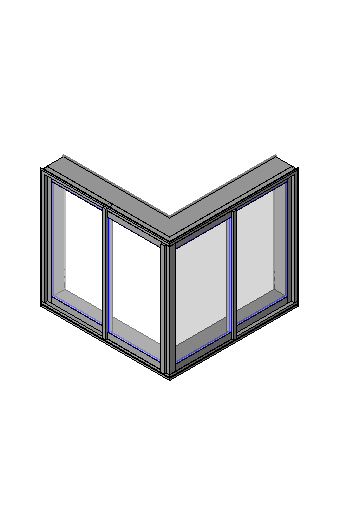

external corner
Altherm APL Architectural Sliding Door Two Track 90° External Corner
rfa
rfa
rfa

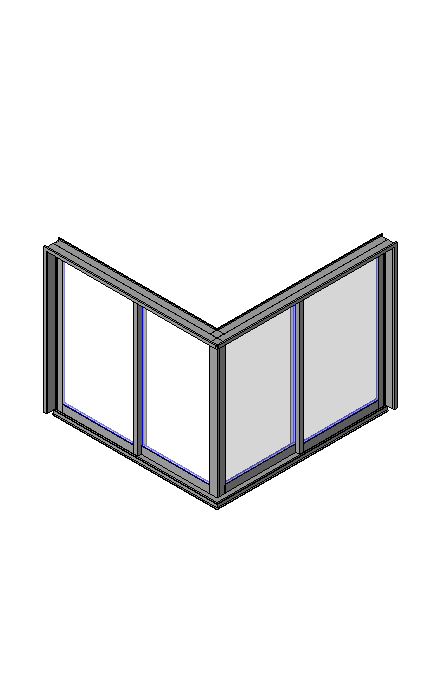

internal corner
Altherm APL Architectural Sliding Door Two Track 90° Internal Corner
rfa
rfa
rfa

Stylish contemporary lines, effective thermal technology and unwavering attention to detail have made Altherm a favourite with architects, designers and homeowners across New Zealand.

Product Enquiries

News from ALTHERM Window Systems

APL Architectural Series and a Hawkes Bay Home in the Vines
APL Architectural Series and a Hawkes Bay Home in the Vines
ALTHERM Window Systems
June 2020 Case Studies
Altherm Transparency and Sparkle in a Private Air Terminal
Altherm Transparency and Sparkle in a Private Air Terminal
ALTHERM Window Systems
May 2020 Case Studies
Metro Series Windows and Doors Light Up a Mahurangi Holiday Home
Metro Series Windows and Doors Light Up a Mahurangi Holiday Home
ALTHERM Window Systems
March 2020 Case Studies
View all news

Popular Products from ALTHERM Window Systems

Residential Sliding Doors
Residential Sliding Doors
ALTHERM Window Systems
Residential Awning & Casement Windows
Residential Awning & Casement Windows
ALTHERM Window Systems
Overhead Glazing Systems
Overhead Glazing Systems
ALTHERM Window Systems

View all products

Get a free weekly digest of essential news

New and updated architectural products, design solutions, inspiration, technical advice and more when you sign up for EBOSS.
