Fit-For-Purpose Membrane Roof Systems from Viking Roofspec

Viking Roofspec’s leading-edge technology combines function with design flair to keep water out — for good. Viking has a comprehensive range of complete, certified waterproofing membrane systems for low slope roofing. Whether it’s to waterproof an insulated roof; a cold roof; or to retrofit onto an existing one, Viking Roofspec has a tested; proven and certified system to suit the circumstance.

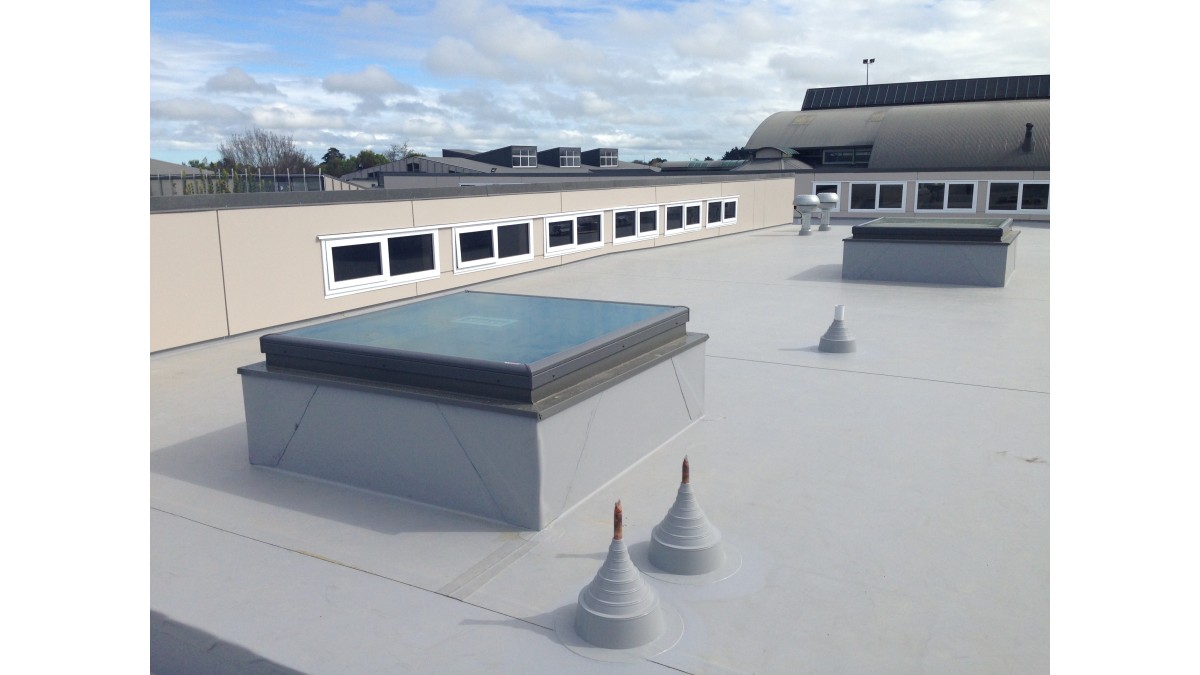

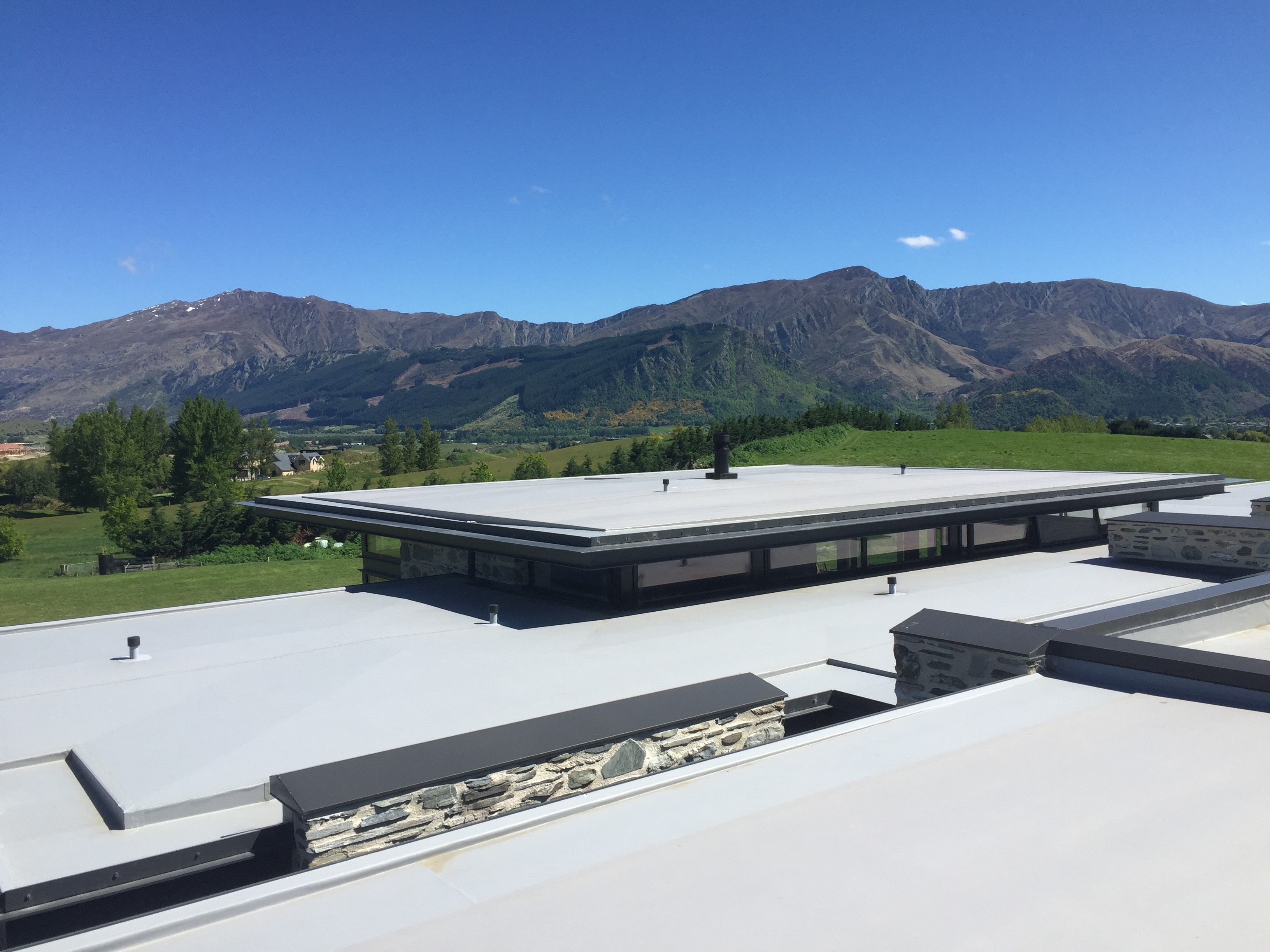

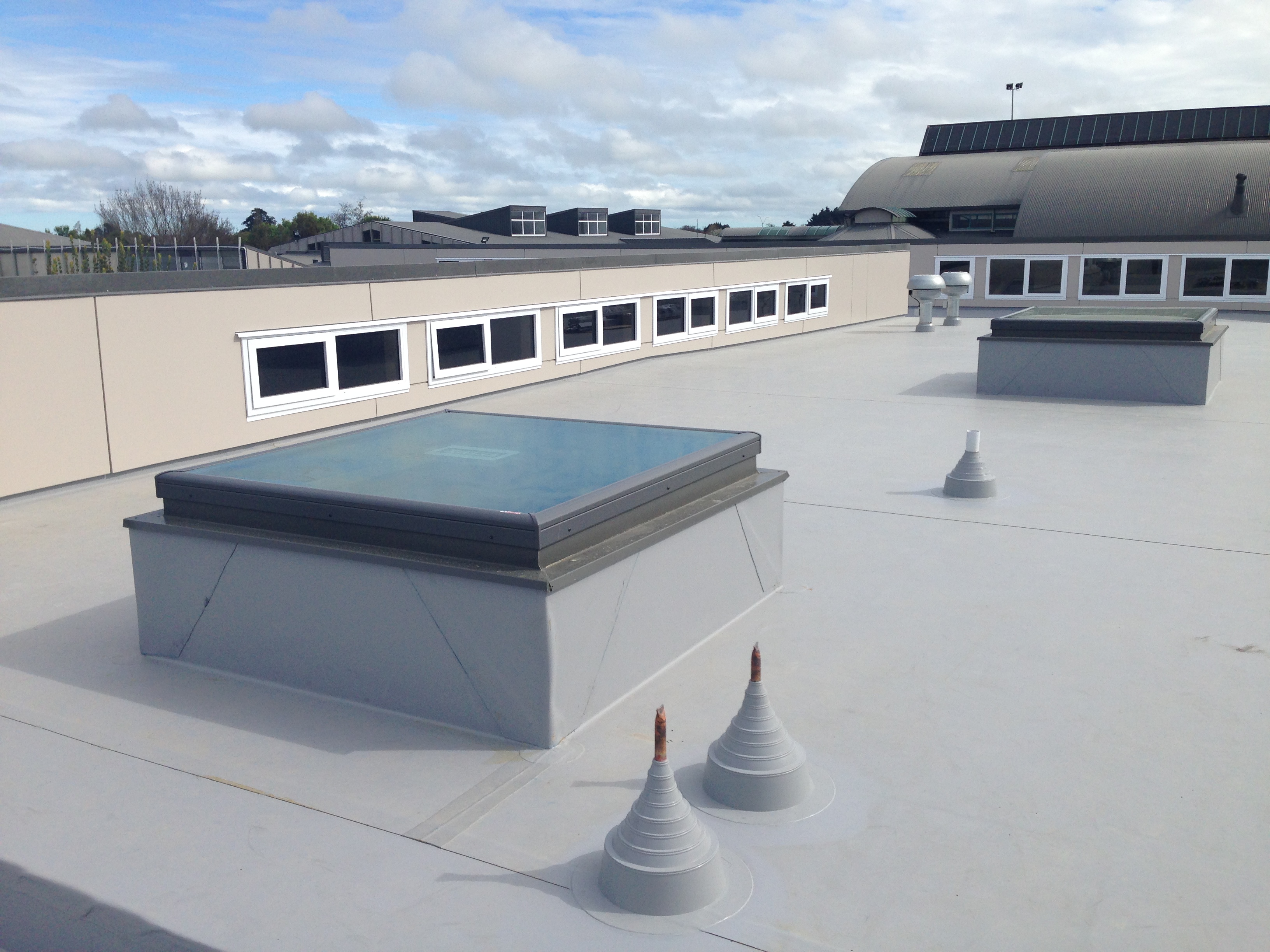

Viking Enviroclad

A mesh-reinforced, heat-weldable TPO waterproofing membrane, Enviroclad is not just a membrane, it is a fully-certified ‘system’. It is not complete without its compatible adhesives, sealants and proprietary heat-weldable accessories. Rendering all the necessary attributes of a world-class system from waterproofing, aesthetic and environmental perspectives, Enviroclad is also available in seven colour tones providing specifiers and building owners with greater design flexibility.

Enviroclad Retrofit systems

Enviroclad F.B.S. (fleece-backed system): has a 'fluffy' polyester layer, factory-laminated to the membrane’s underside. Enviroclad FBS is one of the best reroofing solutions for overlaying over old bitumen or other types of old membranes. It's also a good overlay option for forgiving uneven substrates such as rough concrete.

RhinoBond Technology: This is induction-fastening technology where TPO-coated washers (plates) are screw-fixed to the existing substrate in a grid pattern. Normal (bare-backed) Envrioclad TPO is loose-laid over the top and a RhinoBond induction welding machine is then positioned above the plates (still underneath the membrane) as it emits an electro-magnetic charge through the membrane which vulcanises the TPO coating on the plate surface to the underside of the membrane; thus anchoring the membrane to the roof without penetrating it. RhinoBond eliminates the use of adhesives.

Retrofit systems allow building inhabitants to carry on with their lives without the huge cost and inconvenience of having to temporarily relocate; let alone the financial and environmental costs of shrink-wrap and dumping of the old materials in the local landfill.

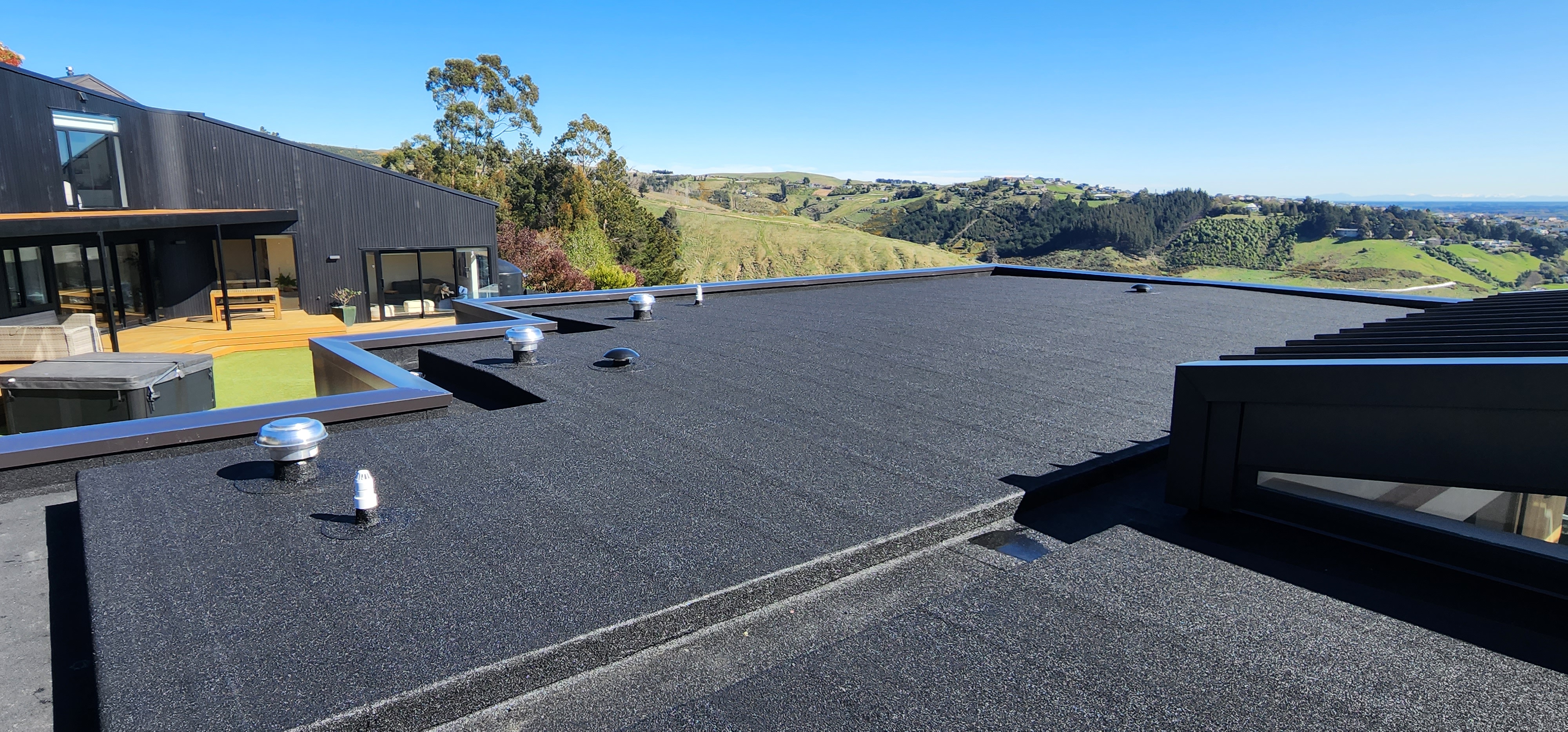

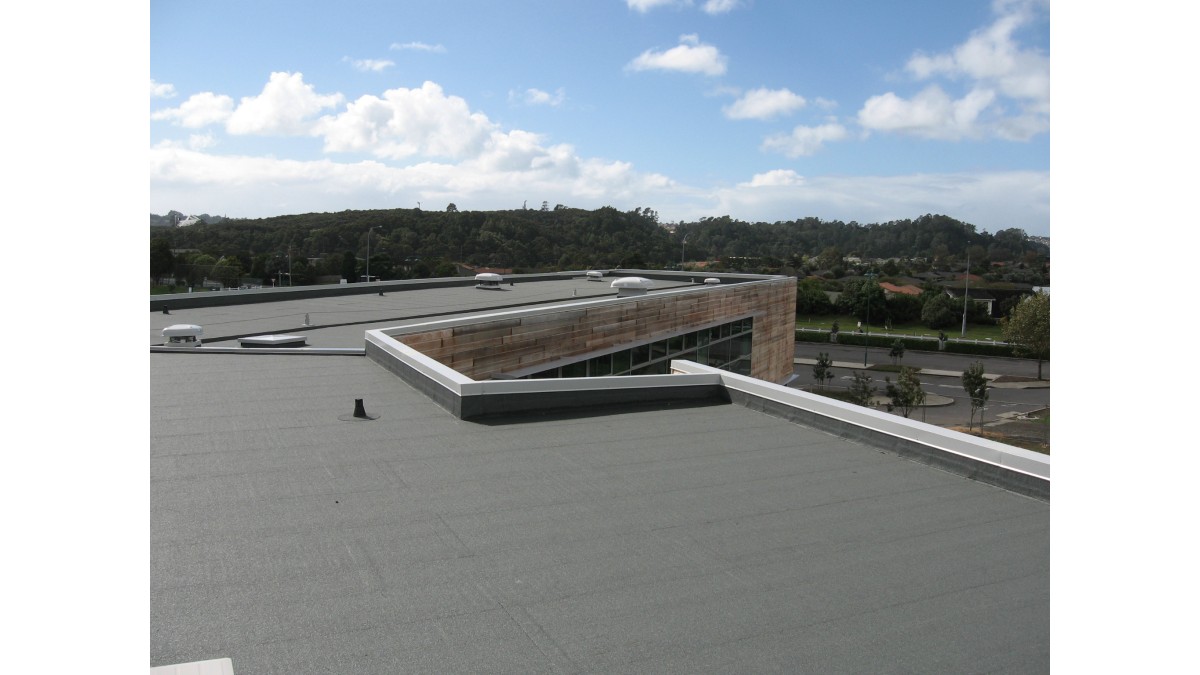

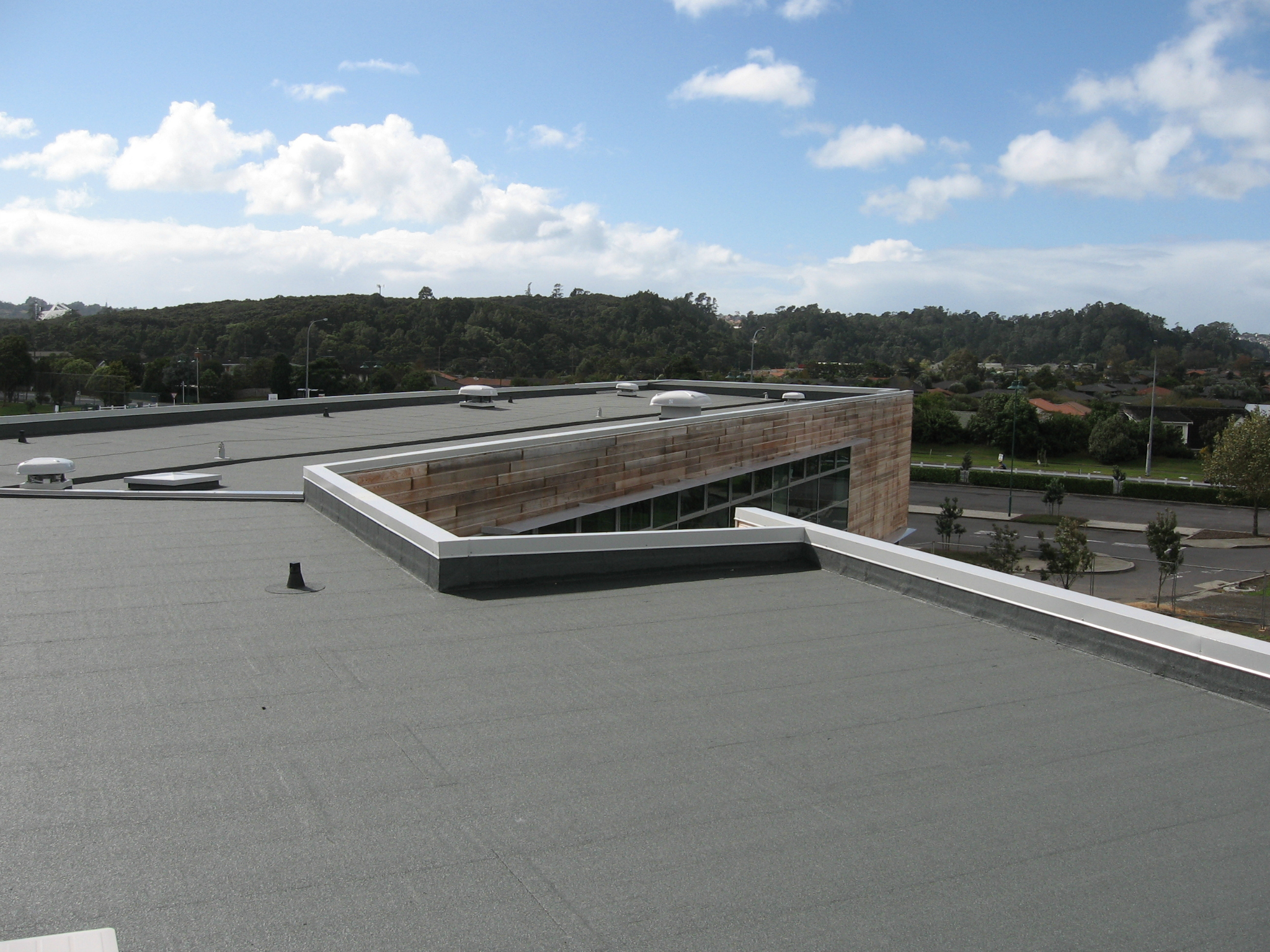

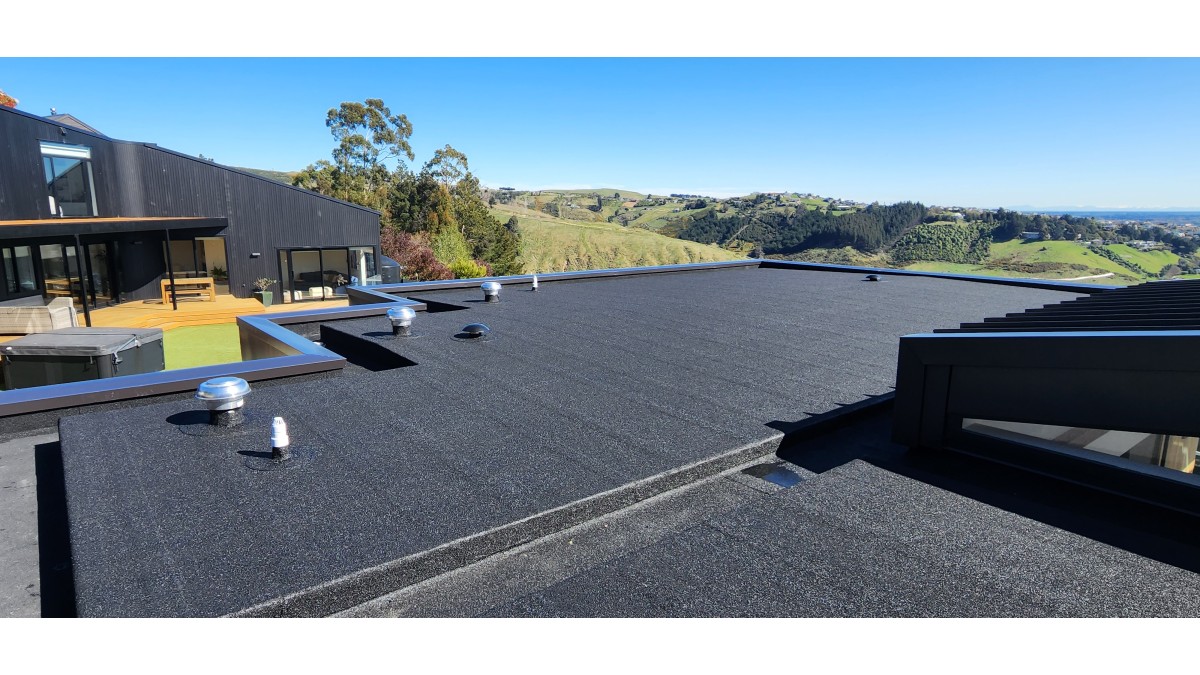

Viking Torch-On

With New Zealand's diverse topography, Viking recognised the importance of providing the market with bituminous membrane systems manufactured from different compounds, to match their performance with the climate of the specific region(s).

Gemini APP: Developed for warmer climates, Gemini APP is a two-layered system with a high melt point when in contact with a flame and it boasts some of the highest-puncture resistance credentials in the market.
Lybra SBS: Designed for geographic locations that experience climatic extremes between seasons eg. Central Otago, Lybra SBS is a two-layered system that has a lower melt point and high cold-flexibility credentials allowing it to be exposed to temperatures down to (-15 deg C) without fracturing.
Phoenix APAO: incorporating the best of APP and SBS features, Viking's ‘Platinum’ Solution has a cold flexibility down to -35°C, coupled with high temperature resistance of +140°C. This means it can be used in any climate and will last longer than other systems.
Halley-P NO FLAME: Viking’s no flame torch-on system comprises of two bituminous membrane layers that are self-adhered rather than applied by a propane gas torch, removing the risk of fire on site. The underside of each layer employs special bonding agents that continue to strengthen over time.

Like Enviroclad TPO, Viking’s Torch-on range can provide some excellent retrofit options as well.

Product Assurance — CodeMark

Viking’s Enviroclad and Torch-On membrane systems are both CodeMark certified (and BRANZ Appraised), providing the highest form of product assurance in the industry.

For more information on Viking's range of membrane options, please visit the Viking Roofspec website.

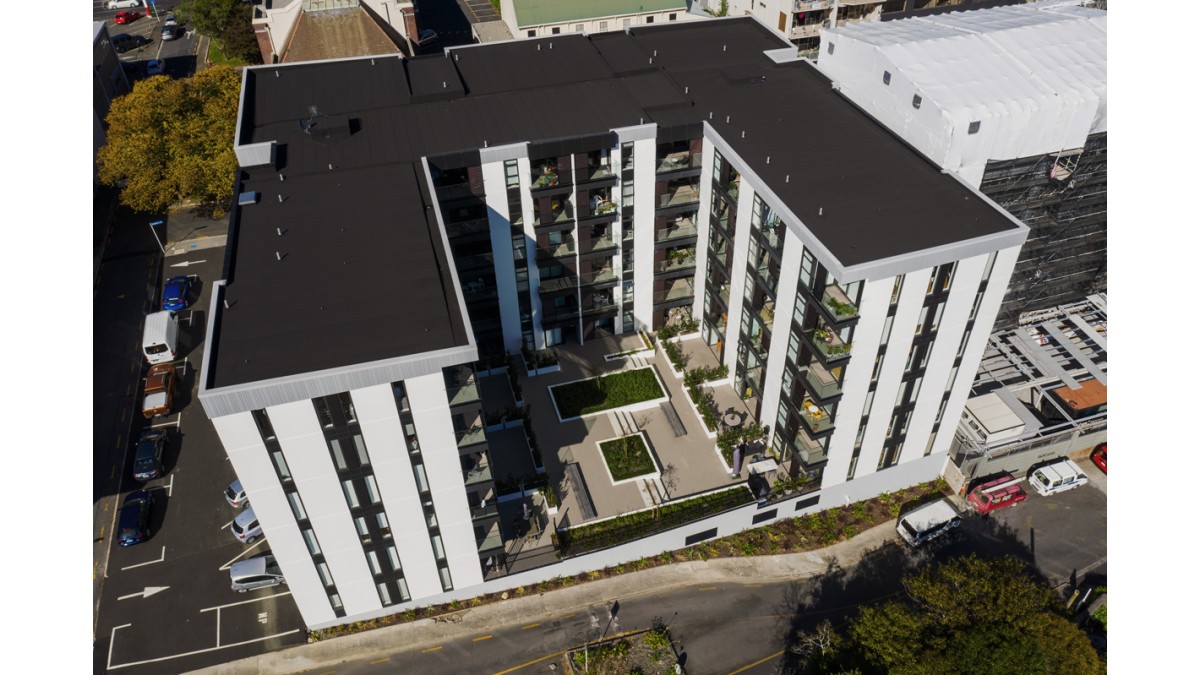

Viking TorchOn Membranes

Viking Roofspec

View Product

Whether designing for a flat roof in the middle of the Southern Alps or in the sunny Bay of Islands, Viking Roofspec has a BRANZ appraised TorchOn membrane system designed to withstand the most extreme climate conditions: Viking Phoenix Super APAO (Amorphous Polyalphaolefin) Hybrid TorchOn Membrane: Viking's 'Platinum' solution incorporates the best of APP and SBS membrane features and comes with a 25 year warranty.

NZ-Owned Business

Viking TorchOn membranes are suited to tricky / confined roofs where it can be 'bled' in to vulnerable areas such as tight corners and awkward areas susceptible to leaks like roof penetrations, internal corners and gutter junctions.

It is suitable for low-slope roofs (flat or curved), gutters and parapets, waterproofing beneath a floating deck, inland and coastal conditions, commercial and residential buildings.

Viking TorchOn waterproofing membranes have been assessed as a roof waterproofing membrane on buildings within the following scope:

The scope limitations of NZS 3604:2011 and NZBC Acceptable Solution E2/AS1, Paragraph 1.1; or,
The scope limitations of NZBC Acceptable Solution E2/AS1, Paragraph 1.1 with regards to building height and floor plan area when subject to specific structural design; and,
Situated in NZS 3604:2011 WInd Zones, up to and including Extra High; and,
With substrates of plywood or suspended concrete slab; and,
With a minimum fall for roofs of 1:30 (2 degrees).
Viking Phoenix Super APAO Waterproofing Membrane has also been assessed for use as roof waterproofing membranes on buildings within the following scope:

Subject to specific structural and weathertightness design situated in wind pressures up to a maximum design differential ultimate limit state (ULS) of 6 kPa: and,
With substrates of plywood or suspended concrete slab.

Clause B1 STRUCTURE: Performance B1.3.1 and B1.3.4 (b) (c) (d) (e) for the relevant physical conditions of B1.3.3 (p). Viking TorchOn membranes meet this requirement.
Clause B2 DURABILITY: Performance B2.3.1 (b), 15 years. Viking TorchOn membranes meet this requirement.
Clause E2 EXTERNAL MOISTURE: Performance E2.3.1, E2.3.2 and E2.3.7 (b) and (c) Viking TorchOn membranes meet this requirement.
Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. Viking TorchOn membranes meet this requirement and will not present a health hazard to people.

Structure

Durability

External Moisture

Hazardous Building Materials

BRANZ Appraised

CodeMark

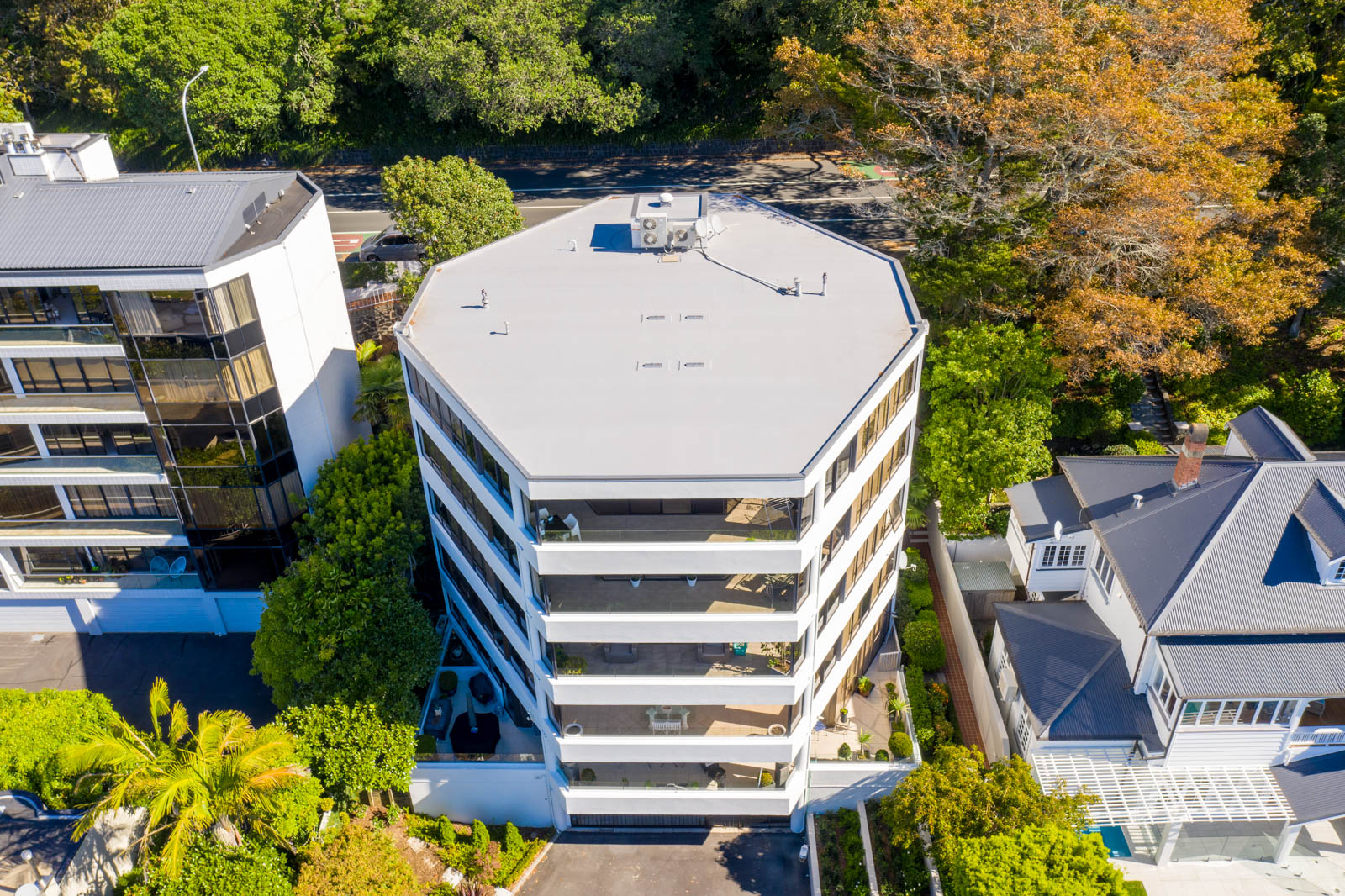

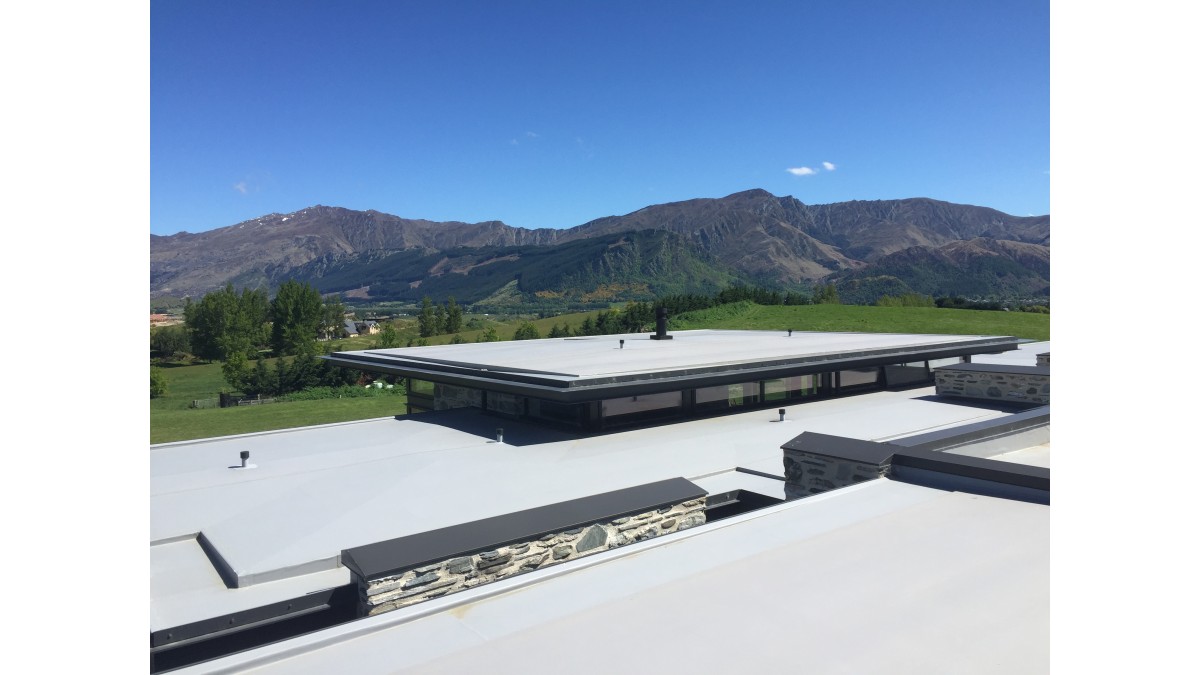

Enviroclad (TPO) Waterproofing Membrane

Viking Roofspec

View Product

Viking Enviroclad offers absolute watertight integrity for low-slope roofs.

NZ-Owned Business

Viking Enviroclad Roofing and Deck Membrane System has been assessed as a roof and deck waterproofing membrane on buildings within the following scope:

the scope limitations of NZS 3604:2011 and NZBC Acceptable Solution E2/AS1, paragraph 1.1; or,
the scope limitations of NZBC Acceptable Solution E2/AS1, paragraph 1.1 with regards to building height and floor plan area when subject to specific structural design; and,
situated in NZS 3604:2011 Wind Zones, up to, and including Extra High; and,
with substrates of plywood or suspended concrete slab

Viking Enviroclad Roofing and Deck Membrane System has also been assessed for use as a roof and deck waterproofing membrane on specifically designed or existing buildings within the following scope:

subject to specific structural and weathertightness design situated in wind pressures up to a maximum design differential ultimate limit state (ULS) of 2.7 kPa; and,
with substrates of plywood or suspended concrete slab
with the weathertightness design of junctions for each specific structure being the responsibility of the building designer

Clause B1 STRUCTURE: Performance B1.3.1, B1.3.2 and B1.3.4 (b) (c) (d) (e) for the relevant physical conditions of B1.3.3 (a), (c), (e), (h), (m) and (p) Viking Enviroclad Roofing and Deck Membrane System meets this requirement.
Clause B2 DURABILITY: Performance B2.3.1 (b) and B2.3.2 (a), 15 years. Viking Enviroclad Roofing and Deck Membrane System meets this requirement.
Clause E2 EXTERNAL MOISTURE: Performance E2.3.1, E2.3.2 and E2.3.7 (b) and (c). Viking Enviroclad Roofing and Deck Membrane System meets these requirements.
Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. Viking Enviroclad Roofing and Deck Membrane System meets this requirement and will not present a health hazard to people.

Structure

Durability

External Moisture

Hazardous Building Materials

BRANZ Appraised

CodeMark

Enviroclad FBS (Fleece-Backed System) Membrane

Viking Roofspec

View Product

Viking Enviroclad FBS (fleece-backed system) is Enviroclad with a 'fluffy' polyester layer that has been factory-laminated to the underside.

Energy Star

NZ-Owned Business

Viking Enviroclad FBS Membrane System is suitable for use as a roof and deck waterproofing membrane on buildings within the following scope:

the scope limitations of NZS 3604:2011 and NZBC Acceptable Solution E2/AS1, paragraph 1.1; or,
the scope limitations of NZBC Acceptable Solution E2/AS1, paragraph 1.1 with regards to building height and floor plan area when subject to specific structural design; and,
situated in NZS 3604:2011 Wind Zones, up to, and including Extra High; and,
with substrates of plywood or suspended concrete slab.

Viking Enviroclad FBS Membrane System is also suitable for use as a roof and deck waterproofing membrane on specifically designed or existing buildings within the following scope:

subject to specific structural and weathertightness design situated in wind pressures up to a maximum design differential ultimate limit state (ULS) of 2.7 kPa; and,
with substrates of plywood or suspended concrete slab.
with the weathertightness design of junctions for each specific structure being the responsibility of the building designer.

Clause B1 STRUCTURE: Performance B1.3.1, B1.3.2 and B1.3.4 (b) (c) (d) (e) for the relevant physical conditions of B1.3.3 (a), (c), (e), (h), (m) and (p) Viking Enviroclad FBS Membrane System meets this requirement.
Clause B2 DURABILITY: Performance B2.3.1 (b) and B2.3.2 (a), 15 years. Viking Enviroclad FBS Membrane System meets this requirement.
Clause E2 EXTERNAL MOISTURE: Performance E2.3.1, E2.3.2 and E2.3.2 and E2.3.7 (b) and (c). Viking Enviroclad FBS Membrane System meets these requirements.
Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. Viking Enviroclad FBS Membrane System meets this requirement and will not present a health hazard to people.

Structure

Durability

External Moisture

Hazardous Building Materials
