VENT Ridge Vents Now Even Easier to Specify and In

Experts in passive ventilation systems, VENT are dedicated to providing high-performance ventilation systems that are easy to specify and install. In an update aimed at streamlining the specification and installation of their passive ventilation systems, VENT is reducing the width of their RV10P and RV10DT ridge vents from 2021. The new sizing will ensure that standard ridge cappings of 200mm will accommodate the ridge vents — eliminating the current need for ridge cappings to be extended.

The change in sizing also comes with a minor adjustment to compatibility:

The RV10P Ridge Vent will be compatible with trough sizes up to 34mm
The RV10DT Deep Trough Ridge Vent will be compatible with trough sizes from 34mm to 48mm.

VENT is also condensing their product range as part of the update. They will stop supplying the AB20 and AB20DT Apron Vents which were specifically designed to ventilate abutments and barge details. Instead, by simply cutting the newly designed and sized ridge vents in half, installers can create apron vents capable of providing the same level of ventilation for abutment and barge details. In technical details, VENT will refer to these apron vents as RV10P Half or RV10DT Half.

While the sizing has changed, VENT’s ridge vents still provide the same trusted passive ventilation performance, ensuring airflow rates of 8,000mm² per linear metre. The vents are a key component of VENT’s passive ventilation systems, providing passive airflow and releasing hot air from roof voids to eliminate condensation.

And installers can rest assured that the RV10P and RV10DT ridge vents are still as easy to install as the original design — only now with the added benefit of being fully compatible with standard 200mm ridge cappings.

The new size ridge vents will be available from January 2021 from VENT’s NZ distributor, DriStud.

To request a PTS or DWG, please contact Alina from VENT on [email protected] or Jinny from DriStud on [email protected]. VENT will also update all documentation online as soon as the new vent sizes are available.

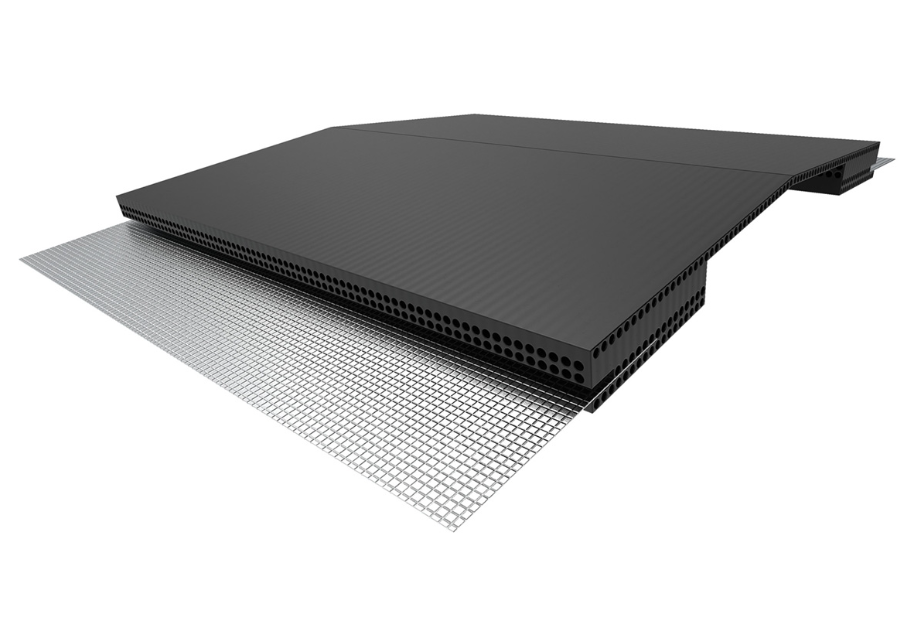

Vent Ridge Vent — RV10P

VENT

View Product

The VENT Ridge Vent is designed to release warm air from the roof void using the natural convection of rising warm air or by means of negative pressure created by wind blowing over the roof.

Appraised for use as non-structural roof battens and vents for use with pitched and skillion roof construction on buildings within the following scope:

the scope limitations of NZBC Acceptable Solution E2/AS1, Paragraph 1.1 with regards to building height and floor plan area; and,
with profiled metal roof cladding; and,
situated in NZS 3604 Wind Zones up to, and including Extra High

The RV10P is designed to be compatible with roof cladding profiles with a trough depth of <38mm.

See BRANZ Appraisal 979 (2023) for full information.

Extra High Wind Zone

In the opinion of BRANZ, Roof Ventilation Products, if designed, used, installed and maintained in accordance with the statements and conditions of this Appraisal, will meet or contribute to meeting the following provisions of the NZBC:

Clause B1 STRUCTURE: Performance B1.3.1, B1.3.2 and B1.3.4. Roof Ventilation Products meet the requirements for loads arising from gravity loads, wind and impact [i.e. B1.3.3 (b), (h) and (j)]
Clause B2 DURABILITY: Performance B2.3.1 (b) 15 years and B2.3.2. Roof Ventilation Products meet these requirements
Clause E2 EXTERNAL MOISTURE: Performance E2.3.2. Roof Ventilation Products contribute to meeting this requirement
Clause E3 INTERNAL MOISTURE: Performance E3.3.1. Roof Ventilation Products contribute to meeting this requirement
Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. Roof Ventilation Products meet this requirement

See BRANZ Appraisal 979 (2023) for full information.

BRANZ Appraised

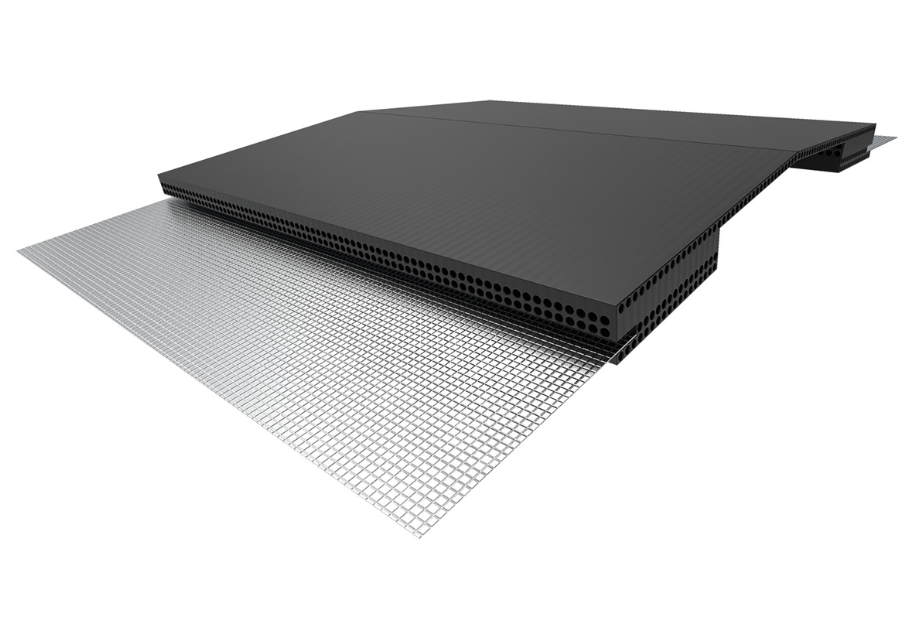

RIDGE VENT –Deep Trough RV10DT

VENT

View Product

The VENT Ridge Vent Deep Trough RV10DT is designed to release warm air from the roof void using the natural convection of rising warm air or by means of negative pressure created by wind blowing over the roof.

Designed to form to roofing profiles and prevent water ingress on any pitch roof
Recommended for cold roof pitch of over 30° and skillion roofs
Compatible with roof cladding profiles with a trough depth of >38mm
New build or renovation
Suitable for use in all Wind Zones up to and including Extra High
See BRANZ Appraisal 979 for full information

Extra High Wind Zone

Clause B1 STRUCTURE: Performance B1.3.1, B1.3.2 and B1.3.4. Roof Ventilation Products meet the requirements for loads arising from gravity loads, wind and impact [i.e. B1.3.3 (b), (h) and (j)]
Clause B2 DURABILITY: Performance B2.3.1 (b) 15 years and B2.3.2. Roof Ventilation Products meet these requirements
Clause E2 EXTERNAL MOISTURE: Performance E2.3.2. Roof Ventilation Products contribute to meeting this requirement
Clause E3 INTERNAL MOISTURE: Performance E3.3.1. Roof Ventilation Products contribute to meeting this requirement
Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. Roof Ventilation Products meet this requirement

See BRANZ Appraisal 979 (2023) for full information.

BRANZ Appraised
