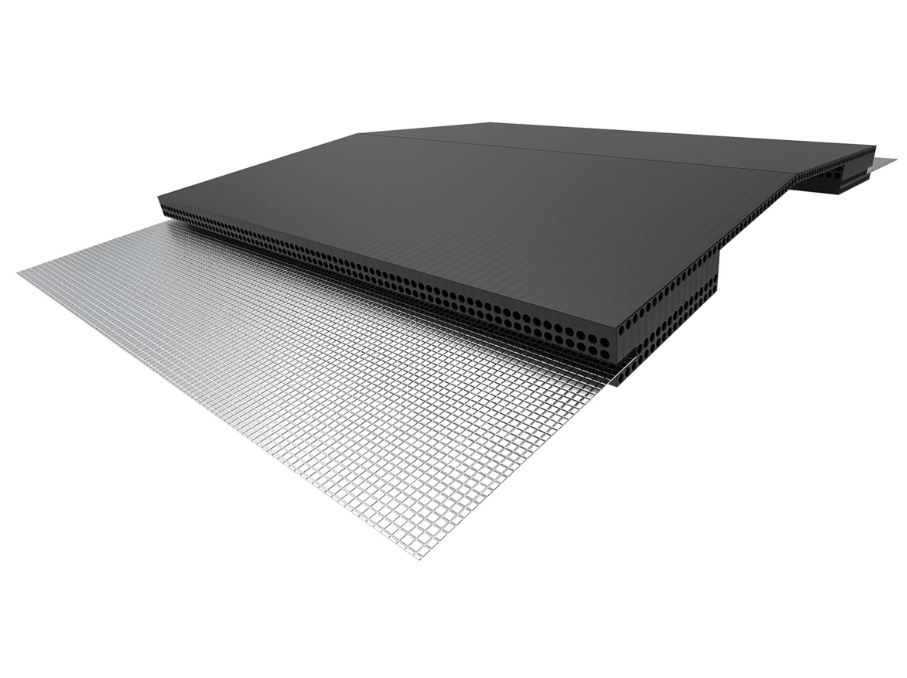

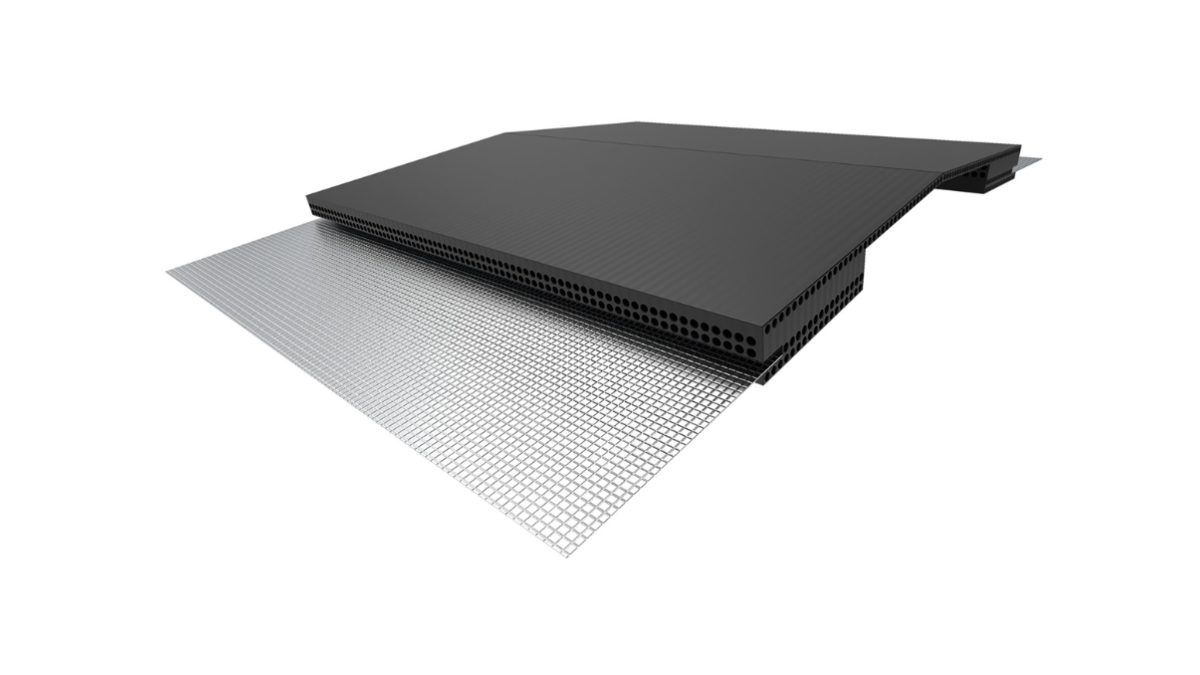

RIDGE VENT –Deep Trough RV10DT
Description

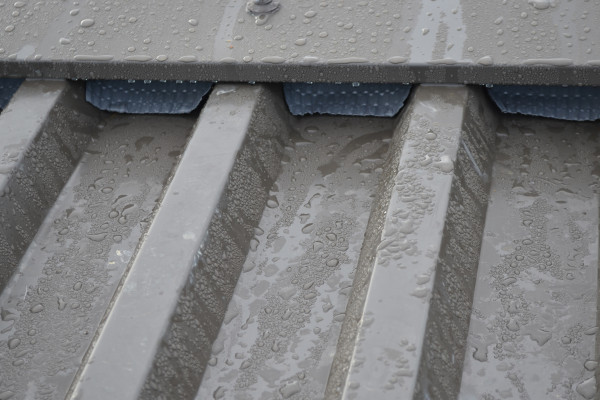

The VENT Ridge Vent Deep Trough RV10DT is designed to release warm air from the roof void using the natural convection of rising warm air or by means of negative pressure created by wind blowing over the roof. The RV10DT has an adhesive and flexible aluminium flashing which is designed to form to roofing profiles and prevent water ingress on any pitch roof.

The RV10DT form part of a passive ventilation system that works year round with no moving parts or energy consumption.

The RV10DT is designed to be compatible with roof cladding profiles with a trough depth of >38mm.

Key Features
  • Free Airflow of 8,000mm² per linear metre
  • Releases hot air from roof voids and eliminates condensation
  • Recommended for cold roof pitch of over 30° and skillion roofs
  • New build or renovation
  • Easy to install — manufactured in 1200mm lengths for easy handling
  • Not visible when covered with ridge flashing (Ridge Flashing not included)
  • Insect proof — uses recommended 4mm vents to prevent ingress of nesting insects
  • Manufactured in recycled plastic for affordability
  • Passive ventilation — no moving parts or energy consumption
  • 15 year warranty
Scope of Use
  • Designed to form to roofing profiles and prevent water ingress on any pitch roof
  • Recommended for cold roof pitch of over 30° and skillion roofs
  • Compatible with roof cladding profiles with a trough depth of >38mm
  • New build or renovation
  • Suitable for use in all Wind Zones up to and including Extra High
  • See BRANZ Appraisal 979 for full information
Limitations on Use
  • For trough depths <38mm use an RV10P
NZS 3604 Wind Zone Extra High suitable
Extra High Wind Zone
Statement of Building Code Compliance

In the opinion of BRANZ, Roof Ventilation Products, if designed, used, installed and maintained in accordance with the statements and conditions of this Appraisal, will meet or contribute to meeting the following provisions of the NZBC:

  • Clause B1 STRUCTURE: Performance B1.3.1, B1.3.2 and B1.3.4. Roof Ventilation Products meet the requirements for loads arising from gravity loads, wind and impact [i.e. B1.3.3 (b), (h) and (j)]
  • Clause B2 DURABILITY: Performance B2.3.1 (b) 15 years and B2.3.2. Roof Ventilation Products meet these requirements
  • Clause E2 EXTERNAL MOISTURE: Performance E2.3.2. Roof Ventilation Products contribute to meeting this requirement
  • Clause E3 INTERNAL MOISTURE: Performance E3.3.1. Roof Ventilation Products contribute to meeting this requirement
  • Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. Roof Ventilation Products meet this requirement

See BRANZ Appraisal 979 (2023) for full information.

Other Performance Attributes
  • 15 year warranty
BRANZ Appraised
BRANZ Appraised
Documents
Product Technical Statement

Jan 2024

BRANZ Appraisal 979

979 (2023)

System Warranty

May 2023

Brochure with Brown Batts

Jan 2024

Vent Brochure with Pink Batts

Jan 2024

BRANZ Comparative Study of Corrosion Rates in Vented and Unvented Roof Cavities

2021

Video: Why Is Passive Roof Ventilation Necessary

2021

CAD/PDF Details

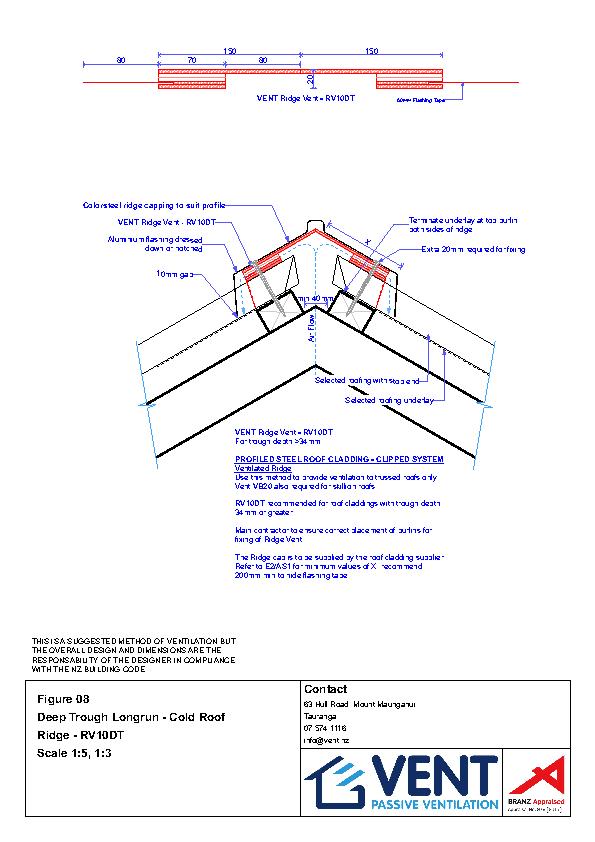

08-Deep-Trough-Longrun-Cold-Roof-Ridge-RV10DT

Deep-Trough-Longrun-Cold-Roof-Ridge-RV10DT

2021

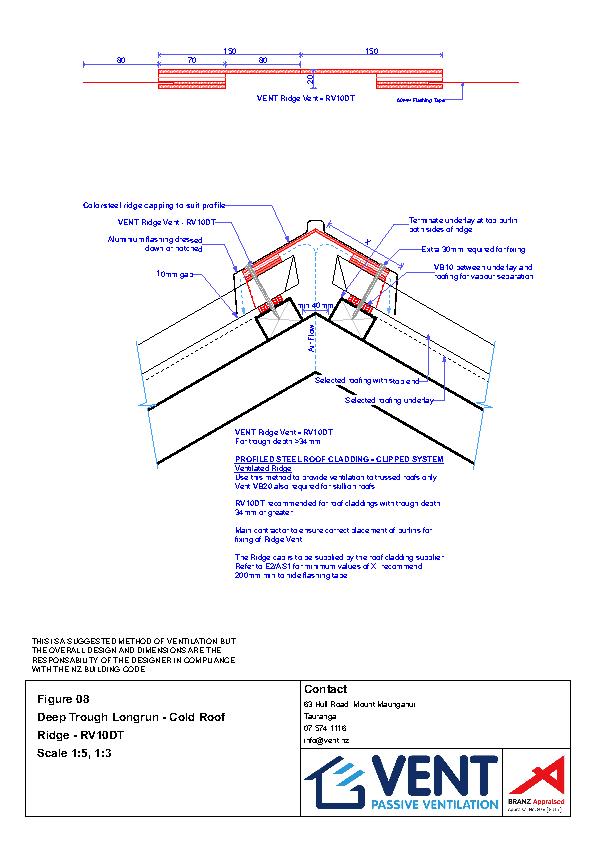

08-Deep-Trough-Longrun-Cold-Roof-Ridge-RV10DT-+-VB10

Deep-Trough-Longrun-Cold-Roof-Ridge-RV10DT-+-VB10

2021

Deep-Trough-Longrun-Skillion-Roof-Ridge-RV10DT-+-VB20-+-VB10

Deep-Trough-Longrun-Skillion-Roof-Ridge-RV10DT-+-VB20-+-VB10

Dec 2022

Full Set of Roof Drawings

Full Set of Roof Drawings

Dec 2022
