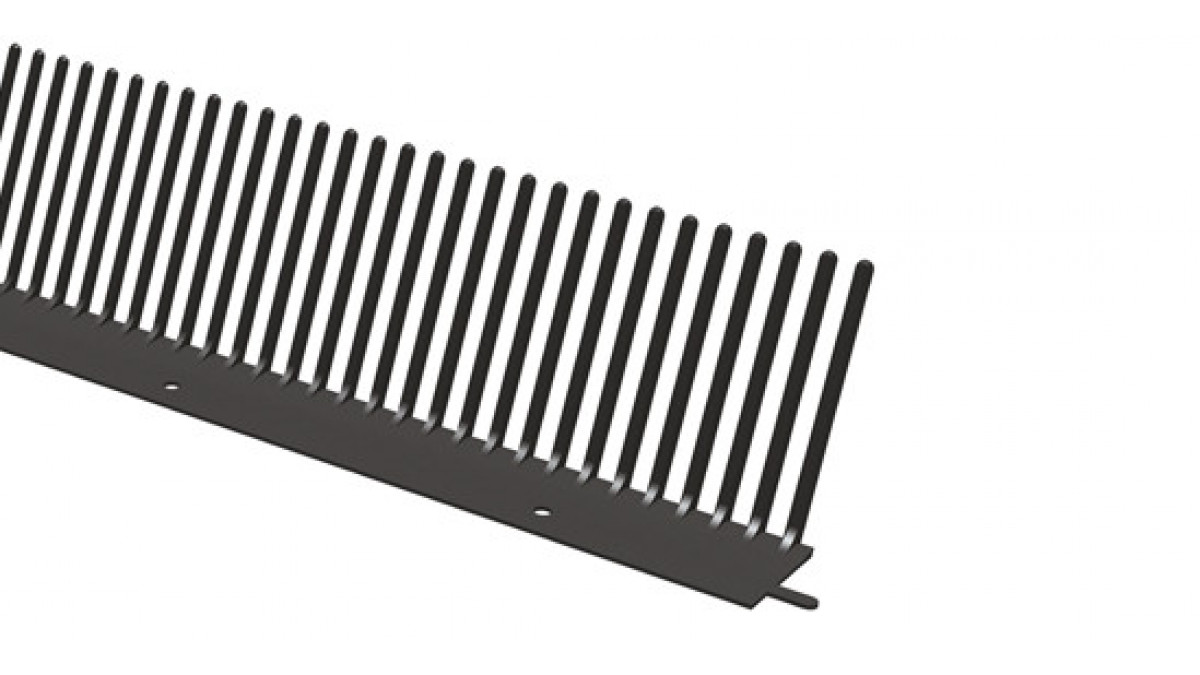

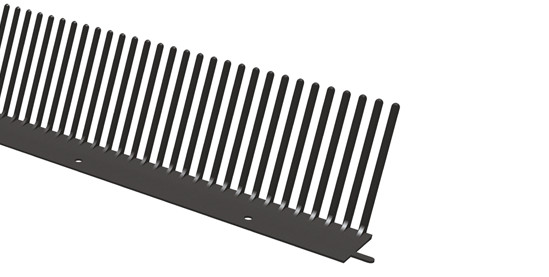

VENT Eaves Comb Filler — G1275
Description

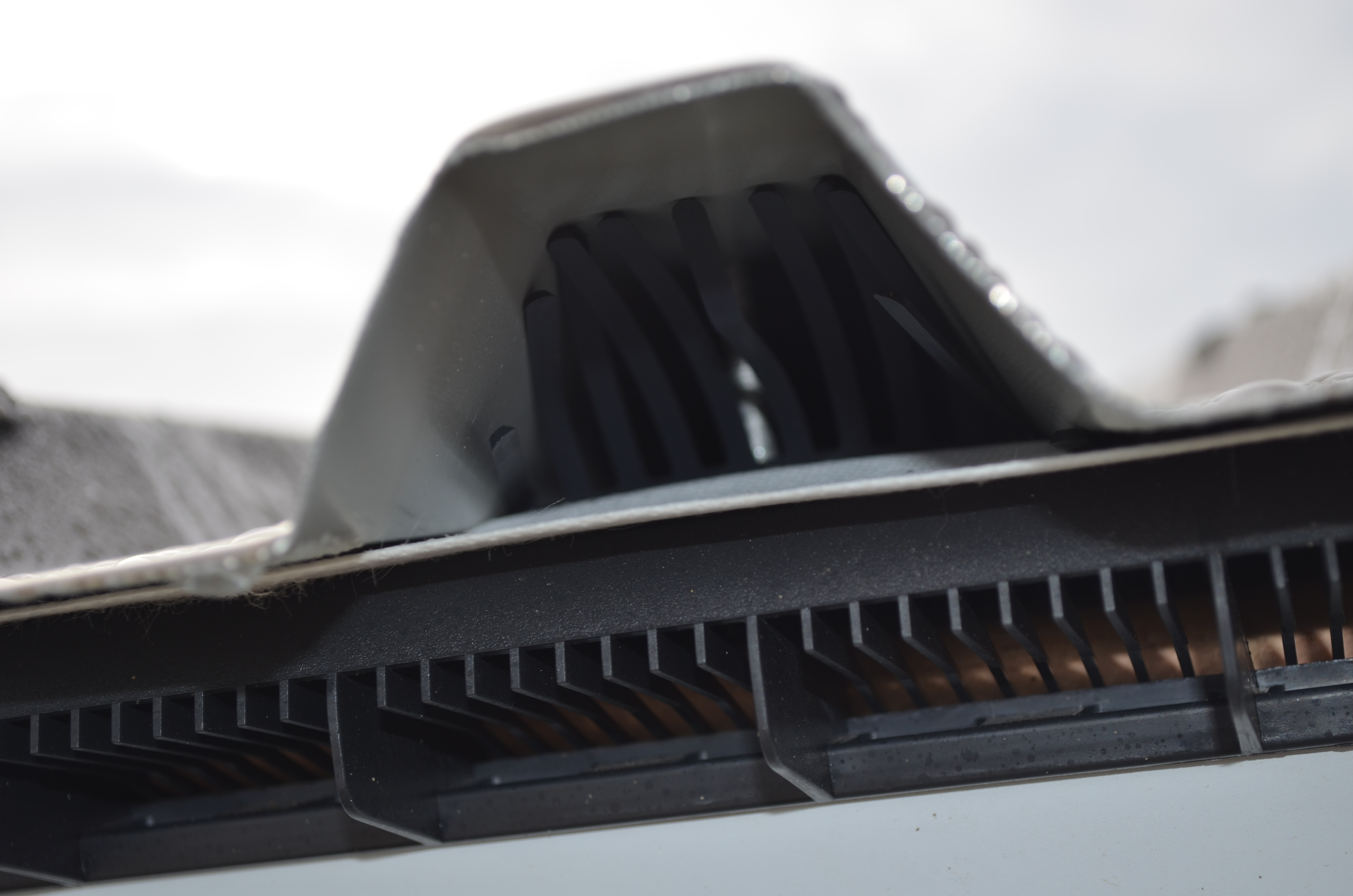

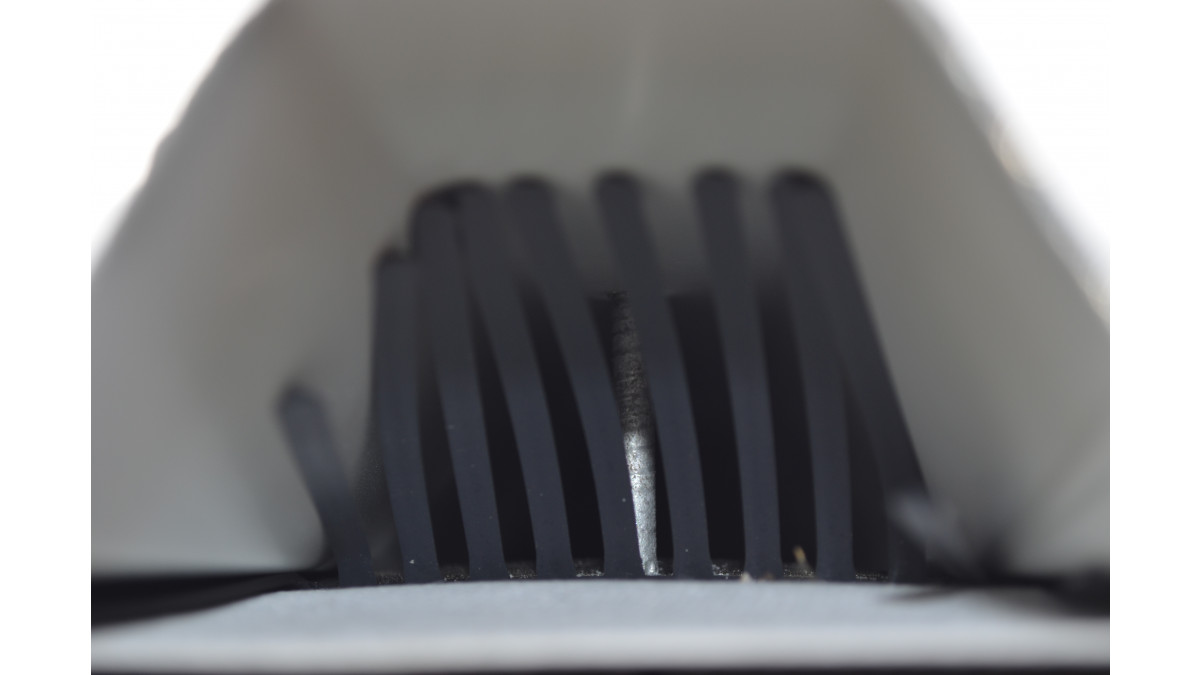

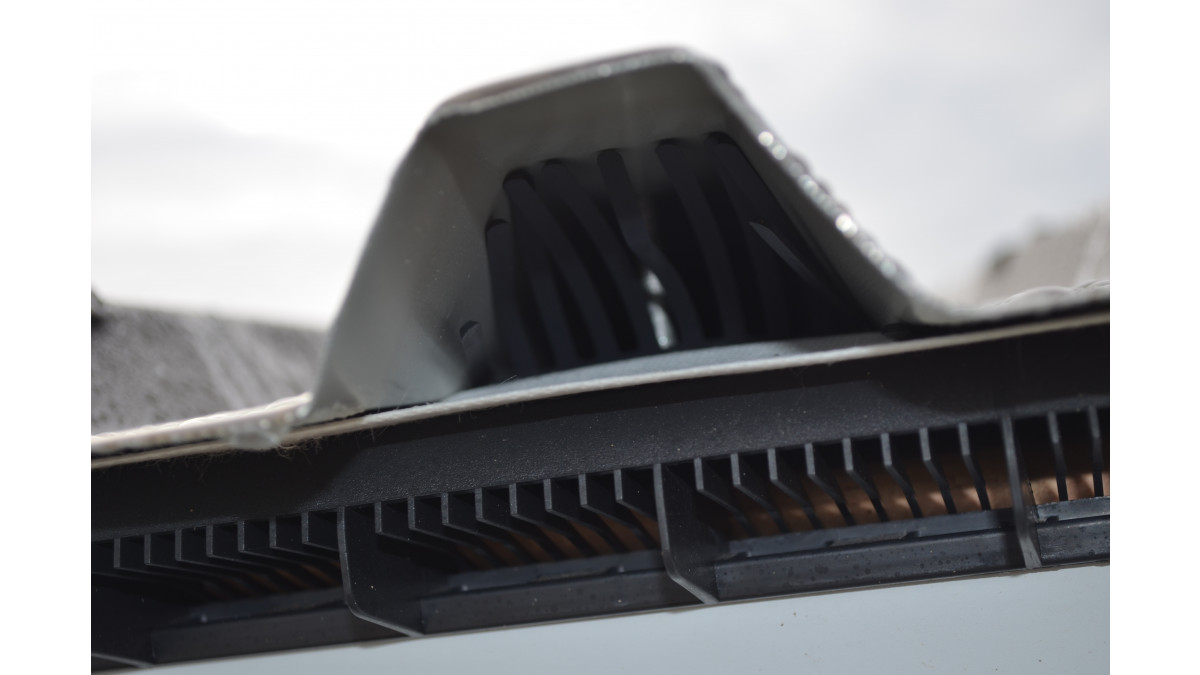

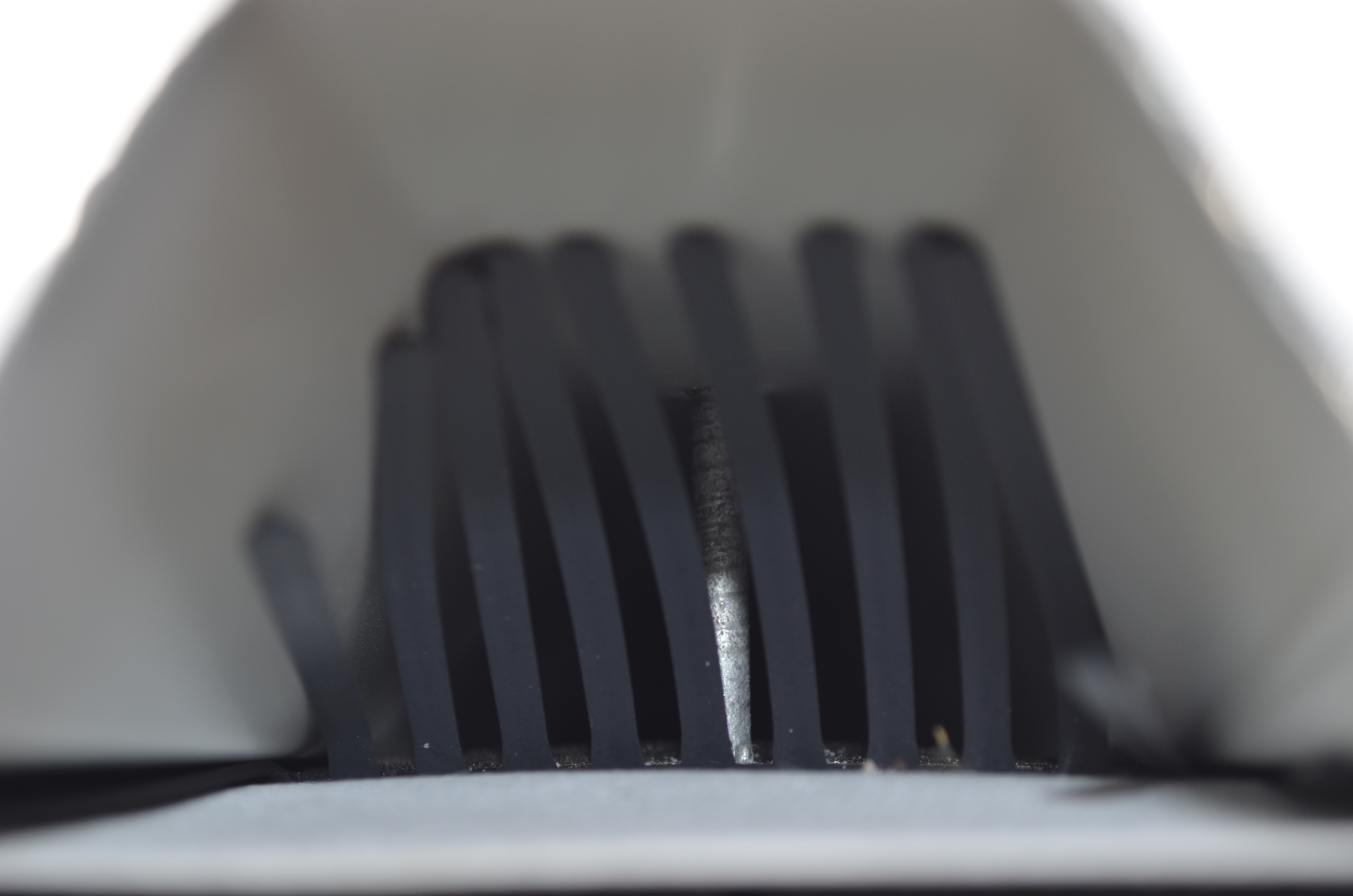

The G1275 VENT Eaves Comb Filler is designed with flexible fingers that adjust to fill the gaps left when using profiled tiles or steel roof cladding, preventing entry of birds and large insects.

The use of the G1275 eliminates the need to make or buy expensive purpose made profiled fillers that can block necessary airflow into the roof spacing between underlay and roof cladding.

Key Features
  • Prevent ingress of nesting birds and insects between the roof underlay and the roof cladding
  • Allows the roof to breathe whilst preventing any ingress
  • Designed to be installed with or without VENT Over Fascia Vents (G1200N & G2500N)
  • Recommended for all roof pitches
  • Compatible with all roof claddings
  • Easy to install — manufactured in 1200mm lengths for easy handling
  • Not visible
  • Manufactured in recycled plastic for affordability
  • 15 years warranty
Scope of Use

Suitable for use in new and existing buildings within the following scope:

  • Up to 10m in height, and
  • With a risk score of less than 20, when evaluated against the E2/AS1 risk matrix, and
  • In wind zones up to extra high as defined in NZS 3604:2011, and
  • In all corrosion zones as defined in NZS3604:2011

The VENT Eaves Comb Filler can be used on all roof cladding types.

  • Compatible with VENT Over Fascia Vents (G1200N and G2500N)
  • Can be directly fixed to the fascia on top of the roof underlay
NZS 3604 Wind Zone Extra High suitable
Extra High Wind Zone
In-Service History

Successfully used for almost four decades in the UK and Europe.

Other Performance Attributes
  • 15 years warranty
Documents
Passive Ventilation System: 15-30° Roof Pitch

2021

Passive Ventilation System: Mono Pitch Cold Roof 15-30°
Passive Ventilation System: Roof Pitch >30°

2021

Passive Ventilation System: Skillion Mono Roof <15°

2021

Passive Ventilation System: Skillion Roof Pitch 15-30°

2021

Product Technical Statement

Jan 2024

System Warranty

May 2023

Brochure with Brown Batts

Jan 2024

Vent Brochure with Pink Batts

Jan 2024

BRANZ Comparative Study of Corrosion Rates in Vented and Unvented Roof Cavities

2021

Video: Why Is Passive Roof Ventilation Necessary

2021

CAD/PDF Details
Full Set of Roof Drawings

Full Set of Roof Drawings

Dec 2022

Steel Longrun Any Pitch - Skillion Roof No Eave - G2500N + VB20 + VB10 + G1275

Steel Longrun Any Pitch - Skillion Roof No Eave - G2500N + VB20 + VB10 + G1275

Dec 2022

Steel Longrun Any Pitch - Skillion Roof With Eave - G2500N + VB20 + VB10 + G1275

Steel Longrun Any Pitch - Skillion Roof With Eave - G2500N + VB20 + VB10 + G1275

Dec 2022

Steel-Longrun-15-or-less-Roof-Eave-G2500N-+-G502-+-VB10-+-G1275

Steel-Longrun-15-or-less-Roof-Eave-G2500N-+-G502-+-VB10-+-G1275

Dec 2022

Steel-Longrun-15-or-more-Roof-Eave-G1200N-+-G502-+-VB10-+-G1275

Steel-Longrun-15-or-more-Roof-Eave-G1200N-+-G502-+-VB10-+-G1275

Dec 2022

Steel-Longrun-25-or-more-Roof-Eave-G1200N-+-G502-+-VB10-+-G1275

Steel-Longrun-25-or-more-Roof-Eave-G1200N-+-G502-+-VB10-+-G1275

Dec 2022

Steel-Longrun-30-or-more-Roof-Eave-G1200N-+-G502-+-VB10-+-G1275

Steel-Longrun-30-or-more-Roof-Eave-G1200N-+-G502-+-VB10-+-G1275

Dec 2022

Steel-Longrun-Any-Pitch-Box-Gutter-VB20-+-VB10-+-G1275

Steel-Longrun-Any-Pitch-Box-Gutter-VB20-+-VB10-+-G1275

Dec 2022

VENT provide complete passive ventilation systems that ensure healthy homes free from internal moisture and condensation.
