SRP’s Wall and Ceiling Systems Made from 100% Recyclable Steel Now Have a Declare Label

With developers, main contractors, designers and their clients looking towards greener products for their builds, Steel Rollformed Products (SRP) is pleased to share their new Declare label — offering transparency and peace of mind that you are specifying a sustainable solution, free of harmful materials.

Free of any nasties and carcinogens

The Declare label outlines the raw materials used to manufacture SRP’s products, confirming that these high-performance wall and ceiling systems are LBC Red List Free. This means no materials used in the manufacture of the systems are on the Living Building Challenge’s red list of materials that pose serious risks to human health and the environment.

Made from an infinitely recyclable material

The Declare label also outlines the product life expectancy and how products are treated at end of life. As SRP’s products are made from steel, they are 100% recyclable at end of life. This provides a benefit over timber framing, contributing to a reduction in the carbon footprint of steel rollformed systems.

Cut to length to minimise waste

In addition to supplying products made from 100% recyclable steel, SRP also works to minimise waste during construction. They can supply all products cut to length, to ensure minimal wastage on site — ensuring a more efficient construction process, fewer offcuts, and a more sustainable build.

CO2 carbon certified

SRP sources their steel from a mill that is CO2 carbon certified, meeting ISO 14067, the international standard for product carbon footprinting. This demonstrates SRP’s dedication to using responsibly sourced steel for the manufacture of their products.

Helping designers meet the requirements of green builds

SRP are committed to helping designers meet the requirements of sustainable builds. The Declare Red List Free label contributes to meeting the requirements of initiatives like the Living Building Challenge and Core Green Building Certification, as well as LEED and WELL certifications by providing transparent information on material composition.

Ultimately the Declare label is a step towards greater transparency of building materials, and in SRP’s case highlights what the company has always done — provide innovative rollformed steel wall and ceiling systems made from trusted 100% recyclable steel with no hidden nasties.

View the Declare label or get in touch with Steel Rollformed products to learn more.

SRP Ceiling Systems

Steel Rollformed Products

View Product

Steel Rollformed Products' Ceiling Systems are available as Direct Fix, Top Cross Rail or Strongback options.

LBC Declare Red List Free

SRP Ceiling systems are suitable for use for internal ceilings and also external soffits. All SRP Ceiling Systems can be used to provide a base grid to fix GIB plasterboard, and to be the batten system in GIB Plasterboard Systems.

The selection of an SRP systems is determined by space requirements of the plenum vs internal room height.

Direct Fix: provides less room between ceiling structure and plasterboard and is suitable for houses, apartments, and offices where plenum space is not required, combines with 16mm or 28mm Batten
Strongback allows for suspended ceilings are are suitable for commercial spaces where rigidity and plenum space for services is required, combines with 22mm Batten and furring strap. Another option is to use the SRP 35mm Ceiling Batten with SRP Clipfix Clip.
TCR also allows for suspended ceilings and can be used with the 16mm or 28mm batten for use in for larger spaces.
SRP battens can also be used for Wall Strapping — with SRP Adjustable Wall Fix Clips (Please refer SRP Clips Spacing Tables for options).

NZBC Clause B2 — Durability: When installed in accordance with the installation instructions and in dry interior environments, SRP Ceiling Systems will satisfy the requirements of NZBC Clause B2 – Durability. SRP Ceiling Systems are manufactured from galvanised coated steel Z275 conforming to AS/NZS 1397.

NZBC Clause B1
NZBC Clauses C3 — Fire and G6 — Noise Control: SRP Ceiling Systems meet the requirements of specific fire and acoustic systems. Where installed ceilings form part of a specific fire or sound rated system the plasterboard manufacturer’s specification must be followed. Refer to GIB Fire Rated Systems and GIB Noise Control Systems.

SRP galvanised steel products are manufactured to meet the requirements of NZS 3404 Steel Structures Standard, NZs 404.1 Steel Structures Standard – Materials, Fabrication and Construction and AS/NZS 1397 Steel Sheet and Strip.

Other relevant standards:

NZS 4600 cold-formed Steel Structures
NZS 2785 Suspended Ceilings
NZS 1170 Structural Design Actions

SRP Steel Stud Wall Systems

Steel Rollformed Products

View Product

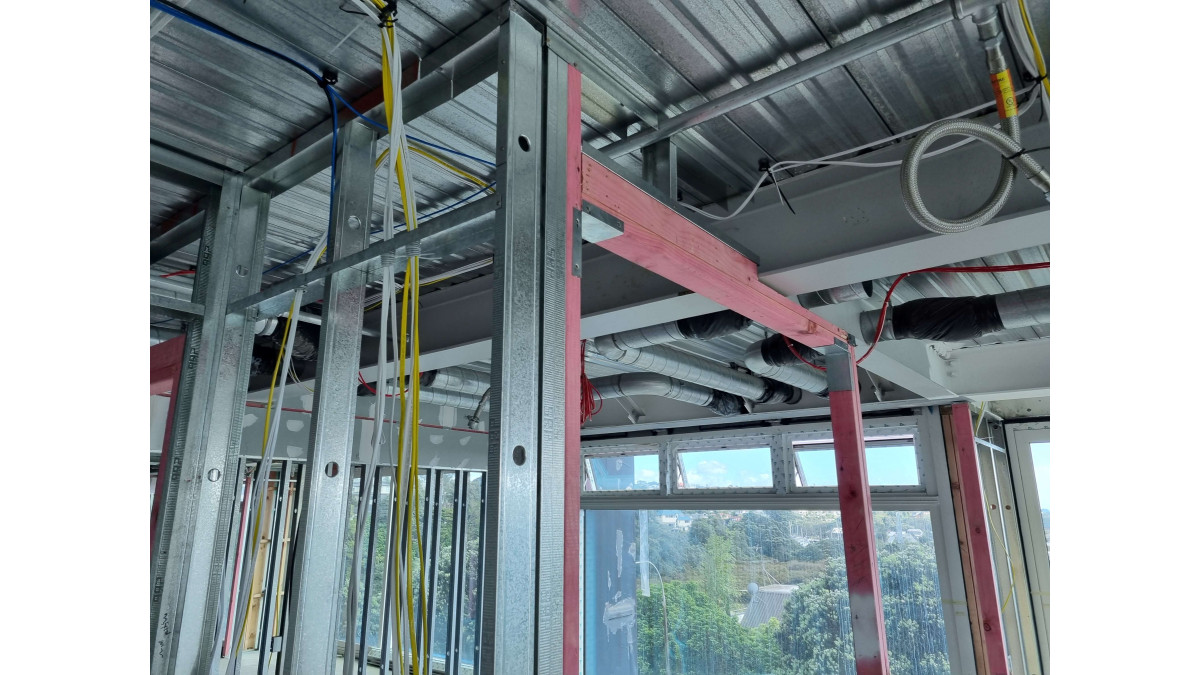

Steel Rollformed Products offer a wide range of easy to install steel wall system components.

LBC Declare Red List Free

Suitable for non-loadbearing internal plasterboard partitioning

Used in, but not limited to:

Office partitioning
Apartments
Housing complexes

This is to certify that SRP Wall Products and associated componentry supplied by Steel Rollformed Products Ltd are designed to, and manufactured from, a compliant base material, to the relevant New Zealand / International Standards and to the relevant parts of the New Zealand Building Code.

In addition, all wall profiles manufactured by SRP meet the required BMT [Base Metal Thickness], strength and durability requirements. All wall component sizes and gauges manufactured by SRP are to precise specified requirements as established by design, and will not compromise structural integrity and/or fire/acoustic ratings of a relevant non-load bearing partition.

In particular SRP products are compliant as a minimum, with the following Codes, Standards and any referenced third party materials noted in this SRP Product Catalogue is current at the time of publication:

AS/NZS 4600 Cold-formed steel structures
Galvanised coating Z275 to AS/NZS 1397
NZS 3404 Steel structures standard
NZS 3404.1 Steel structures standard — materials, fabrication, and construction
AS/NZS 1397 Steel sheet and strip
AS/NZS 1170 Structural design actions
NZBC — B1/VM1 and B2

SRP Curv-E Track System

Steel Rollformed Products

View Product

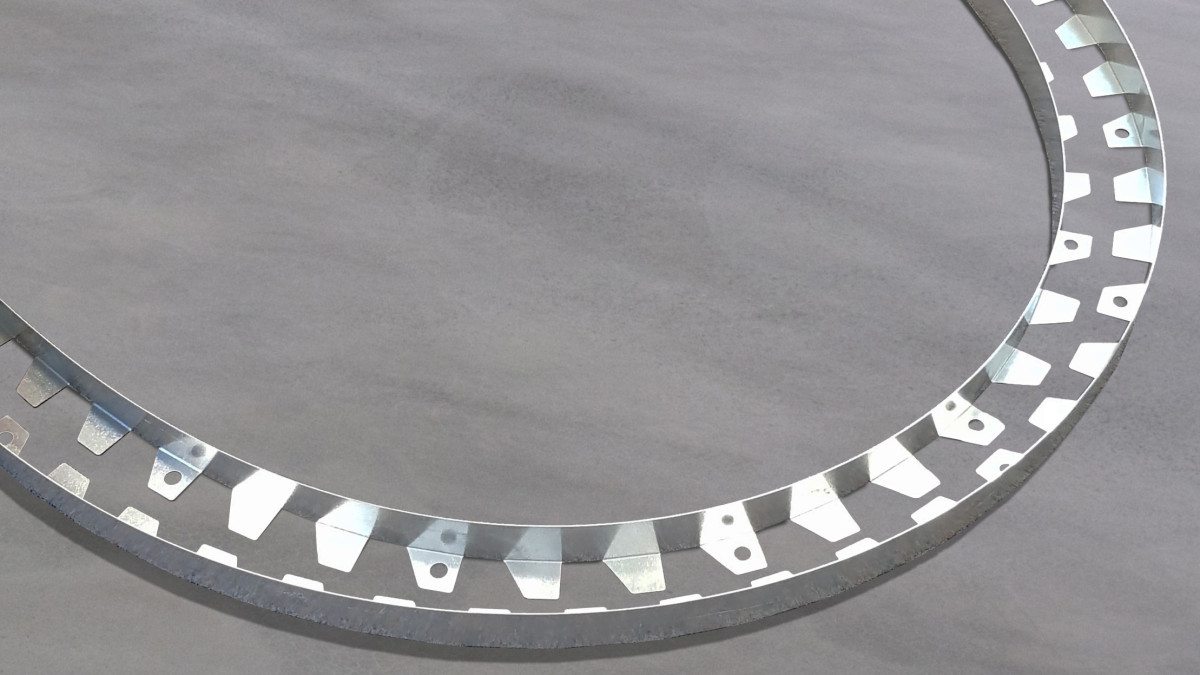

SRP Curv-E Track is a 2-piece split track designed for use in curved internal walls.

LBC Declare Red List Free

The SRP Curv-E track system is designed for use internally, in buildings where curved walls are designed/required — as opposed to straight walls. The Curv-E Track can be integrated to allow smooth transition from curved to straight-run walls.

Please refer to SRP Specific Engineered Design details for installation instructions/details.

SRP Curv-E Track has been manufactured/ supplied in to many construction projects throughout New Zealand, since it became available. Please contact SRP for Project examples and images.

SRP Custom Manufacturing: Top-hats, Deflection Tracks, Angles, Channels, Stud Lengths

Steel Rollformed Products

View Product

In addition to standard stock lines, Steel Rollformed Products also has the capability of making/supplying custom galvanised steel for non-standard ceiling and wall framing systems where adjustments or modifications are required to accommodate challenging construction requirements.

LBC Declare Red List Free

Custom designed and produced solutions for non-standard framing requirements

B2 Durability: SRP uses GALVSTEEL® manufactured by New Zealand Steel. The continuous hot-dip galvanised zinc coating conforms to the industry standard required for this application; Z275 (275 g/m² total). New Zealand Steel made GALVSTEEL® for framing is backed by a 50-year Durability Statement to demonstrate compliance with NZBC Clause B2-Durability, when used and maintained as referred to in the current New Zealand Steel's Durability Statement.

SRP Whisperwall Acoustic Stud Wall Systems

Steel Rollformed Products

View Product

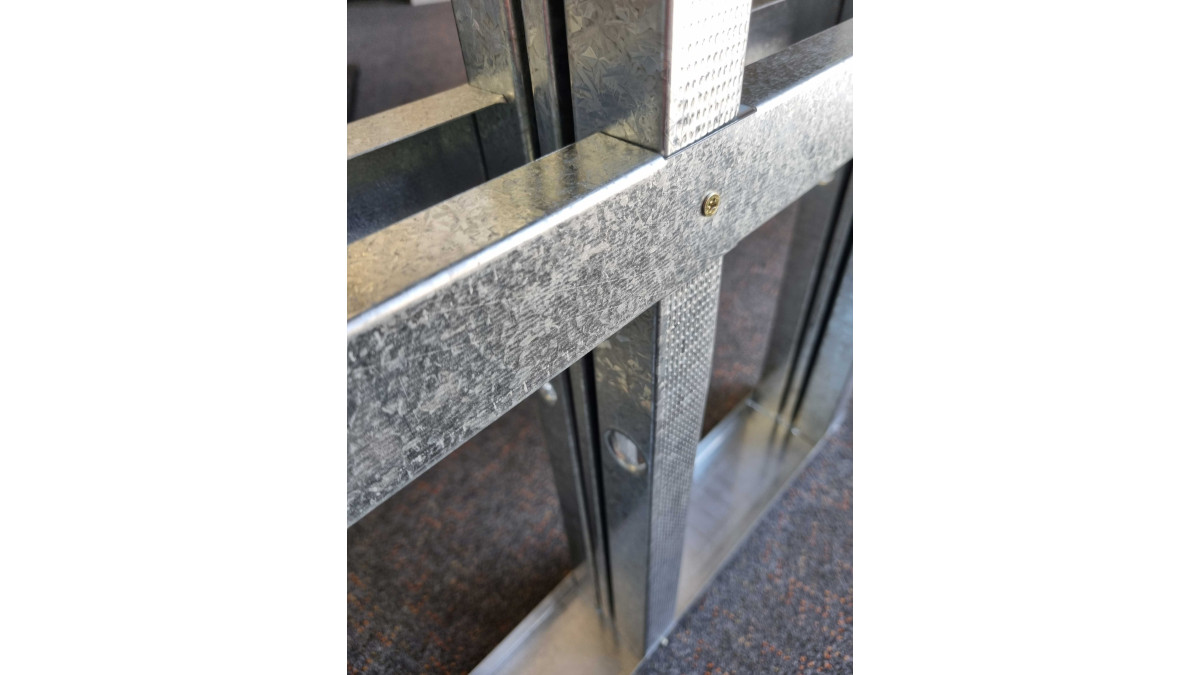

Steel Rollformed Products offer three Acoustic Wall Systems: Double Steel SRP Stud Walls, SRP Whisperwall, and, Staggered Steel SRP Stud Walls to provide acoustic and fire rating performance for interior and intertenancy walls.

LBC Declare Red List Free

Whisperwall:

Developed to provide superior acoustic properties with additional fire rated properties
Interior wall construction

Double Steel:

Generally used where two way FRR (Fire Resistance Rating), or superior acoustic performance is required
Mainly intertenancy walls and corridors

Staggered Stud:

Commonly used to provide effective resistance to sound transmission and acoustic impact
Two way FRR

AS/NZS 4600 Cold-formed steel structures
Galvanised Coating Z275 to AS/NZS 1397
NZS 3404 Steel Structures Standard
NZS 3404.1 Steel Structures Standard — Materials, fabrication, and construction
AS/NZS 1397 Steel sheet and strip
AS/NZS 1170 Structural design actions
NZBC — B1/VM1 and B2

SRP Wall Strapping Systems

Steel Rollformed Products

View Product

The SRP Wall Strapping Systems are an adjustable clip + batten system, specifically designed for strapping and lining (+ levelling, for higher level surface finishes) of uneven surfaces such as: concrete, pre-cast, masonry, block or brick walls.

LBC Declare Red List Free

SRP Batten & Adjustable Clip System: (DPC is used for separation between galvanised steel clip and concrete)

Electrical conduits, SML diameter Service pipelines, insulation

SRP Batten & SRP Zero Bracket with Rivnut + Threaded Rod System:

Insulated Panel Systems/ External Concrete (fine thread adjustment)

SRP Steel Stud & Track Wall Strapping System:

LGE diameter Service pipelines: Plumbing/ Electrical Ducting

B2 Durability: SRP uses GALVSTEEL® manufactured by New Zealand Steel. The continuous hot-dip galvanised zinc coating conforms to the industry standard required for this application; Z275 (275 g/m2 total). New Zealand Steel made GALVSTEEL® for framing is backed by a 50 year Durability Statement to demonstrate compliance with NZBC Clause B2-Durability, when used and maintained as referred to in the current New Zealand Steel's Durability Statement.
