SRP Introduces New 140mm Steel Stud & Track System

A recurring question the Steel Rollformed Products team hears from architects and designers across New Zealand during presentations is:

“Why is there a 10mm difference between 140mm timber framing and 150mm steel framing?”

It is a valid question — one that highlights real-world challenges for professionals involved in the design and construction process.

Rather than focusing on historical standards, SRP looked ahead and asked themselves:

How can we make internal wall construction simpler and more consistent for builders and designers?

The answer came through collaboration. The SRP Architectural and Sales teams worked closely with Production and Engineering to develop a practical solution: the new 140mm SRP Steel Stud System.

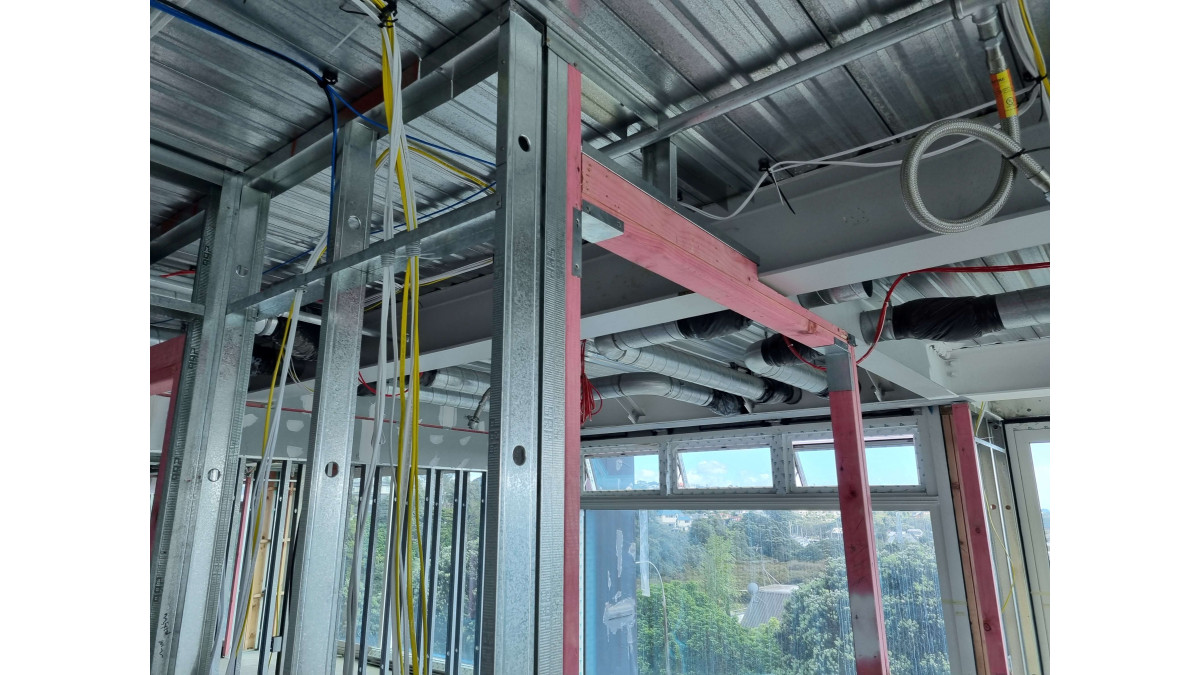

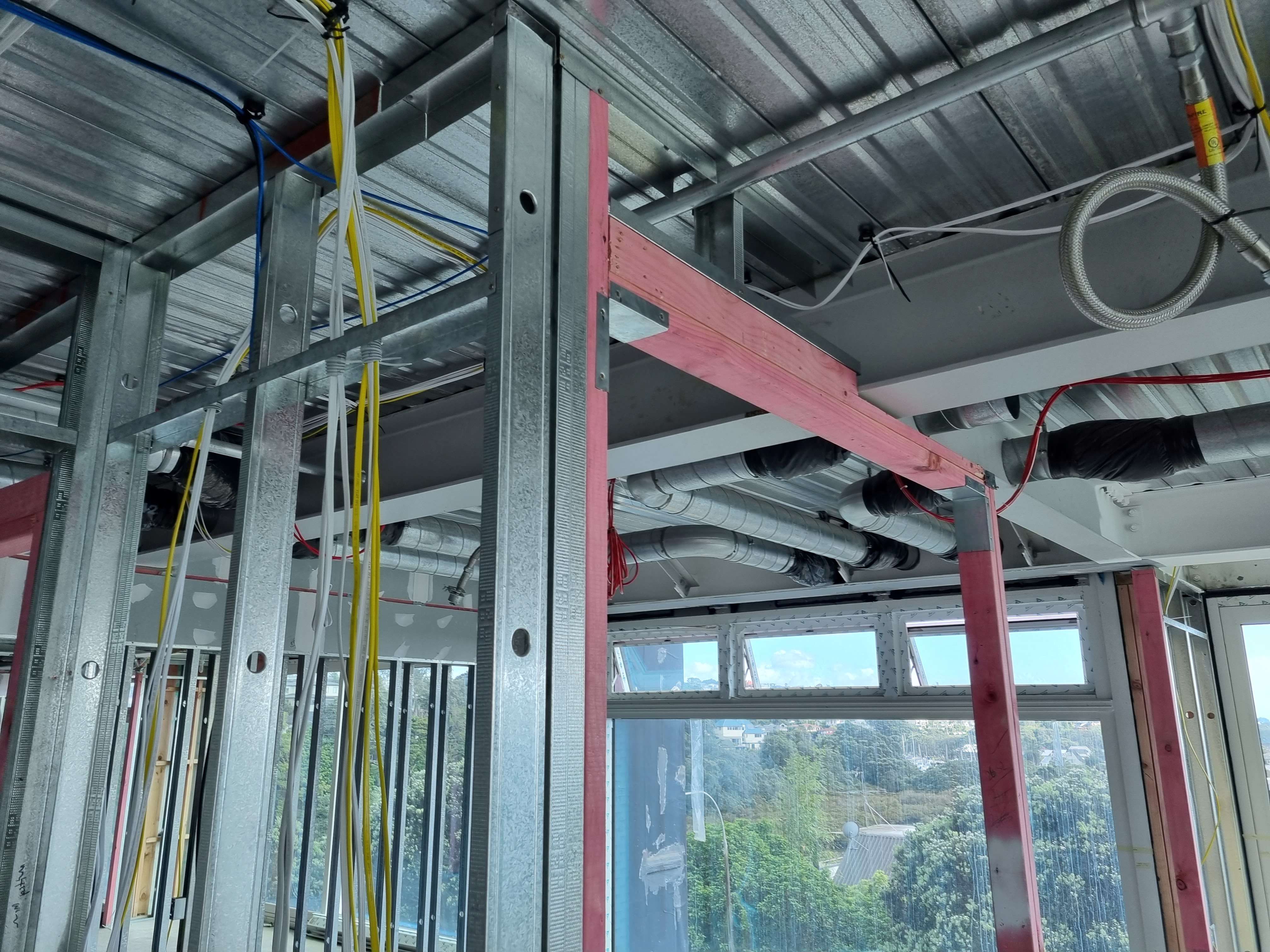

The system uses lightweight, SRP steel stud framing (of equivalent size) to tie-in with existing 140mm timber wall framed internal walls, making it suitable for new builds, additions and alterations alike.

This complete wall system is ideal for full-height internal walls and includes the following components:

Steel Bottom Track
Steel Studs
Nogging Track
Deflection Head Track

Options:

Stud type	Available width sizes (mm)	Steel coil thickness (BMT)
Standard SRP Steel Studs	51, 64, 75, 92, 100, 120, 140, 150	0.55, 0.75, 1.15
SRP Acoustic WW Stud	92	0.55, 0.75

Please get in contact with the SRP technical team or visit www.srpltd.co.nz for further information.

SRP Steel Stud Wall Systems

Steel Rollformed Products

View Product

Steel Rollformed Products offer a wide range of easy to install steel wall system components.

Suitable for non-loadbearing internal plasterboard partitioning

Used in, but not limited to:

Office partitioning
Apartments
Housing complexes

This is to certify that SRP Wall Products and associated componentry supplied by Steel Rollformed Products Ltd are designed to, and manufactured from, a compliant base material, to the relevant New Zealand / International Standards and to the relevant parts of the New Zealand Building Code.

In addition, all wall profiles manufactured by SRP meet the required BMT [Base Metal Thickness], strength and durability requirements. All wall component sizes and gauges manufactured by SRP are to precise specified requirements as established by design, and will not compromise structural integrity and/or fire/acoustic ratings of a relevant non-load bearing partition.

In particular SRP products are compliant as a minimum, with the following Codes, Standards and any referenced third party materials noted in this SRP Product Catalogue is current at the time of publication:

AS/NZS 4600 Cold-formed steel structures
Galvanised coating Z275 to AS/NZS 1397
NZS 3404 Steel structures standard
NZS 3404.1 Steel structures standard — materials, fabrication, and construction
AS/NZS 1397 Steel sheet and strip
AS/NZS 1170 Structural design actions
NZBC — B1/VM1 and B2
