SRP Steel Stud Wall Systems
Description

Steel Rollformed Products offer a wide range of easy to install steel wall system components. Each SRP Wall system is characterised by lightweight handling, a familiar installation process and many durable features for quality building solutions.

SRP rollformed steel wall products are available in Base Material Thicknesses from 0.55 to 1.15BMT. Refer to the Data Sheet for details.

The range includes a variety of stud and track options:

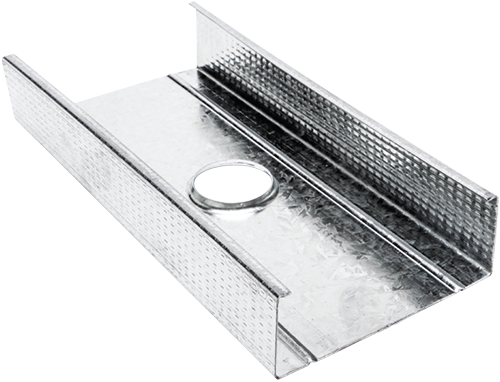

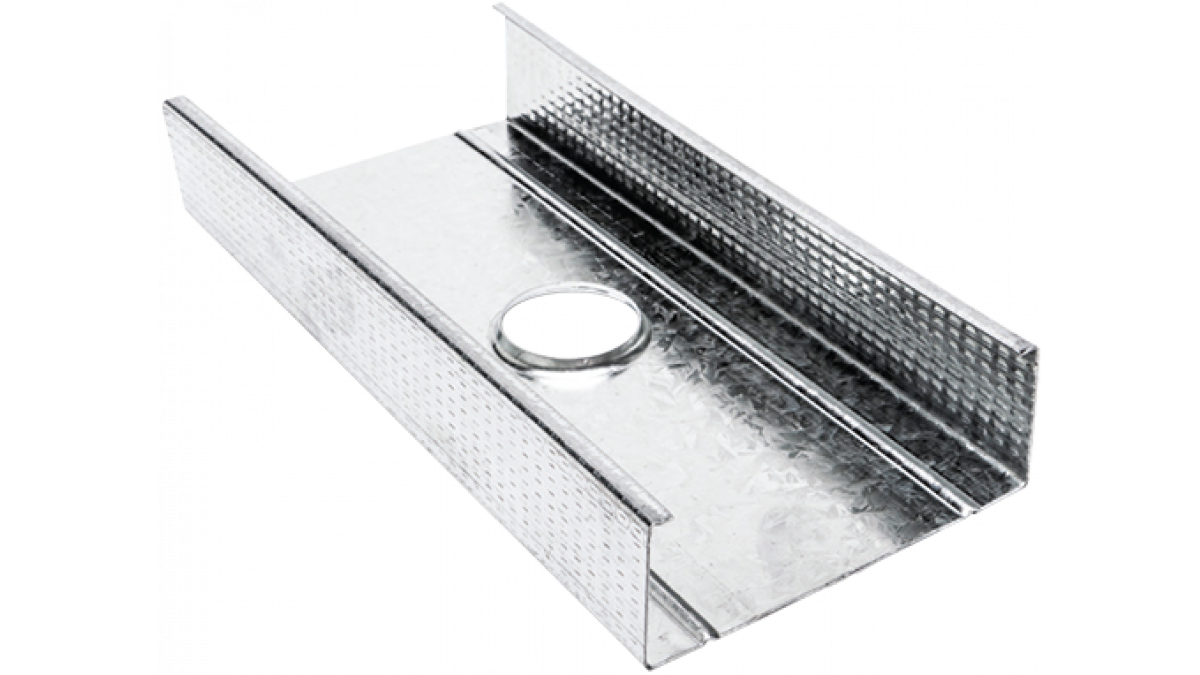

  • SRP Steel Studs

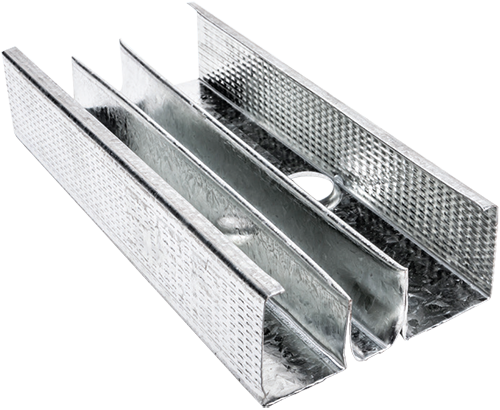

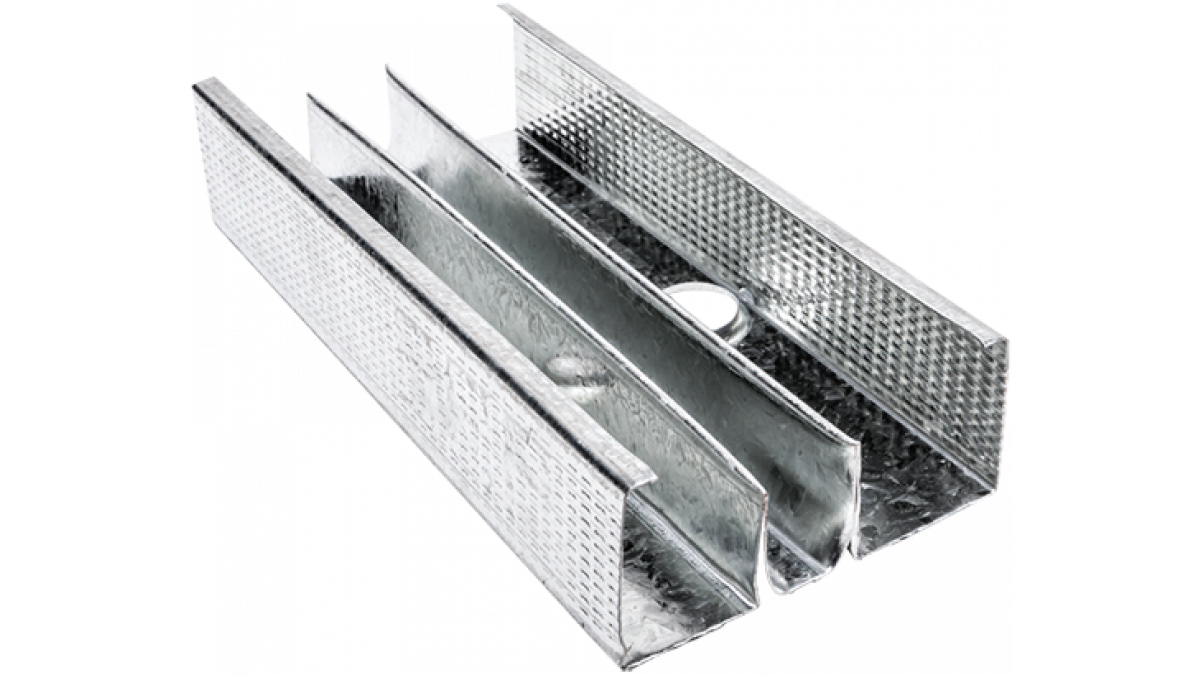

  • SRP Whisperwall Acoustic-rated Stud

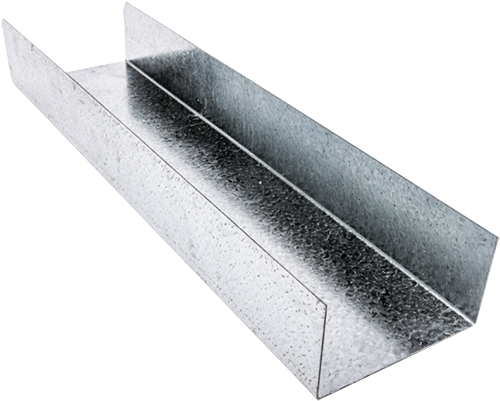

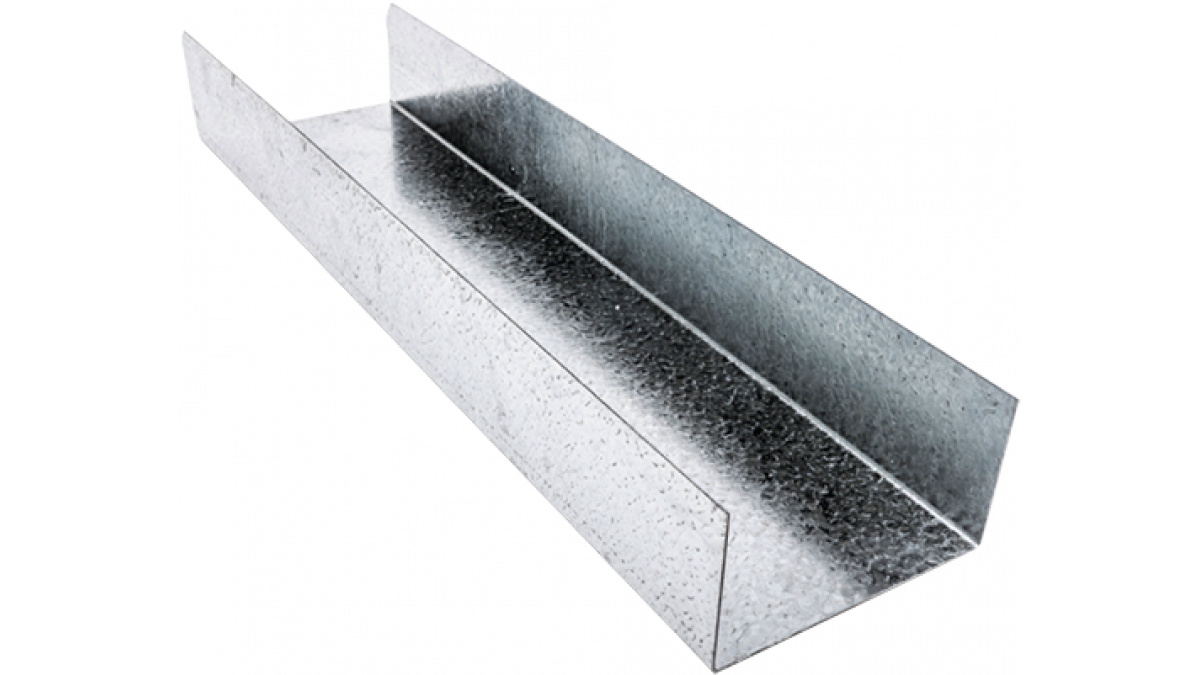

  • SRP Standard Steel (Bottom) Track

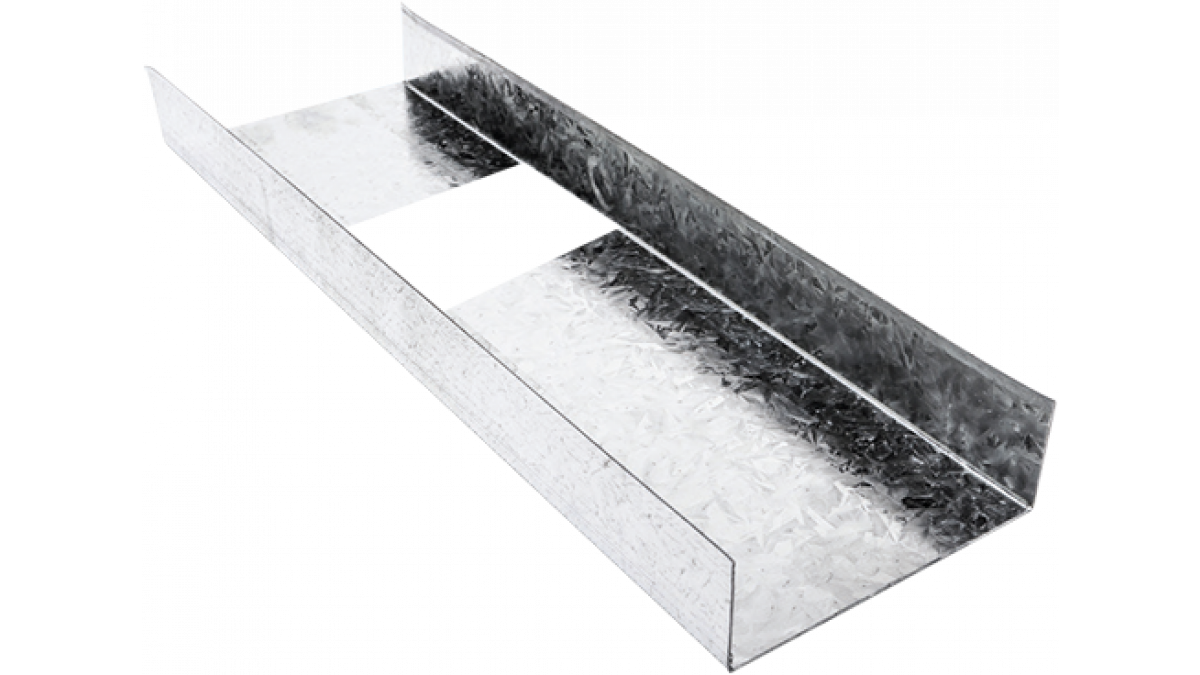

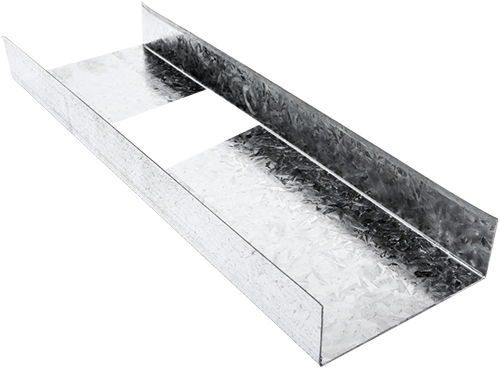

  • SRP Nog Track options
  • SRP STD Deflection Head Track/ Slotted Deflection Head Track + Custom Deflection Head Track — also available beyond 1.15BMT (up to 3mm)

Accessories include:

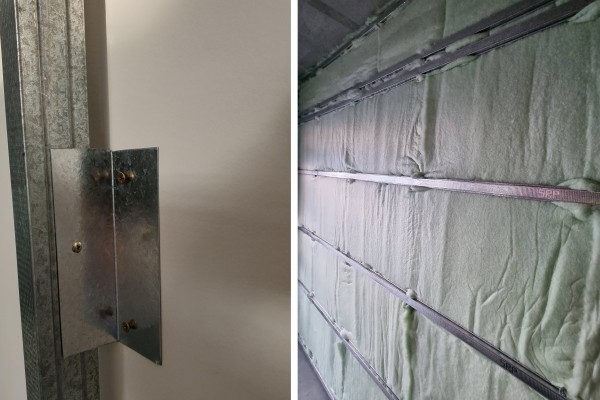

  • Acoustic ST-001 Wall Brackets
  • SRP Resilient Rail (Acoustic)
  • Tracklok Bracing system
Key Features
  • SRP Whisperwall Studs are available in either 0.55BMT or 0.75BMT (up to 3.6m and 4.2m Max. length).
  • SRP Standard Steel Studs are generally made-to-length upon request (this saves time onsite and wasted material off-cuts).
  • SRP Standard/ Deflection/ Nog Tracks are all available in 3.0m standard stock lengths.
  • Other/ custom lengths may be available on request.
  • Continuous Nog Track available in varying stud centre options e.g. 300, 400, 600 ctrs. Min thickness = 0.75BMT

See datasheet for full range of options.

Categories
Steel Wall Systems
Scope of Use
  • Suitable for non-loadbearing internal plasterboard partitioning

Used in, but not limited to:

  • Office partitioning
  • Apartments
  • Housing complexes
Limitations on Use
  • System includes track and stud, but not wall panels.
Statement of Building Code Compliance

This is to certify that SRP Wall Products and associated componentry supplied by Steel Rollformed Products Ltd are designed to, and manufactured from, a compliant base material, to the relevant New Zealand / International Standards and to the relevant parts of the New Zealand Building Code.

In addition, all wall profiles manufactured by SRP meet the required BMT [Base Metal Thickness], strength and durability requirements. All wall component sizes and gauges manufactured by SRP are to precise specified requirements as established by design, and will not compromise structural integrity and/or fire/acoustic ratings of a relevant non-load bearing partition.

In particular SRP products are compliant as a minimum, with the following Codes, Standards and any referenced third party materials noted in this SRP Product Catalogue is current at the time of publication:

  • AS/NZS 4600 Cold-formed steel structures
  • Galvanised coating Z275 to AS/NZS 1397
  • NZS 3404 Steel structures standard
  • NZS 3404.1 Steel structures standard — materials, fabrication, and construction
  • AS/NZS 1397 Steel sheet and strip
  • AS/NZS 1170 Structural design actions
  • NZBC — B1/VM1 and B2
Documents
Full Wall Systems Handbook
Data Sheet
Wall Design Tables
Wall Linings
Installation and Operation
Warranty
CAD/PDF Details
Filters
Bottom & Top Track Details
Doorways
Terminations & Intersections

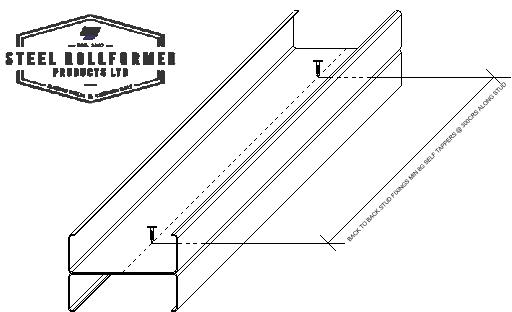

Back To Back Stud Assembly

7/11/2019

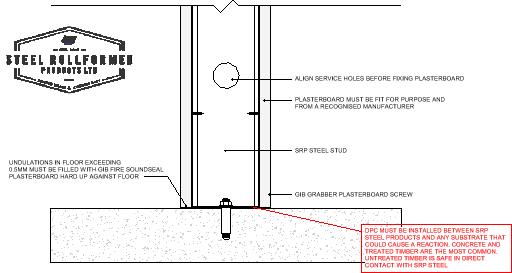

Bottom Track - Single Stud Walls

7/11/2019

Deflection Head Track - Single Stud Walls

7/11/2019

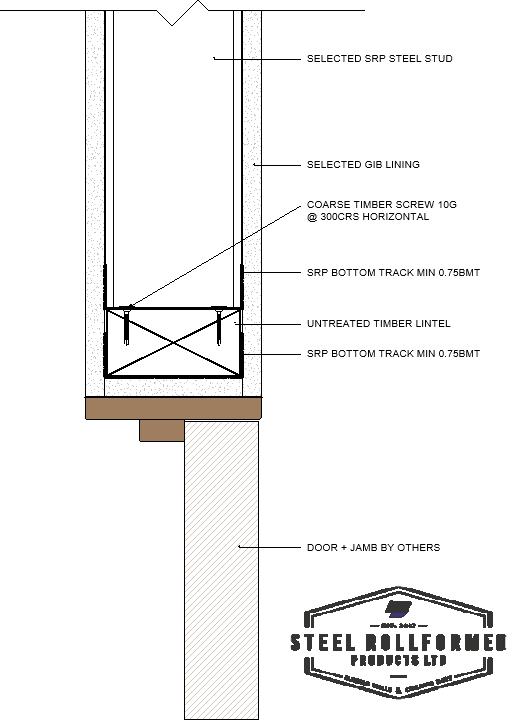

Doorway - Lintel Type A

7/11/2019

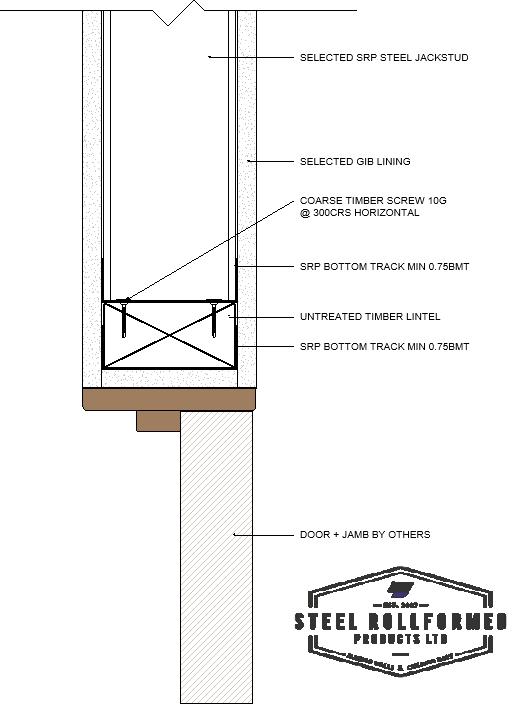

Doorway - Lintel Type B

7/11/2019

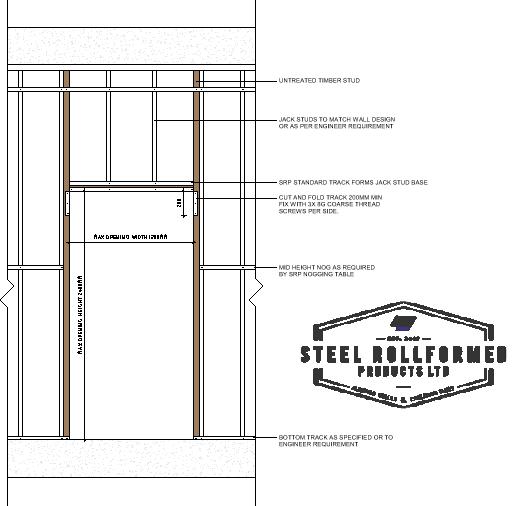

Doorway Elevation Type A

7/11/2019

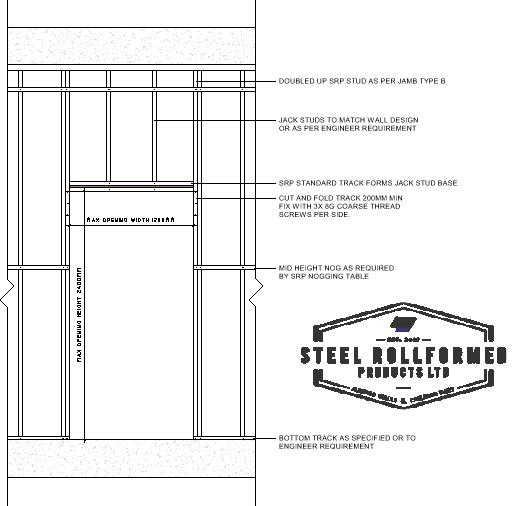

Doorway Elevation Type B

7/11/2019

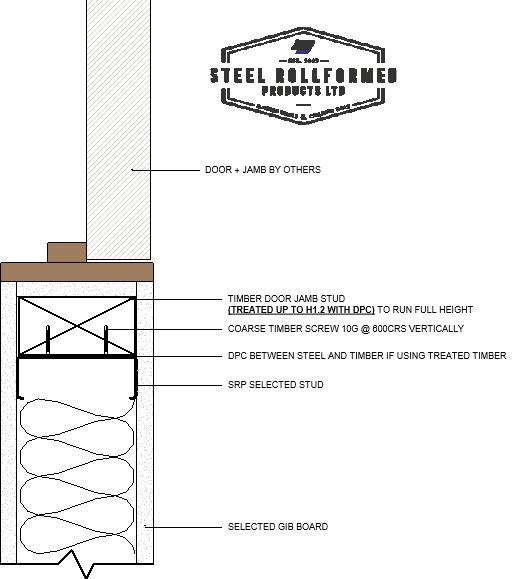

Doorway Jamb - DPC Treated Timber - Type A

7/11/2019

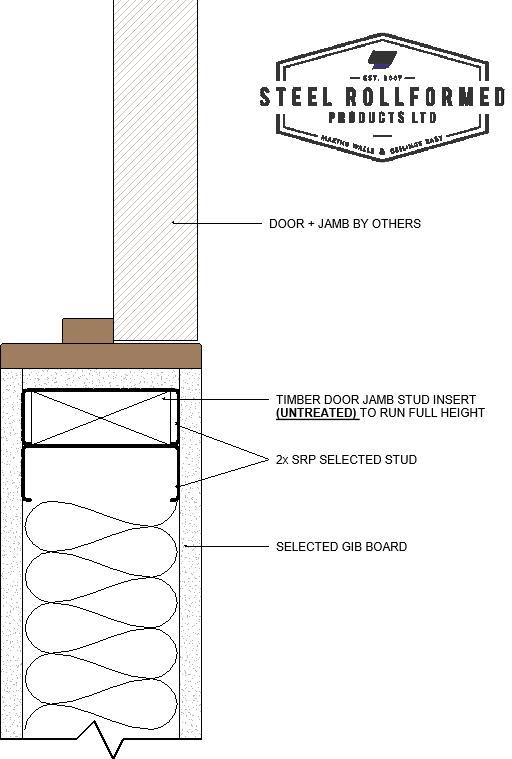

Doorway Jamb - DPC Treated Timber - Type B

7/11/2019

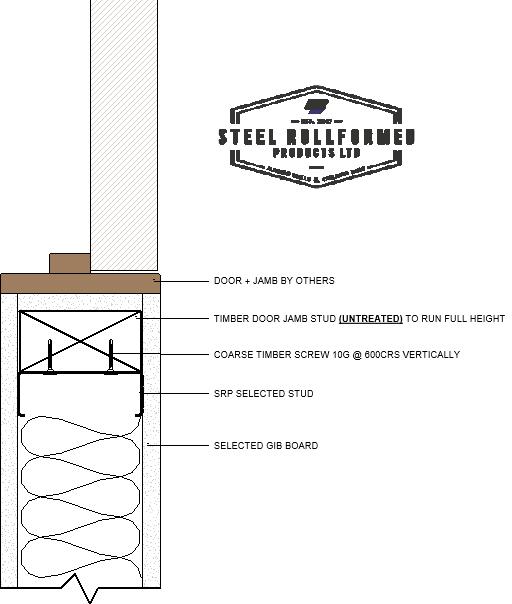

Doorway Jamb Detail Type A - Untreated Timber Option

7/11/2019

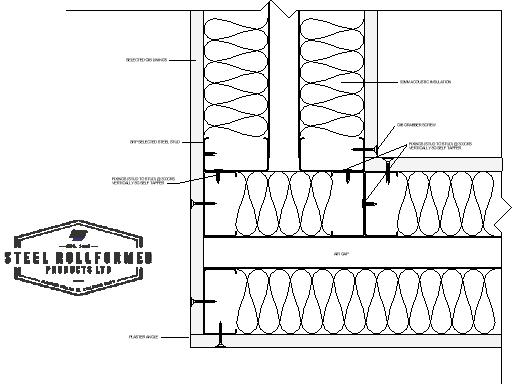

Double Stud - Corner

7/11/2019

Double Stud - Open End Termination

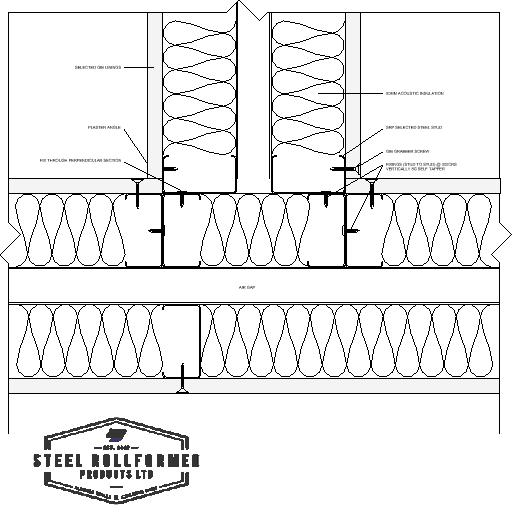

Double Stud - T Intersection

7/11/2019

Double Stud - Termination DPC Option

7/11/2019

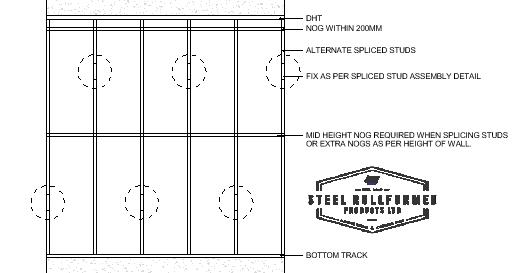

Spliced Stud Arrangement

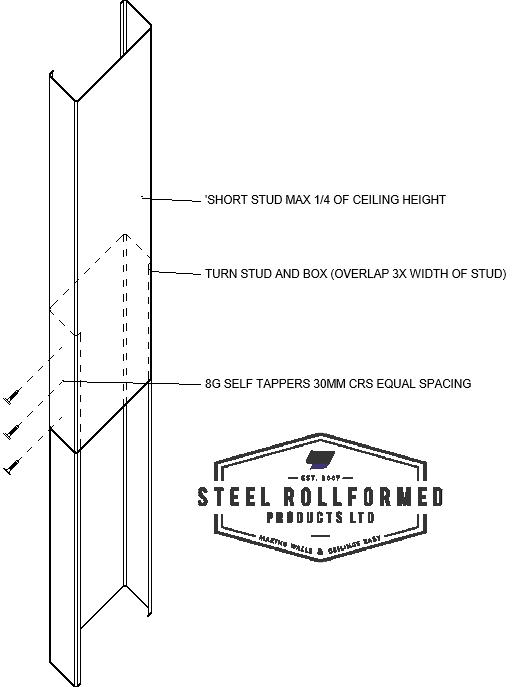

Spliced Stud Assembly

7/11/2019

Staggered Stud - T Intersection Option 1

7/11/2019

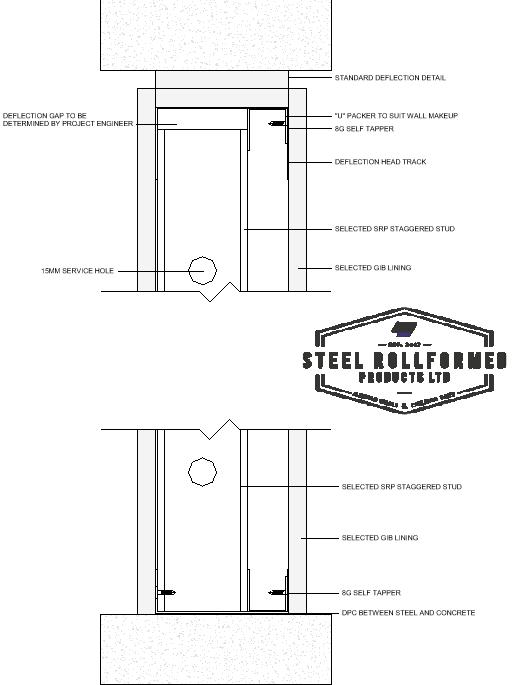

Staggered Stud - Bottom And Top Track Installation

7/11/2019

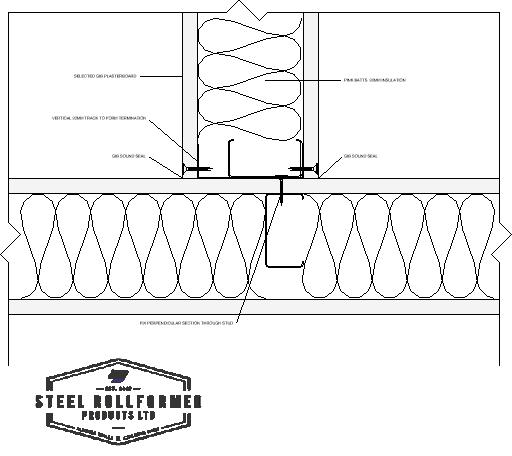

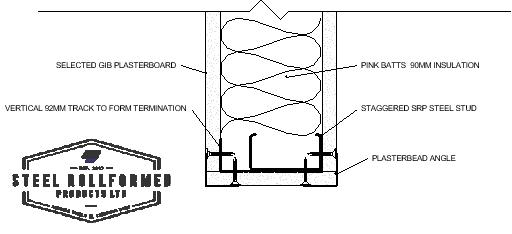

Staggered Stud - Termination - Nib Wall

7/11/2019

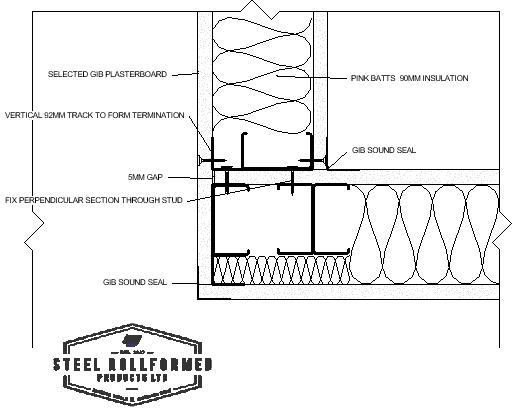

Staggered Stud Corner

7/11/2019

Staggered Stud Corner

7/11/2019

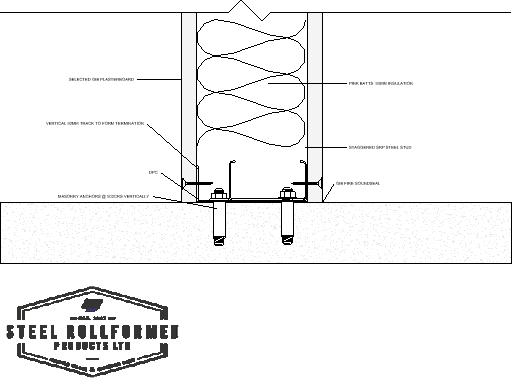

Staggered Stud Termination - DPC Option

7/11/2019

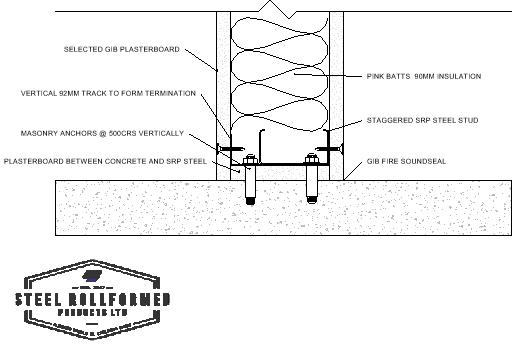

Staggered Stud Termination - Masonry Plasterboard Packer Option

7/11/2019

Standard Single Stud - T Intersection - Option 1
Standard Single Stud - T Intersection - Option 2

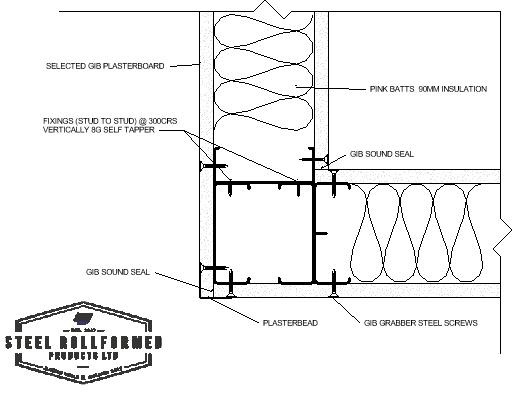

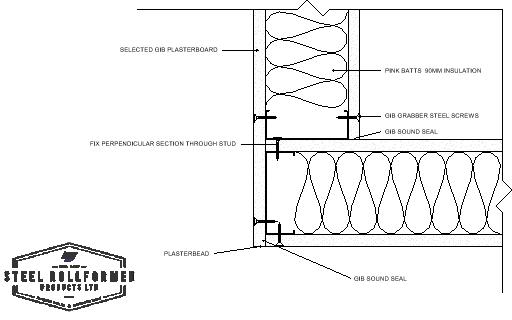

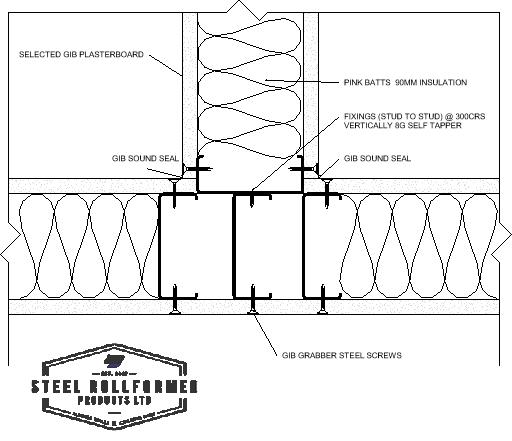

Standard Single Stud Corner Termination - Option 1
Standard Single Stud Corner Termination - Option 2
Standard Stud - "T" Intersection - Option 1

7/11/2019

Standard Stud - Corner - Option 1

7/11/2019

Standard Stud - Corner - Option 2

7/11/2019

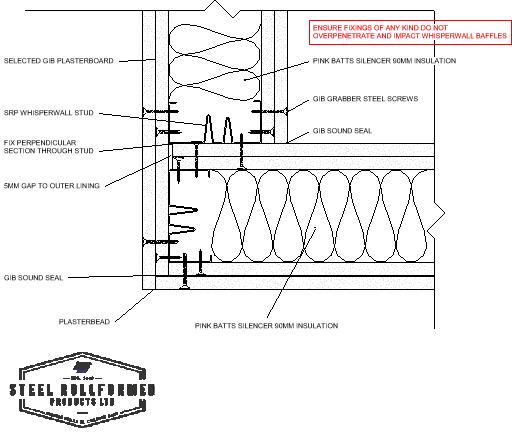

Whisperwall - Corner

7/11/2019

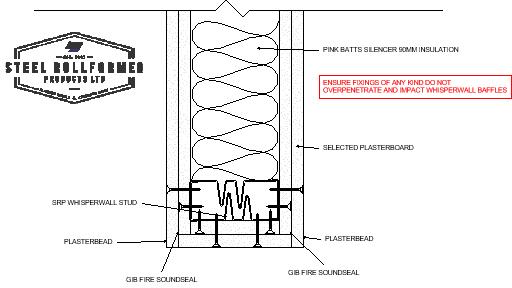

Whisperwall - Termination Boxed

7/11/2019

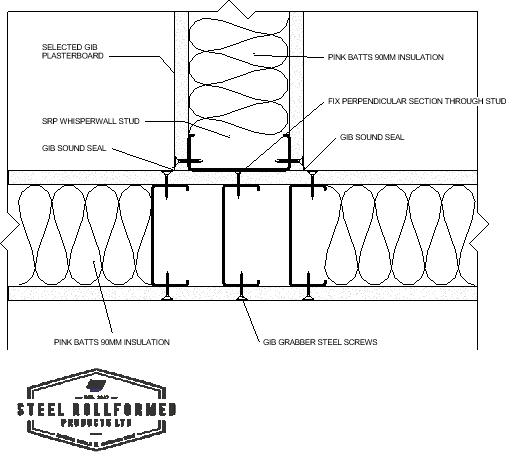

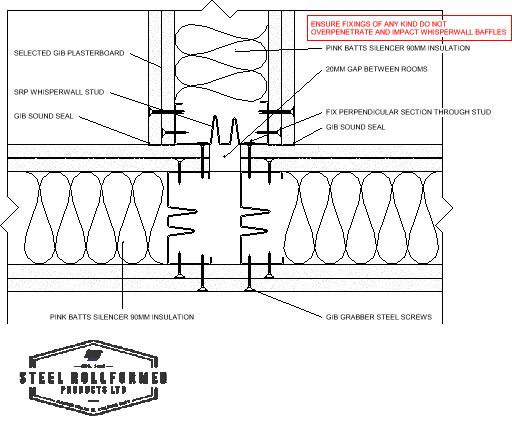

Whisperwall "T" intersection.

7/11/2019

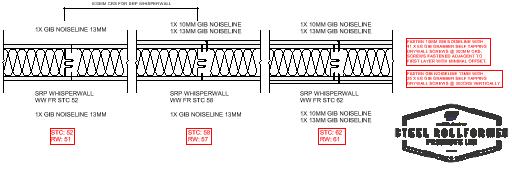

Whisperwall Configuration - 0.55BMT @ 600crs

7/11/2019

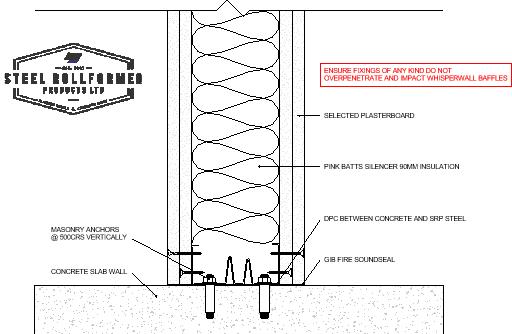

Whisperwall Masonry Termination - DPC Option

7/11/2019

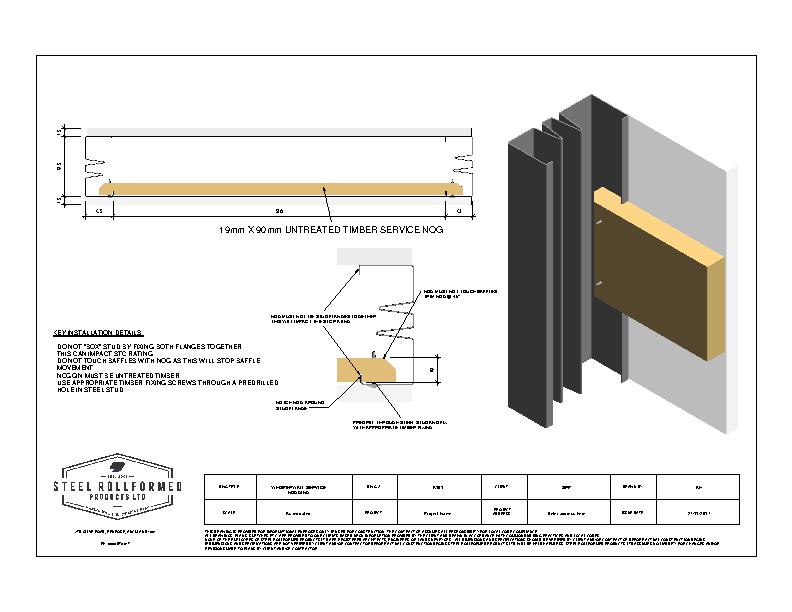

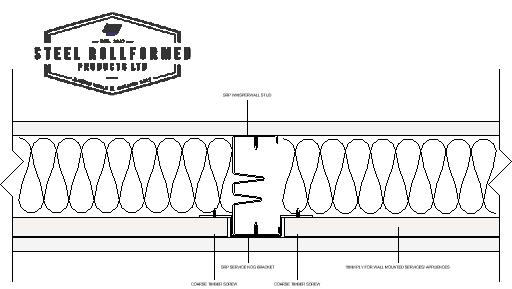

Whisperwall Service Nogging

7/11/2019

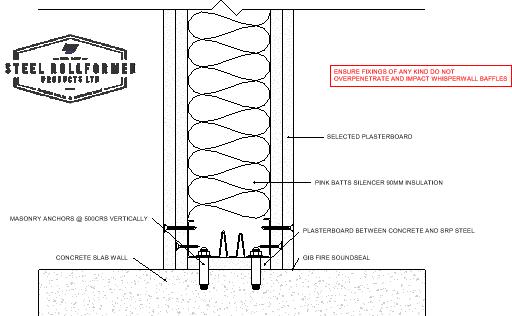

Whisperwall Termination - Masonry, Plasterboard Packer Option

7/11/2019

Installation Details
Filters
Wall Strapping
Bottom & Top Track Details

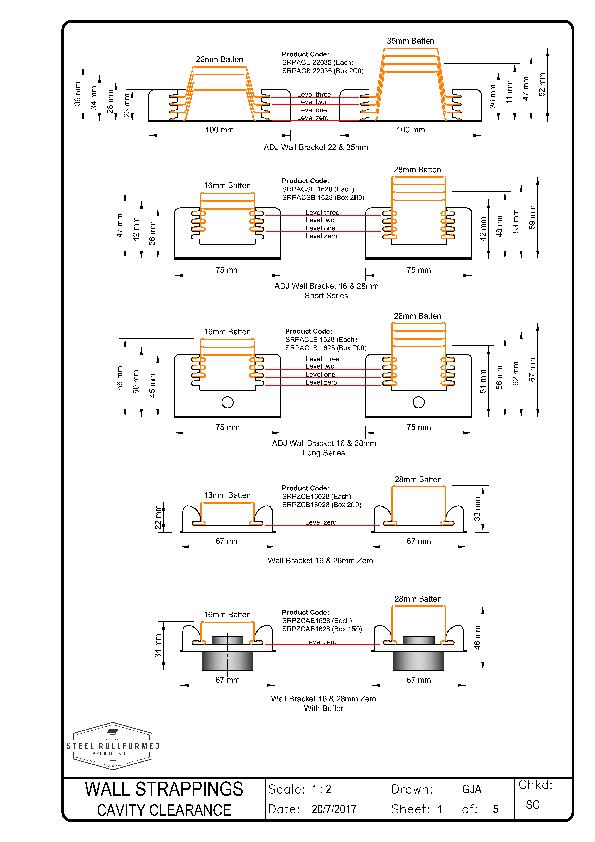

Direct Fix Clip Spacing - Wall Strapping

7/11/2019

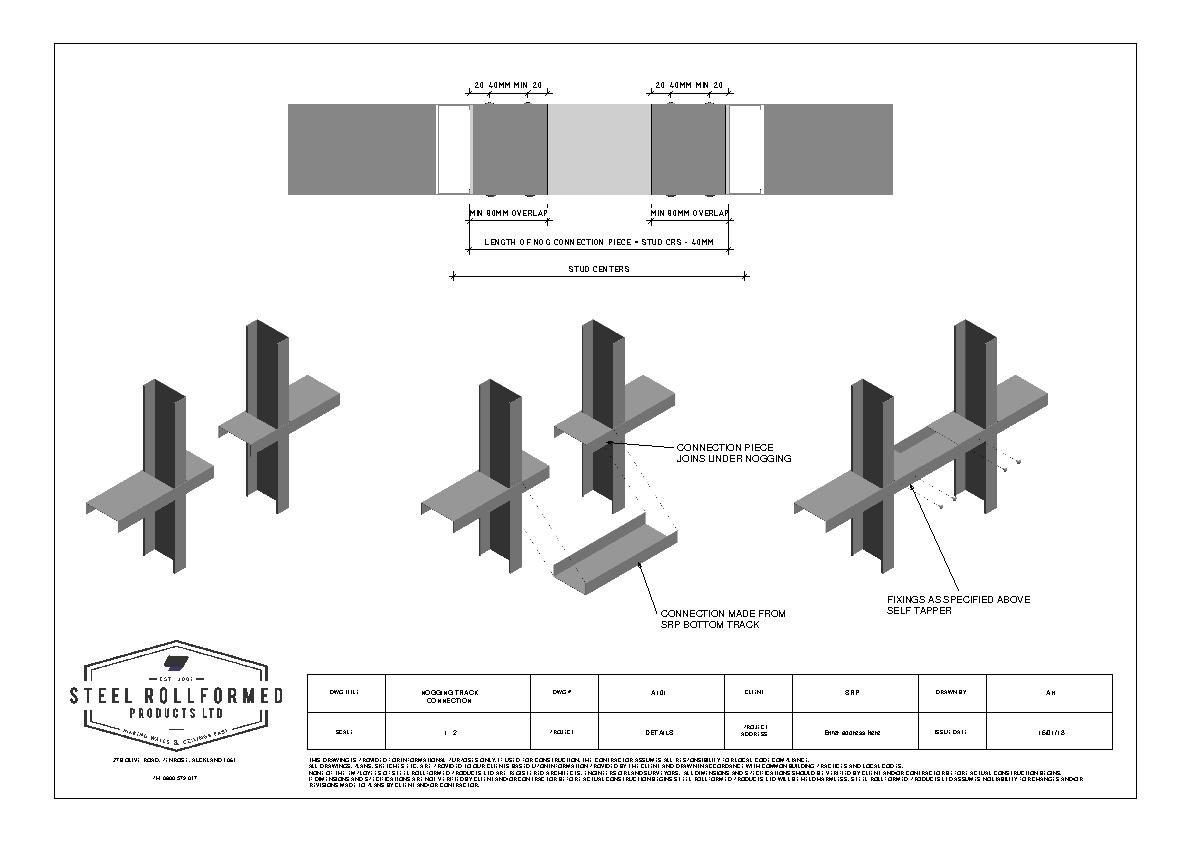

Nogging Connection / Splice

7/11/2019

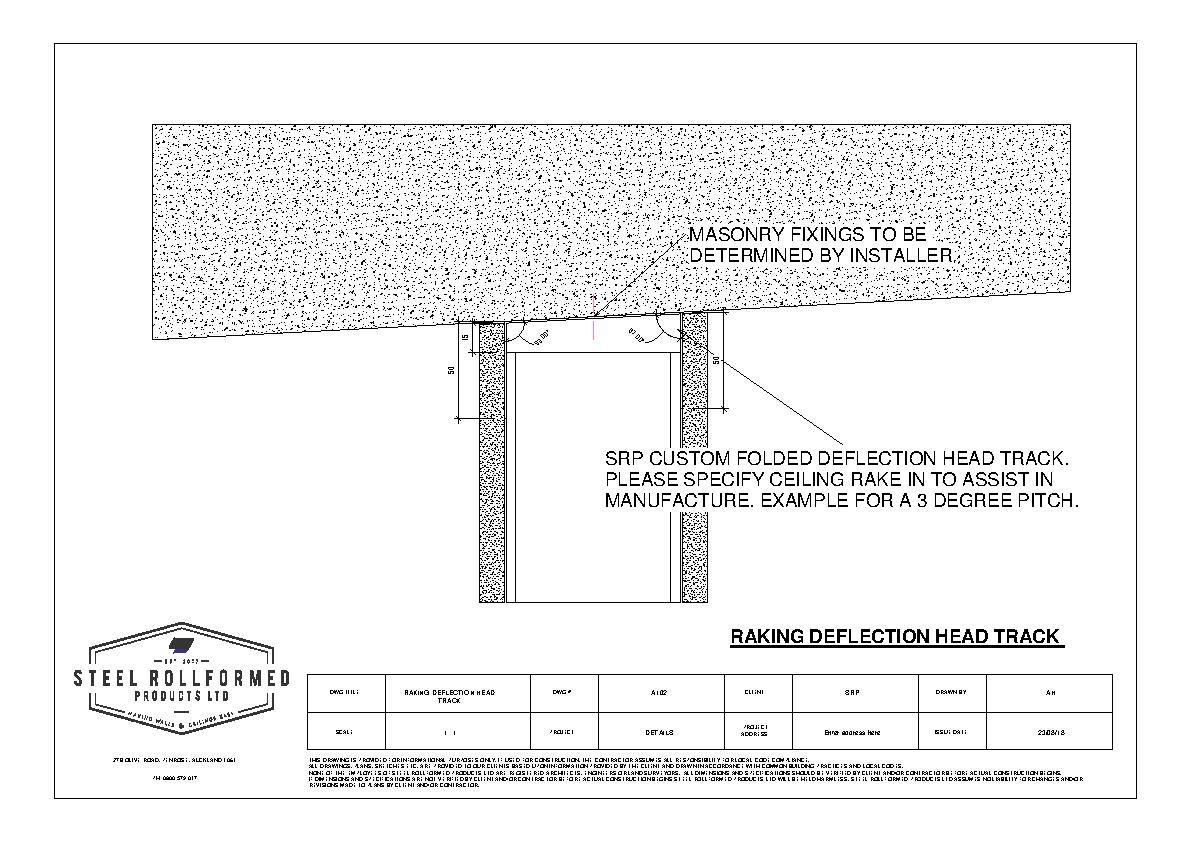

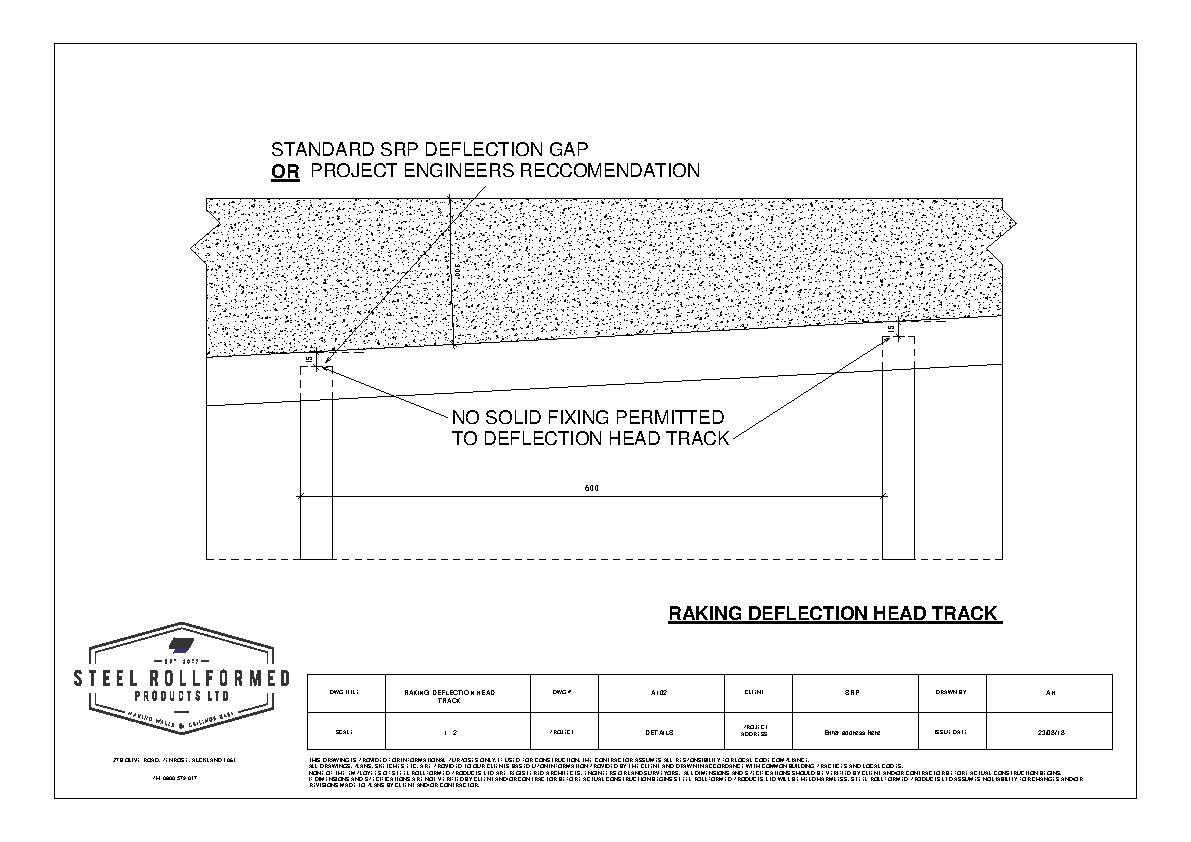

Raking Deflection Head Track

7/11/2019

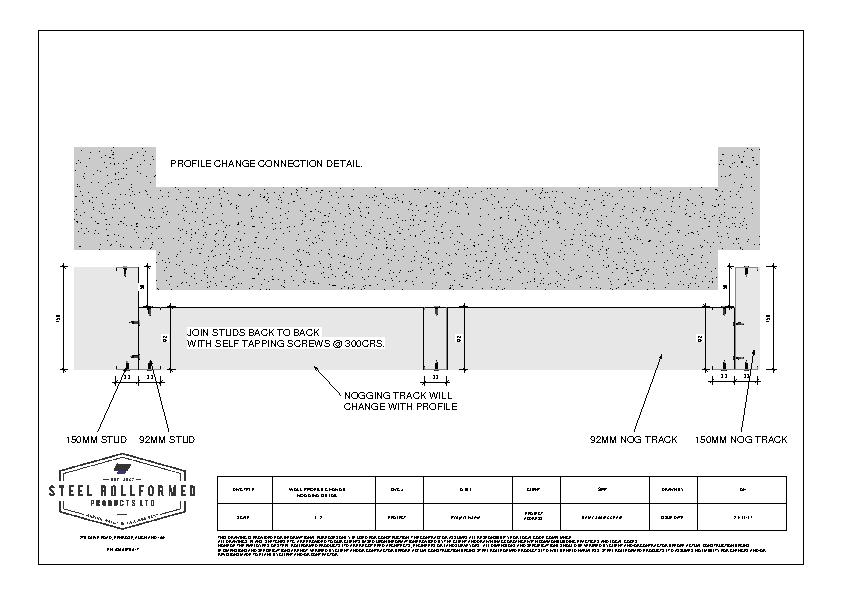

Strapping - Profile Change

7/11/2019

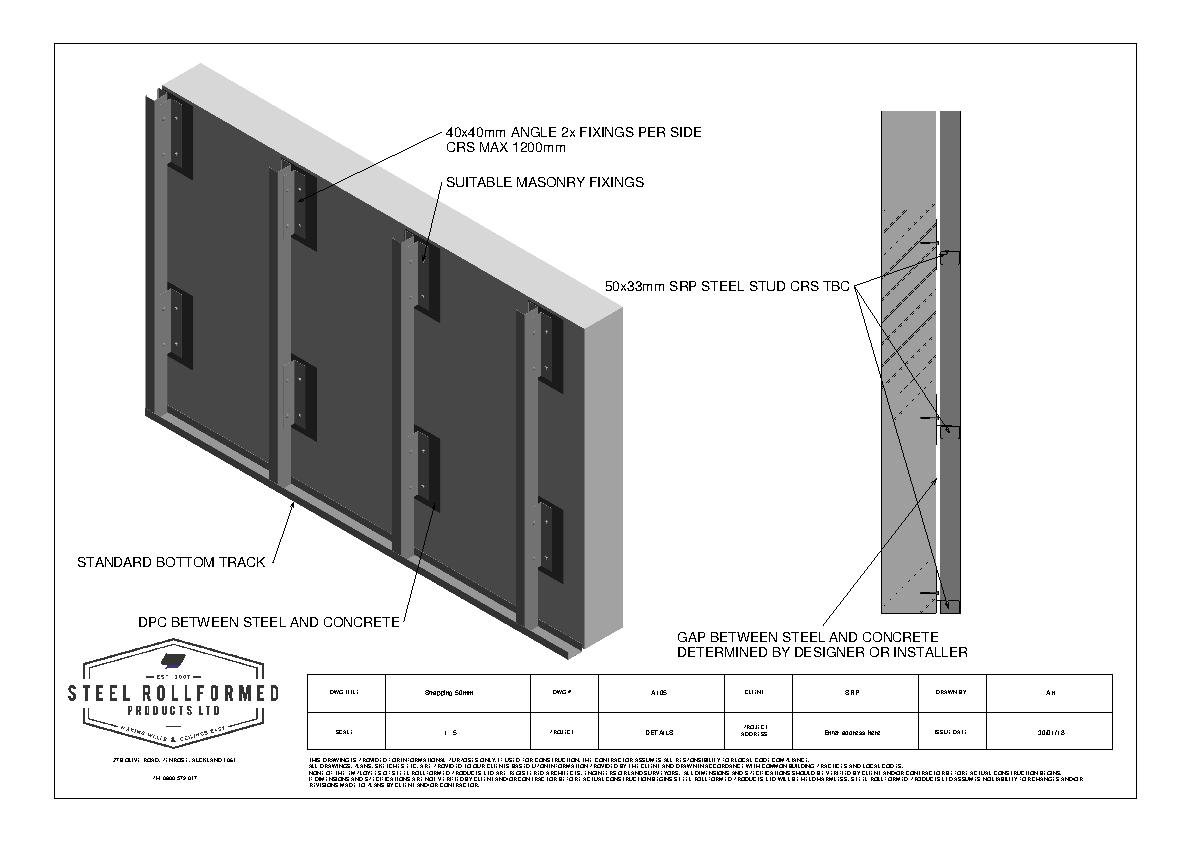

Strapping - Steel Stud, Angle Support

7/11/2019

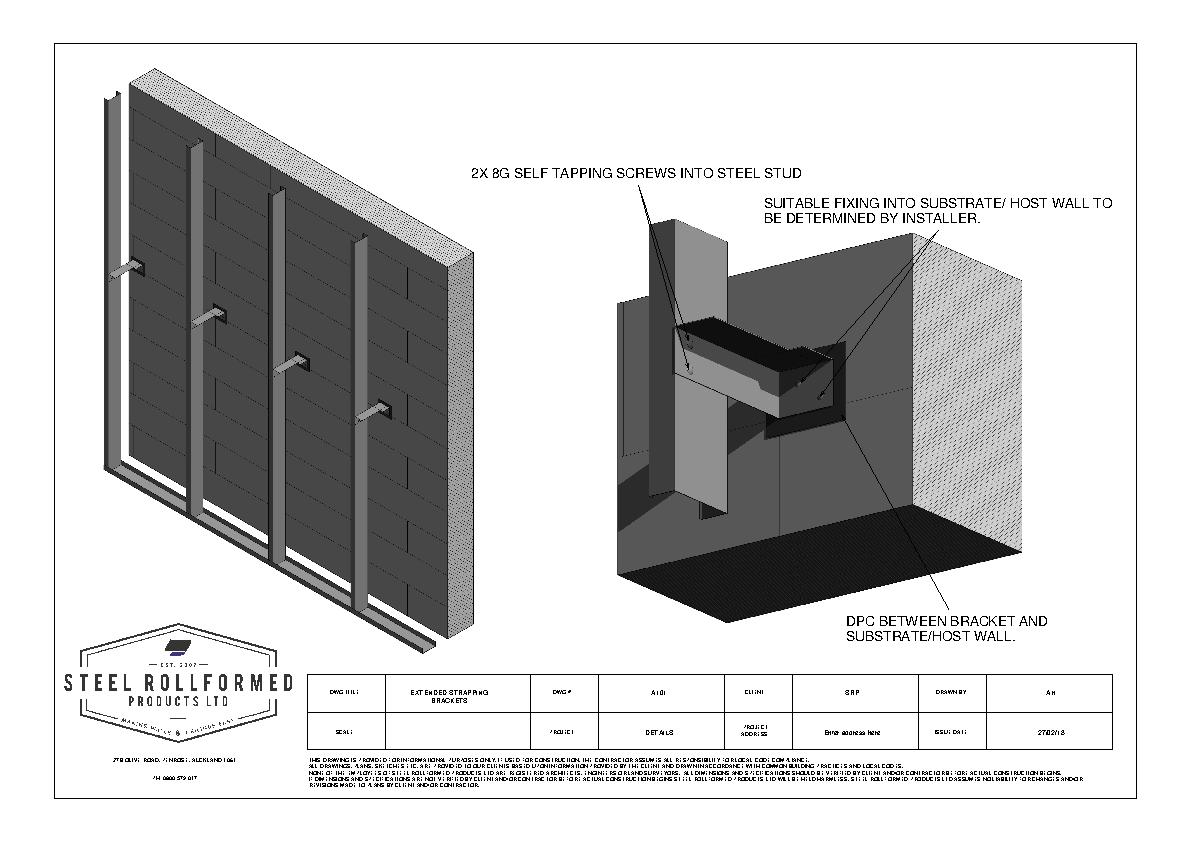

Stud Strapping - Extended

7/11/2019

Transverse Raking Deflection Head

7/11/2019

Whisperwall - Timber Nogging

7/11/2019
