Scyon Range a Strong, Renewable, Advanced Cement Composite

The advanced cement composite of Scyon harnesses the strength of the tough natural elements that would otherwise act against it. By extracting these properties, Scyon represents a smarter way to build from the moment of manufacture right through to installation.

A tough alternative, the Scyon products are designed with workability in mind. Using renewable natural materials like recycled water and plantation pulp and ingenious manufacturing techniques, the makeup of Scyon ensures protection both of and from the environment.

The full Scyon product range includes:

Scyon Linea Weatherboard

Scyon Axon Panel

Scyon Stria Cladding

Scyon Axent Trim

Scyon Axent Fascia

Scyon Secura Interior Flooring

Scyon Secura Exterior Flooring

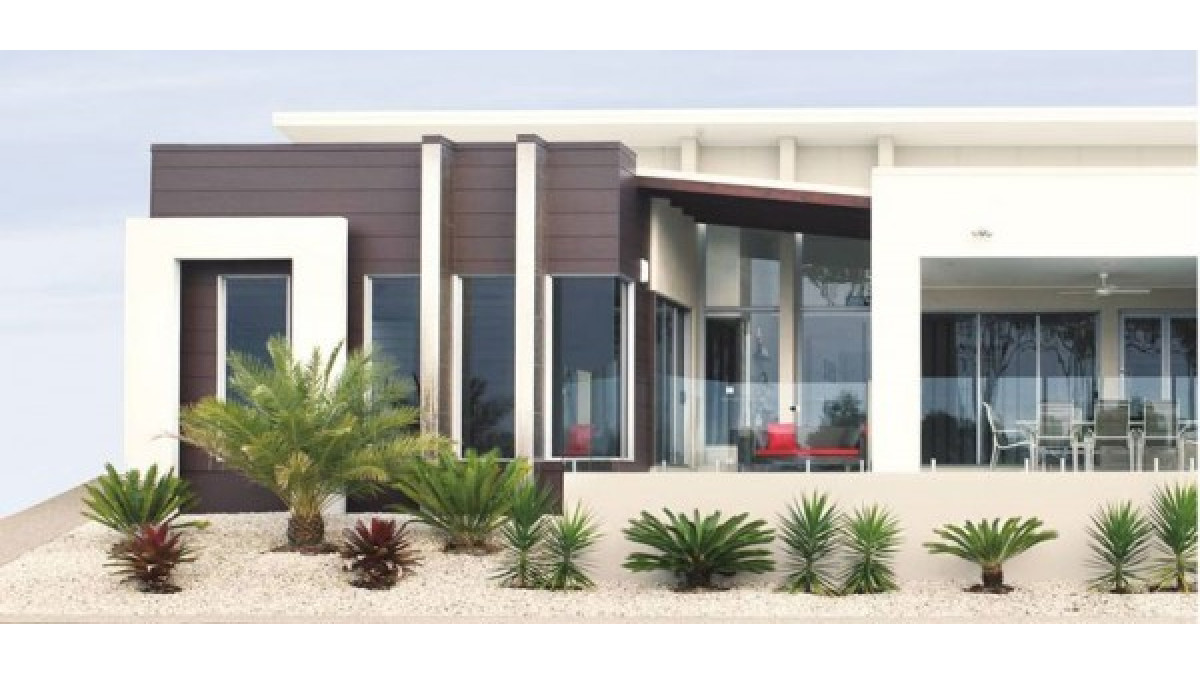

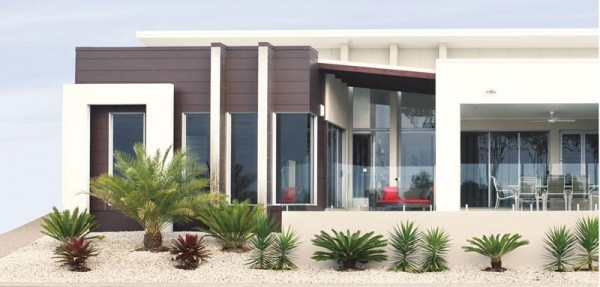

Scyon Stria cladding is an ideal example of what Scyon has to offer. It is ideal for residential and light commercial applications in both contemporary and classic designs. Scyon Stria cladding is a wide format cladding 405mm wide, with a 15mm horizontal groove, has the classic appeal of solid masonry.

It also has a simple, speedy installation method. The interlocking edges of Scyon Stria cladding allow for quick installation on the wall. It's made using James Hardie's patented CLD technology; advanced lightweight cement composite with heavy-duty performance. This technology enables thicker profiles, which are lighter to handle and it delivers enhanced durability and stability.

Stria Cladding

James Hardie

View Product

Stria™ Cladding is a wide format board that has the classic appeal of decorative render and solid masonry.

NZ Made

For use as an external wall cladding installed either horizontally or vertically in residential and light commercial:
- Feature walls
- Full cladding for new builds
- Cladding for additions and renovations
- Internal feature walls
- Ideal for overhangs, protective cantilevers and other architectural features
Designed to withstand harsh weather and coastal conditions
Can be painted any colour, even the darker shades

Feature walls
Full cladding for new builds
Cladding for additions and renovations
Internal feature walls
Ideal for overhangs, protective cantilevers and other architectural features

Corrosion Exposure Zone D

Specific Design Wind Zone

In the opinion of BRANZ, Stria™Cladding Horizontal, if designed, used, installed and maintained in accordance with the statements and conditions of this Appraisal, will meet the following provisions of the NZBC:

Clause B1 STRUCTURE: Performance B1.3.1, B1.3.2 and B1.3.4. Stria™Cladding Horizontal meets the requirements for loads arising from self-weight, wind, impact and creep [i.e. B1.3.3 (a), (h), (j) and (q)]. See Paragraphs 9.1-9.3.
Clause B2 DURABILITY: Performance B2.3.1 (b) 15 years, B2.3.1 (c) 5 years and B2.3.2. Stria™ Cladding Horizontal meets these requirements. See Paragraphs 10.1-10.4.
Clause E2 EXTERNAL MOISTURE: Performance E2.3.2. Stria™ Cladding Horizontal meets this requirement. See Paragraphs 14.1-14.5.
Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. Stria™ Cladding Horizontal meets this requirement.

See BRANZ Appraisal No. 1224 for full information

In the opinion of BRANZ, Stria™ Cladding Vertical, if designed, used, installed and maintained in accordance with the statements and conditions of this Appraisal, will meet the following provisions of the NZBC:

Clause B1 STRUCTURE: Performance B1.3.1, B1.3.2 and B1.3.4. Stria™ Cladding Vertical meets the requirements for loads arising from self-weight, wind, impact and creep [i.e. B1.3.3 (a), (h), (j) and (q)]. See Paragraphs 9.1-9.3.
Clause B2 DURABILITY: Performance B2.3.1 (b) 15 years, B2.3.1 (c) 5 years and B2.3.2. Stria™ Cladding Vertical meets these requirements. See Paragraphs 10.1-10.4.
Clause E2 EXTERNAL MOISTURE: Performance E2.3.2. Stria™ Cladding Vertical meets this requirement. See Paragraphs 14.1-14.5.
Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. Stria™ Cladding Vertical meets this requirement.

See BRANZ Appraisal No. 1225 for full information

The system if designed, used, installed and maintained in accordance with CodeMark number GM-CM30109 will meet the following provisions of the NZBC:

Clause B1 STRUCTURE: Performance B1.3.1, B1.3.2, B1.3.4 for the relevant physical conditions of B1.3.3 (a), (f), (h), (j) and (q).
Clause B2 DURABILITY: Performance B2.3.1(b) 15 years and B2.3.2.
Clause C3 FIRE AFFECTING AREAS BEYOND THE FIRE SOURCE: Performance C3.5, C3.7
Clause E2 EXTERNAL MOISTURE: Performance E2.3.2, E2.3.5, E2.3.6 and E2.3.7
Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1.

See CodeMark number GM-CM30109 for full information

Structure

Durability

Protection from Fire

External Moisture

Hazardous Building Materials

Energy Efficiency

BRANZ Appraised

CodeMark
