Linea Oblique Weatherboard
Description

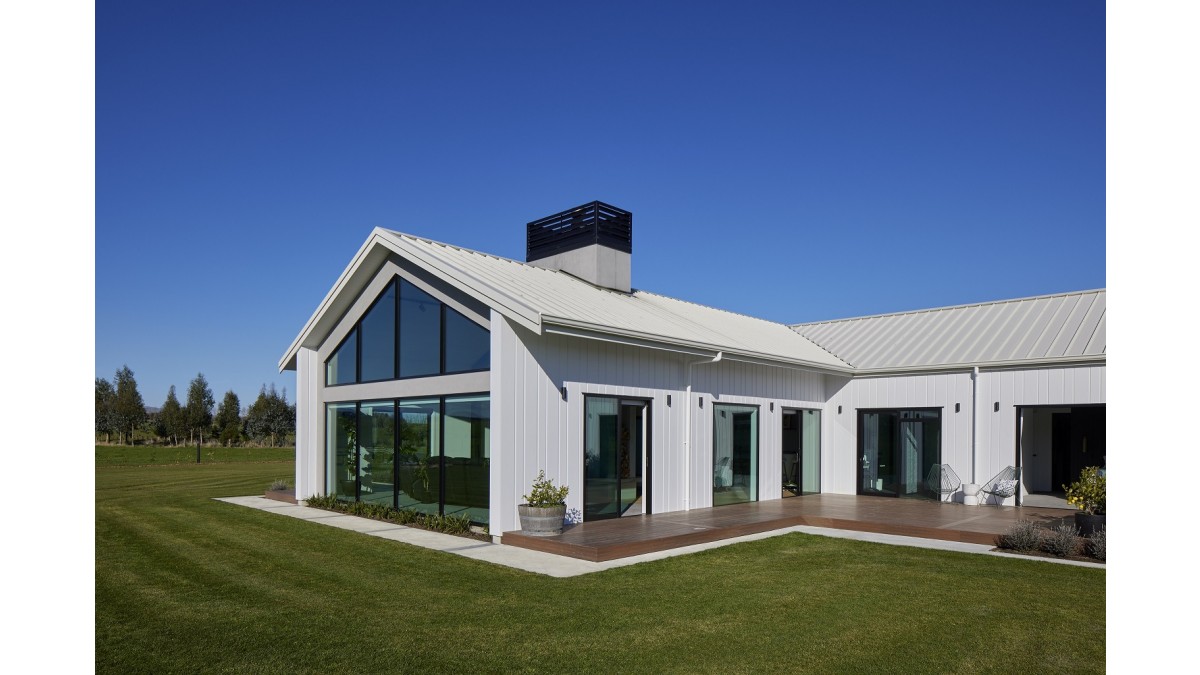

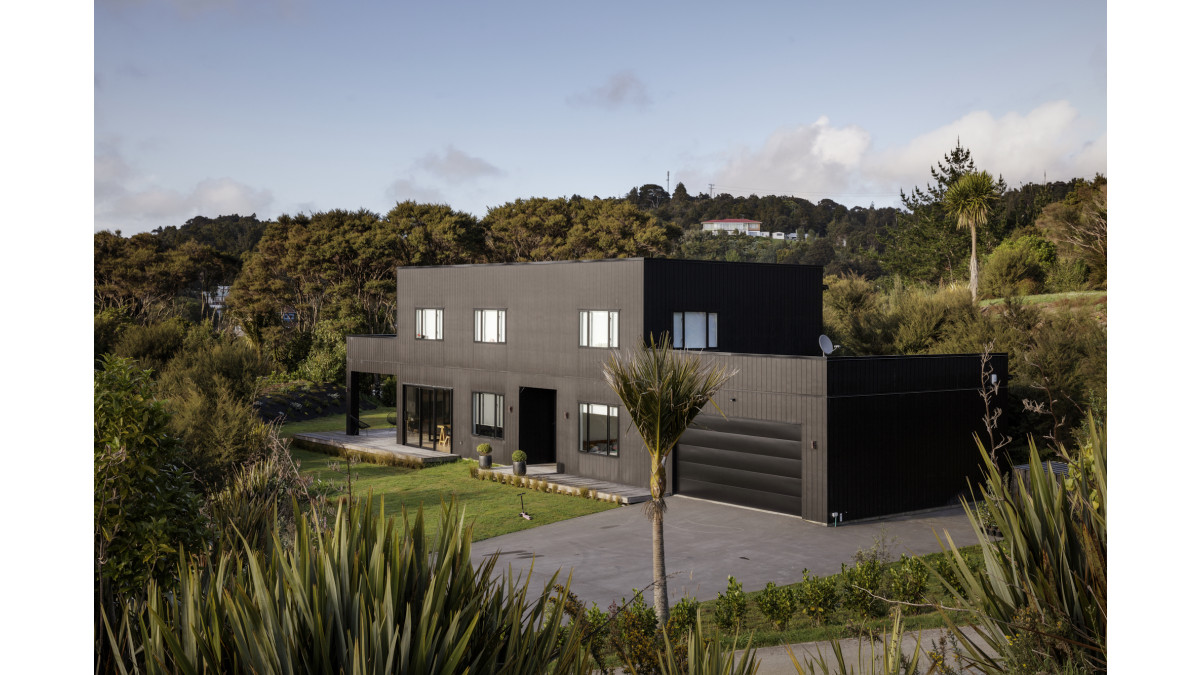

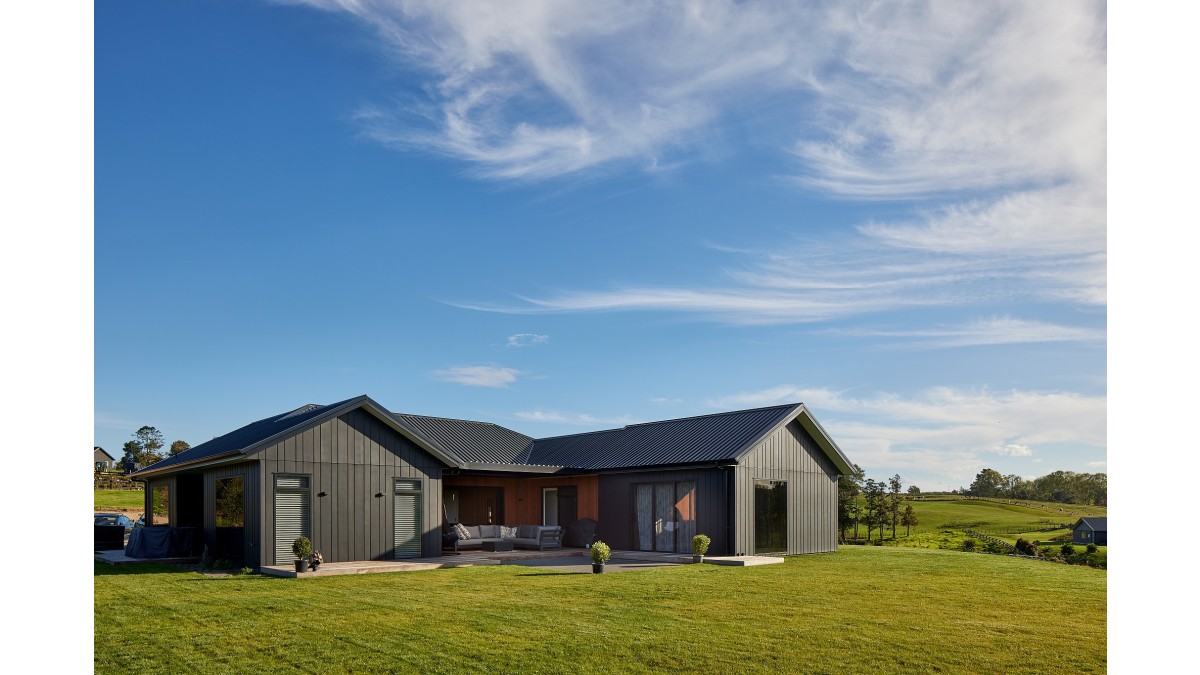

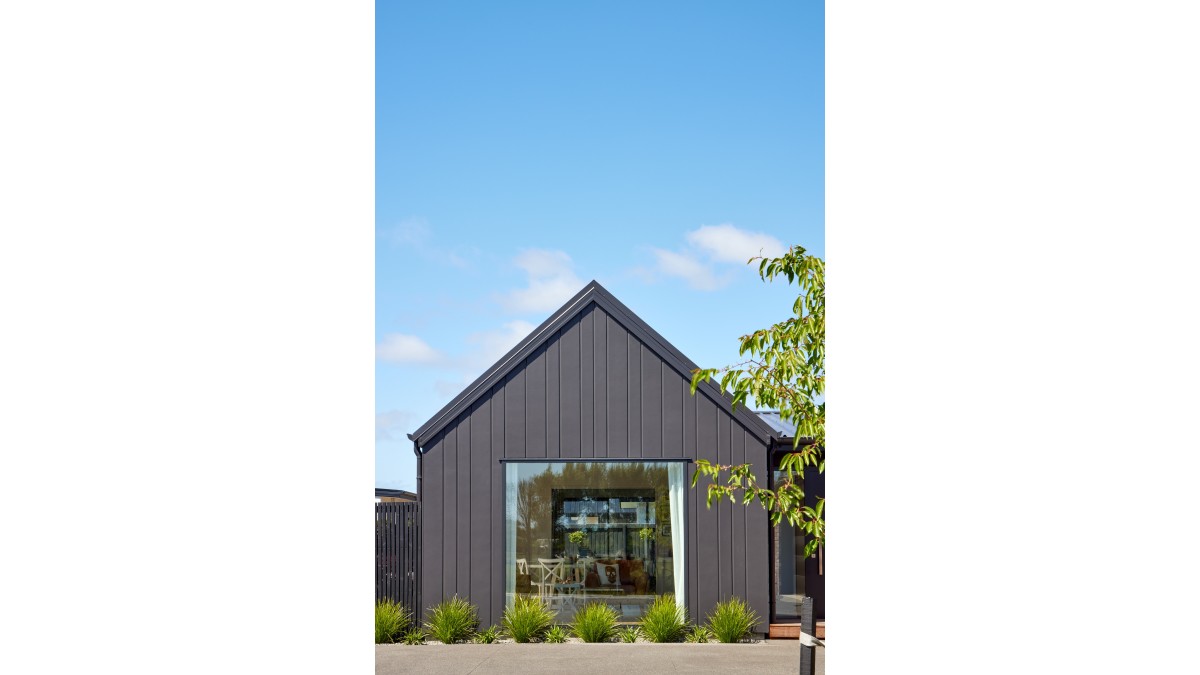

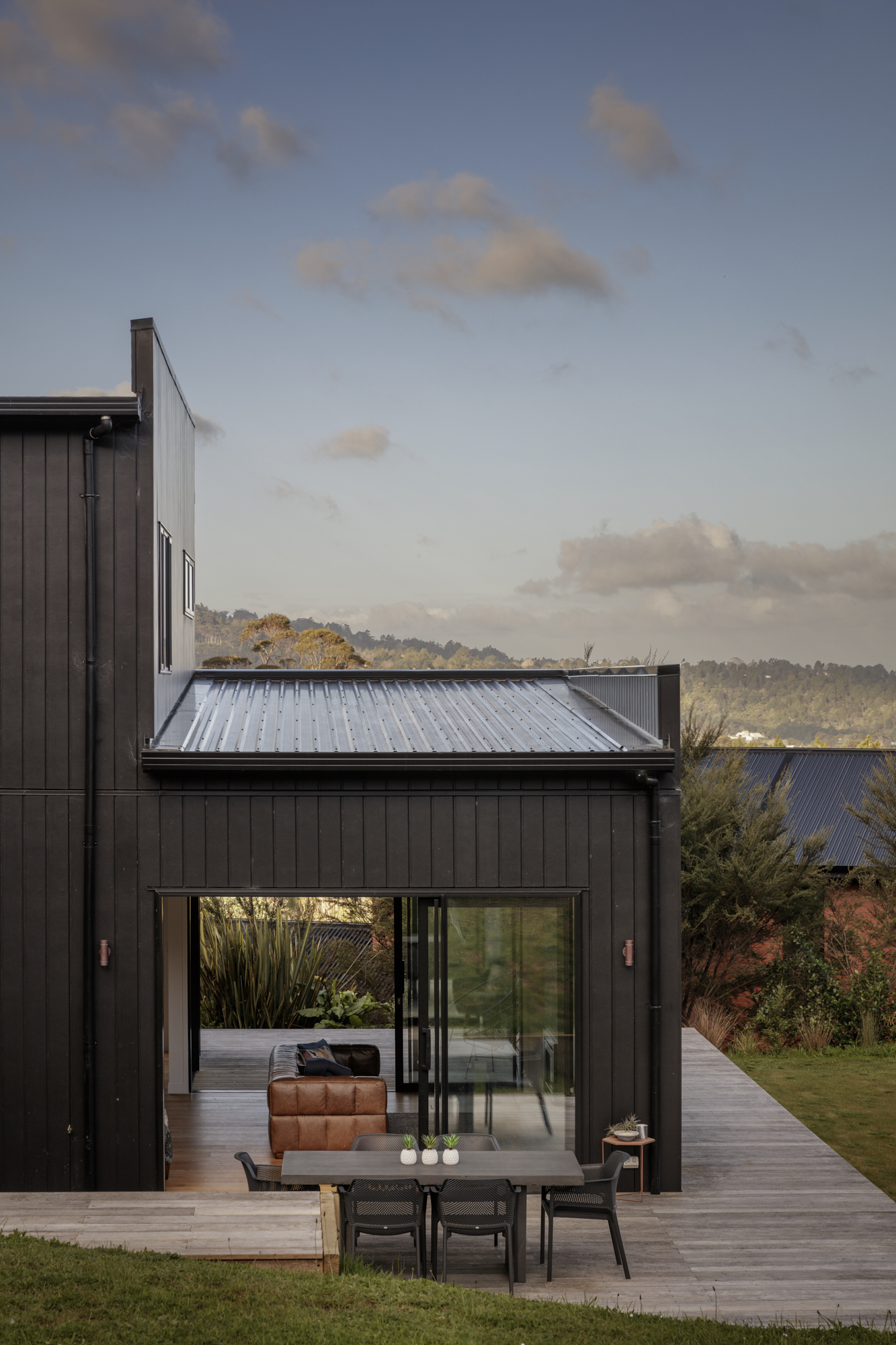

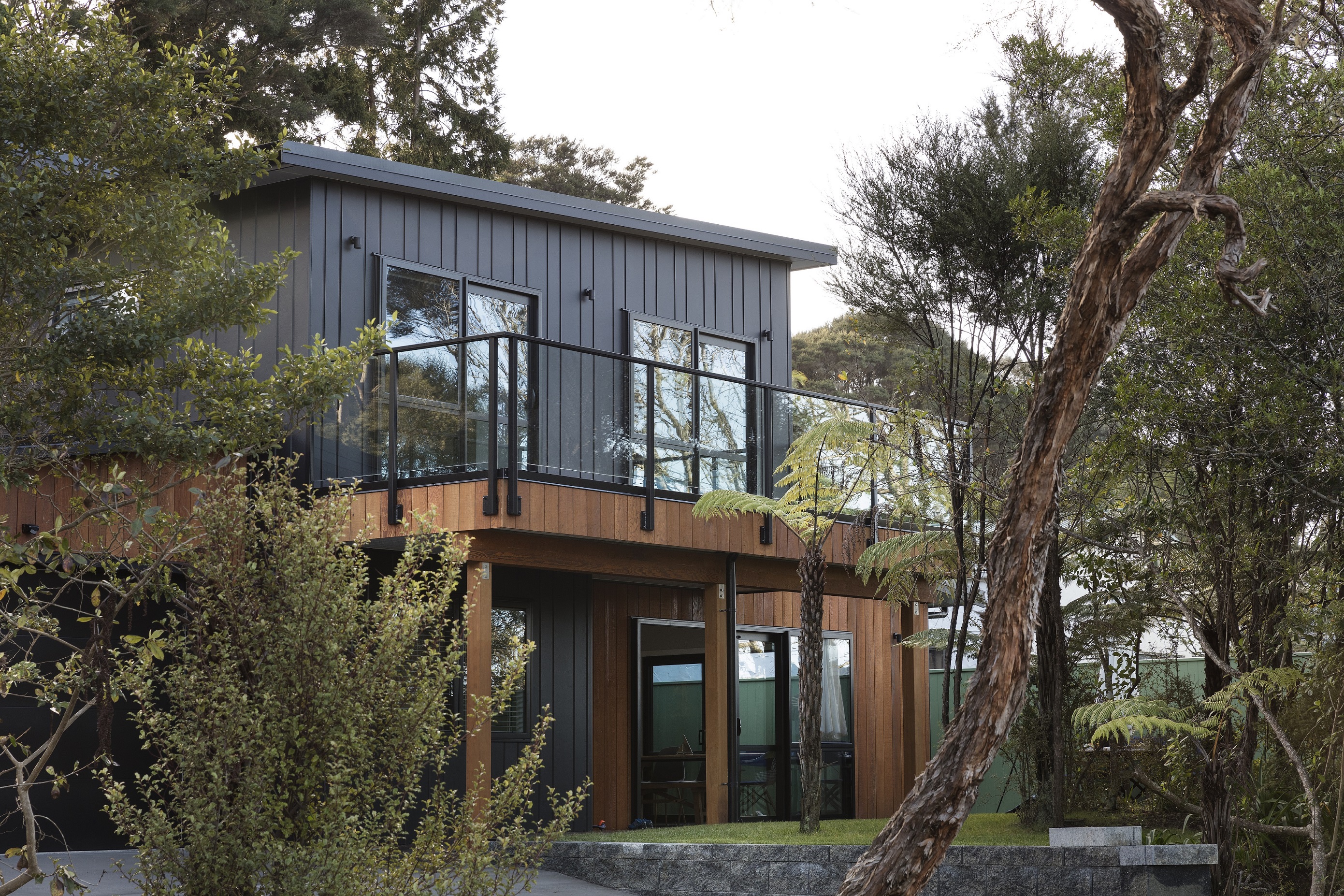

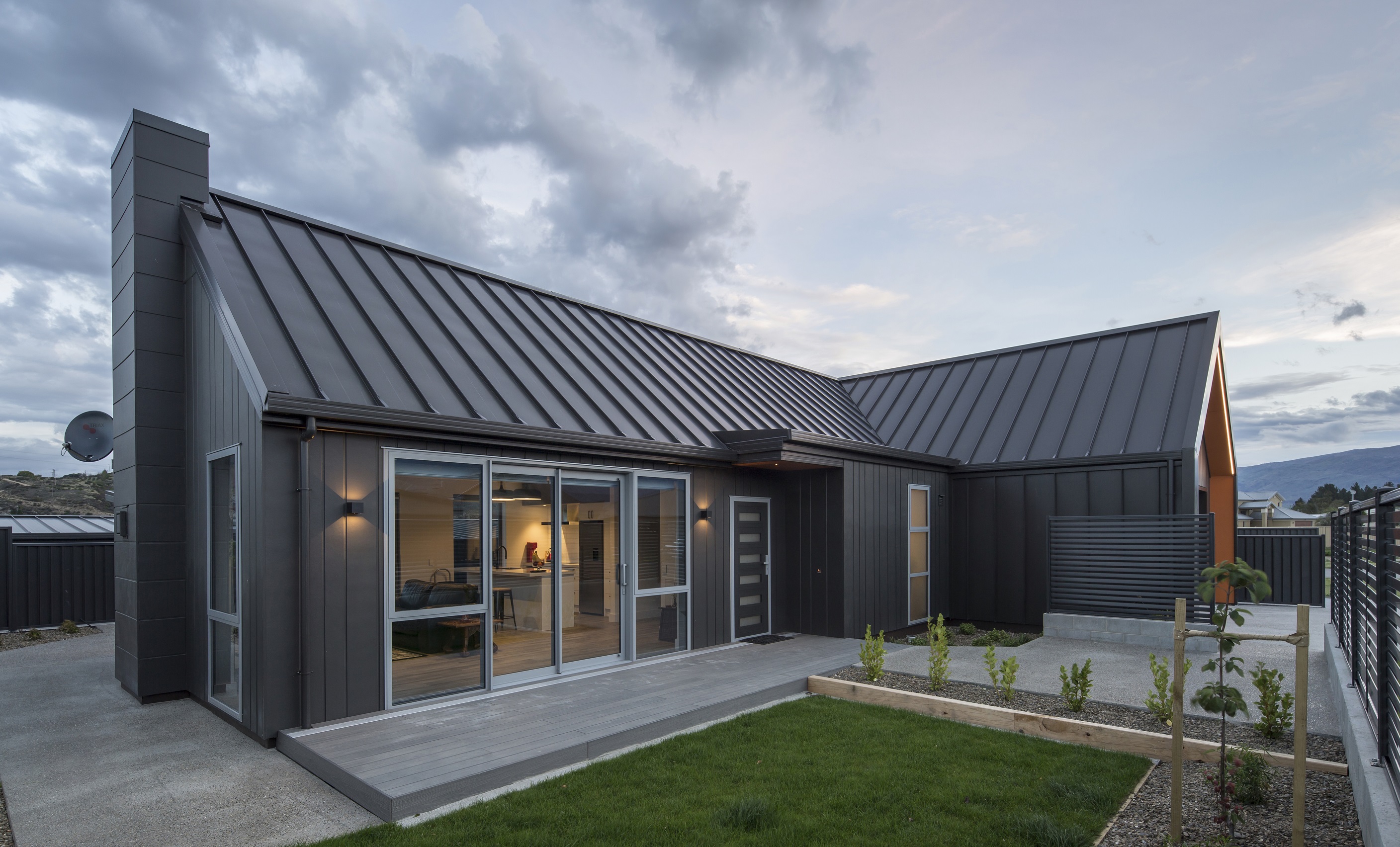

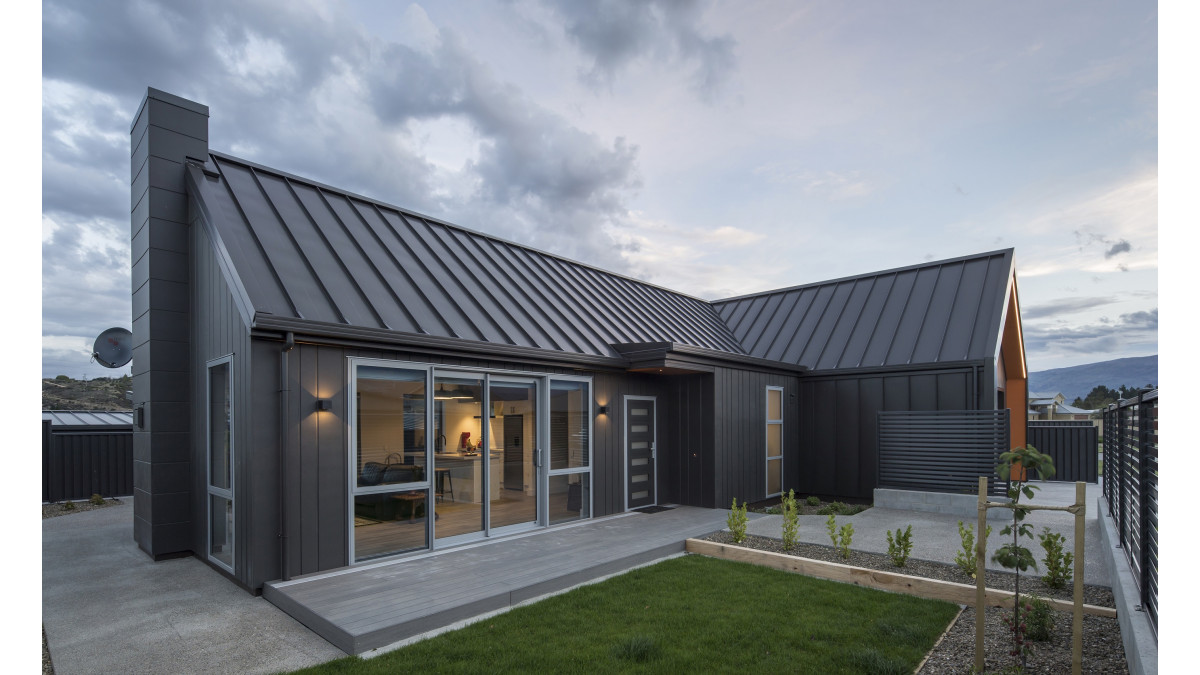

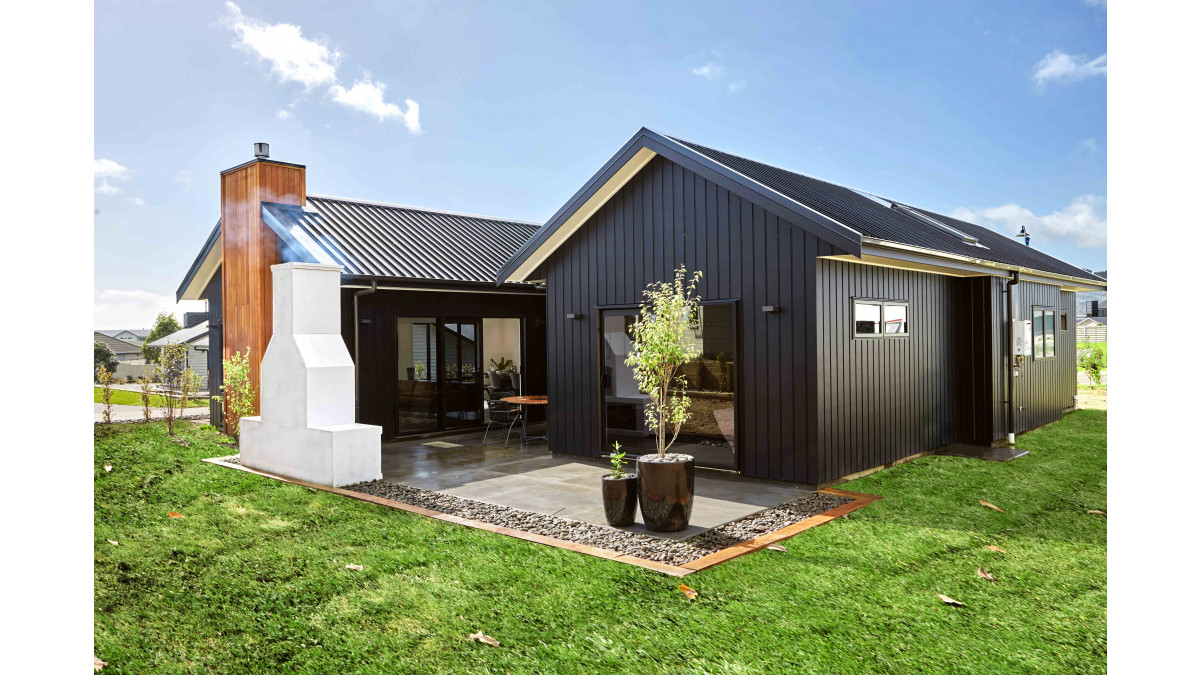

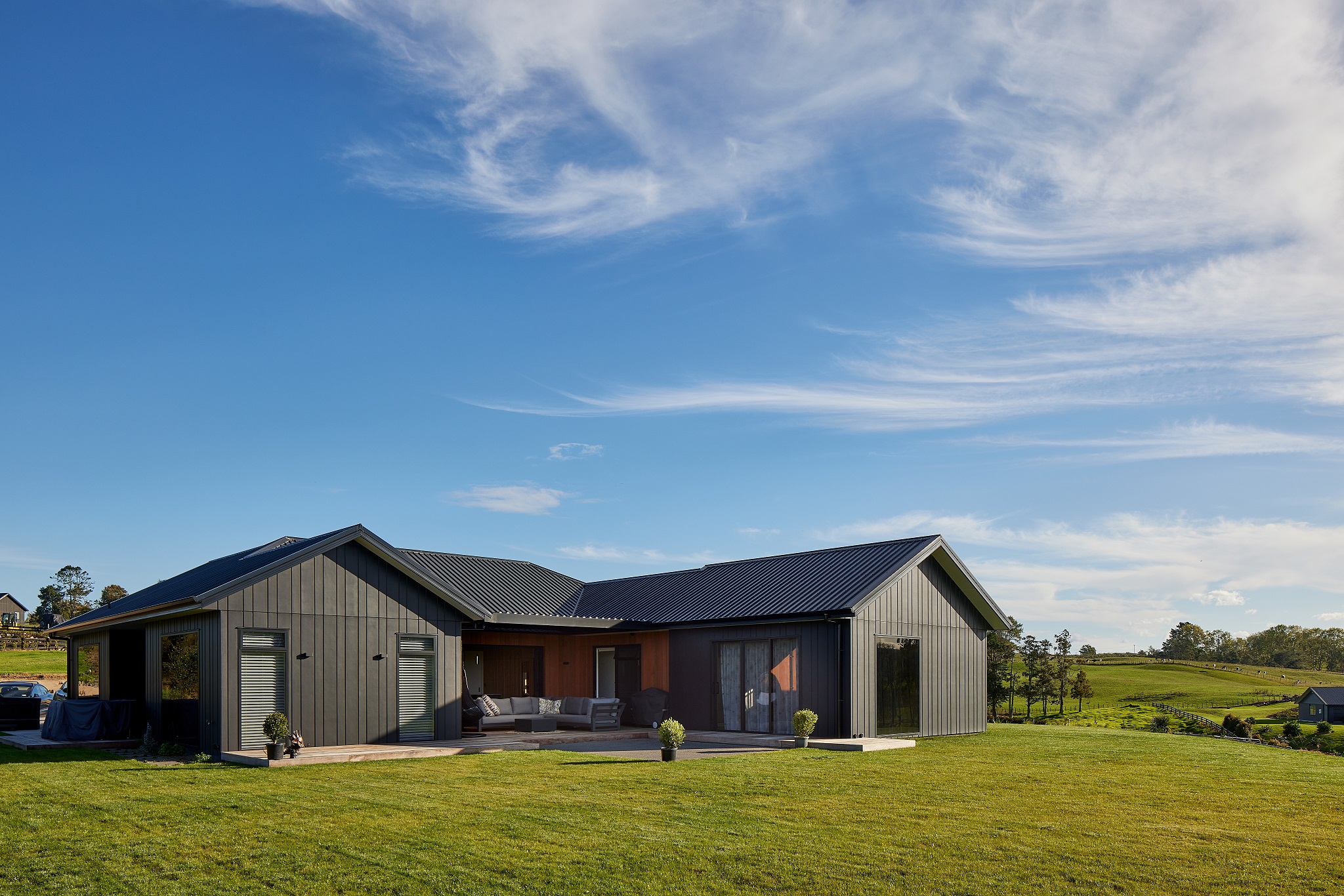

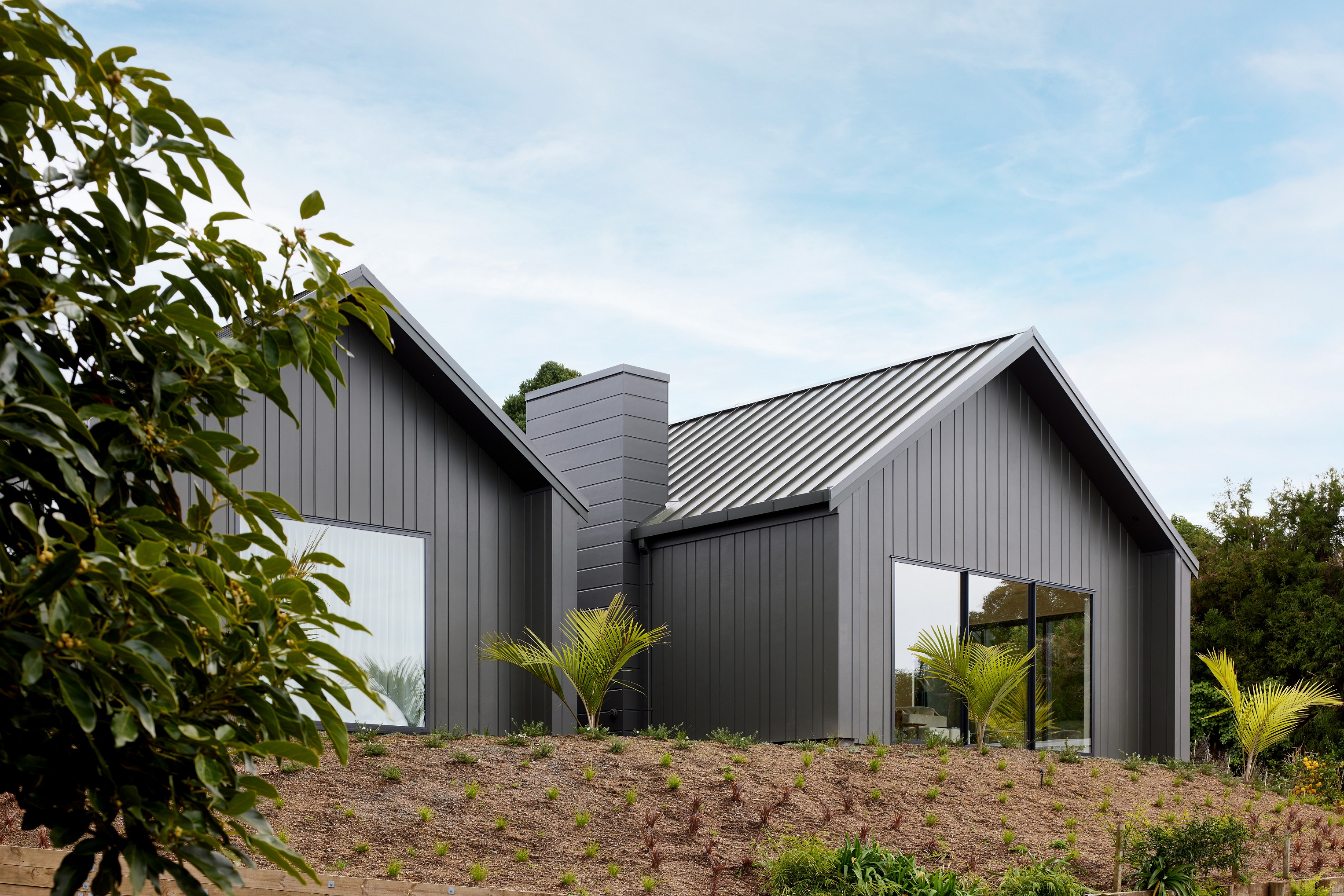

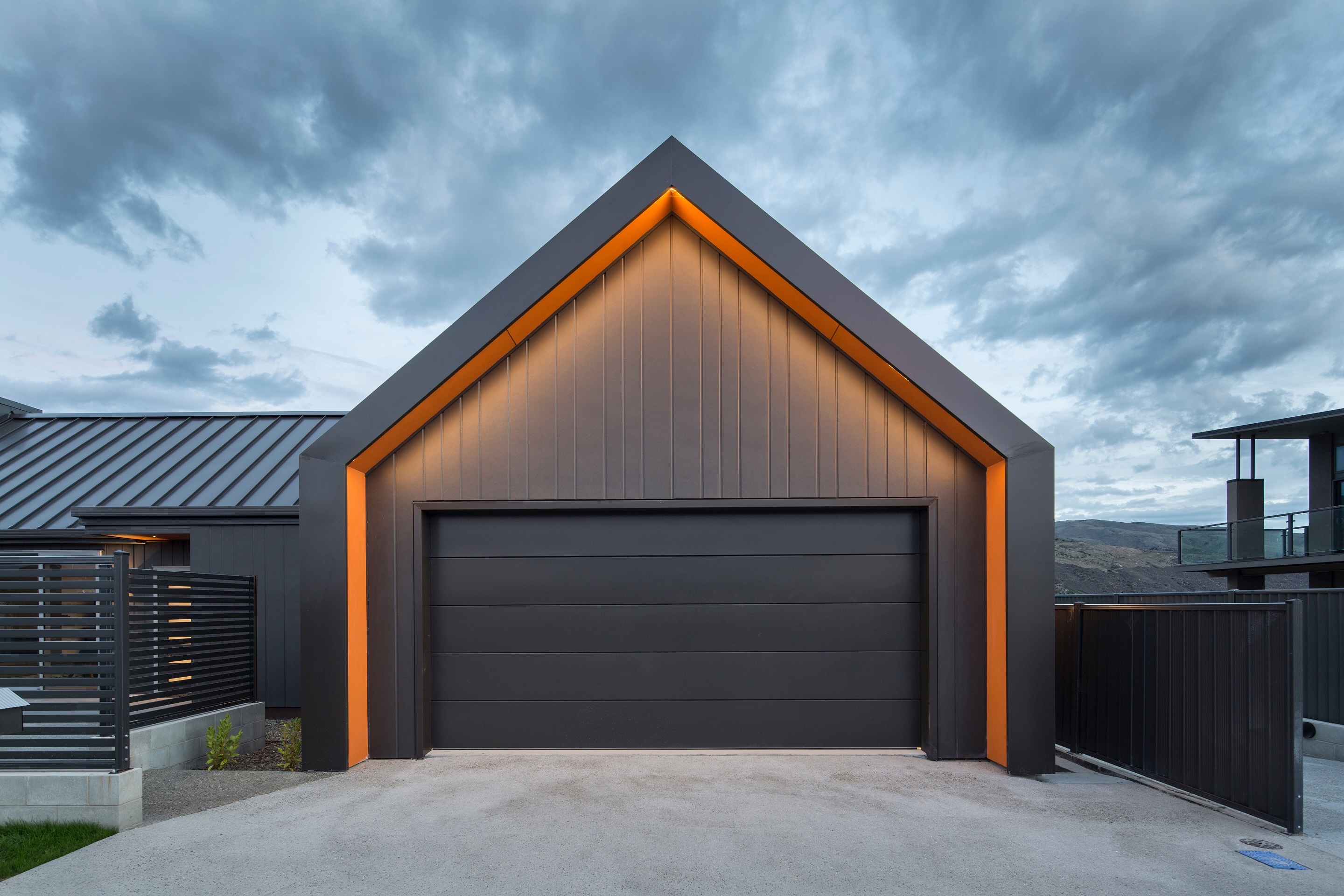

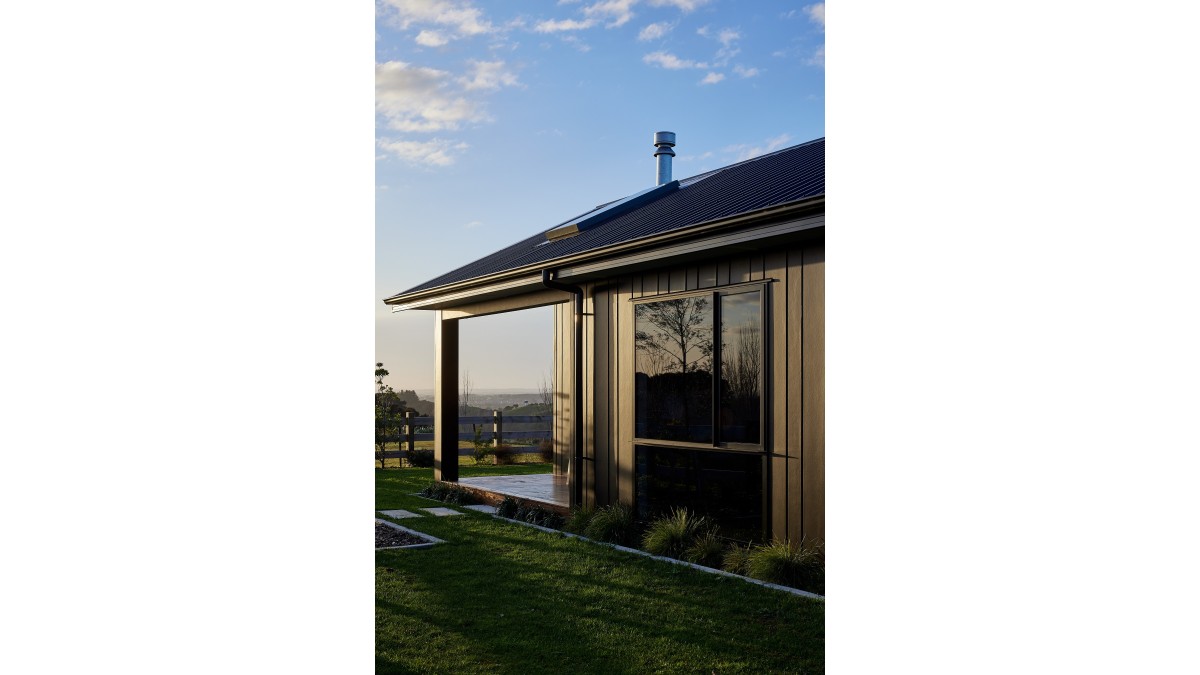

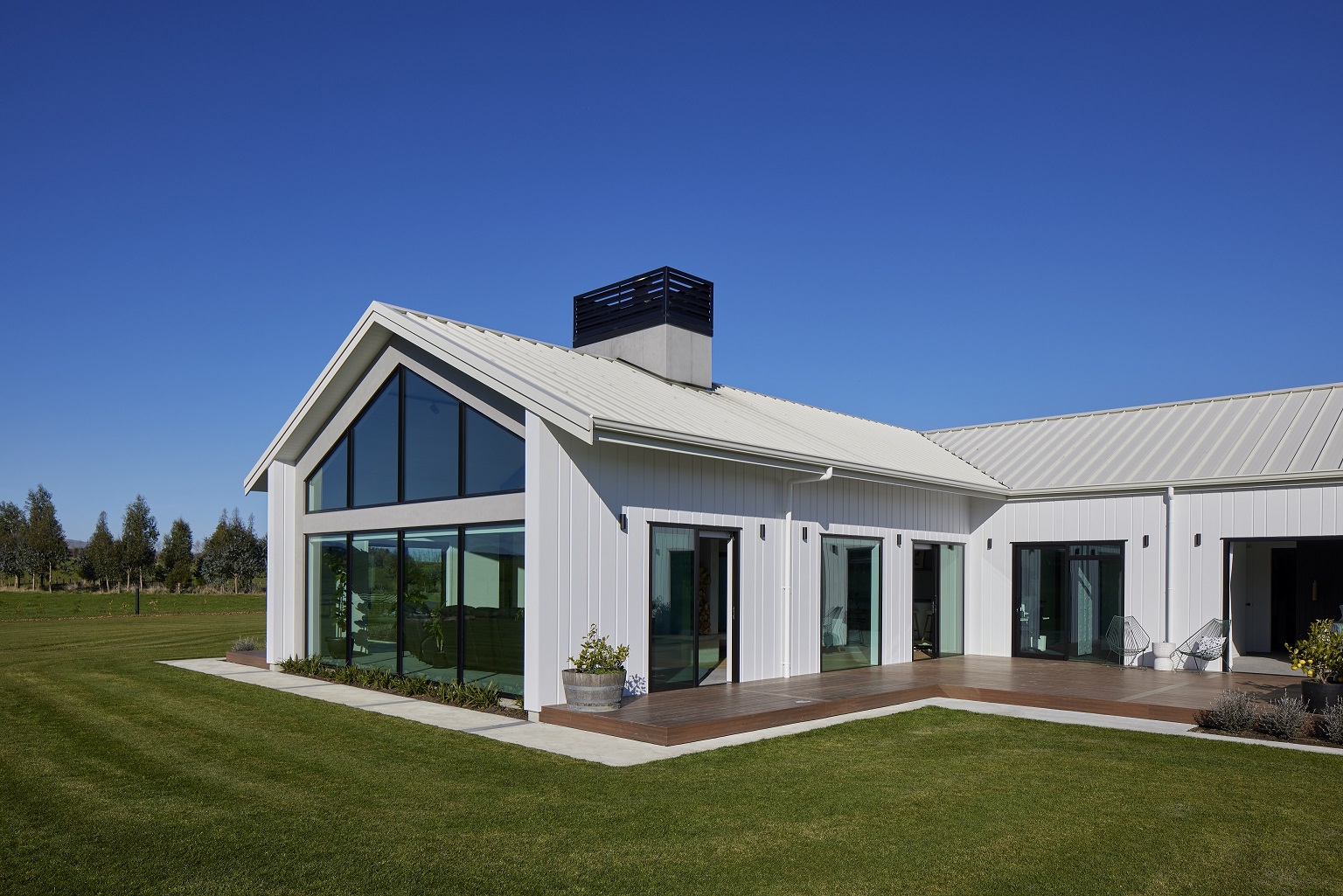

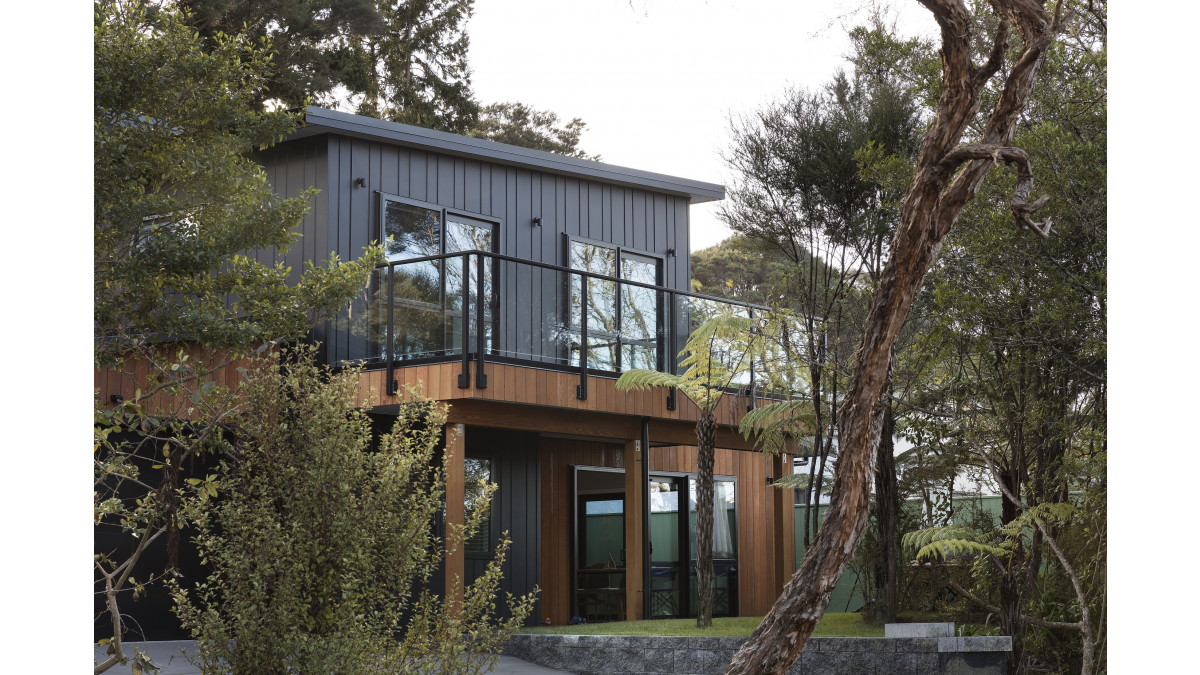

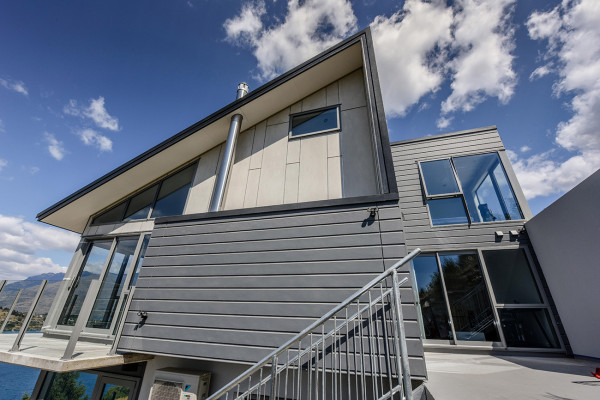

Linea Oblique Weatherboard is a fibre cement product and can be used in both horizontal and vertical applications enabling a range of different looks and designs.

Available in two widths, Linea Oblique Weatherboard can be used to create colourful feature walls, full cladding for new builds, cladding for additions and renovations and internal feature walls. It is lightweight and durable, making it ideal for overhangs, protective cantilevers and other striking architectural features.

Linea Oblique Weatherboard provides classic and contemporary design solutions, all with the added benefits of premium fibre cement.

Product Profile:

  • 16mm thick
  • 2700mm or 4200mm long
  • 200mm or 300mm wide
Key Features
  • Engineered to stand up to harsh conditions, including coastal conditions
  • Can be painted any colour, even the darker shades
  • Cost effective and long lasting
  • Resistant to damage from moisture and rotting
  • Up to 60 minute fire resistance rating (FRR) can be achieved when installed as per the James Hardie Fire and Acoustic Design Manual
  • A vertical jointing option is available to create feature along long walls
  • Comes pre-primed in a manila white colour
  • Classified as non-combustible material
  • Low maintenance
  • CodeMark Certified
  • BRANZ Appraised
  • 25 year product warranty
NZ Made
NZ Made
Scope of Use
  • Used to create colourful feature walls, full cladding for new builds, cladding for additions and renovations and internal feature walls
  • Suitable for both horizontal and vertical applications
  • Ideal for overhangs, protective cantilevers, and other architectural features
  • Up to 60 minute fire resistance rating (FRR) can be achieved when installed as per the James Hardie Fire and Acoustic Design Manual
  • A vertical jointing option is available to create feature along long walls
  • Engineered to stand up to harsh conditions, including coastal conditions
  • Can be painted any colour, even the darker shades
NZS 3604 Corrosion Zone D suitable
Corrosion Exposure Zone D
NZS 3604 Wind Zone Extra High suitable
Extra High Wind Zone
Statement of Building Code Compliance

The following clauses of the NZBC are applicable to Linea Oblique Weatherboard and it complies with these requirements as explained below;

  • Structure B1: Wind load tests have been completed at a NATA accredited James Hardie laboratory and the suitability of its fixings has been verified to meet wind pressure requirement in various wind zones classified in NZS 3604 and meets the requirements of B1.3.1, B1.3.2 and B1.3.4.
  • Durability B2: Linea Oblique Weatherboard has been tested at a NATA accredited laboratory in accordance with AS/NZS 2908.2 and meets the durability performance requirements as per B2.3.1(a) and B2.3.2 of this clause.
  • Fire Performance  C: Linea Oblique Weatherboard has been tested and is classified as non-combustible material and is suitable for use on external walls close to boundaries.
  • External Moisture E2: Linea Oblique Weatherboard as per the details published in its technical specification has been tested for weathertightness as per E2/VM1 (as contained within NZBC Clause E2, Third Edition, Amendment 5).
  • Hazardous Building Materials F2: Linea Oblique Weatherboard complies with the requirements of F2.3.1 and will not present a health hazard.
  • Energy Efficiency H1: Linea Oblique Weatherboardl walls constructed using bulk insulation meets the construction R-Value requirements as per Table 1 of Clause H1.
Other Performance Attributes
  • CodeMark Certified
  • BRANZ Appraised
  • Resistant to damage from moisture and rotting
  • Up to 60 minute fire resistance rating (FRR) can be achieved when installed as per the James Hardie Fire and Acoustic Design Manual
  • Classified as non-combustible material
  • Low maintenance
  • 25 year product warranty
B1 Structure compliant
Structure
B2 Durability compliant
Durability
C Protection from Fire compliant
Protection from Fire
E2 External Moisture compliant
External Moisture
F2 Hazardous Building Materials compliant
Hazardous Building Materials
H1 Energy Efficiency compliant
Energy Efficiency
BRANZ Appraised
BRANZ Appraised
CodeMark
CodeMark
Documents
CAD/PDF
Fire and Acoustic Design Manual
Product Technical Statement
CodeMark Certificate
Independent Appraisal (BRANZ)
Independent Appraisal (BRANZ)
Brochure
Technical Manual: Horizontal
Technical Manual: Vertical
Technical Literature on Supplier Website
