New Stria Cladding Fine Texture | James Hardie

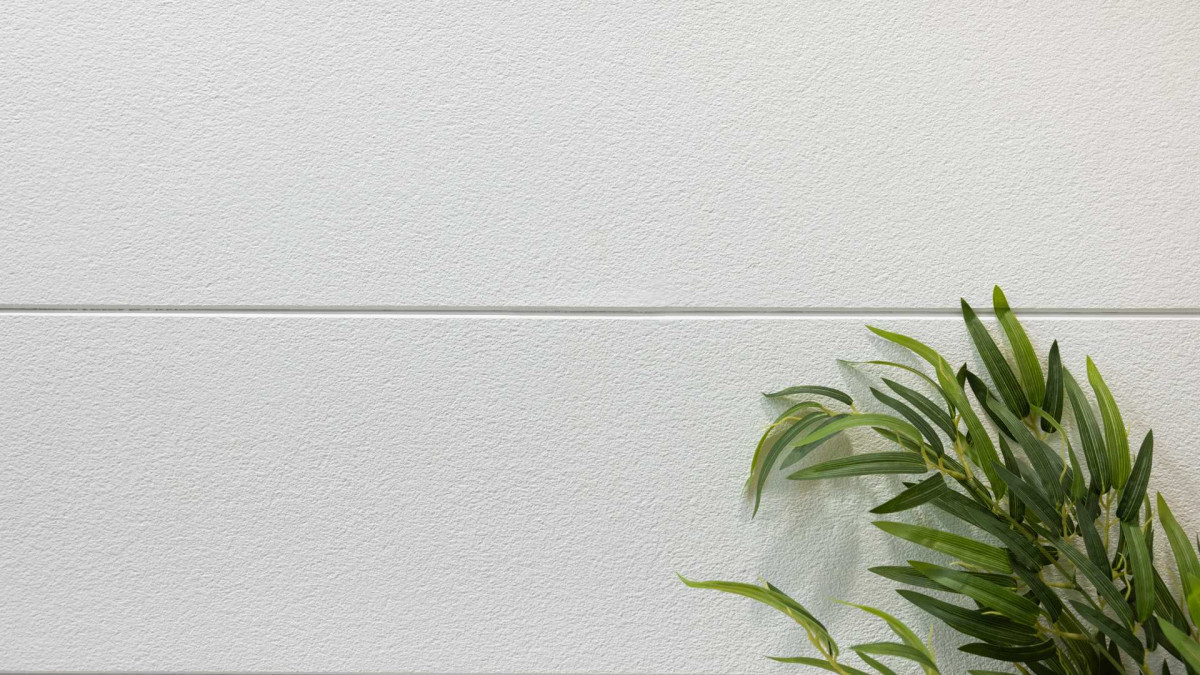

The new Stria Cladding Fine Texture profile offers a clean, contemporary look that works across a wide range of home designs; it can be used as full cladding for new builds, renovations or to create colourful internal feature walls.

Key specs:

Thickness: 14mm
Width: 325mm
Length: 3000mm or 4200mm

Application

Stria Cladding Fine Texture is lightweight and durable, making it ideal for overhangs, protective cantilevers and other striking architectural features.

Horizontal

Installed horizontally to provide a look reminiscent of masonry with the distinctive lines of large format shiplap boards.

Vertical

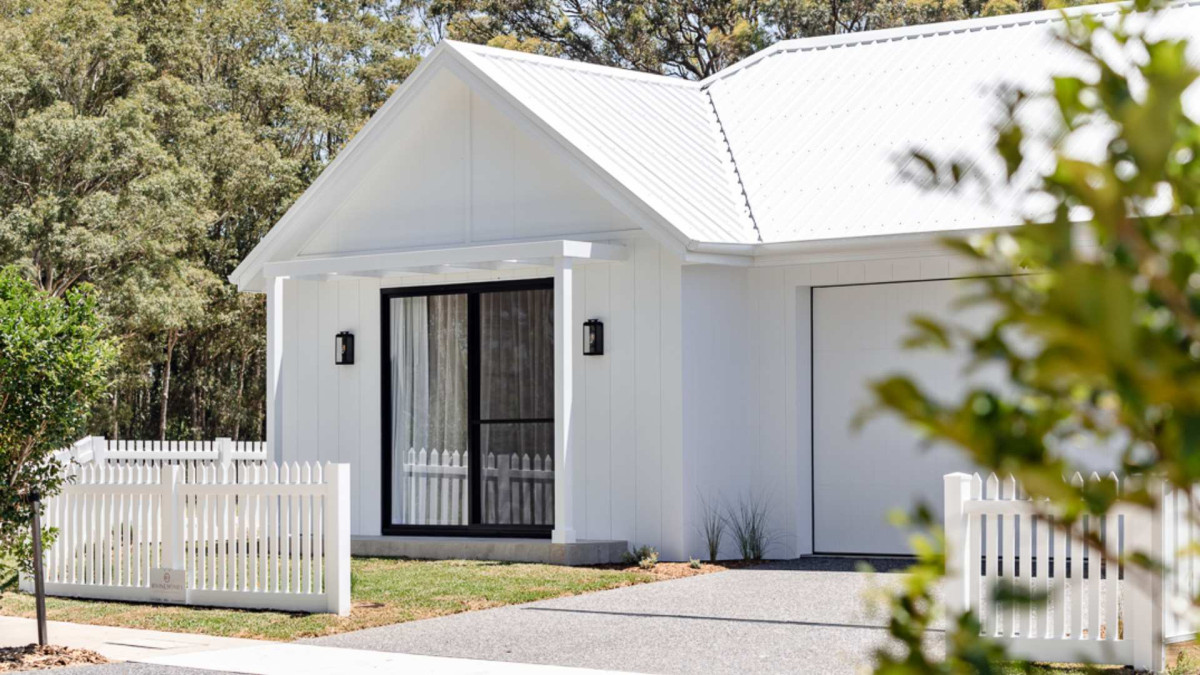

Installed vertically, it offers a versatile cladding solution equally suited to facades, features and broad walls.

Finish and durability

Boards come pre‑primed and ready to paint in a wide range of colours, including darker modern shades, and are designed to perform in New Zealand’s weather, including coastal conditions.

Stria Cladding Fine Texture is engineered to stand up to harsh environments, including coastal conditions.

Installation

The interlocking edges allow for quick and easy installation. The wide panel format allows faster installation, and concealed fixing.

Performance and compliance

Stria Cladding has been tested and complies to the new E2/VM2 verification method for building facades up to 25m high.

It is resistant to fire, rot resistant and resistant to moisture damage. Up to 60 minute fire resistance rating (FRR) can be achieved when installed as per the Fire and Acoustic Design Manual by James Hardie.

Certification and warranty

Stria Cladding Fine Texture is suitable for use where non‑combustible materials are required, is low maintenance, GreenTag Certified, CodeMark certified and BRANZ Appraised, and is backed by a 25 year product warranty.

Stria™ Cladding

James Hardie

View Product

Stria™ Cladding Smooth is an ultra-sleek cladding option that plays with definitive lines and shadows to instantly transform home designs into an extension of personal style.

NZ Made

For use as an external wall cladding installed either horizontally or vertically in residential and light commercial:
- Feature walls
- Full cladding for new builds
- Cladding for additions and renovations
- Internal feature walls
- Ideal for overhangs, protective cantilevers and other architectural features
Designed to withstand harsh weather and coastal conditions
Can be painted any colour, even the darker shades

Feature walls
Full cladding for new builds
Cladding for additions and renovations
Internal feature walls
Ideal for overhangs, protective cantilevers and other architectural features

In the opinion of BRANZ, Stria™Cladding Horizontal, if designed, used, installed and maintained in accordance with the statements and conditions of this Appraisal, will meet the following provisions of the NZBC:

Clause B1 STRUCTURE: Performance B1.3.1, B1.3.2 and B1.3.4. Stria™Cladding Horizontal meets the requirements for loads arising from self-weight, wind, impact and creep [i.e. B1.3.3 (a), (h), (j) and (q)]. See Paragraphs 9.1-9.3.
Clause B2 DURABILITY: Performance B2.3.1 (b) 15 years, B2.3.1 (c) 5 years and B2.3.2. Stria™ Cladding Horizontal meets these requirements. See Paragraphs 10.1-10.4.
Clause E2 EXTERNAL MOISTURE: Performance E2.3.2. Stria™ Cladding Horizontal meets this requirement. See Paragraphs 14.1-14.5.
Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. Stria™ Cladding Horizontal meets this requirement.

See BRANZ Appraisal No. 1224 for full information

In the opinion of BRANZ, Stria™ Cladding Vertical, if designed, used, installed and maintained in accordance with the statements and conditions of this Appraisal, will meet the following provisions of the NZBC:

Clause B1 STRUCTURE: Performance B1.3.1, B1.3.2 and B1.3.4. Stria™ Cladding Vertical meets the requirements for loads arising from self-weight, wind, impact and creep [i.e. B1.3.3 (a), (h), (j) and (q)]. See Paragraphs 9.1-9.3.
Clause B2 DURABILITY: Performance B2.3.1 (b) 15 years, B2.3.1 (c) 5 years and B2.3.2. Stria™ Cladding Vertical meets these requirements. See Paragraphs 10.1-10.4.
Clause E2 EXTERNAL MOISTURE: Performance E2.3.2. Stria™ Cladding Vertical meets this requirement. See Paragraphs 14.1-14.5.
Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. Stria™ Cladding Vertical meets this requirement.

See BRANZ Appraisal No. 1225 for full information

The system if designed, used, installed and maintained in accordance with CodeMark number GM-CM30109 will meet the following provisions of the NZBC:

Clause B1 STRUCTURE: Performance B1.3.1, B1.3.2, B1.3.4 for the relevant physical conditions of B1.3.3 (a), (f), (h), (j) and (q).
Clause B2 DURABILITY: Performance B2.3.1(b) 15 years and B2.3.2.
Clause C3 FIRE AFFECTING AREAS BEYOND THE FIRE SOURCE: Performance C3.5, C3.7
Clause E2 EXTERNAL MOISTURE: Performance E2.3.2, E2.3.5, E2.3.6 and E2.3.7
Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1.

See CodeMark number GM-CM30109 for full information

BRANZ Appraised

CodeMark

Green Tag Certified
