Stria Cladding
Description

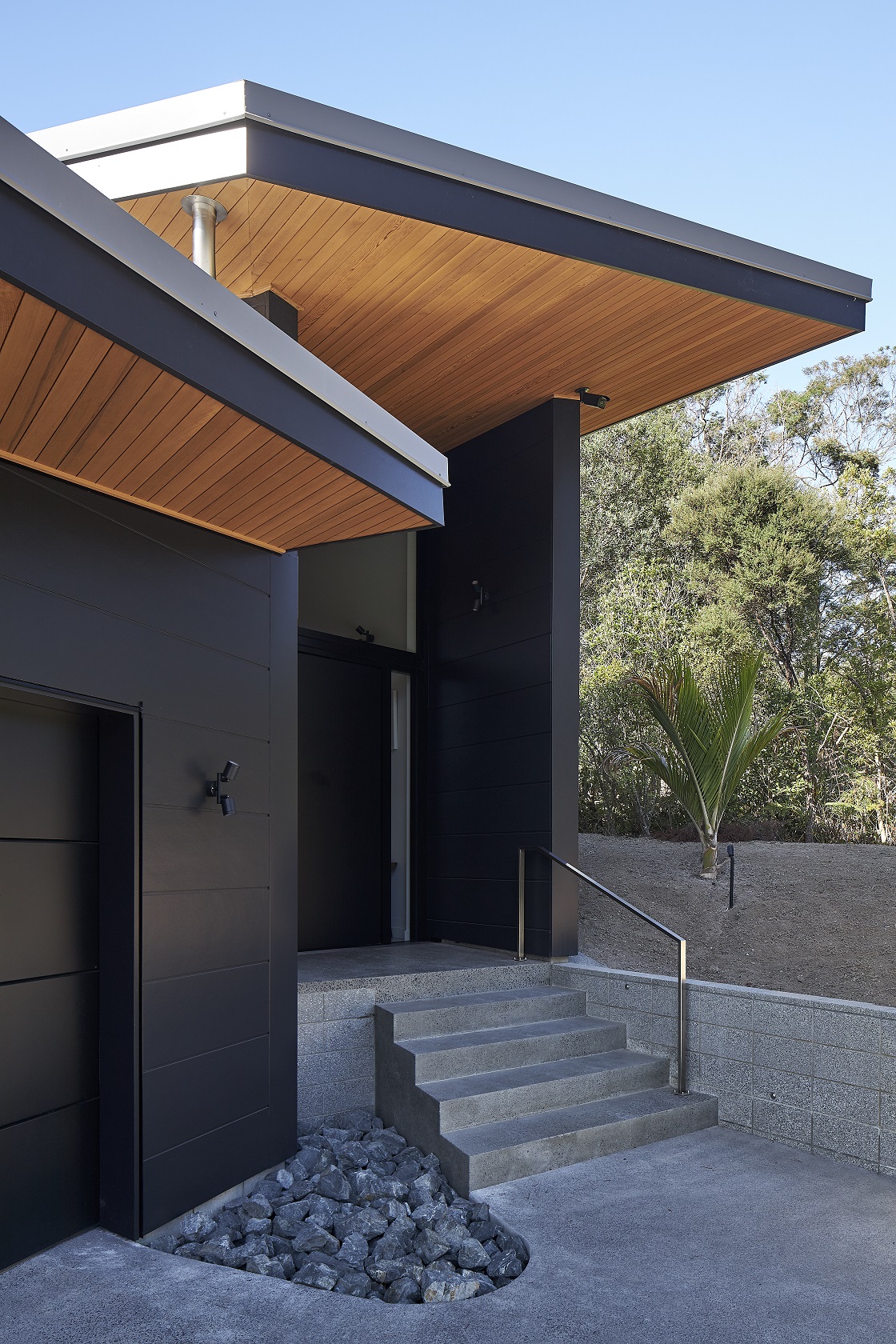

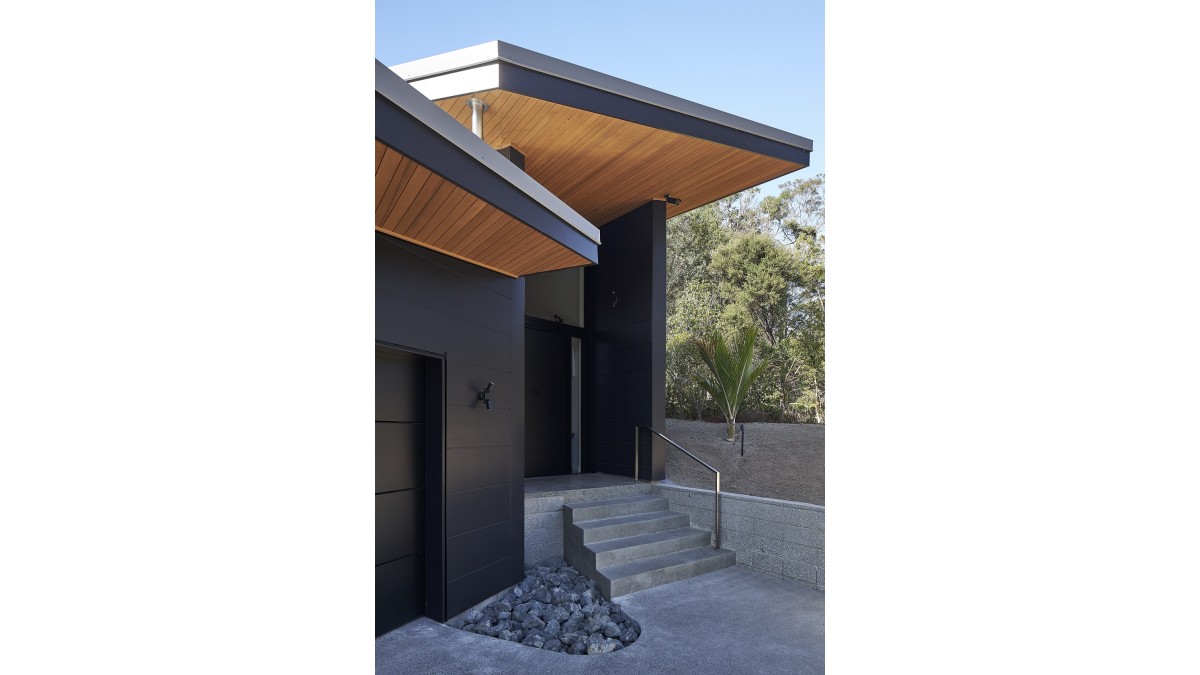

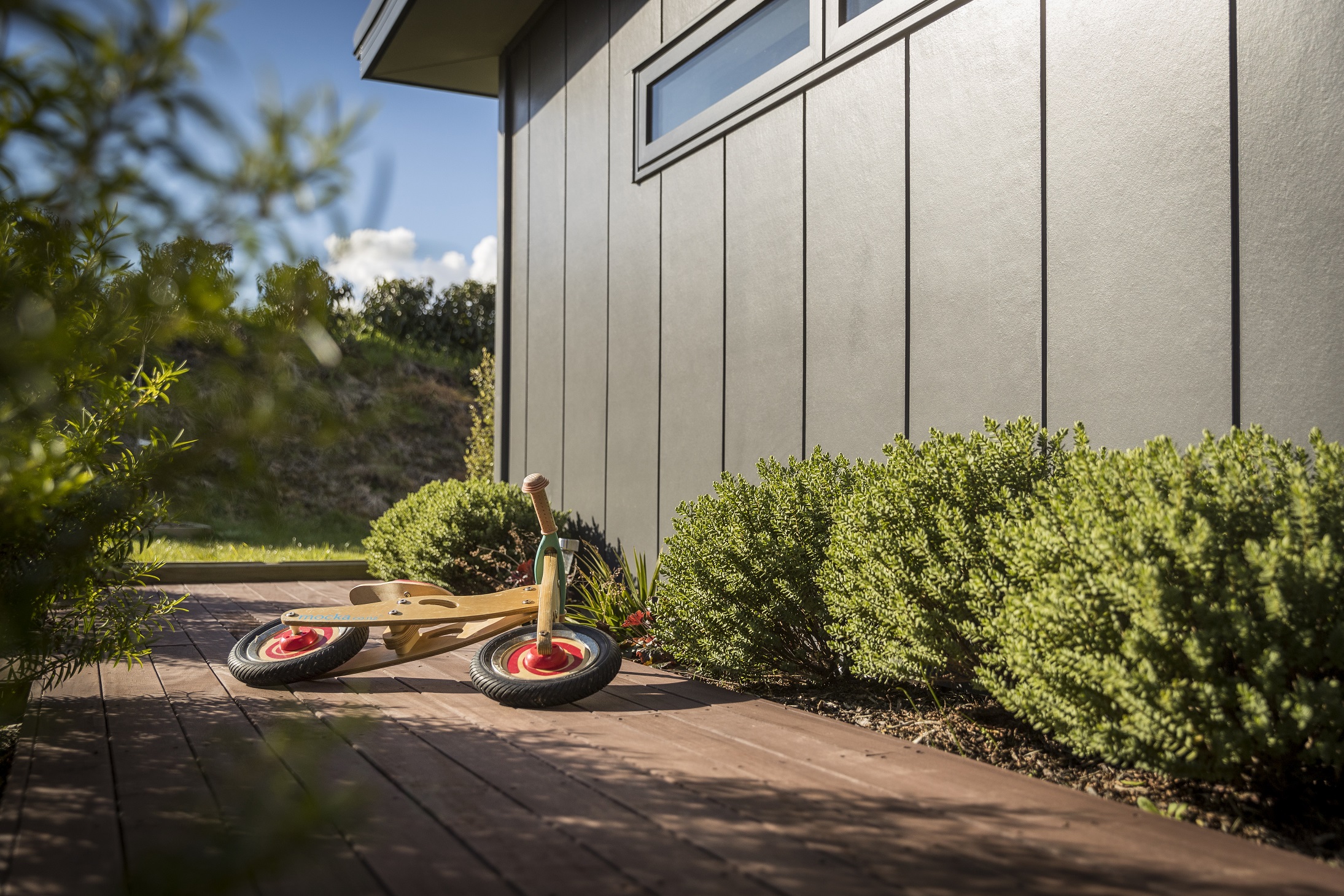

Stria Cladding is a wide format board that has the classic appeal of decorative render and solid masonry. Pre-primed and easy to install, Stria Cladding is the fast way to achieve a timeless look. For use as an external wall cladding installed either horizontally or vertically in residential and light commercial.

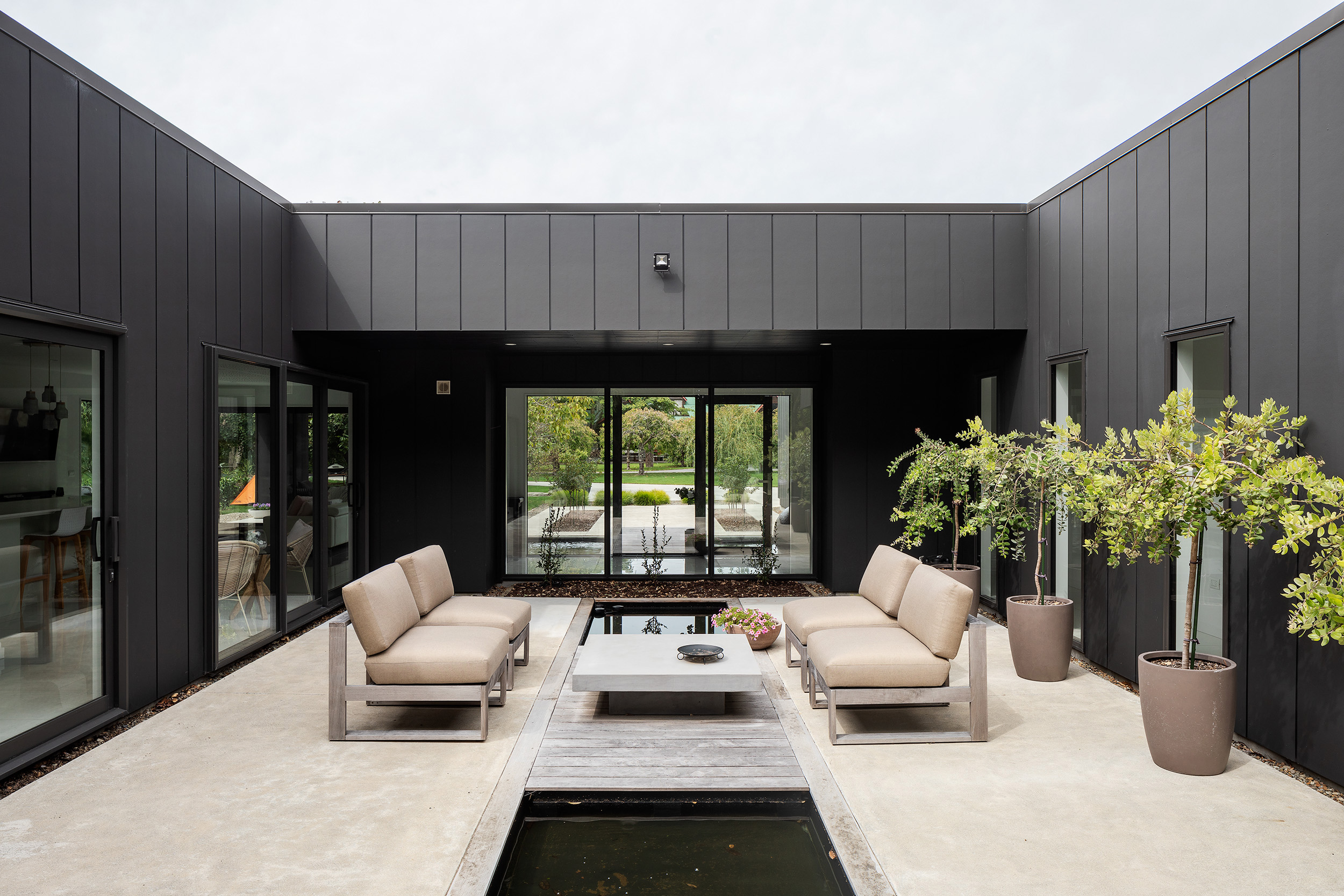

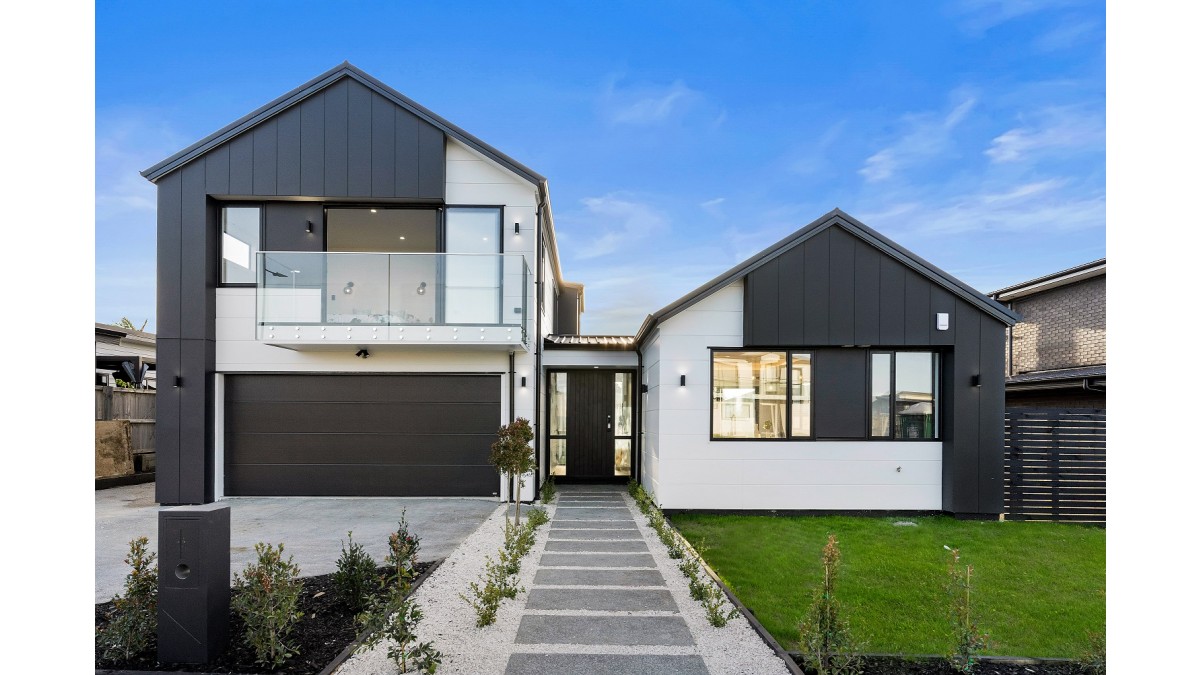

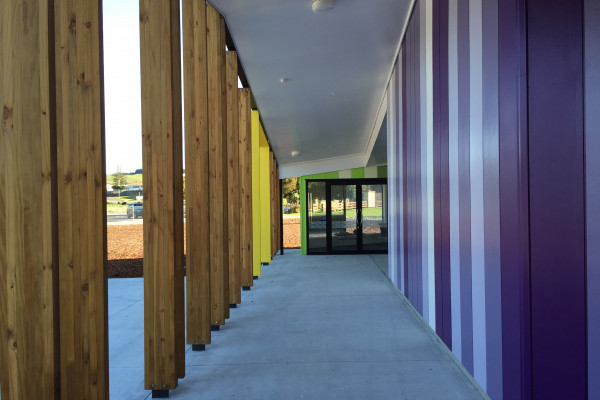

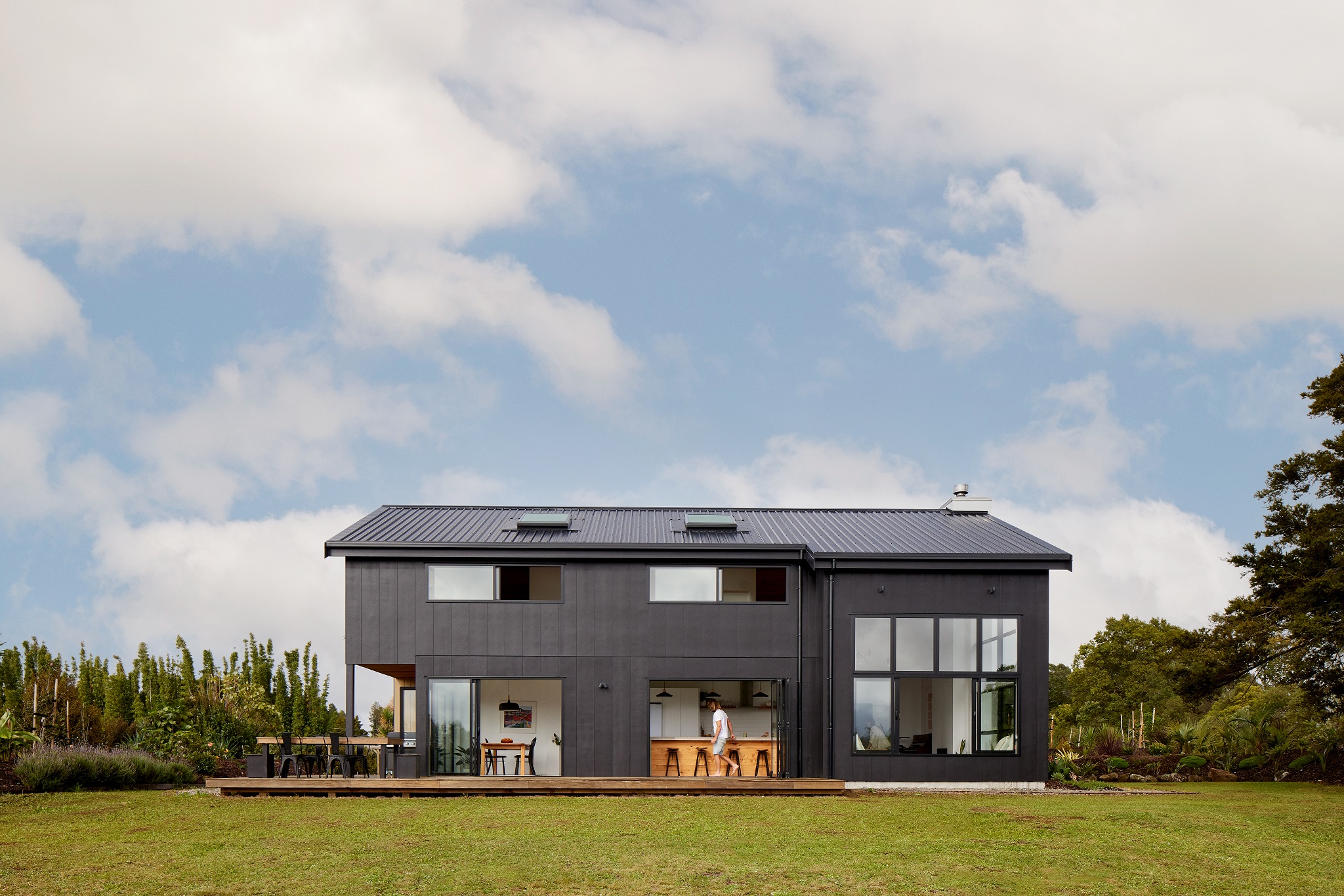

Made from premium fibre cement, Stria Cladding is a durable, low maintenance cladding that can be painted any colour. Stria Cladding has distinctive deep grooved lines and can be laid horizontally or vertically, introducing an interesting design feature to house walls.  Combined with changing colour and style it brings a playful element to design.

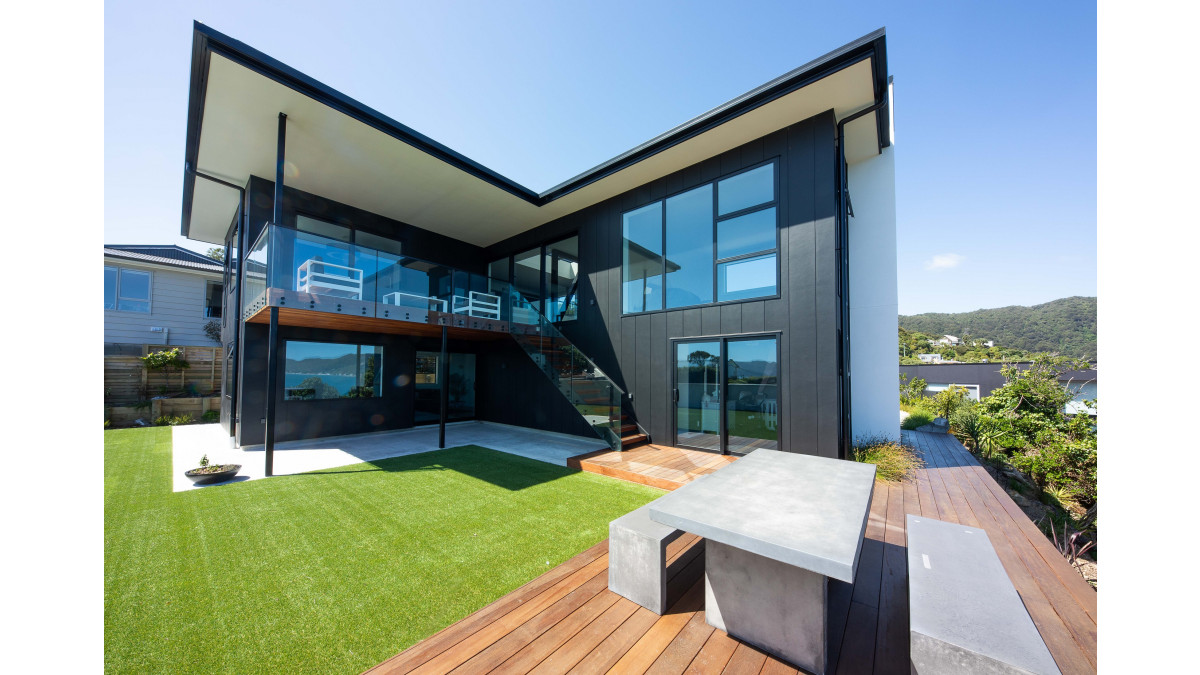

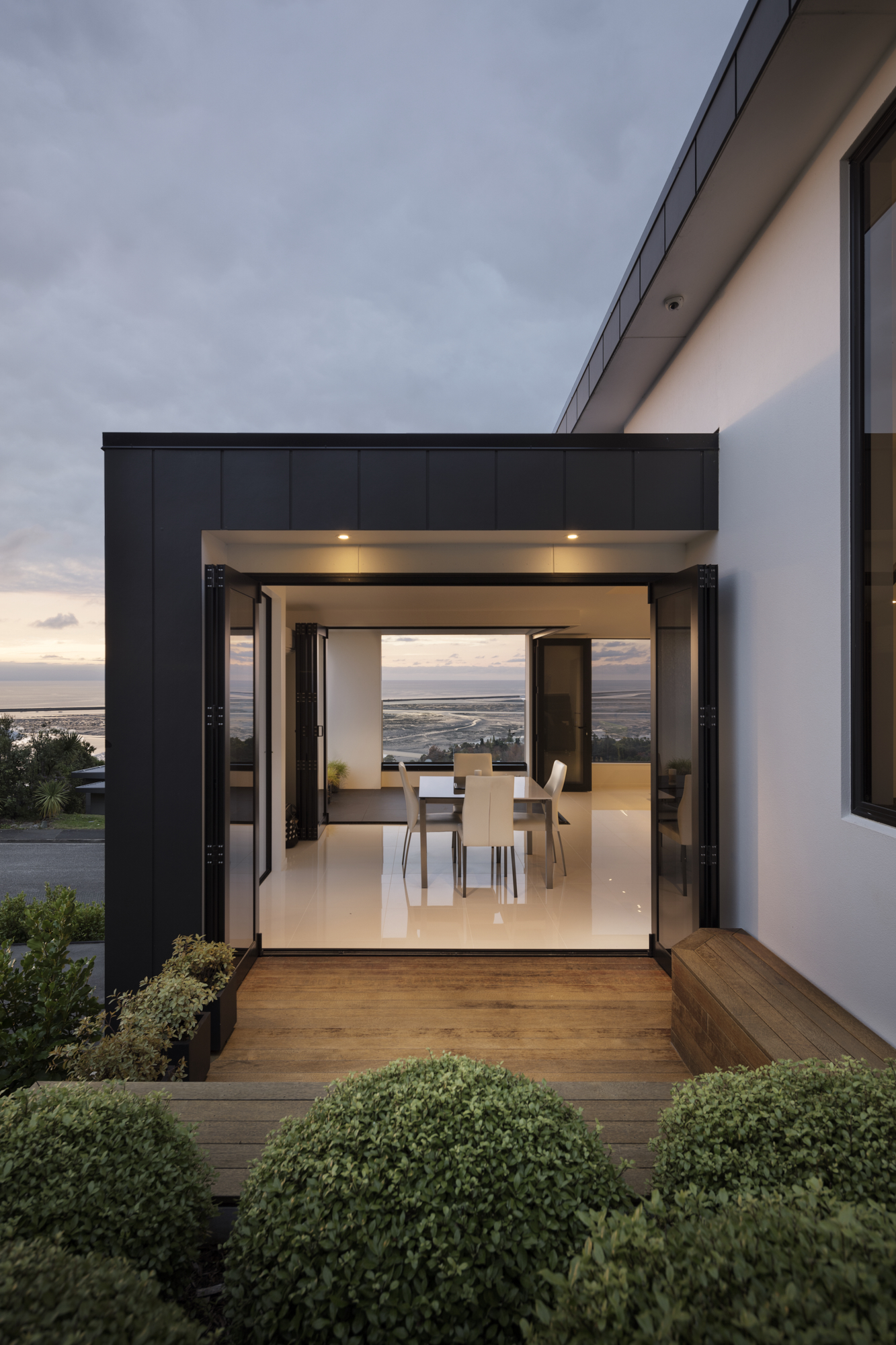

It can be used to create feature walls, full cladding for new builds, cladding for additions and renovations and internal feature walls. Stria Cladding is lightweight and durable, making it ideal for overhangs, protective cantilevers and other striking architectural features.

Made in New Zealand, Stria Cladding is designed to withstand harsh weather and coastal conditions.

Product Profile:

  • 14mm thick
  • 4200mm long
  • 405mm wide
Key Features
  • Engineered to stand up to harsh conditions, including coastal conditions
  • The interlocking edges allow for quick and easy installation
  • Wide panel format allows faster installation
  • Can be painted any colour, even the darker shades.
  • Cost effective and long lasting
  • Resistant to damage from moisture and rotting
  • Up to 60 minute fire resistance rating (FRR) can be achieved when installed as per the James Hardie Fire and Acoustic Design Manual
  • CodeMark certified for CLD installation
  • Classified as non-combustible material
  • Low maintenance
  • 15 year product warranty
NZ Made
NZ Made
Scope of Use
  • For use as an external wall cladding installed either horizontally or vertically in residential and light commercial:
    • Feature walls
    • Full cladding for new builds
    • Cladding for additions and renovations
    • Internal feature walls
    • Ideal for overhangs, protective cantilevers and other architectural features
  • Designed to withstand harsh weather and coastal conditions
  • Can be painted any colour, even the darker shades



Limitations on Use
  • See CodeMark for full information
NZS 3604 Corrosion Zone D suitable
Corrosion Exposure Zone D
NZS 3604 Wind Zone Specific Design suitable
Specific Design Wind Zone
Statement of Building Code Compliance

The Stria Cladding & CLD Batten system, if designed, used, installed and maintained in accordance with the technical literature, will meet the following provisions of the NZBC:

  • Clause B1 STRUCTURE: Performance B1.3.1, B1.3.2 and B1.3.4 (b) (c) (d) and (e) for the relevant physical conditions of B1.3.3 (a), (h), (j) and (q). The system meets these requirements
  • Clause B2 DURABILITY: Performance B2.3.1 (b), 15 years and B2.3.2(a). The system meets these requirements
  • Clause C3 FIRE AFFECTING AREAS BEYOND THE FIRE SOURCE: Performance C3.5 and C3.7 (b & c) The system meets these requirements
  • Clause E2 EXTERNAL MOISTURE: Performance E2.3.2. The system meets this requirement
  • Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. The system meets this requirement and will not present a health hazard to people

See CodeMark for full information

Other Performance Attributes
  • Up to 60 minute fire resistance rating (FRR) can be achieved when installed as per the James Hardie Fire and Acoustic Design Manual
  • Classified as non-combustible material
  • Low maintenance
  • 15 year product warranty
B1 Structure compliant
Structure
B2 Durability compliant
Durability
C Protection from Fire compliant
Protection from Fire
E2 External Moisture compliant
External Moisture
F2 Hazardous Building Materials compliant
Hazardous Building Materials
H1 Energy Efficiency compliant
Energy Efficiency
Documents
CAD/PDF
Fire and Acoustic Design Manual
Technical Manual: CLD Battens
Technical Manual: Timber Cavity Batten Horizontal
Technical Manual: Timber Cavity Batten Vertical
Product Technical Statement
CodeMark

20/08/2019

Warranty
Brochure
Technical Literature on Supplier Website
