Versatile, Highly Aesthetic Solution for Building Cladding

Kingspan's range of architectural facades includes panelised options, rainscreen cassettes, and substructure systems. For buildings with complex designs, high aesthetics or requiring a ventilated facade, the Kingspan system provides a fast-build high-tech performance solution achieved with an extensive range of cassette types and finishes including the patented SuperFast install Dri-Design metallic rainscreen cassette. The Dri-Design cassettes are available in highly durable powder coat or anodised aluminium across a range of shapes and sizes. The cassettes can be mix-and-matched creating eye-catching interesting surface textures and designs.

Kingspan has a range of facade tested systems, assessments, and data to the BS 8414 Fire Test and AS5113 Test Standard. When installed with Kingspan’s QuadCore Karrier Rainscreen substructure system, Dri-Design forms part of a weather and air-tight building envelope that has undergone and passed rigorous large-scale fire testing. For example, the 80mm QuadCore Karrier Panel with Dri-Design aluminium has been tested to BS 8414-2 and meets the requirements of BR 135. Read Kingspan’s Facade Fire Performance document here

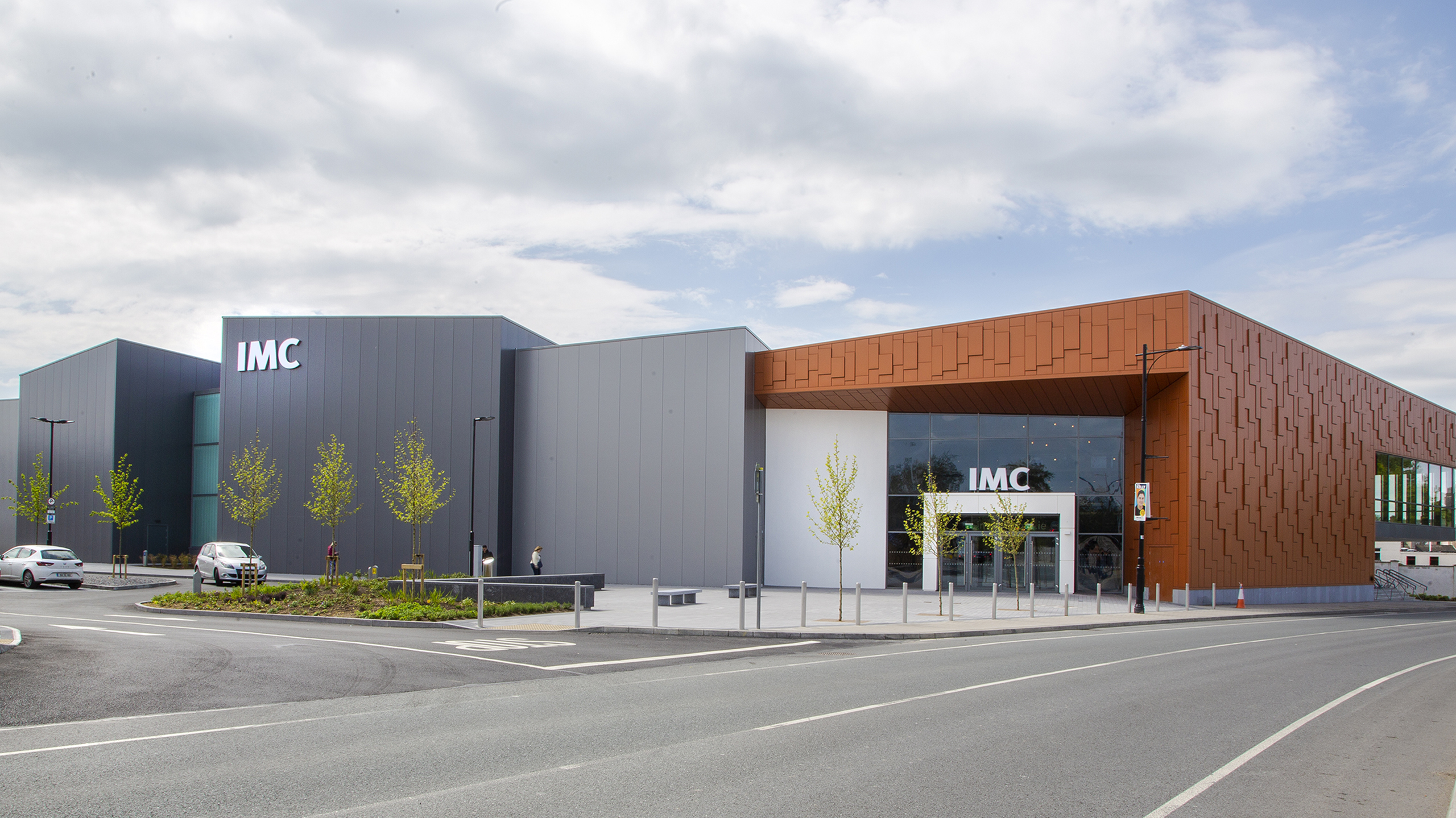

The IMC Cinema shows off its combination of facade treatments to stunning effect. Brian Dunlop of Brian Dunlop Architects, says “The Dri-Design Shadow Facade System allowed us to deliver a high-quality finish and landmark aesthetic to the steel-framed construction in this prominent city-centre location. Selecting Kingspan Facades as the supplier for the full cladding package was cost-effective and simplified the process, whilst still enabling us to use a variety of materials and finishes.”

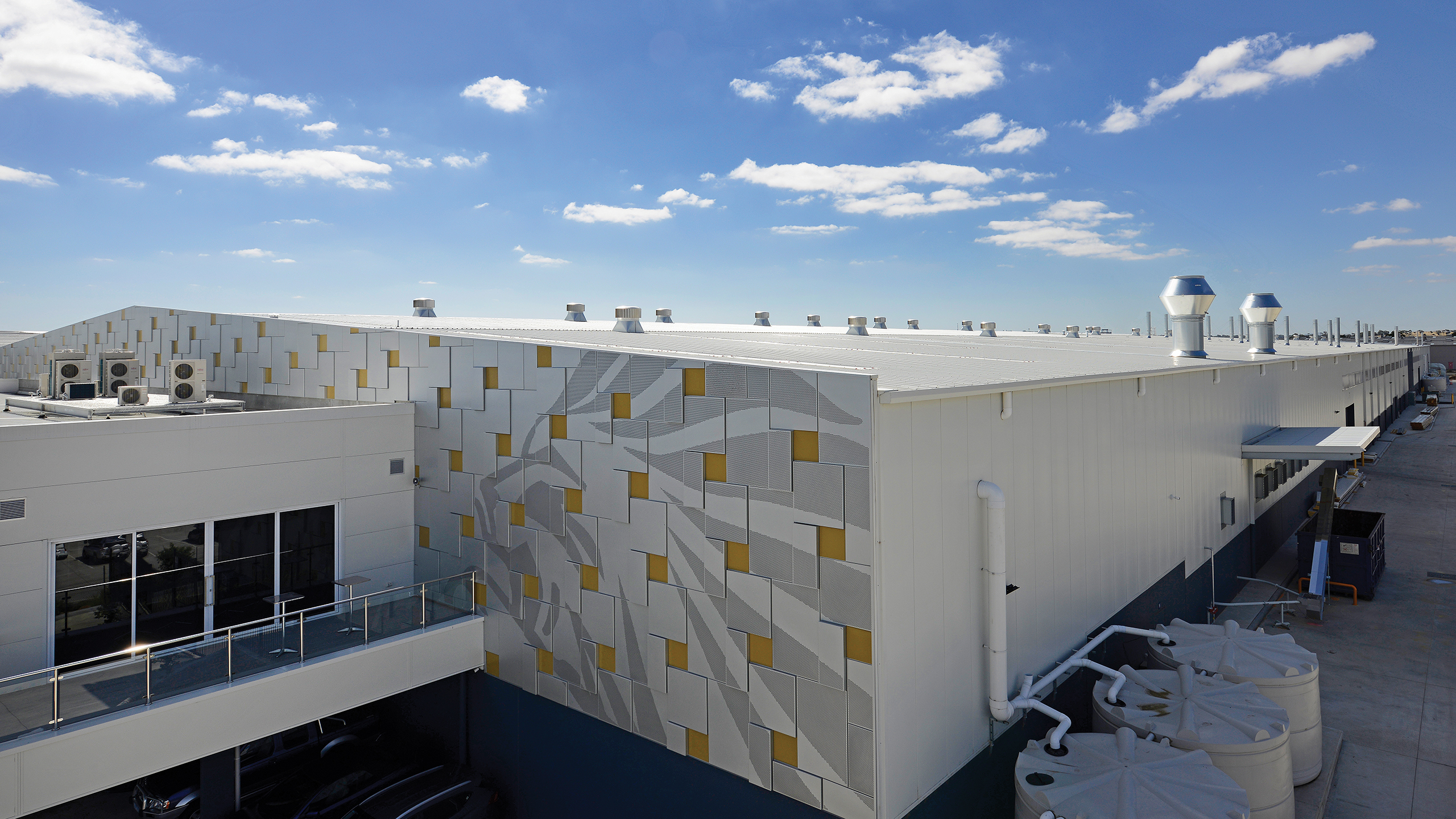

For the Kingspan factory in Melbourne, Dri-Design Shadow cassettes added depth and definition, and custom perforation was used to add company branding. Together, they offer a stunning combination of functionality and aesthetics.

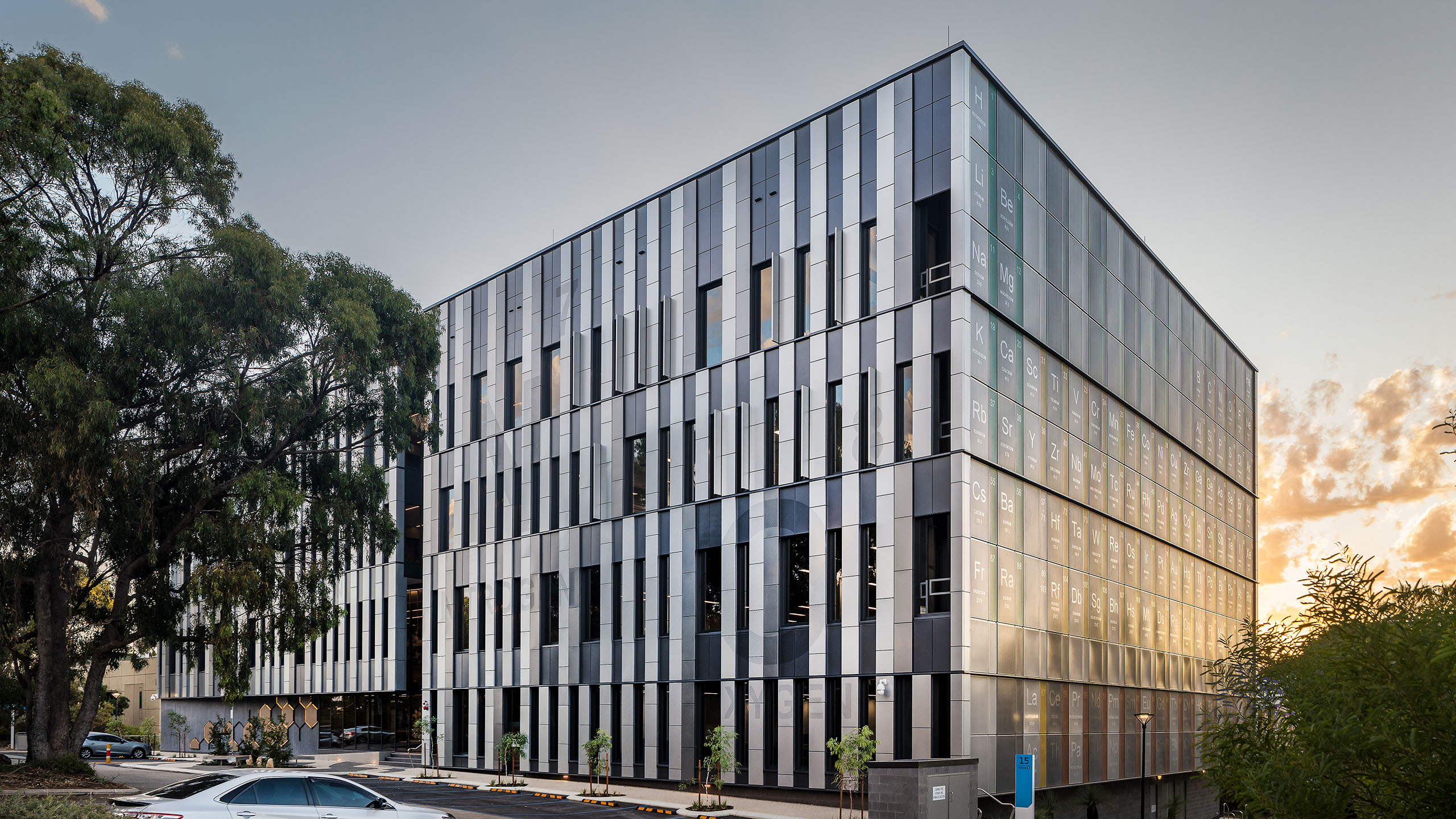

Also in Australia, Edith Cowan University’s (ECU) new $48 million sciences building features the world’s largest periodic table. The 660m² table is made from 360 perforated powder-coated aluminium Dri-Design and Hook on Cassettes.

Kingspan facade products are manufactured in Australia to ISO 9001 standards from the highest quality materials, using state-of-the-art production equipment to rigorous quality control standards, ensuring long term reliability and service life.

Kingspan provides external coating and product guarantees for facade products on an individual project basis. This is typically for 15 years.

Kingspan Evolution Panelised Façade

Kingspan Insulated Panels

View Product

Evolution: a simple and effective single-component solution, perfect for a minimalist façade.

A panelised façade system for use on residential, communal residential, communal non-residential, commercial, industrial buildings and outbuildings
All Kingspan panels, including Evolution Panelised Façades, are typically tested up to 3.6kPa for normal conditions (ULS) and up to 15kPa for cyclonic conditions (ULS). These limits easily exceed the requirements of NZS3604, including Extra High wind zones
Horizontal or vertical installation
Wide selection of pre-formed corners are available; no need for bulky flashings
Finishes suitable for standard and high humidity environments
All Kingspan panels, including the Trapezoidal roof and wall panels, are typically tested up to 3.6kPa for normal conditions (ULS) and up to 15kPa for cyclonic conditions (ULS). These limits easily exceed the requirements of NZS3604, up to and beyond the Extra High wind zones

Corrosion Exposure Zone B

Corrosion Exposure Zone C

Corrosion Exposure Zone D

High Earthquake Zone

Low Earthquake Zone

Medium Earthquake Zone

Very High Earthquake Zone

Extra High Wind Zone

High Wind Zone

Low Wind Zone

Medium Wind Zone

Specific Design Wind Zone

Very High WInd Zone

Kingspan panels have been used around New Zealand, on many building types for in excess of 15 years.

The Evolution Panelised Façade holds a CodeMark Certificate of Conformity stating the provisions of the Building Regulations 2008 (New Zealand) the product conforms to.

CodeMark Certificate of Conformity is certified under the name Kingspan Insulated Panels Architectural Wall Panels (AWP) and Evolution (EVO). Certificate number: CM20114 Rev V2.

For further details please contact the Kingspan Technical Service Department or alternatively refer to the MBiE - Product Certificate Register and search for 'Kingspan KS1000AWP'.

When designed, used, installed and maintained in accordance with Kingspan standard details, the Evolution Panelised Façade is compliant with the following clauses on the NZBC:

B1 Structure — B1.3.1; B1.3.2; B1.3.3(a, f, g, h, j); B1.3.4
B2 Durability — B2.3.1(b)
C3 Fire Affecting Areas Beyond the Fire Source — C3.4(a); C3.5; C3.7
E2 External Moisture — (contributes to) E2.3.2; E2.3.7
E3 Internal Moisture — E3.3.5
F2 Hazardous Building Materials — F2.3.1
H1 Energy Efficiency — (contributes to) H1.3.1

Codemark Certification demonstrates compliance to the NZBC equivalent of an Acceptable Solution. Some specialist buildings may fall partially or wholly outside of the scope of the Codemark Certificate, should this occur then please contact Kingspan Technical for assistance in demonstrating NZBC compliance via an Alternative Solution.

Structure

Durability

Protection from Fire

External Moisture

Internal Moisture

Energy Efficiency

CodeMark

Independent Assessment

Test Results

Kingspan Architectural Wall Panel System

Kingspan Insulated Panels

View Product

This secret-fix wall panel system offers unprecedented freedom of design and performance.

An insulated wall panel system for use on residential, communal residential, communal non-residential, commercial, industrial buildings and outbuildings

All Kingspan panels, including Architectural Wall Panels, are typically tested up to 3.6kPa for normal conditions (ULS) and up to 15kPa for cyclonic conditions (ULS). These limits easily exceed the requirements of NZS3604, including Extra High wind zones.

Corrosion Exposure Zone B

Corrosion Exposure Zone C

Corrosion Exposure Zone D

High Earthquake Zone

Low Earthquake Zone

Medium Earthquake Zone

Very High Earthquake Zone

Extra High Wind Zone

High Wind Zone

Low Wind Zone

Medium Wind Zone

Specific Design Wind Zone

Very High WInd Zone

Architectural Wall Panels hold a CodeMark Certificate of Conformity stating the provisions of the Building Regulations 2008 (New Zealand) the product conforms to.

CodeMark Certificate of Conformity is certified under the name Kingspan Insulated Panels Architectural Wall Panels (AWP) and Evolution (EVO). Certificate number: CM20114 Rev V2.

For further details please contact the Kingspan Technical Service Department or alternatively refer to the MBiE — Product Certificate Register and search for 'Kingspan KS1000AWP'.

When designed, used, installed and maintained in accordance with Kingspan standard details, the Architectural Wall Panel is compliant with the following clauses on the NZBC:

B1 Structure — B1.3.1; B1.3.2; B1.3.3(a, f, g, h, j); B1.3.4
B2 Durability — B2.3.1(b)
C3 Fire Affecting Areas Beyond the Fire Source — C3.4(a); C3.5; C3.7
E2 External Moisture — (contributes to) E2.3.2; E2.3.7
E3 Internal Moisture — E3.3.5
F2 Hazardous Building Materials — F2.3.1
H1 Energy Efficiency — (contributes to) H1.3.1

Structure

Durability

Protection from Fire

External Moisture

Internal Moisture

Energy Efficiency

CodeMark

Independent Assessment

Test Results
