Kingspan's Own Energy-Efficient Premises

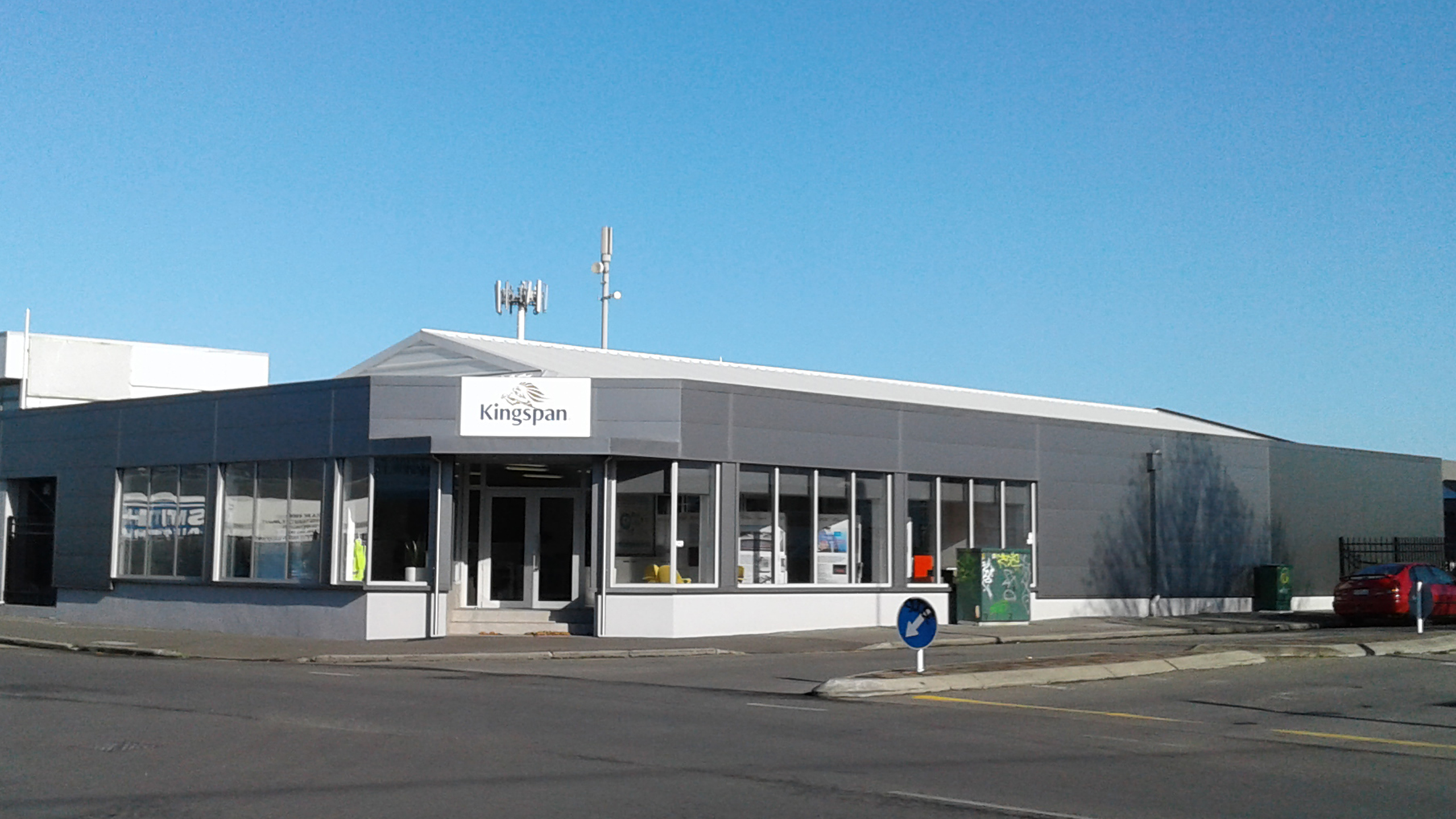

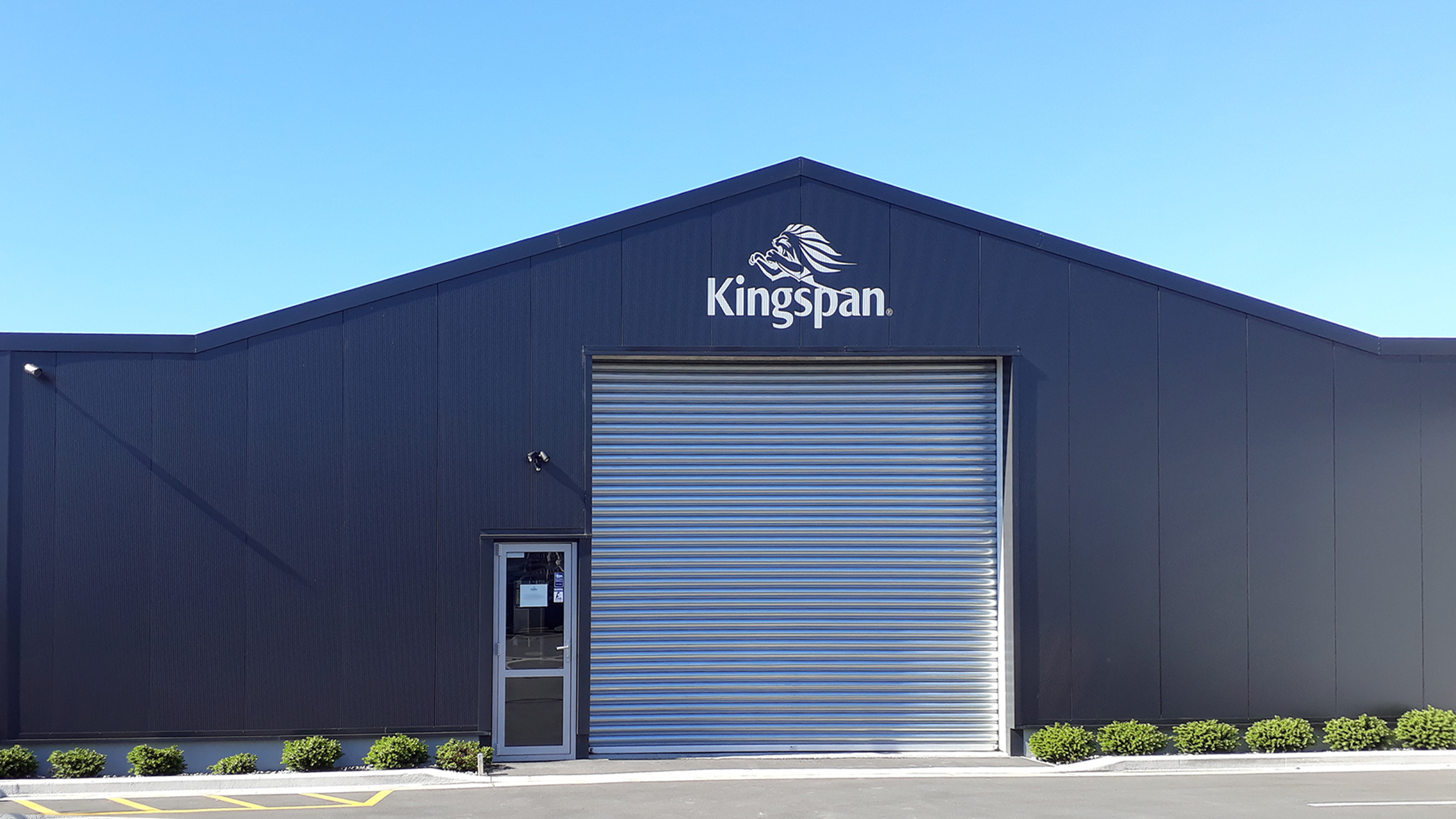

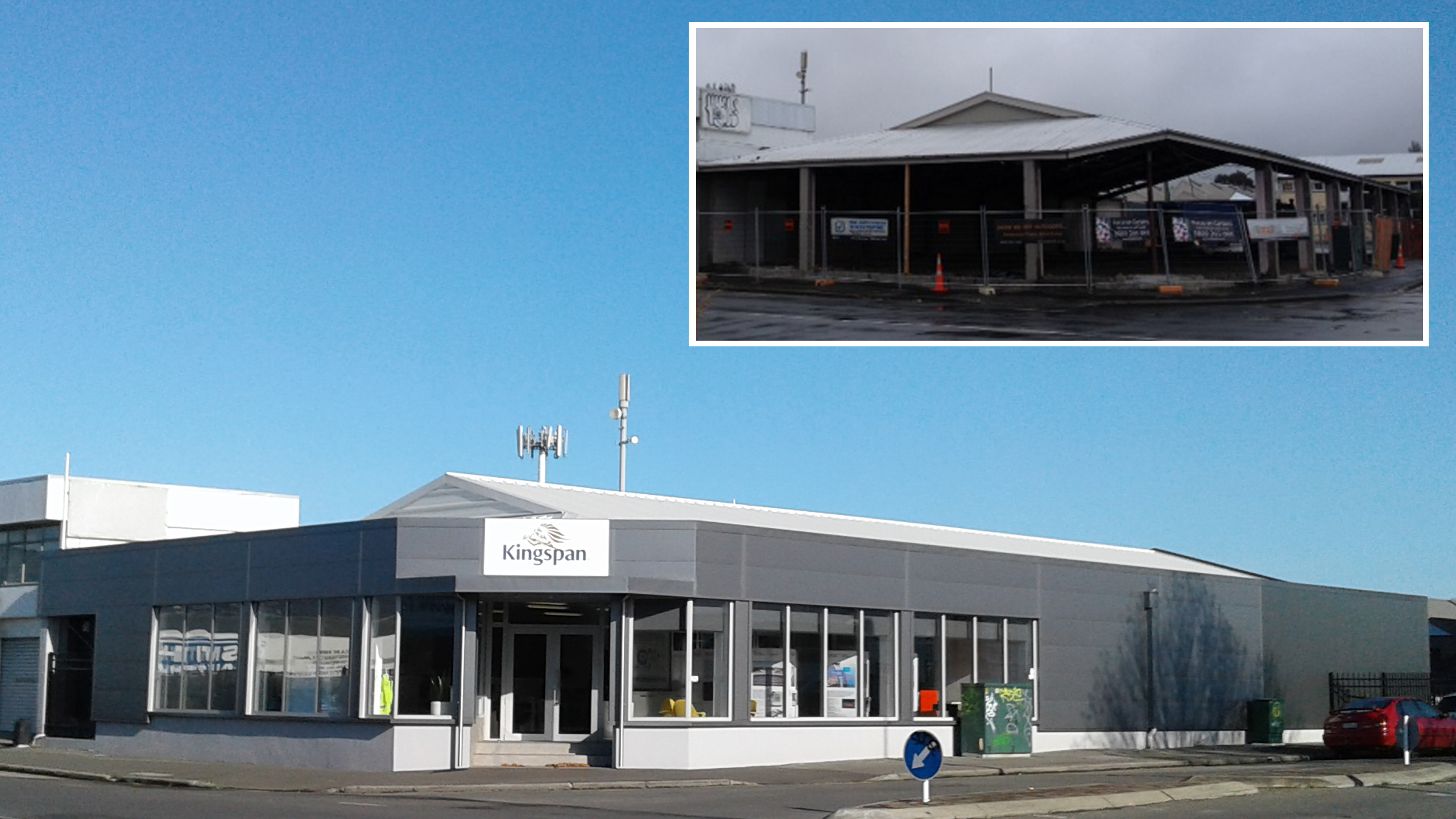

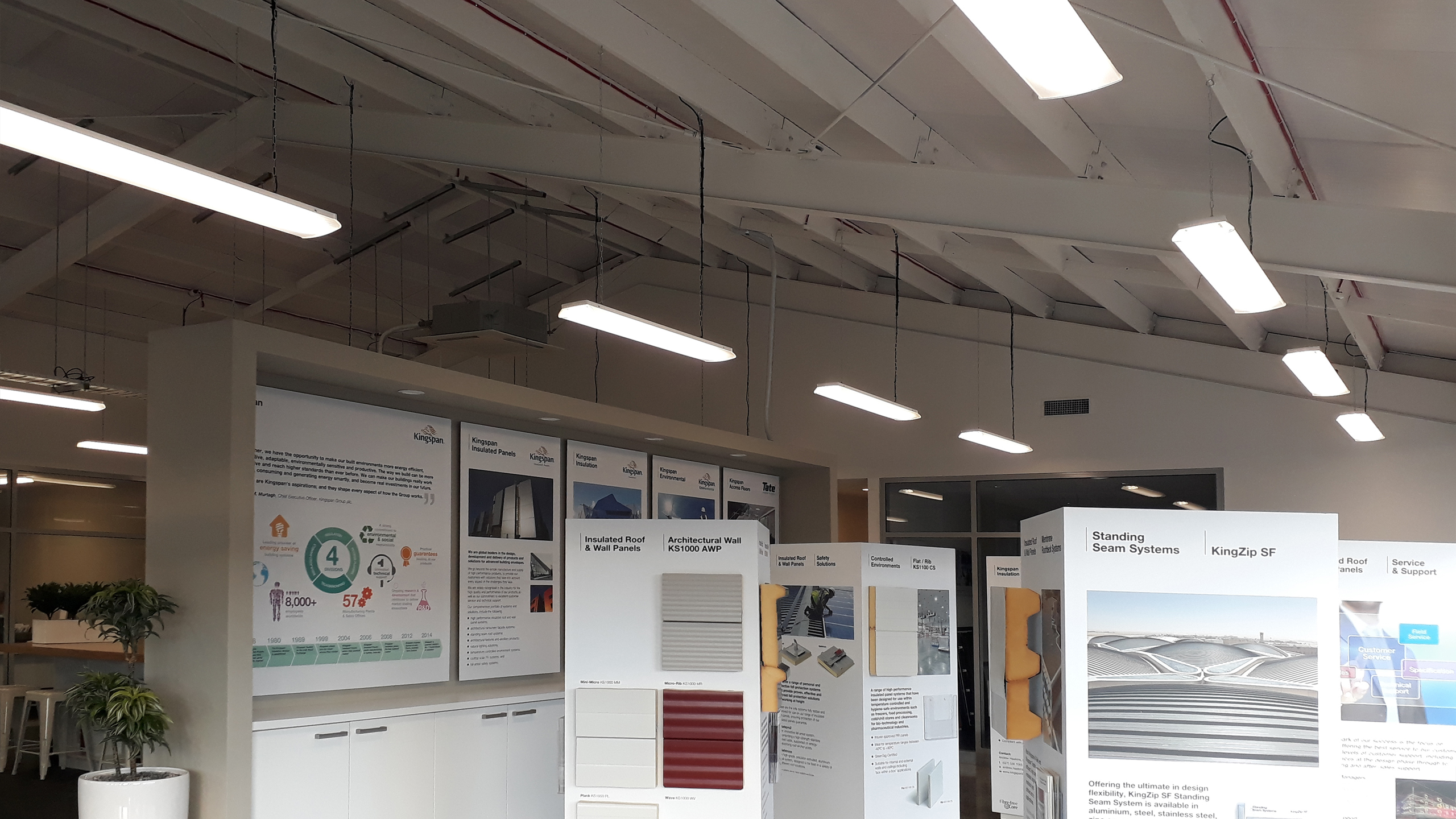

Utilising Kingspan's own high-performance closed cell insulated roof (KS1000 RW) and wall (KS1000 MR) panel systems, the premises at 97 Montreal Street are spacious, warm and inviting.

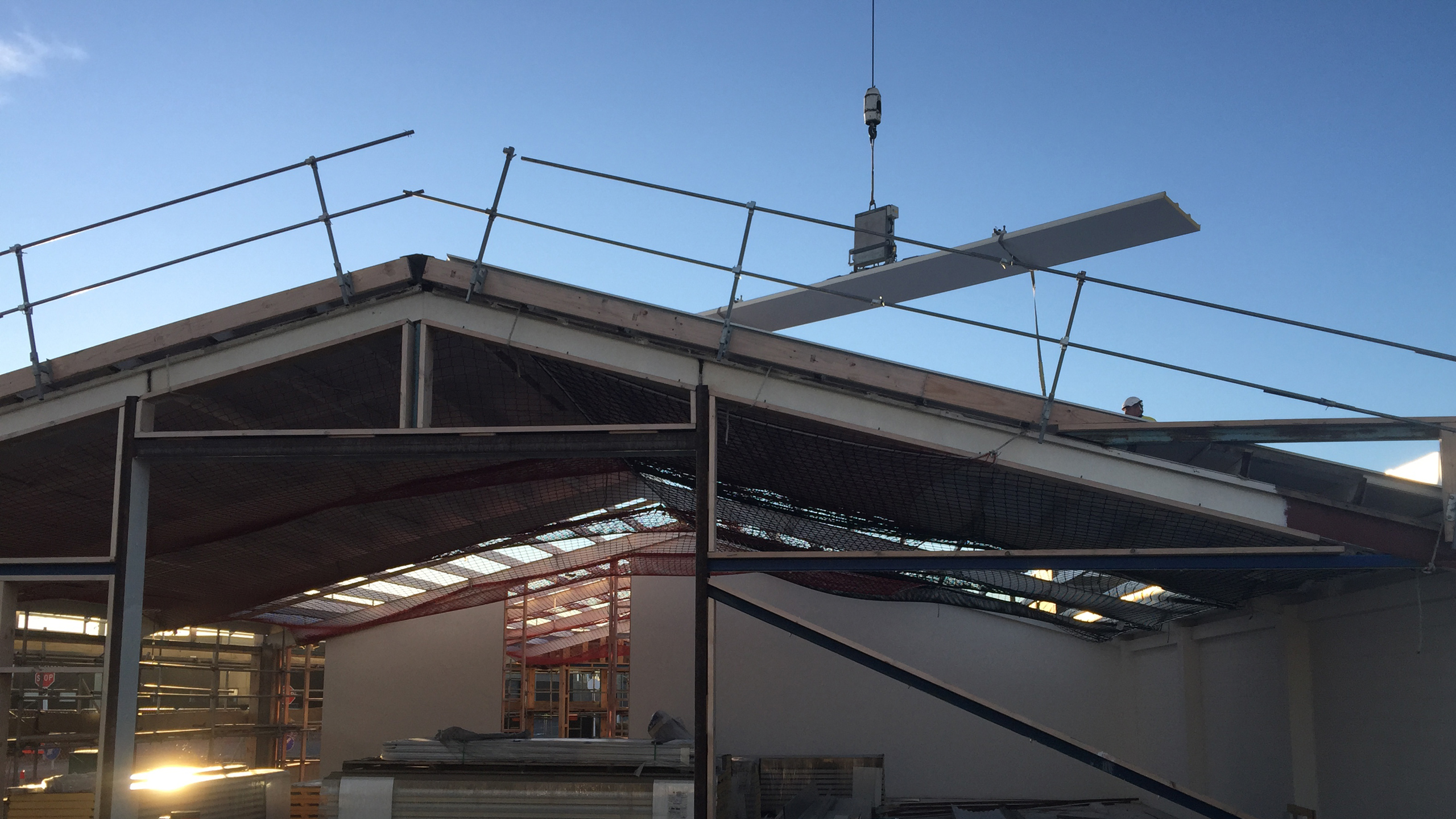

Kingspan's unique high-performance closed cell insulation core is fundamental to the panel system in terms of thermal and fire performance. This combined with the robust engineering of the Kingspan trapezoidal roof panel, with its steel facings and superior joint design, make it unparalleled as a weather-resilient, airtight, low energy and highly fire resistant solution. The Trapezoidal RW panel is both GreenTAG Gold and CodeMark certified and offers superior R-values. The Kingspan office utilised a 60mm roof panel, offering an R-value of 3.36.

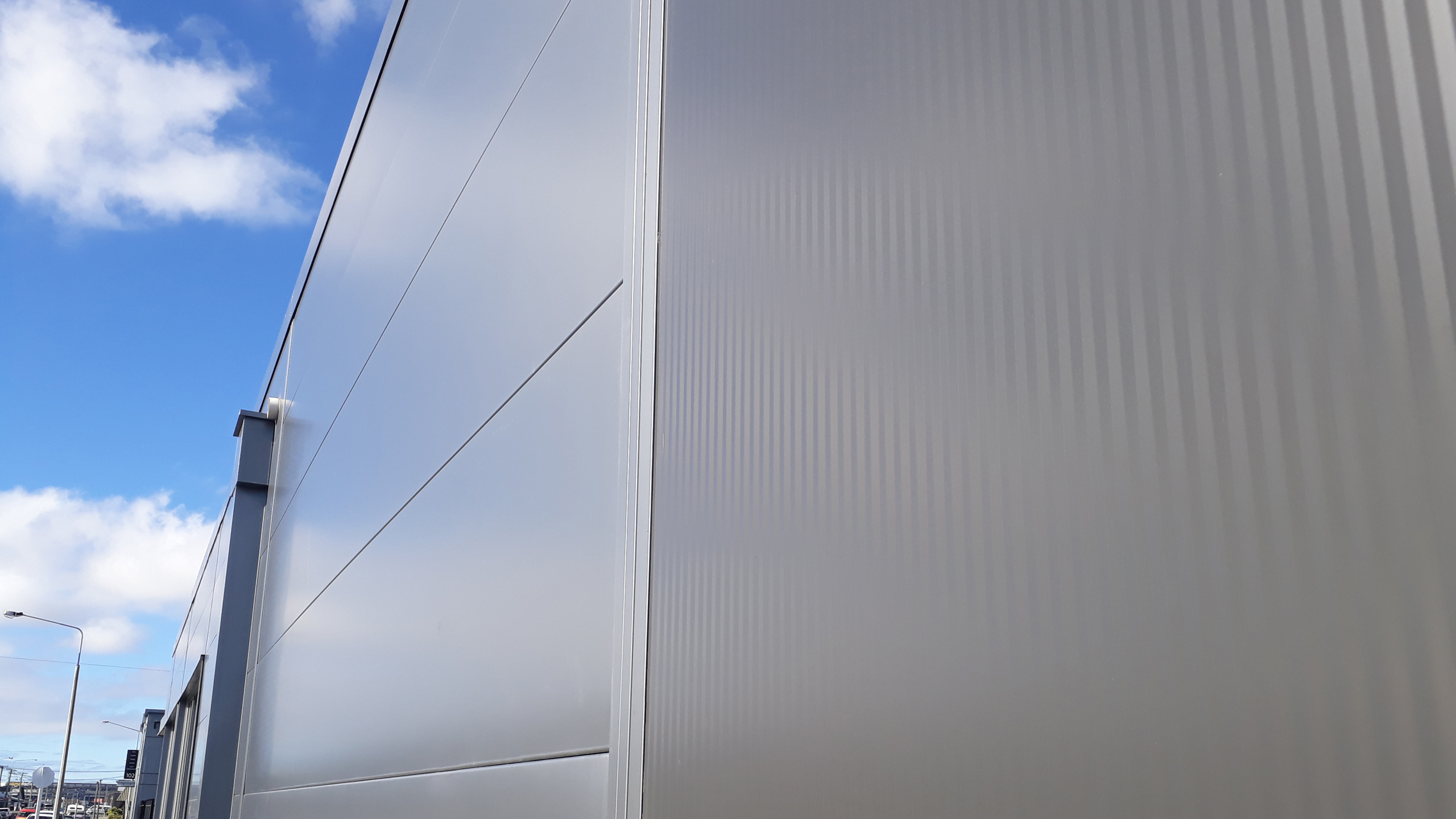

Similarly, the Architectural Wall Panel system combines high-performance with aesthetics. Also weather and air tight, the Kingspan AWP panel's steel exterior and interior lining is available in a range of coatings and colours, for standard, coastal and high humidity environments and is suitable as an external façade element in either horizontal or vertical applications. For its own building Kingspan has utilised an 80mm panel which offers an R-value of 4.15.

The Kingspan philosophy is evident with the new New Zealand head office. Gene Murtagh, Kingspan Group CEO says "The way we build can be more effective and reach higher standards than ever before. We can make our buildings really work for us; consuming and generating energy smartly to become real investments in our future."

Kingspan Architectural Wall Panel System

Kingspan Insulated Panels

View Product

This secret-fix wall panel system offers unprecedented freedom of design and performance.

An insulated wall panel system for use on residential, communal residential, communal non-residential, commercial, industrial buildings and outbuildings

All Kingspan panels, including Architectural Wall Panels, are typically tested up to 3.6kPa for normal conditions (ULS) and up to 15kPa for cyclonic conditions (ULS). These limits easily exceed the requirements of NZS3604, including Extra High wind zones.

Corrosion Exposure Zone B

Corrosion Exposure Zone C

Corrosion Exposure Zone D

High Earthquake Zone

Low Earthquake Zone

Medium Earthquake Zone

Very High Earthquake Zone

Extra High Wind Zone

High Wind Zone

Low Wind Zone

Medium Wind Zone

Specific Design Wind Zone

Very High WInd Zone

Architectural Wall Panels hold a CodeMark Certificate of Conformity stating the provisions of the Building Regulations 2008 (New Zealand) the product conforms to.

CodeMark Certificate of Conformity is certified under the name Kingspan Insulated Panels Architectural Wall Panels (AWP) and Evolution (EVO). Certificate number: CM20114 Rev V2.

For further details please contact the Kingspan Technical Service Department or alternatively refer to the MBiE — Product Certificate Register and search for 'Kingspan KS1000AWP'.

When designed, used, installed and maintained in accordance with Kingspan standard details, the Architectural Wall Panel is compliant with the following clauses on the NZBC:

B1 Structure — B1.3.1; B1.3.2; B1.3.3(a, f, g, h, j); B1.3.4
B2 Durability — B2.3.1(b)
C3 Fire Affecting Areas Beyond the Fire Source — C3.4(a); C3.5; C3.7
E2 External Moisture — (contributes to) E2.3.2; E2.3.7
E3 Internal Moisture — E3.3.5
F2 Hazardous Building Materials — F2.3.1
H1 Energy Efficiency — (contributes to) H1.3.1

Codemark Certification demonstrates compliance to the NZBC equivalent of an Acceptable Solution. Some specialist buildings may fall partially or wholly outside of the scope of the Codemark Certificate, should this occur then please contact Kingspan Technical for assistance in demonstrating NZBC compliance via an Alternative Solution.

Structure

Durability

Protection from Fire

External Moisture

Internal Moisture

Energy Efficiency

CodeMark

Independent Assessment

Test Results

KS1000RW Trapezoidal Roof and Wall Panel

Kingspan Insulated Panels

View Product

The Kingspan KS1000RW Trapezoidal Roof and Wall Panel system products consist of Zincalume sheets that contain a PIR core.

The KS1000RW Trapezoidal Roof Panel is a through-fixed, trapezoidal profiled roof system which can be used for building applications with roof pitches of 4° or more after deflection. For lower pitches, please contact Kingspan.

The standard specification for KS1000RW Trapezoidal Wall Panels is suitable for both vertical or horizontal walls — alternative specification available including high humidity and low temp.

All Kingspan panels, including the KS1000RW Trapezoidal Roof and Wall Panels, are typically tested up to 3.6kPa for normal conditions (ULS) and up to 15kPa for cyclonic conditions (ULS). These limits easily exceed the requirements of NZS3604, up to and beyond the Extra High wind zones.

Corrosion Exposure Zone D

Very High Earthquake Zone

Extra High Wind Zone

Specific Design Wind Zone

When designed, used, installed and maintained in accordance with Kingspan standard details, the KS1000RW Trapezoidal Roof & Wall Panel is compliant with the following clauses on the NZBC:

B1 Structure — B1.3.1; B1.3.2; B1.3.3(a, f, g, h, j); B1.3.4

B2 Durability — B2.3.1(b)

C3 Fire Affecting Areas Beyond the Fire Source — C3.4(a); C3.5; C3.7

E2 External Moisture — E2.3.1 (roof only); E2.3.2; E2.3.7

E3 Internal Moisture — E3.3.5

F2 Hazardous Building Materials — F2.3.1

H1 Energy Efficiency — H1.3.1

CodeMark

Independent Assessment

Test Results

Surface Water

External Moisture

Internal Moisture

Energy Efficiency
