Self-closing Cavity Slider Divides Kitchen and Laundry Spaces

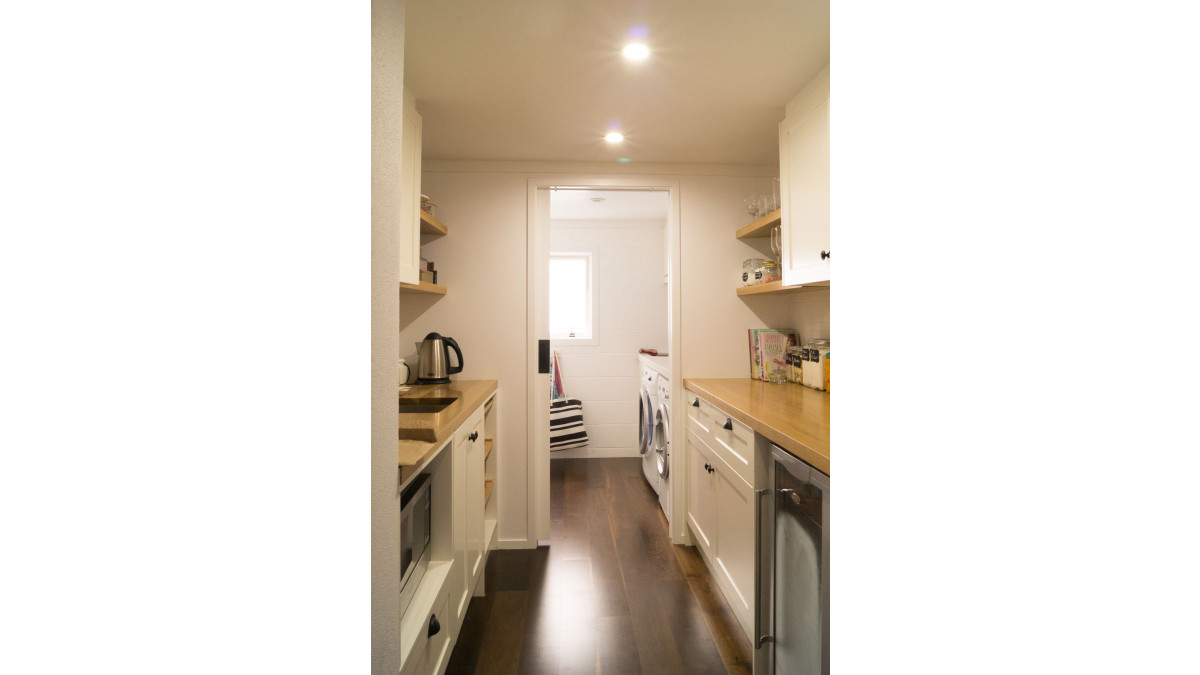

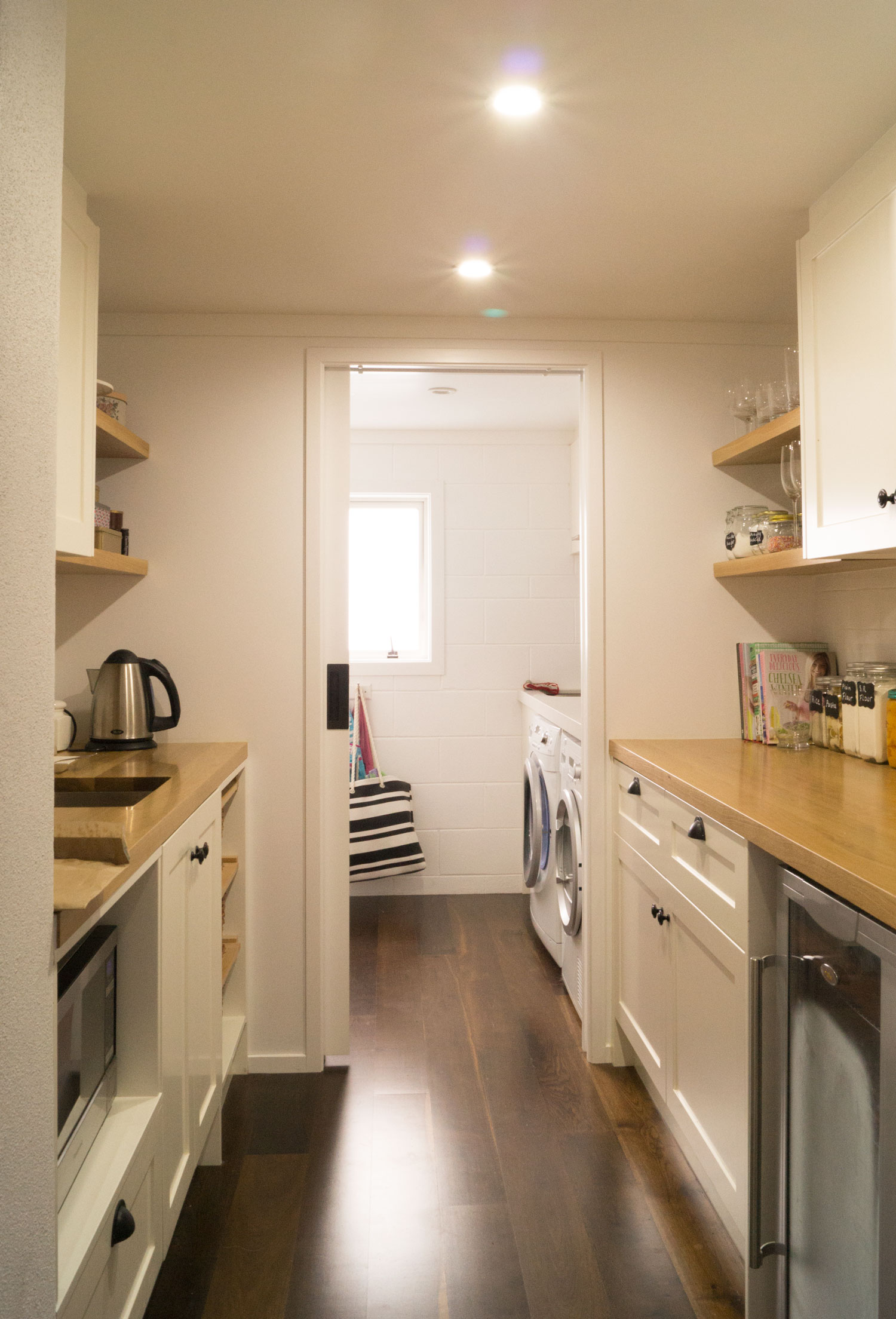

CS For Doors recently supplied a unique solution for an Auckland kitchen and laundry renovation. The design included a cavity slider to enable access from the newly completed butler's pantry to the laundry.

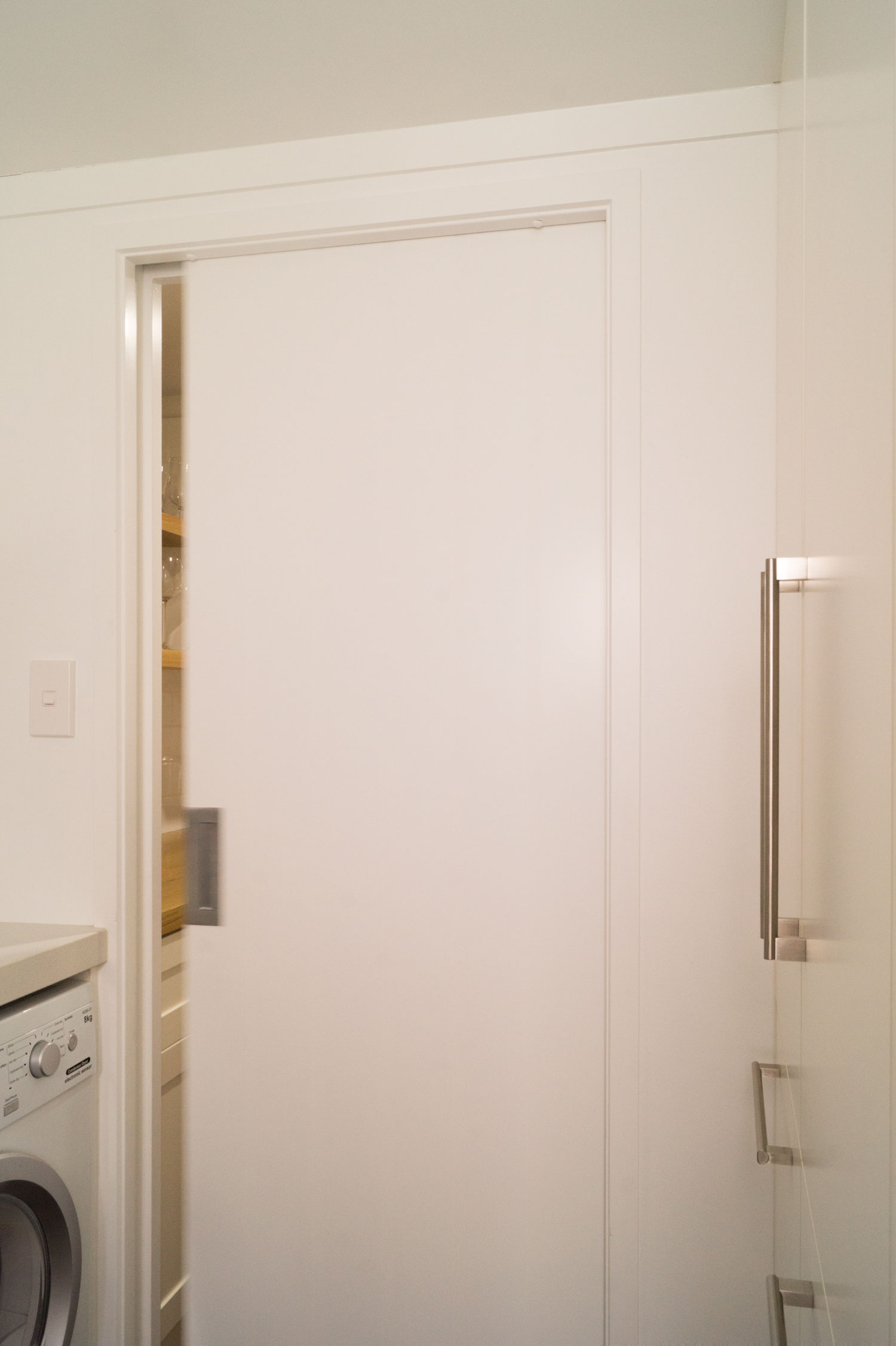

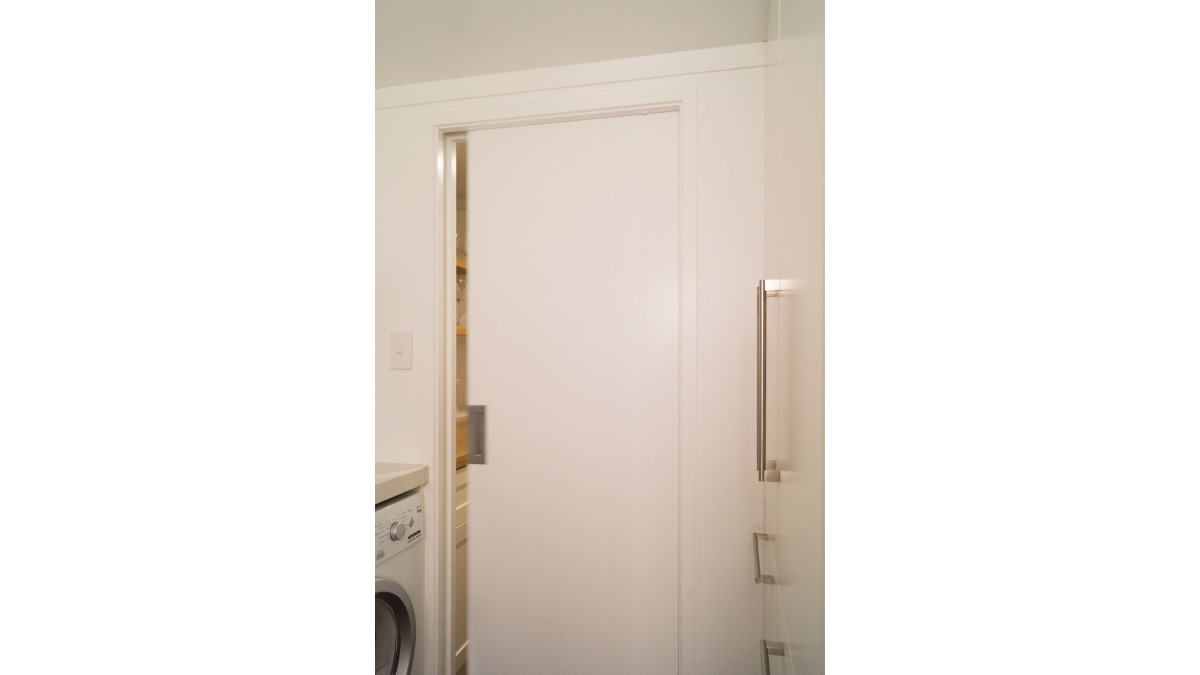

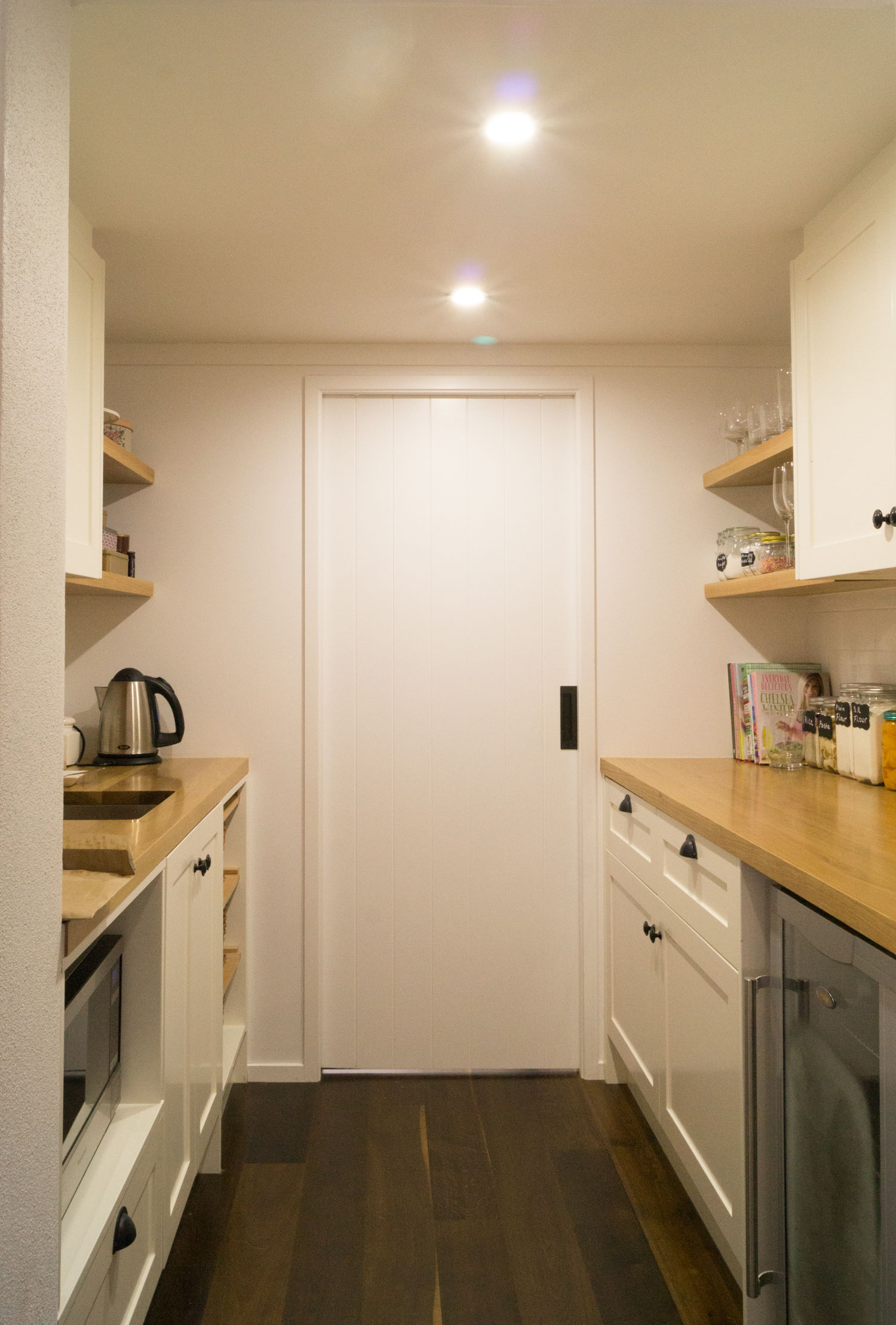

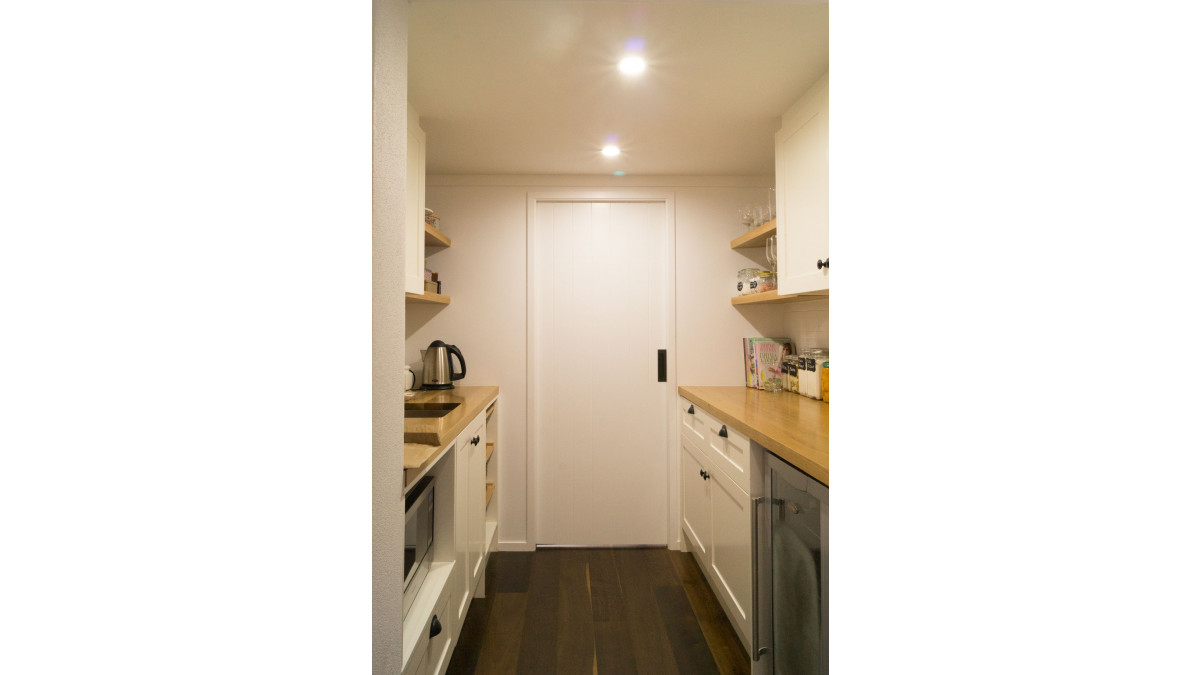

A CS RakingHead self-closing cavity slider was proposed so that the laundry would be hidden from view when not in use. This product uses gravity and the weight of the door to close behind the user every time. SofStop soft close technology ensures a gentle braking action that is smooth and quiet.

The clients chose a V-Groove timber door to match existing décor, and a customised CL400 Magnetic handle from the CaviLock range. With Oil Rubbed Bronze finish on one side and Satin Chrome on the other, this handle solved the dilemma of which finish to choose.

CS RakingHead is available in standard or custom sizes from 710mm to 1200mm wide. It fits into standard 90mm framing and suits any style of door up to 60kg.

CL400 Magnetic hardware is available in a wide range of finishes and configurations.

CL400 Magnetic

CS For Doors

View Product

The CL400 Magnetic range features a patented magnetically activated catch and plunger system.

NZ Made

Suitable for residential or light commercial applications.

Suits doors from 34mm—52mm thick. (Thicker door options available on request)
Suitable for use on timber doors as well as the CS NewYorker or CS AluTec aluminium door

CaviLock sliding door hardware has been successfully used in commercial, residential and institutional projects in New Zealand and Australia since 1990. CaviLock handles are backed by a two year written guarantee.

CS RakingHead Cavity Slider

CS For Doors

View Product

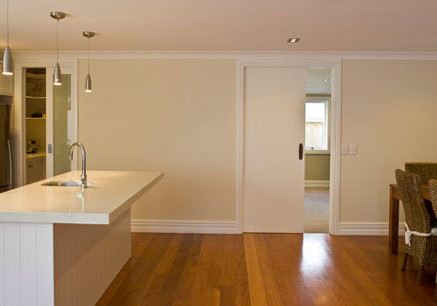

The CS RakingHead uses the weight of the door combined with the force of gravity to self-close.

NZ Made

CS Cavity Sliders units have been appraised for use with sliding doors in internal locations in residential, commercial and light industrial buildings.

CS Cavity Sliders will, if employed in accordance with the supplier's installation and maintenance requirements, assist with meeting the following provisions of the building code:

Clause B1 Structure: Performance B1.3.1, B1.3.2 and B1.3.4. CS Cavity Sliders meet the requirements for loads arising from self-weight, earthquake, wind and impact [i.e. B1.3.3 [a], [f], [h] and [j]]
Clause B2 Durability: Performance B2.3.1 [a], not less than 50 years, [b], 15 years and [c], 5 years. CS Cavity Sliders meet these requirements
Clause F2 Hazardous Building Materials: Performance F2.3.1. CS Cavity Sliders meet this requirement and will not present a health hazard to people

Structure

Durability

Hazardous Building Materials

BRANZ Appraised
