CS RakingHead Cavity Slider

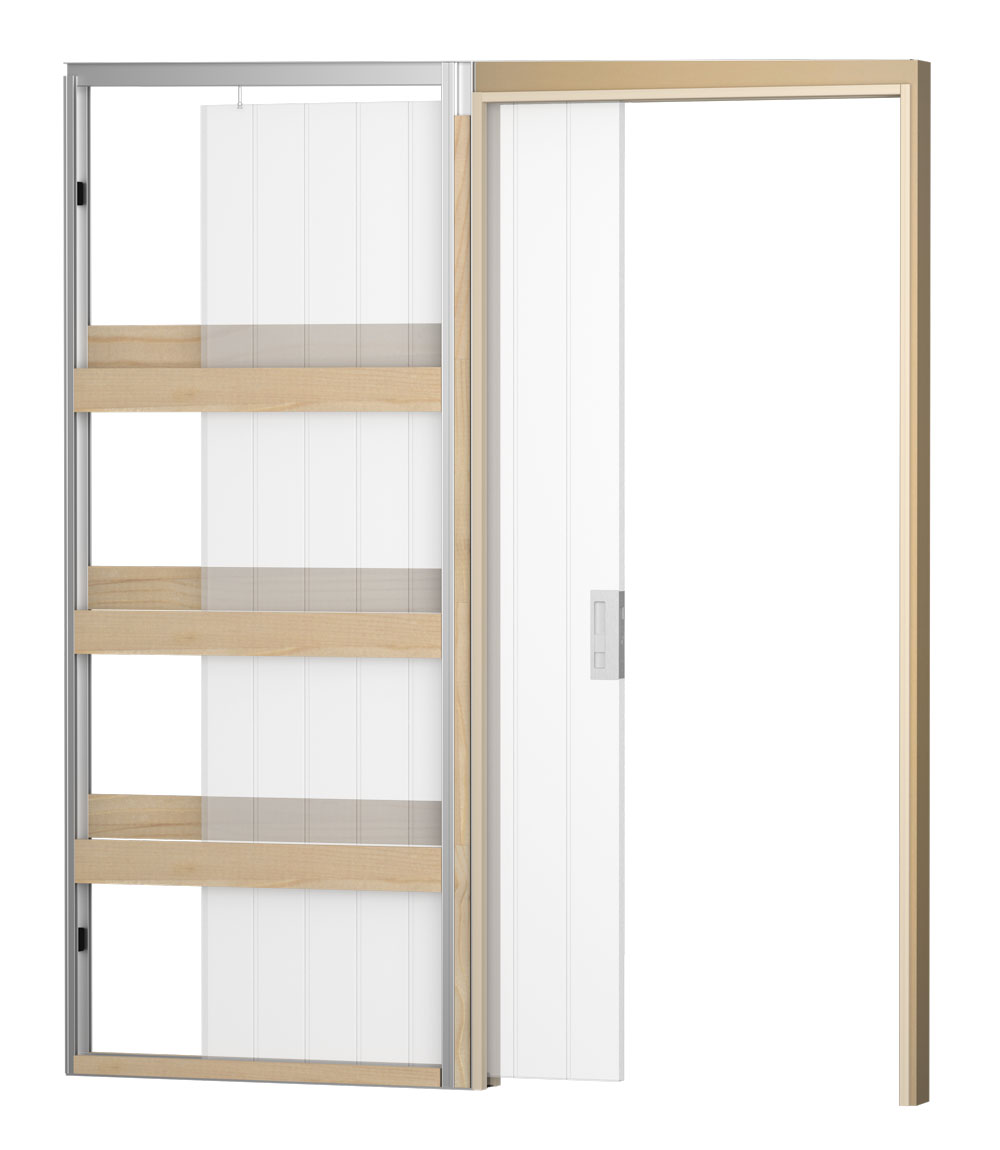

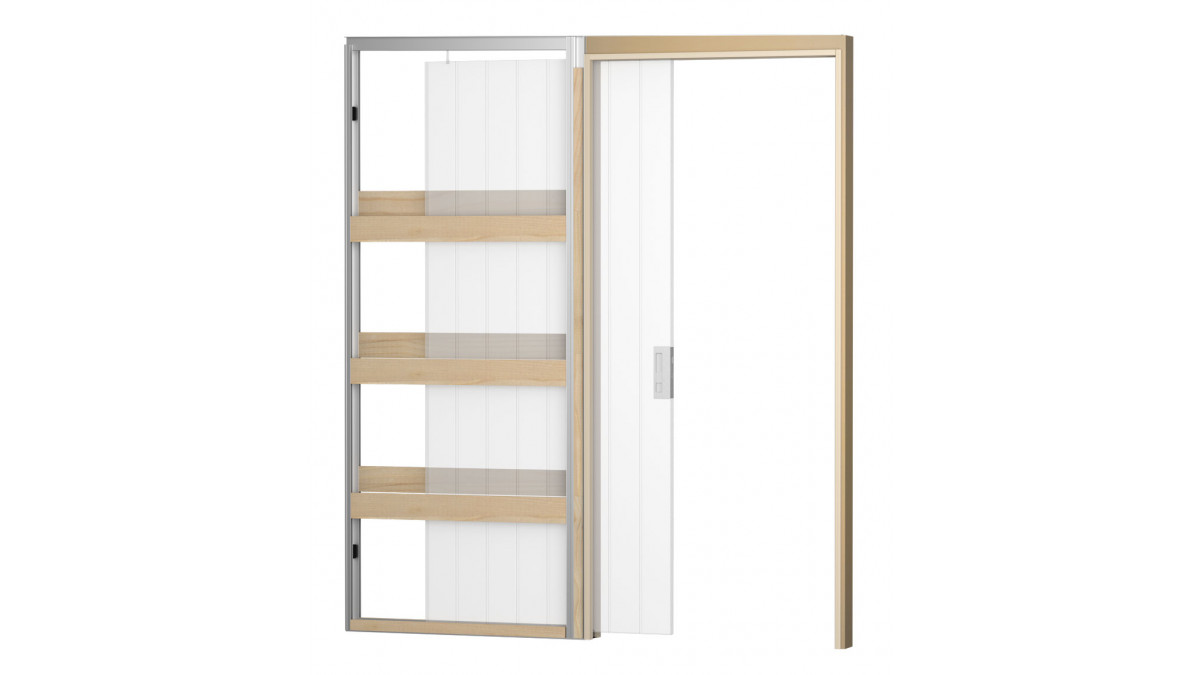

The CS RakingHead uses the weight of the door combined with the force of gravity to self-close. Soft close technology ensures that the door that closes behind one on its own — smoothly and quietly, without the cost of a fully automated door.

Key Features
  • Patented cavity frame is fully tested and guaranteed. It is engineered from high quality heavy duty extruded aluminium
  • Door and carriages can be removed without removing wall linings
  • The soft close mechanism is hidden from sight, yet remains fully serviceable
  • Available in standard and non-standard sizes up to 1200mm wide
  • Gentle braking and closing of door helps prevent slamming and injury
  • Fits into a standard thickness wall (90 x 45mm framing)
  • Supplied fully assembled for on-site installation
  • No visible floor guides

Detail Options

Incorporate any of the following architectural detail options with the CS RakingHead cavity slider to create a specific look or to provide a unique solution:

  • NoClosingJamb
  • ShadowLine
  • SquareStop

Maximum size 3000mm high x 1200mm wide.

Cavity Sliders
NZ Made
NZ Made
Scope of Use

CS Cavity Sliders units have been appraised for use with sliding doors in internal locations in residential, commercial and light industrial buildings.

Limitations on Use
  • Maximum door weight is 50kg
  • Minimum door width is dependant on door type
  • CS Cavity Sliders are not suitable for use with fire doors or smoke control doors
  • CS Cavity Sliders are suitable for use in single detached dwellings (SH purpose groups). In all other purpose groups, CS Cavity Sliders are not permitted within or for providing access to exit-ways
Statement of Building Code Compliance

CS Cavity Sliders will, if employed in accordance with the supplier's installation and maintenance requirements, assist with meeting the following provisions of the building code:

  • Clause B1 Structure: Performance B1.3.1, B1.3.2 and B1.3.4. CS Cavity Sliders meet the requirements for loads arising from self-weight, earthquake, wind and impact [i.e. B1.3.3 [a], [f], [h] and [j]]
  • Clause B2 Durability: Performance B2.3.1 [a], not less than 50 years, [b], 15 years and [c], 5 years. CS Cavity Sliders meet these requirements
  • Clause F2 Hazardous Building Materials: Performance F2.3.1. CS Cavity Sliders meet this requirement and will not present a health hazard to people
In-Service History
  • CS Cavity Sliders have been successfully used in commercial, residential and institutional projects in New Zealand and Australia since 1986
  • CS Cavity Sliders are backed by a 10 year written guarantee
B1 Structure compliant
B2 Durability compliant
F2 Hazardous Building Materials compliant
Hazardous Building Materials
BRANZ Appraised
BRANZ Appraised
Data Sheet
BRANZ Appraisal

900 [2020]

Maintenance Instructions
Additional Information
CAD/PDF Details
