Iconic Building Interior Restored with Asona Panels

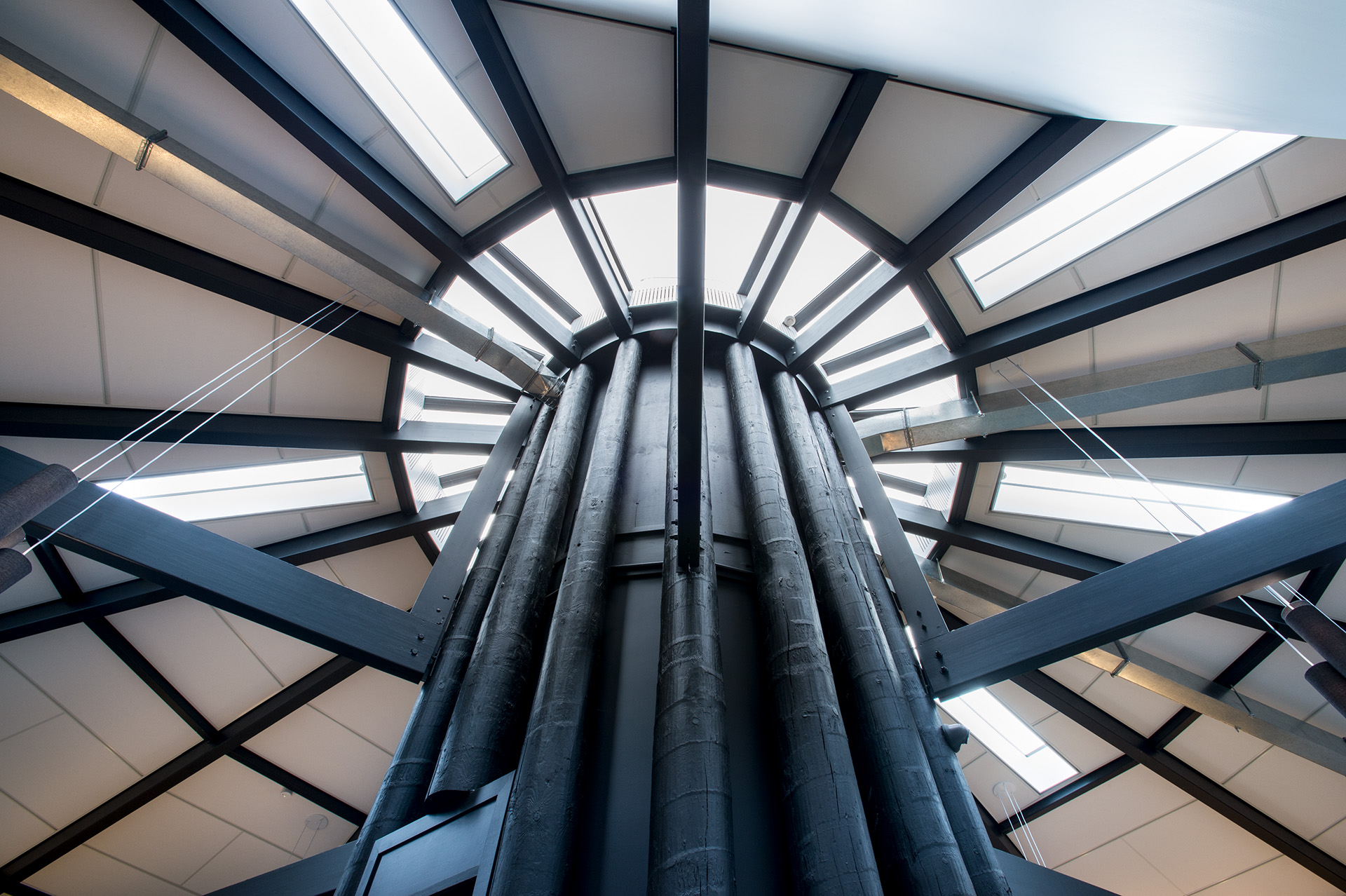

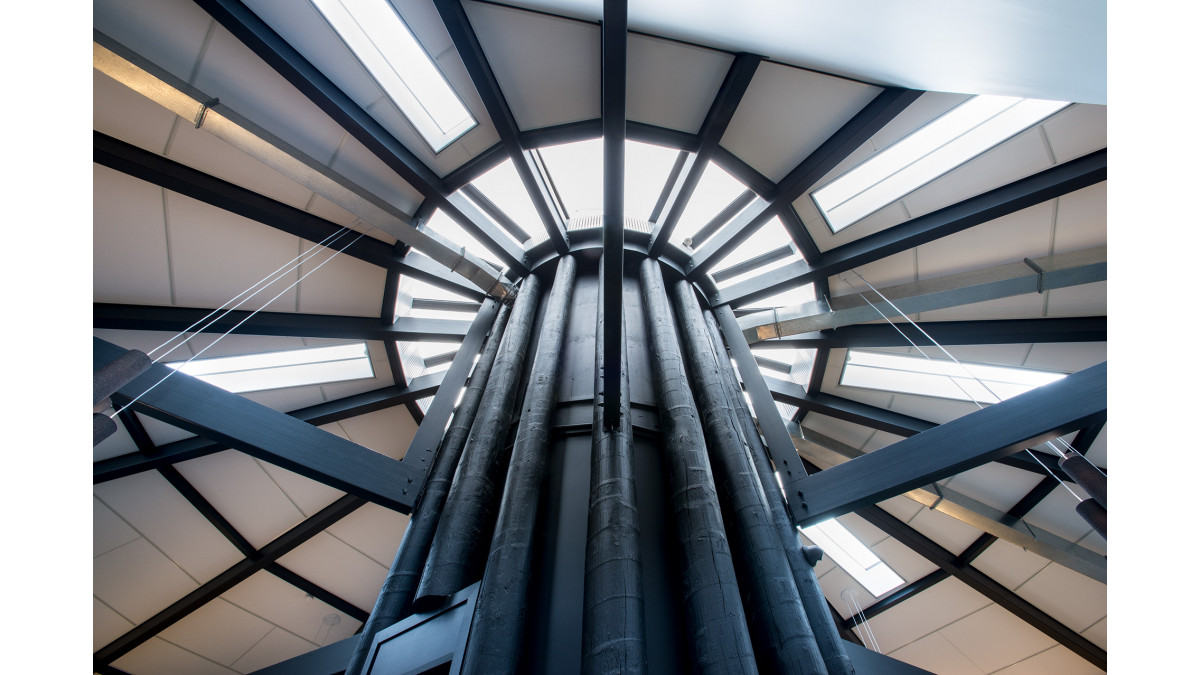

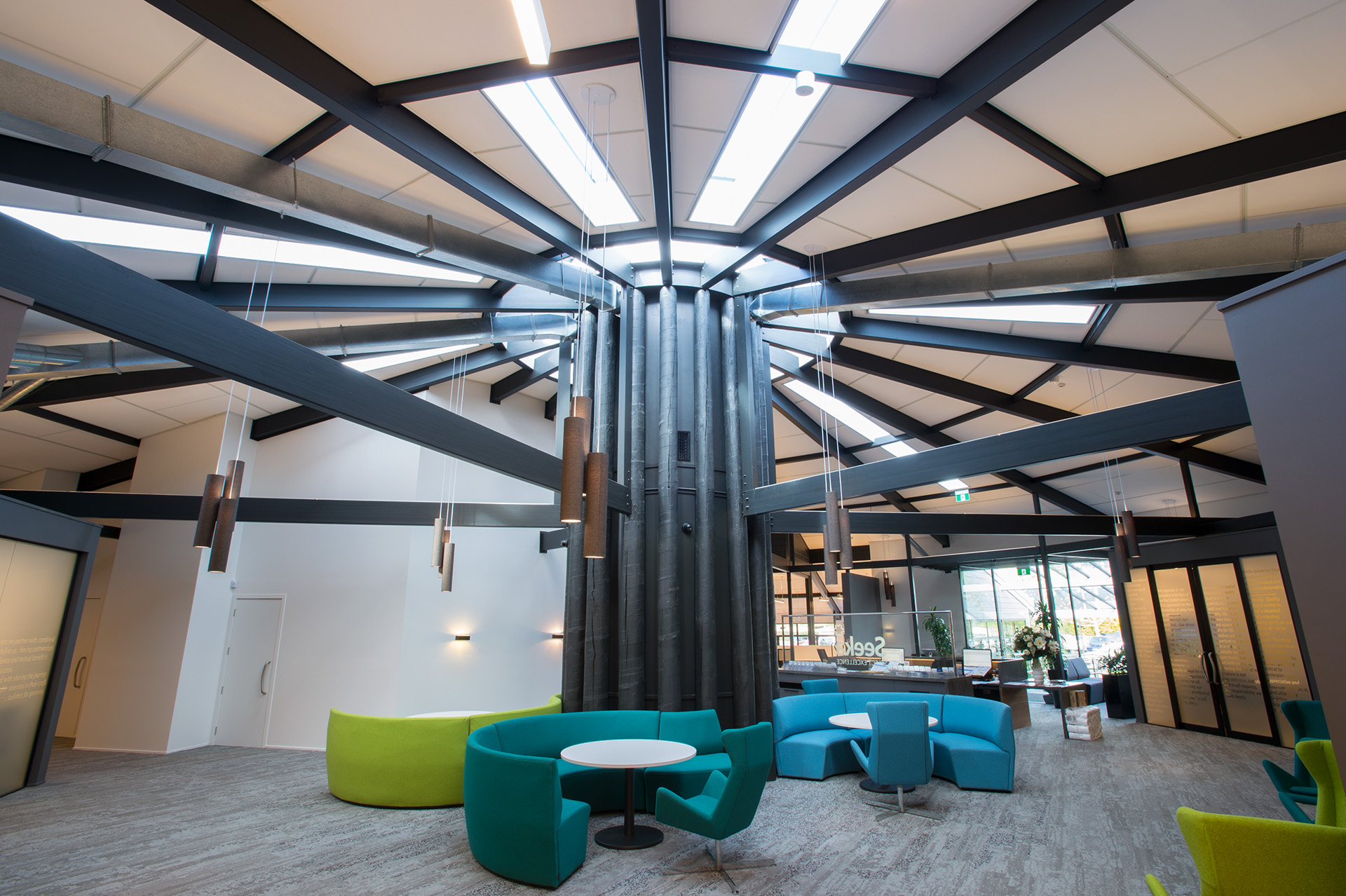

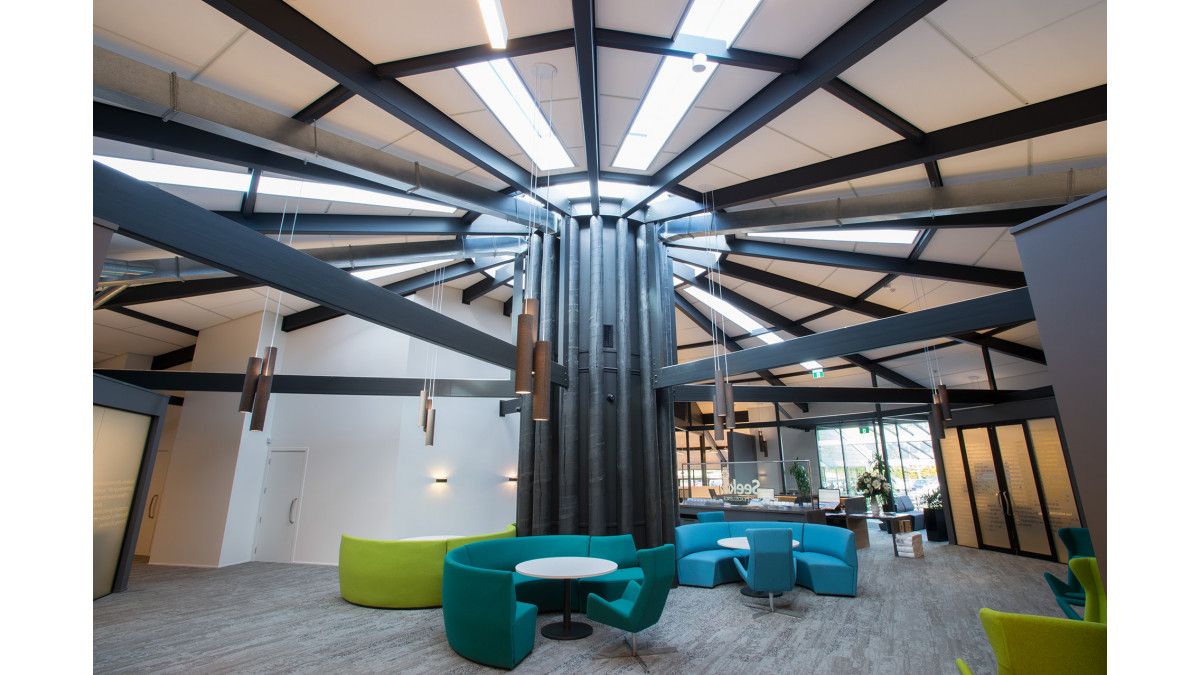

For the interior fit-out and refurbishment of the Seeka Te Puke HQ, David Page of Page Henderson Architects wanted to respect the original iconic Kiwi 360 building, including the unique rotunda that welcomes staff and visitors into the reception area.

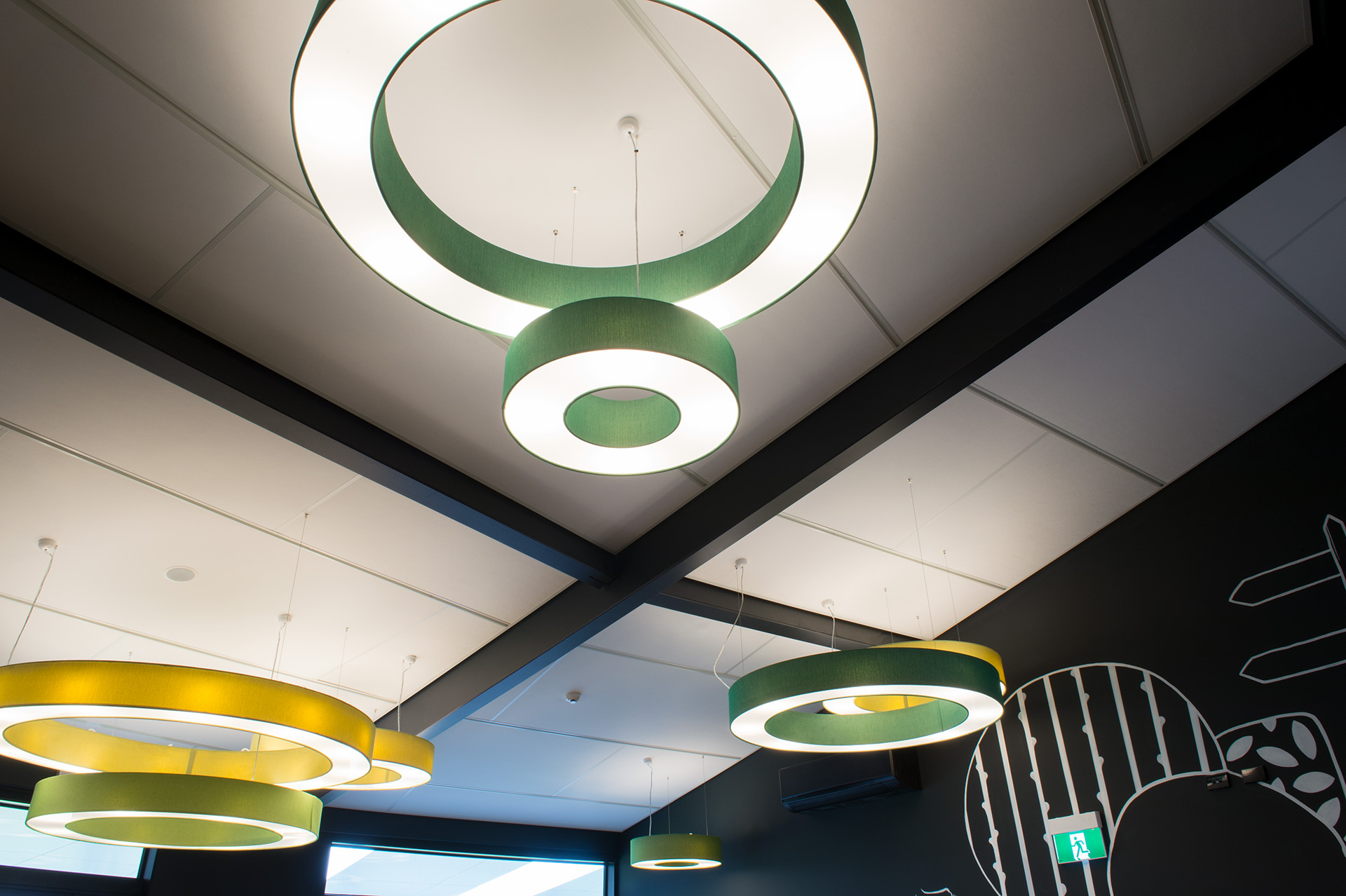

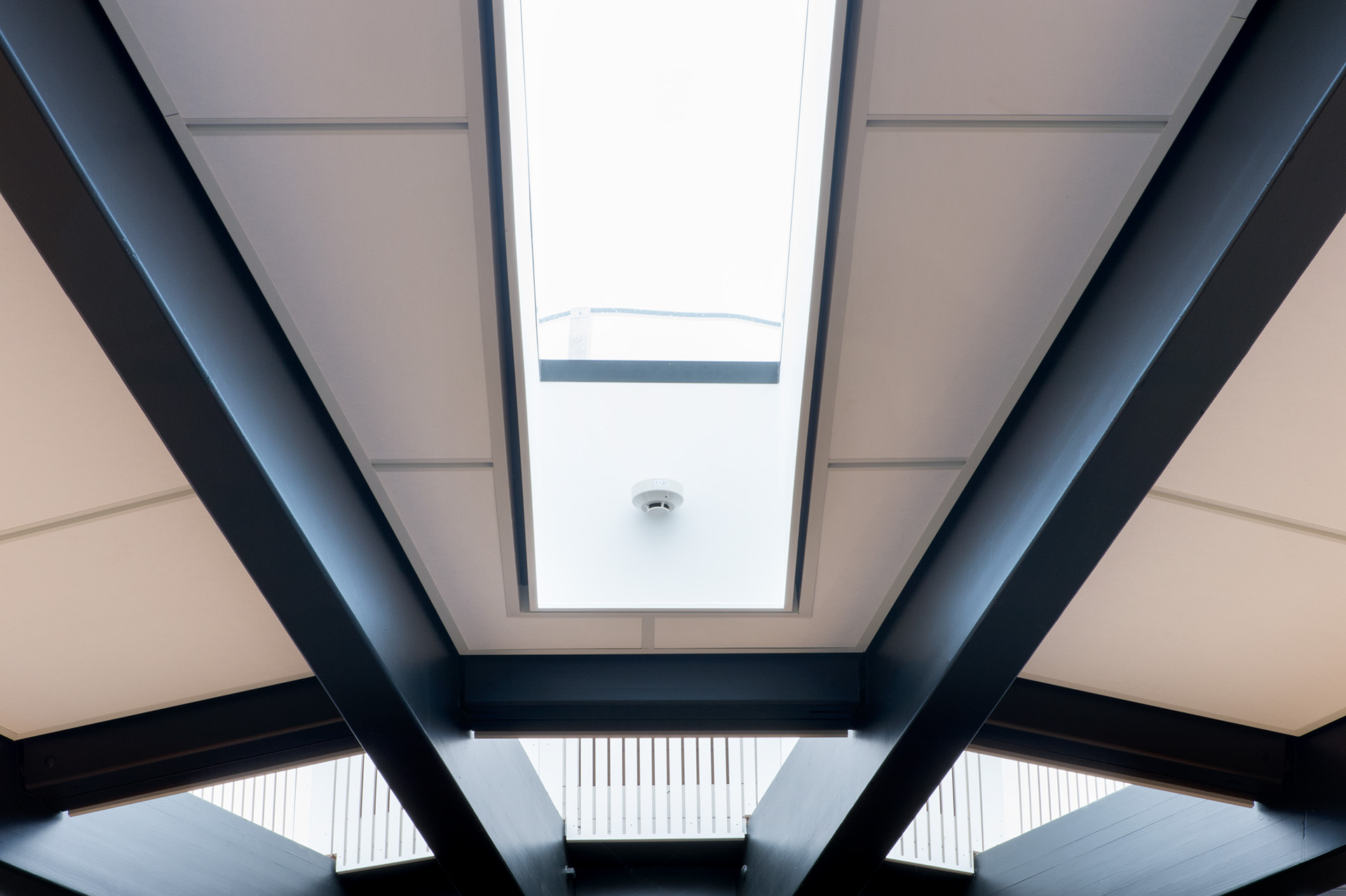

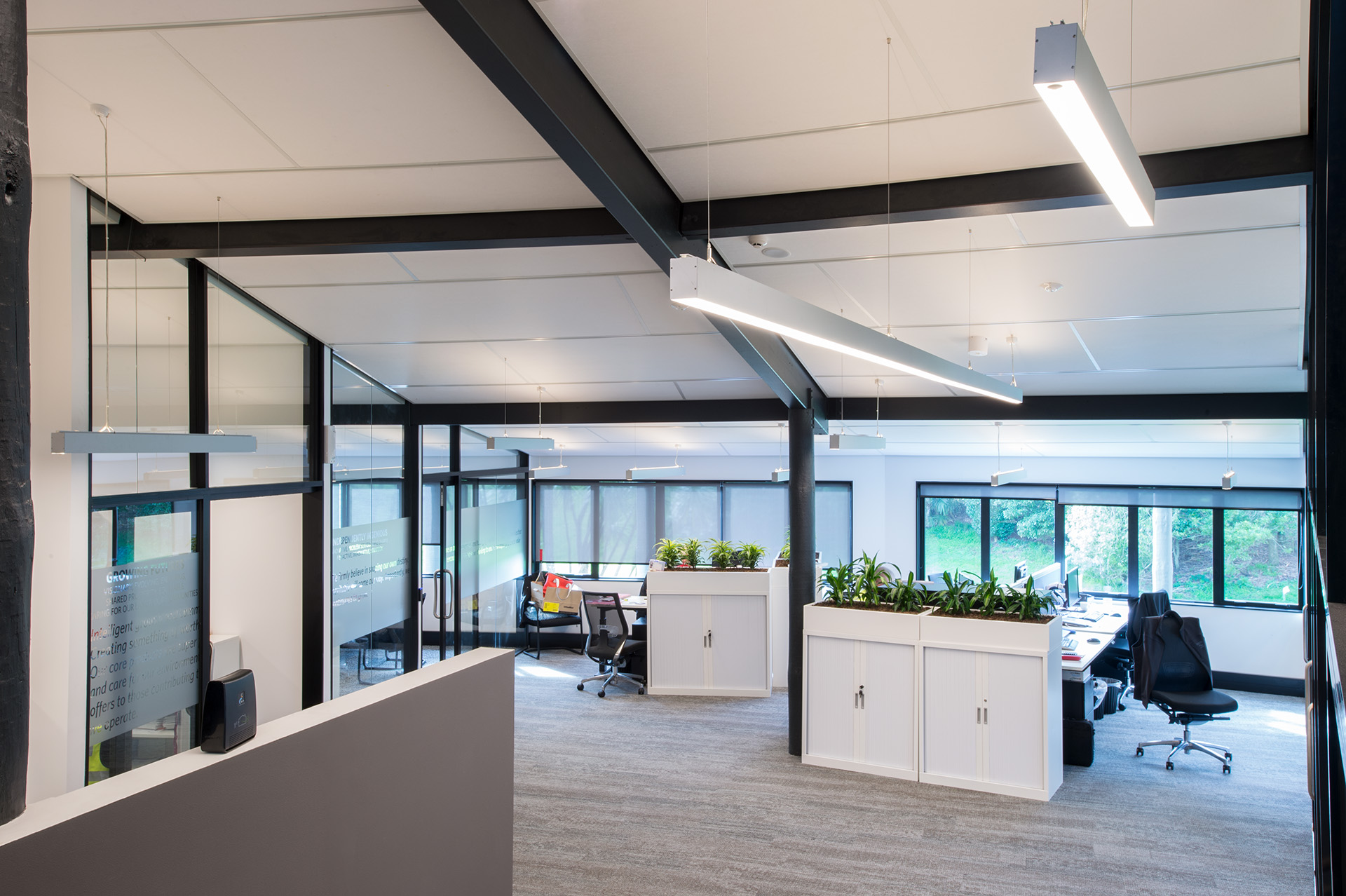

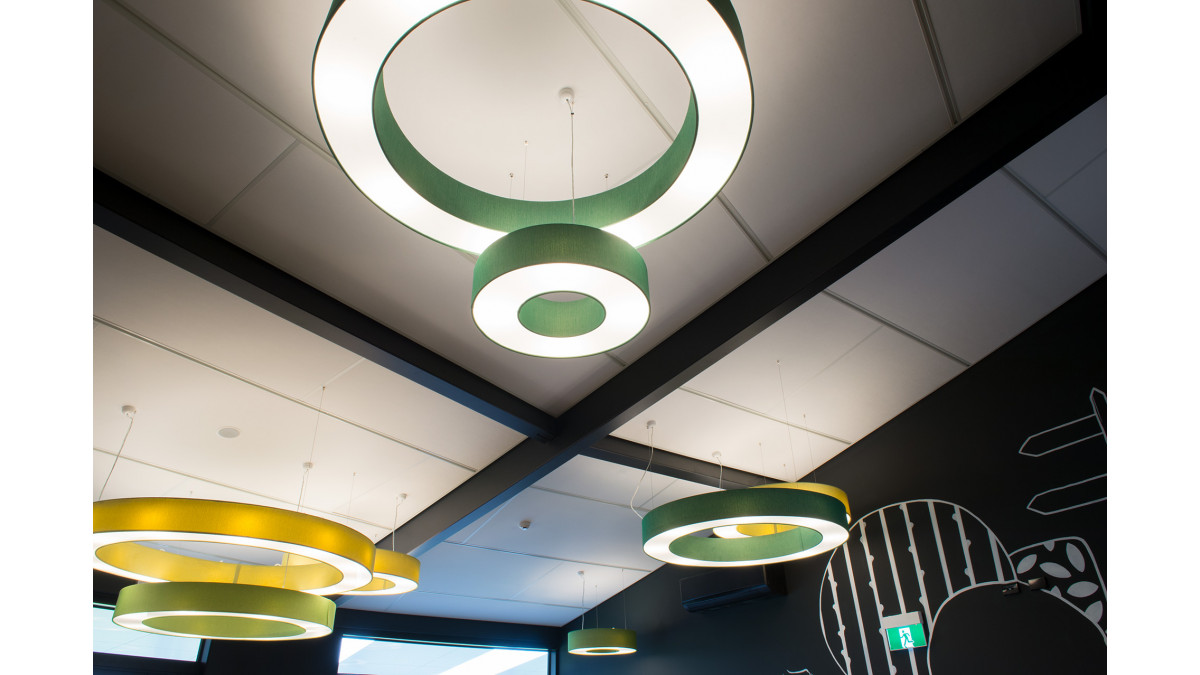

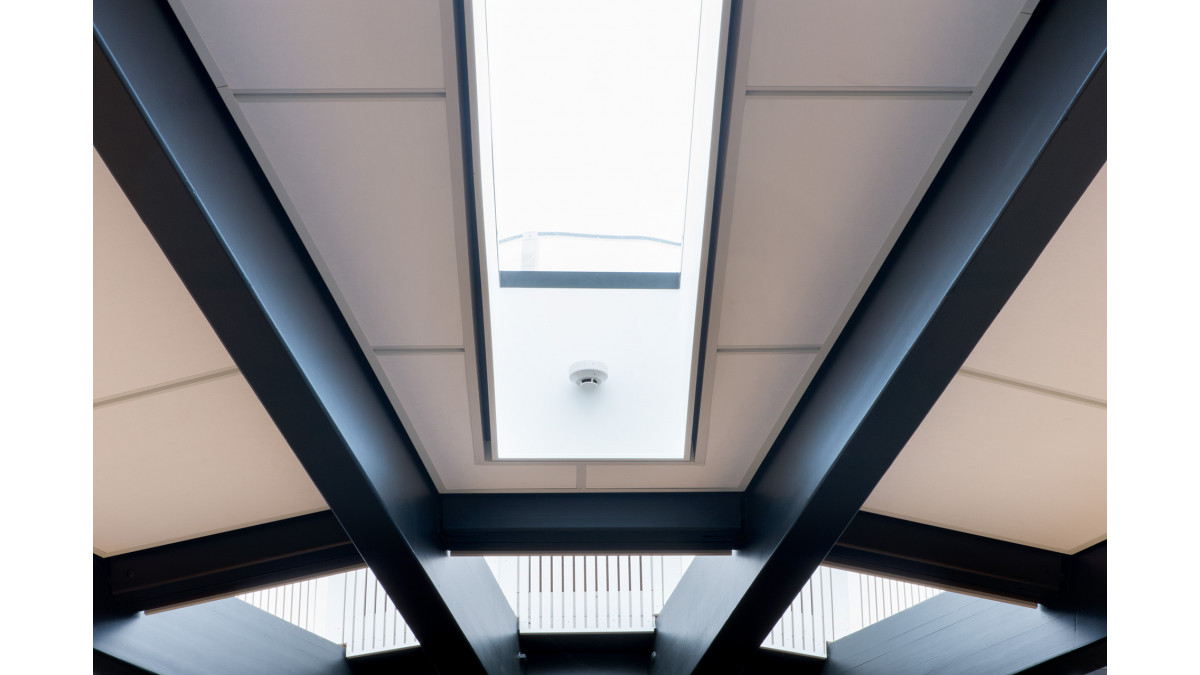

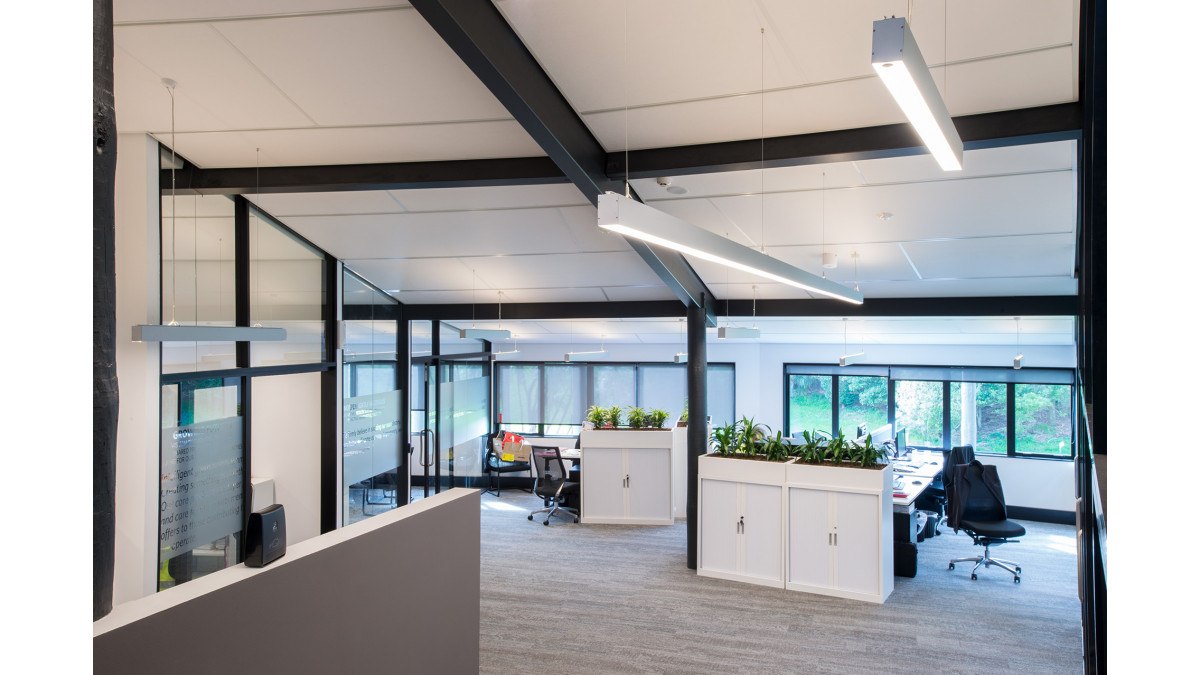

The finished design features trapezoidal shaped Triton 50 acoustic panels which were cut on-site and installed between expressed beams incorporating a top-hat channel along the leading edge to create a negative detail. Ceilings unlimited did a great job with lining up all the top-hat channel up with lasers so that the tiles transitioned around the room symmetrically. This was extended out into the new open plan office wing and café area to continue the design aesthetic.

The result is a clean, uniform look sympathetic to the original building design.

Architect: Page Henderson
Installer: Ceilings Unlimited
Manufactured by Asona Ltd

Triton 50

Asona

View Product

Triton 50™ is a made in NZ high sound absorbing ceiling panel that is designed to control unwanted noise reverberation.

Green Tag Certified

Pre-Consumer Recycled Content

NZ Made

NZ-Owned Business

Triton 50/50HD™ is an ideal retrofit acoustic panel for classrooms, offices, community halls when applied directly over plasterboard in large sheets or as a suspended grid and panel ceiling.

Ideal for call centres, open plan offices, halls, classrooms, libraries, etc where a combination of high acoustic absorption is required combined with good attenuation to block noise.

NRC 1.00, 50mm thick panel provides superior sound ab-sorption at low to high frequencies in either direct fix over plasterboard or as a suspended ceiling
Large panels up to 1200 x 2400mm provide for a cleaner look with fewer panel joins compared to standard 600 x 1200mm size
Can be suspended or directly fixed over plasterboard linings to reduce reflections from hard surfaces
Ideal for service panels
Light weight for seismic areas

Fire Reaction — NZBC verification method C/VM2 material group number: 1-S
Clause B2 — durability 5 years
