EVO Max Fin
Description

EVO Max Fin balustrade is a high performing balustrade system which is suitable for use in high occupancy areas that are suseptable to overcrowding such as schools, grandstands and shopping malls. The vertical fins attach to the face of the structural frame providing a clean, seamless look.

The fins can cover the deck edge or be extended to make privacy screens. The EVO Max Fin system is compatible alongside Clearspan face Hung Fin, where high loadings are not required.



Key Features
  • Suitable for C5 occupancy loads where the area is susceptible for overcrowding
  • Fins can cover deck edge and/or extend to make privacy screens
  • Structural steel posts, with aluminium horizontal rails and fins
  • Fin size and spacing can be customised
  • Compatible alongside Clearspan face Hung Fin, where high loadings are not required
  • All components are made using the highest grades of aluminium, steel and stainless steel
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Scope of Use
  • The system is suitable for all applications where a high occupancy loading is required, where people may congregate and areas susceptible to overcrowding.
  • The system has been engineered to meet C5 (3.0kN/m) which is the highest in the building code.
  • The system is suitable for Schools, theatres, cinemas, grandstands, bars, auditoria, shopping malls, retail areas, restaurants
  • Compatible alongside Clearspan face Hung Fin, where high loadings are not required.
Limitations on Use
  • The EVO Max system is suitable for all occupancy levels in the NZ building code including A, B,E, C1/C2, C3, C5 & D
  • Due to the high loading requirements the system is only suitable for face fixed to steel or concrete substrates
  • The system is currently only suitable for vertical fin applications
Statement of Building Code Compliance

Complies with the following provisions of the New Zealand Building Code:

  • Clause B1 Structure
  • Clause B2 Durability
  • Clause D1 Access Routes
  • Clause F4 Safety from Falling
In-Service History

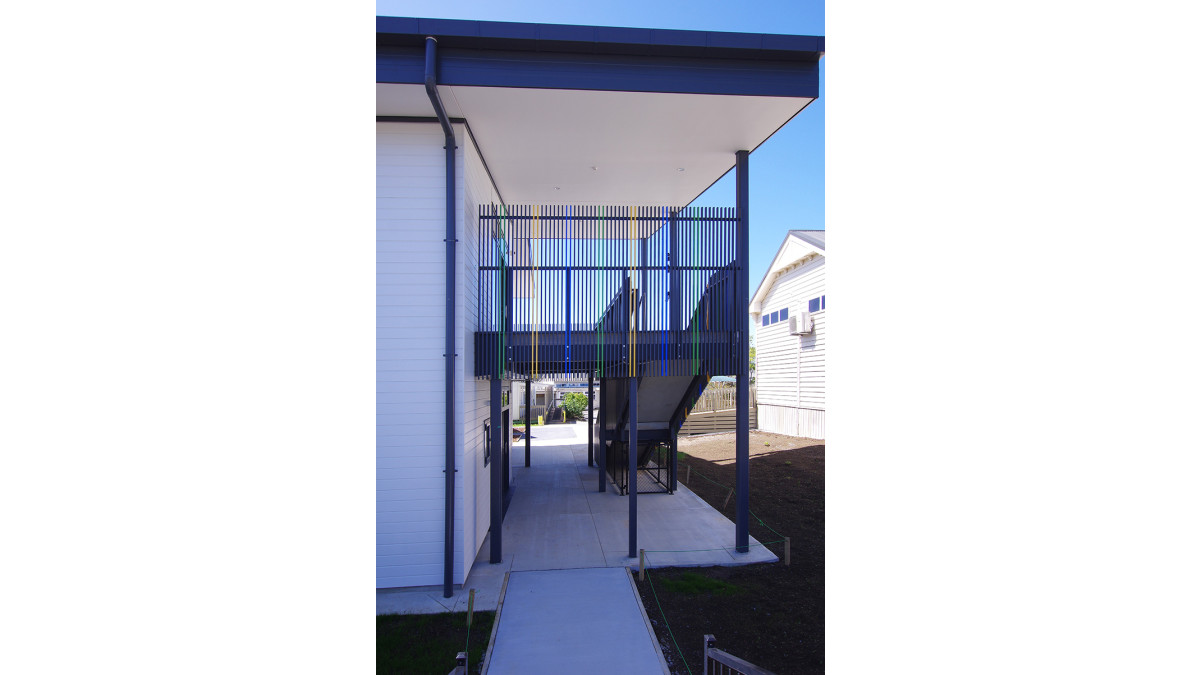

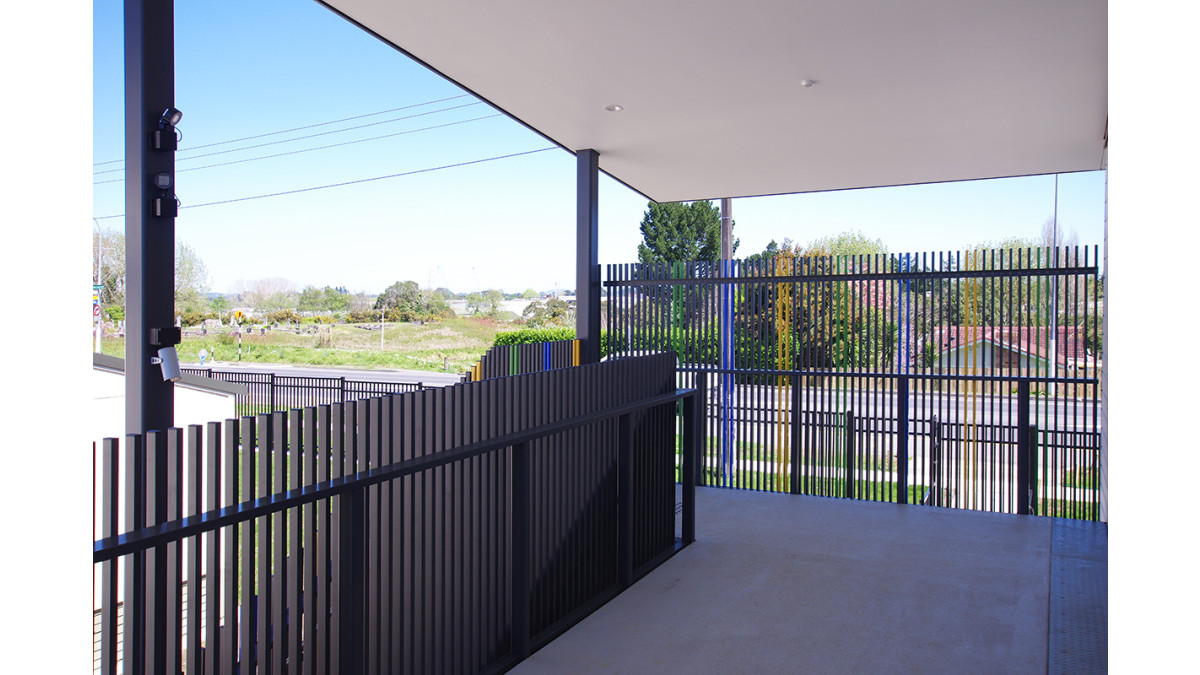

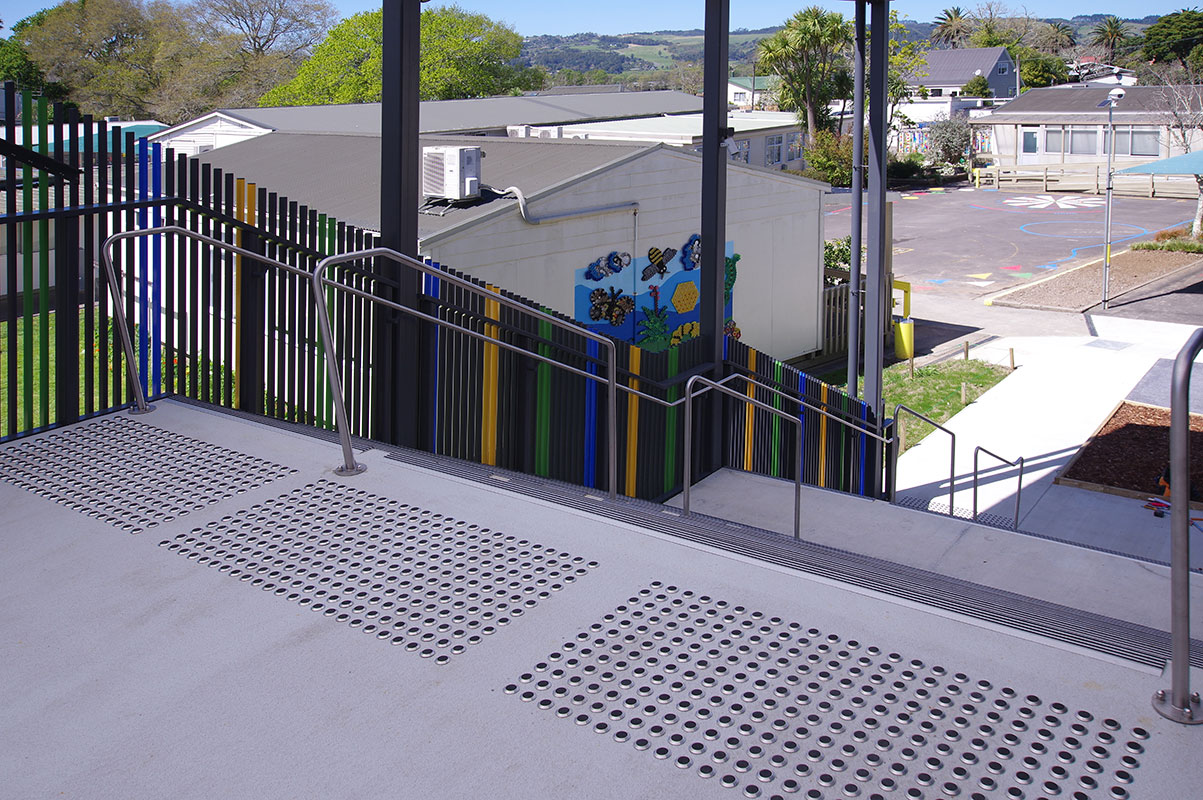

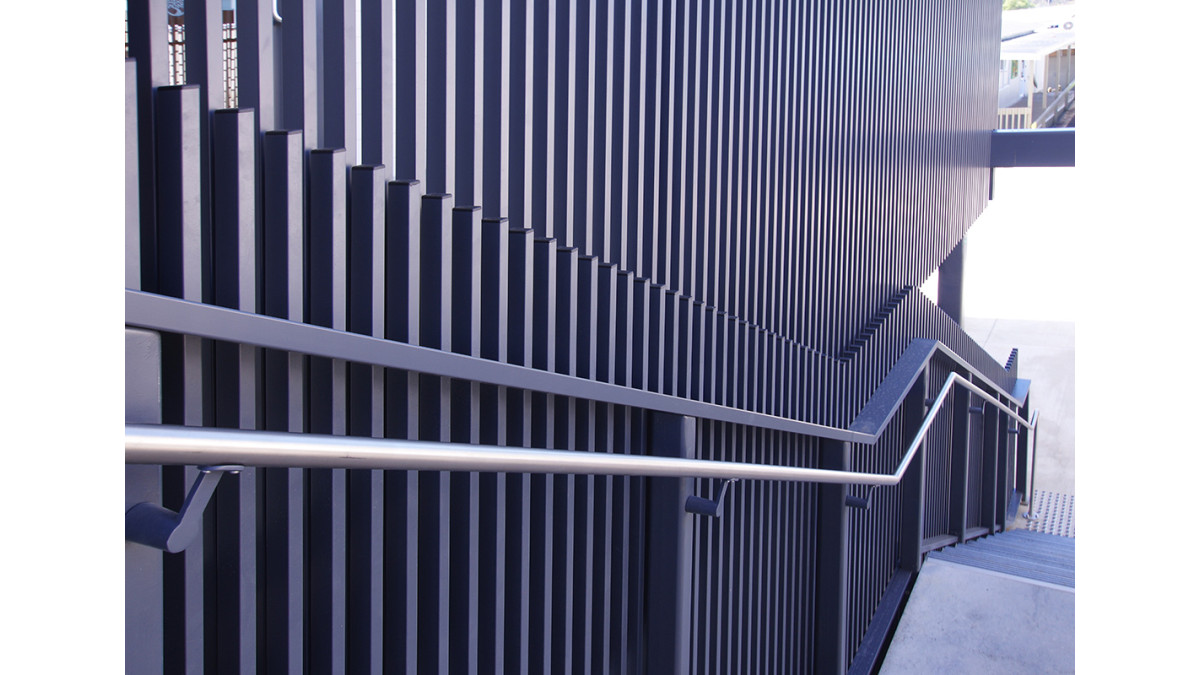

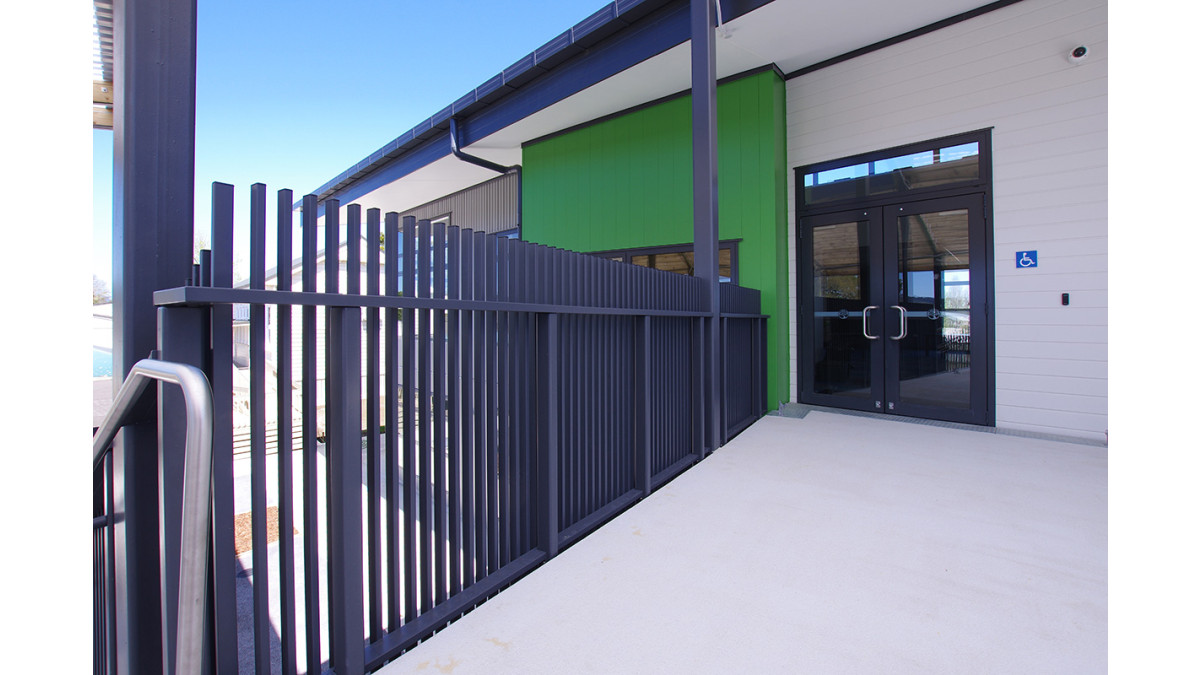

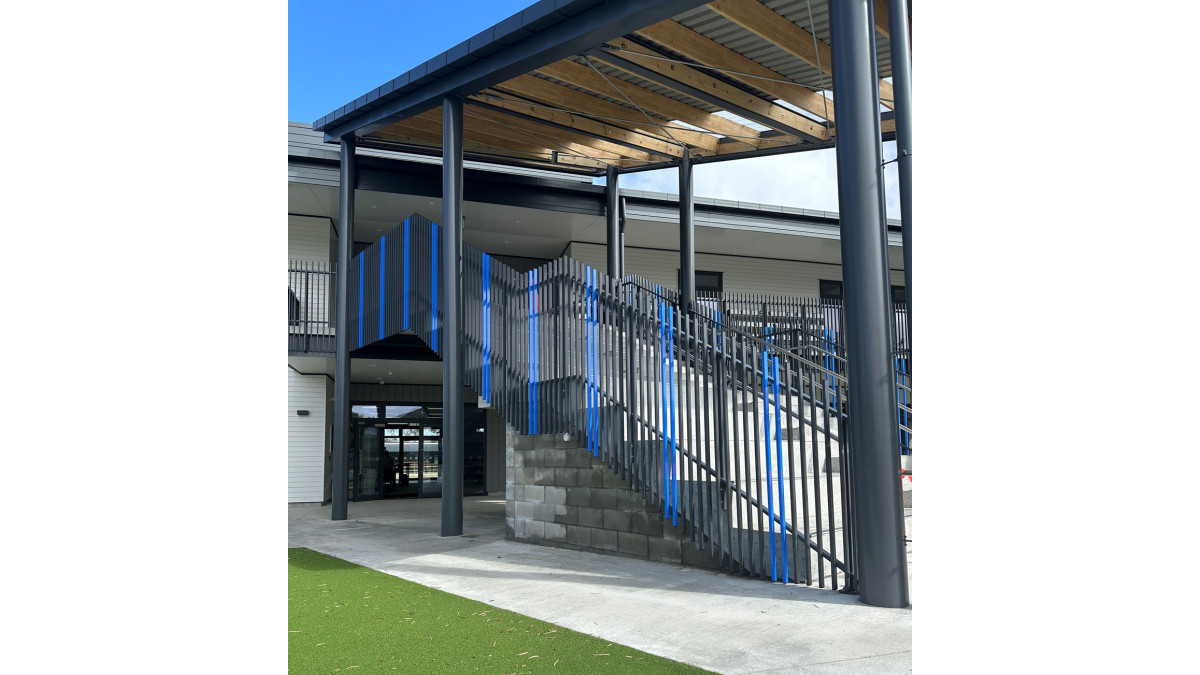

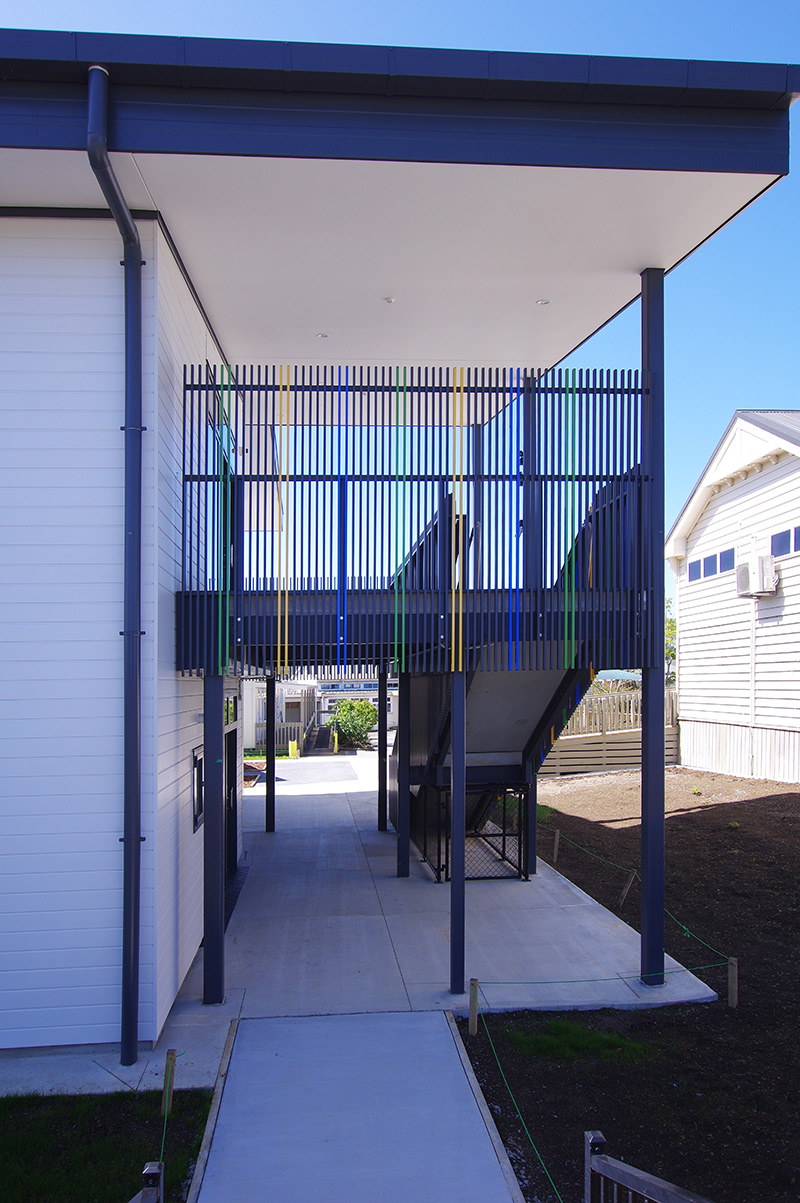

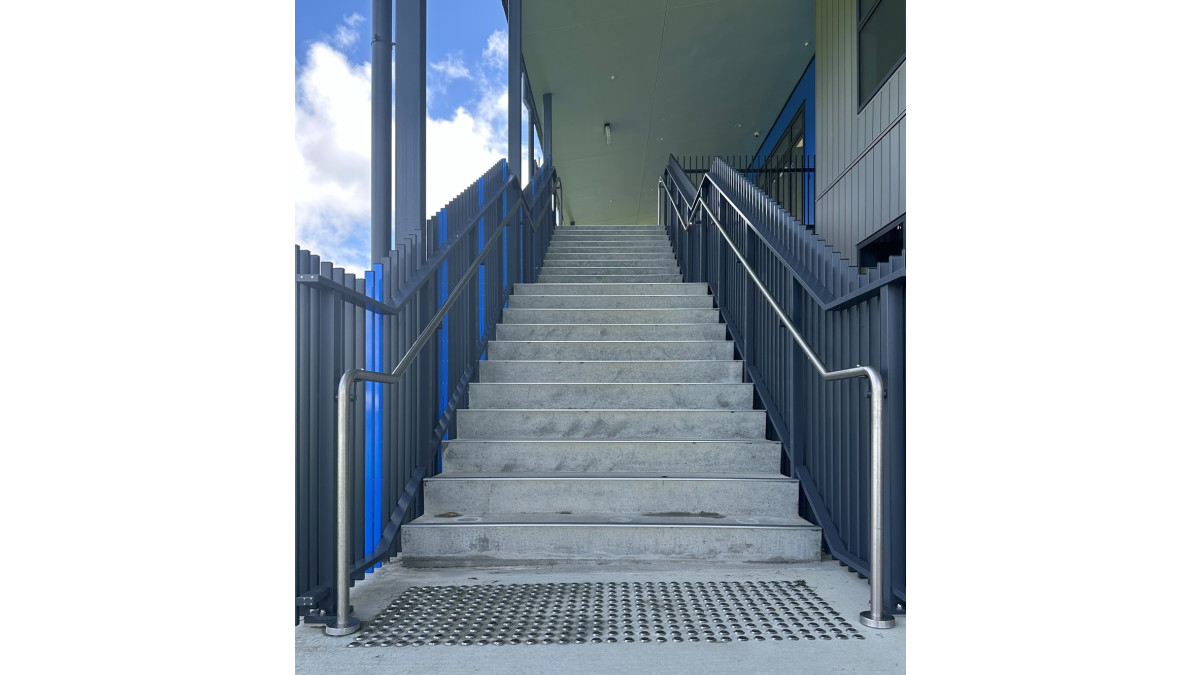

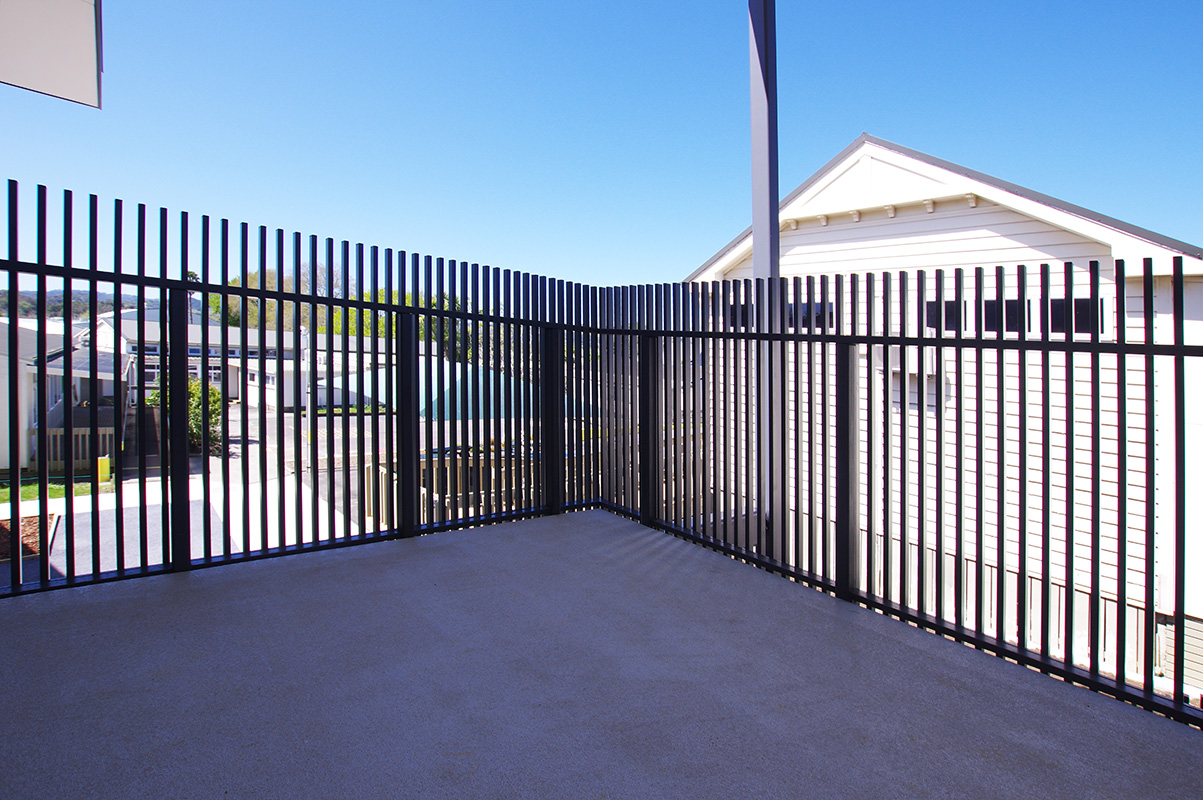

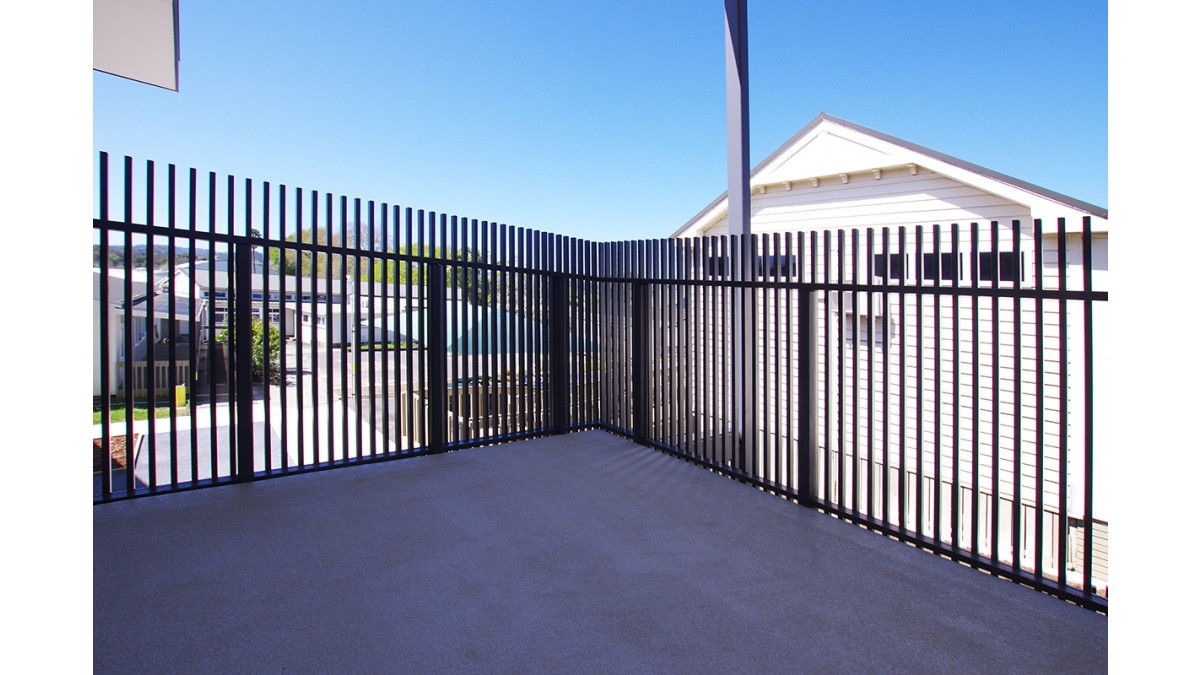

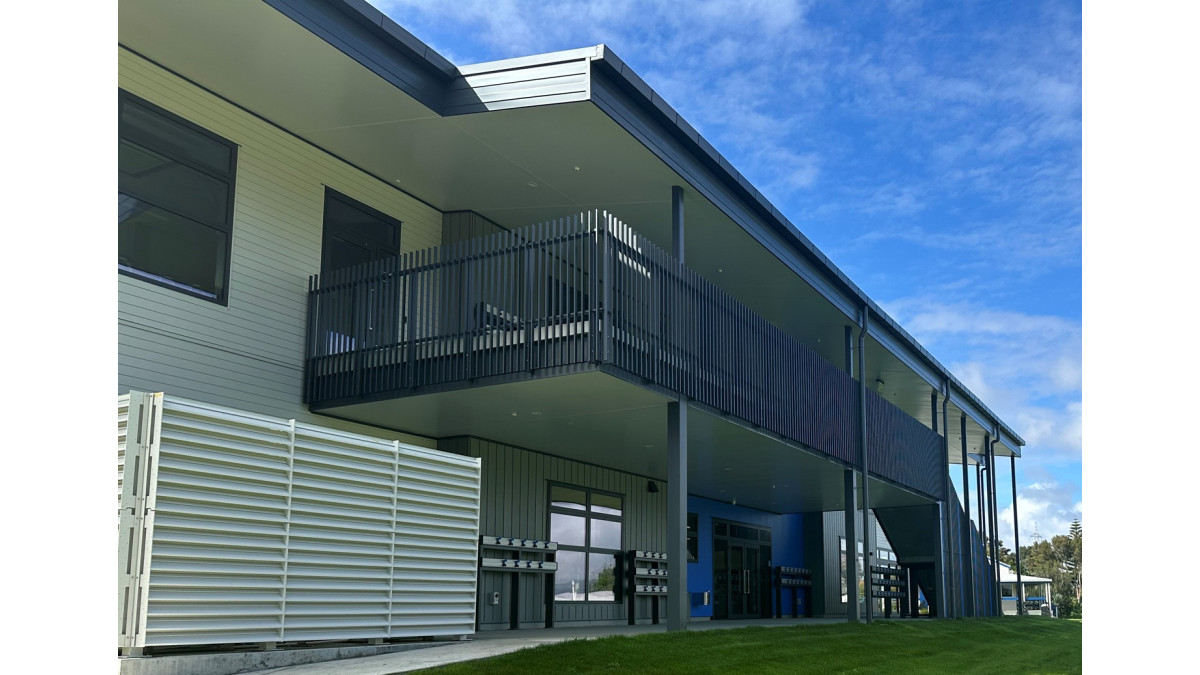

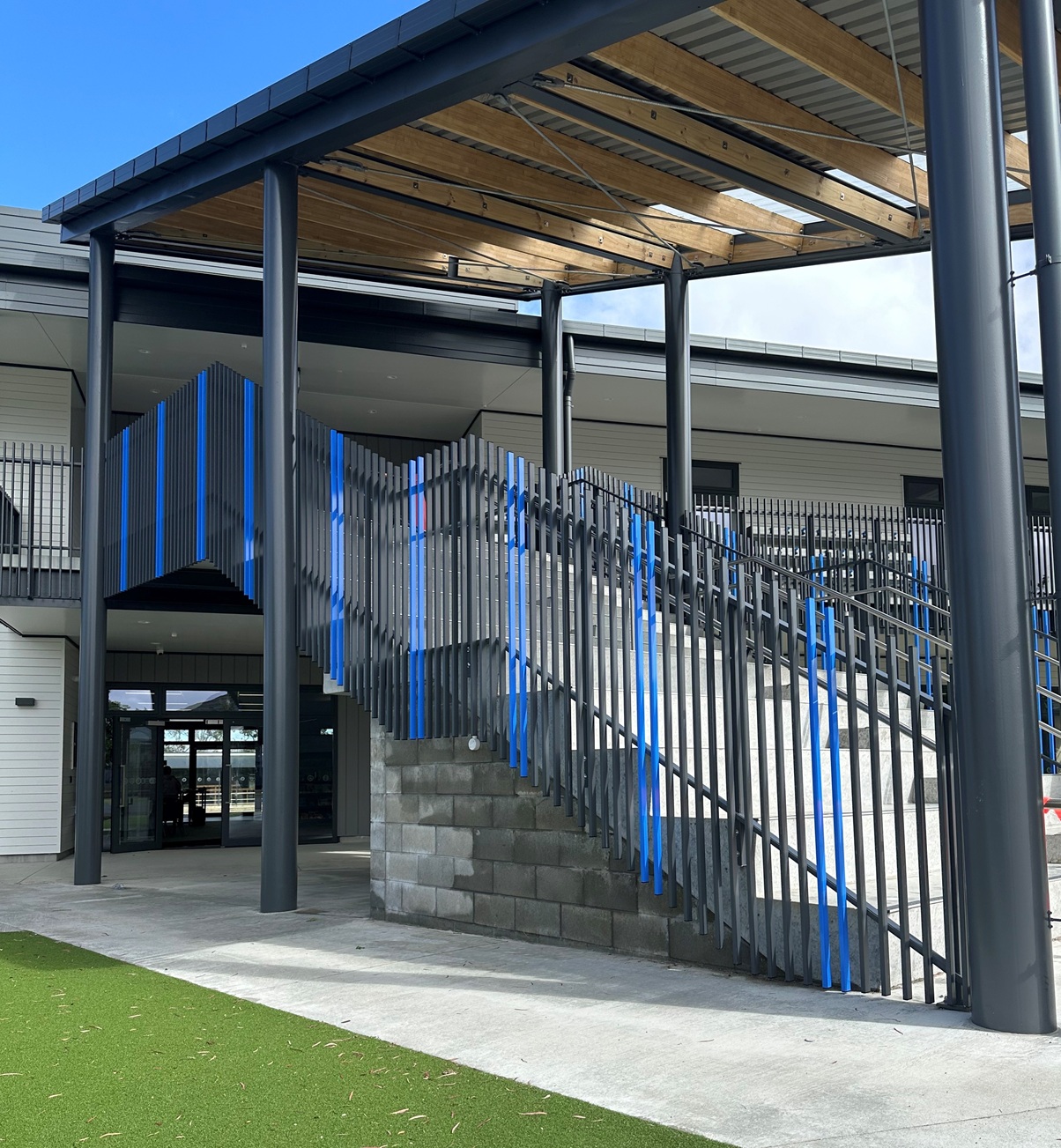

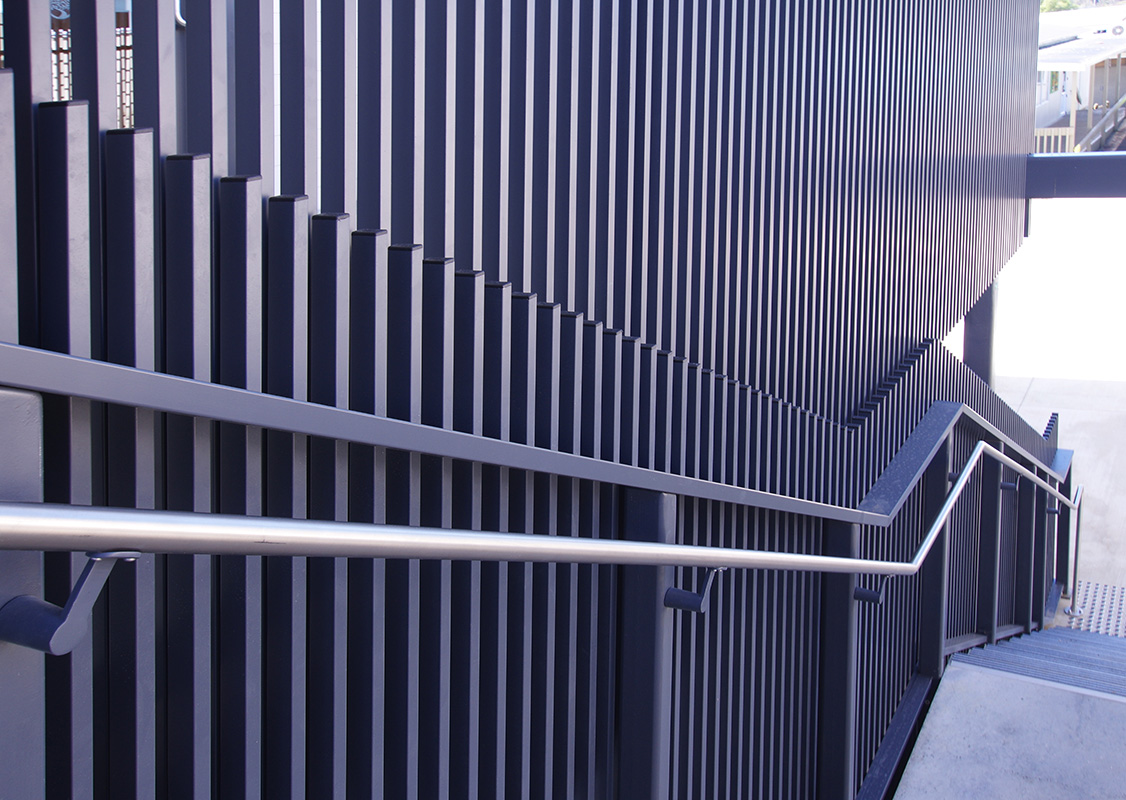

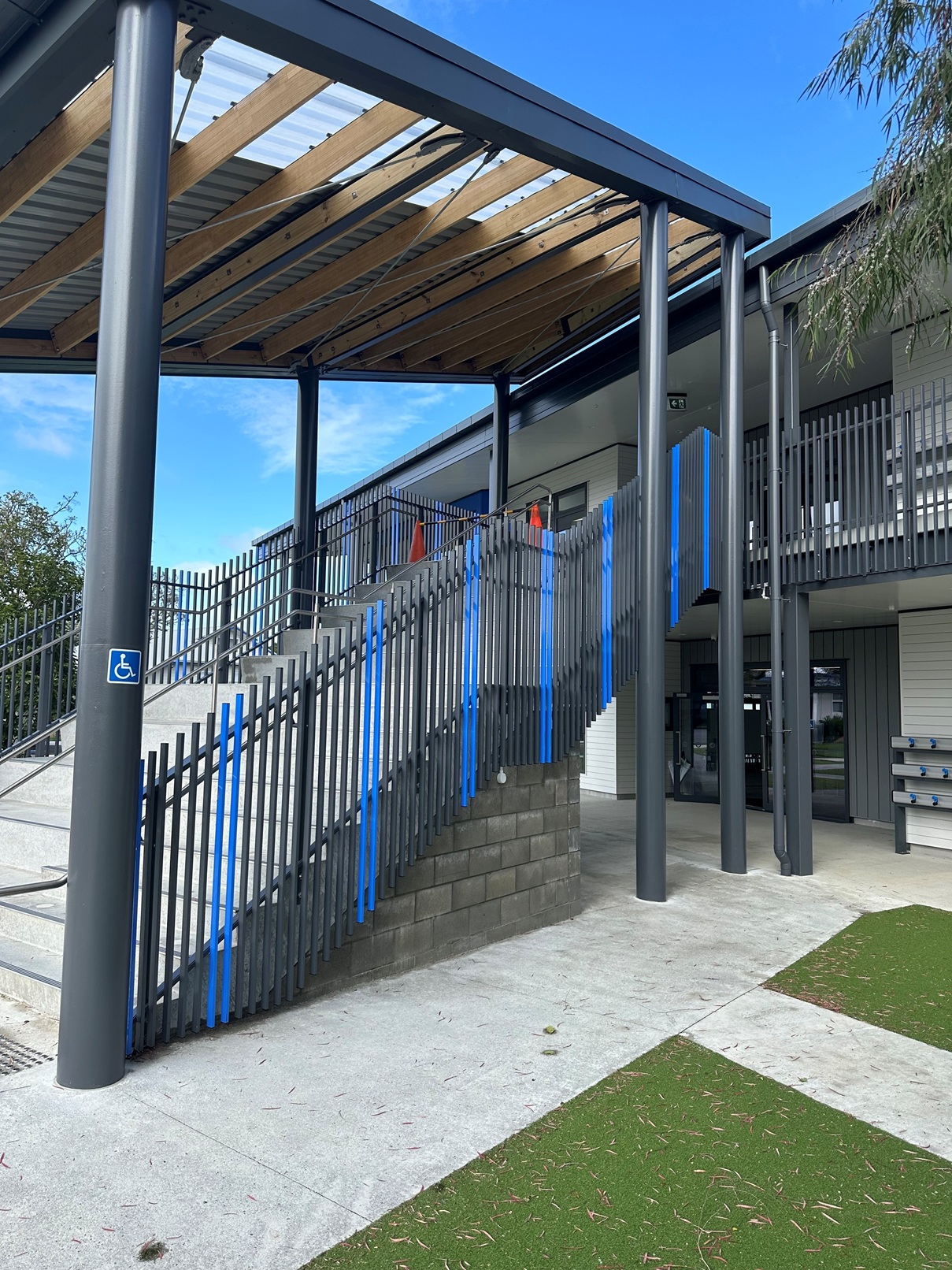

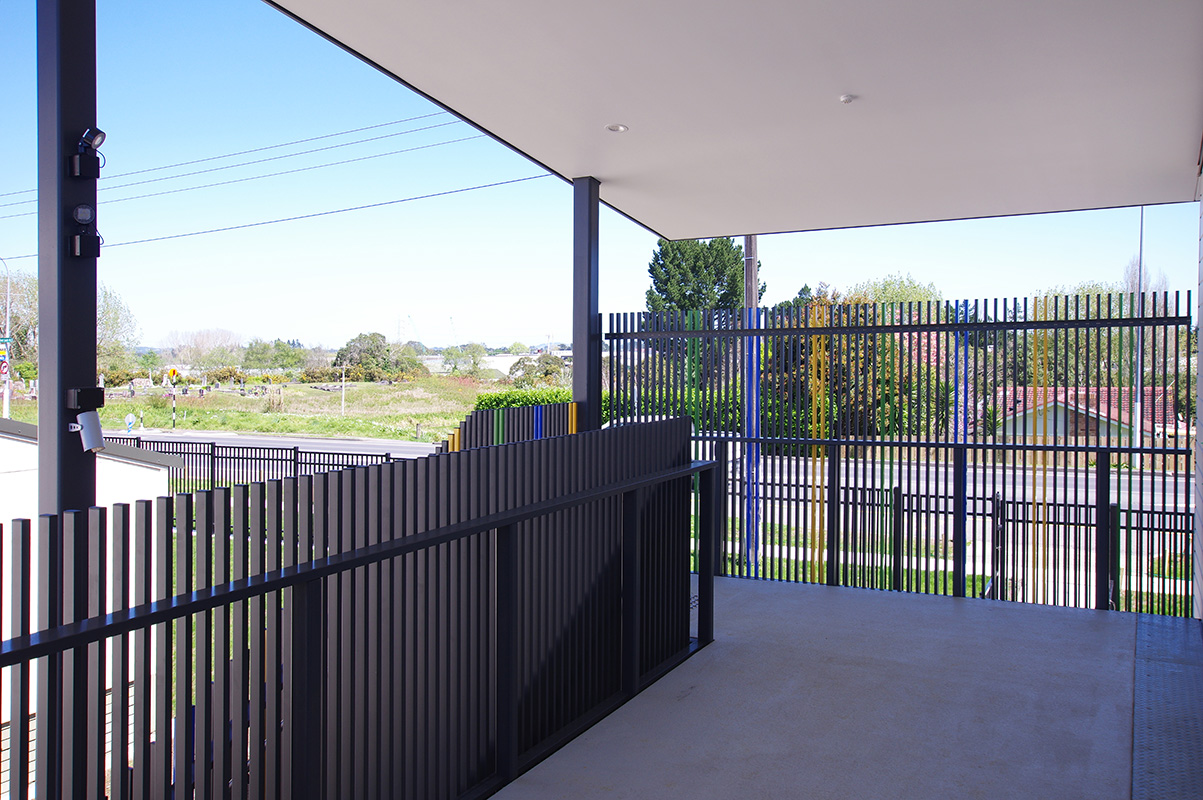

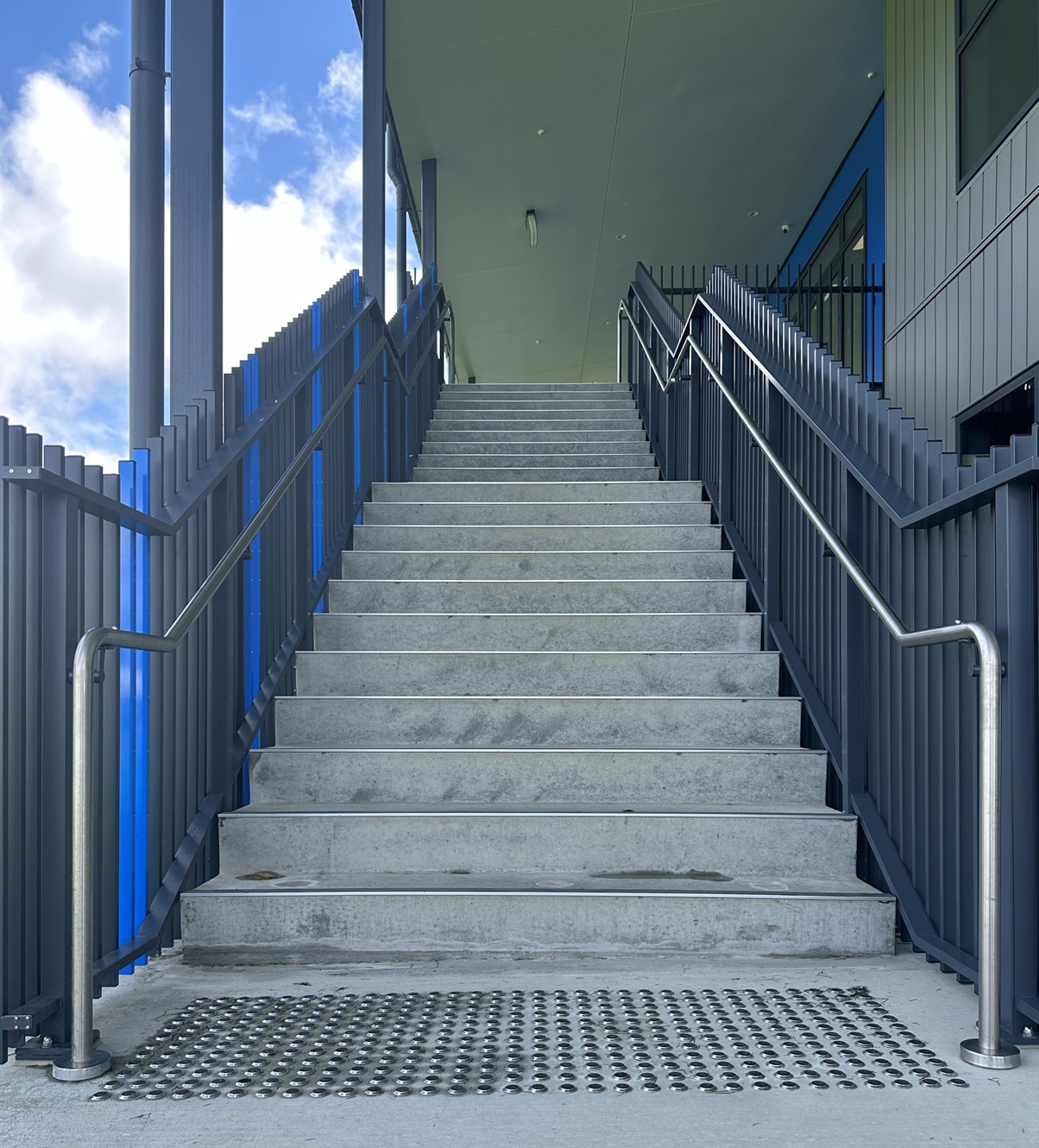

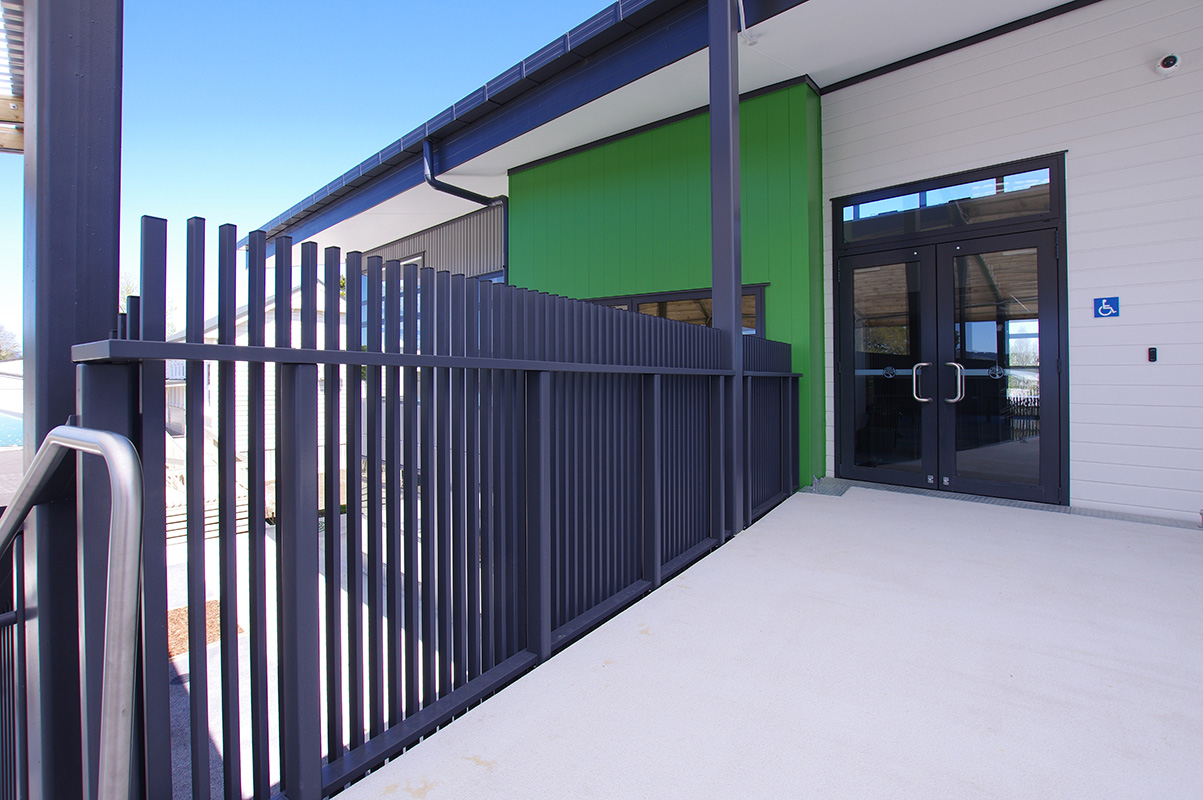

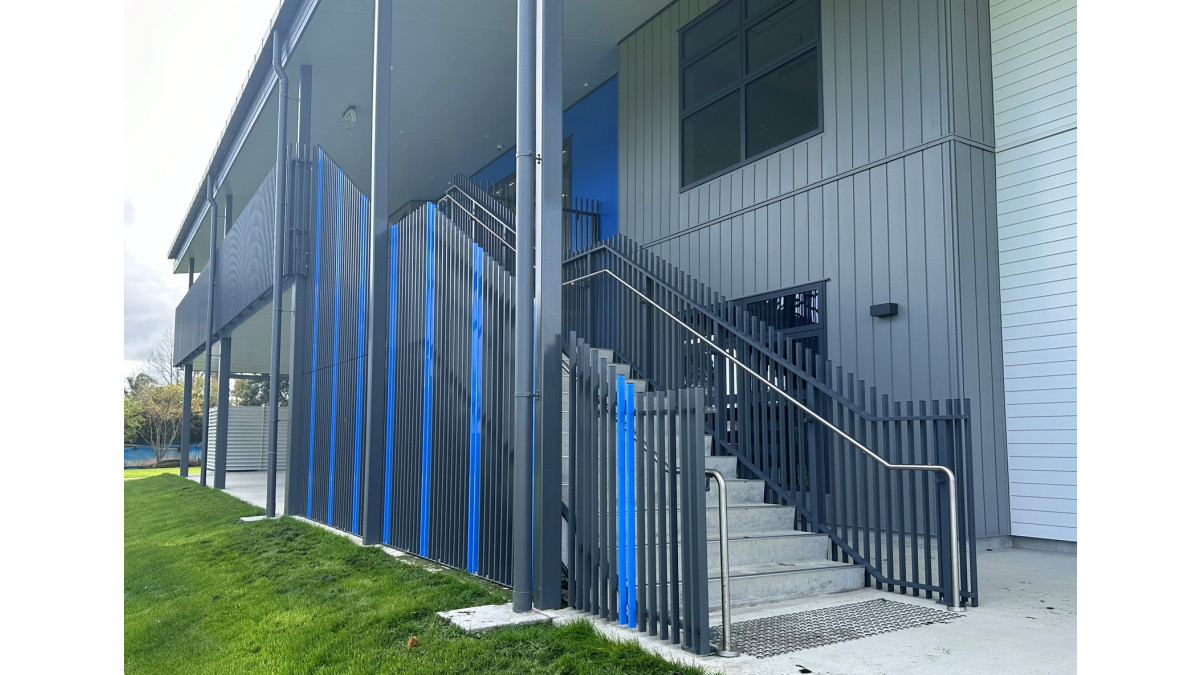

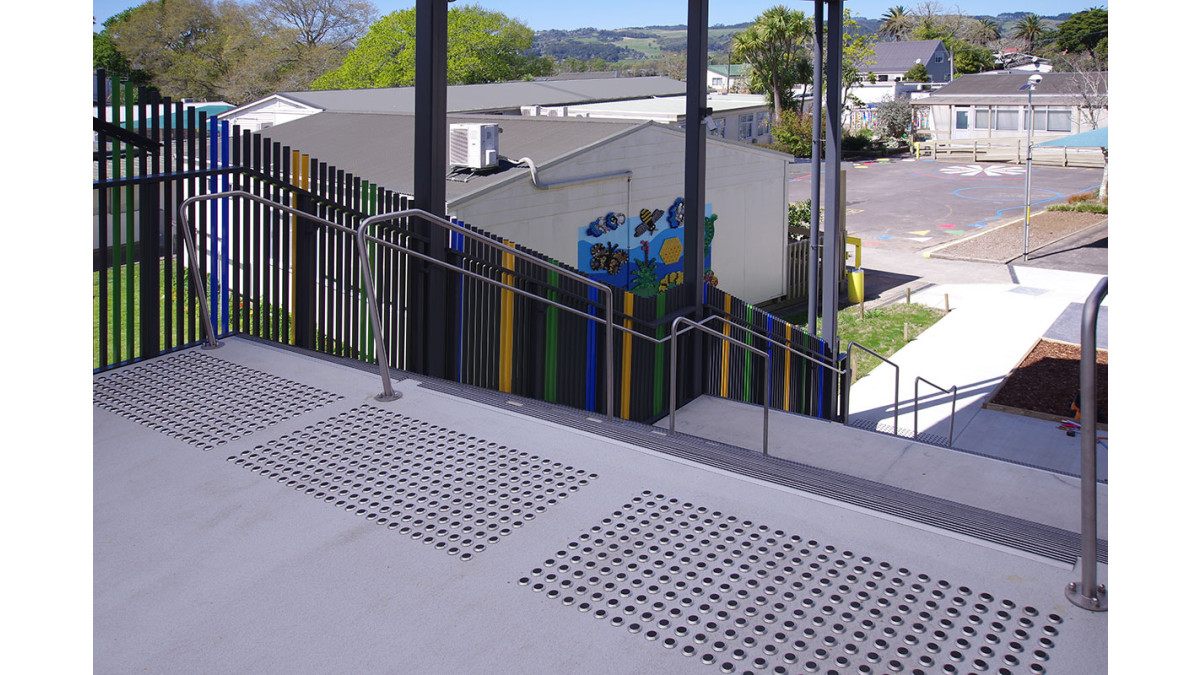

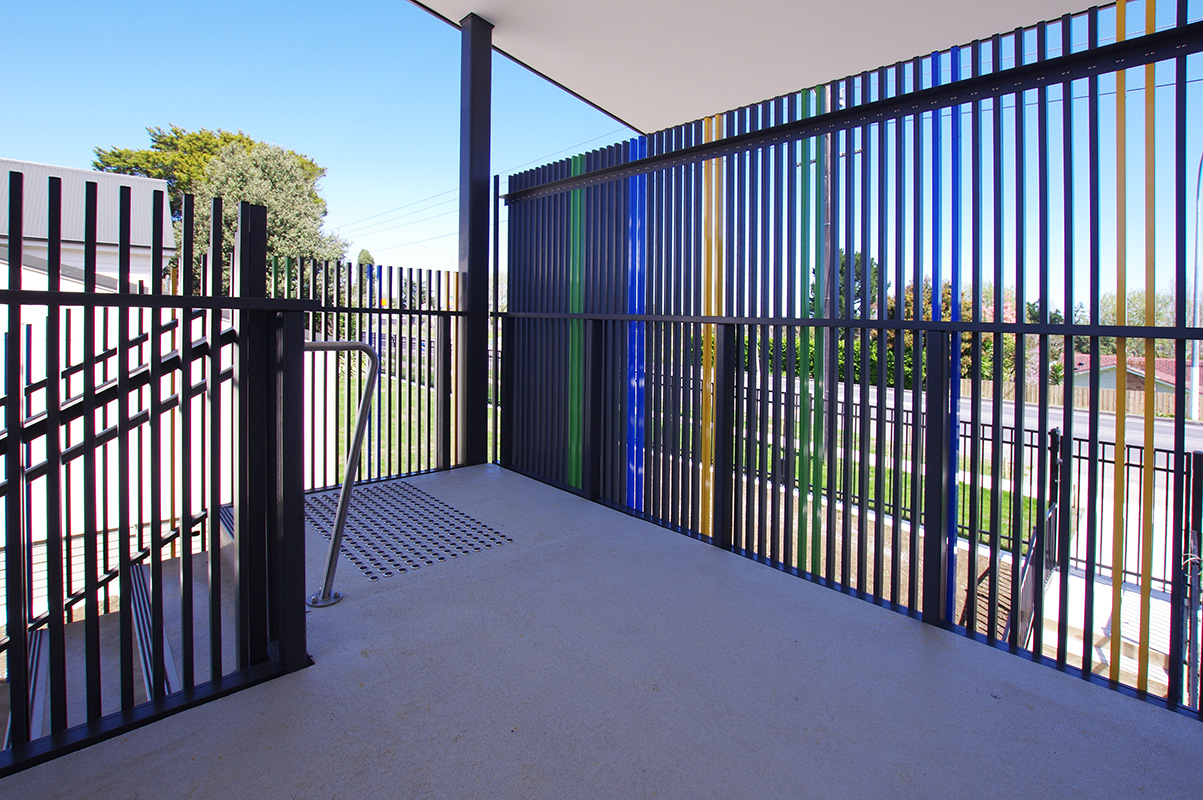

The system has been used in a number of Schools in the Auckland area includng Rutherford and Drury Schools.

Documents
Material Safety Data Sheet
Producer Statement
Maintenance Instructions
EVO Max Fin Brochure

4.7.25

Spectrum designs and manufactures modular and custom architectural metalwork products including aluminium and glass balustrades, overhead glazing, louvres and screens.

Product Enquiries

News from Spectrum

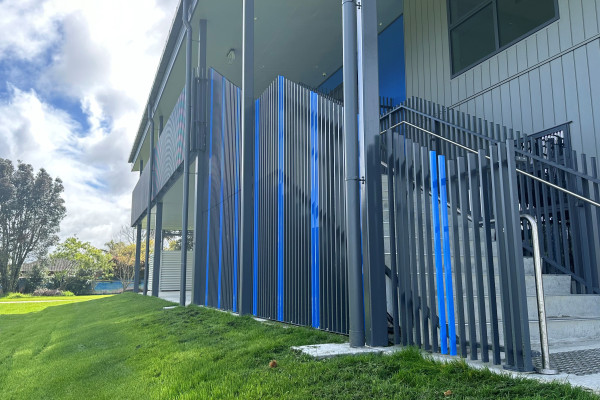

Making Schools Safer with Spectrum’s EVO Max Balustrade
