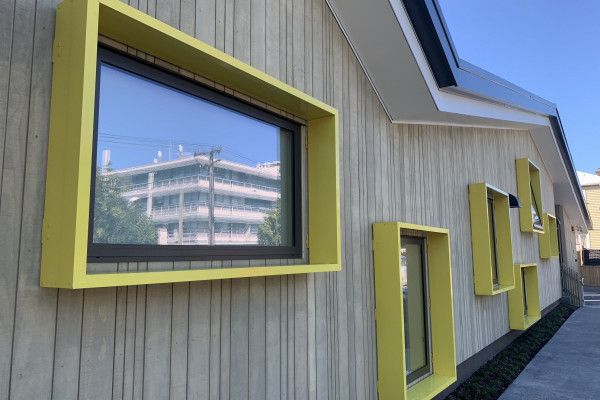

Facade Shrouds
Description

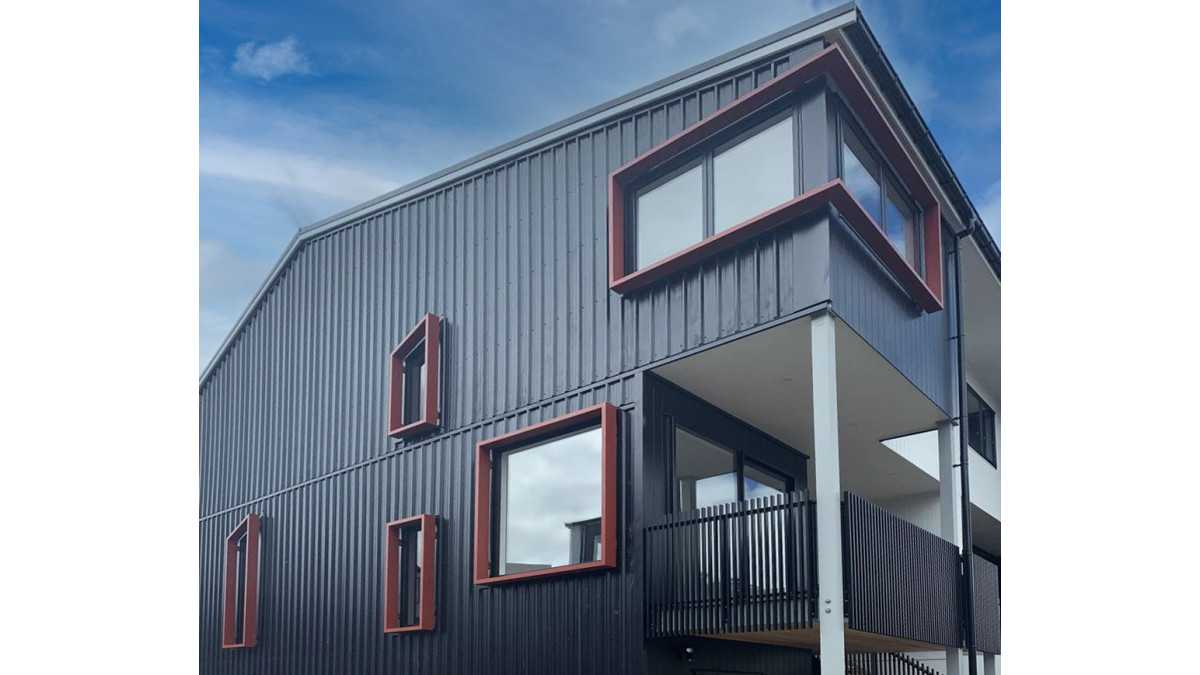

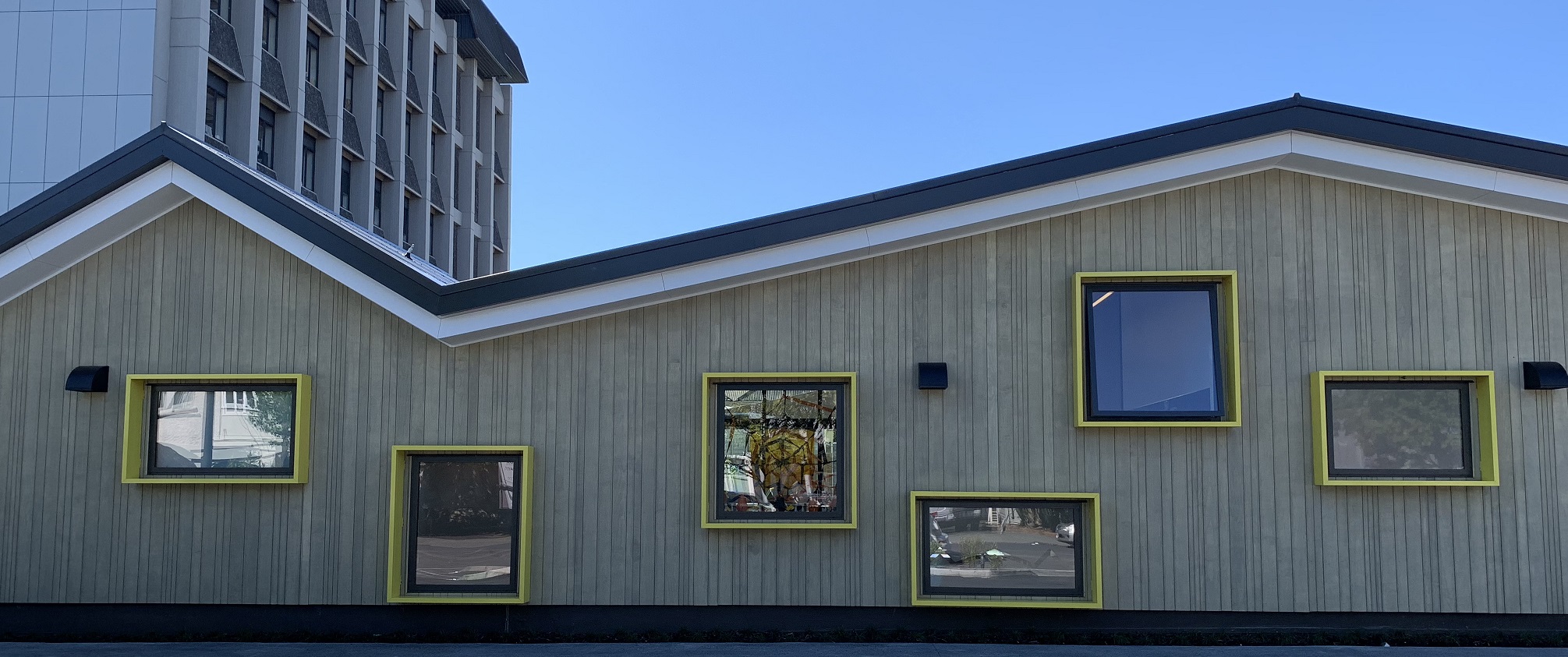

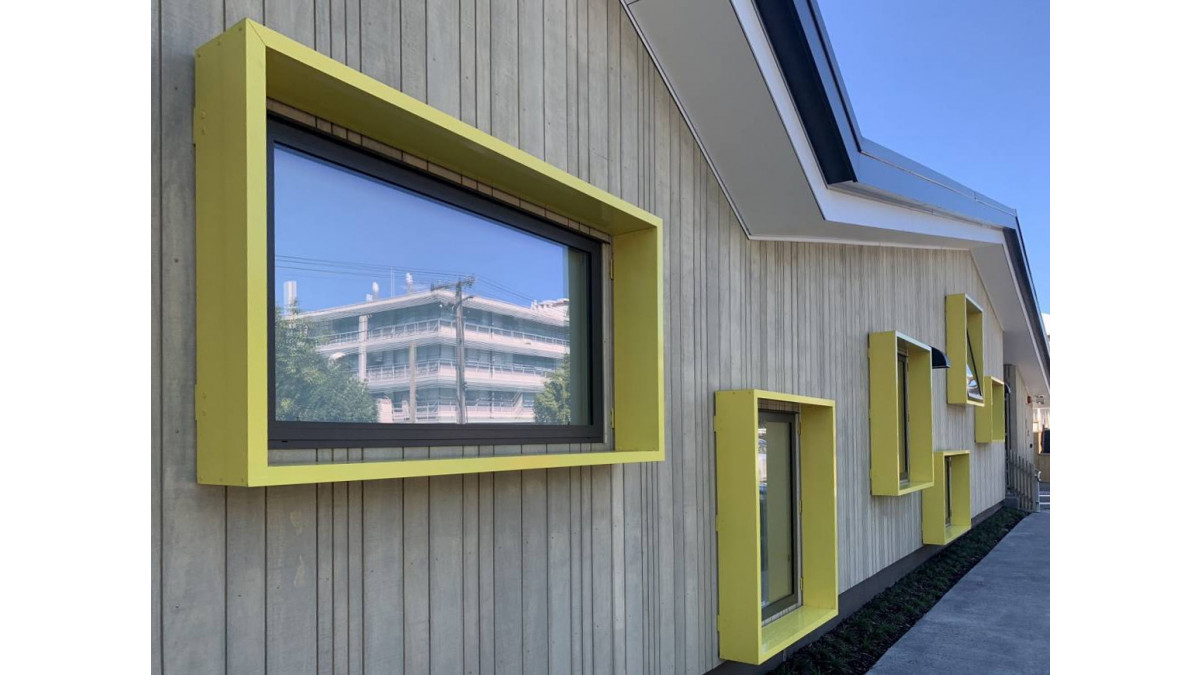

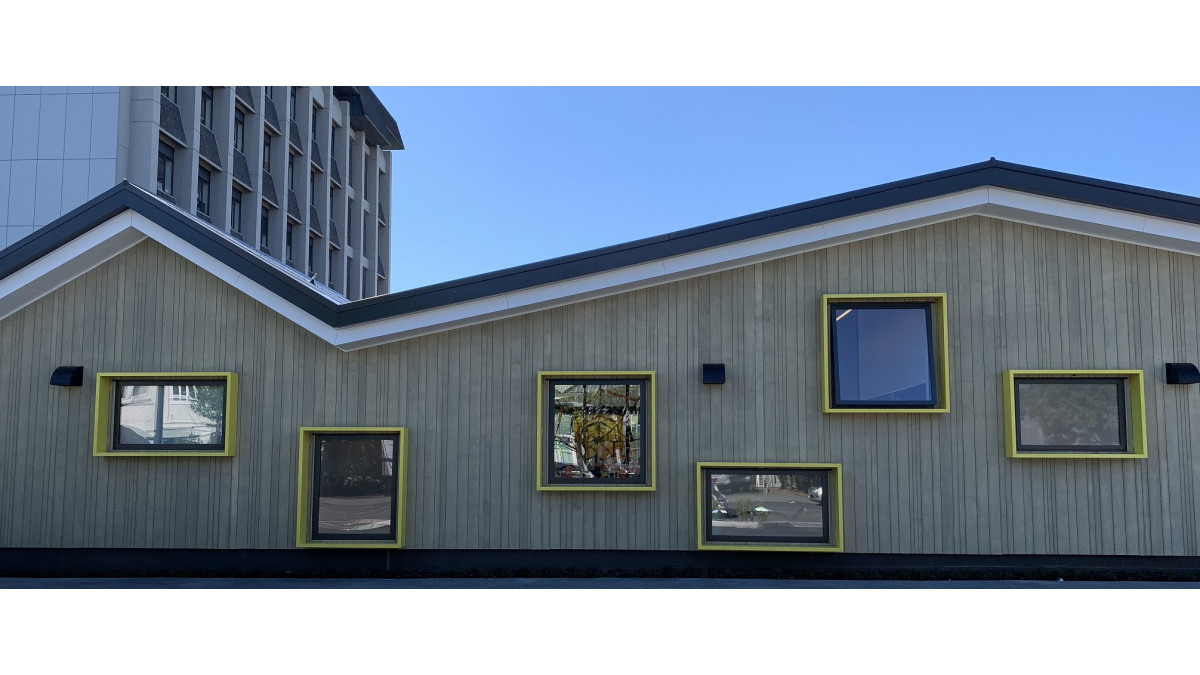

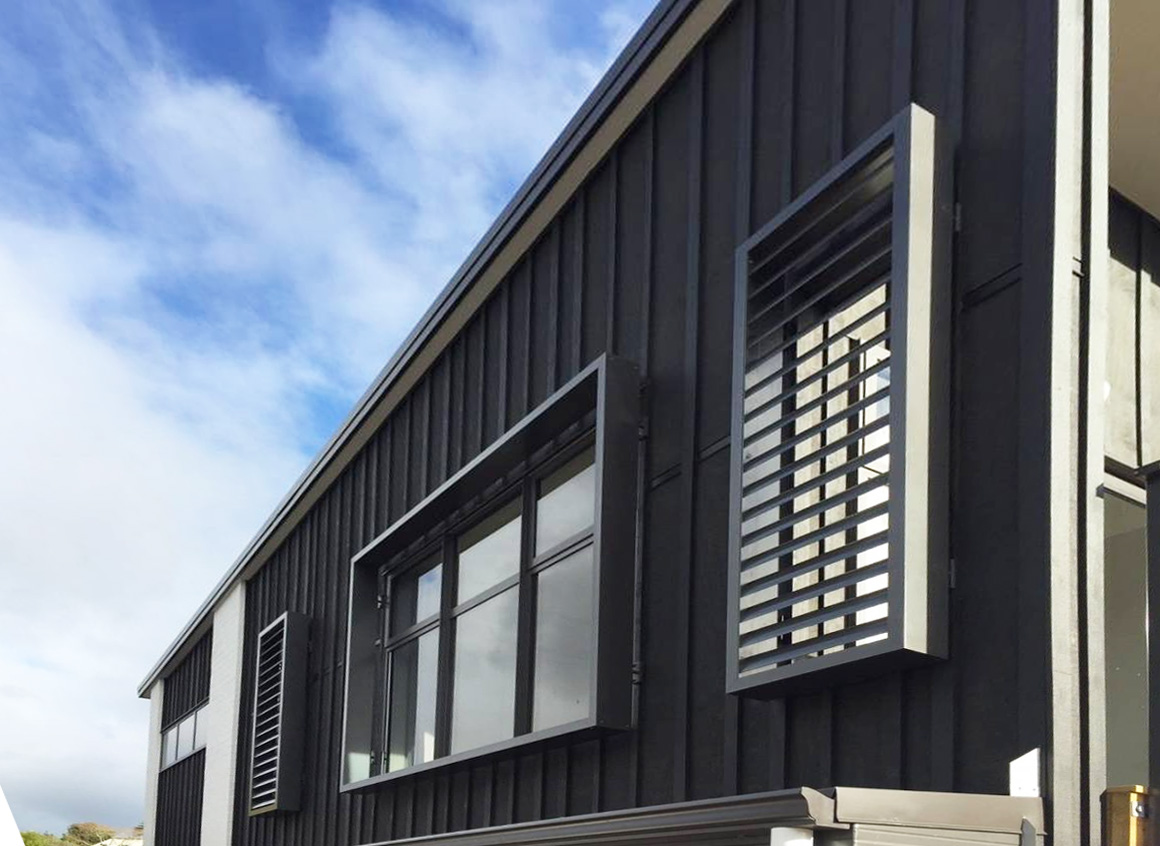

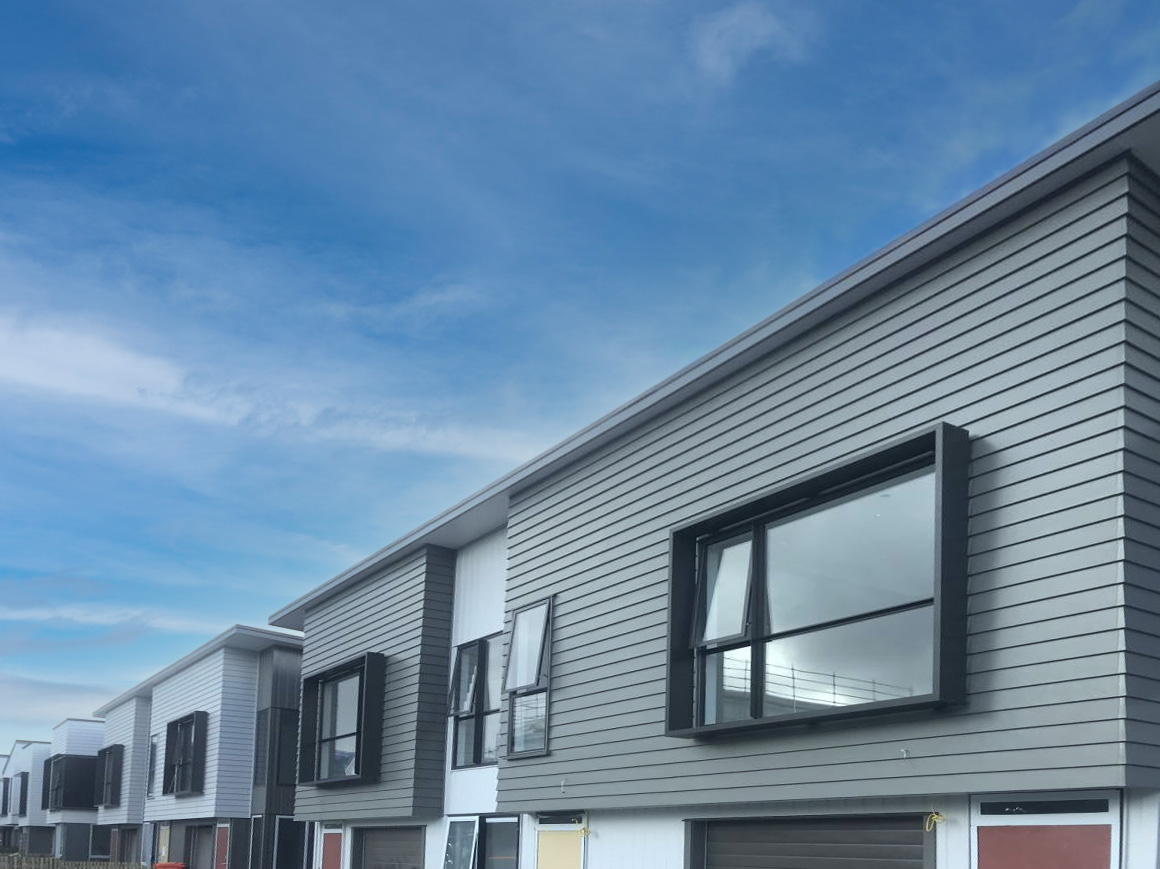

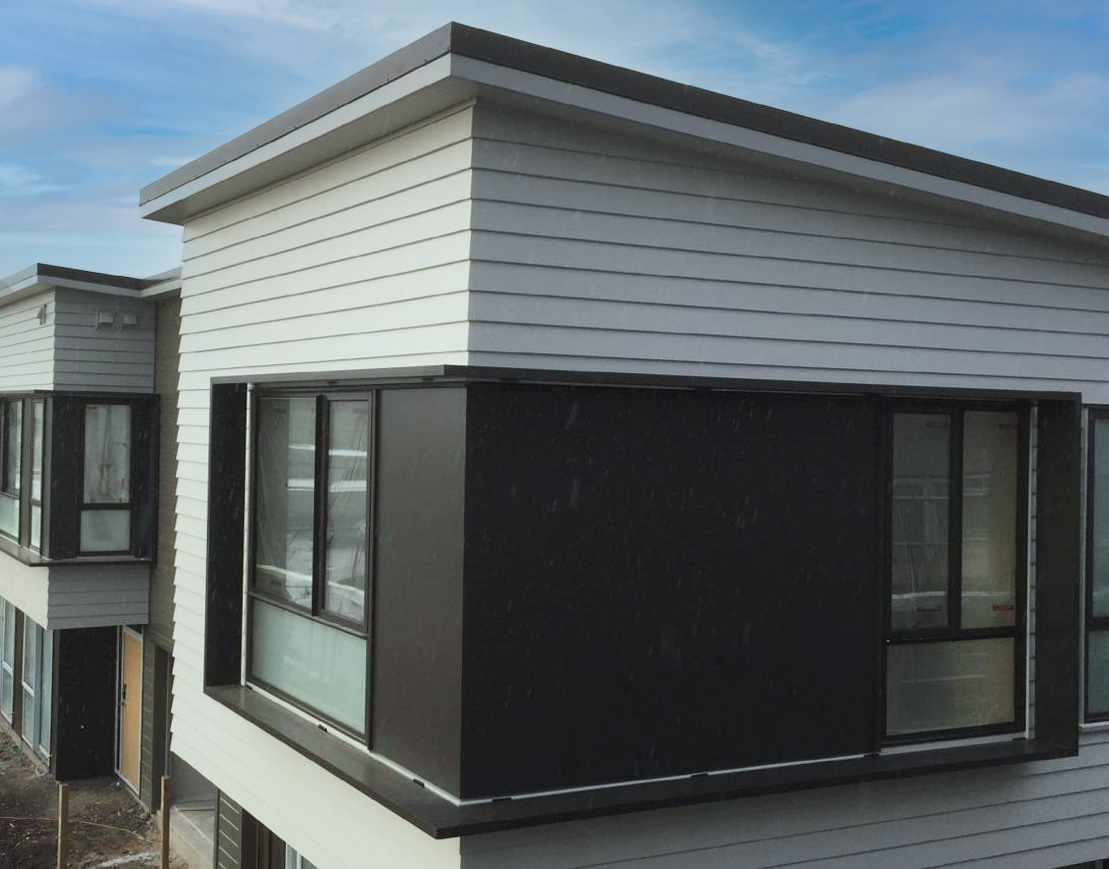

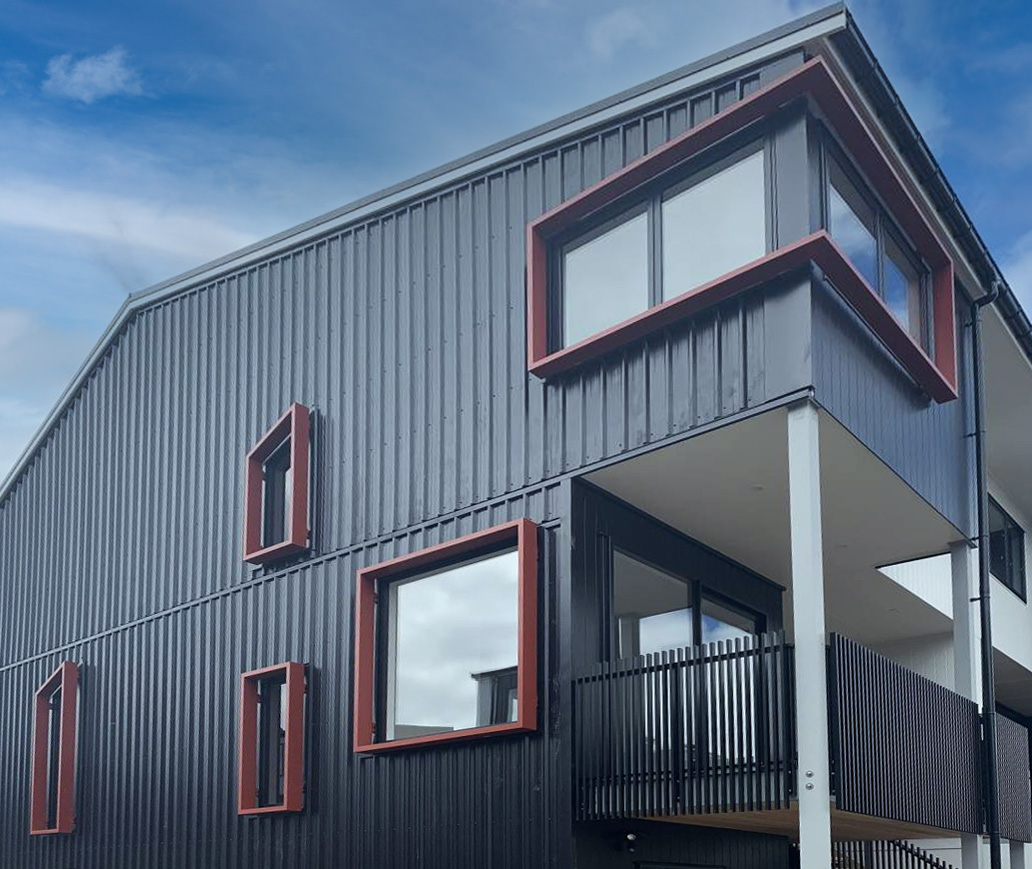

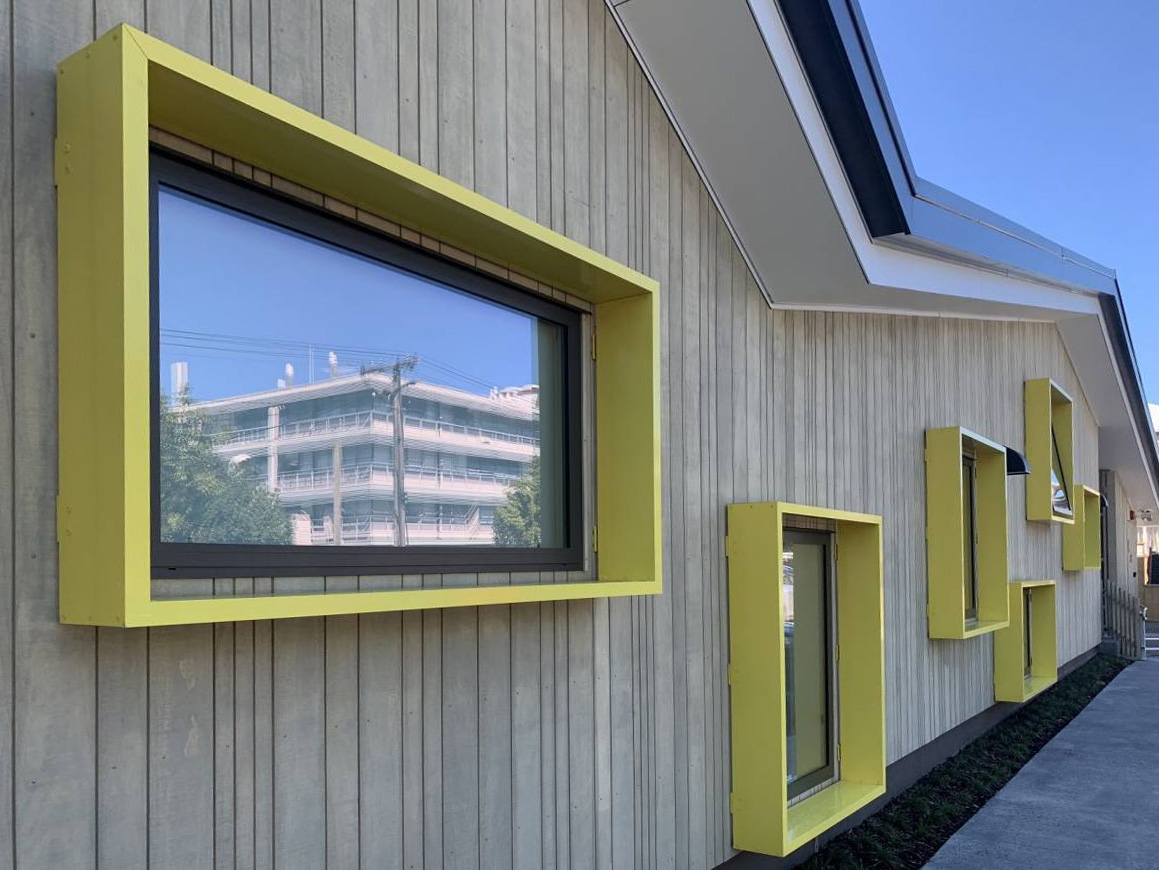

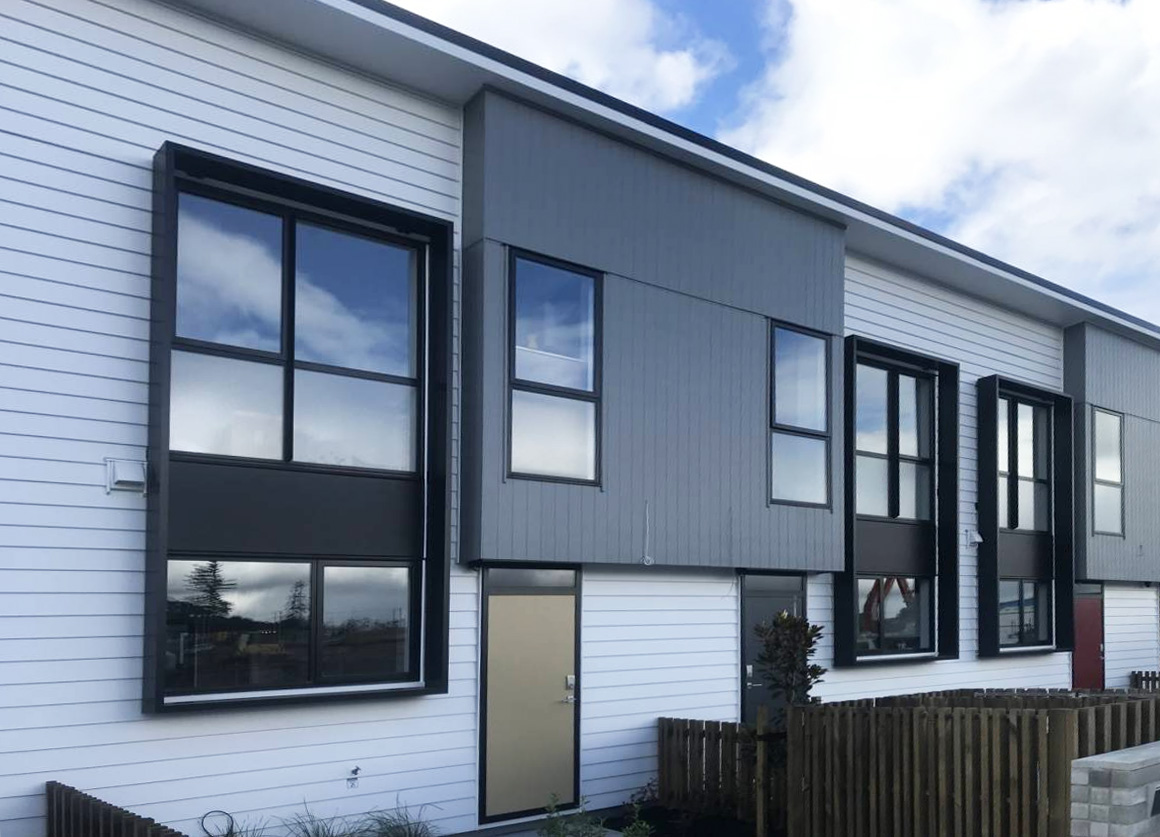

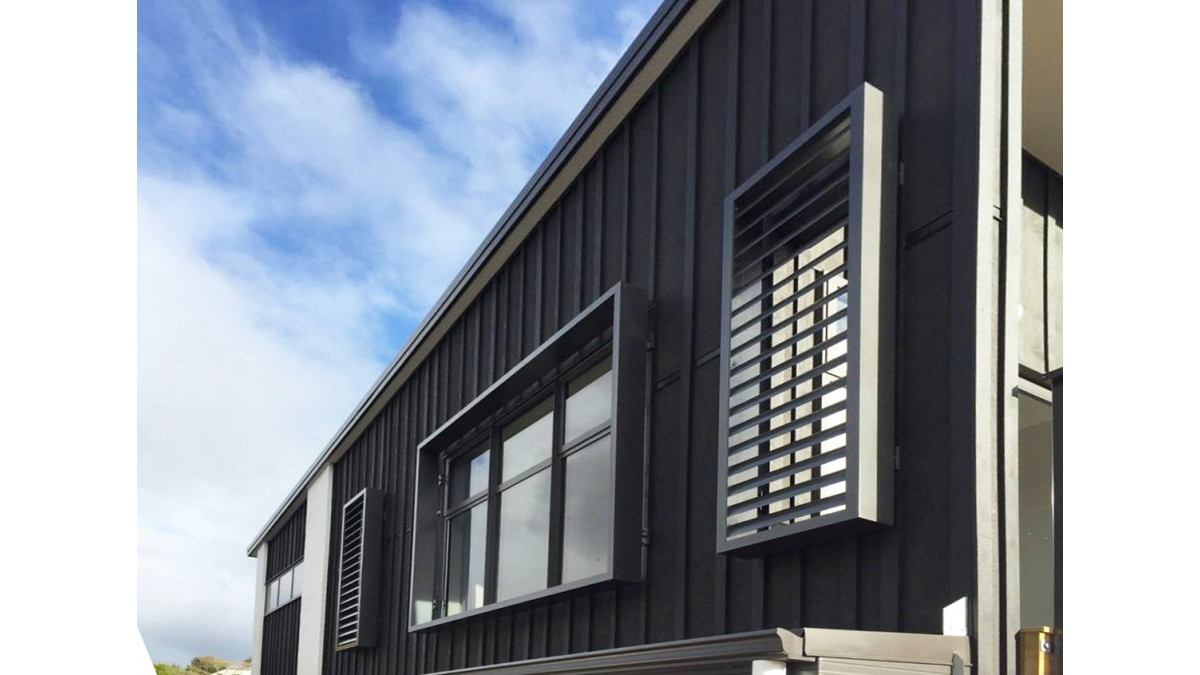

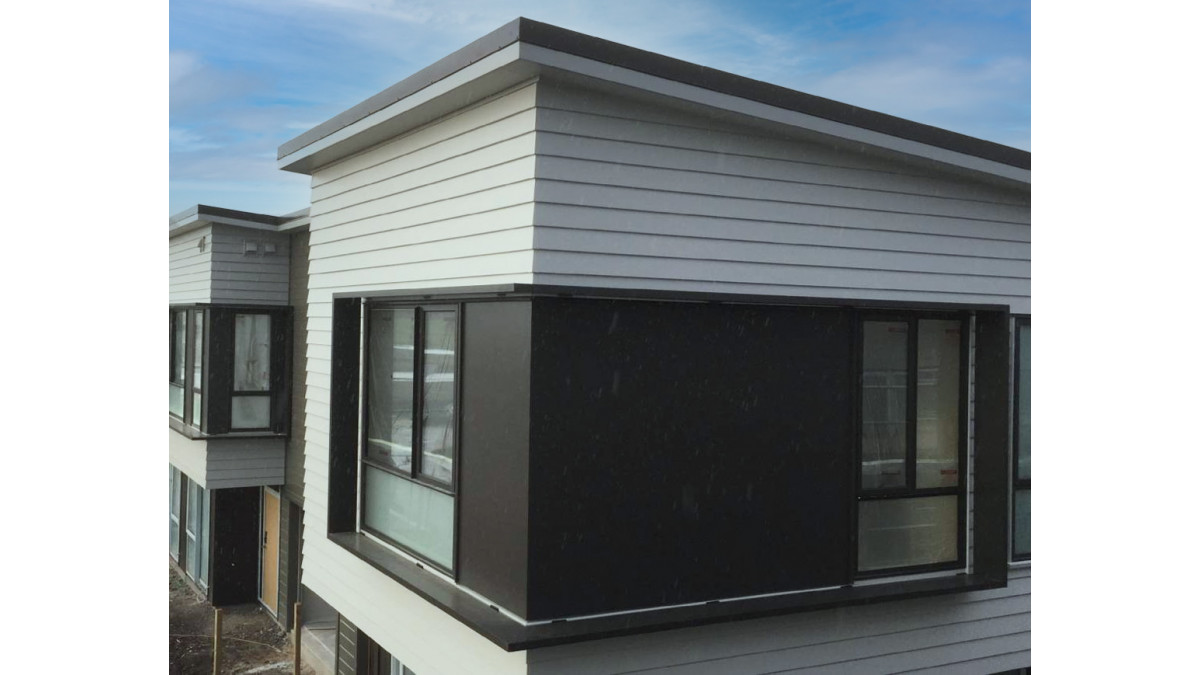

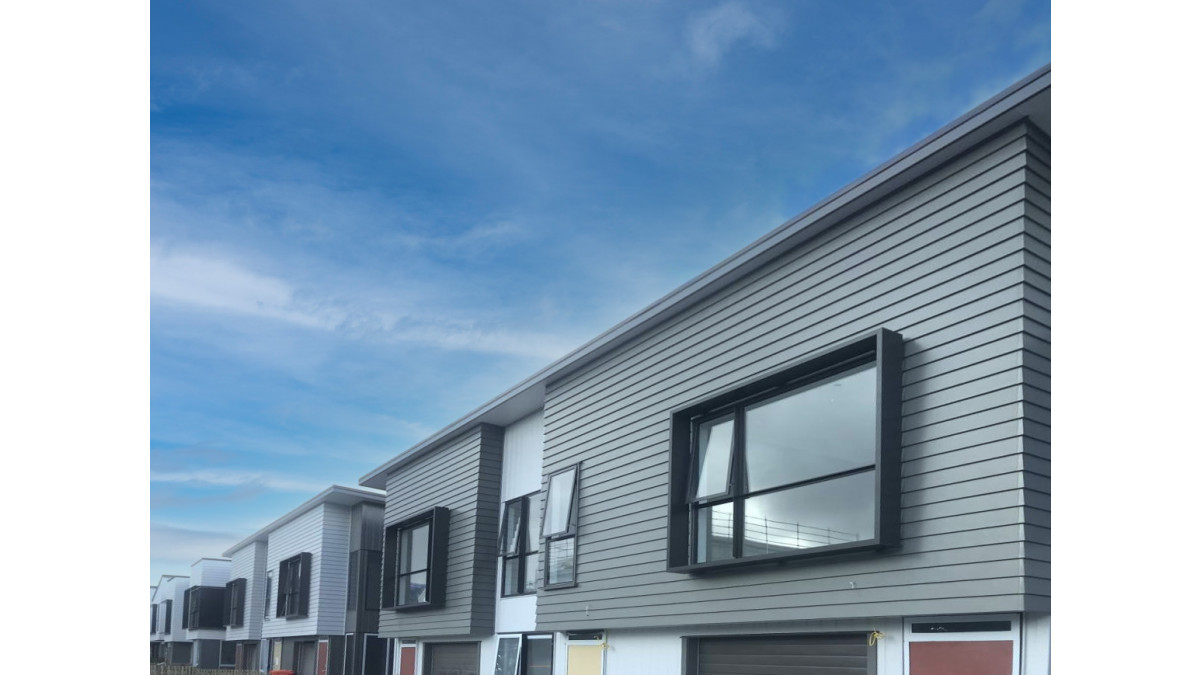

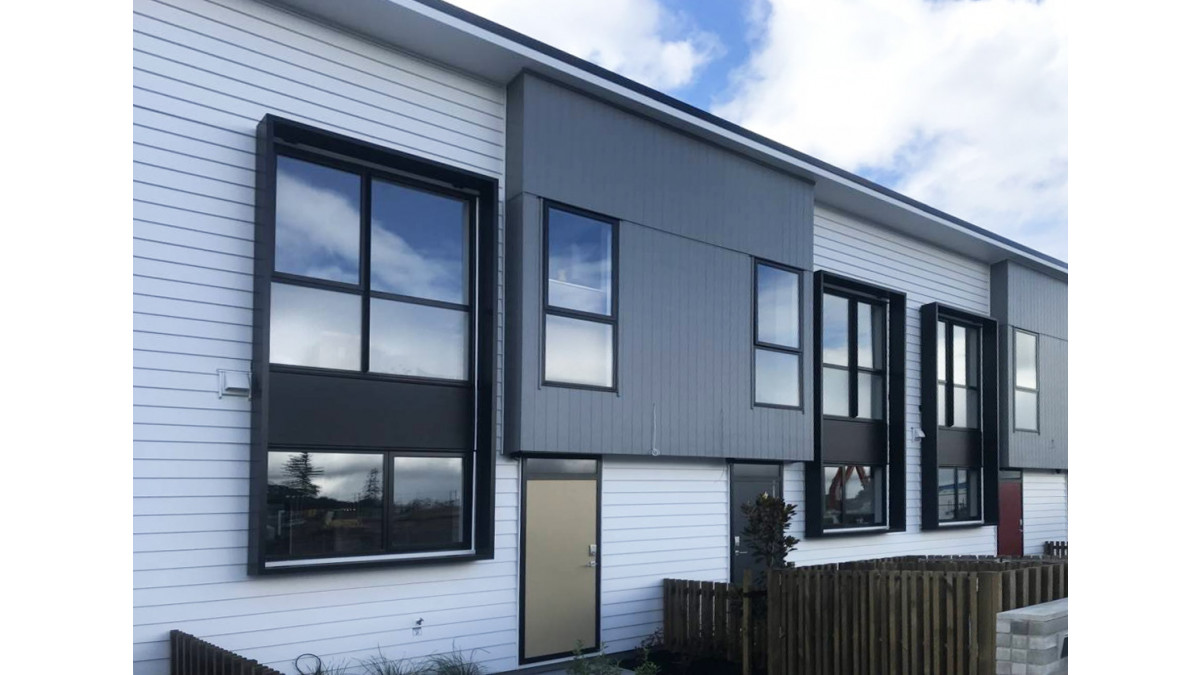

Spectrum Architectural Facade Shrouds are an exciting feature that add from both form and functionality to new and existing buildings. Made from aluminium, shrouds can be used for privacy, sun shading, or as an architectural feature, bringing a building to life, and adding colour and depth to any façade.

Spectrum have developed a tidy system for Window shroud installation which utilises a discrete bracket connection detail. A range of fixing details have been developed to be used with all common substrates and cladding types including flat sheet, bevelled weatherboard, and brick.

Standard shroud sizes are:

  • 150x40mm
  • 150x50mm
  • 200x50mm
  • 250x50mm
  • 300x50mm

A PS1 and standard fixing details are available to cover most situations with bracket spacing dependant on shroud size and wind zone.

Key Features
  • Discrete bracket connection detail
  • Generic PS1 available
  • For use on timber and concrete substrates
  • Suitable for most cladding types including flat sheet, bevelled weatherboard and brick
  • Range of standard sizes
  • Powdercoated aluminium
Scope of Use
  • Engineered for shroud size from 150x40 to 300x50mm
  • To Extra High Wind Zones (55 m/s)
  • Hidden support bracket which can be fitted to timber and concrete substrates
  • Suitable to a range of cladding types including flat sheet, bevelled weatherboard, and brick
  • Serves as a sun shade, privacy screen, and an architectural feature
Limitations on Use
  • Contact Spectrum for alternative shroud sizes and wind zones exceeding Extra High
NZS 3604 Wind Zone Extra High suitable
Extra High Wind Zone
Statement of Building Code Compliance
  • Clause B1 Structure
  • Clause B2 Durability

A PS1 and standard fixing details are available to cover most situations with bracket spacing dependant on shroud size and wind zone.

B1 Structure compliant
Structure
B2 Durability compliant
Durability
Documents
Design Guidance - RHS Facade Shroud

Rev a 6.9.19

Maintenance Instructions
Warranty
Producer Statement
Brochure

Rev B 6.5.20

Installation Details

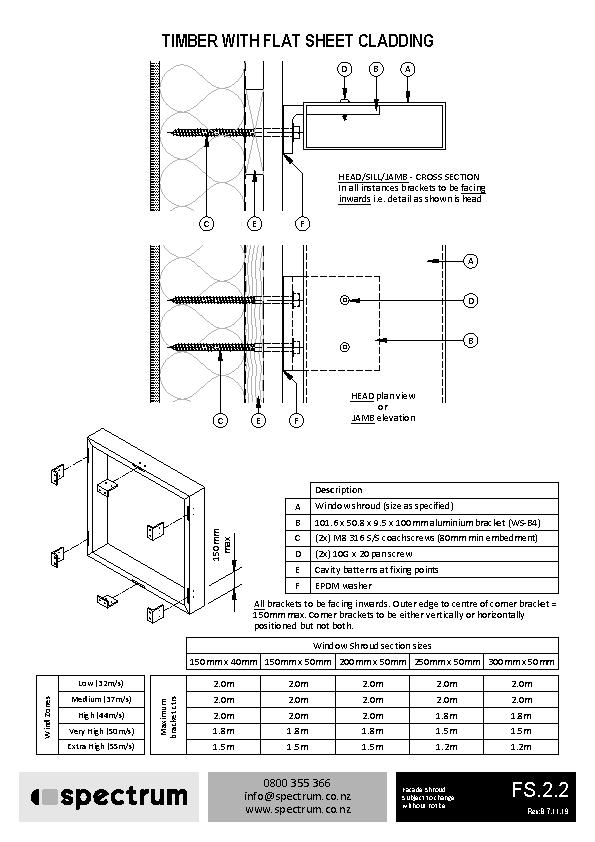

Facade Shroud Sheet Cladding Fixing Detail

FS.2.2

Rev B 7.11.19

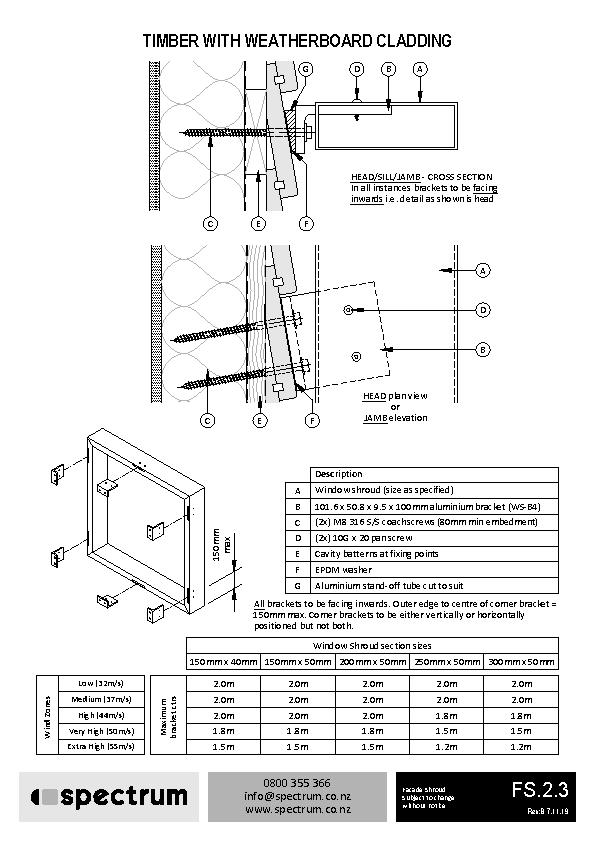

Facade Shroud Weatherboard Fixing Detail

FS.2.3

Rev B 7.11.19

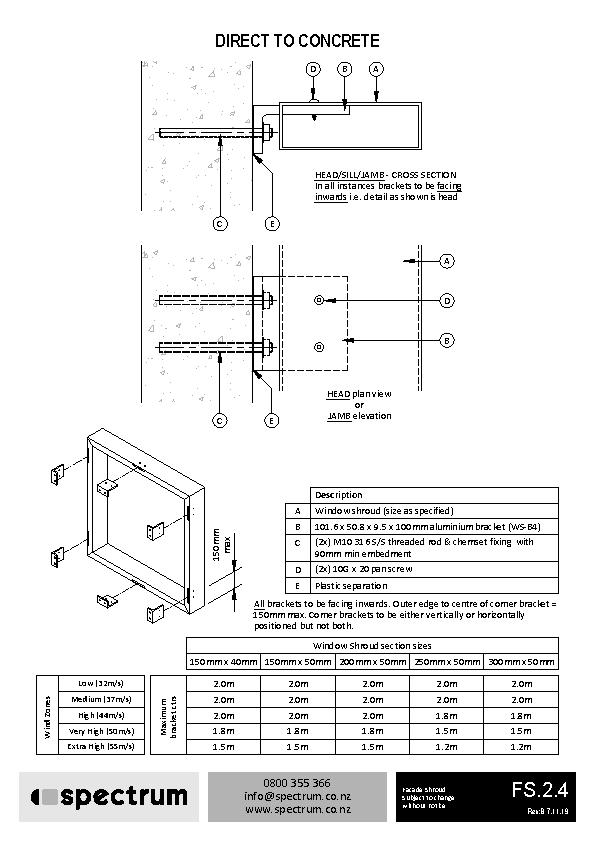

Facade Shroud Concrete Fixing Detail

FS.2.4

Rev B 7.11.19

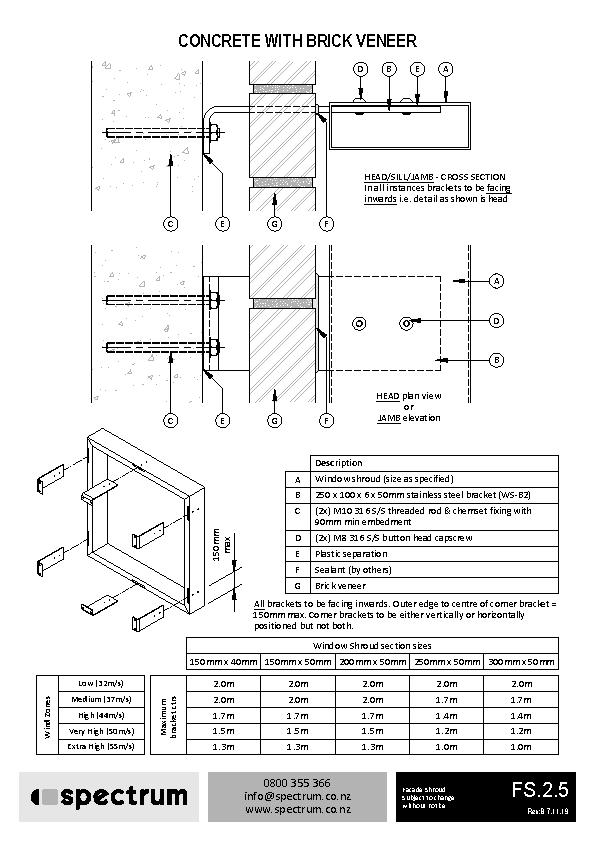

Facade Shroud Brick on Concrete Fixing Detail

FS.2.5

Rev B 7.11.19

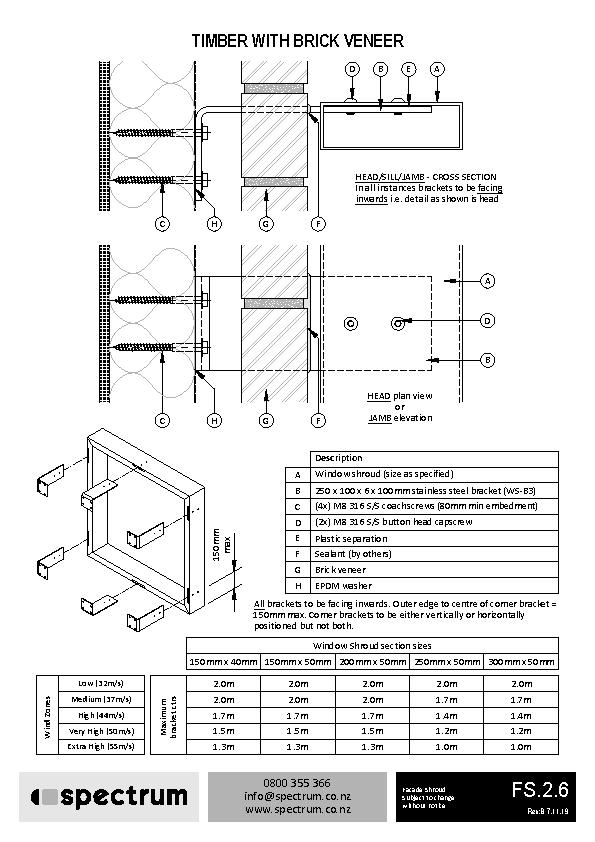

Facade Shroud Brick on Timber Fixing Detail

FS.2.6

Rev B 7.11.19

Spectrum designs and manufactures modular and custom architectural metalwork products including aluminium and glass balustrades, overhead glazing, louvres and screens.
