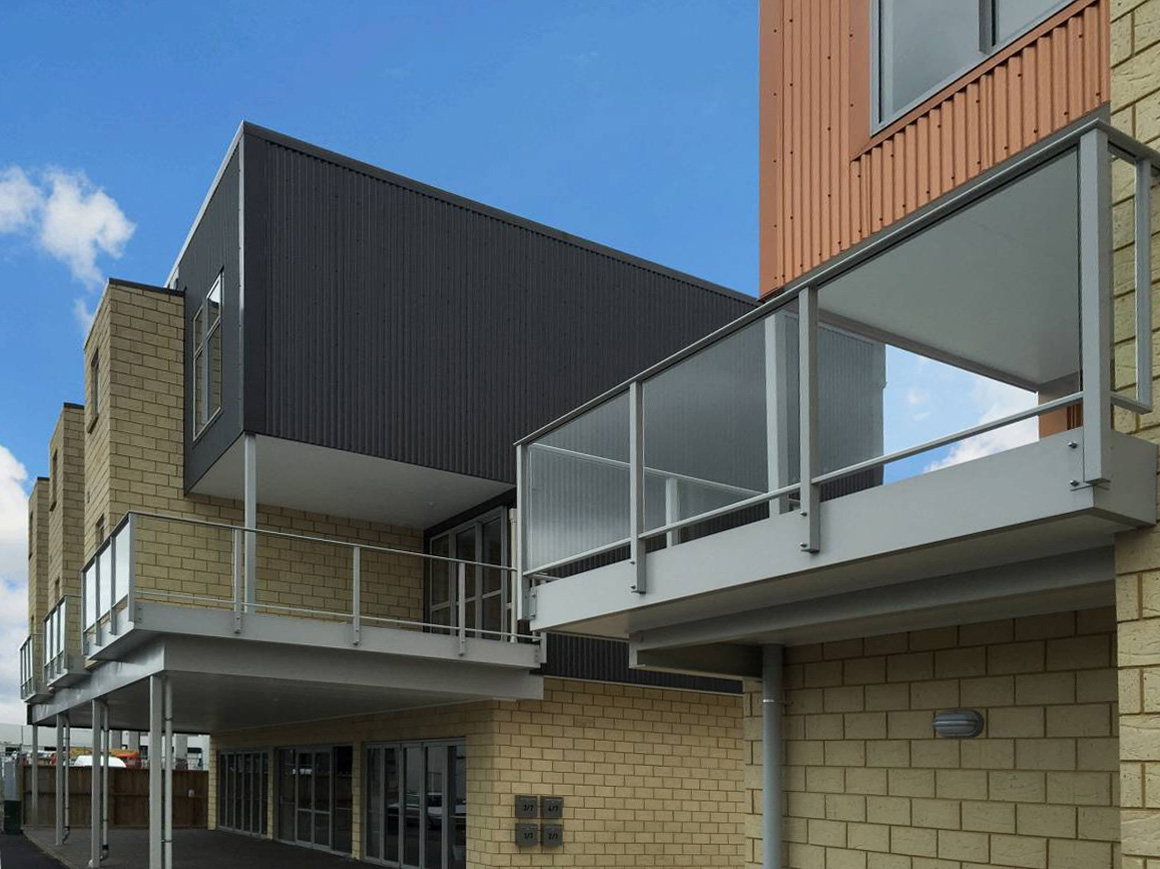

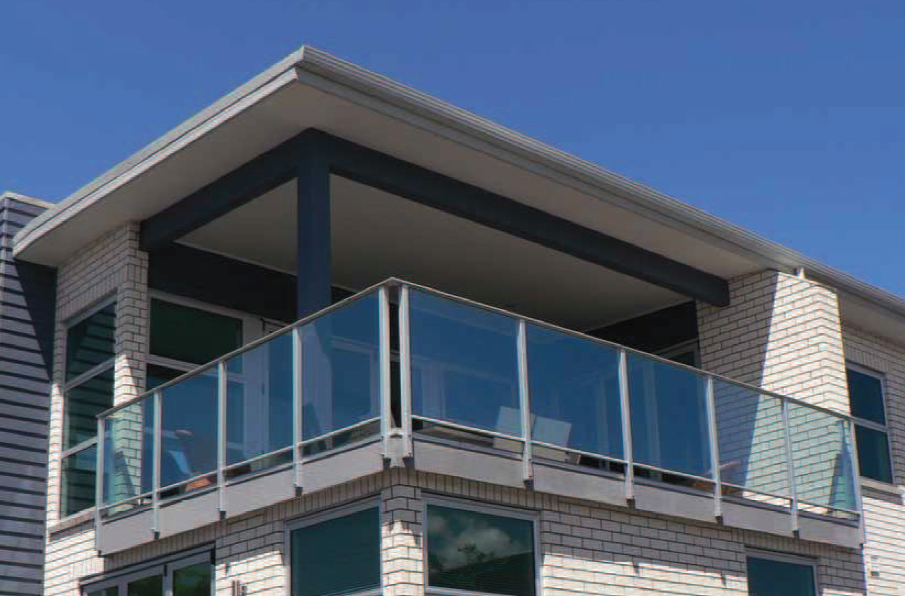

Clearspan Vista Balustrade
Description

Clearspan Vista balustrading is a traditional style handrail with a modern twist. It has the lowest view impact of the clearspan range.

Various handrail options and fixing methods are available that make Vista suitable in all architectural aesthetics and environments.

Key Features
  • Structural integrity
  • All components are made using the highest grades of aluminium and stainless steel
  • Speed of installation
  • Seven year material defects warranty and two year workmanship warranty available
Scope of Use

The system is suitable for residential, commercial, external, internal and pool fence applications.

Statement of Building Code Compliance

Complies with the following provisions of the New Zealand Building Code:

  • Clause B1 Structure
  • Clause B2 Durability
  • Clause D1 Access Routes
  • Clause E2 External Moisture
  • Clause F2 Hazardous Building Materials
  • Clause F4 Safety from Falling
Other Performance Attributes

Spectrum Balustrade Systems meets and exceeds all reference standards:

  • NZS 8500 - 2006 - Safety Barriers and Fences Around Swimming Pools, Spas and Hot Tubs
  • AS/NZS 1170:2011 - Structural Design Actions
B1 Structure compliant
Structure
B2 Durability compliant
Durability
D1 Access Routes compliant
Access Routes
E2 External Moisture compliant
External Moisture
F2 Hazardous Building Materials compliant
Hazardous Building Materials
F4 Safety from Falling compliant
Safety from Falling
Documents
Material Safety Data Sheet
Maintenance Instructions
Warranty
Producer Statement
Brochure
CAD/PDF Details
Face Fixed to Timber 90deg Corner
Clearspan Face fixed to timber Coachscrew

3.1.1

Clearspan Top fixed to steel

3.1.11

Clearspan Top fixed to narrow steel

3.1.12

Clearspan - Castaway face fixed to timber (Coachscrew)

3.1.13

Clearspan - Castaway face fixed to timber (Bolt through)

3.1.14

Clearspan - Castaway face fixed to concrete

3.1.15

Clearspan - Castaway face fixed to steel

3.1.16

Clearspan - face fixed to 160mm concrete

3.1.17

Clearspan Face fixed to timber Bolt

3.1.2

Clearspan - face fixed to dry timber (bolt through with stiffener)

3.1.21

Clearspan - Castaway face fixed to wet timber (bolt through with stiffener)

3.1.22

Clearspan - Top fixed to 75mm steel (2x M12)

3.1.24

Clearspan - face fixed to steel RHS with Rivnut

3.1.25

Clearspan Face fixed to 200mm concrete

3.1.3

Clearspan Face fixed to steel

3.1.4

Clearspan Top fixed to timber

3.1.5

Clearspan Top fixed to concrete

3.1.7

Clearspan Top fixed to thin concrete

3.1.9

BIM
Clearspan Vista Balustrade

Spectrum designs and manufactures modular and custom architectural metalwork products including aluminium and glass balustrades, overhead glazing, louvres and screens.
