Clearspan Face Hung Fin Balustrade

All products

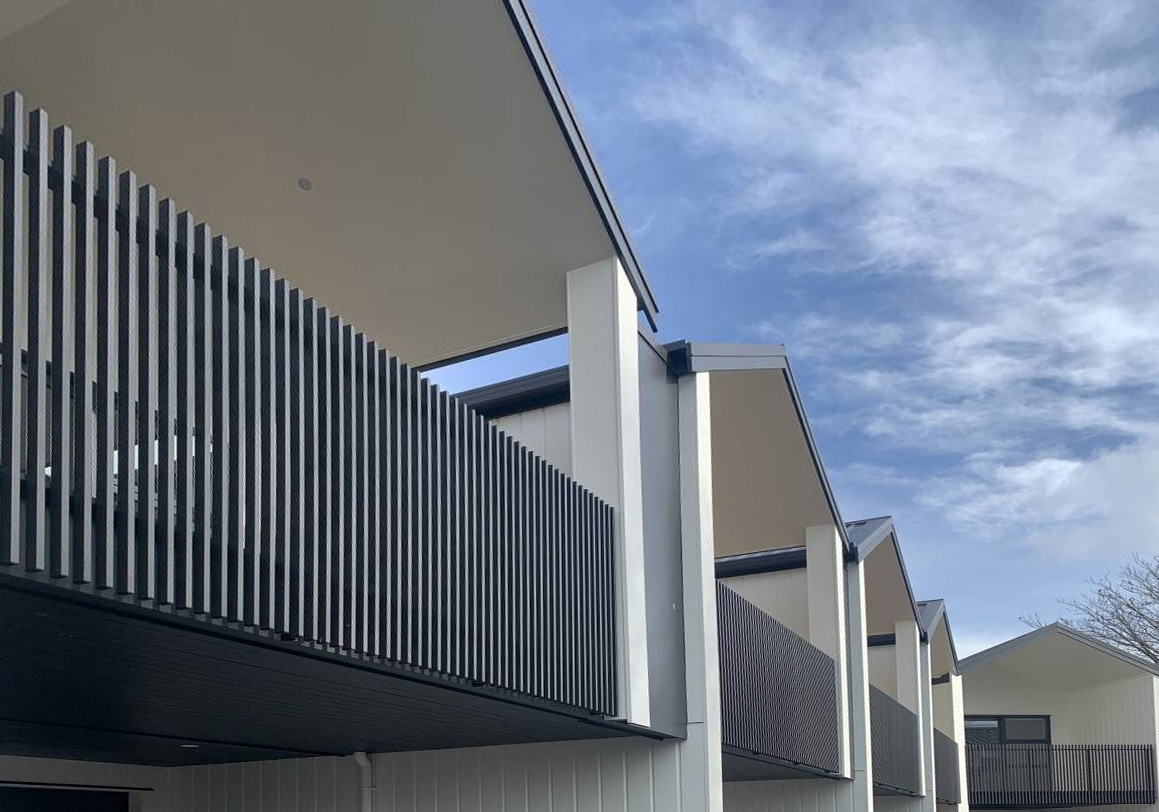

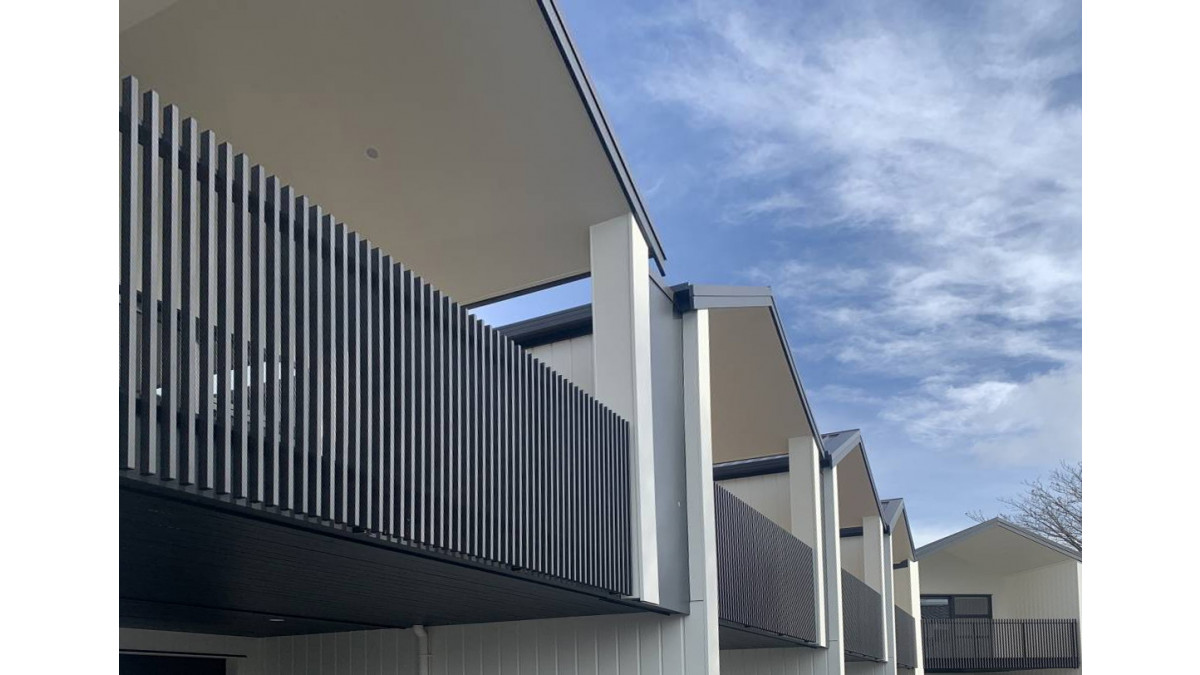

Clearspan Face Hung Fin 8

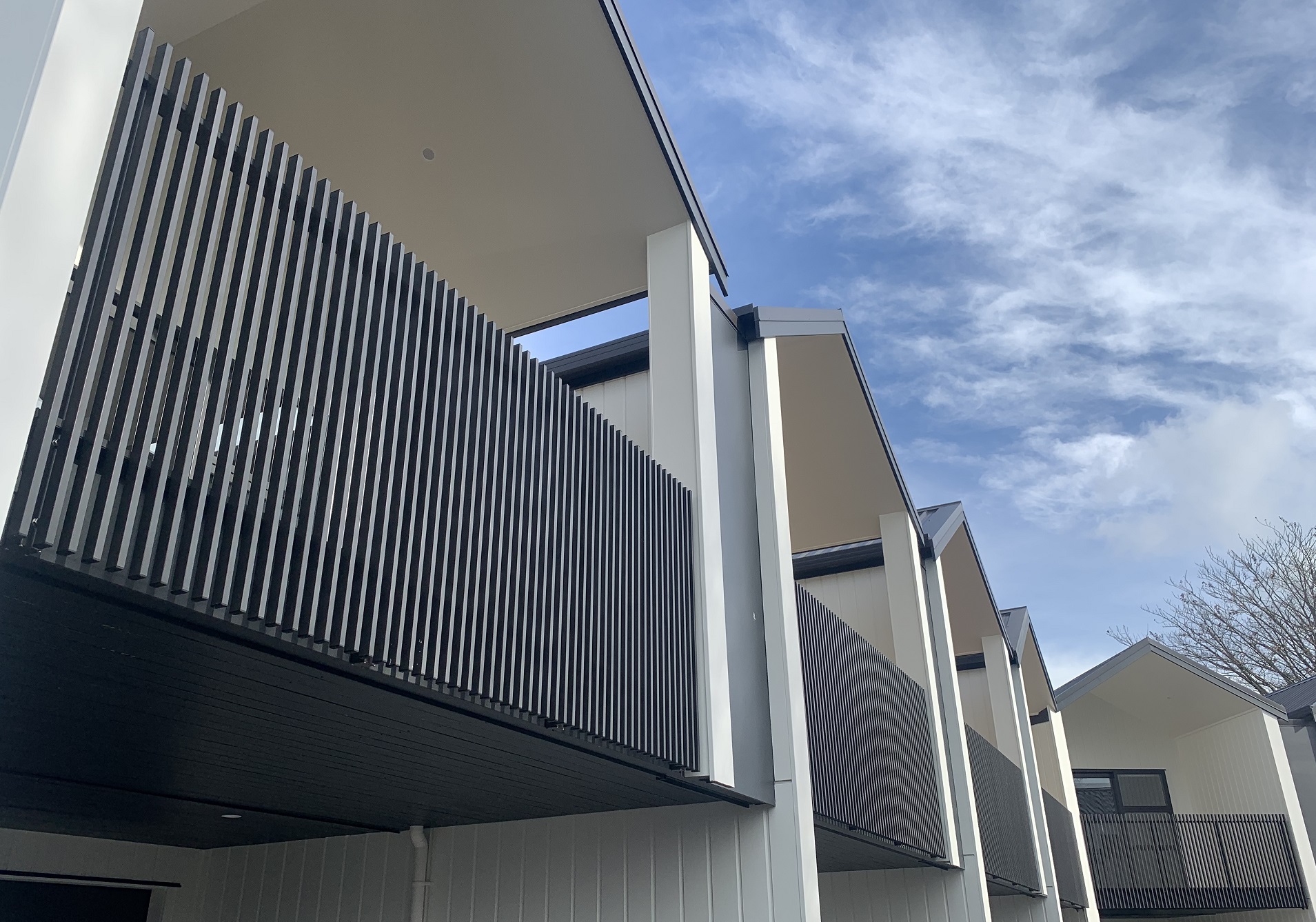

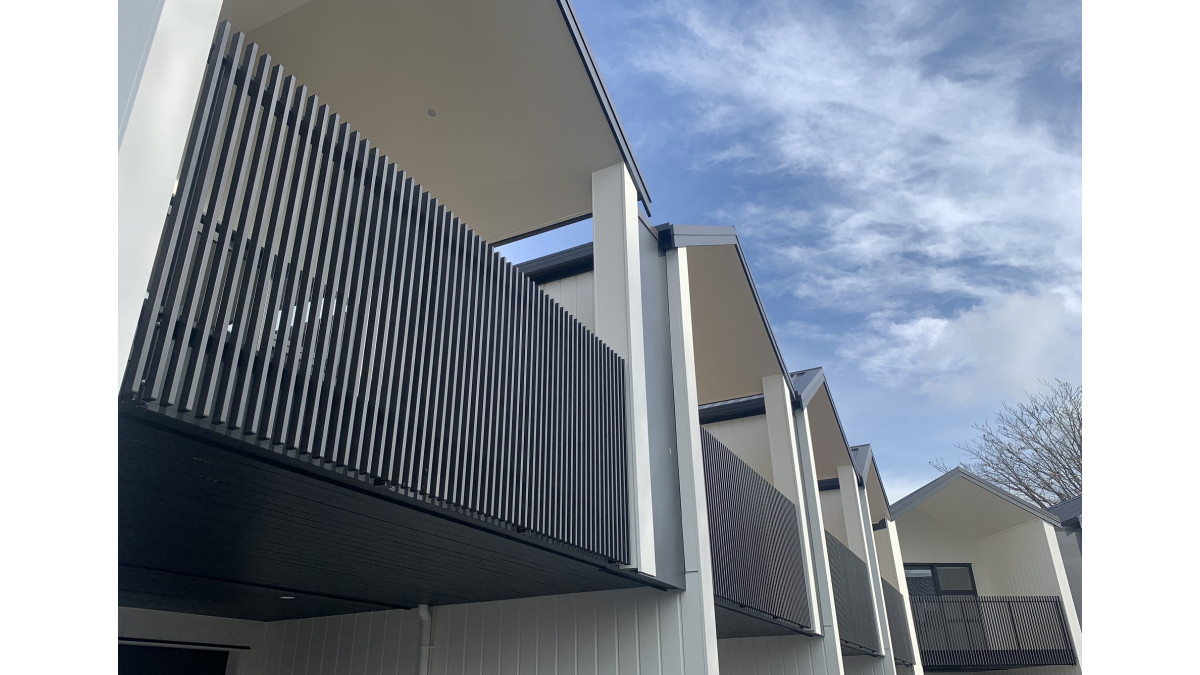

Abbotsford St web main

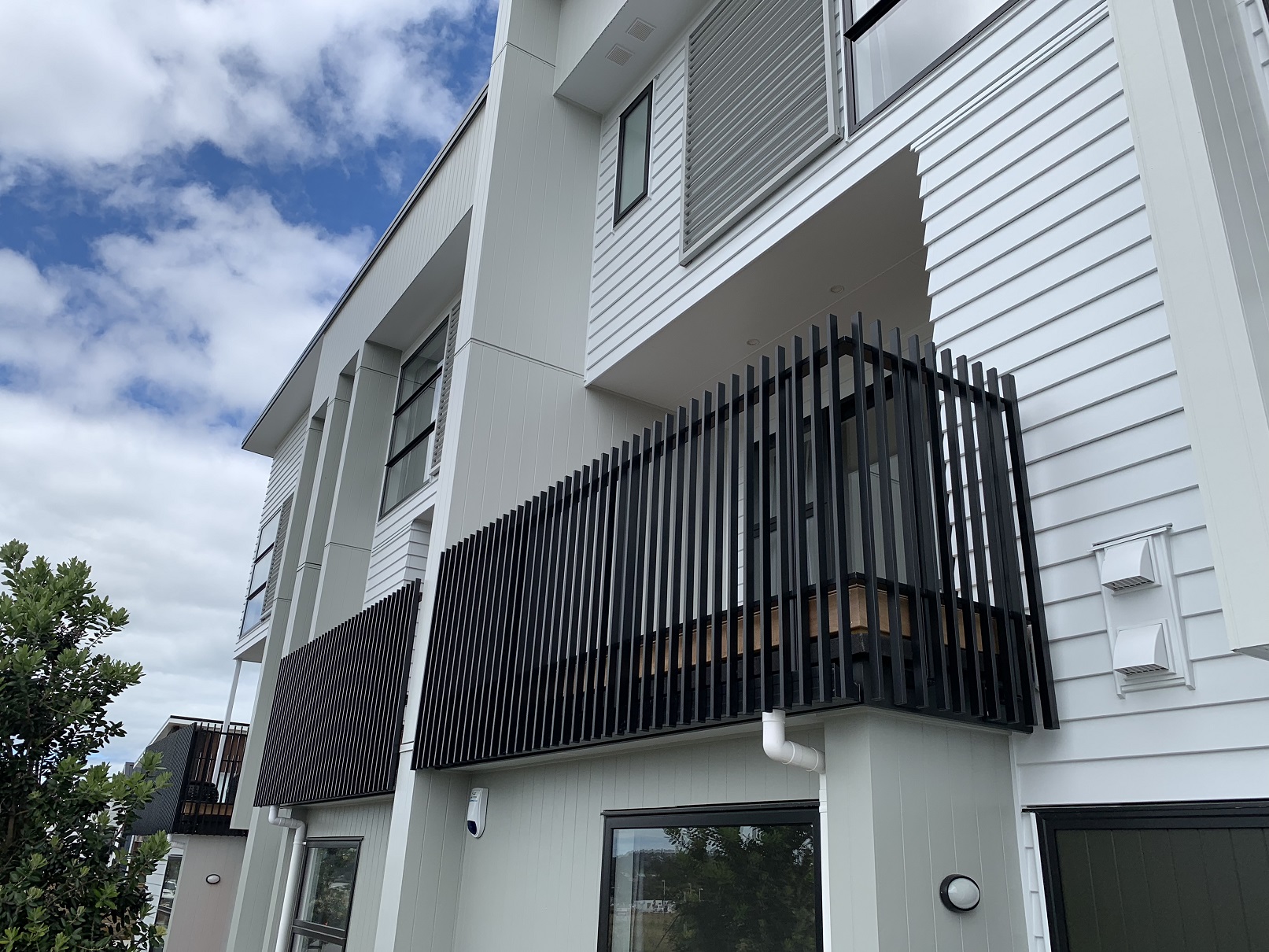

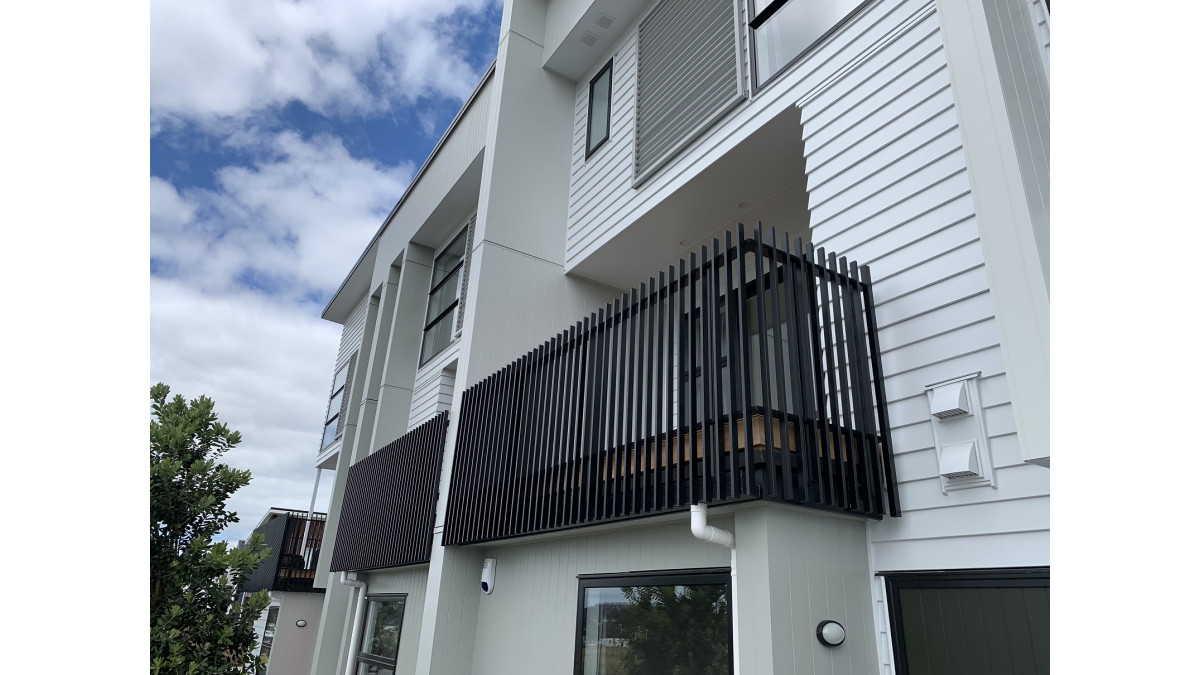

Face Hung Fin on gutter bracket

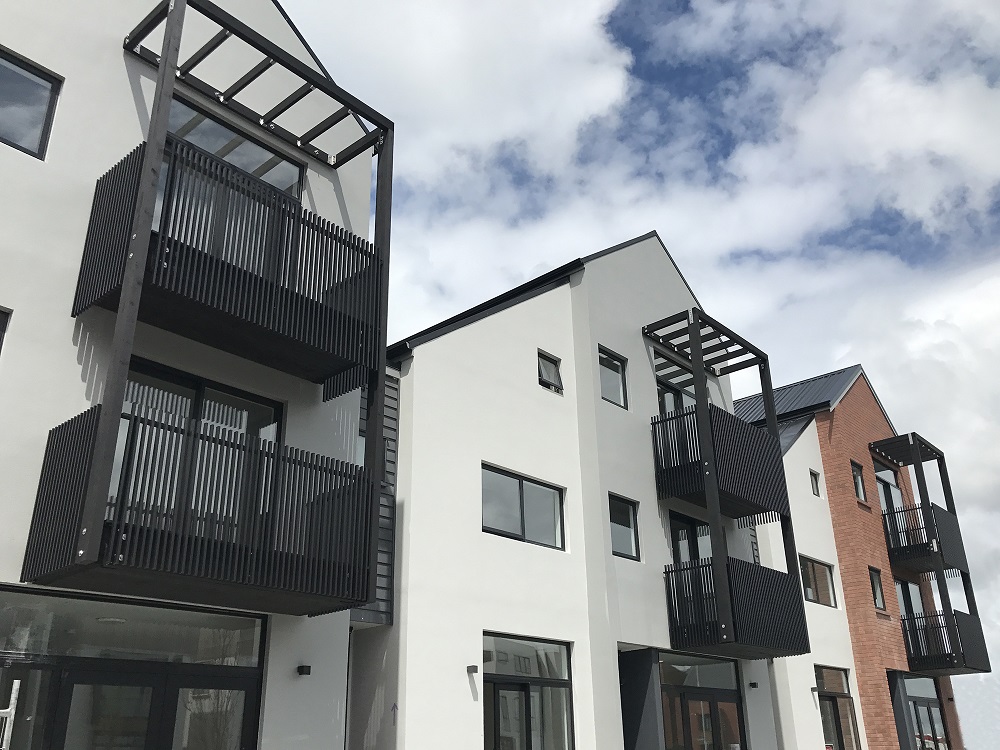

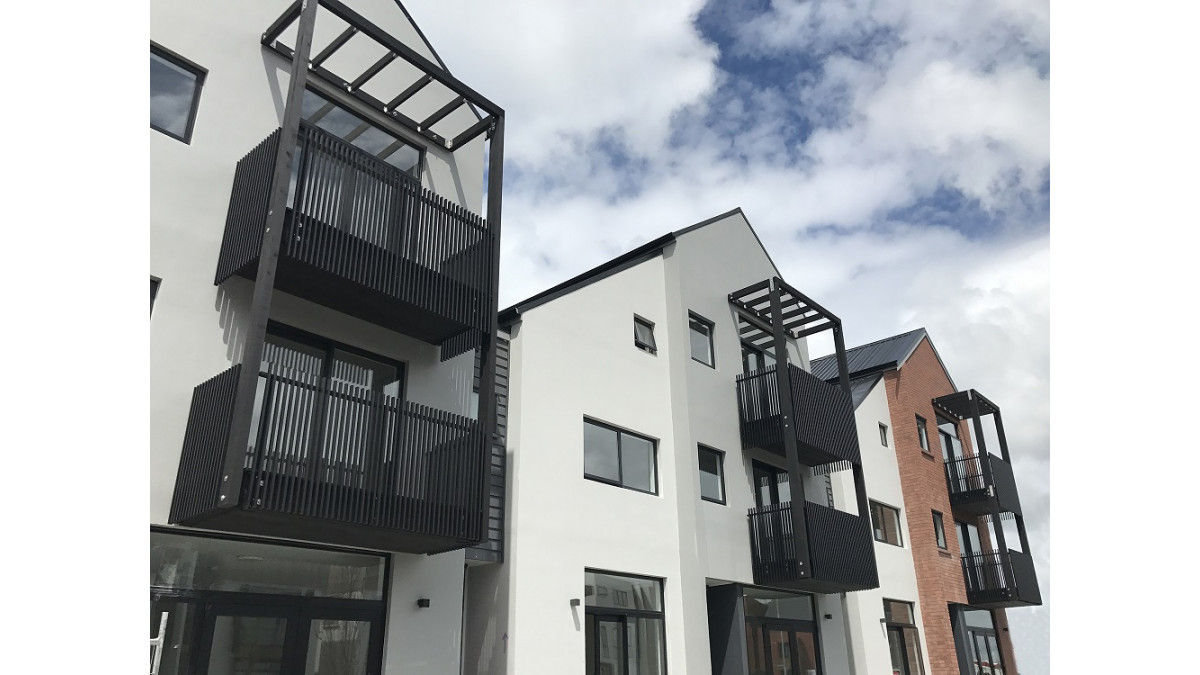

Fin balconies 60mm centre fins

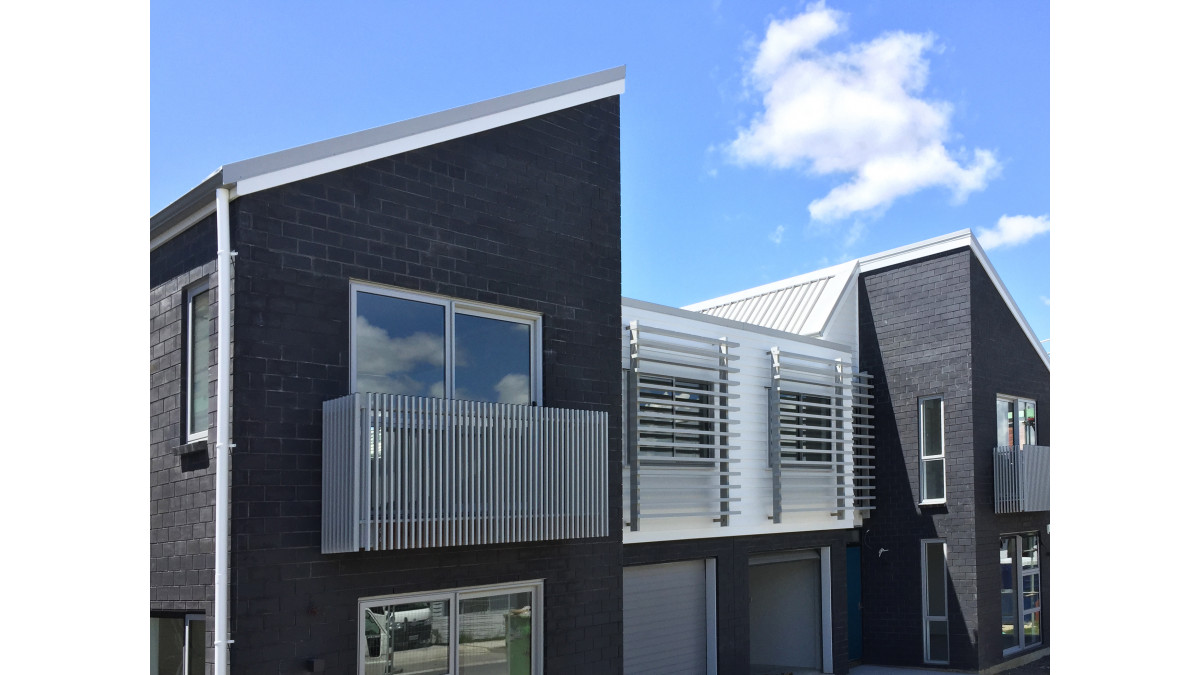

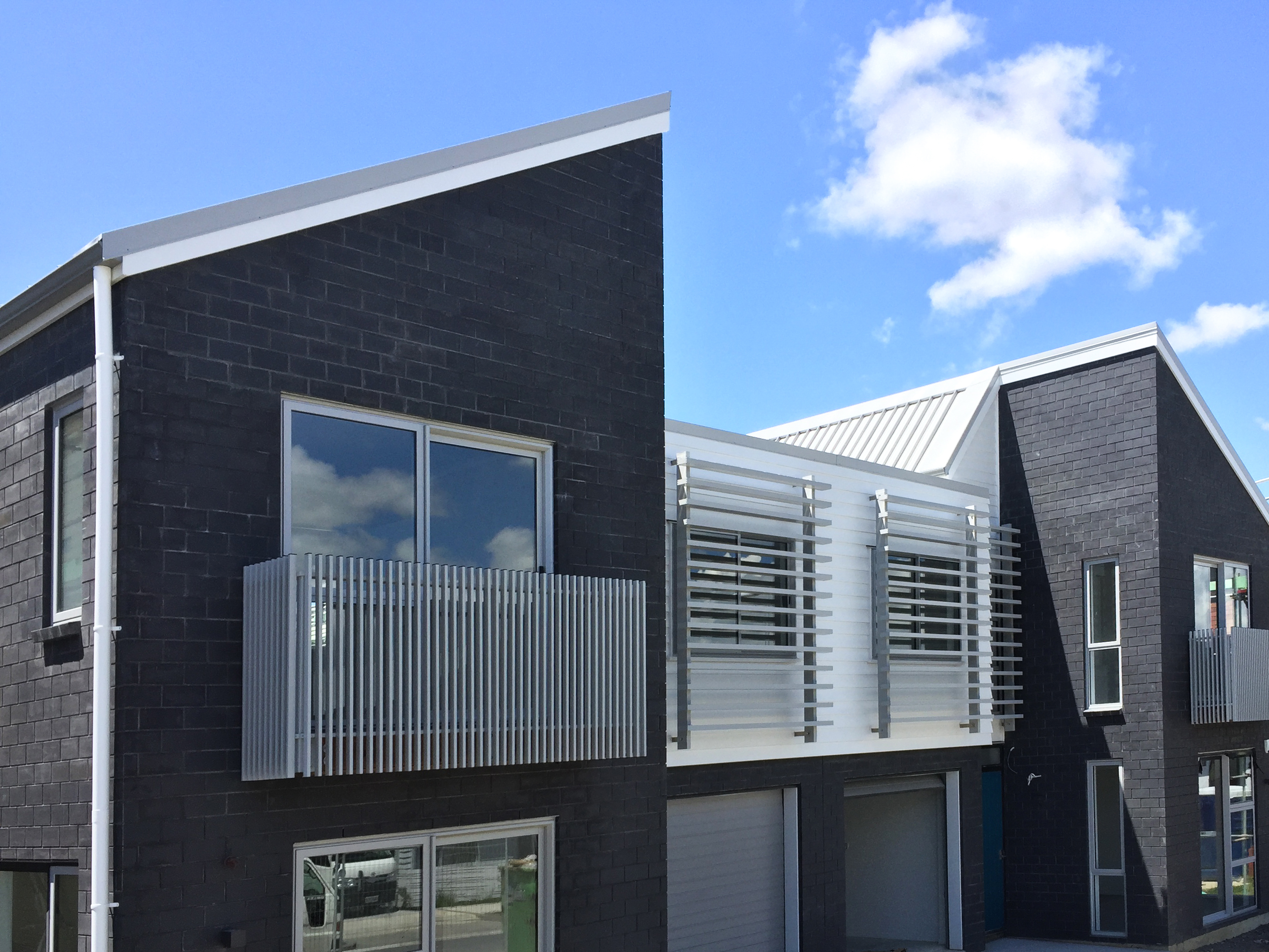

Silver Pearl Fin

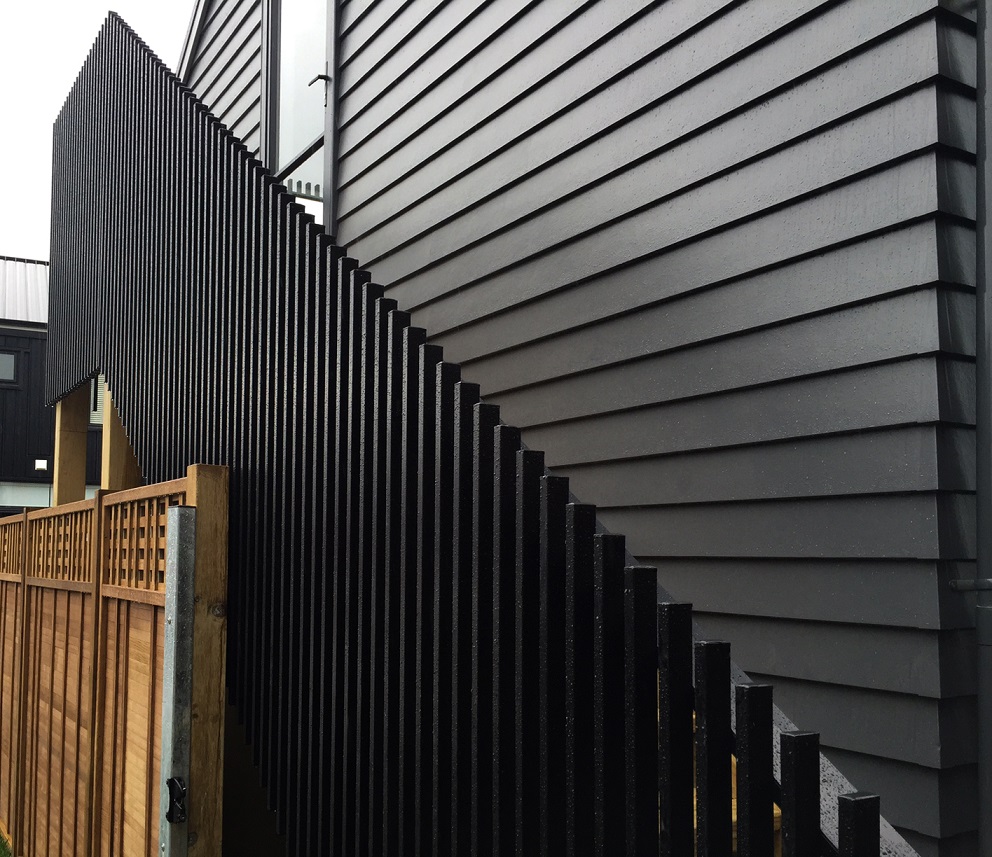

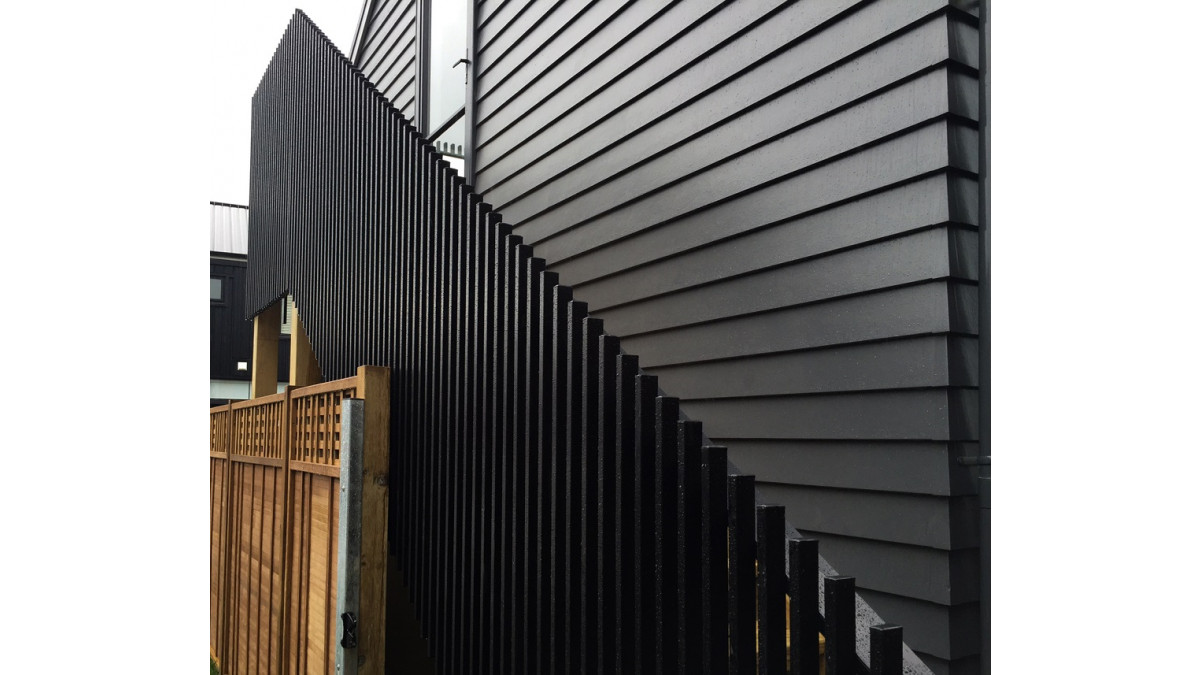

Stair angle view2

Product Enquiries

Description

Clearspan Face Hung Fin balustrade is a modular aluminium balustrade system using the popular clearspan post/fixing details. The fins attach to the face of the structural frame provding a clean, seamless look. The system replicates the look of timber or steel balustrades, with the advantages of an aluminium system. When face fixed to the deck it allows the fins to cover the face of the deck and/or be integrated into privacy screens.

Key Features

Replicates look of timber or steel balustrades
Fins can cover deck edge and/or extend to make privacy screens
Fin size and spacing can be customised
All components are made using the highest grades of aluminium and stainless steel
Speed of installation
Seven year material defects warranty and two year workmanship warranty available

Categories

Enclosure Balustrades and Stairs

Ranges

Balustrades - Fin & Slat

NZ Made

NZ-Owned Business

Scope of Use

The system is suitable for residential, commercial, external, internal and pool fence applications.

This product can also be used for privacy screens or decorative facades.

This system is suitable for A, B, E & C3 occupancy types

Limitations on Use

This system is not suitable for the following occupancy types:

C1/C2: Areas where people may congregate with tables and fixed seating (e.g. restaurants, bars)
C5: Areas susceptible to over-crowding
D: Retail areas

Statement of Building Code Compliance

Complies with the following provisions of the New Zealand Building Code:

Clause B1 Structure
Clause B2 Durability
Clause D1 Access Routes
Clause E2 External Moisture
Clause F2 Hazardous Building Materials
Clause F4 Safety from Falling

Other Performance Attributes

Spectrum Balustrade Systems meets and exceeds all reference standards:

NZS 8500 - 2006: Safety Barriers and Fences Around Swimming Pools, Spas and Hot Tubs
AS/NZS 1170:2011: Structural Design Actions

Structure

Durability

Access Routes

External Moisture

Hazardous Building Materials

Safety from Falling

Case Studies
News

Spectrum Balustrades Contribute to Contemporary and Fresh Developments

Spectrum Balustrades Contribute to Contemporary and Fresh Developments

May 2022

Case Studies

The Changing Face of Multi Tenancy Dwellings

The Changing Face of Multi Tenancy Dwellings

July 2021

Case Studies

Flexible Manufacturing Process Delivers a Custom Solution

Flexible Manufacturing Process Delivers a Custom Solution

May 2021

Case Studies

BIM Models Available For Clearspan Balustrade Range

BIM Models Available For Clearspan Balustrade Range

February 2019

Product News

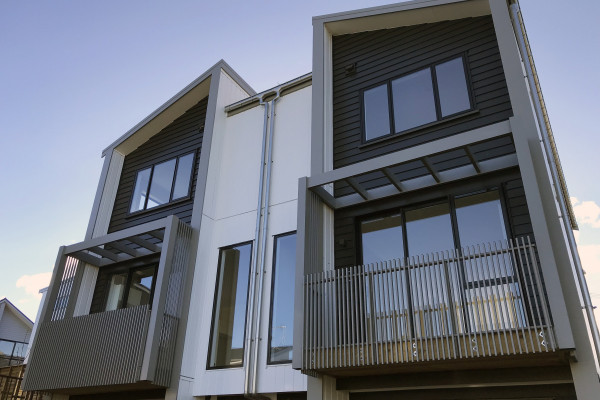

Deck Privacy and Inter-Tenancy Screens with Fall Protection Benefits

Deck Privacy and Inter-Tenancy Screens with Fall Protection Benefits

October 2018

Product News

Spectrum Clearspan Glass Balustrades Glazed Off-Site

Spectrum Clearspan Glass Balustrades Glazed Off-Site

February 2018

Product News

Documents

Material Safety Data Sheet

Maintenance Instructions

Warranty

Producer Statement

Brochure

CAD/PDF Details

Face Fixed to Timber 90deg Corner


Clearspan Face fixed to timber Coachscrew

3.1.1


Clearspan Top fixed to steel

3.1.11


Clearspan Top fixed to narrow steel

3.1.12

BL-3-1-13-Clearspan-or-Clearview-Face-Fixed-to-Timber-Coachscrew-with-Castaway-Bracket-9-9-19-pdf.jpg

Clearspan - Castaway face fixed to timber (Coachscrew)

3.1.13

BL-3-1-14-Clearspan-or-Clearview-Face-Fixed-to-Timber-Bolt-with-Castaway-Bracket-09-01-20-pdf.jpg

Clearspan - Castaway face fixed to timber (Bolt through)

3.1.14

BL-3-1-15-Clearspan-or-Clearview-Face-Fixed-to-Concrete-with-Castaway-Bracket-16-8-19-pdf.jpg

Clearspan - Castaway face fixed to concrete

3.1.15

BL-3-1-16-Clearspan-or-Clearview-Face-Fixed-to-Steel-with-Castaway-Bracket-16-12-20-pdf.jpg

Clearspan - Castaway face fixed to steel

3.1.16


Clearspan - face fixed to 160mm concrete

3.1.17


Clearspan Face fixed to timber Bolt

3.1.2

BL 3 1 21 Clearspan Face Fixed to Dry Timber Bolt through with stiffener 19 1 22 pdf

Clearspan - face fixed to dry timber (bolt through with stiffener)

3.1.21

BL 3 1 22 Clearspan Face Fixed to Wet Timber Bolt through with stiffener 19 1 22 pdf

Clearspan - Castaway face fixed to wet timber (bolt through with stiffener)

3.1.22


Clearspan - Top fixed to 75mm steel (2x M12)

3.1.24

BL-3-1-25-Clearspan-or-Clearview-Face-Fixed-to-Steel-RHS-with-Rivnut-14-12-20-pdf.jpg

Clearspan - face fixed to steel RHS with Rivnut

3.1.25


Clearspan Face fixed to 200mm concrete

3.1.3


Clearspan Face fixed to steel

3.1.4


Clearspan Top fixed to timber

3.1.5


Clearspan Top fixed to concrete

3.1.7


Clearspan Top fixed to thin concrete

3.1.9
