USG Donn Grid Suspension System
Description

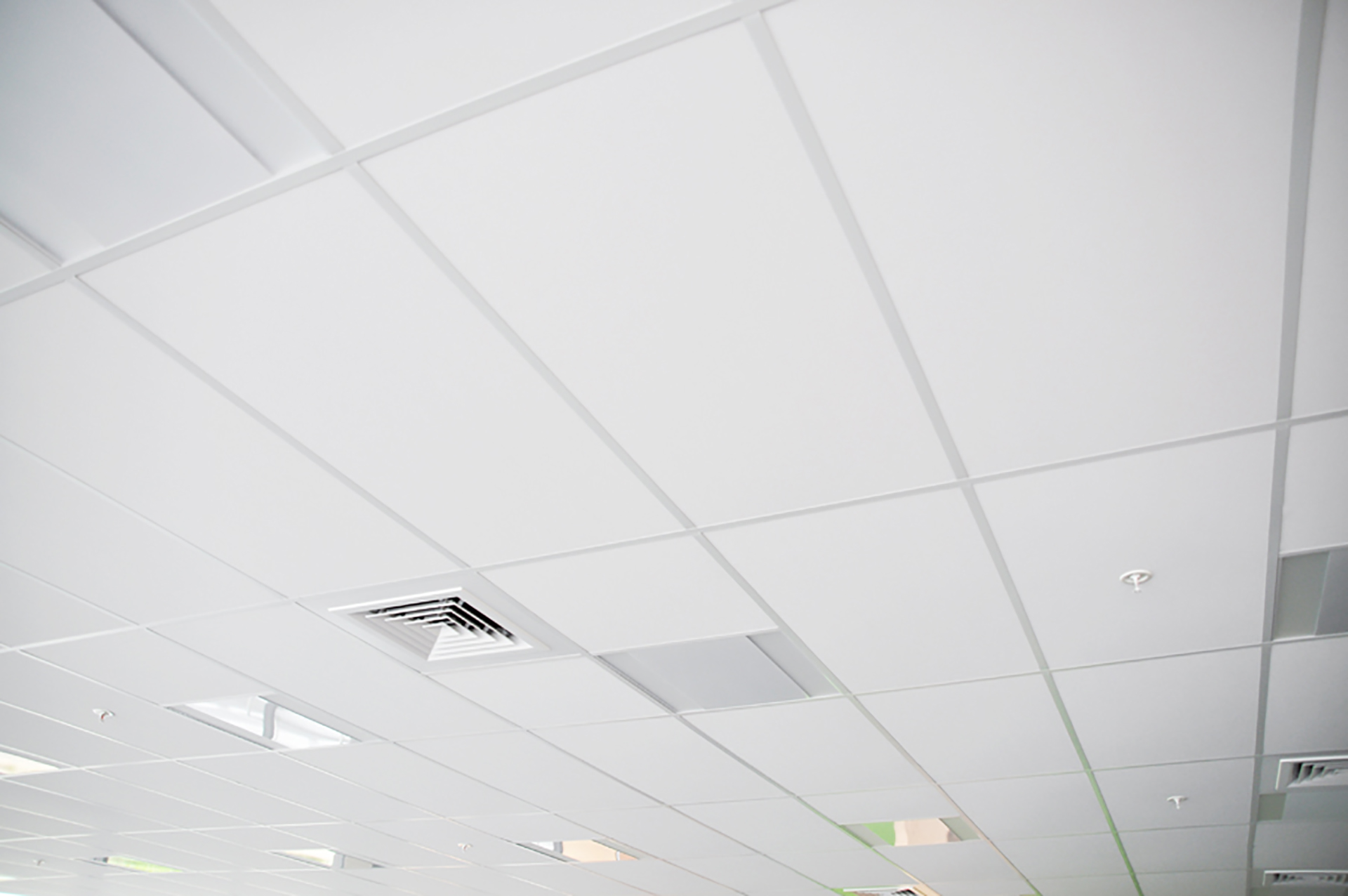

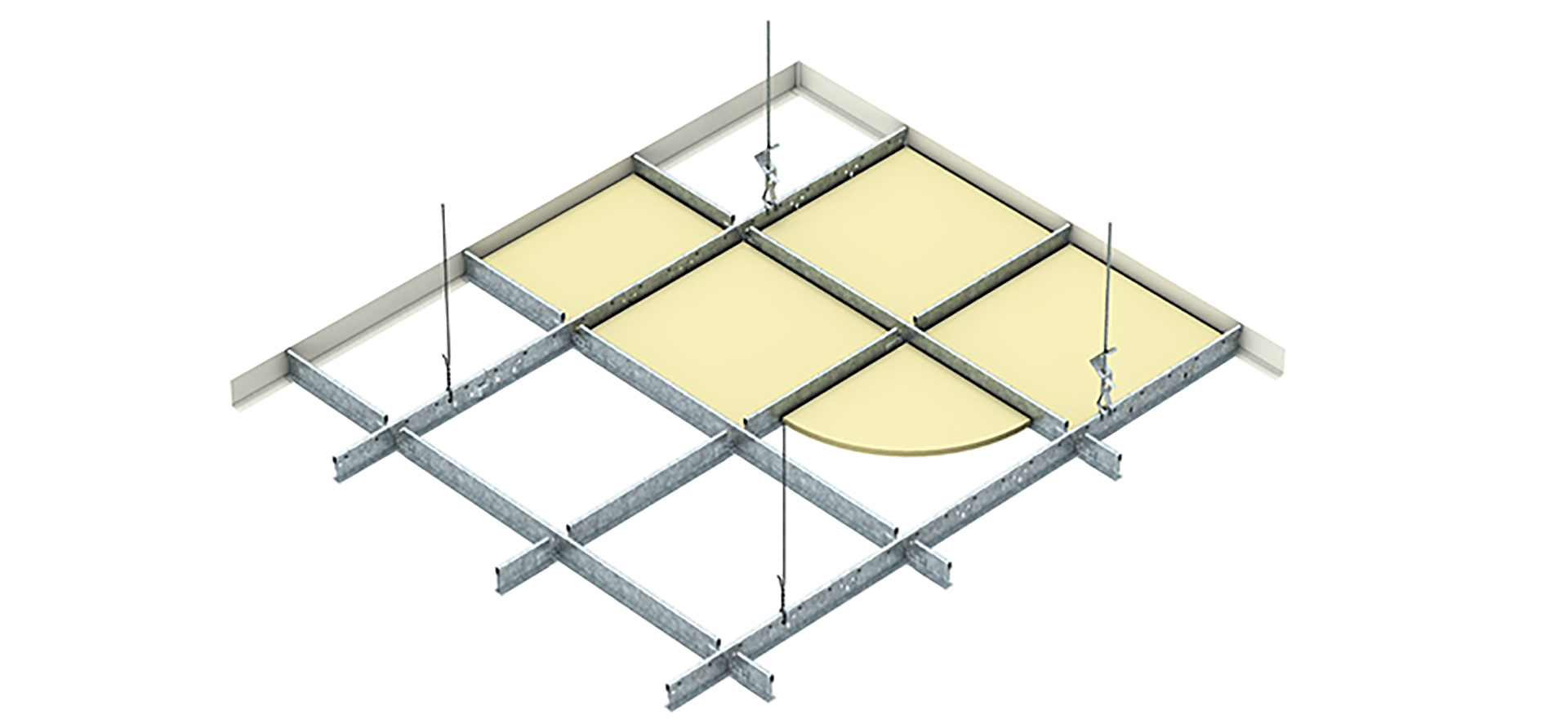

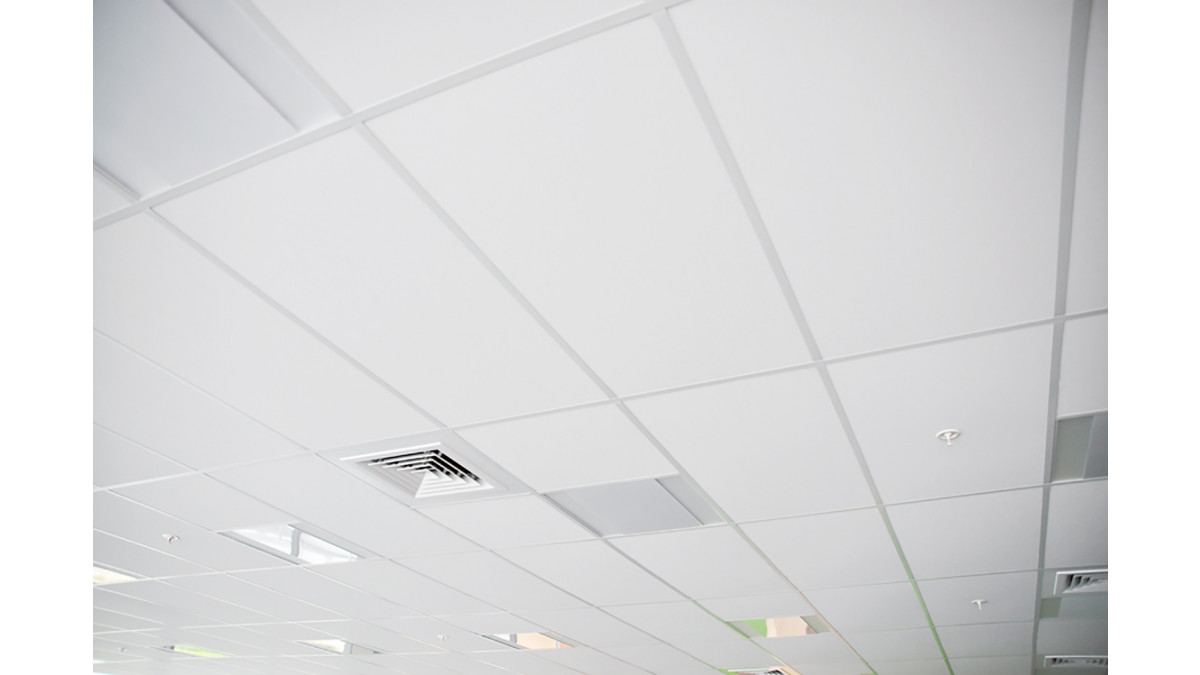

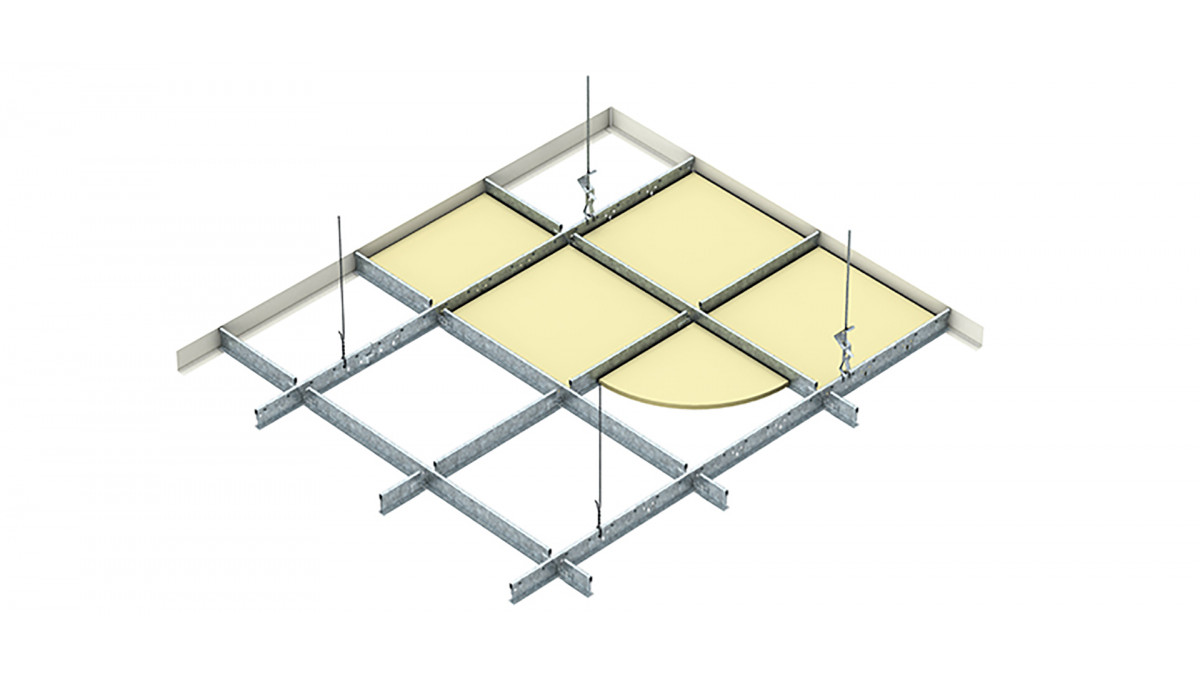

Standard Grid Suspension system for acoustical ceiling panels and other in-ceiling services (24mm and 15mm grid face options). High tensile Quick-Relase clips on cross tee ends provide fast, easy, positive lock insertion for quick installation.

Key Features
  • High tensile Quick-Release clips on cross tee ends provide fast, easy, positive lock insertion for quick installation
  • Unique patented centring devices in the 15mm Centricitee grid are formed into each Centricitee cross tee, ensuring rebated and square edged acoustical panels install square
  • Up to 12% Recycled
Scope of Use

Designed mainly for use in commercial buildings, retail, educational, entertainment, sports facilities, hospitals/ health organisations, hotels and multi-unit residential throughout NZ.

Limitations on Use

USG Donn grid is designed for use with an extensive range of 1200 x 600 and 600 x 600 ceiling panels including USG and AMF branded ceiling tiles and other in-ceiling services such as lighting and air-conditioning systems etc. It is now recommended that seismic ceiling design is carried out for all suspended ceiling installations with reference to USG Boral's Generic Seismic Design Guide which relates to AS/NZS 2785:2000 and NZS 1170.5:2004.

Statement of Building Code Compliance

USG uses the following standards in its manufacturing, testing and marketing policies for compliance with the respective building codes of Australia and New Zealand: AS/NZS 2785, ASTM C635, AS/NZS 1397, AS/NZS 1530.3, AS 1530.4, AS/NZS 3837, AS/NZS 4600, AS/NZS 1170, AS 1170.4, NZS 1170.5NZS 4219, AS 2946, NZBC - B1/VM1, NZBC - B2 Durability.

In-Service History

The USG Donn Suspension Systems are the original exposed grid system developed in the 1950's and has been used internationally ever since.

B2 Durability compliant
Durability
Literature
Product Assurance
Data Sheet
Other Literature
Brochure
Options
