Rondo Steel Stud & Track Wall Framing System
Description

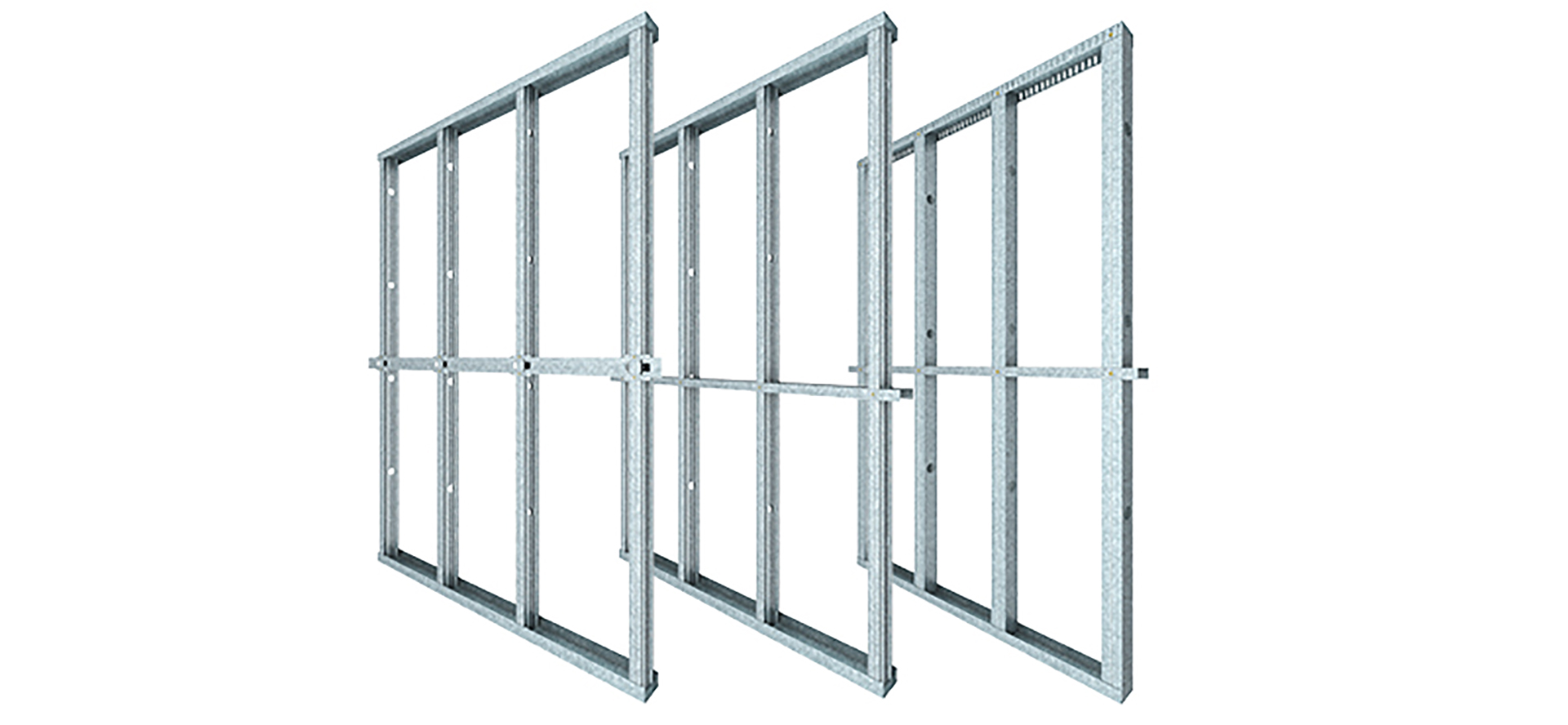

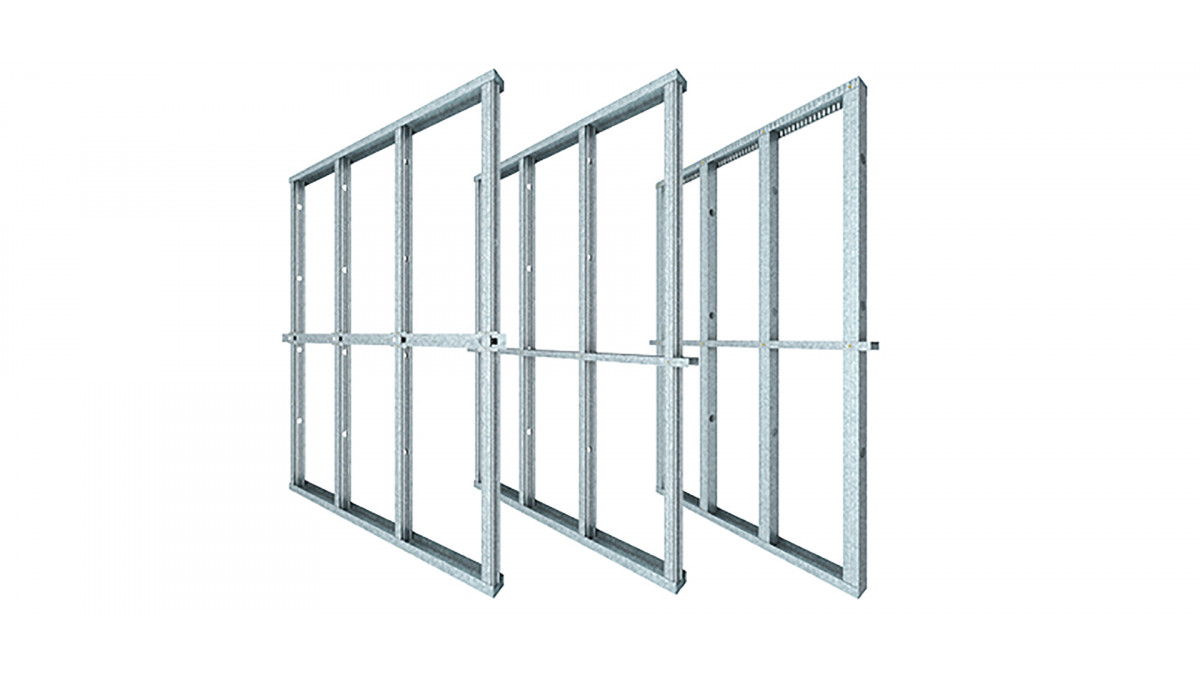

The Rondo Steel Stud Drywall Framing System provides a durable, practical and lightweight structure for internal plasterboard walls and for specific external wall systems. The availability of various sizes, complimentary components such as nogging tracks, curved tracks, and special cleats ensure Rondo Stud and Track wall systems are available to suit almost all situations.

Key Features
  • Available in custom lengths
  • Majority of Stud and Track is hemmed for safety and increased strength, preventing unwanted rotation
  • MAXIframe External Wall Framing System made from 1.2BMT G500

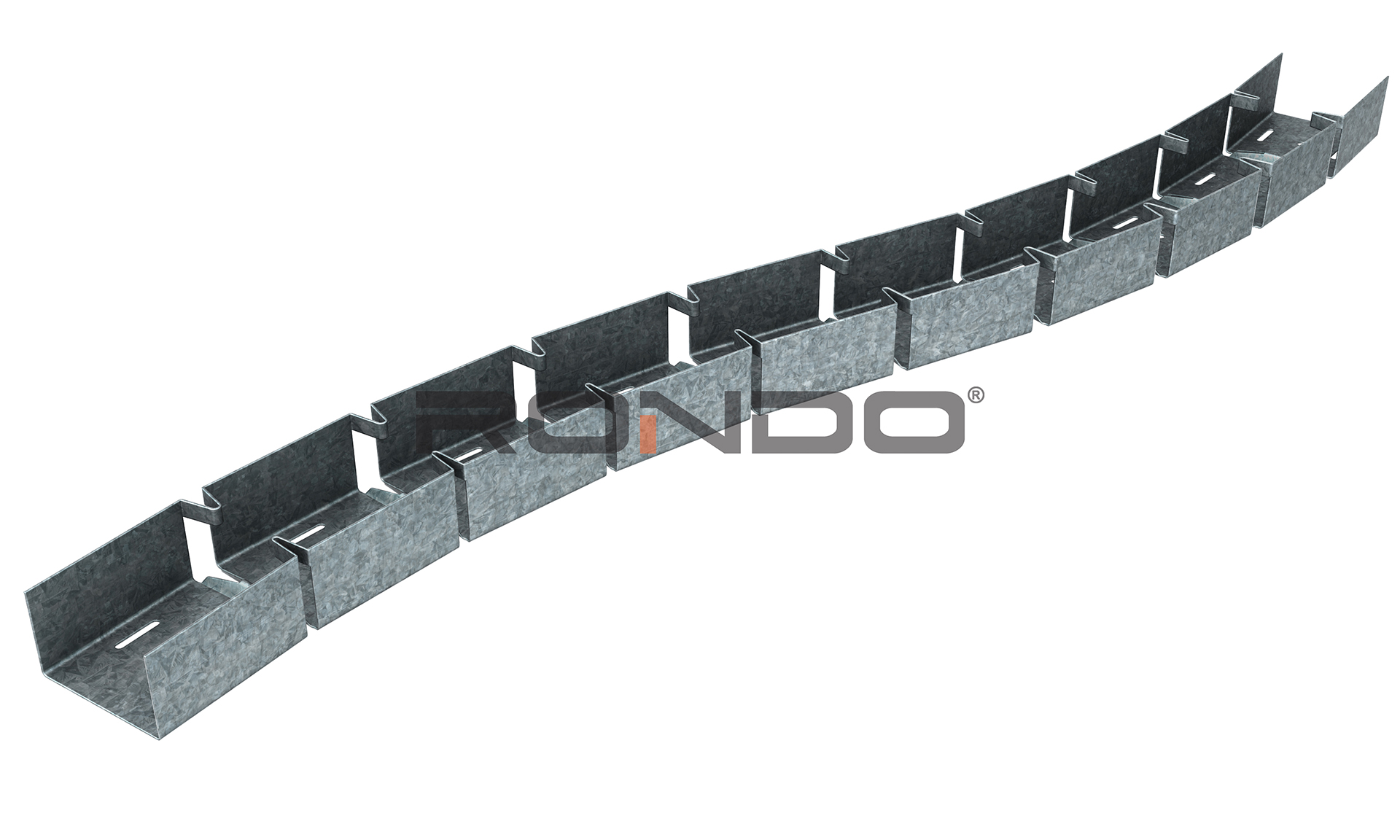

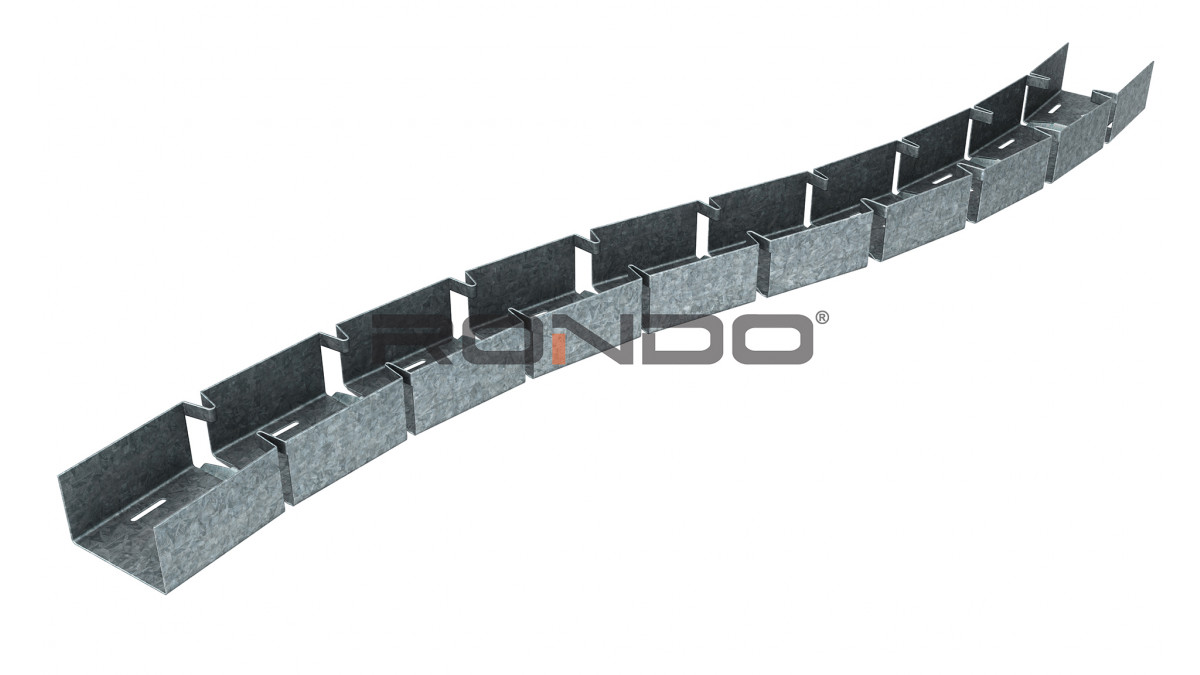

  • Flexible Track available for curved walls
  • Manufactured from BlueScope Steel with a minimum coating of Z275
  • Profiles widths range from 51 to 150mm, and gauges from 0.50 to 1.15BMT

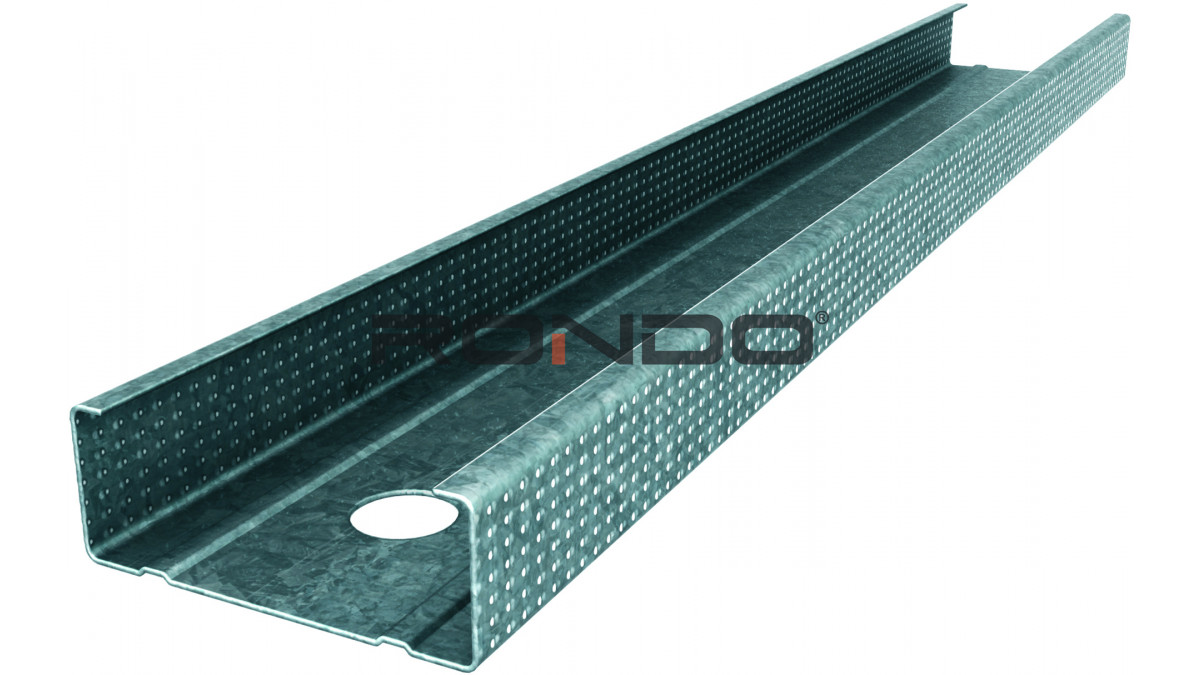

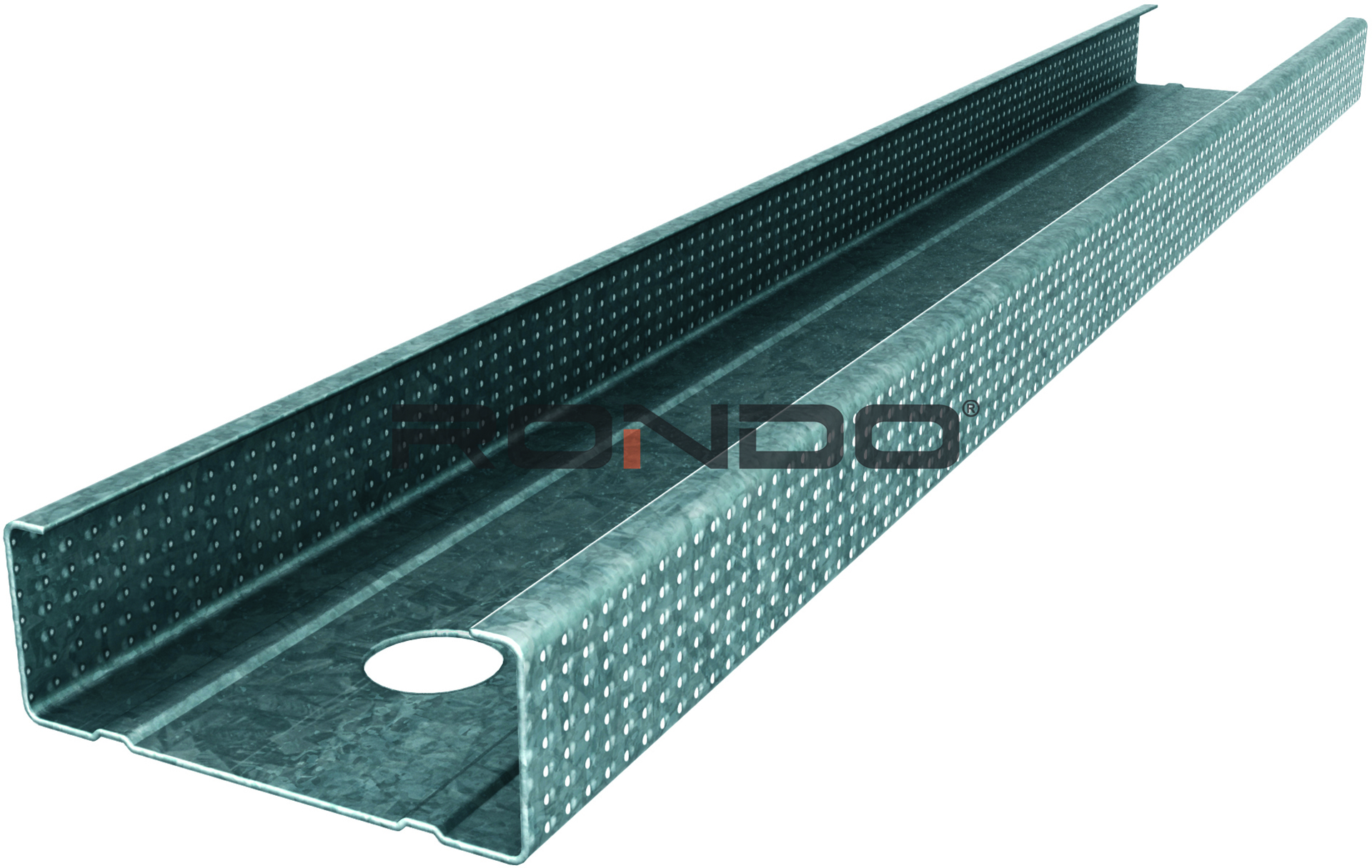

  • Bell mouthed service holes on 0.50bmt, 0.55bmt and 0.75bmt Wall Studs mitigate damages to services
Categories
Steel Wall Systems
Ranges
Steel Systems
Scope of Use

The availability of various sizes, complementary components such as nogging tracks, curved tracks and special cleats ensure Rondo Stud and Track Wall Systems are available to suit almost all situations, such as internal drywall partitions up to 10 metres in height, depending on the application.

  • Non-load and load bearing (by design) partition walls
  • Steel stud ceiling systems
  • Window and door jambs
  • Non-fire rated and fire-rated systems
  • Acoustic wall systems (by design)
  • External wall systems (by design)
  • Light weight floor Joists
  • Bulkheads
  • Seismic wall system by design
Limitations on Use
  • Installation by qualified tradesperson is recommended.
Statement of Building Code Compliance

Rondo Steel Stud Drywall Framing Systems comply with all relevant Building Codes for fire-rated, acoustic, seismic and load bearing requirements.

In-Service History

Rondo Wall Framing Systems have been used all over the world, including in the enormous Mumbai International Airport development in India and Australia’s largest tertiary institution and award-winning project, RMIT University in Melbourne.

For the high-profile Fiona Stanley Hospital project in Perth, its design required special length products – therefore, Rondo produced large quantities of the non-standard Stud and Track sizes to ensure the project can progress rapidly.

Documents
Technical Manual
Installation Details

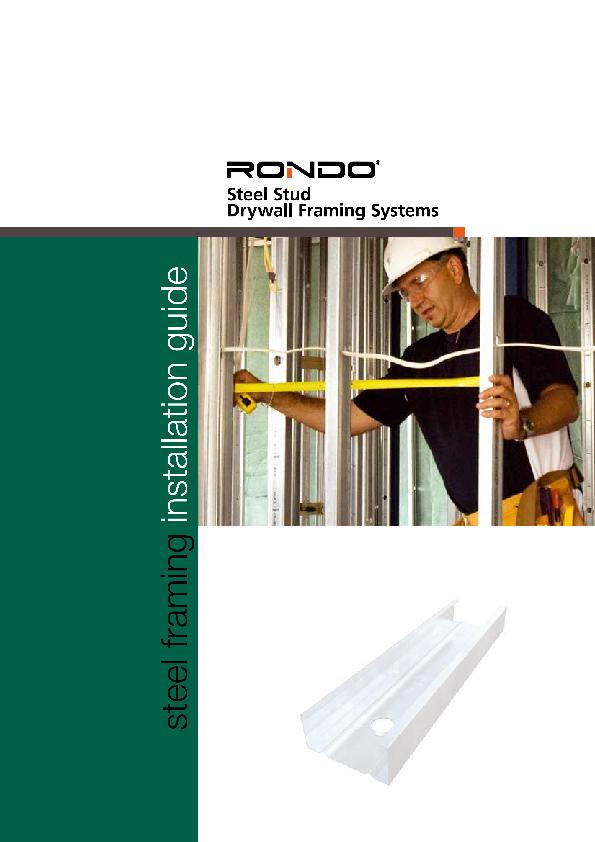

Installation Guide

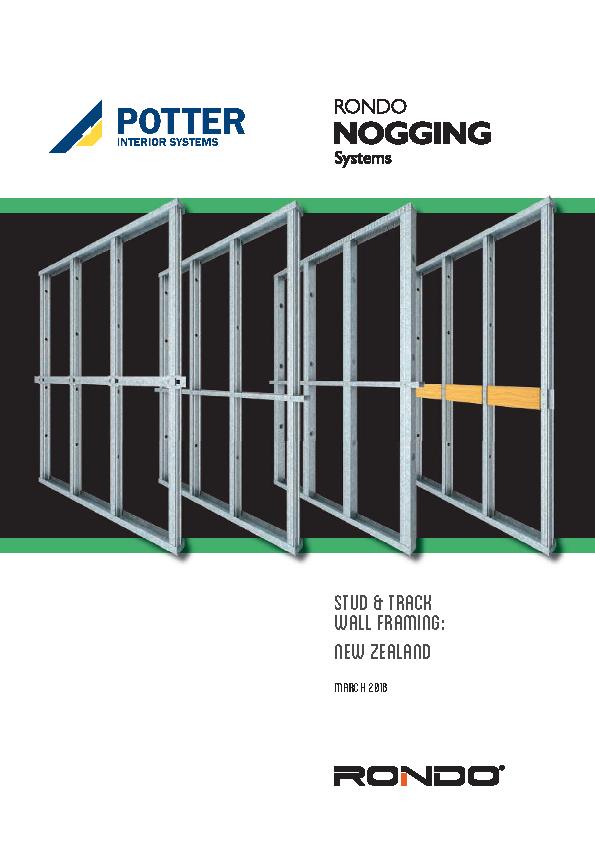

Nogging Manual
