Rondo DUPLEX Internal Stud Framing System
Description

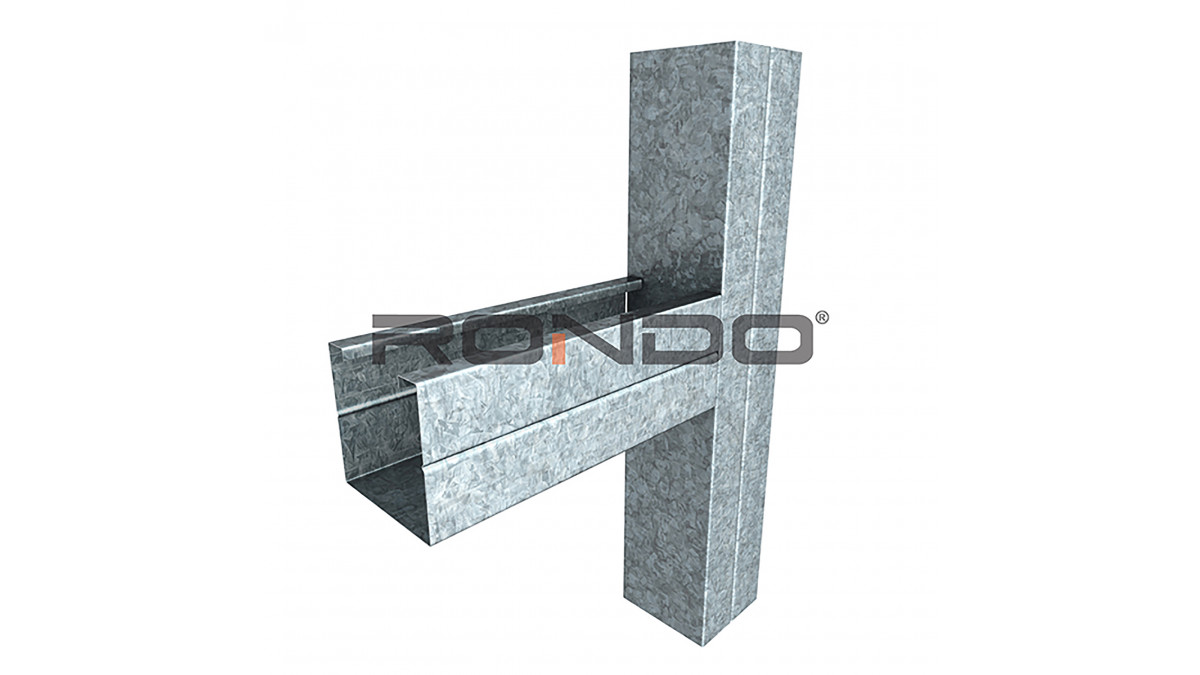

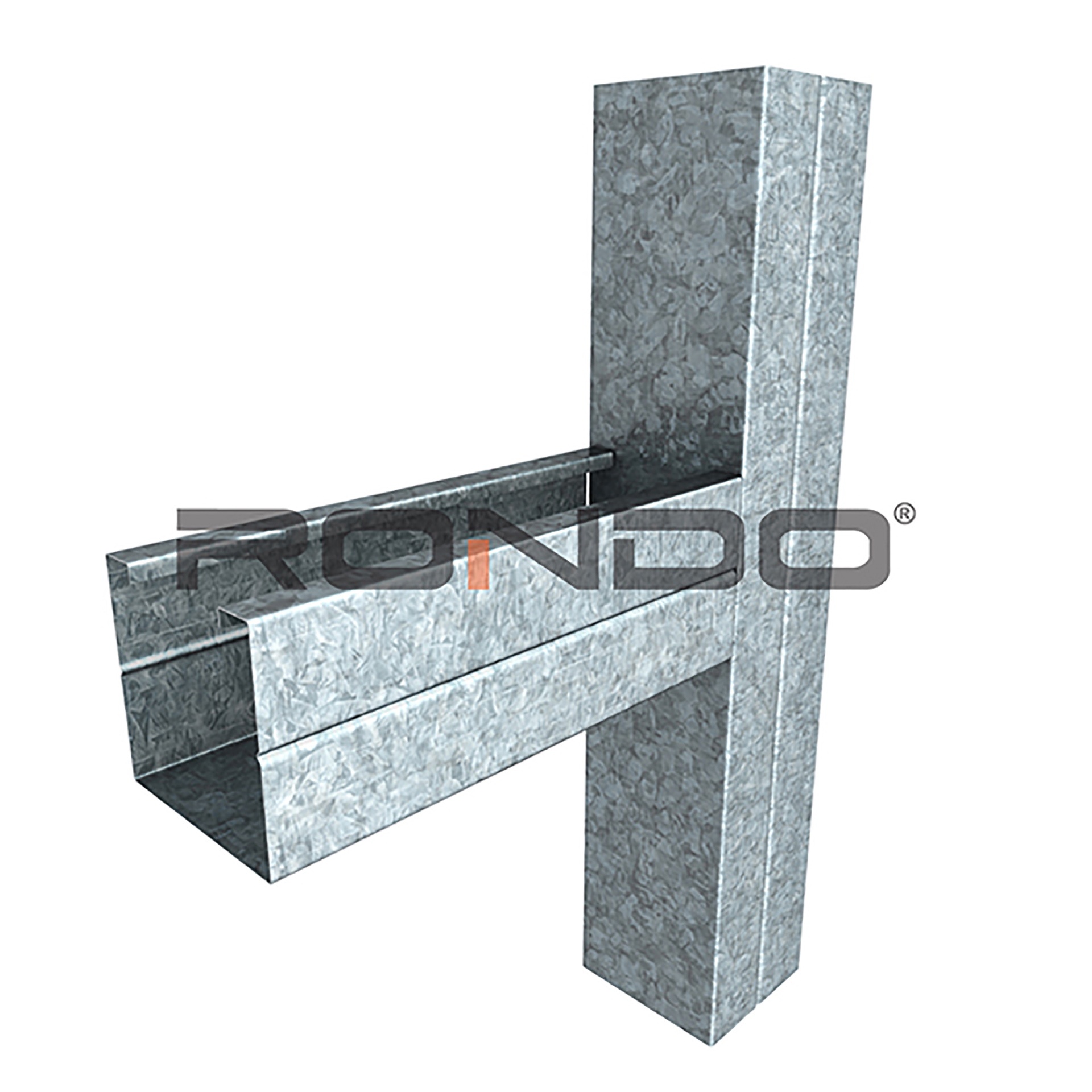

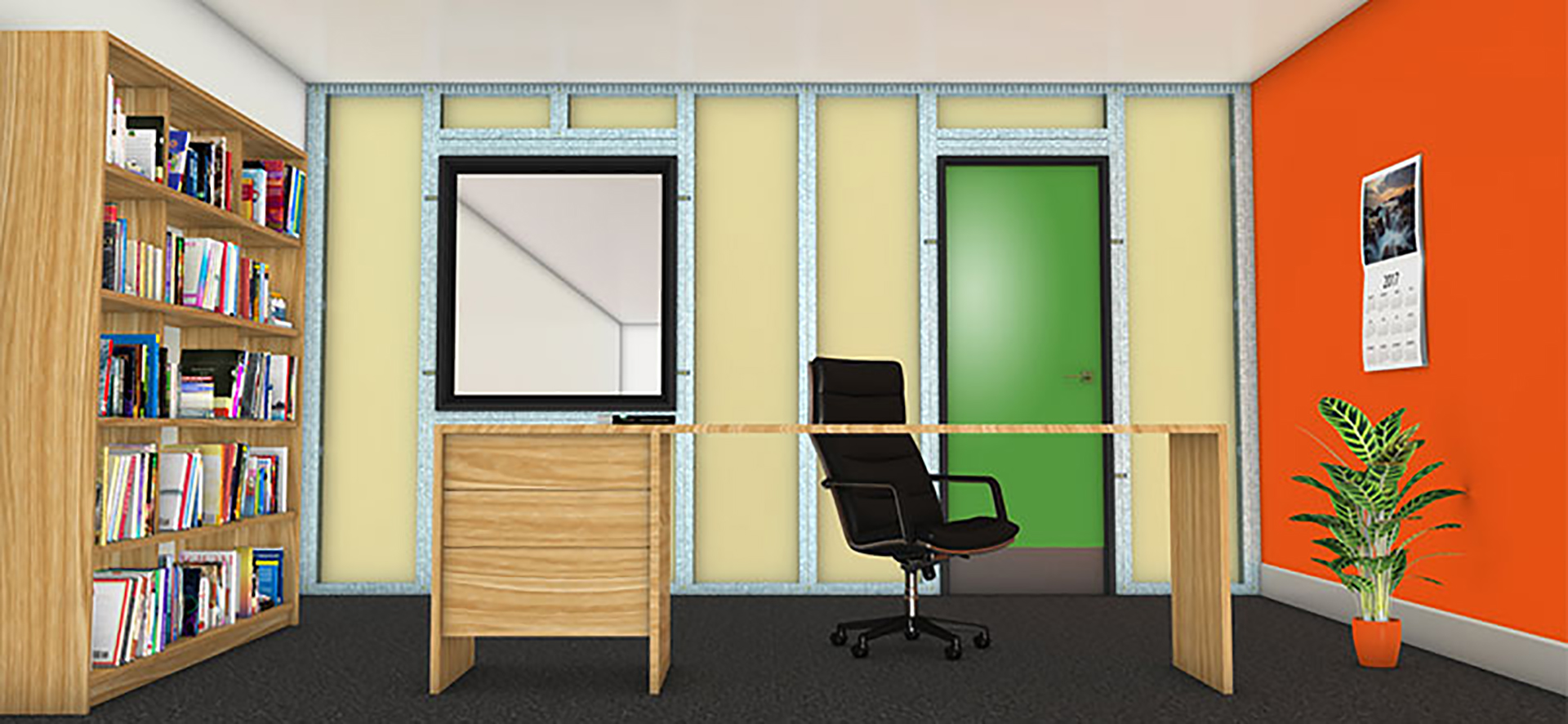

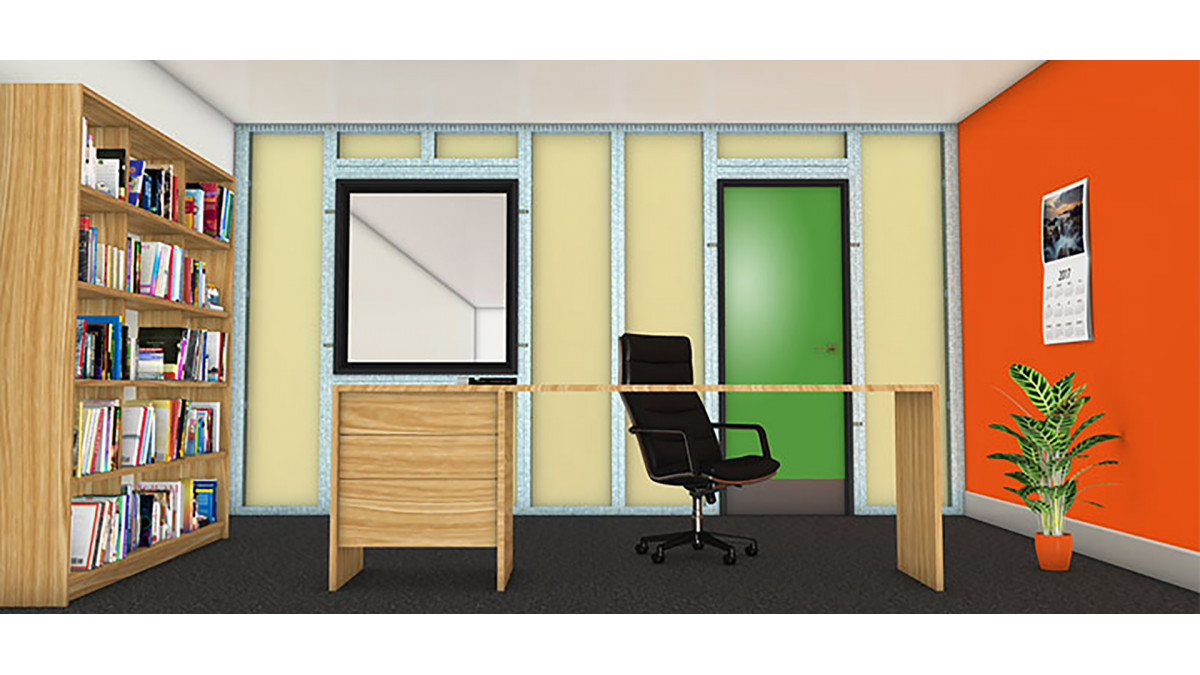

Rondo DUPLEX is one Stud that does the job of two. It’s perfect for door openings and glazing in internal wall framing applications which would typically need a boxed stud configuration. It can also be used as a wall stud where the use of standard steel studs would require installation at closer centres. In this application, DUPLEX Stud provides additional load capacity and reduces not only the material cost but labour cost as well.

Key Features
  • Greater load capacity than standard narrow flange wall systems negating the necessity for boxed or back to back configurations or the reducing of stud centres
  • Integrated with the Rondo medium gauge Slotted Deflection Head Track providing better, positive connections
  • Like all Rondo Steel Studs, DUPLEX can be manufactured in custom lengths to suit the project
  • DUPLEX Studs are made from G2 grade steel for optimum cost efficiency
  • DUPLEX Studs are made from steel with a minimum gal coating of Z275
  • Higher walls can be achieved before noggings are required
  • Central rib on fixing flange allows for vertical alignment of wall linings
Categories
Steel Wall Systems
Ranges
Steel Systems
Scope of Use

Suitable for:

  • Replacing single boxed stud to support door frames
  • Internal glazing and door jambs
  • Access openings for services within the wall framing
  • Internal load bearing walls by Rondo Engineered Design
  • Incorporation into standard Rondo narrow flange steel internal wall framing
Limitations on Use
  • Rondo recommends its products and systems are installed by a qualified tradesperson and according to the relevant codes and standards
Statement of Building Code Compliance

Rondo Framing Systems comply with all relevant Building Codes for fire-rated, acoustic, seismic and load bearing requirements.

Documents
Technical Manual
