AMF Thermatex Alpha One — Suspended Ceiling Tile
Potter Interior Systems
All products

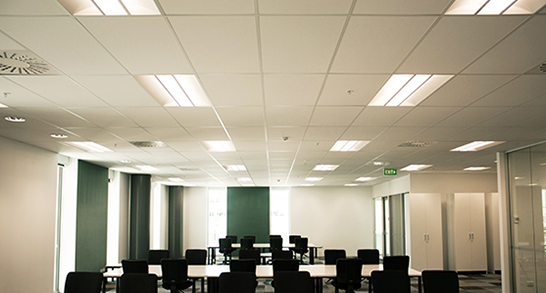

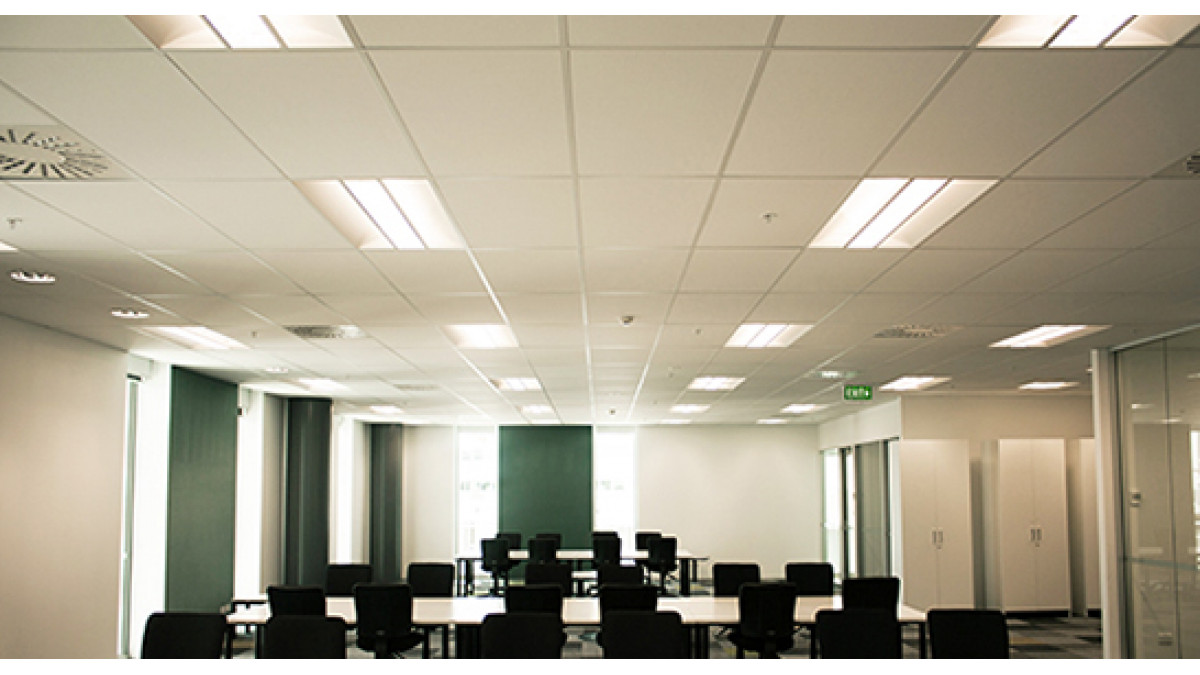

AMF Alpha One 01

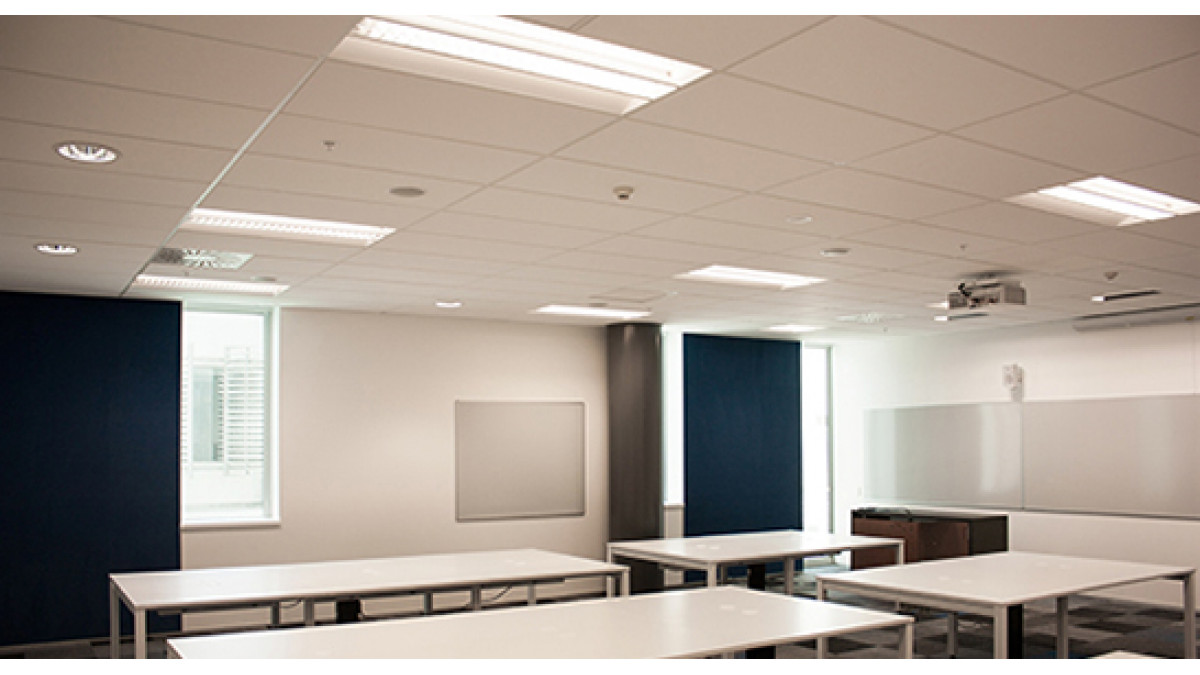

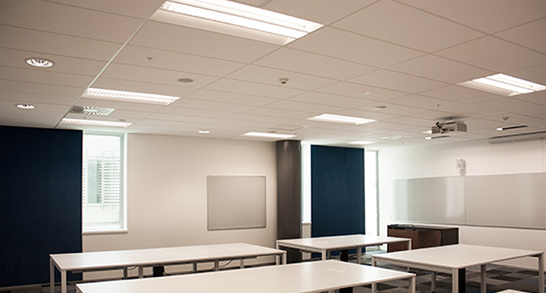

AMF Alpha One 02

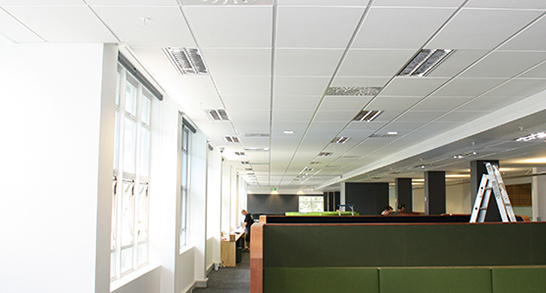

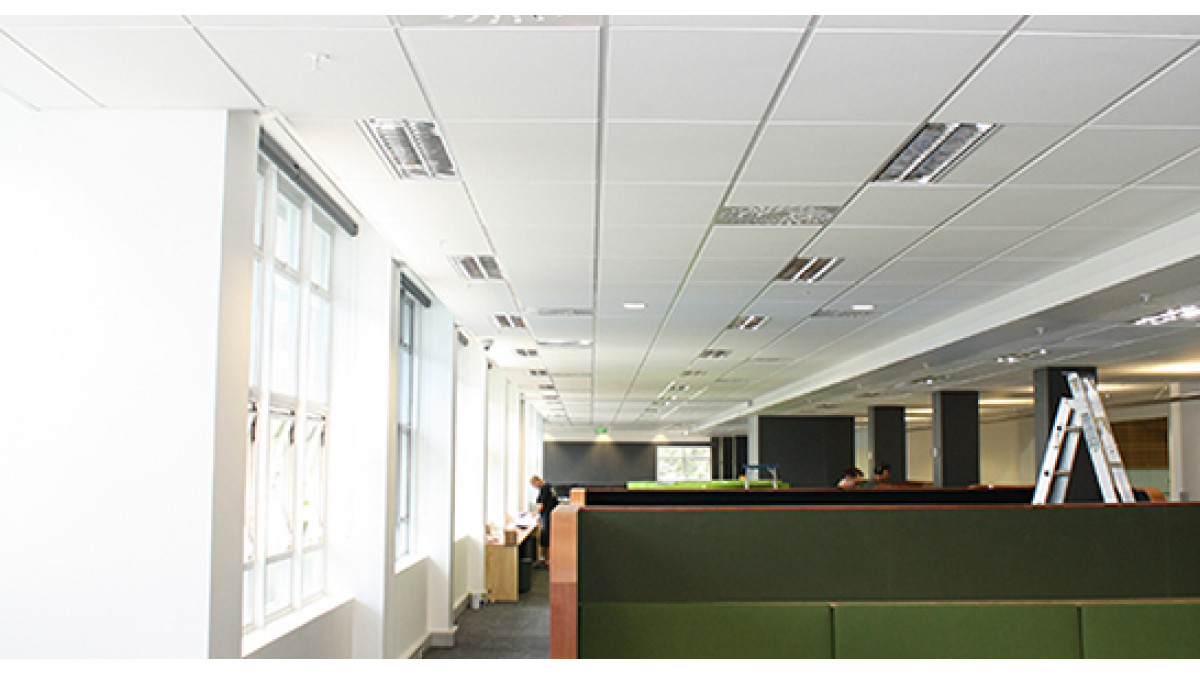

AMF Alpha One 03

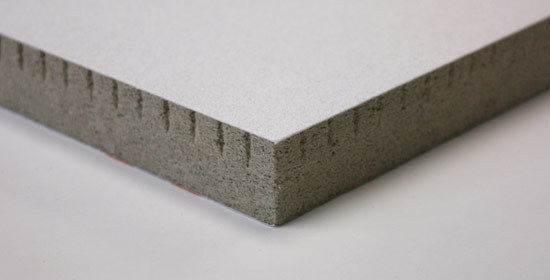

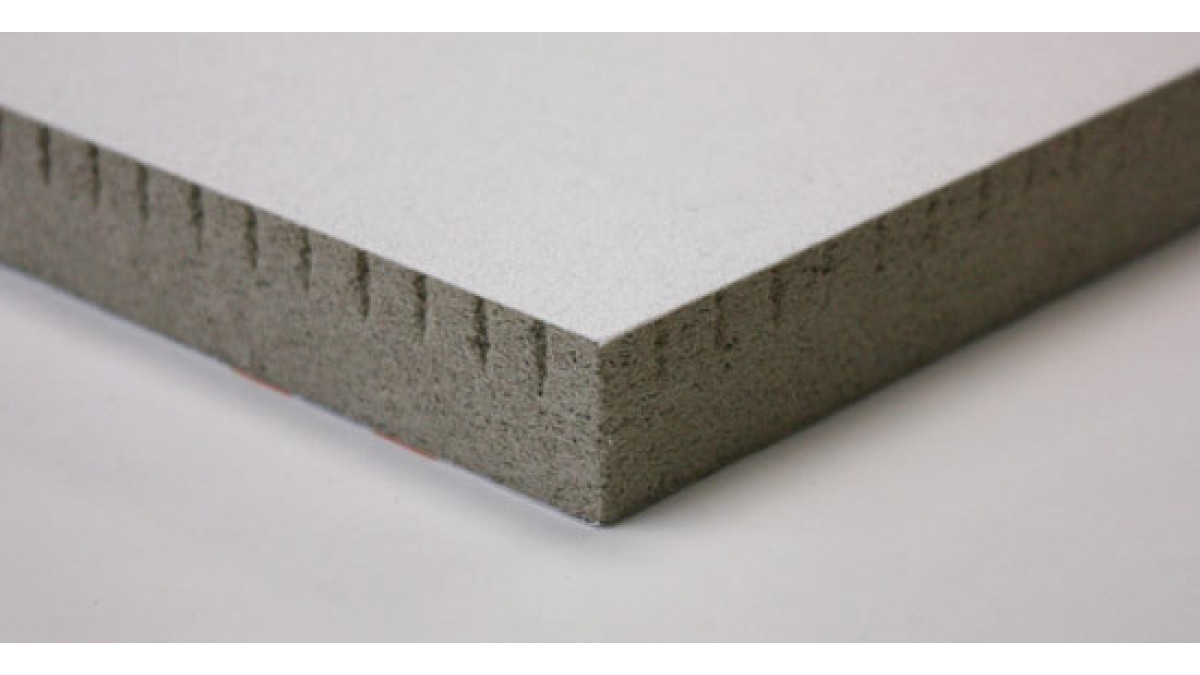

AMF ThermatexDBAcoustic ebo
Description

Thermatex Alpha One is a wet-felt mineral tile which provides high sound absorption values. With a strong white acoustic fleece, Thermatex Alpha One offers a smooth, elegant surface finish. The combination of bio-soluble mineral wool with clay and starch provides excellent physical characteristics.

The AMF Acoustic Range carries the Declare label.

Key Features
  • System: Exposed Grid System, demountable ceiling
  • Dimensions: 600 x 600 mm, 1200 x 600 mm (further sizes available on request)
  • Thickness/Weight: 24 mm (c. 3.3 kg/m2)
  • Colour: White similar to RAL 9010
  • Edge Details: SK, VT 24, on request VT 15
Categories
Suspended Ceilings Fire, Acoustic & Special Performance Ceilings
Ranges
Suspended Ceilings
Declare LBC Red List Free
LBC Red List Free
Scope of Use
  • Exposed Grid System, demountable ceiling
Other Performance Attributes
  • Building material class: A2-s1, d0 as per EN 13501-1
  • Sound absorption: EN ISO 354  αw=1.00 as per EN ISO 11654
  • NRC = 1.00 as per ASTM C 423
  • Sound attenuation: 29 dB as per ASTM E413-10
  • Light reflectance: Up to 88%
  • Thermal conductivity:λ = 0.040 W/mK as per EN 12667
  • Humidity up to 95 % RH
  • Clean room Class 4 as per ISO 14644-1
  • News
Documents
Data Sheet
URL
CAD/PDF Details
View full

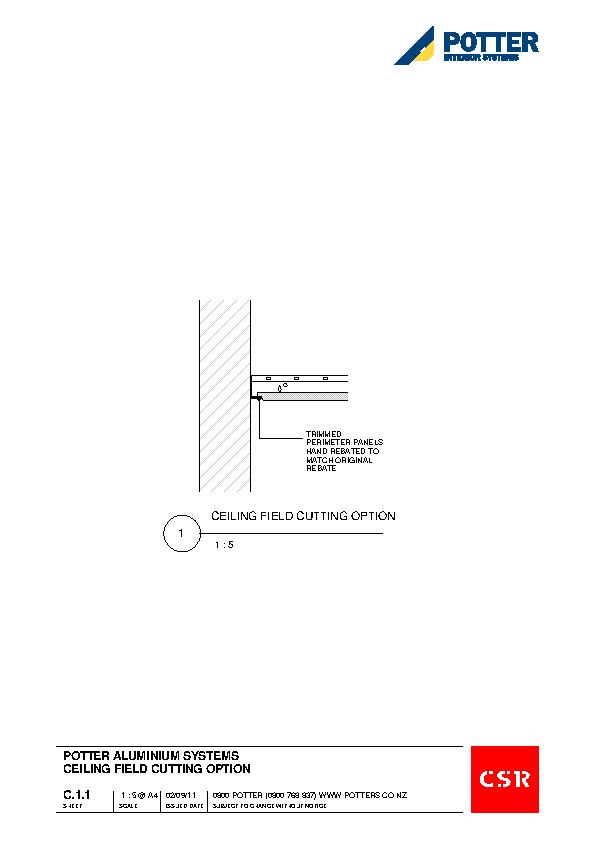

C.1.1 Ceiling Field Cutting Option
dwf
dwg
DXF
pdf

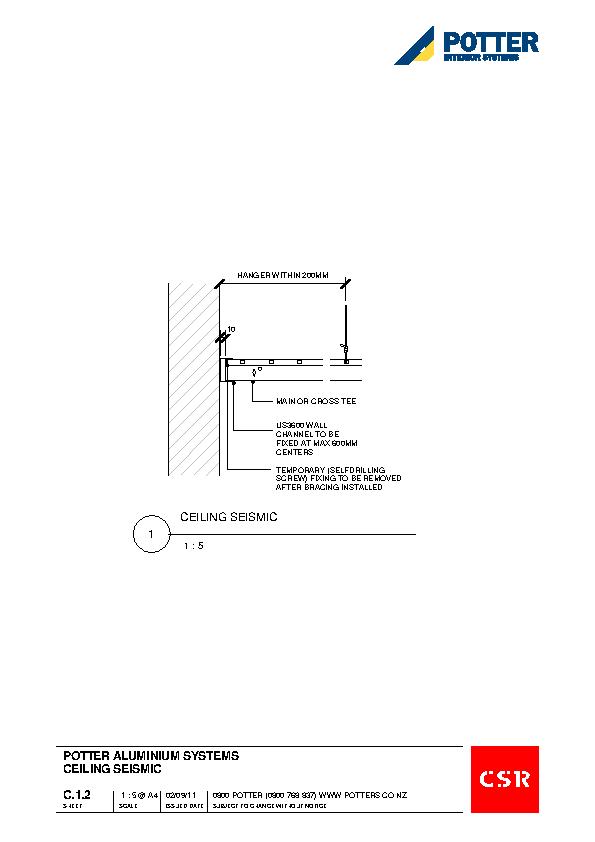

C.1.2 Ceiling Seismic
dwf
dwg
DXF
pdf

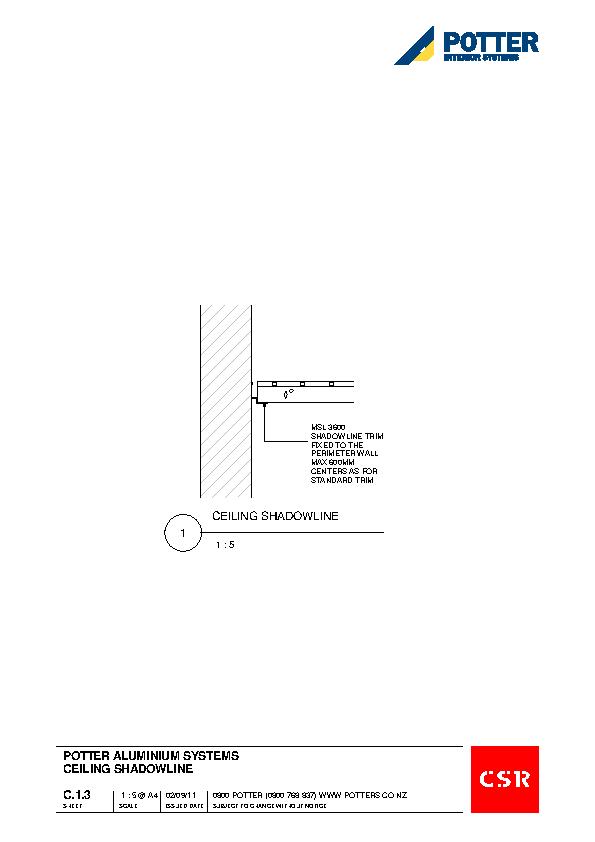

C.1.3 Ceiling Shadowline
dwf
dwg
DXF
pdf

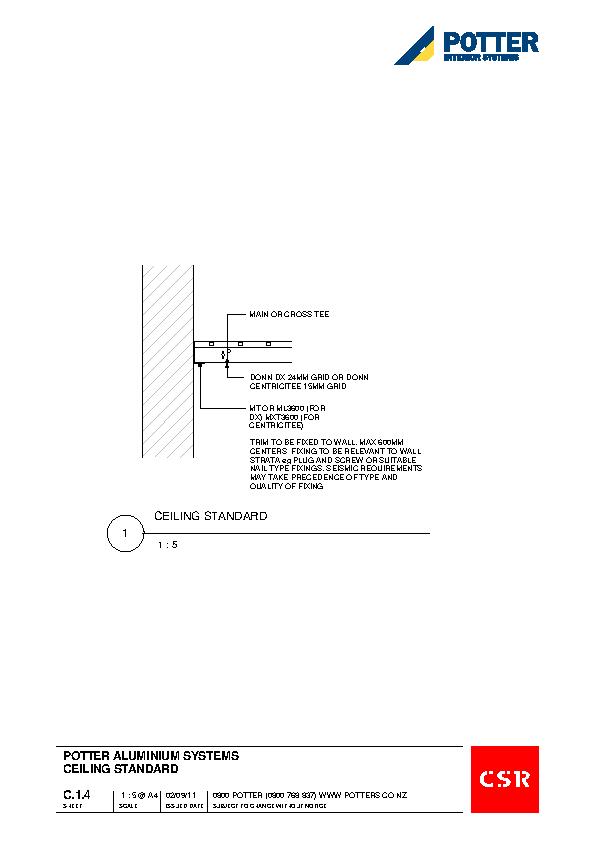

C.1.4 Ceiling Standard
dwf
dwg
DXF
pdf

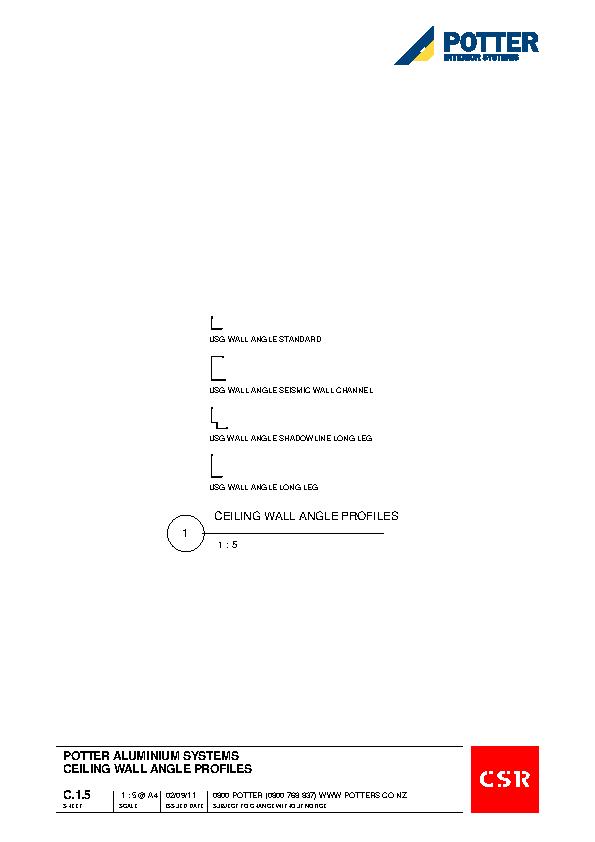

C.1.5 Ceiling Wall Angle Profiles
dwf
dwg
DXF
pdf
