Masons BrickTies
Masons
All products

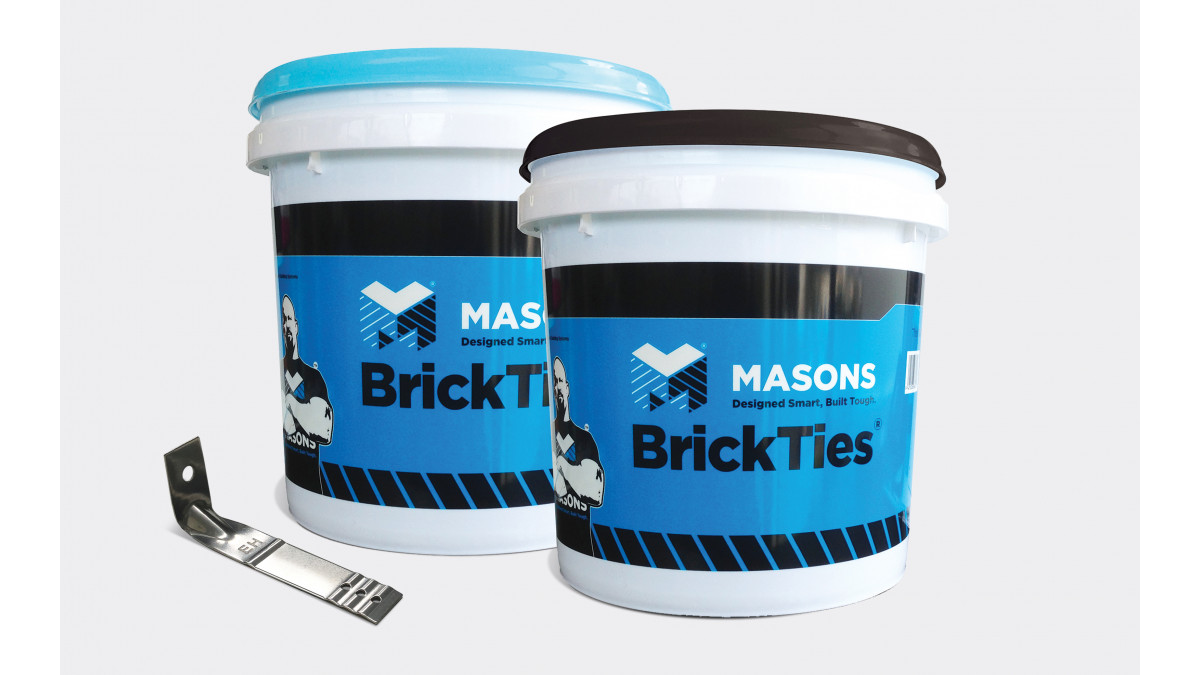

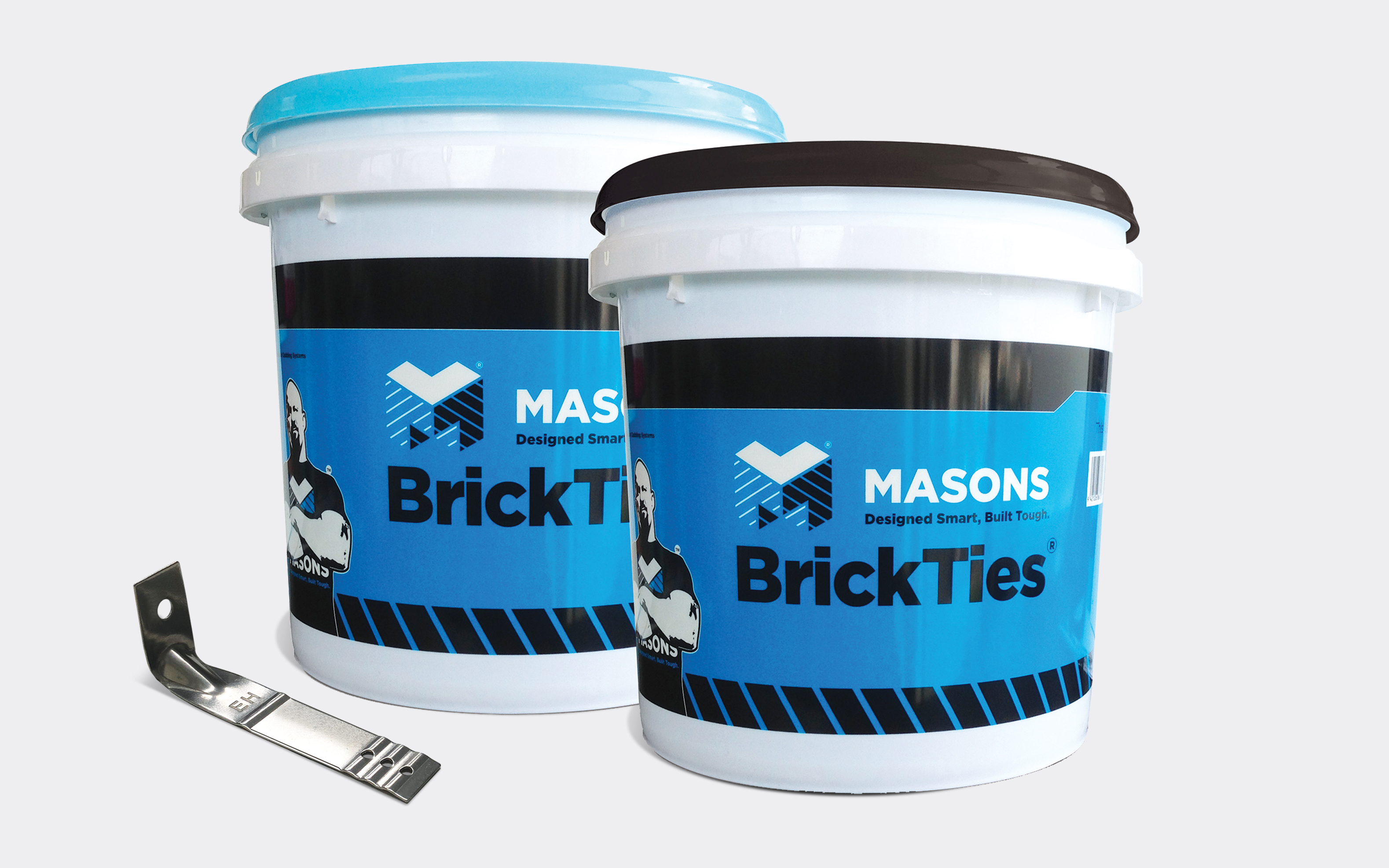

EBOSS BrickTie Roound Galv SS

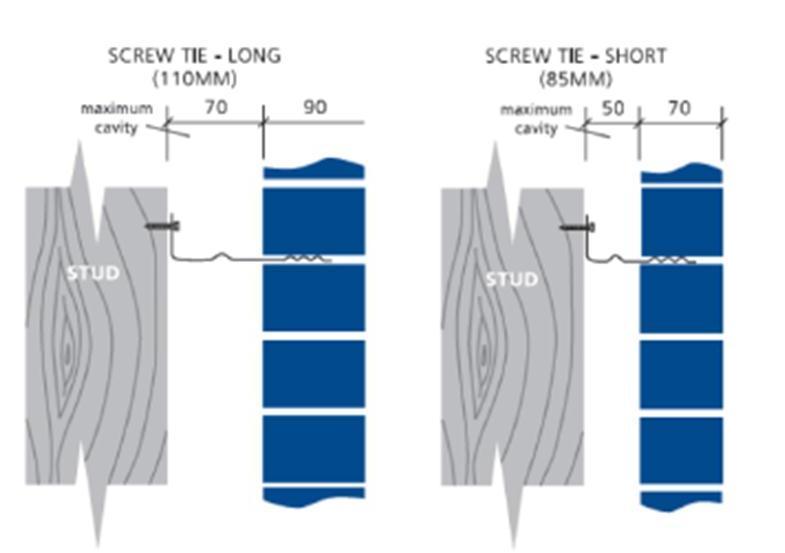

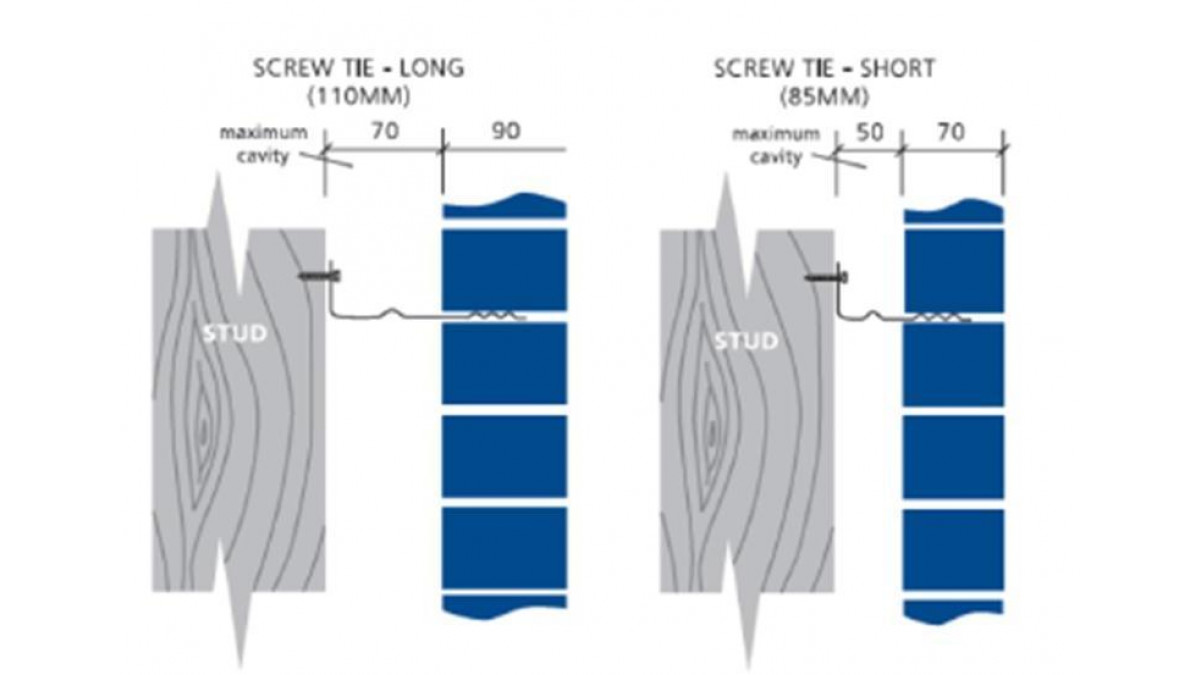

Brick Tie Diagram 2

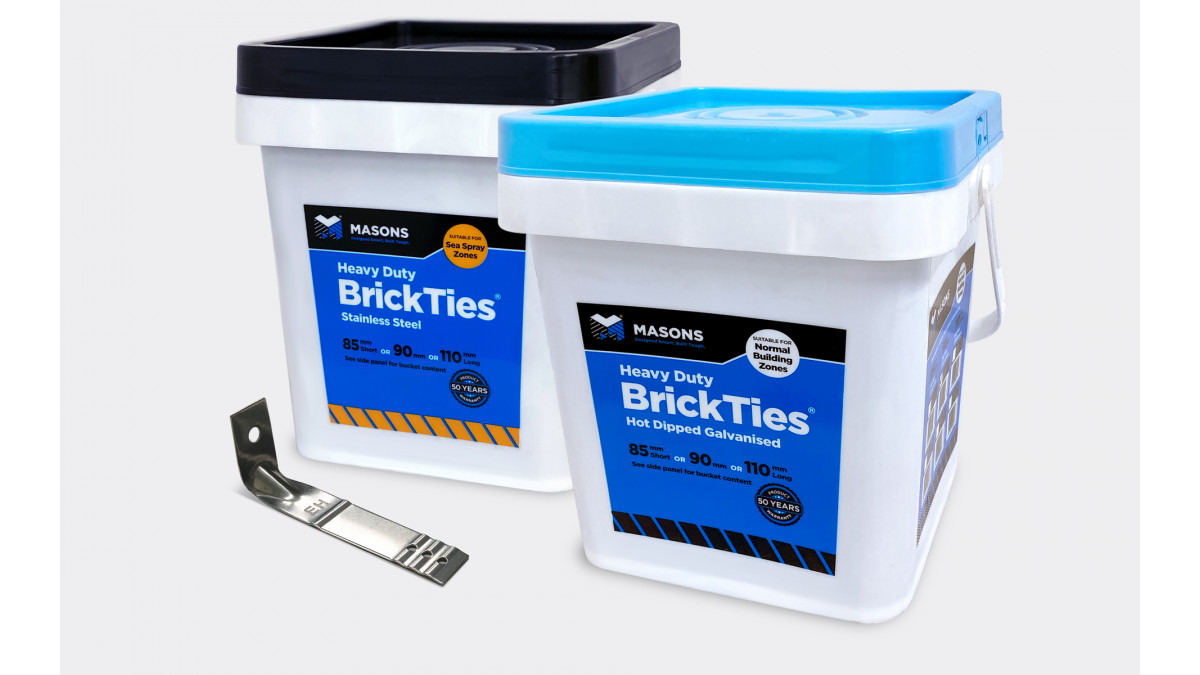

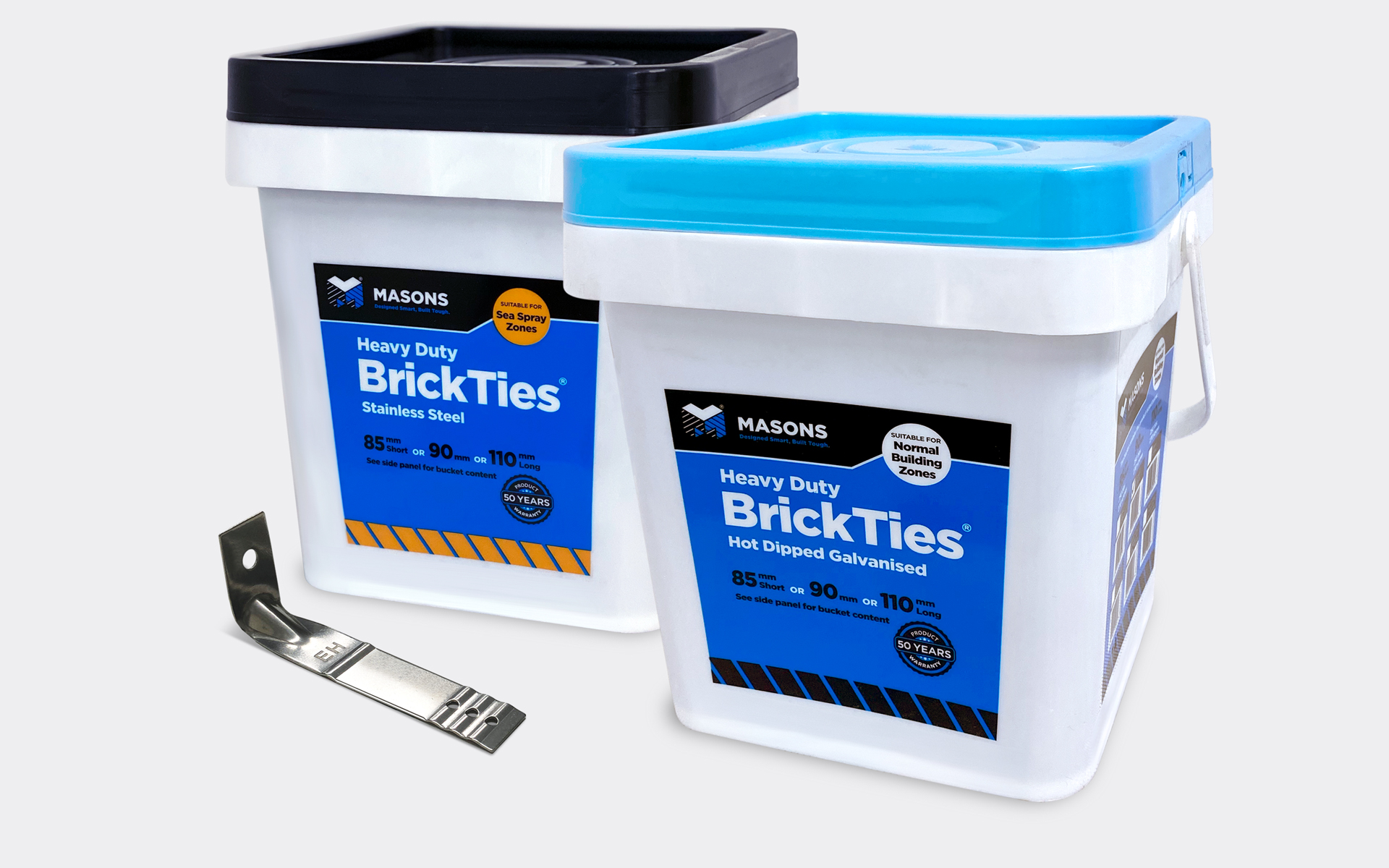

EBOSS BrickTie Sq Galv SS

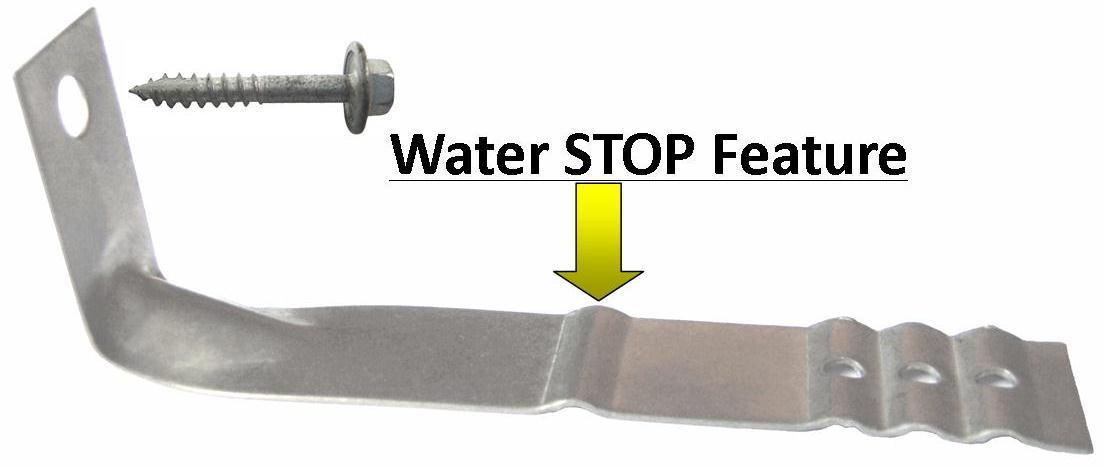

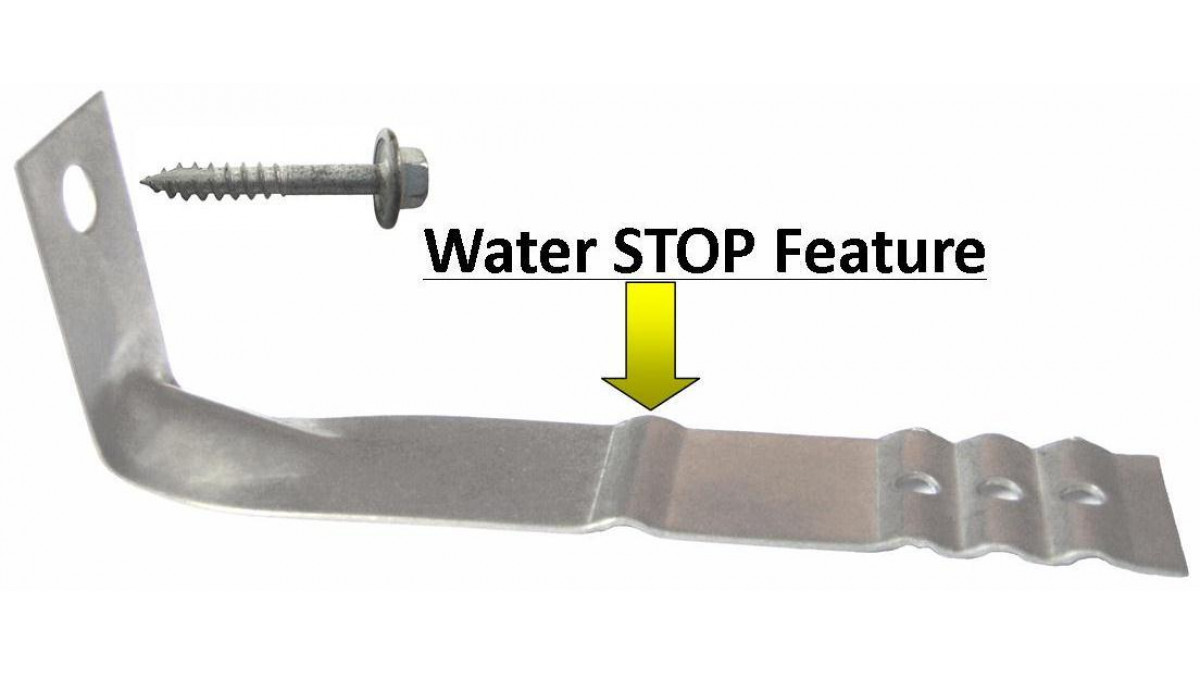

Brick Tie Screw 2
Description

Masons BrickTies connect the brick veneer to the structural framing of a building and transfer some of the force away from the brick and on to the structural element. Masons BrickTies are rated Heavy Duty Earthquake Zone.

Masons BrickTies can be used to tie any masonry veneer to a structural frame. Available as galvanised steel or stainless steel. The stainless steel finish will provide strong corrosion resistance, and means the product can be used in sea spray zones.

Key Features
  • Masons Brick Ties are manufactured to comply with AS/NZS2699.1.2000
  • Rated Heavy-Duty earthquake zone
  • Can be used to tie any masonry veneer to a structural frame
  • Available in five lengths: 90mm, 110mm, and 135mm
  • Available in hot dipped galvanised and 316 stainless steel
  • Using 316 Stainless Steel provides ultimate durability for houses in sea-spray zones
  • New Medium-Duty Pack also available
Categories
Fasteners and Connectors Masonry and Brick Cladding
Ranges
Masons Brick Products
Scope of Use
  • Suitable for both wet and dry bedding
  • Can be used to tie any masonry veneer to a structural frame
  • Rated Heavy-Duty earthquake zone.
  • Using 316 Stainless Steel provides ultimate durability for houses in sea-spray zones
  • Masons Brickties are available in round or square buckets
Statement of Building Code Compliance

Please see Mason Bricktie Assessment Sheet in the document downloads section of this website

  • Masons Brick Ties are manufactured to comply with AS/NZS2699.1.2000
In-Service History
  • Masons are the largest supplier of BrickTies in New Zealand
  • Masons have been in business for over 20 years and stand by all their products
Other Independent Assessment
Other Independent Assessment
  • Case Studies
  • News
Documents
Assessment sheet
pdf
BPIR
pdf
Pass Statement
pdf
Warranty
pdf
Brickties - Heavy Duty Flyer
pdf
Additional information
