Passive Roof Ventilation System
Description

Masons Passive Roof Ventilation System is a complete system for ventilating roof cavities in long run metal roofs. Using the natural stack effect and wind movement, this passive system helps remove warm, moist air and introduces cooler, drier air to protect the roof structure, insulation, and ceiling space from moisture-related damage.

Key Features

The improved weather and air tightness of modern roof cladding and flashings contribute to warm, dry and healthy homes. But, the reduced airflow in the roof attic space can create a hidden problem – excess moisture and condensation in the roof space.

Without adequate ventilation, moisture builds up, creating the perfect conditions for mould growth. Good roof space ventilation is crucial in preventing this.



Categories
Natural Ventilation
Scope of Use

A passive roofing ventilation system is a method of ventilating the roof space without using mechanical fans. Instead, it relies on natural airflow – using the principles of convection (warm air rising) and wind pressure differences – to allow hot, moist, or stale air to escape while drawing in cooler, fresh air.

Limitations on Use

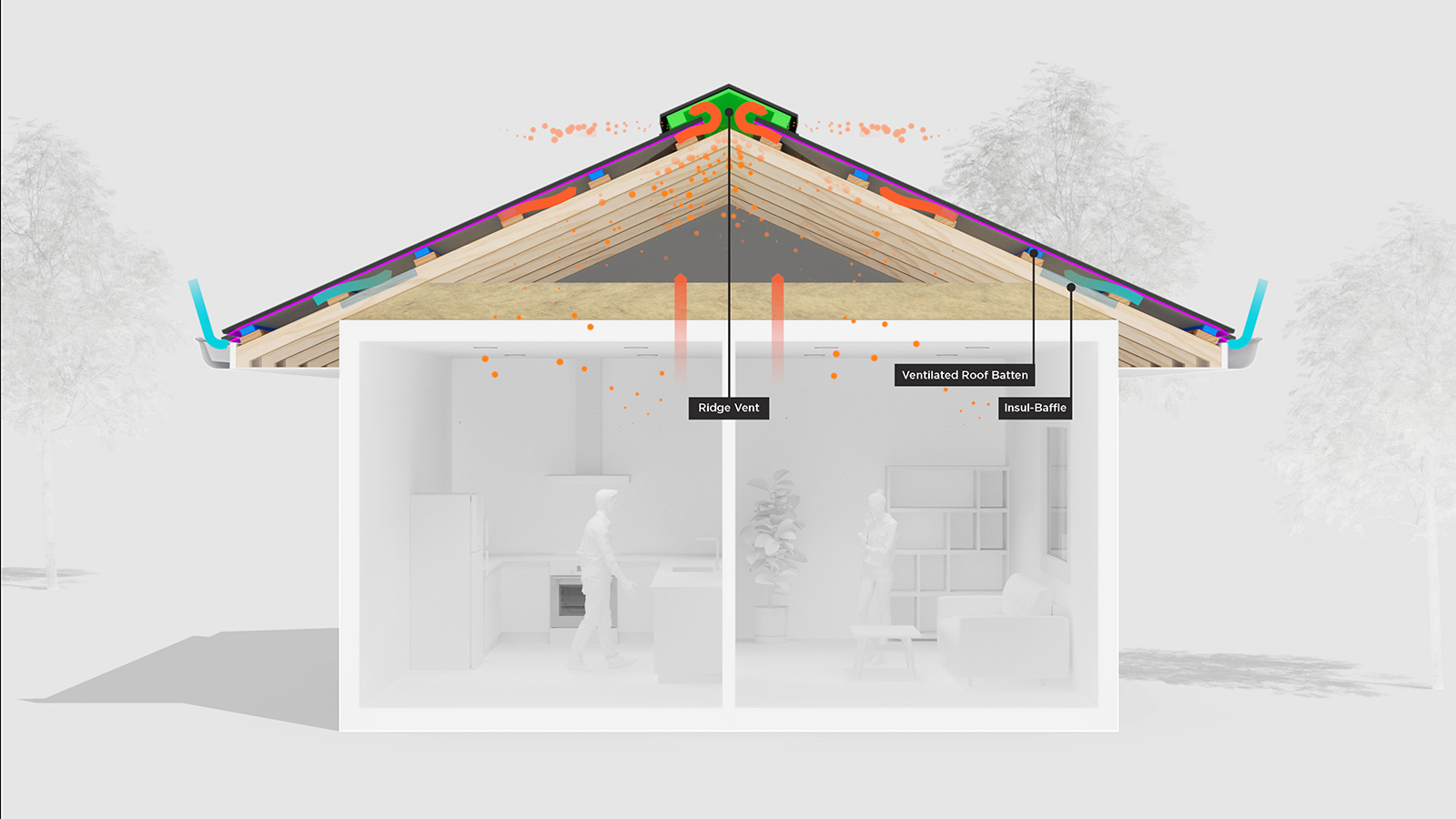

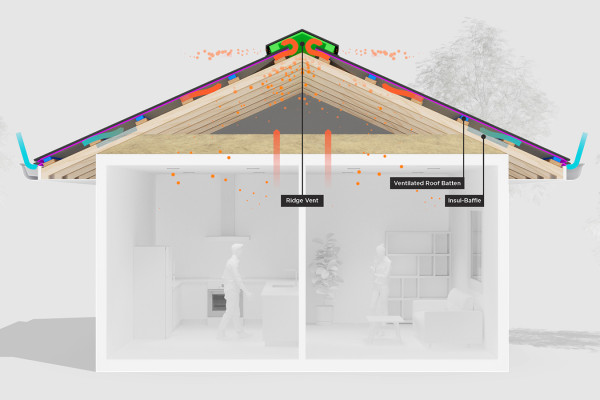

Masons Roof Ventilation System includes:

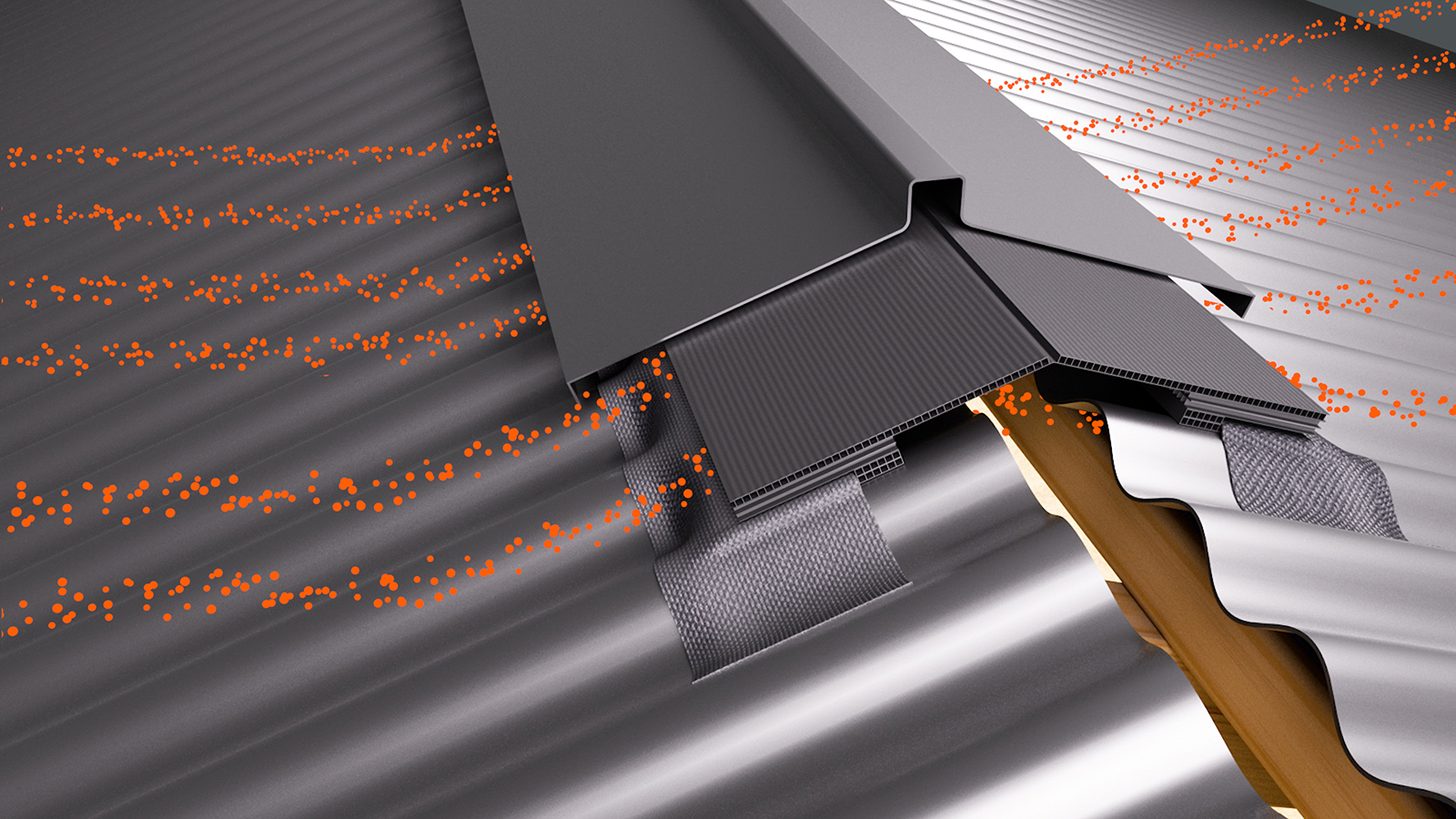

  • RIDGE VENTS to let warm air escape

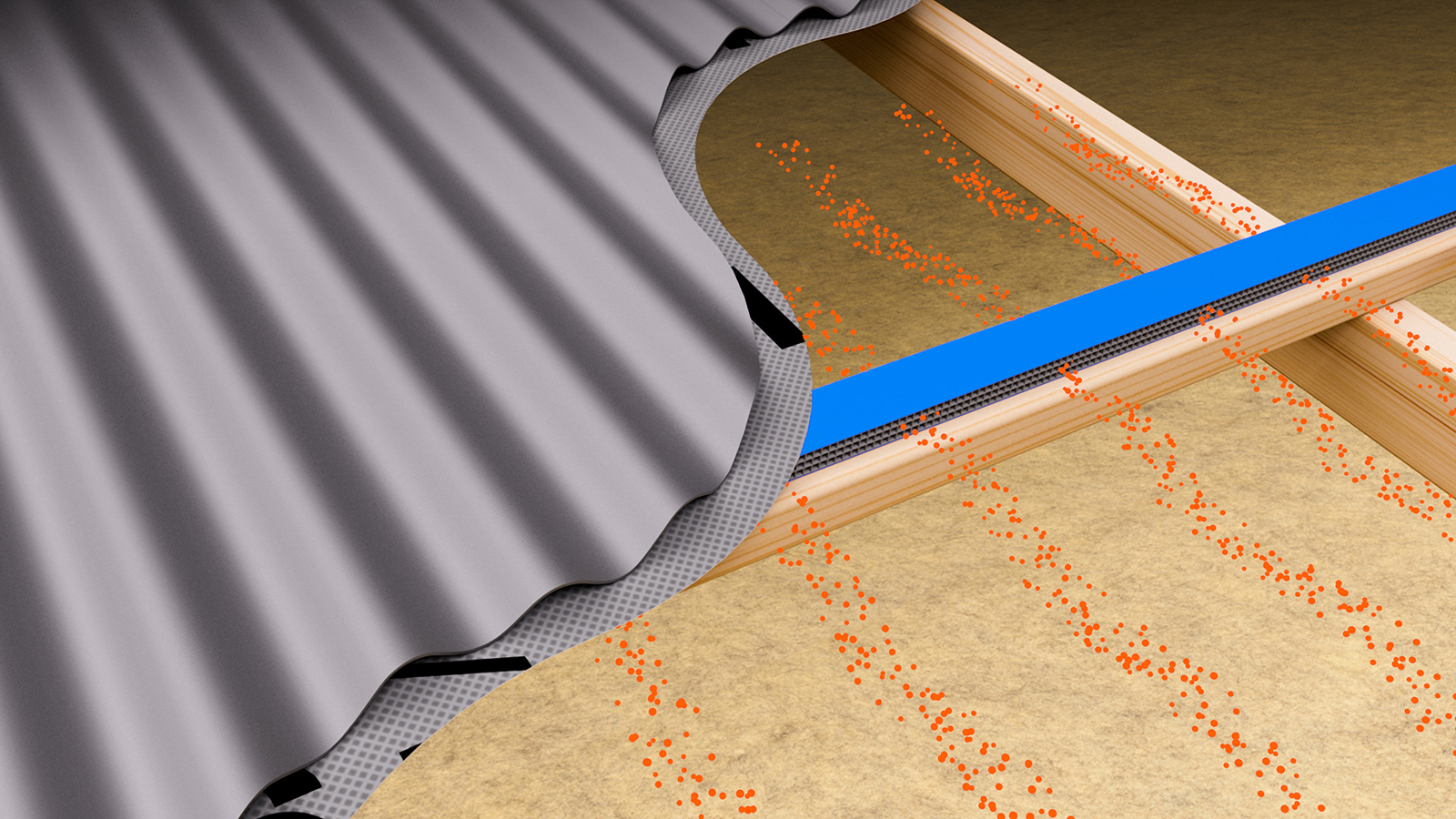

  • VENTILATED ROOF BATTENS to create airflow under the roofing

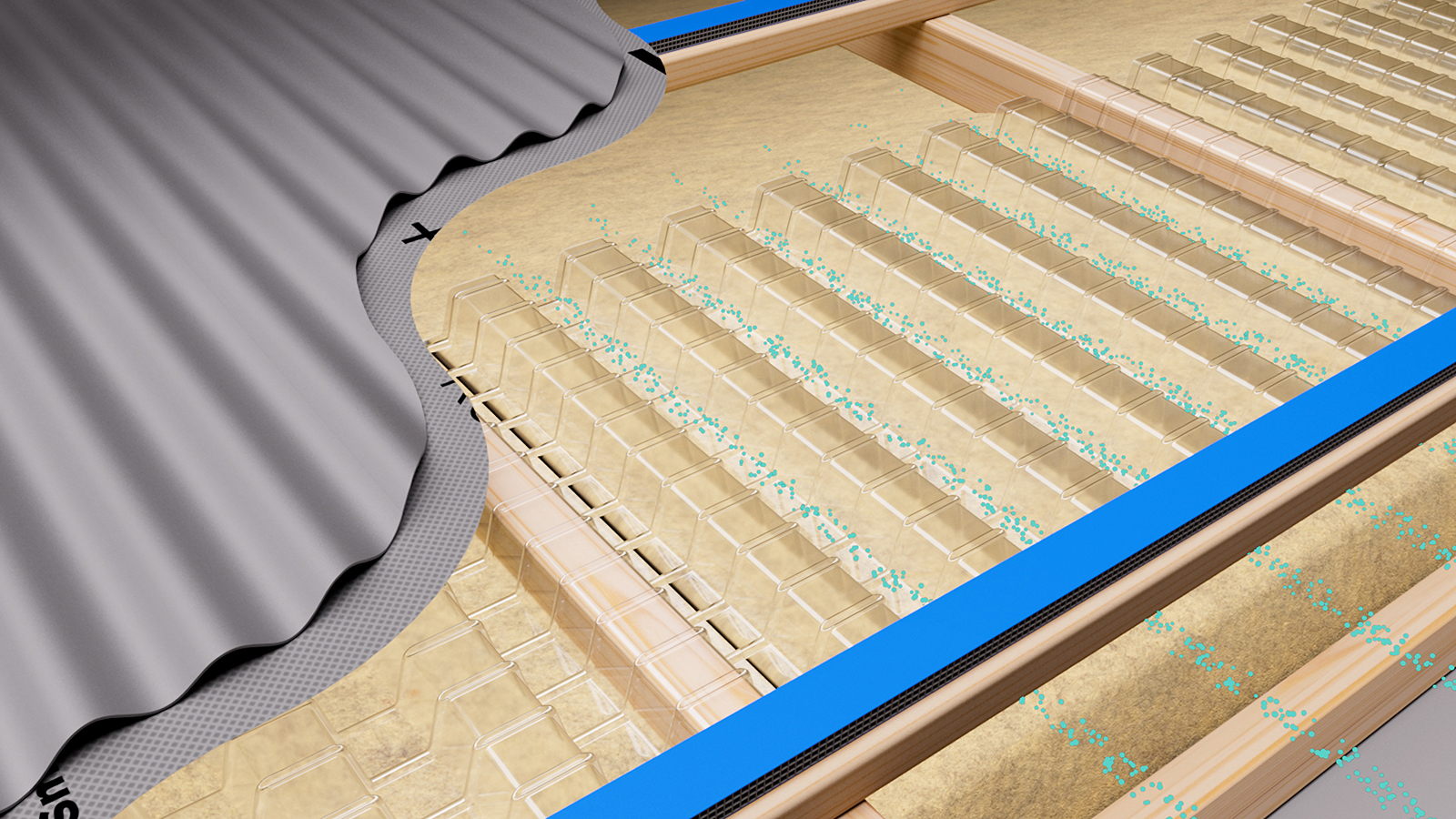

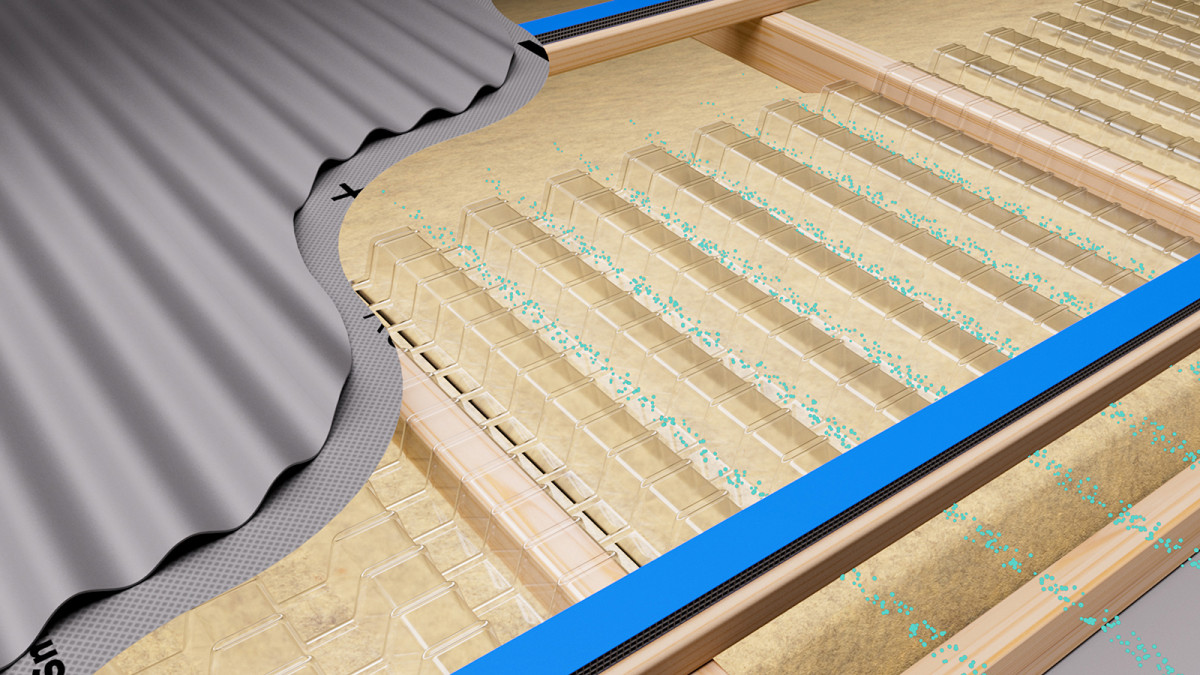

  • INSUL-BAFFLE to preserve a clear air path near the eaves

Documents
BPIR

V1.0 / May 2025

CAD Drawings
Design and Installation Guide

V1.0 / April 2025

Warranty

V1.0 / June 2025

CAD/PDF Details

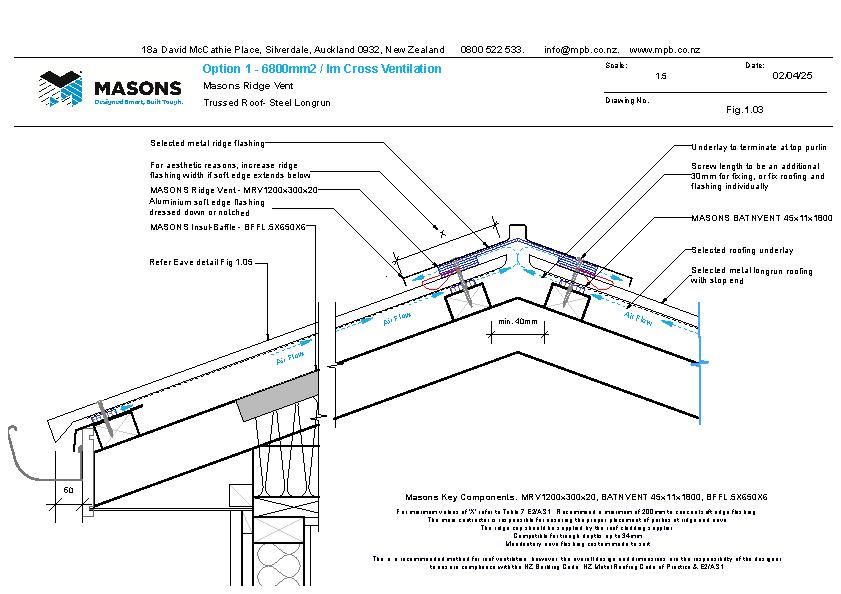

Masons Passsive Roof Ventilation System Drawings

April 2025

Since being established in 1999, Masons has become a key supplier in the New Zealand building industry, offering a variety of quality systems and products for a whole range of building requirements.
