Mammoth Carpark Panel

Mammoth Carpark Panel airlay insulation is made from 100% lofted, thermally bonded polyester fibres. The panels are designed to improve the thermal performance of concrete carpark ceilings where there are residential and commercial buildings above which will enhance wellbeing and comfort for the occupants.

Designed to be fitted to concrete soffits/slabs, Mammoth carpark panel insulation enhances the comfort and energy efficiency of buildings above carparks.

Mammoth carpark panels contour over uneven textures which are common place in concrete form work. This helps the insulation achieve a seamless fit that supports higher thermal performance across the system by preventing air movement between the insulation panel and the substrate.

Mammoth carpark panel insulation complies with provisions of the New Zealand Building Code (NZBC): AS/NZS 4859.1 for thermal performance and ISO 9705 for the material Group Number 1S for fire performance.

  • Product Range is R1.7 & R2.5 (MOQs apply)
Key Features
  • Mammoth Carpark panels assist in absorbing noise to create a quieter environment
  • Mammoth Carpark panels can be used in commercial or residential construction
  • Mammoth polyester products are backed by a 50 year manufacturer's warranty
  • No precautions are required for handling Mammoth. It will not cause irritation when touched and it gives off no fumes or odours
  • Mammoth products are chemical free — no formaldehyde or insecticides. Mammoth products are safe and easy to work with
  • Mammoth products are moisture resistant
  • All Mammoth products are Red List Free — International Living Future Institute
  • Manufactured by InZone Industries Ltd — a carboNZero certified organisation
  • Mammoth products contain recycled polyester fibres. The recycled fibre comes from recycled plastic bottles
  • Mammoth products are made in a near zero waste production process and are fully recyclable
LBC Red List Free
LBC Red List Free
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Recycled Content (Pre-Consumer)
Pre-Consumer Recycled Content
Scope of Use

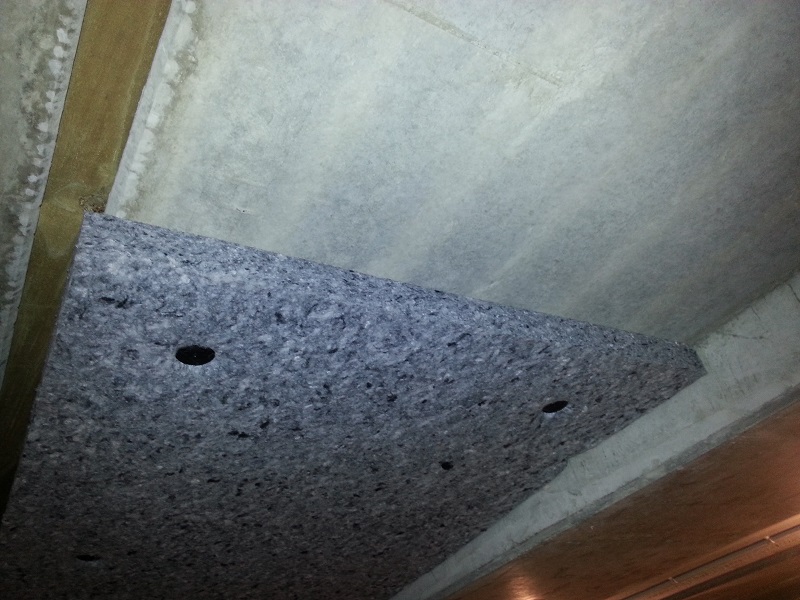

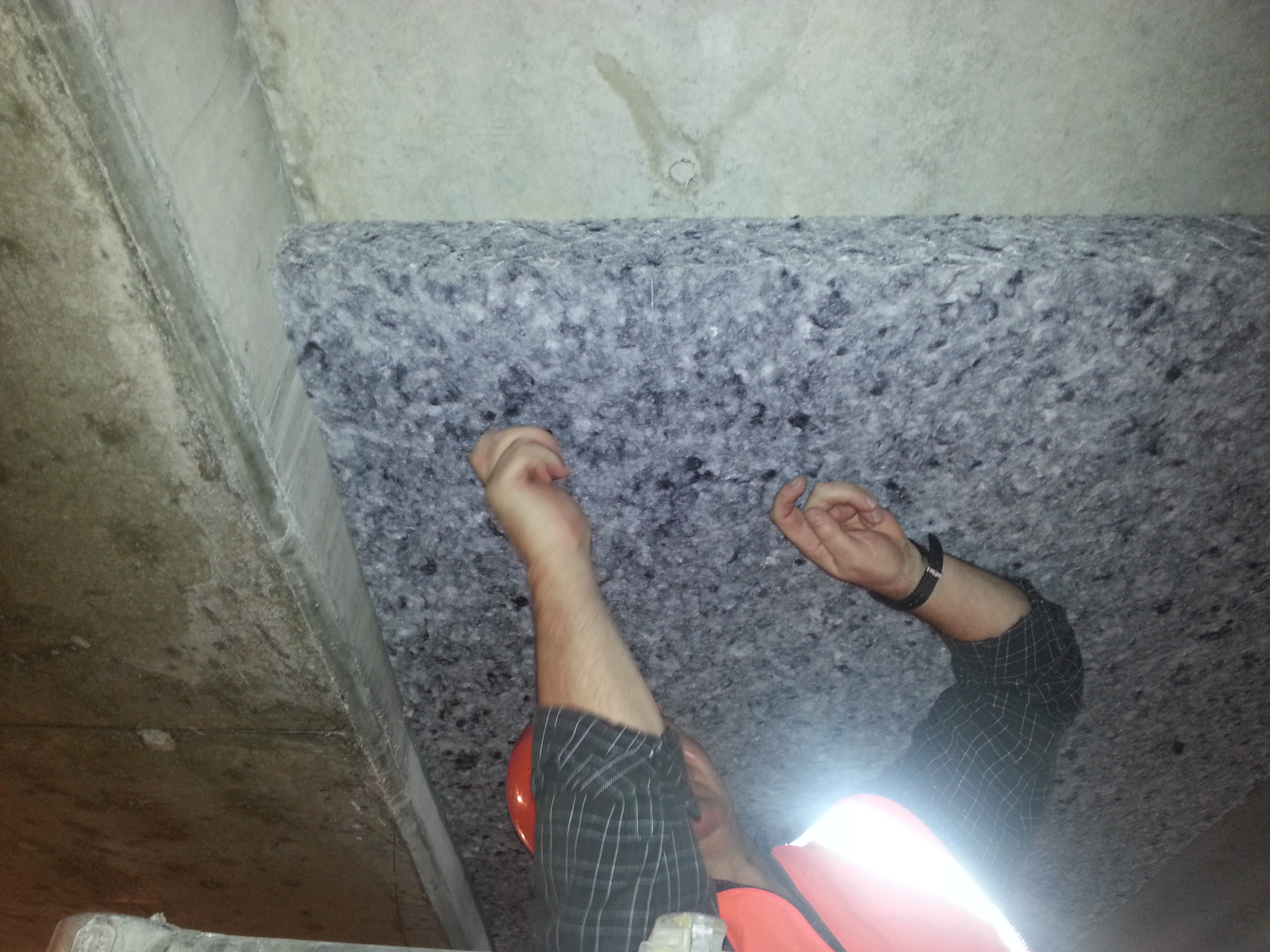

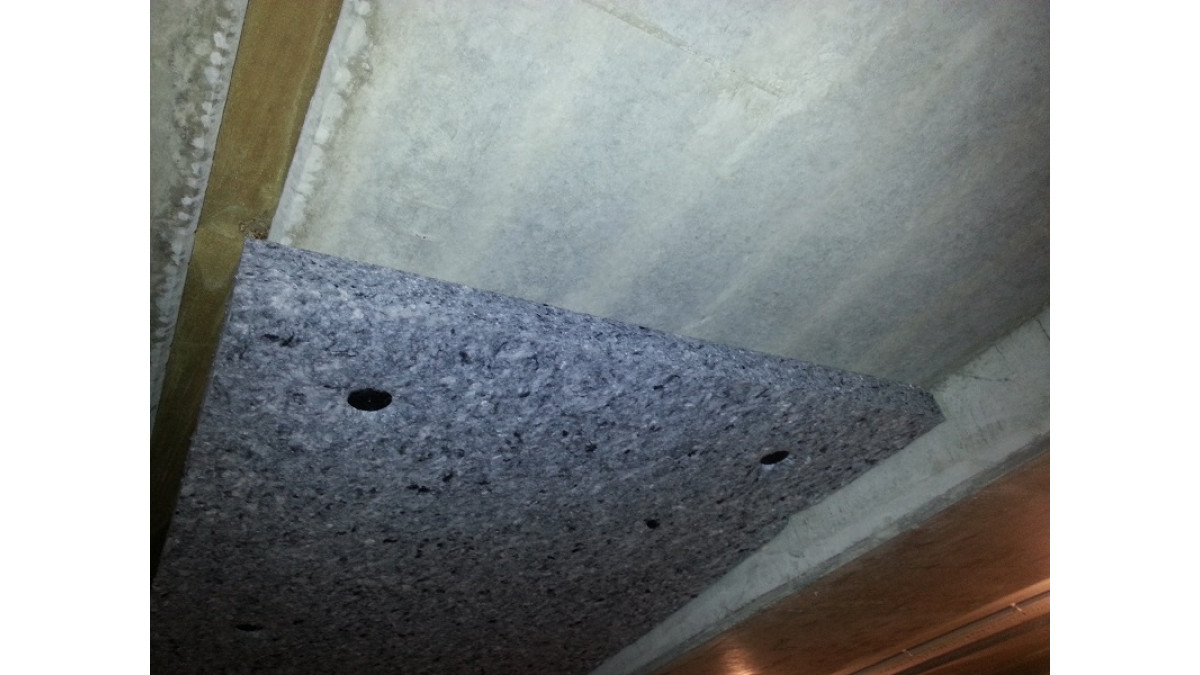

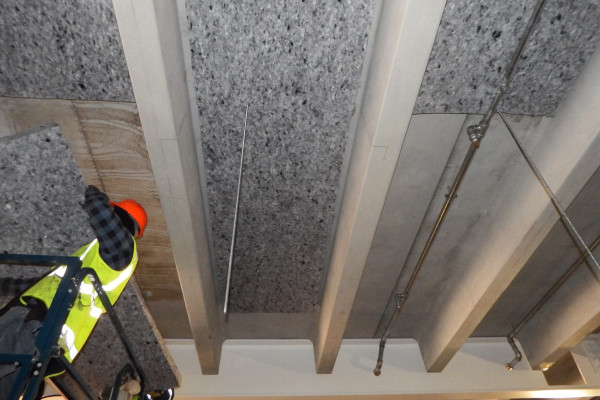

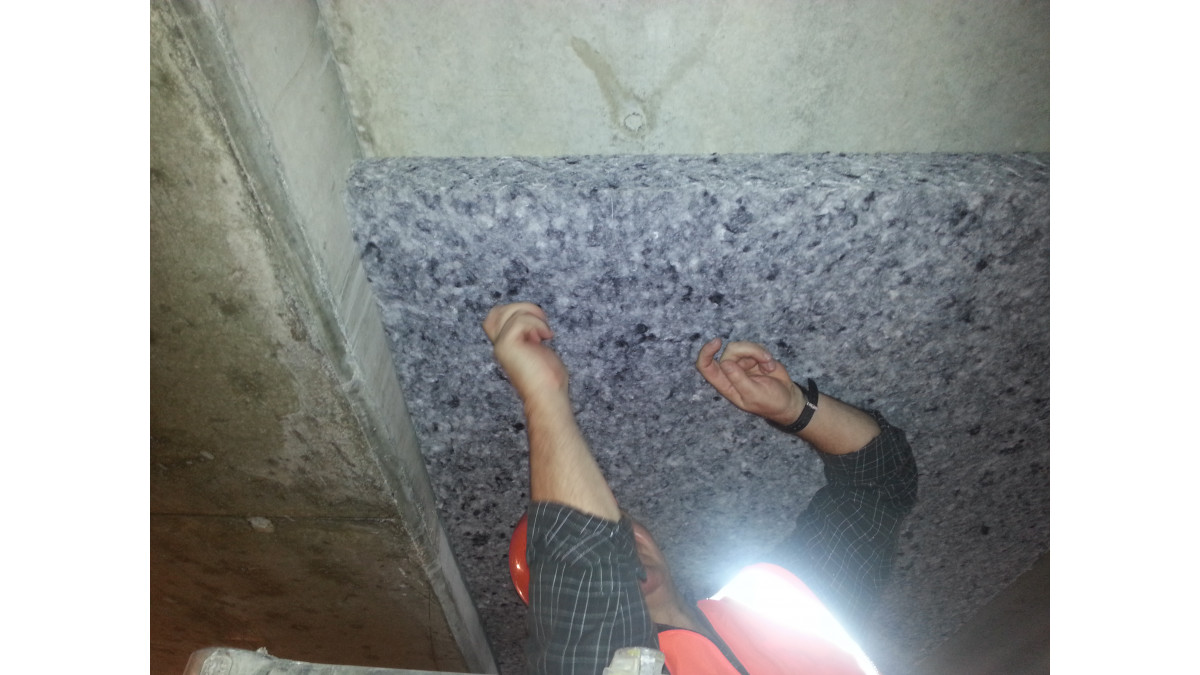

Mammoth Carpark Panels are designed for the installation on the underside of a concrete slab, separating carparking below residential environments above.

Statement of Building Code Compliance

ASTM C518 - Thermal Performance (R1.7)

Other Performance Attributes
  • Non Toxic and Non Irritant: OSH Health and Safety Guidelines for the Selection and Safe Handling of Synthetic Mineral Fibres.  Department of Labour, 1994. p18
  • Fire Performance (NCC BCA Specification C1.10 Clause 3 and Specification A2.4 Clause 4).  AS/NZ ISO 9705 - Group Number 1
  • Non Corrosive: AS/NZS 4859.1 (materials composed entirely of polyester are regarded as non-corrosive and are exempt from testing.  Polyester has alkalinity of pH7.8
  • Vermin Resistant: Polyester is not a food source and not treated
  • Acoustic Performance: ISO 354 (0.9)
Carpark Panel Data Sheet
carboNZero certification
Declare Mammoth
NZ Green Building Council Membership
Carpark Panel Installation Guidelines
Mammoth Insulation Warranty

Mammoth Modern Insulation is part of InZone Industries Ltd, a carboNZero certified organisation that manufactures polyester insulation products for the building, construction, and residential markets.
