Mammoth Wall Insulation
Description

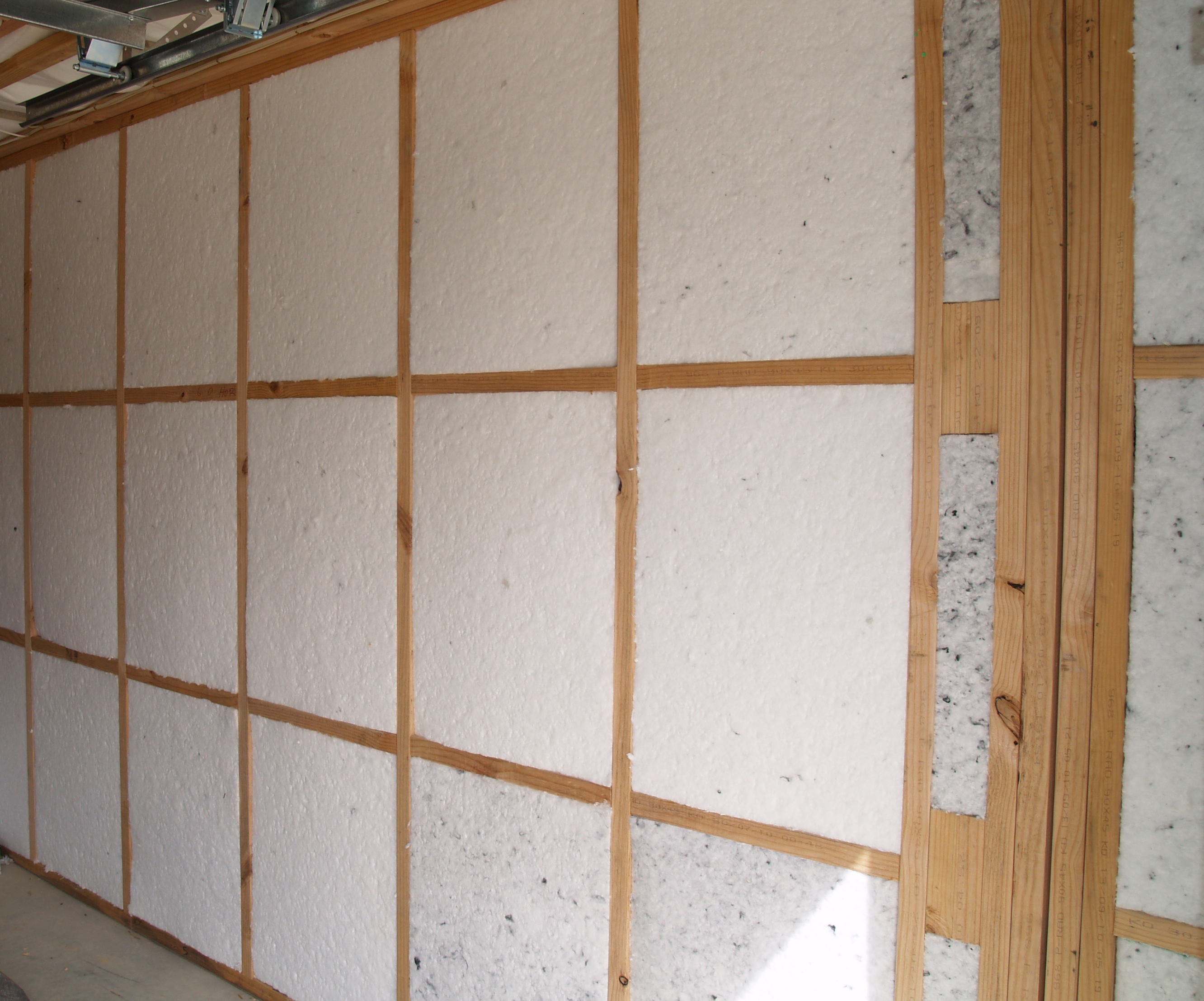

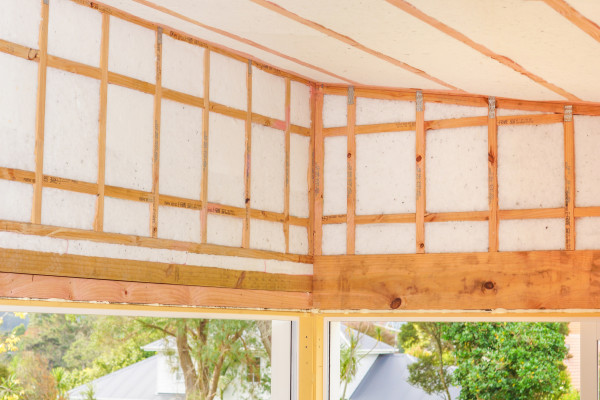

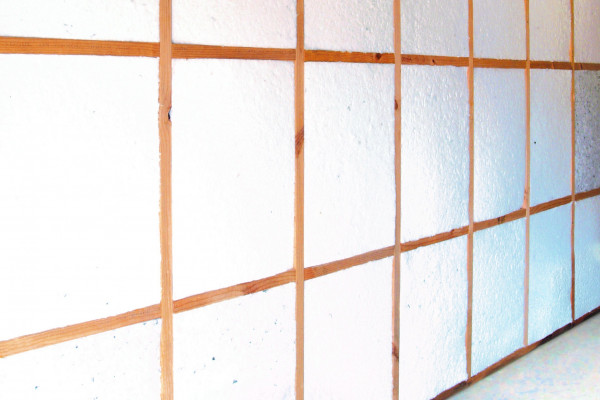

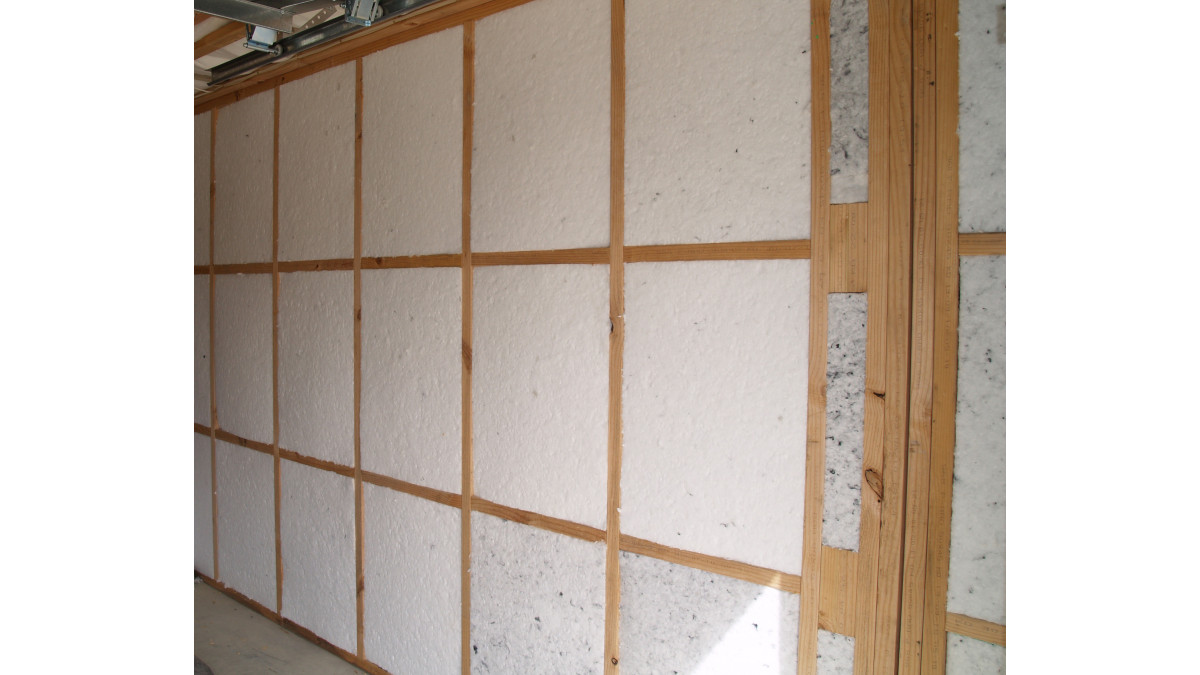

Mammoth wall insulation is made in New Zealand from 100% lofted, thermally bonded polyester fibres. Mammoth wall sections and blanket are designed to be installed into wall cavities to provide thermal insulation. Wall, airlay sections are designed to be friction fitted into the wall cavity which creates a seamless, smooth fit without tucks, creases or gaps.  This supports higher thermal performance across the system.

  • Mammoth Wall section product range: R1.9, R2.0, R2.2, R2.5, R2.8, and R3.2.
  • Mammoth Wall blanket product range: R2.2 and R2.6.

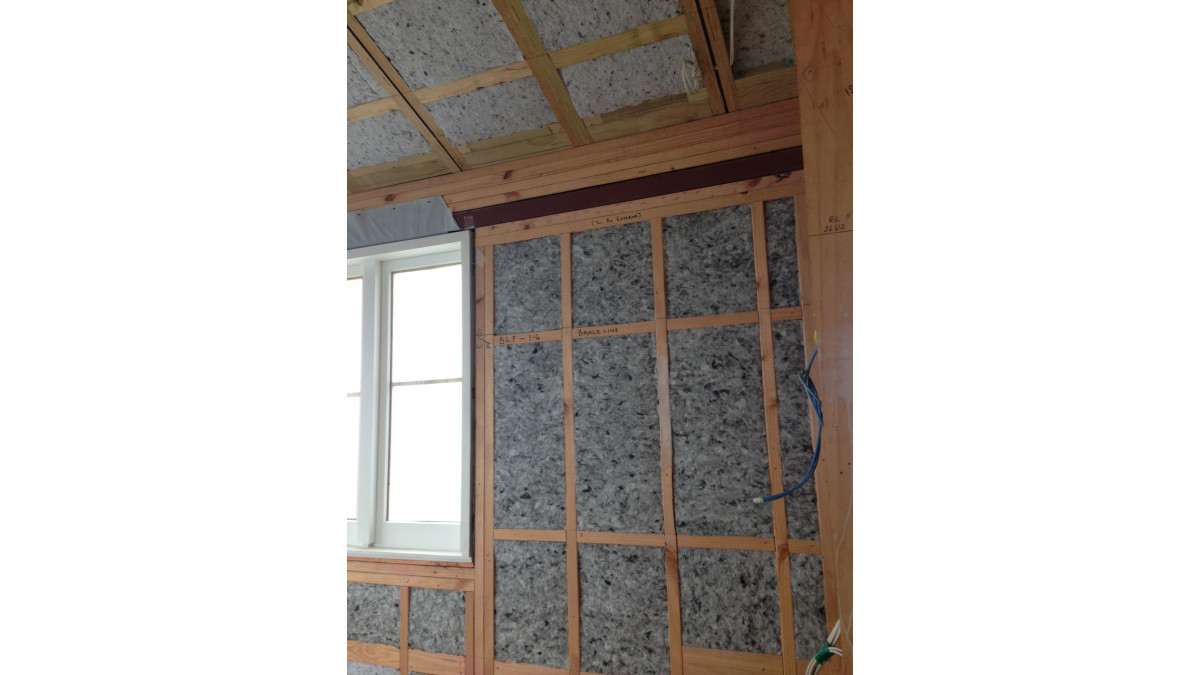

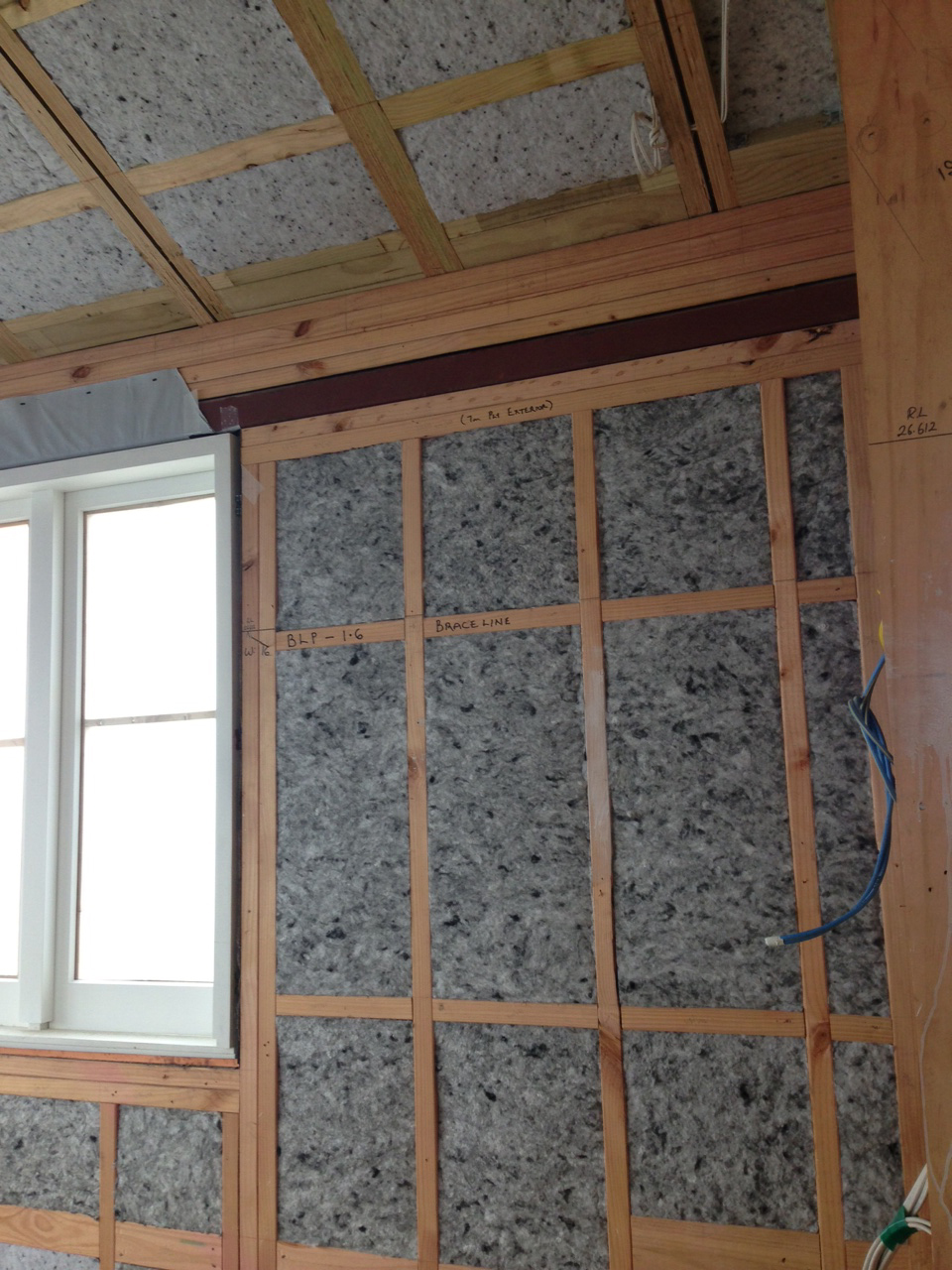

  • Mammoth Masonry Wall blanket and sections product range: R1.0 and R1.3.
Key Features
  • Mammoth wall insulation creates a healthier, more comfortable home or work environment — costing less to heat and cool
  • Mammoth products contain recycled polyester fibres.

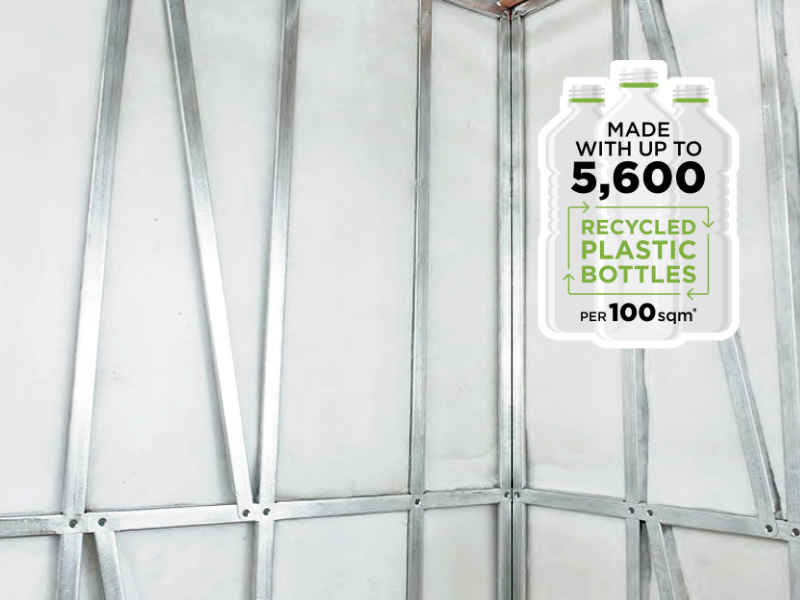

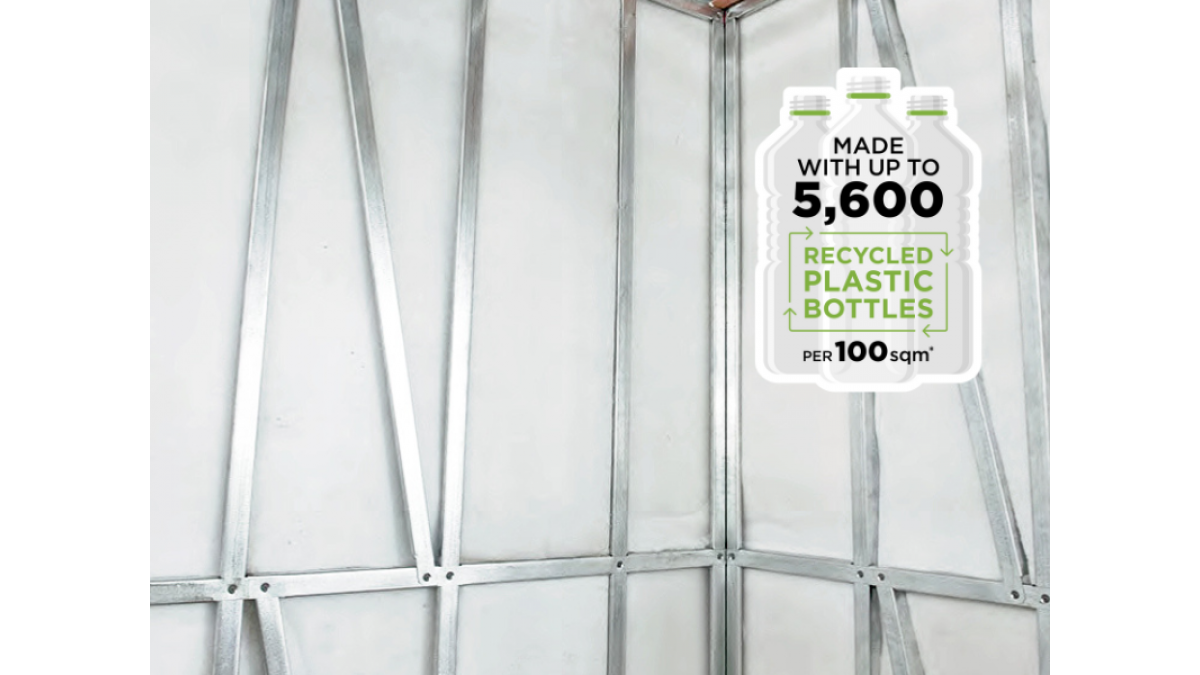

  • Mammoth wall blanket insulation uses up to 5,600 recycled plastic bottles per 100m²*
  • Mammoth wall sections use up to 15.600 recycled plastic bottles per 100m²*
  • Mammoth masonry wall sections use up to 7,800 recycled plastic bottles per 100m²*
  • Mammoth wall products are BRANZ appraised (durability 50 years). Mammoth polyester products are backed by a 50 year manufacturer's warranty
  • No precautions are required for handling Mammoth. It will not cause irritation when touched and it gives off no fumes or odours
  • Mammoth products are chemical free - no formaldehyde or insecticides. Mammoth products are safe and easy to work with
  • Mammoth wall insulation assists in absorbing noise to create a quieter environment
  • Mammoth products are moisture resistant
  • All Mammoth products are Red List Free — International Living Future Institute
  • Manufactured by InZone Industries Ltd — a carboNZero certified organisation
  • Mammoth products contain recycled polyester fibres. The recycled fibre comes from recycled plastic bottles
  • Mammoth products are made in a near zero waste production process and are fully recyclable
  • Mammoth R2.5 wall sections and R2.6 wall blanket products are Environmental Choice certified

* Estimate based on 500ml plastic bottles (16.2g each).

Declare LBC Red List Free
LBC Red List Free
Eco Choice Aotearoa (ECNZ) Licensed
Eco Choice Aotearoa
Homestar / Green Star (Envirospec) Compliant
Homestar / Green Star
Recyclable Content (Post-Consumer)
Post-Consumer Recyclable Content
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Scope of Use

Mammoth wall insulation is designed for use as thermal insualtion in timber framed wall cavities.

Statement of Building Code Compliance

In the opinion of BRANZ, Mammoth Insulation if designed, used, installed and maintained in accordance with the statements and conditions of this Appraisal, will meet or contribute to meeting the following provisions of the NZBC:

  • B2 Durability: Performance B2.3.1 (a) not less than 50 years and B2.3.1 (b) 15 years.  Mammoth insulation will meet this requirement.  See Paragraph 8.1
  • E3 Internal Moisture: Performance E.3.3.1.  Mammoth insulation will contribute to meeting this requirement.  See Paragraphs 13.1 and 13.2
  • F2 Hazardous Building Materials: Performance F2.3.1.  Mammoth insulation meets this requirement and will not present a health hazard to people.
  • H1 Energy Efficiency: Performance H1.3.1 (a) and H1.3.2 E.  Mammoth insulation will contribute to meeting these requirements.  See Paragraphs 14.1 and 14.2.
Other Performance Attributes
  • Performance is guaranteed for 50 years
  • Non-toxic and Non-irritant: OSH Health and Safety Guidelines for the Selection and Safe Handling of Synthetic Mineral Fibres.  Department of Labour, 1194, P18.
  • Fire Testing:
    • AS1530 Part 3 — Ignitability (0), Spread of Flame (0), Heat Evolved (0) and Smoke Developed (3)
    • AS/NZS 60695.2.11 — Glow wire Flammability test (passed)
    • AS/NZS 60695.11.5 — Needle-flame test (passed)
  • VOC Emission Test: Total VOC < 0.005mg/m3 (level below detection) and Formaldehyde < 0.009mg/m3 (level below detection)
  • Non Corrosive: AS/NZS4859.1 (Polyester has alkalinity of PH7.8
  • Vermin Resistant: not a food source for vermin (and not treated)
B2 Durability compliant
Durability
E3 Internal Moisture compliant
Internal Moisture
F2 Hazardous Building Materials compliant
Hazardous Building Materials
H1 Energy Efficiency compliant
Energy Efficiency
BRANZ Appraised
BRANZ Appraised
Test Results
Test Results
Documents
Acoustic Wall Blanket Data Sheet
Acoustic Wall Section Data Sheet
Masonry Insulation Data Sheet
Wall Blankets Data Sheet
Wall Sections Data Sheet
BRANZ Appraisal 797

No 797 [2020]

carboNZero certification
Declare Mammoth
Environmental Choice License
NZ Green Building Council Membership
Acoustic Blanket Installation Guidelines
Wall Insulation Installation Guidelines
Mammoth Insulation Warranty
New Build Brochure
Wall (Airlay insulation) Brochure

Mammoth Modern Insulation is part of InZone Industries Ltd, a carboNZero certified organisation that manufactures polyester insulation products for the building, construction, and residential markets.
