• Luxury residential applications
• New builds or retrofit
• Option for balcony ring for use with mezzanine floors
• Travel up to 15.2m with up to 6 stops

Capacity:

• Vuelift Mini Round (acrylic or glass): 227kg, 1.08m²

Cab configurations:

• 1 door — enter/exit on same side
• 2 doors — enter/exit on opposite side

• Interior use only
• Not suitable for use with wheelchairs
• Pit depth required of 102mm
• On-floor option with a short ramp when a pit is not possible
• Design and installation by Architectural Home Elevators

Vuelift Mini complies with the following standards:

• AS/NZS 1735.18:2002 Lifts, escalators and moving walks — Part 18: Passenger lifts for private residence — Automatically controlled
• Meets NZS 4334:2012 for low-speed lifts.
• NZBC D2/AS1

NZBC meets or contributes to:

• B1 Structure
• B2 Durability
• D2 Mechanical Installations for Access — AS1
• F4 Safety from Falling
• G8 Artificial Lighting
• G9 Electricity

Savaria is one of North America’s largest manufacturers of accessibility products. Founded in the US in 1979, they are now a global company employing over 2300 people worldwide. In 2017, Savaria acquired the original designs for what is now known as the Vuelift elevator. With its added R&D investments and engineering team, Savaria has further developed the Vuelift elevator to reach a worldwide market.

• Winner of the International Ellies Awards for Assessibility Solutions, recognised as the best and brightest in the industry.
• Vuelift’s Glass or Premium Acrylic — won't discolour over time

Environmentally Friendly

• Energy-efficient drive system: The winding drum drive system is designed to minimise energy usage which reduces energy consumption compared to traditional home elevators.
• LED lighting: LEDs are known for their low energy consumption and long lifespan, reducing the overall environmental impact.
• Reduced maintenance: The durable components and design require less maintenance, minimising the need for replacement parts and associated manufacturing and disposal.
• Eco-friendly materials: The Vuelift utilises materials like low-iron silica glass and premium acrylic panels that are designed to be durable and long-lasting, reducing the need for frequent replacements.

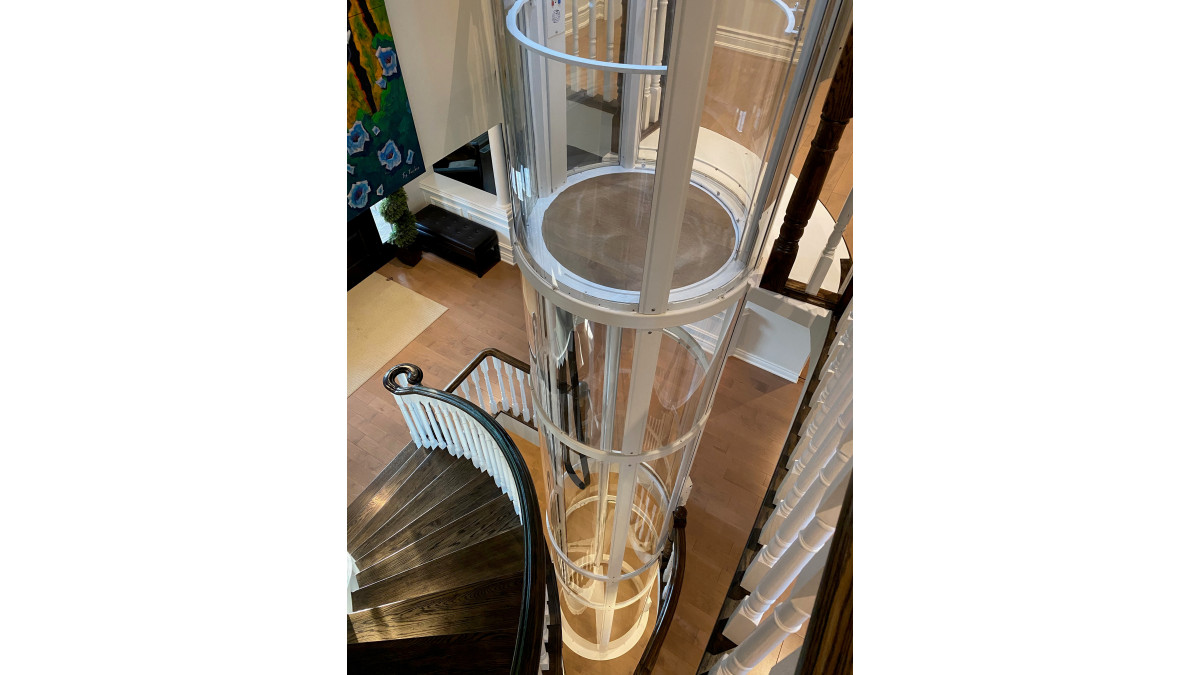

• Space-saving design: The Vuelift's compact design can potentially reduce the need for larger, more energy-intensive elevator systems, especially in residential settings.

Warranty & Maintenance

Regular maintenance is required under NZS 4334:2012.

Architectural Home Elevators offer Preventative Maintenance Agreements (PMA) to ensure the lift is serviced on a regular basis.

With proper maintenance Vuelift will provide many years of safe and reliable use.

• With PMA in place: Vuelift is backed by a 3 year manufacturer's limited parts warranty
• With no PMA: 1 year manufacturer's limited parts warranty
