• Luxury residential applications
• New builds or retrofit
• Travel up to 15.2m with up to 6 stops

Capacity:

• Eclipse 900 x 1300mm internal cab size, 1.17m², 430kg
• Eclipse 1100 x 1400mm internal cab size, 1.54m², 430kg
• Suitable for wheelchairs

Cab configurations:

• 1 door — enter/exit on same side
• 2 doors — enter/exit on opposite side
• 2 doors — enter/exit at 90 degrees

• Interior use only
• Pit depth required at 203mm but as low as 152mm is possible
• Design and installation by Architectural Home Elevators

Eclipse complies with the following standards:

• AS/NZS 1735.18:2002 Lifts, escalators and moving walks — Part 18: Passenger lifts for private residence — Automatically controlled
• Meets NZS 4334:2012 for low-speed lifts.
• NZBC D2/AS1

NZBC meets or contributes to:

• B1 Structure
• B2 Durability
• D2 Mechanical Installations for Access — AS1
• F4 Safety from Falling
• G8 Artificial Lighting
• G9 Electricity

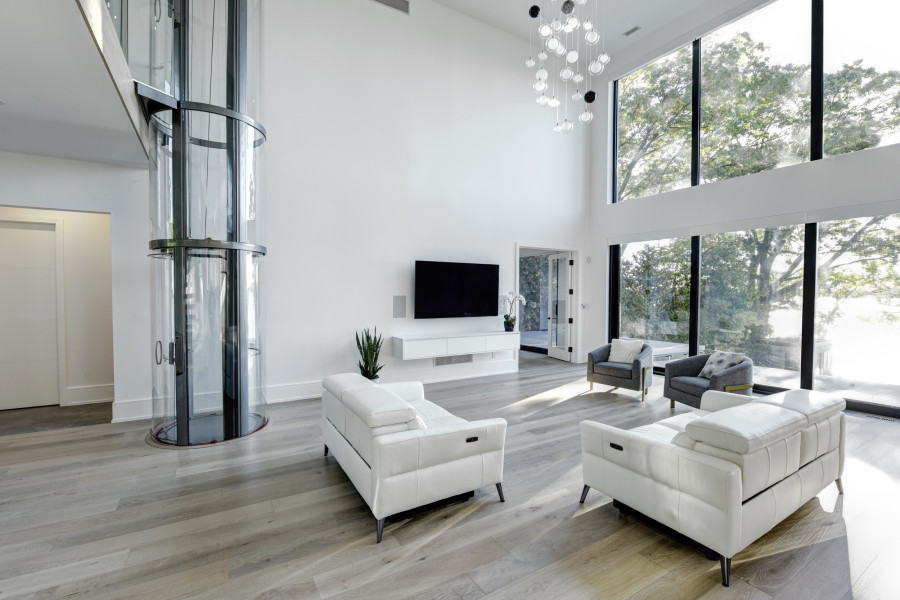

Savaria is one of North America’s largest manufacturers of accessibility products. Founded in the US in 1979, they are now a global company employing over 2300 people worldwide. In 2017, Savaria acquired the original designs for what is now known as the Vuelift elevator. With its added R&D investments and engineering team, Savaria has further developed the Vuelift elevator to reach a worldwide market.

The Savaria Eclipse elevator is considered an environmentally friendly choice due to several key features.

• Counterweight System: This system reduces the effort the motor needs to exert, directly lowering power consumption and making the elevator more energy efficient.
• No Hydraulic Fluid: Unlike hydraulic elevators, the Eclipse does not require hydraulic fluid, eliminating a potential environmental hazard and the need for its disposal.
• Energy-Efficient Components: The elevator uses energy-efficient LED lighting and a VFD motor that are designed to consume minimal electricity.
• Durable Design: The durable geared chain drive design means fewer parts wear out, which leads to lower maintenance costs and a longer lifespan, reducing the need for replacements and the associated environmental impact.

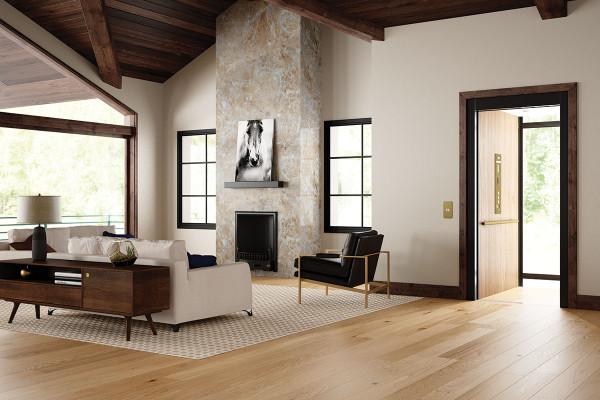

• Machine-roomless design: The compact controller does not require a separate machine room, which reduces the space and materials needed for installation.
• Manufacturer commitment: In 2024, Savaria published its first Environmental, Social, and Governance (ESG) report, signalling a formal commitment to minimising its environmental footprint.

Warranty & Maintenance

Regular maintenance is required under NZS 4334:2012

Architectural Home Elevators offer Preventative Maintenance Agreements (PMA) to ensure the lift is serviced on a regular basis.

With proper maintenance Eclipse will provide many years of safe and reliable use.

• With PMA in place: Eclipse is backed by a 3 year manufacturer's limited parts warranty
• With no PMA: 1 year manufacturer's limited parts warranty
