Vinylrite
Description

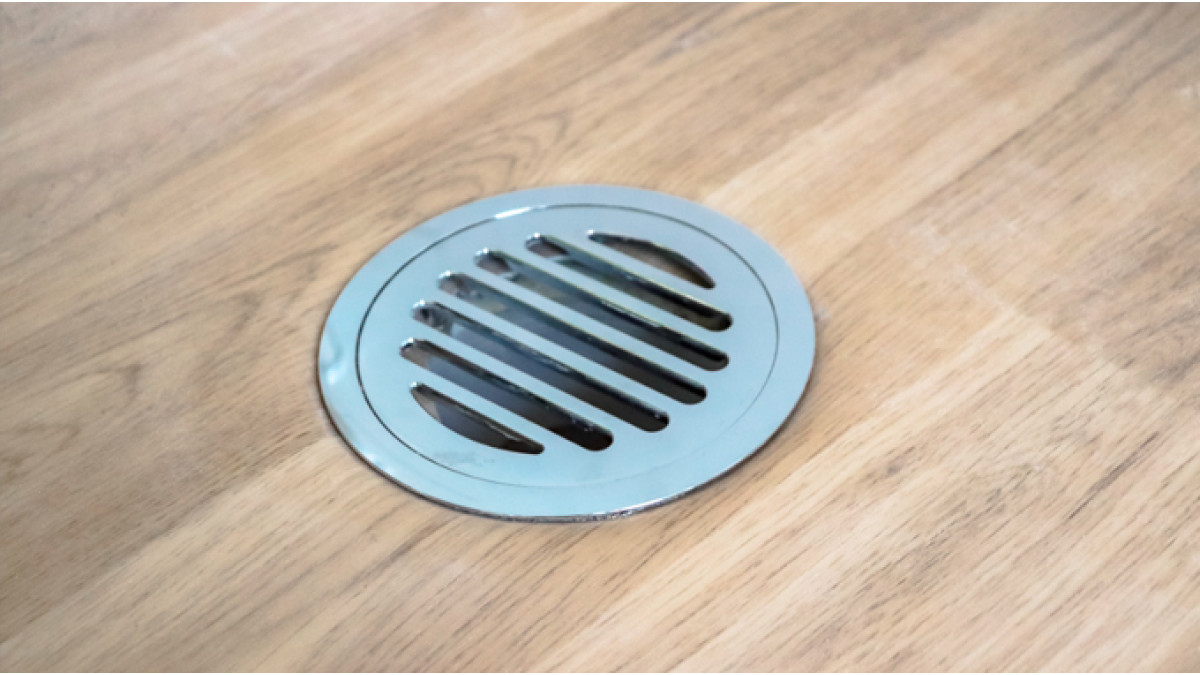

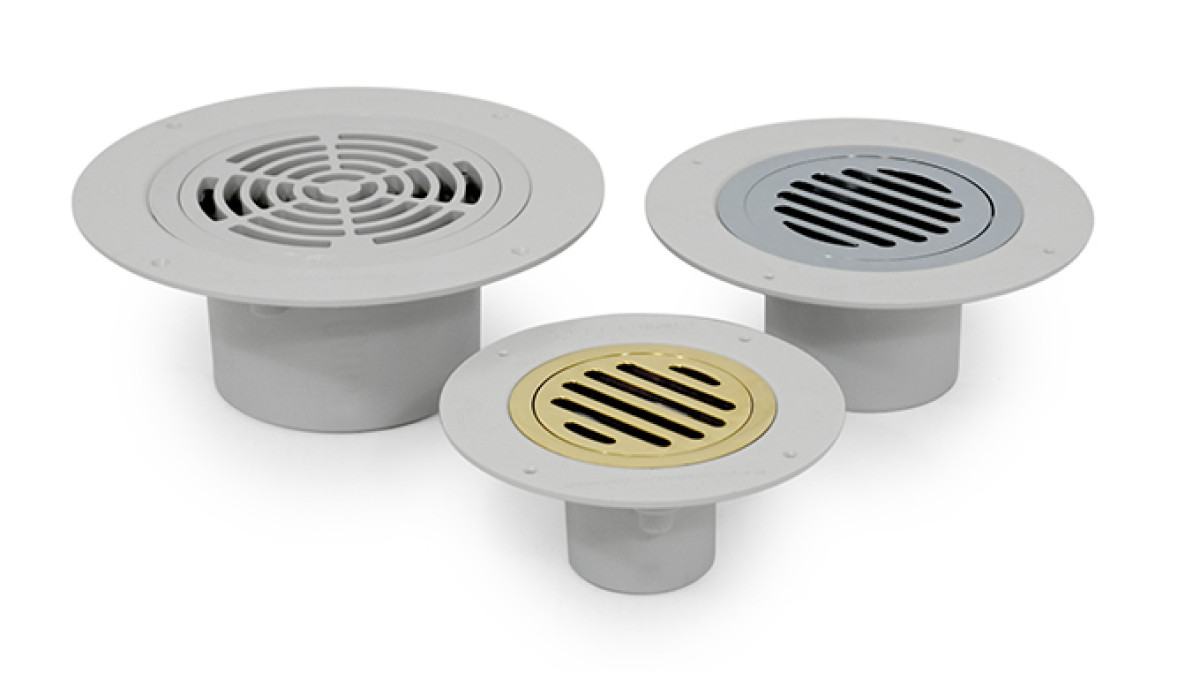

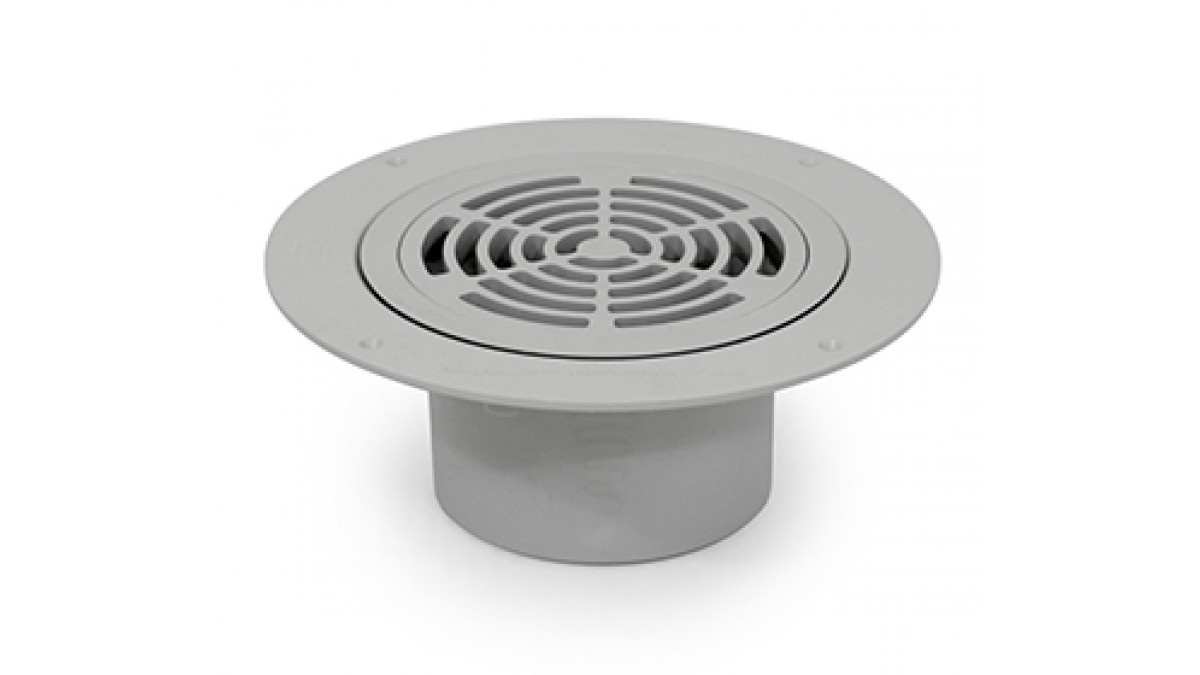

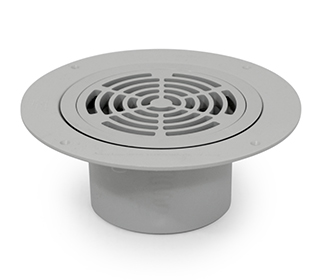

Floor waste flange with clamp ring and grate for vinyl floor installs. Available in 50mm, 65mm, 80mm and 100mm waste outlets with compatible floor waste gully available from Allproof. Flange is rebated into floor substrate, vinyl applied to flange and clamped down with ring and grate.

Key Features
  • Base flange fits inside 50mm, 80mm and 100mm pipe riser
  • High quality PVC
  • Vinyl/waterproofing membrane clamped using 3x Stainless screws and clamp ring
  • Cam-lock grate for easy waste access without disturbing vinyl/membrane
  • Clamp ring/grate feature flush finish with flooring
  • Standard Finish Options: Chrome on brass, Polished Stainless Steel, Linished Nickel Bronze, White Plastic
  • Security screw, hinged, domed and clean out options available
  • Independently flow rate tested
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Scope of Use
  • Vinyl floor point drain
  • Base flange fits inside 50mm, 80mm and 100mm pipe riser
  • Cam-lock grate for easy waste access without disturbing vinyl/membrane
  • Clamp ring/grate feature flush finish with flooring
  • Security screw, hinged, domed and clean out options available



Other Performance Attributes
  • High quality PVC
  • Independently flow rate tested
E3 Internal Moisture compliant
Internal Moisture
G13 Foul Water compliant
Foul Water
Test Results
Test Results
Documents
CAD/PDF Link
Product Warranty

0820

Masterspec Specification
Brochure
Additional Information

A New Zealand owned company specialising in the manufacture of plumbing and drainage products and systems.
