Palliside Weatherboards: A Lightweight, Cost Effective Solution for Kamo Call Centre

Sunshine Homes in Kamo was given the job of constructing this 18 x 4m made-for-purpose building. Factory-built and then transported to site meant using materials that were lightweight, cost effective and fast to install, while having a low-impact on the environment was another key consideration for product choice.

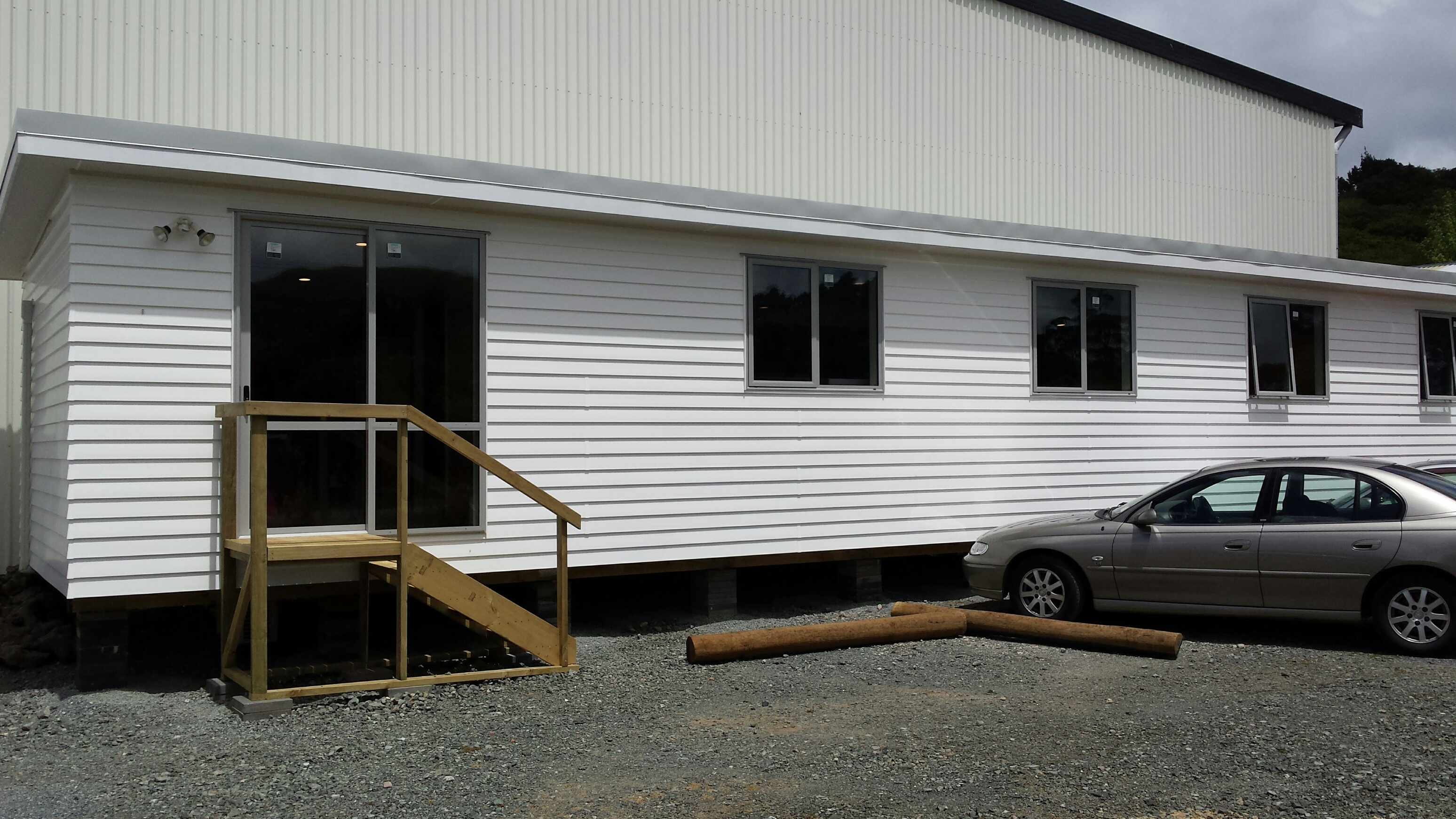

Using a combination of Palliside Weatherboards on the exterior and a range of lightweight materials inside helped in meeting the weight requirements. Palliside's interlocking design and double profile also provided the additional advantage of being fast to apply – with standard nails only, no pre-drilling required. Low-maintenance and fully recyclable, Palliside doesn't need painting – a periodic wash-down with water and a brush is all that's required to keep it looking good.

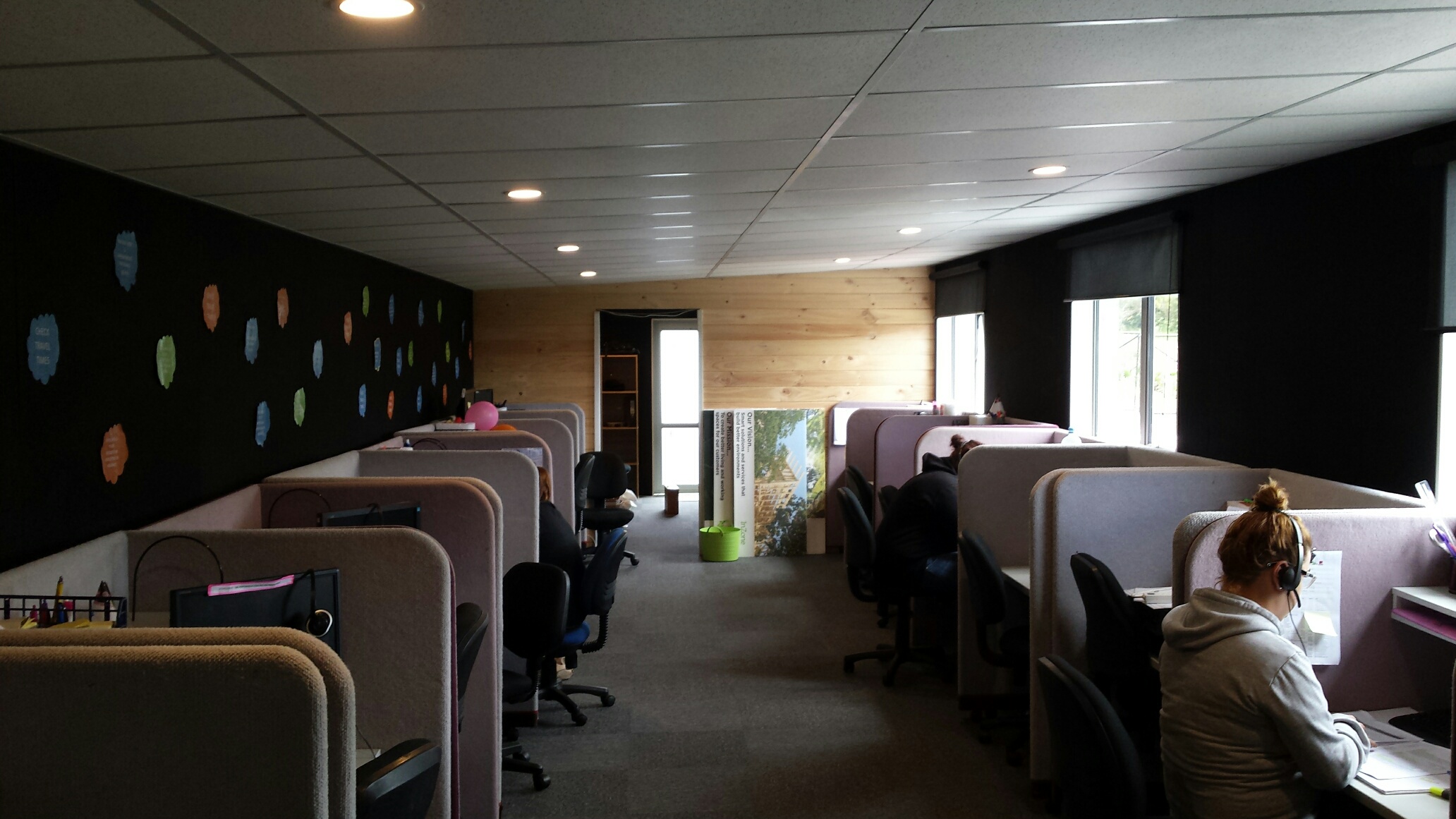

Inside, the walls of the centre are lined with Nova Hush Wall Panels and the ceilings with Nova Hush Ceiling tiles. Nova Hush are specifically designed for their acoustic properties.

Capable of housing up to 16 staff members at any given time, ensuring the comfort of staff was important, and a series of Mammoth insulation products have been used to create the thermal properties suitable for such a building. R2.2 rigid wall and underfloor insulation along with R2.9 polyester ceiling blankets were also used, achieving the desired results.

Palliside, Nova and Mammoth products are made in New Zealand. Nova and Mammoth products are made from recycled plastic bottles.

PALLISIDE Traditional Weatherboards (Drained Cavity)

Dynex

View Product

PALLISIDE® is a low-maintenance, pre-finished weatherboard system that provides the look of traditional timber weatherboards, with natural shadow-lines and definition, without the requirement for painting and the cost of upkeep associated with it.

NZ Made

Pre-Consumer Recycled Content

PALLISIDE® Weatherboards Drained Cavity have been appraised as an external horizontally fixed cladding for buildings within the following scope:

Constructed with timber framing in accordance with the scope limitations of NZBC Acceptable Solution E2/AS1, Paragraph 1.1; or,
Constructed with steel framing subject to specific engineering design with building height and floor plan area scope limitations in accordance with NZBC Acceptable Solution E2/AS1, Paragraph 1.1; and,
With a risk score of 0-20, calculated in accordance with NZBC Acceptable Solution E2/AS1, Table 2; and,
Situated in NZS 3604 Wind Zones up to, and including Extra High.

PALLISIDE® Weatherboards Drained Cavity have also been appraised as an external wall cladding system for buildings within the following scope:

The scope limitations of NZBC Acceptable Solution E2/AS1, with regards to building height and floor plan area; and,
Constructed with timber and steel framing subject to specific engineering design; and,
Situated in specific design wind pressures up to a maximum design differential ultimate limit state (ULS) of 2.5 kPa.
The PALLISIDE® Weatherboards Drained Cavity must only be installed horizontally on vertical surfaces.

The PALLISIDE® Weatherboards Drained Cavity are appraised for use with aluminium window and door joinery that is installed with vertical jambs and horizontal heads and sills. (The Appraisal of the Palliside Weatherboard system relies on the joinery meeting the requirements of NZS 4211 for the relevant Wind Zone or wind pressure.)

If PALLISIDE® Weatherboards are to be used in any applications not covered by the current Installation and Technical Guide and scope, written confirmation of suitability should be obtained from Dynex Extrusions Limited prior to the commencement of the project.

Extra High Wind Zone

Specific Design Wind Zone

In the opinion of BRANZ , the PALLISIDE® Cellular uPVC Weatherboard Direct Fix or Drained Cavity Cladding Systems, if designed, used, installed and maintained in accordance with the statements and conditions of Appraisal No.490 and No.491 (2015), will meet the following provisions of the NZBC:

Clause B1 Structure: Performance B1.3.1, B1.3.2 and B1.3.4. The PALLISIDE® Cellular uPVC Weatherboard Cladding System meets the requirement for loads arising from self-weight, earthquake, wind, impact and creep [i.e. B1.3.3 (a), (f), (h), (j) and (q)].
Clause B2 Durability: Performance B2.3.1(b), 15 years.
Clause E2 External Moisture: Performance E2.3.2.
Clause F2 Hazardous Building Materials: Performance F2.3.1. The PALLISIDE® Cladding system will not present a health hazard to people.

The PALLISIDE® Cellular uPVC Weatherboard direct fix or drained cavity cladding systems have been appraised as Alternative Solutions in terms of New Zealand Building Code compliance.

Structure

Durability

External Moisture

Hazardous Building Materials

BRANZ Appraised

Test Results
