Palliside Weatherboards Balance Function and Style for this Waterfront Home

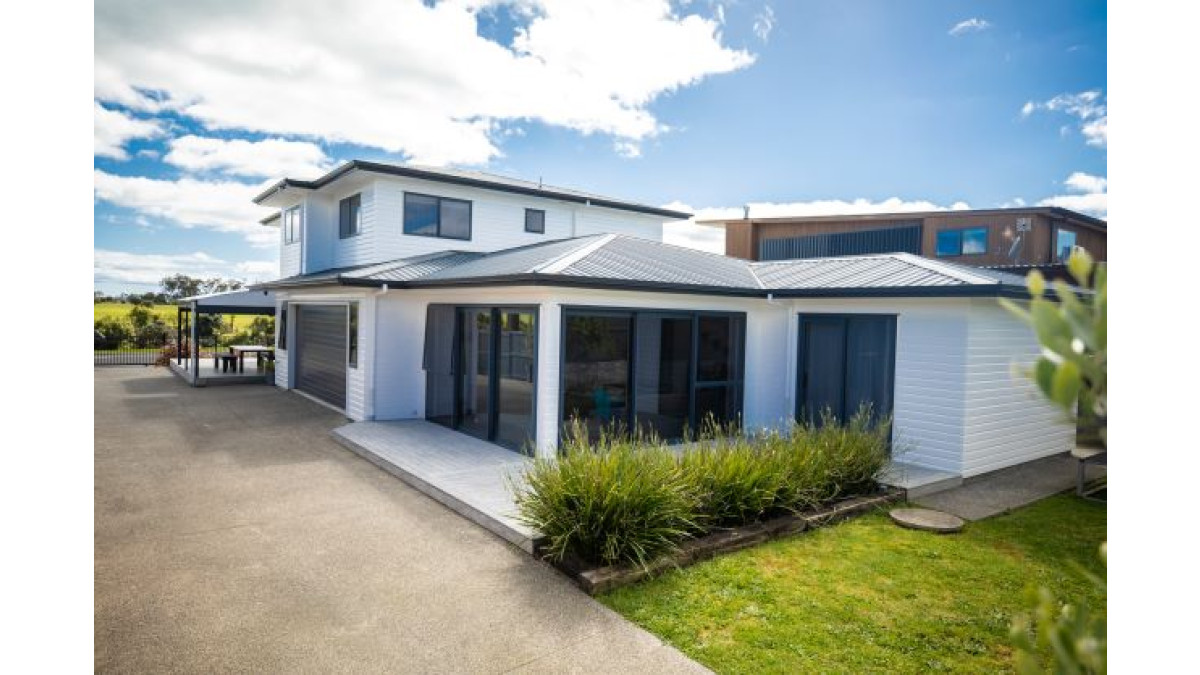

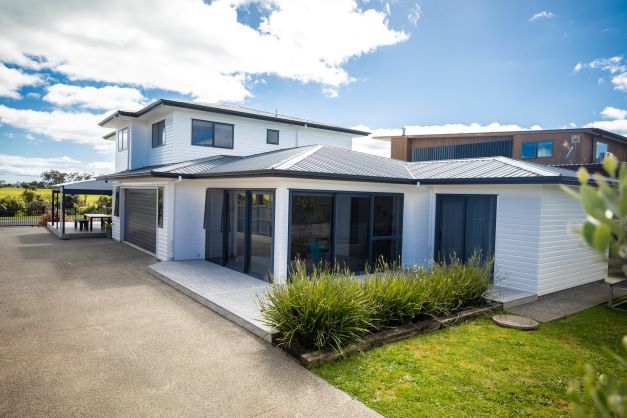

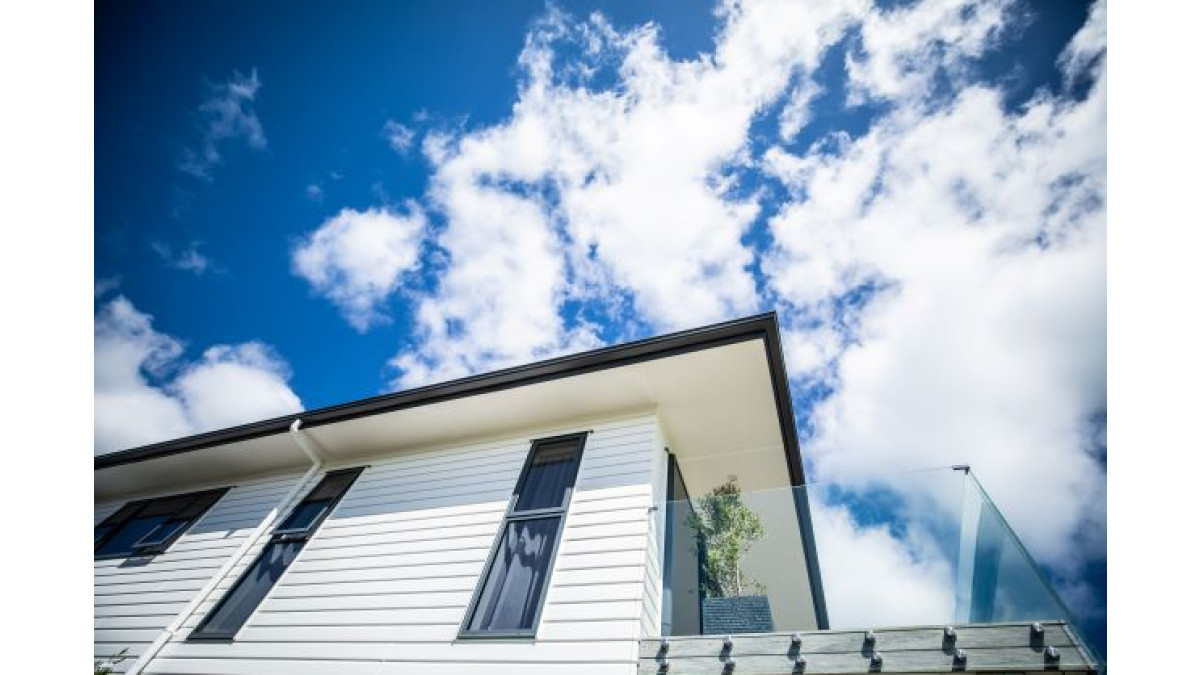

PALLISIDE uPVC weatherboards were an easy choice for Jim and Jill, the proud owners of this easy-living waterfront home. They prioritised lifestyle over a lifetime of tedious house maintenance when choosing their exterior cladding.

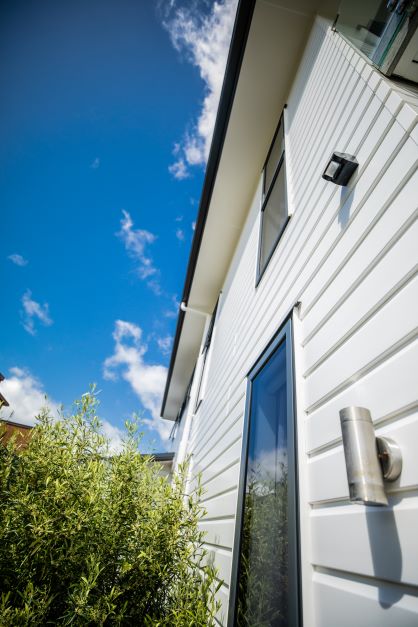

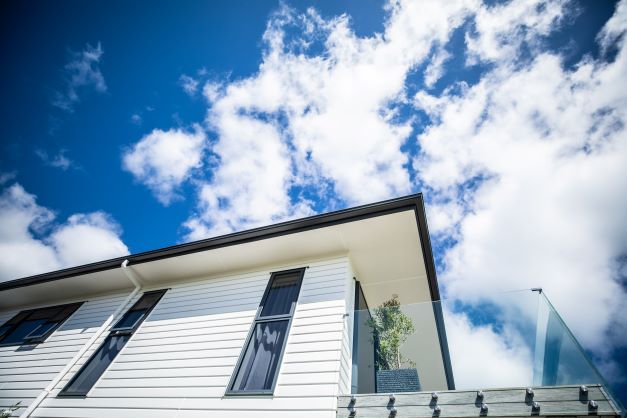

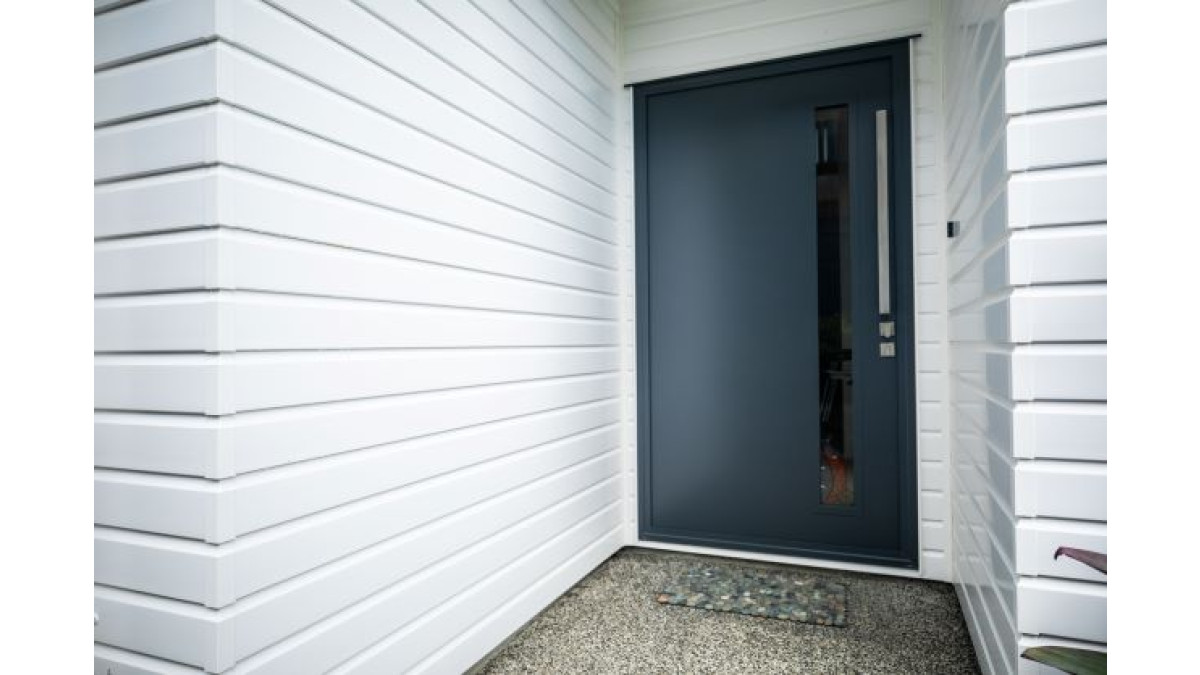

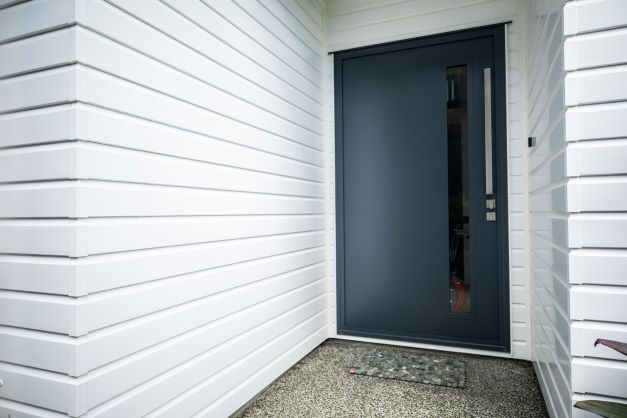

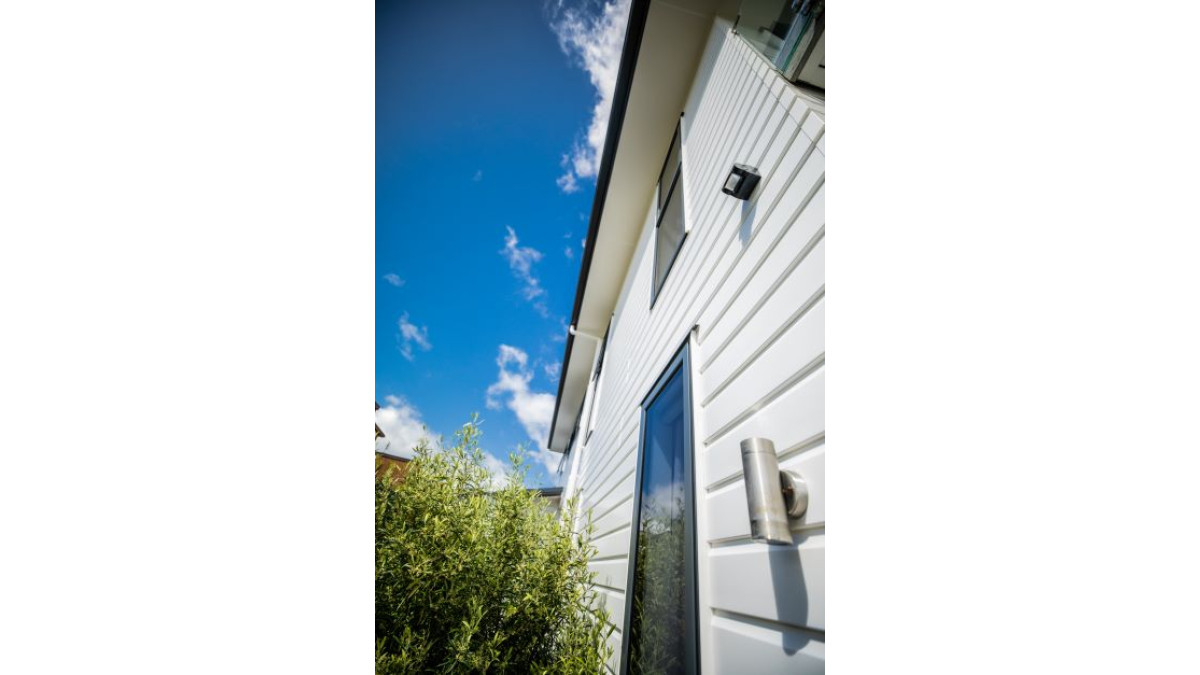

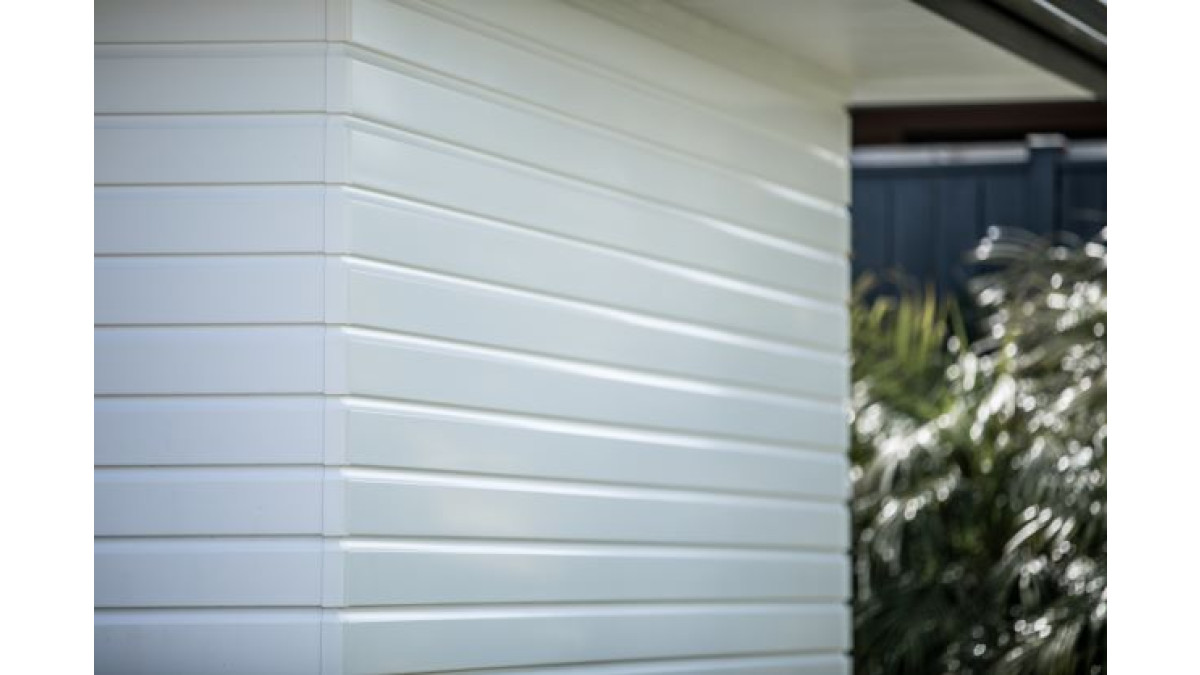

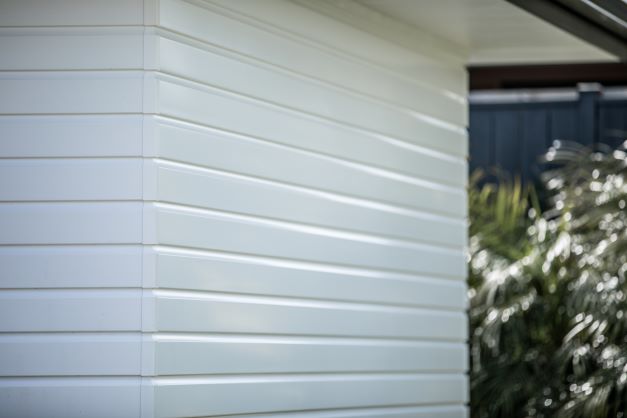

They achieved a perfect balance between function and style, opting to use the Rusticated Smooth PALLISIDE weatherboards in white, creating an elegant finish PALLISIDE is well suited to this look, thanks to its double board profile and concealed nailing, which delivers a seamless, nail-free finish with minimal joins.

When looking to build, the couple wanted a home that would stand up to the elements and didn’t require much maintenance. Jim certainly doesn’t want to waste his precious time on painting his house. This was the biggest reason for choosing PALLISIDE weatherboards. “I’m an engineer, so function and practicality matter above all else but the bonus is, the PALLISIDE weatherboards look great too!” says Jim.

When Jim compared PALLISIDE to other uPVC cladding systems, it was a clear winner due to its sheer quality.

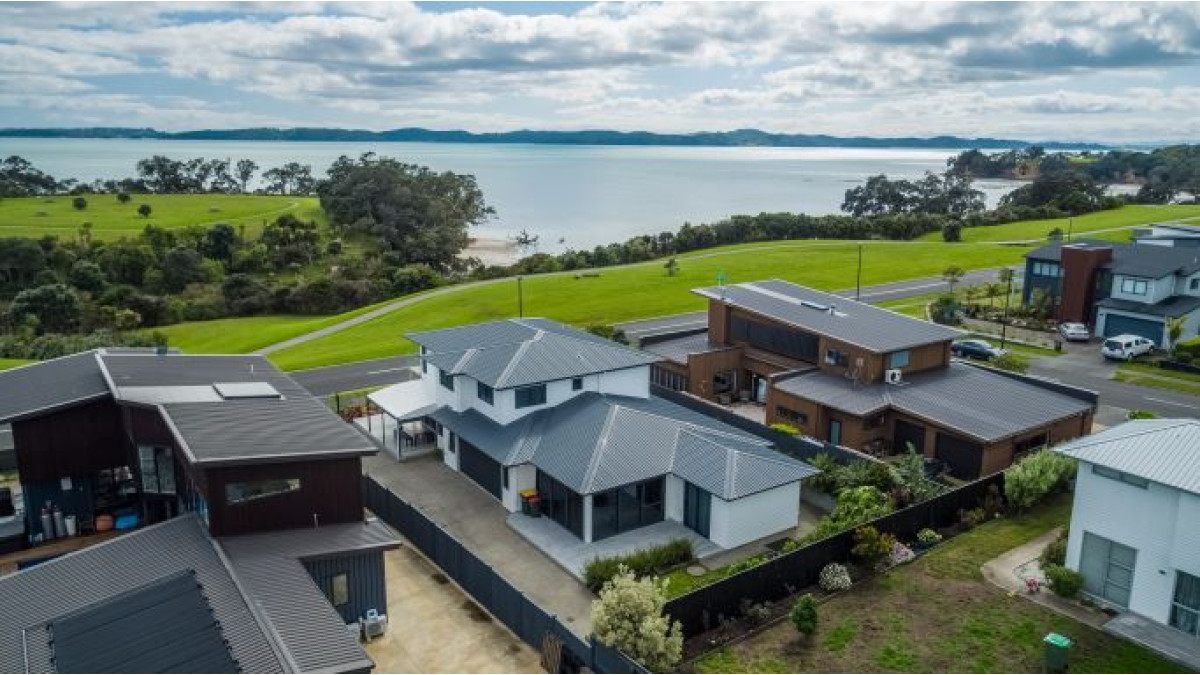

Being a coastal property, Jim had to be careful which materials he chose. It was imperative that the product would not be affected by salt spray and that it could be easily washed down.

“The fact that he’ll never need to paint the house is a definite draw card. We also love that it has a 25-year warranty, made in New Zealand and BRANZ approved,” says Jim.

While being environmentally friendly doesn’t factor into every homeowner’s choice in building products, sustainability is something that Jim and his family are very mindful of. Their choice of PALLISIDE weatherboards for the exterior cladding came down, in part, to their sustainability credentials — made from 100% recyclable materials.

PALLISIDE weatherboards are UV resistant and resilient against sea-spray, ideal for coastal locations.

Listen to Jim's story on the PALLISIDE website in the inspiration section.

PALLISIDE Rusticated Weatherboards (Drained Cavity)

Dynex

View Product

PALLISIDE® is a low-maintenance, pre-finished weatherboard system that provides the look of traditional timber weatherboards, with natural shadow-lines and definition, without the requirement for painting and the cost of upkeep associated with it.

NZ Made

Pre-Consumer Recycled Content

PALLISIDE® Weatherboards Drained Cavity have been appraised as an external horizontally fixed cladding for buildings within the following scope:

Constructed with timber framing in accordance with the scope limitations of NZBC Acceptable Solution E2/AS1, Paragraph 1.1; or,
Constructed with steel framing subject to specific engineering design with building height and floor plan area scope limitations in accordance with NZBC Acceptable Solution E2/AS1, Paragraph 1.1; and,
With a risk score of 0-20, calculated in accordance with NZBC Acceptable Solution E2/AS1, Table 2; and,
Situated in NZS 3604 Wind Zones up to, and including Extra High.

PALLISIDE® Weatherboards Drained Cavity have also been appraised as an external wall cladding system for buildings within the following scope:

The scope limitations of NZBC Acceptable Solution E2/AS1, with regards to building height and floor plan area; and,
Constructed with timber and steel framing subject to specific engineering design; and,
Situated in specific design wind pressures up to a maximum design differential ultimate limit state (ULS) of 2.5 kPa.
The Palliside Weatherboards Drained Cavity must only be installed horizontally on vertical surfaces.

The Palliside Weatherboards Drained Cavity are appraised for use with aluminium window and door joinery that is installed with vertical jambs and horizontal heads and sills. (The Appraisal of the Palliside Weatherboard system relies on the joinery meeting the requirements of NZS 4211 for the relevant Wind Zone or wind pressure.)

If Palliside Weatherboards are to be used in any applications not covered by the current Installation and Technical Guide and scope, written confirmation of suitability should be obtained from Dynex Extrusions Limited prior to the commencement of the project.

Extra High Wind Zone

Specific Design Wind Zone

In the opinion of BRANZ , the PALLISIDE® Cellular uPVC Weatherboard Direct Fix or Drained Cavity Cladding Systems, if designed, used, installed and maintained in accordance with the statements and conditions of Appraisal No.490 and No.491 (2015), will meet the following provisions of the NZBC:

Clause B1 Structure: Performance B1.3.1, B1.3.2 and B1.3.4. The PALLISIDE® Cellular uPVC Weatherboard Cladding System meets the requirement for loads arising from self-weight, earthquake, wind, impact and creep [i.e. B1.3.3 (a), (f), (h), (j) and (q)].
Clause B2 Durability: Performance B2.3.1(b), 15 years.
Clause E2 External Moisture: Performance E2.3.2.
Clause F2 Hazardous Building Materials: Performance F2.3.1. The PALLISIDE® Cladding system will not present a health hazard to people.

The PALLISIDE® Cellular uPVC Weatherboard direct fix or drained cavity cladding systems have been appraised as Alternative Solutions in terms of New Zealand Building Code compliance.

Structure

Durability

External Moisture

Hazardous Building Materials

BRANZ Appraised
