PALLISIDE Traditional Weatherboards (Drained Cavity)

PALLISIDE® is a low-maintenance, pre-finished weatherboard system that provides the look of traditional timber weatherboards, with natural shadow-lines and definition, without the requirement for painting and the cost of upkeep associated with it.

PALLISIDE® weatherboards are manufactured from specifically formulated uPVC. This forms a lightweight yet durable cladding system which, combined with being manufactured as a double profile board, is very fast to install. Available in traditional bevel back profile as well as rusticated smooth or wood grain profile and comes in a range of popular colours.

Key Features
  • Complete cladding system including weatherboards, scribers, soakers and trims
  • Pre-finished and no painting required
  • Quick and easy installation
  • Double board profile
  • Sustainable
  • 25 year warranty
  • BRANZ appraised
NZ Made
NZ Made
Recycled Content (Pre-Consumer)
Pre-Consumer Recycled Content
Scope of Use

PALLISIDE® Weatherboards Drained Cavity have been appraised as an external horizontally fixed cladding for buildings within the following scope:

  • Constructed with timber framing in accordance with the scope limitations of NZBC Acceptable Solution E2/AS1, Paragraph 1.1; or,
  • Constructed with steel framing subject to specific engineering design with building height and floor plan area scope limitations in accordance with NZBC Acceptable Solution E2/AS1, Paragraph 1.1; and,
  • With a risk score of 0-20, calculated in accordance with NZBC Acceptable Solution E2/AS1, Table 2; and,
  • Situated in NZS 3604 Wind Zones up to, and including Extra High.

PALLISIDE® Weatherboards Drained Cavity have also been appraised as an external wall cladding system for buildings within the following scope:

  • The scope limitations of NZBC Acceptable Solution E2/AS1, with regards to building height and floor plan area; and,
  • Constructed with timber and steel framing subject to specific engineering  design; and,
  • Situated in specific design wind pressures up to a maximum design differential ultimate limit state (ULS) of 2.5 kPa.
  • The PALLISIDE® Weatherboards Drained Cavity must only be installed horizontally on vertical surfaces.

The PALLISIDE® Weatherboards Drained Cavity are appraised for use with aluminium window and door joinery that is installed with vertical jambs and horizontal heads and sills. (The Appraisal of the Palliside Weatherboard system relies on the joinery meeting the requirements of NZS 4211 for the relevant Wind Zone or wind pressure.)

If PALLISIDE® Weatherboards are to be used in any applications not covered by the current Installation and Technical Guide and scope, written confirmation of suitability should be obtained from Dynex Extrusions Limited prior to the commencement of the project.

NZS 3604 Wind Zone Extra High suitable
Extra High Wind Zone
NZS 3604 Wind Zone Specific Design suitable
Specific Design Wind Zone
Statement of Building Code Compliance

In the opinion of BRANZ , the PALLISIDE® Cellular uPVC Weatherboard Direct Fix or Drained Cavity Cladding Systems, if designed, used, installed and maintained in accordance with the statements and conditions of Appraisal No.490 and No.491 (2015), will meet the following provisions of the NZBC:

  • Clause B1 Structure: Performance B1.3.1, B1.3.2 and B1.3.4. The PALLISIDE® Cellular uPVC Weatherboard Cladding System meets the requirement for loads arising from self-weight, earthquake, wind, impact and creep [i.e. B1.3.3 (a), (f), (h), (j) and (q)].
  • Clause B2 Durability: Performance B2.3.1(b), 15 years.
  • Clause E2 External Moisture: Performance E2.3.2.
  • Clause F2 Hazardous Building Materials: Performance F2.3.1. The PALLISIDE® Cladding system will not present a health hazard to people.

The PALLISIDE® Cellular uPVC Weatherboard direct fix or drained cavity cladding systems have been appraised as Alternative Solutions in terms of New Zealand Building Code compliance.

In-Service History

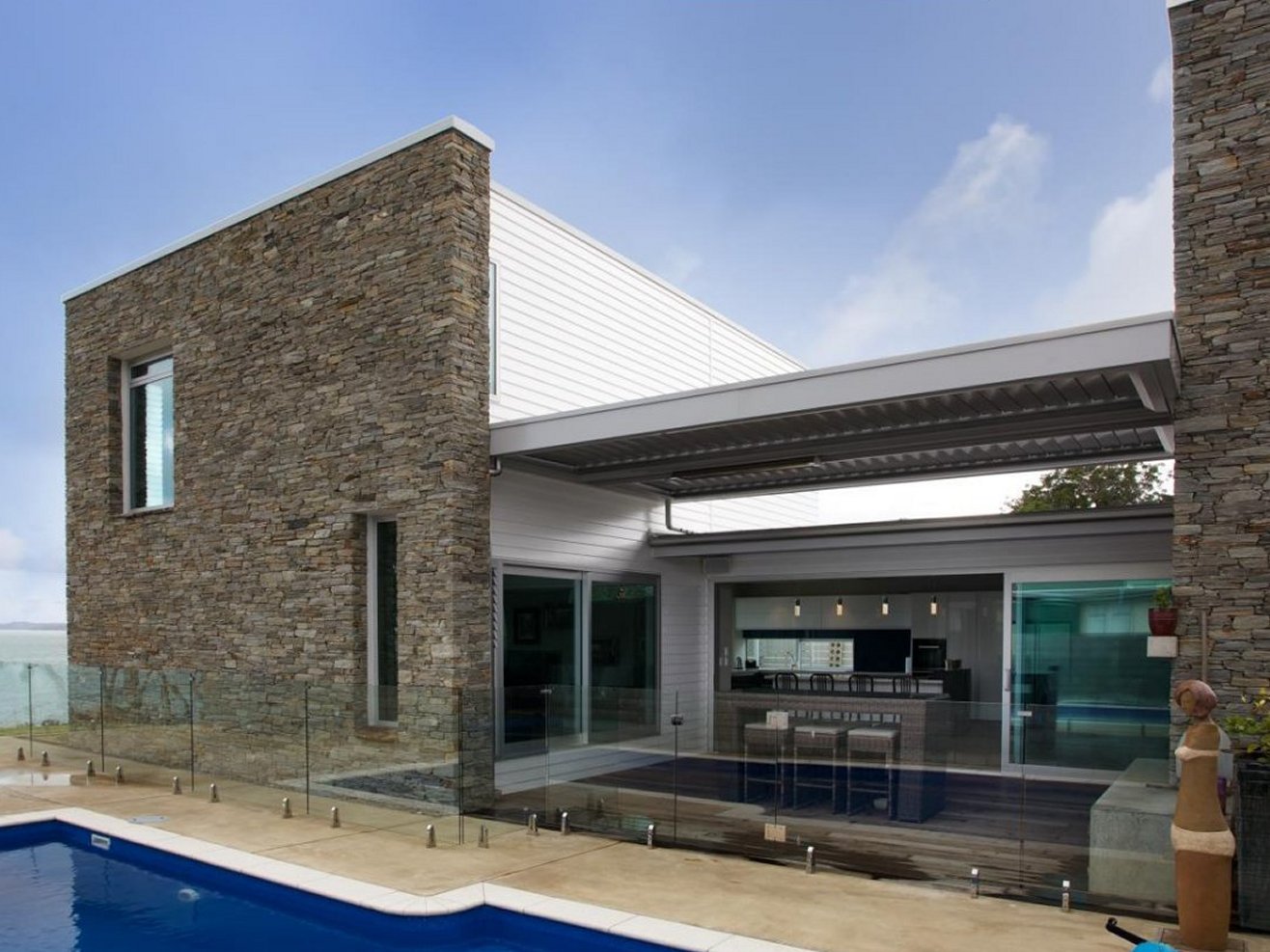

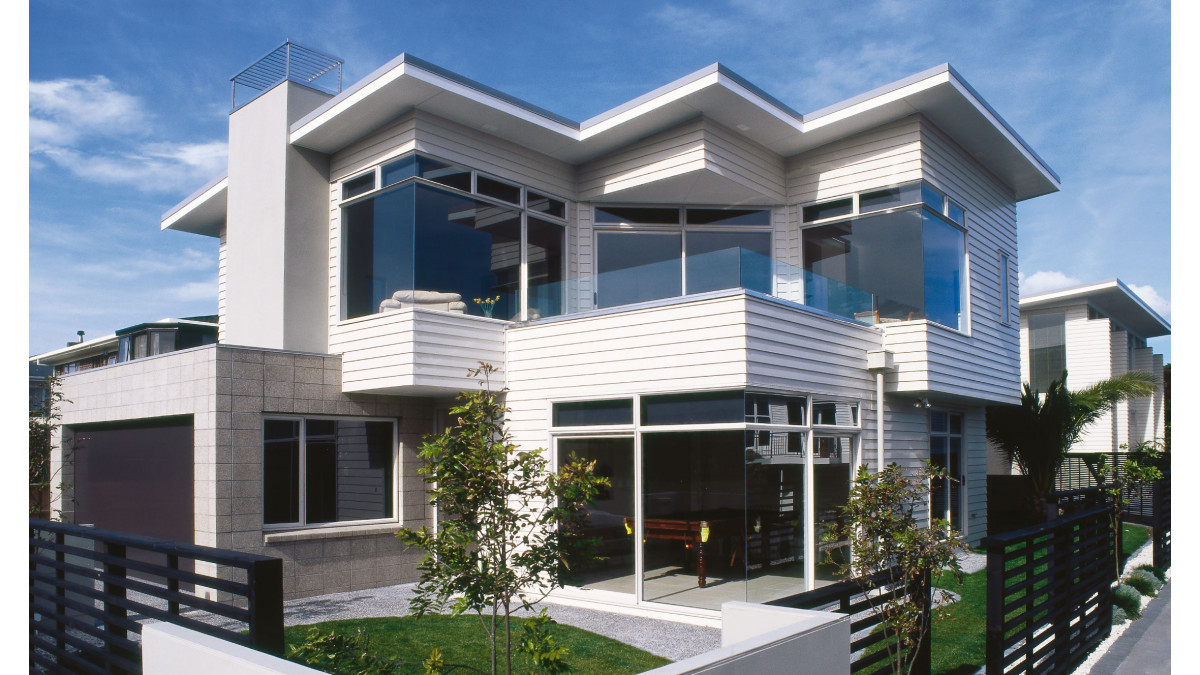

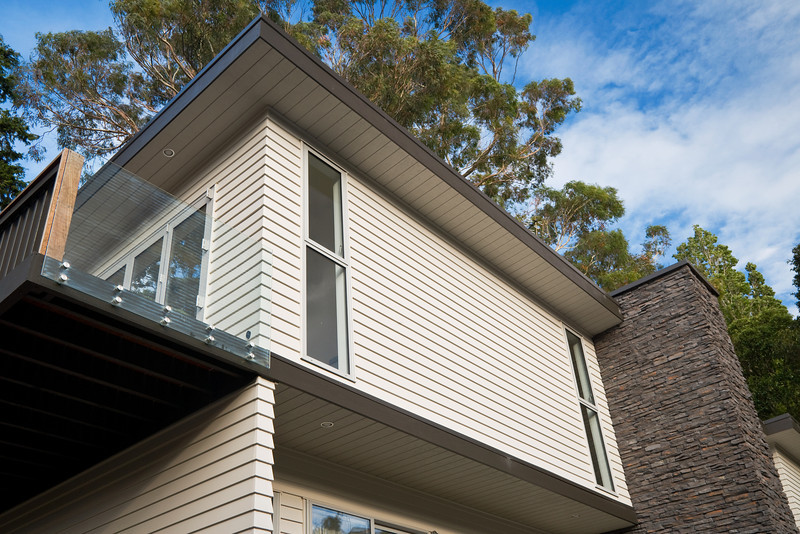

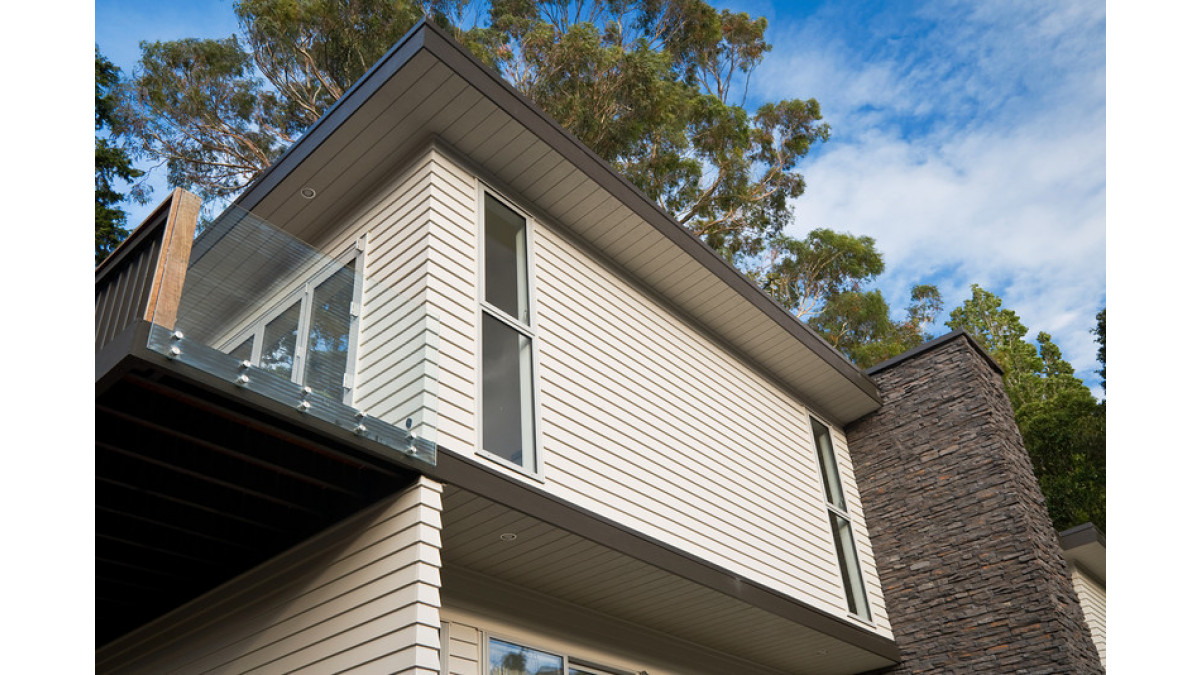

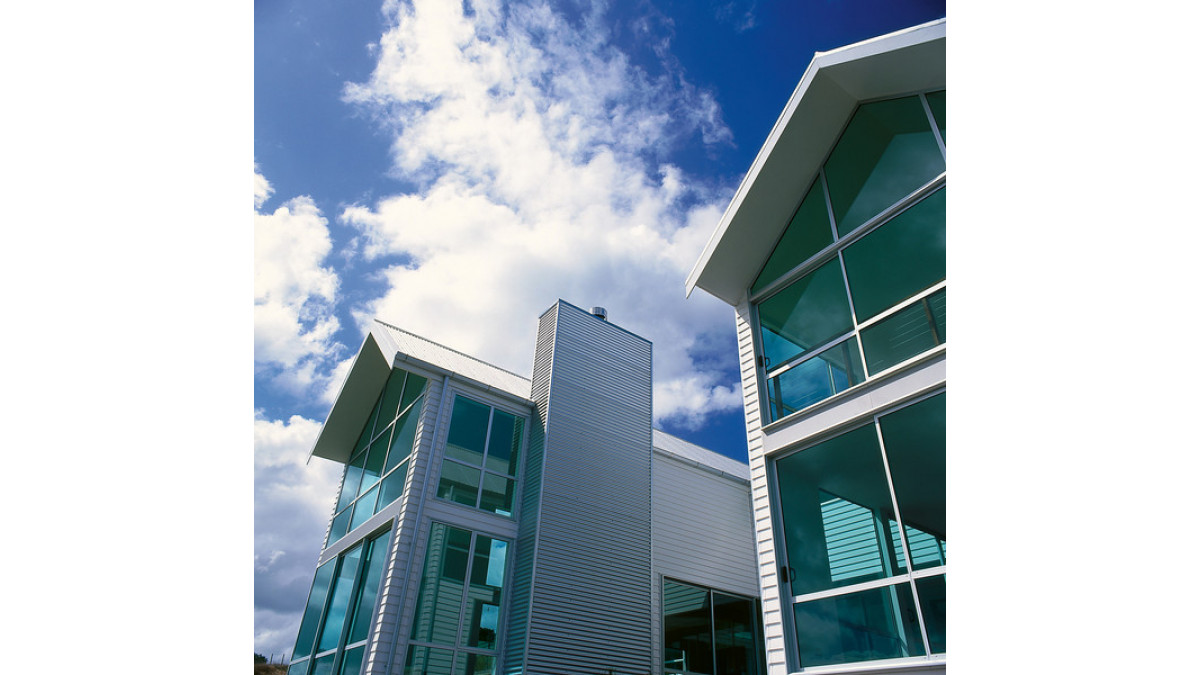

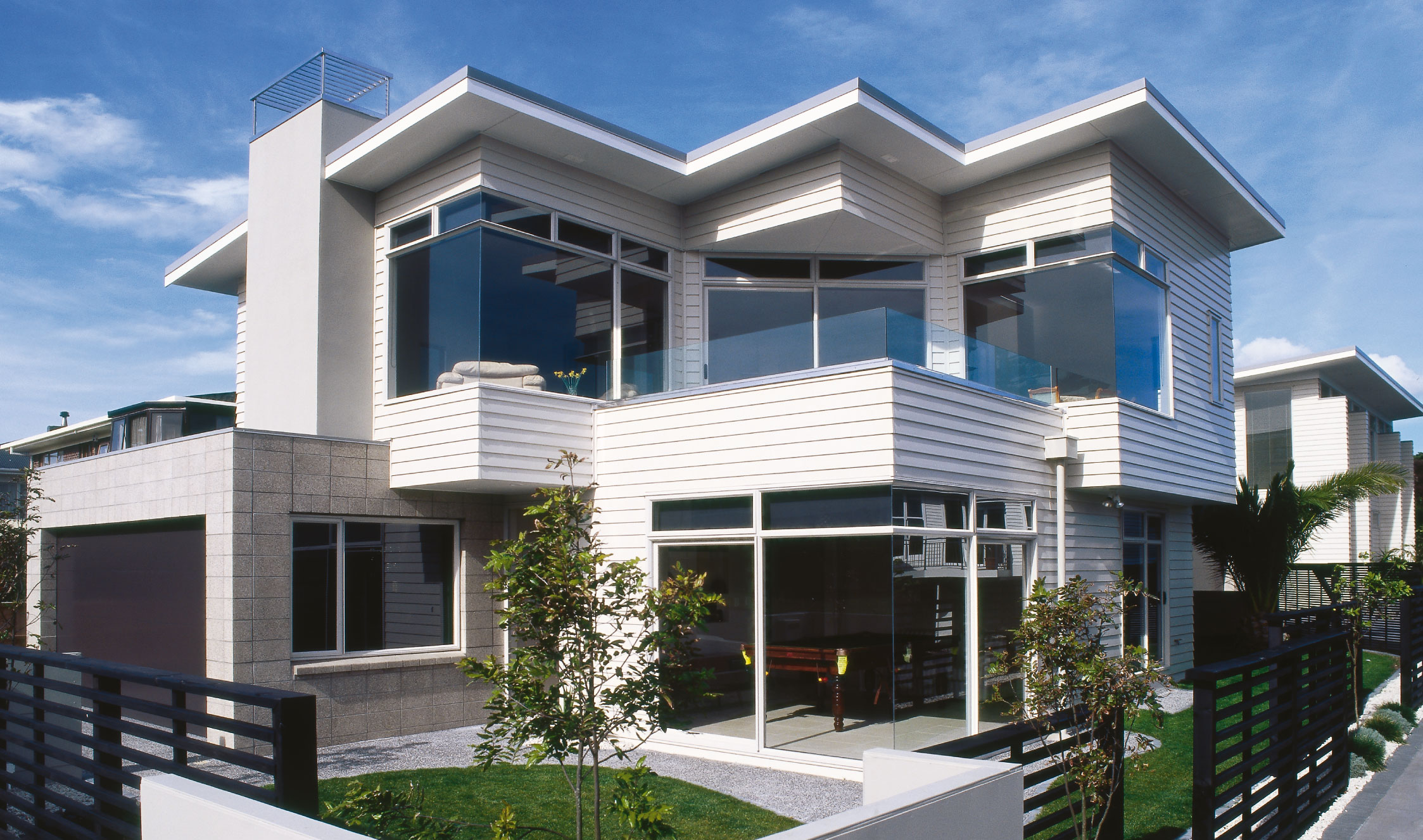

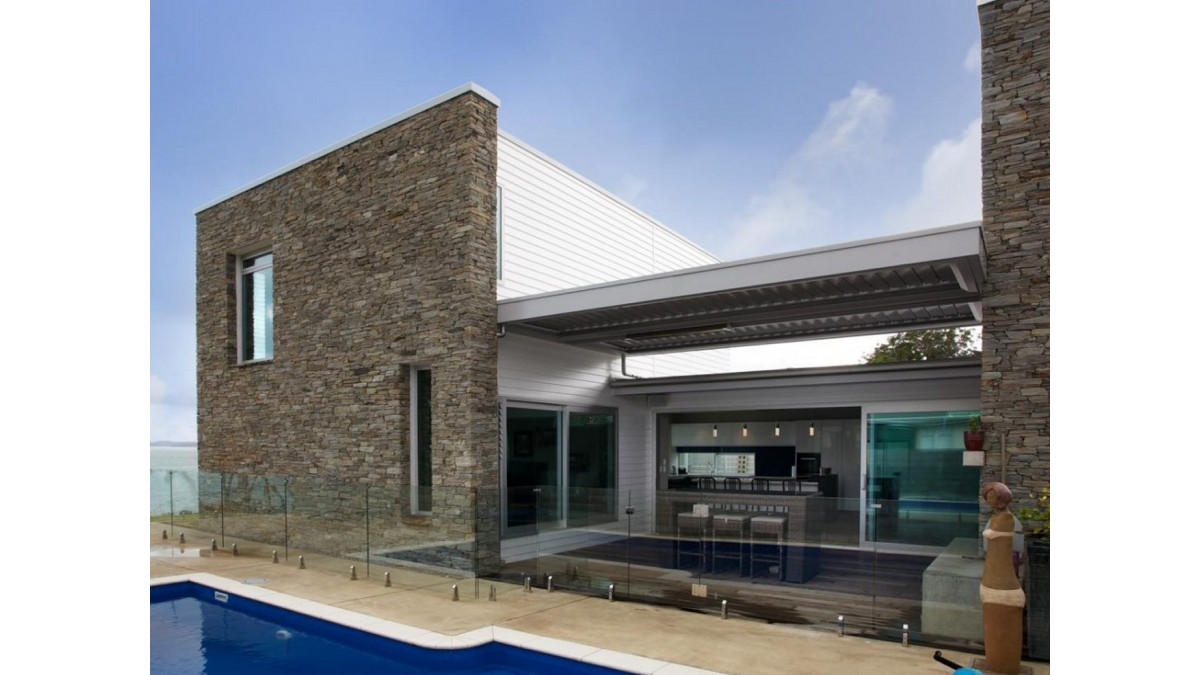

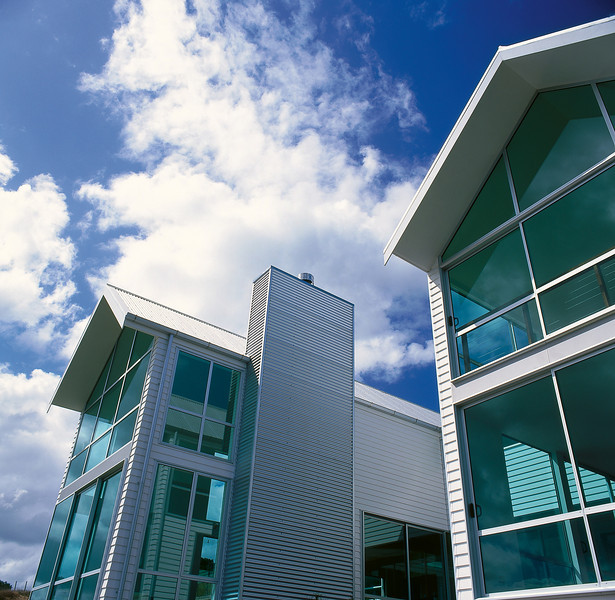

Since the early 1990's, PALLISIDE® has been installed on thousands of buildings, including detached houses, townhouses, schools and aged care facilities.

PALLISIDE® weatherboards are designed, tested and manufactured in New Zealand to ensure they provide excellent protection from the damaging effects of our harsh climate.

Other Performance Attributes
  • 25 year warranty
B1 Structure compliant
B2 Durability compliant
E2 External Moisture compliant
External Moisture
F2 Hazardous Building Materials compliant
Hazardous Building Materials
BRANZ Appraised
BRANZ Appraised
Test Results
Test Results
Specification Clause/Guide
BRANZ Appraisal 491

No. 491 [2021]

Environmental Information
Maintenance Instructions

Dynex deliver innovative, durable and attractive building solutions that make building and maintenance more cost-effective, while minimising any impact on the environment.

Product Enquiries

News from Dynex

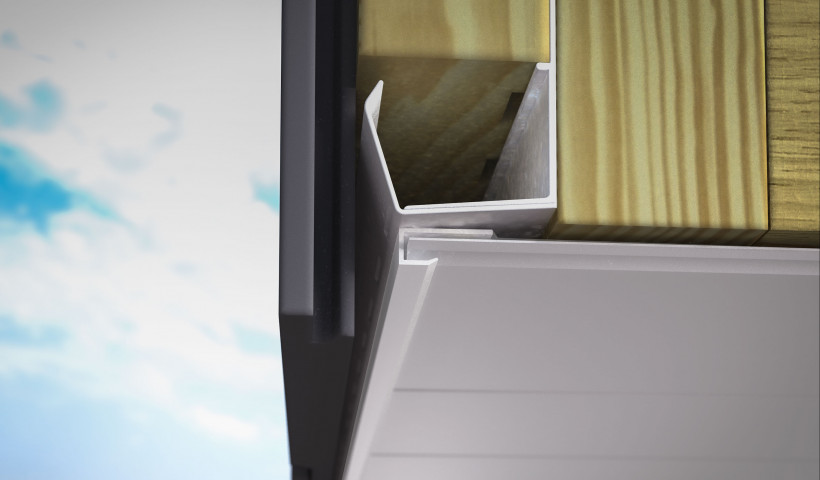

Enhanced Cavity Closer Innovation
Palliside Weatherboards Balance Function and Style for this Waterfront Home

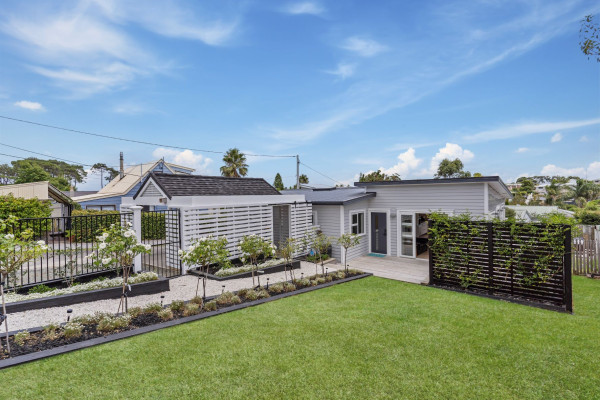

Palliside Weatherboards and Dynex Soffit Bring Low Maintenance Finish to Whangaparaoa Home
