Smart Fire and Acoustic Wall Systems Trusted in Healthcare Environments

KOROK is a proven fire and acoustic wall system that delivers key performance benefits for healthcare construction. Hospitals demand the highest standards in safety, acoustic control, compliance and speed of delivery. KOROK delivers — with BRANZ-appraised, tested systems that are already trusted in hospitals, corridors, IT rooms, service risers, lift shafts, and more.

Engineered for IL3/IL4 resilience: Seismic performance and rapid remediation design

An all-in-one solution for fire and acoustic-rated wall systems, KOROK panels offer unmatched performance for high-importance structures. With strong seismic performance and the ability to withstand high drift limits, KOROK panels are ideal for IL3 and IL4 buildings, such as hospitals, emergency response centres, and essential utilities. By undertaking this seismic testing, KOROK reinforces its commitment to superior building resilience, helping to minimise damage, lower repair costs, and maintain operational continuity after earthquakes.

Core benefits that deliver certainty in fire, acoustic, seismic, and programme performance

Superior fire protection: Up to 120-minute FRR (Fire Resistance Ratings) for life-saving passive fire containment.
Acoustic excellence: Helps achieve compliance with hospital acoustic standards, improving privacy and patient comfort.
Faster installation: Lightweight, dry-construction modular design = faster program, fewer delays, and earlier handover.
Seismic resilience: Engineered seismic clips and deflection heads for movement-tolerant, post-event integrity.

All-in-one solution for all fire and acoustic rated walls, engineered for complex healthcare builds

One system, multiple applications. From intertenancy walls to lift shafts, risers, ducts and corridors. KOROK panels provide comprehensive protection throughout your entire project. They are suitable for:

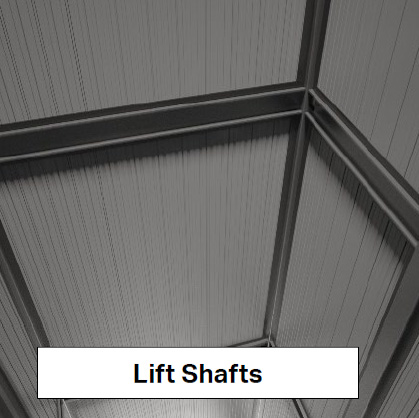

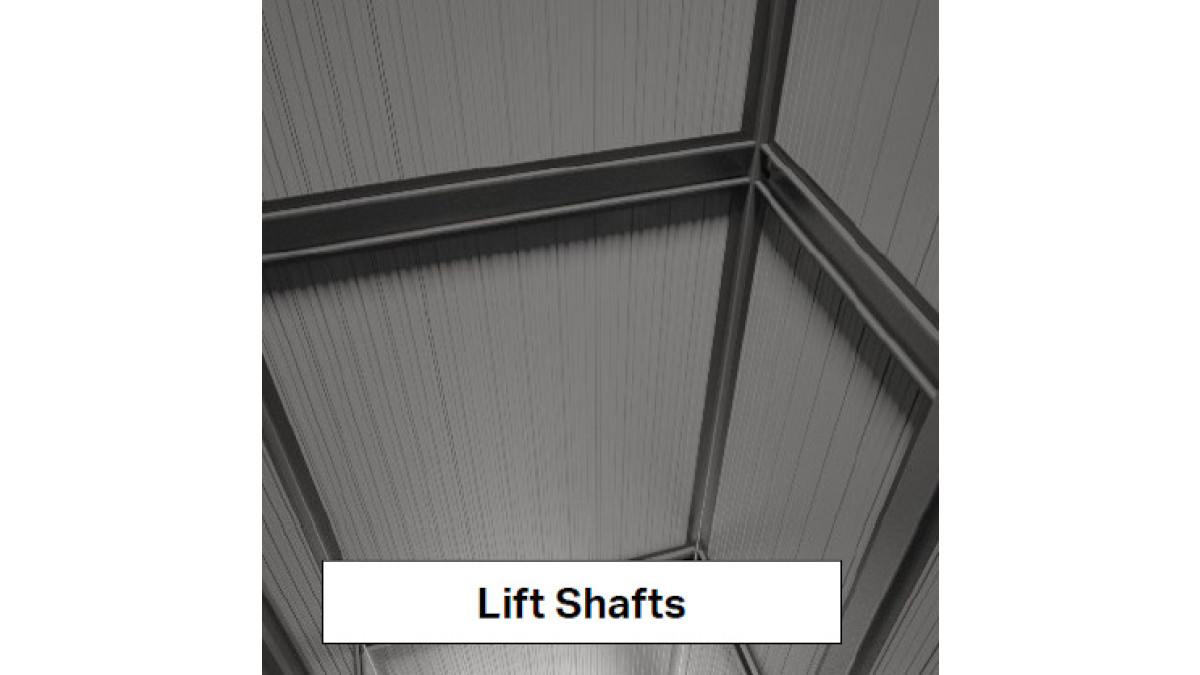

Lift shafts

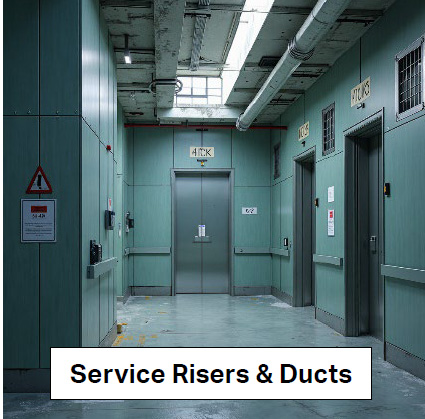

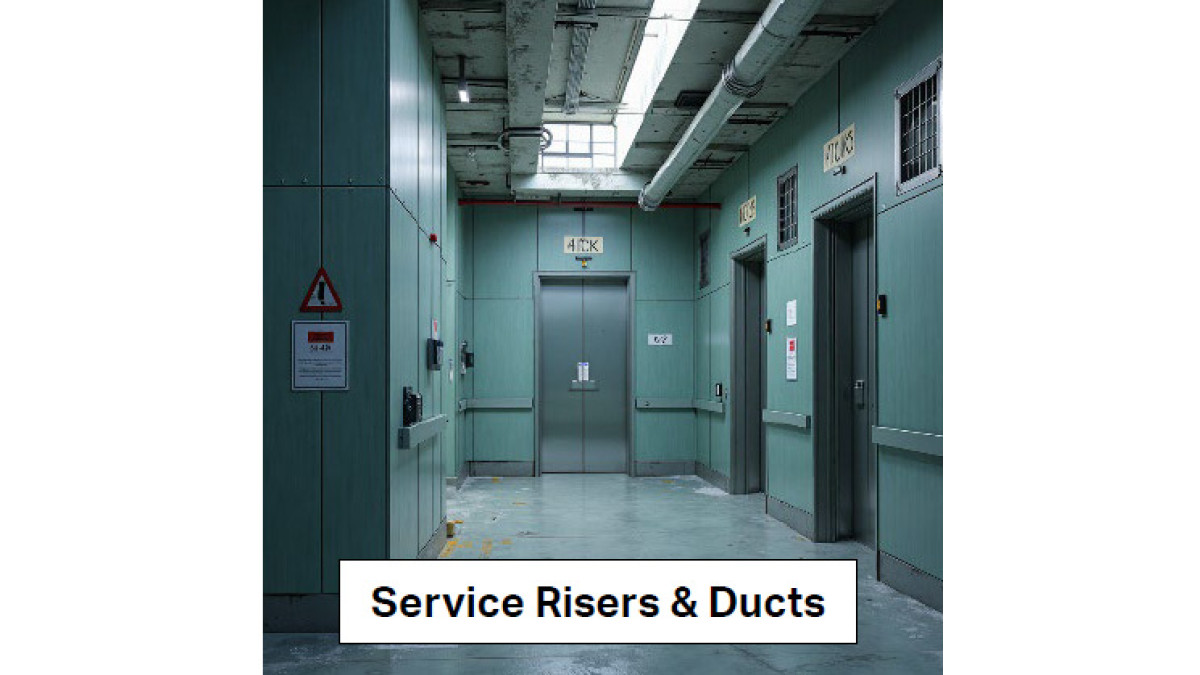

Service risers and ducts

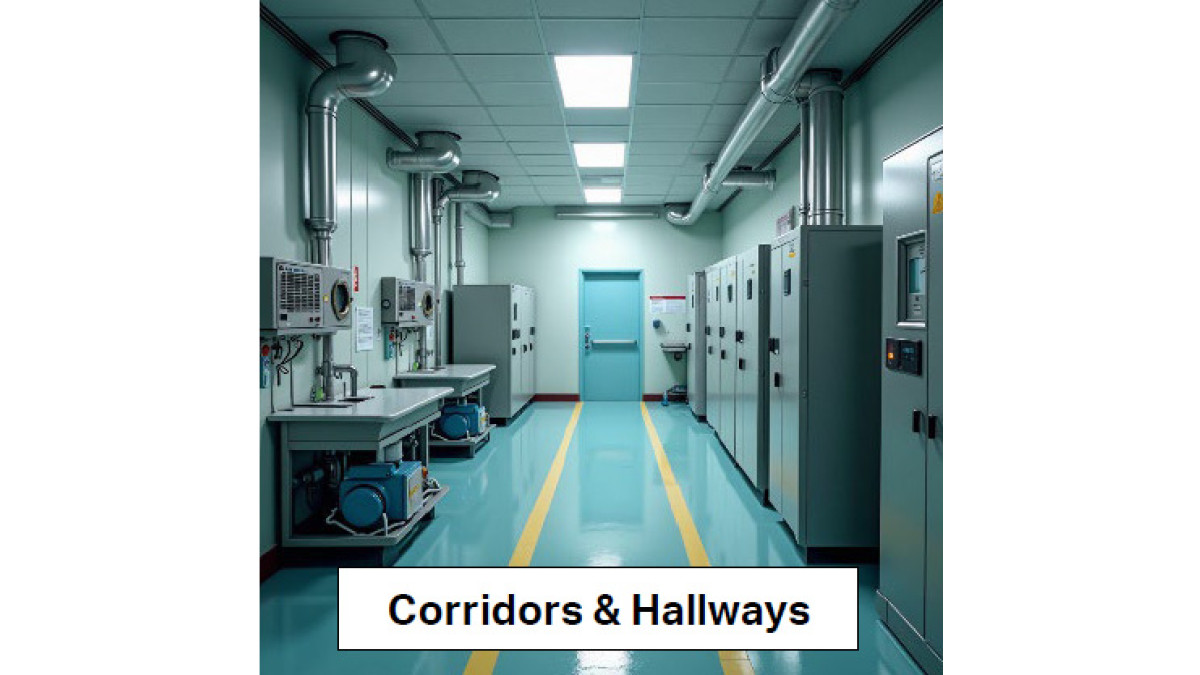

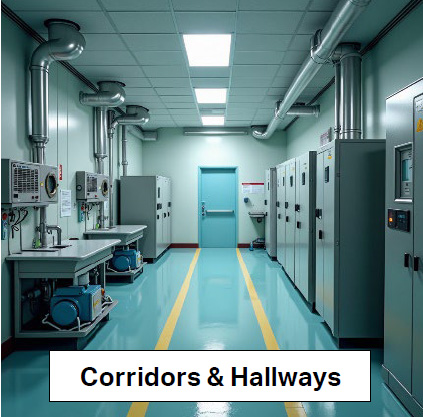

Corridors and hallways

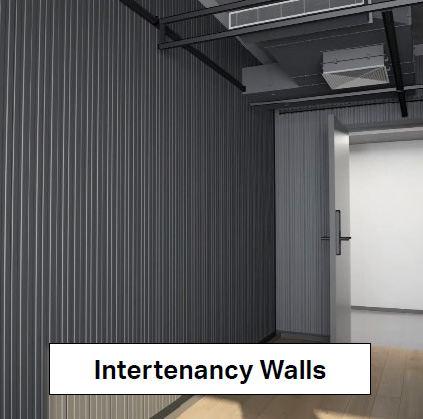

Intertenancy walls

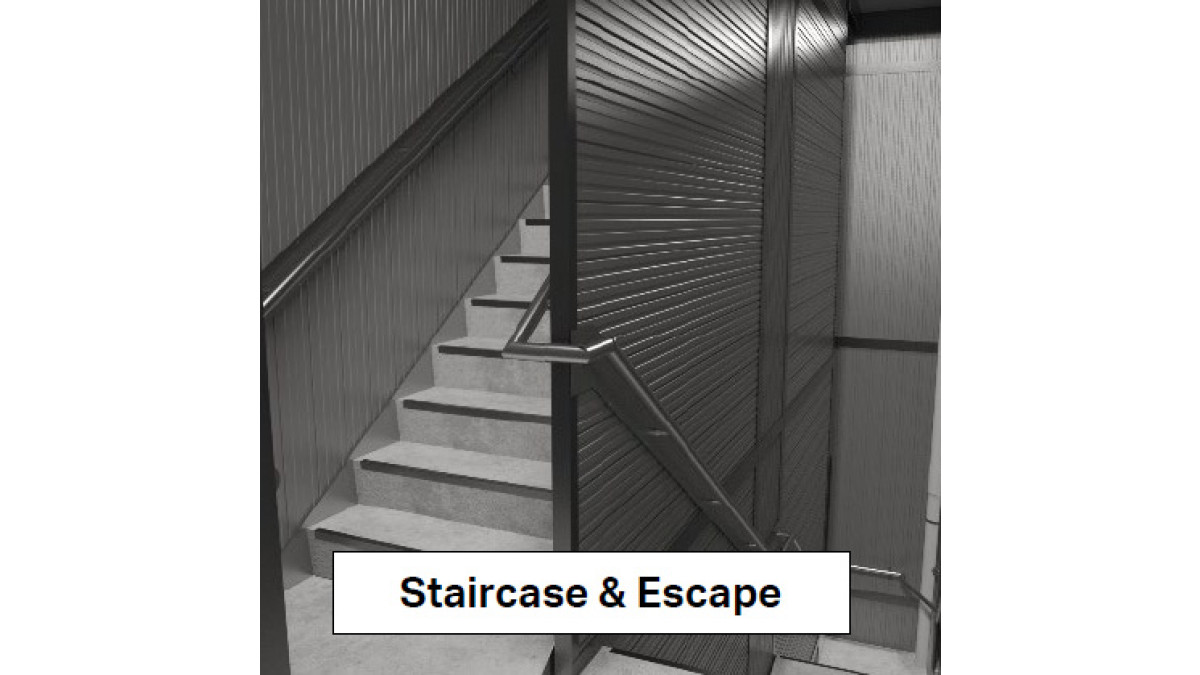

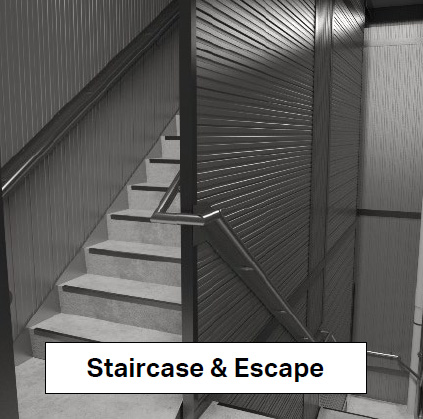

Staircase and escape paths

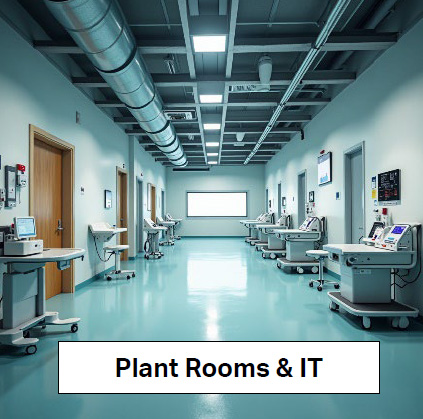

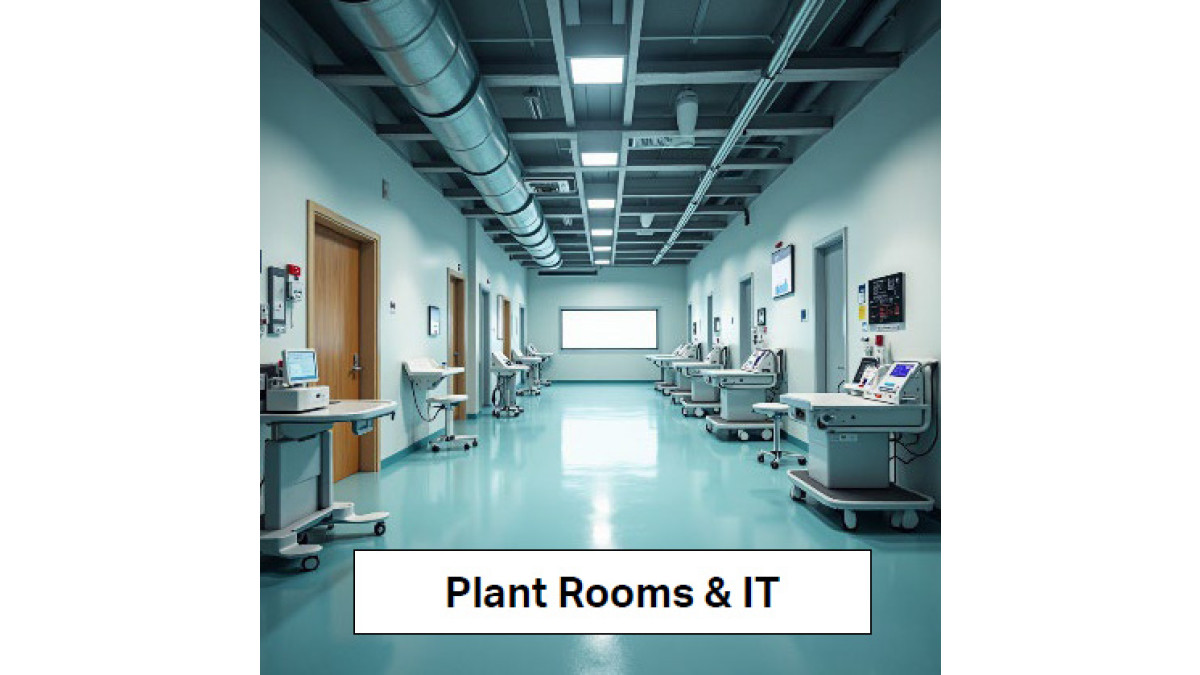

Plant rooms and IT rooms

Save time. Save labour. Reduce risk.

Benefits for architects and designers:

Reduced linings and complexity in wall construction
Comprehensive tested systems incorporating fire, acoustic, and seismic performance
Tested penetration and services applications
Solid and secure
Simplified design detail with tested performance
Specification support from day one

Benefits for construction companies:

Faster installation with fewer resource
Reduced scaffolding and fall protection
Simplify construction and fast-track compliance
Minimise waste with made-to-measure panels
Earlier operational access
Expert installation guidance with on-site training

Need more info or want to present this to a client? We can help

At KOROK, we know that healthcare projects are high-stakes environments, with no room for delays, compliance issues, or uncertainty. That’s why we offer KOROK 360, a full-circle support package developed to give you confidence from concept to completion. Whether you’re in early-stage design or managing construction on site, KOROK 360 provides targeted, hands-on support tailored to your needs, including:

Expert technical support and documentation
Sales and specification support
Estimation and pricing
Made-to-measure, order support
Installation and training support
National logistics service

Ready to spec KOROK?

Let’s lock it in, and get your project moving with tested, proven performance. Whether you’re working on early-stage design, refining your specification, or needing trusted fire and acoustic systems that meet healthcare demands — KOROK is here to help. Get expert guidance, fast documentation, and the confidence that comes from working with systems already trusted in hospitals across New Zealand.

Talk to KOROK today and bring certainty to your next healthcare build.

Intertenancy Apartment Systems

KOROK

View Product

Conventional framed wall systems rely on their linings to provide fire resistance and acoustic control performance.

LBC Declare Red List Approved

NZ Made

Post-Consumer Recyclable Content

Installed vertically
Fire ratings up to -/120/120
Acoustic ratings up to STC 68

Along with Terraced Housing Intertenancy, KOROK systems are suitable for:

Dividing walls for sheds, factories and warehouses
Cinema walls
Intertenancy walls for apartments, hotels and retirement complexes
Lift shaft, stair and duct walls
Acoustic barriers
External and boundary walls for sheds, factories and warehouses

KOROK systems are suitable for all areas of New Zealand.

The NZBC sets out both the legal minimum sound transmission between tenancies (Clause G6) and minimum levels of fire resistance (Clauses C3 and C6). The KOROK Intertenancy Systems Manual provides guidance on the specification and construction of systems that will both meet and exceed those minimum levels. However, designers should consider the comfort of occupants when selecting a system that will satisfy the occupants' expectations when using the space rather than the minimum required by law.

NZBC:

Clause B1: Structure — The KOROK Systems meet the requirements for loads arising from self-weight, earthquake, wind, impact and creep and shrinkage
Clause B2: Durability — Under normal conditions of dry internal use KOROK Intertenancy Systems have a serviceable life in excess of 50 years and satisfy the requirements of NZBC Clause B2 Durability
Clauses C3: Fire Affecting Areas Beyond the Source — KOROK Intertenancy Systems can be used to provide passive fire protection in accordance with the requirements of NZBC Clause 3: Spread of Fire
Clause C6: Structural Stability —Compliance with (NZBC) Clause C6 'Structural Stability'. In order to satisfy the requirements of the New Zealand Building Code (clause 6) relating to Structural Stability designers must ensure that KOROK elements are supported by primary elements that have at least the same fire rating as the KOROK system that is used
Where the primary elements supporting the KOROK system are outside the fire cell, there is no requirement to apply the same FRR as the KOROK system. Notwithstanding, post fire stability requirements of the NZBC must also be satisfied
Clause G6: Airborne and Impact Sound — KOROK Intertenancy Systems, both meet and exceed the minimum requirements outlined in NZBC Clause G6. Consideration should be given to both the minimum requirements and the comfort of occupants

BRANZ Appraised

Eco Choice Aotearoa

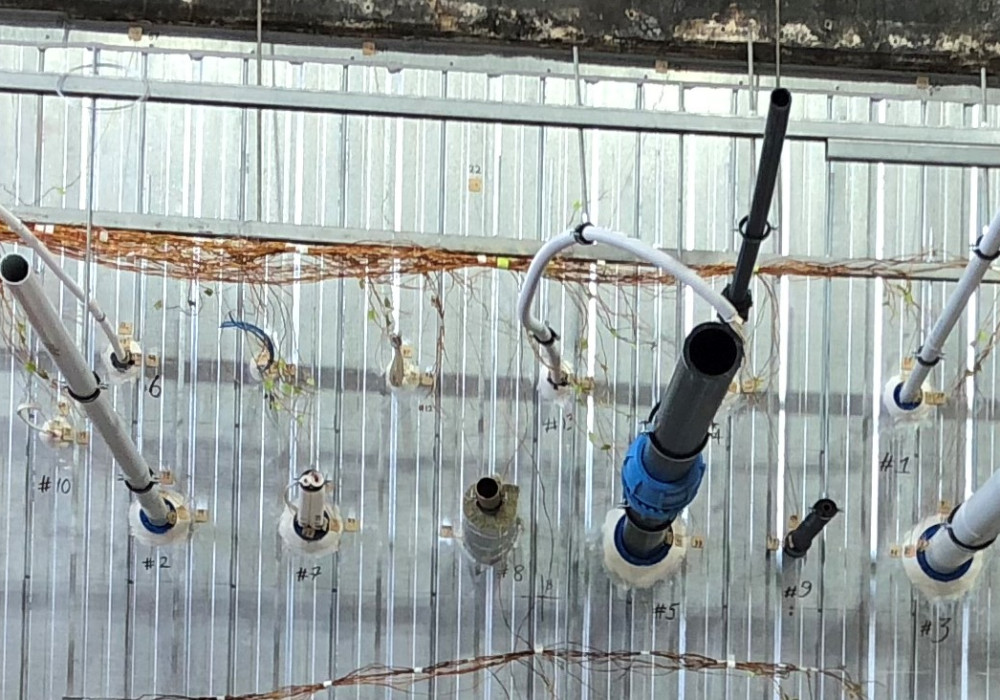

Passive Fire / Penetrations

KOROK

View Product

When it comes to passive fire penetrations, KOROK® leads the way with innovative solutions that ensure fire safety without compromising functionality.

KOROK® Fire-Rated Wall Systems, including penetrations for services such as ducting, plumbing, and electrical, are suitable for use in a wide range of buildings and environments throughout New Zealand. These systems are designed and tested to maintain their fire resistance rating when penetrated, provided that appropriate penetration sealing systems are used in accordance with KOROK® specifications and installation details.

Terraced Housing Intertenancy Wall System

KOROK

View Product

Manufactured from rolled steel and aerated concrete, KOROK fire and acoustic clip-together intertenancy wall systems are high performance and lightweight.

LBC Declare Red List Approved

NZ Made

Post-Consumer Recyclable Content

Fire ratings up to 120/120/120
Acoustic ratings up to STC 69

The KOROK 51mm Wall System and KOROK KIT Wall Systems are used to construct fire and acoustically rated walls and partitions within building envelopes.

The KOROK panels are made from aerated concrete encased in profiled galvanised steel sheet formwork and are non-loadbearing, whilst the structural elements of the wall system can be loadbearing.

BRANZ Appraisal 1059 [2019] Scope:

The KOROK 51mm Wall System and KOROK 51mm Wall System and KOROK KIT Wall Systems have been appraised for use as non-loadbearing fire and acoustically rated internally located walls and partitions for all buildings of all importance levels as defined by AS/NZS 1170
The KOROK KIT Wall System panels are installed in vertical orientation. For the intertenancy wall systems the panels are fixed to the timber or steel framing with aluminium brackets at the panel face or joints at maximum 3.5m intervals vertically and 0.6 m intervals horizontally. The total height of the KOROK panels in a single wall must not exceed 14m
For the KOROK 51 mm plain wall panel the maximum unsupported span for the panels between structural supports is 8m. The overall height or length of a KOROK 51mm plain wall will be determined by the structural support. When used as part of a fire rated system, the maximum unsupported span of the KOROK panels is 6m for vertical orientation and 4m for horizontal orientation. Greater spans are subject to specific engineering design and/or fire engineering assessment and are outside the scope of this Appraisal.
The KOROK 51mm Wall System and KOROK KIT Wall Systems have been appraised for use in intertenancy walls when used with the wall framing, wall insulation and wall lining specified in this Appraisal.

The NZBC sets out both the legal minimum sound transmission between tenancies (Clause G6) and minimum levels of fire resistance (Clauses C3 and C6). The KOROK Intertenancy Systems Manual provides guidance on the specification and construction of systems that will both meet and exceed those minimum levels. However, designers should consider the comfort of occupants when selecting a system that will satisfy the occupants’ expectations when using the space rather than the minimum required by law.

NZBC:

Clause B1: Structure — The KOROK Systems meet the requirements for loads arising from self-weight, earthquake, wind, impact and creep and shrinkage
Clause B2: Durability — Under normal conditions of dry internal use KOROK Intertenancy Systems have a serviceable life in excess of 50 years and satisfy the requirements of NZBC B2 Durability
Clause C3: Fire Affecting Areas Beyond the Source — KOROK Intertenancy Systems can be used to provide passive fire protection in accordance with the requirements of Clause C3
Clause C6: Structural Stability — Compliance with (NZBC) Clause C6 ‘ Structural Stability’. In order to satisfy the requirements of the New Zealand Building Code (clause 6) relating to Structural Stability designers must ensure that KOROK elements are supported by primary elements that have at least the same fire rating as the KOROK system that is used.
Where the primary elements supporting the KOROK system are outside the fire cell, there is no requirement to apply the same FRR as the KOROK system.
Notwithstanding, post fire stability requirements of the NZBC must also be satisfied
Clause G6: Airborne and Impact Sound — KOROK Intertenancy Systems, both meet and exceed the minimum requirements outlined in NZBC Clause G6. Consideration should be given to both the minimum requirements and the comfort of occupants.

BRANZ Appraised

Eco Choice Aotearoa

Lift Shafts, Risers, Ducts

KOROK

View Product

For lift shafts and duct walls, KOROK® offers significant advantages over traditional construction.

LBC Declare Red List Approved

NZ Made

NZ-Owned Business

For lift shafts and duct walls
Panels can be installed from one side only and before the building is watertight

BRANZ Appraised

Eco Choice Aotearoa

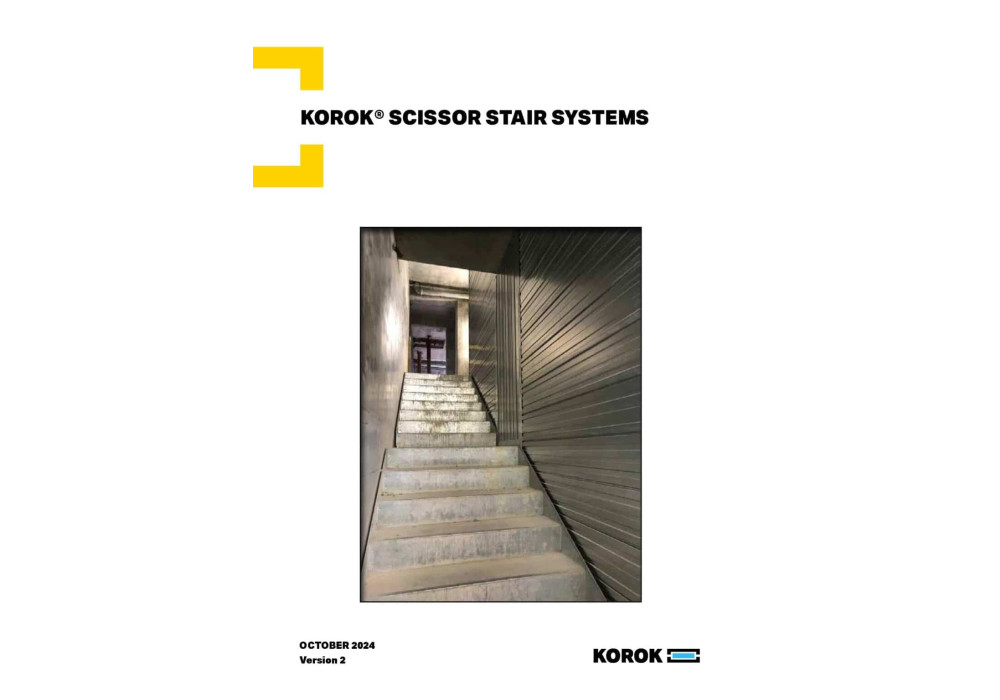

Scissor Stair Wall Systems — Fire Rated Protection

KOROK

View Product

For fire protection and acoustic performance, KOROK® has two-way fire-rated wall systems for fire separation of scissor or other stairs.

LBC Declare Red List Approved

NZ Made

Post-Consumer Recyclable Content

The KOROK® Scissor Stair Systems detailed should cover most common situations where fire resistance is required.

KOROK® Scissor Stair Systems are walls constructed from 78mm thick, horizontally and/or vertically oriented KOROK® panels installed between two independent stair stringers in scissor stair configurations.

KOROK® wall systems are self-supporting non-load bearing walls that may be constructed with horizontally or vertically stacked panels, or a combination of both.

The NZBC sets out both the legal minimum sound transmission between tenancies (Clause G6) and minimum levels of fire resistance (Clauses C3 and C6). The KOROK® Scissor Stair Systems Manual provides guidance on the specification and construction of systems that will both meet and exceed those minimum levels.

NZBC Clause B1 — Structure: The KOROK® Scissor Stair Systems meet the requirements for loads arising from self-weight, earthquake, wind, impact and creep and shrinkage.
NZBC Clause B2 – Durability: Under normal conditions of dry internal use, KOROK® Scissor Stair Systems have a serviceable life in excess of 50 years and satisfy the requirements of NZBC Clause B2 – Durability.
NZBC Clause C3 — Fire affecting areas beyond the source: KOROK® Scissor Stair Systems can be used to provide passive fire protection in accordance with the requirements of NZBC Clause 3 – Spread of Fire.
NZBC Clause C6 — Structural Stability: Compliance with (NZBC) Clause C6 ‘Structural Stability’. In order to satisfy the requirements of the New Zealand Building Code (Clause C6) relating to “structural stability” designers must ensure that KOROK® elements are supported by primary elements that have at least the same fire rating as the KOROK® Scissor Stair System that is used. Where the primary elements supporting the KOROK® Scissor Stair System are outside the f ire cell, there is no requirement to apply the same FRR as the KOROK® Scissor Stair System. Notwithstanding, post fire stability requirements of the NZBC must also be satisfied.
NZBC Clause F2 — Hazardous Building Materials: KOROK® Scissor Stair Systems meet this requirement and will not present a health hazard to people.
NZBC Clause G6 — Airborne and Impact Sound: KOROK® Scissor Stair Systems, both meet and exceed the minimum requirements outlined in NZBC Clause G6. Consideration must be given to both the minimum requirements and the comfort of occupants.

BRANZ Appraised

Eco Choice Aotearoa
